DLS MS5 User manual

REFERENCE SERIES
CAR AUDIO SPEAKERS
WELCOME
Thank you for buying a DLS REFERENCE speaker.
This manual will show you how to do a correct installa-
tion. Please read the entire manual before beginning the
installation.
Installthespeakersyourself ifyoufeelconfident withour
instructions and if you have the proper tools. However if
you feel unsure, turn over the installation job to someone
better suited to it.
INSTALLATION
Mount the speakers in the door or in the dashboard of
your car. Normally they will fit in the facory pre-made
mounting holes. If you want an improved sound reinforce
with a baffle of MDF-board or similar.An installation high
up on the door side is to be prefered. An alternative in-
stallation is in so called kick panels down on each side of
the floor with the speakers facing up- and inwards
towards the listener.
For two- or three way speaker systems with separate
tweeter an installation of the tweeter close to the bass/
mid element is to be prefered. The tweeter can also be
installed on the dash-board, or recessed in the door with
the accessories in the tweeter box.
It is important to fasten the speakers properly in order to
avoid bad sound or rattling.
For speakers with separate filters in boxes or similar it is
vital that they are attached properly to the interior of the
vehicle to avoid rattling. Don´t place them close to the
internal wiring of the car, this can cause interference.
Avoid to install filter boxes in the door sides because
they can easily be broken because of rattling or
moisture. Make sure the cables don´t get jammed
causing a short circuit to ground. This can damage the
output circuits of the head unit or amplifier.
The sealing strip coming with some of the kits can be
used for improved sealing between the bass element
and the mounting surface.
The tweeter installation for kits with separate tweeter is
described on last page, or in the instruction sheet
coming with the tweeters.
SPEAKER ENCLOSURES
If you want to install the speaker in an enclosure the nor-
mal size for a sealed type is:
4” (10 cm) speakers : 2-4 liters
5,25” (13 cm) speakers : 6-8 liters
6,5” (16,5 cm) speakers : 10-12 liters
8” (20 cm) speakers : 15-20 liters
6 x 9” speakers : 15-20 liters
7 x 10” speakers : 20-25 liters
These volumes are only a guideline. The volumes can
vary between different speakers. Contact your local DLS
dealer for more exact information about your specific
speaker.
PS4, PS5, PS6
PS4A, PS5A, PS6A
R4, R5A, R6A
MS5, MS6
R964, R1070
TWO-WAY SYSTEMS PS4/4A, PS5/5A & PS6/6A
These 2-way systems have a separate tweeter. The filt-
ers are either single filter box (PS4/5/6) or separate
lowpass and highpass in a plastic boxes with selectable
tweeter level inside (PS4A/5A/6A). PS-series have small
installation depth and fits mots modern vehicles. Install
the filter boxes in a dry place. Fasten them with screws or
wire ties. If installed in the door side face the connections
downwards to avoid moisture inside the filter box.
On the following pages you can see how to connect the
filters.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
TWO-WAY SYSTEMS R4, R5A & R6A
These 2-way systems have a separate tweeter. The filt-
ers are combined lowpass and highpass in a plastic box
with selectable tweeter level inside. R-series are spekers
with heavy magnet systems giving good speker control
but instead a larger installation depth.
On the following pages you can see how to connect the
filters.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
COAXIAL SPEAKERS R964 & R1070
These coaxial speakers have a separate filter box with
lowpass filter for the woofer and a highpass filter for the
tweeter.Thetweeterlevelcanbeadjustedinsidethe filter
box in two steps, high and low. R964 has a bi-wiring op-
tion in the filter.
On the following pages you can see how to connect the
filter.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
TWO-WAY SYSTEMS MS5 & MS6
These 2-way systems have a separate 28 mm tweeter.
Thefilters are combinedlowpassand highpass in aplastic
box with selectable tweeter level inside. MS-series are
spekers with heavy magnet systems. The woofers mag-
nesium cone body delivers a tight & controlled bass.
On the following pages you can see how to connect the
filters.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
IMPORTANT!
The speaker cone is made of magnesium, a material
of low weight with excellent acoustic qualitys.
We recommend you to NEVER touch the cone body
of MS5 or MS6 with your fingers.
Remaining deformation of the cone body will occour
if you touch it.

Model Woofer Tweeter Nom. Max Sensi- Magnet Inst. Mounting Crossover
power power tivity size depth hole
PS4/4A 10 cm / 4” 20 mm / 0,8” 50 W 80 W 90 dB 80 mm / 3,15” 50 mm /1,97” 98 mm / 3,85” Separate boxes
PS5/5A 13 cm / 5,25” 25 mm / 1” 50 W 80 W 92 dB 90 mm / 3,54” 45 mm / 1,77” 117 mm / 4,6” Separate boxes
PS6/6A 16,5 cm / 6,5” 25 mm / 1” 50 W 80 W 92 dB 90 mm / 3,54” 53 mm / 2,09” 146 mm / 5,75” Separate boxes
R4 10 cm / 4” 20 mm / 0,8” 50 W 80 W 94 dB 80 mm / 3,15” 60 mm / 2,36” 102 mm / 4” Separate box
R5A 13 cm / 5,25” 25 mm / 1” 80 W 120 W 94 dB 90 mm / 3,54” 60 mm / 2,36” 120 mm / 4,72” Separate box
R6A 16,5 cm / 6,5” 25 mm / 1” 80 W 120 W 94 dB 100 mm / 4” 76 mm / 3” 140 mm / 5,5” Separate box
R964 6 x 9” 25 mm / 1” 80 W 120 W 93 dB 120 mm / 4,7” 90 mm / 3,54” 150x220 mm / 5,9x8,7” Separate box
R1070 7 x 10” 25 mm / 1” 100 W 150 W 93 dB 145 mm / 5,7” 80 mm / 3,15” 156x225 mm / 6,15x8,86” Separate box
MS5 13 cm / 5,25” 28 mm / 1,1” 80 W 120 W 90 dB 90 mm / 3,54” 58 mm / 2,28” 120 mm / 4,72” Separate box
MS6 16,5 cm / 6,5” 28 mm / 1,1” 100 W 150 W 92 dB 100 mm / 4” 67 mm / 2,64” 140 mm / 5,5” Separate box
SPEAKER FACTS FOR DLS REFERENCE SERIES
RUNNING-IN PERIOD
Allow the speakers to play for at
least 15-20 hours.After this time the
performance is correct.

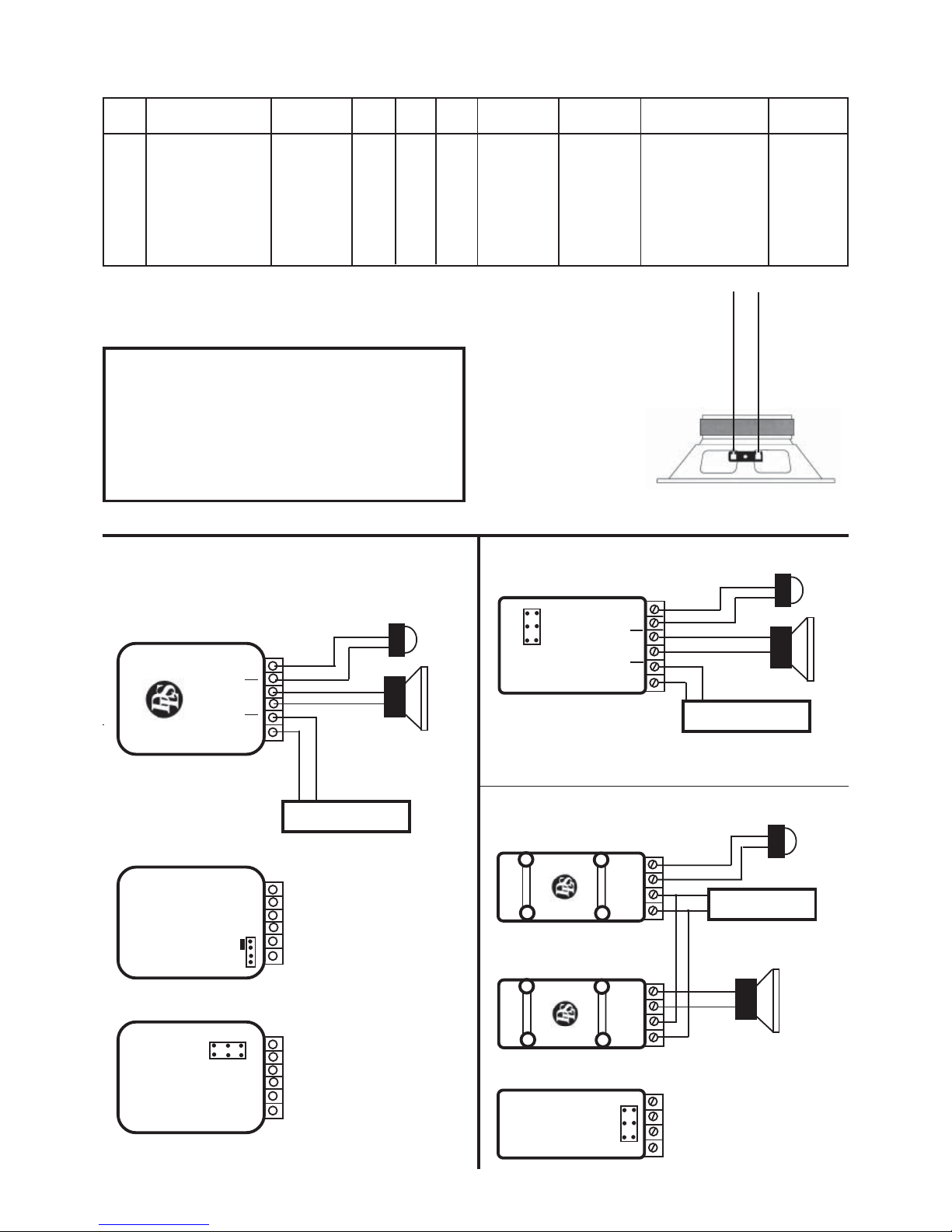

Filter installation and connection of
R4, R5A & R6A
FILTER/CROSSOVER INSTALLATIONS
CONNECTION OF
SPEAKERS
Make sure you connect
the cables with correct
polarity to the speakers.
Observe the markings on
the terminal. The small
terminal is minus.
SPEAKER PHASING
To be sure to have the correct speaker polarity (phase) you can
check this by using a 1,5 Volt battery.
Connect a cable from the battery plus-pole to the speaker plus,
and a cable from the battery minus to the speaker minus.
If the speakers are correctly connected the speaker cone should
move outwards on both right and left channel.
This check must be made on the cables going from the speakers,
to the output terminals of your car stereo or amplifier.
R4 tweeter level
select:
Select tweeter level by
moving the jumper inside
the filter box between high
or low. Make your own
tests for best result.
Filter installation and connection of PS4A,
PS5A & PS6A
R5A, R6A tweeter
level select:
Select tweeter level by
moving the jumper inside
the filter box between high,
mid or low. Make your own
tests for best result.
Tw level Hi
Mid Low Hi Low
Tw level
Hi Mid Lo
Tweeter level
select:
Select tweeter level by
moving the jumper inside
the filter box between high,
mid or low. Make your own
tests for best result.
Black/blue
+
+
--
IN TWEETER + - + -
Tweeter
+
-
Head unit / amp
+ -
Woofer
+
-
IN WOOFER + - + -
Silver/red
Silver
Black/blue
Black

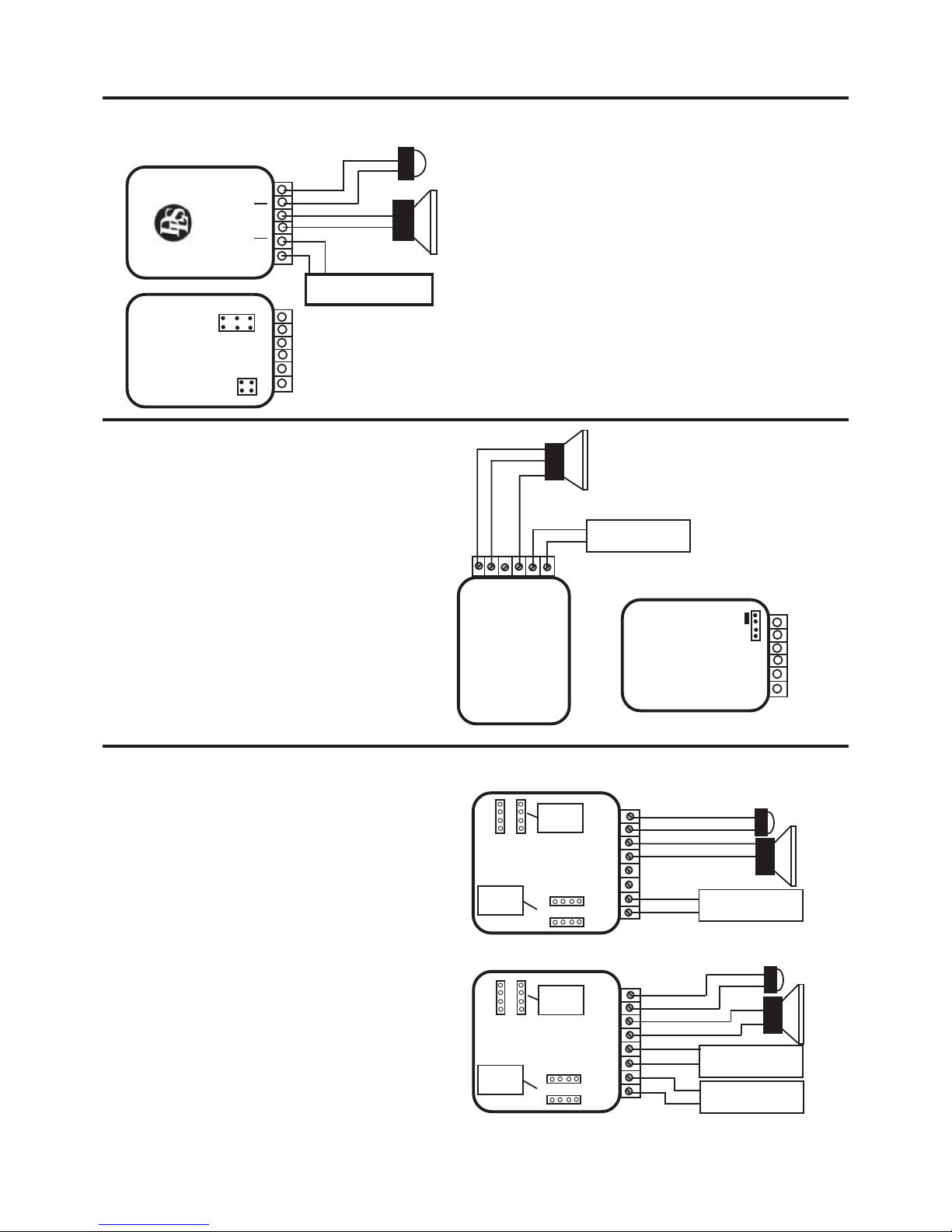

Filter installation and connection of
PS4, PS5 & PS6
Head unit / amp.
+
-
+
-
2-way crossover
INPUT WOOFER TWEETER + - + - + -
+
-
Woofer
Tweeter
Black
Silver/red
Silver
Tw select
Hi Mid Lo
INPUT WOOFER TWEETER + - + - + -
+
-
Silver
Silver/red Tweeter
Head unit/amp.
+
-
+
-
Bass/mid
Black/
blue
Black
Tweeter level select:
Select tweeter level by moving the
jumper inside the filter box
between high, mid or low. Make
your own tests for best result.

FILTER/CROSSOVER INSTALLATIONS
Filter installation and connection of MS5 & MS6
Filter installation and connection of R1070
Filter installation and connection of R964
Head unit / amp.
+
-
+
-
2-way crossover
INPUT WOOFER TWEETER + - + - + -
+
-
Woofer
Tweeter
THE JUMPERS INSIDE THE FILTER:
JUMPER J1
Jumper J1 is used for lowering the x-over frequency to the
tweeter.
J1 position Low: When the tweeter is mounted apart from
the bass element (for example on the dashboard), use this
position .
J1 position Hi: When both tweeter and bass elements are
mounted close together (for example in the door side), use
this position .
TWEETER LEVEL: JUMPER J2
Select tweeter level by moving the small jumper J2 inside
the filter box.
High level Mid level Low level
Tw level Hi
Mid Low
J2
J1
Hi Low
Tw x-over freq.
Connection and tweeter level select
R1070:
Use the red, blue and black cables to connect
between the filter box and speaker terminal. Note the
speaker terminal colour marking.
Select tweeter level by moving the jumper inside the
filter box between high / low. Make your own tests for
best result.
How to connect R964:
1. Normal mode.
In normal use (not Bi-wiring) connect the input from head unit or
amplifier to the woofer input.
Jumper J1 and J2 must be in position IN.
2. Bi-wiring mode.
Bi-wiring means that the signal is separated to the woofer and
the tweeter. For example, when using separate amplifiers for
woofer and tweeter. Both filter inputs are used. Set jumper J1
and J2 in position OUT to separate the filters + and ground.
If you connect the speaker element with active crossover, using
the amplifiers internal filters, you don´t need the filter boxes.
Use 3,5 kHz as X-over point.
Tweeter level: jumper J3 and J4
The tweeter level can be adjusted in three steps by moving the
small jumpers (J2 and J3) inside the filter box.
High level: J3: IN J4: IN
Mid level: J3: IN J4: OUT
Low level: J3: OUT J4: OUT
INPUT WOOFER TW
+ - + - + -
coaxial 2-way crossover
Red +
Blue +
Black -
Car stereo / amp.
Black = - common
Blue = + to woofer
Red= + to tweeter
Red = + Black = -
CONNECTION R964, normal mode:
Car stereo / amp.
coaxial
2-way crossover
INPUT OUT
WOOFER TWEETER WOOFER TWEETER + - + - + - + -
IN OUT
IN OUT
J2 J1
OUT IN OUT IN
J3 J4
Tweeter
level
Bi-wiring
on-off
coaxial
2-way crossover
INPUT OUT
WOOFER TWEETER WOOFER TWEETER
+ - + - + - + -
Amp. for woofer
CONNECTION R964, Bi-wiring mode:
IN OUT
IN OUT
J2 J1
OUT IN OUT IN
J3 J4
Tweeter
level
Bi-wiring
on-off
Amp. for tweeter
Hi Low
Black/blue
Black
Silver
Silver/red

TWEETER INSTALLATION T20
DLS Svenska AB
P.O. Box 13029
SE-40251 Göteborg, Sweden
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.dls.se
!!
!!
! Technical Assistance
For technical assistance ask the shop where the product
was sold or the distributor in your very country.You can
always phone the DLS Helpdesk in Sweden + 46 31
840060 or send an e-mail to [email protected]
Informationcanalsobe foundon ourWEB-sitewww.dls.se
We follow a policy of continuous advancement in
development. For this reason all or part of specifications
& designs may be changed without prior notice.
WARRANTY SERVICE
This speaker is covered by warranty, depending on the
conditions in the country where it is sold. If the speaker is
returned for service, please include the original dated
receipt with the product.
T20 can be mounted on the dashboard with the plain cup (1), the
angled cup (2), or recessed in a doorside. These tweeters are
included in the R4 and PS4 speaker kits.
SURFACE MOUNTING:
Plain mounting: Use only the plain mounting cup (1) (it´s normally
mounted at delivery). Attach to surface with the two screws or double
adhesive tape.
Angled mounting:Remove the plain mounting cup by bending with a
small screw driver in the gap (A). Attach the tweeter element to the
angled cup (2) as shown on picture 3. Pull the cable through the cen-
ter hole. Now the tweeter can be mounted in two different angles.
Attach to the surface with the two screws or double adhesive tape.
RECESSED MOUNTING:
Drill a hole in the door side with a diameter of 48 mm /1,89". The in-
stallation becomes easier if the door side is removed from the door.
Put the two metal wings through the two tracks in the center of the
cup, just as the picture shows, and attach them with the M4 screw
and nut through the center hole. Put the tweeter element into the cup
with the cable going out through the bottom hole. Attach the tweeter
element to the plain cup using the mounting ring (C) attached between
the cup and the tweeter element. The metal wings (B) should be on
the back side of the door panel, holding the cup in place.
A
2
13
TWEETER INSTALLATION T25/
UP1C
T25 /UP1C can be installed on the dashboard with the angled cup or
recessed in a doorside with the flush cup.
T25 are included in the DLS REFERENCE speaker kits PS5, PS6,
R5A and R6A. UP1C are included in the MS5 and MS6 speaker kits.
RECESSED MOUNTING:
You need a hole with a diameter of 46 mm
/ 1,81" in the door side (for UP1C 48 mm /
1,89”). Put the two metal wings through
the two tracks in the center of the cup, just
as the picture shows, and attach them
with the M4 screw and nut through the
center hole. The cup is attached to the
door side when the metal wings is pres-
sed to the back side of the door.
Put the tweeter element into the cup with
the cable going out through the bottom
hole. Then attach the element into the cup
and turn it clockwise to attach to the cup.
When removing the element from the cup,
turn it ccw and lift it out
B
C
Size 20 mm / 0,8"
Nom. power (RMS) 50 Watts, 80 Watts max
Freq. range 1,5 kHz-20 kHz
Sensitivity 93 dB
Magnet diameter 20 mm / 0,8" neodymium magnet
Mounting depth 20 mm / 0,8" (recessed mounting)
Mounting hole 48 mm / 1,89" (recessed mounting)
Cone material Silk
FACTS ABOUT DLS T20 TWEETER
A
FACTS ABOUT DLS T25 TWEETER
Size 25 mm / 1"
Nom. power (RMS) 50 Watts (80 Watts max)
Freq. range 1,5 kHz-20 kHz
Sensitivity 93 dB
Magnet diameter 28 mm / 1,1"
Mounting depth 18 mm / 0,71"
Mounting hole 46 mm / 1,81"
Cone material Hand treated fabric
FACTS ABOUT DLS UP1C TWEETER
Size 28 mm / 1,1"
Nom. power (RMS) 50 Watts (80 Watts max)
Freq. range 1,5 kHz-20 kHz
Sensitivity 93 dB
Magnet diameter 28 mm / 1,1"
Mounting depth 18 mm / 0,71"
Mounting hole 48 mm / 1,89"
Cone material Hand treated fabric
SURFACE
MOUNTING:
For angled surface mount
together with the angled cup:
The tweeter element is
attached to the cup by fitting
the three wings on the angled
cup into the tracks of the ele-
ment and then turn it
clockwise. When removing the
element from the cup, turn it
ccw and lift it up.
