INDEX
01 Warnings pag. 05
02 Safety precautions pag. 05
2.1 Meaning of the symbols axed on the machine pag. 05
2.2 General advices pag. 06
2.3 Electricity pag. 06
2.4 Cables pag. 07
2.5 Preparing pag. 07
2.6 Operating pag. 07
2.7
Storage and maintenance pag. 08
03 Lawn-mower assembling pag. 08
3.1 Guiding handlebar assembling pag. 08
3.2
Grass bag assembling pag. 08
04 Functioning pag. 09
4.1 How to adjust cutting height pag. 09
4.2 How to start and stop pag. 09
4.2.1 How to start the lawn-mower pag. 09
4.2.2 How to stop the lawn-mower pag. 09
4.3 How to know when the grass bag is full pag. 09
4.4 How to apply the mulching adapter pag. 09
4.5 How to mow pag. 09
05 Care and maintenance of the lawn-mower pag. 10
5.1 How to clean the equipment pag. 10
5.2 How to store the lawn-mower pag. 10
06 Solving problems pag. 11
07 Warranty pag. 11
08 Maintenance advises pag. 11

03
AB
CD
E

04
HI
JK
FG
G

05
01. WARNINGS
02. SAFETY
PRECAUTIONS
02.1. Meaning of the symbols axed on
the machine
Do not use any liquid products
for cleaning the equipment.
Any repairs must only be made
by authorized Dormak agents.
This lawn-mower can be
dangerous and may cause
serious injuries to the operator
or other persons, unless all
these safety warnings and
instructions are strictly attended. The
operator is responsable for correctly
reading and understanding them. Under
this condition only a safe operation of the
equipment will be guaranteed.
DANGER! Read the Instructions
Manual before operating.
Do not expose or use the
equipment under rainy weather.
Risk of injuries by slipping – do
not mow when the grass is wet.
Never place hands, feet or any
other parte of the body near
rotative elements.
Withdraw the lawn-mower’s
electric plug from power supply
before any maintenance or
cleaning operations.
Risk of injuries by ejected solid
objects.
Working on steepy slopes can
be dangerous
Risk of object ejection. No
person, specially children, or
animals must be allowed within
the working area.
Keep the electric cable away
from the cutting tools.

06
2.2. General advices
1. This device must not be operated by
persons with physical, mental ou sensitive
disabilities, by children or by anyone who
doesn’t have adequate experience or
knowledges. Children must not be allowed to
play with the device. As general prevention,
children under 16 years old aren’t authorized
to operate the machine.
2. This appliance must only be used for
the purposes specied at this guide, and
according the specied instructions.
3. Never operate the machine if you are tired,
ill or under the inuence od alcohol, drugs or
medicines.
4. The user is responsable for any accidents
which may cause damages to other
individuals or objects.
2.3. Electricity
1. We recommend the use of a R.C.D.
(Residual Current Device) with a shutdown
current not exceeding 30mA. However, even
the use of this device does not assures total
security, therefore all security practices
must be always observed. Check the R.C.D.
everytime it will be used.
2. Before operate the lawn-mower always
check the electric cable : if the cable is
damaged or in bad condition do not operate
the machine without replacing it.
3. If the electric cable is cut or its insulating
coating is damage during operation shut o
electricity immediately. Do not touch the electric
cable until electricity is shutted o. Damaged
cables must be replaced and not repaired!
4. The electric cable must be unrolled; an
rolled cable may overheat, which will reduce
the lawn-mower performance.
5. Keep the electric cable as far as possible
from the machine, and all the equipment
away from the power source. Mow the grass
by parallel lines rather than in circles.
6. Do not drag the electric cable over sharp
objects.
7. Always turn o the lawn-mower before shutting
o the equipment from the power supply.
8. Turn o the lawn-mower, shutt o the
electric plug and make sure that the cable
isn’t damaged before wrapping and storing
it. Never repair a damage cable, replace it
instead.
9. Wrap the electric cable carefully to avoid
making knots.
10. Never drag the lawn-mower by pulling
the cable.
11. Never disconnect the power supply by
pulling the cable.
12. The electric voltage allowed for this
lawn-mower is AC 230V.
13. This equipment is electrically isolated : never
make the earthing of any of its components nor
remove its insutation.

07
2.4. Cables
All extension cords to be used must
meet the minimum sections listed on the
following table:
2.5. Preparing
1. When operating the machine always wear
protective clothing, which includes safety
shoes and long straight trousers.
2. Be sure that there are no sticks, stones,
wires or any kind of object on the lawn that
might be ejected by the machine or damage
the blades.
3. Before using the machine or if a electric
shock occurs, check if there is any damaged
or worn element; if so, it must be immediately
replaced.
4. Whenever the blades are replaced, we
recommend the replacement of the whole
cutting unit, to avoid imbalances.
2.6. Operating
1. Work only at daylight or under good
articial lighting.
2. Do not mow when the grass is wet, neither stand
barefoot on it.
3. When mowing on steep slopes be careful
about slipping; wear adequate shoes.
4. Always mow crossways to the slope, never
upwards or down-wards.
5. Be particulary careful when changing
direction, specially on slopes.
6. Always work at walking speed, do not run.
7. Keep a safe and stable position, specially
on slopes. Do not use the machine near pools
or wells.
8. Be particulary careful when mowing in
reverse, there is the risk of stumble.
9. Do not mow pulling the machine towards you.
10. Never lift or carry the appliance when
it is functioning, specially over non lawny
sufarces.
11.Never operate the machine when its safety
devices are damaged or bad positioned.
12. Keep your hands and feet away from
the cutting elements, specially if the engine
is running. During repairing or checking
procedures on cutting elements always
wear gloves and adequate clothing. These
procedures must always be made when
the engine is switched o and the machine
completely disconnected from the power
suplly.
13. Do not tilt the equipment when the
engine is running or if it is connected to the
power supply.
14. Keep your hands away from grass
discharge slot.
VOLTAGE CABLE
LENGTH
MINIMUM
DIAM.
230 V / 50 Hz Up to 20 m 1.5 mm2
230 V / 50 Hz 20 – 50 m 2.5 mm2

08
15. Never lift or carry the machine when the
engine is running or if it is connected to the
power supply.
16. Disconnect the equipment from the
power supply:
- Everytime the machine is left unattended
by who has the hability to operate it;
- Before removing any object that may be
blocking the machiner;
- Before checking or handling any electric
component;
- If the machine hits an object. Do not re-use
the equipment without making sure that it is
in good working and safety conditions;
- If the machine starts vibrating in an unusual
way, switch it o immediately and check if
the blade is correctly tightened. In doubt,
refer to an Dormak’s authorized agent.
2.7. Storage and maintenance
1. Danger : do not touch a blade when it is
rotating, only when it is stopped, with no
connection to the power supply and wearing
protective gloves and adequate clothing.
2. Keep every screws, pins and nuts well
tightened, to asure that the machine is
working under the best safety conditions.
3. Check frequently the grass bag looking for
any kind of wear or damage.
4. For safety and performance reasons
replace all the dammage or worn parts.
5. All the replacement parts to be applied on
this machine must be Dormak origin, or have
Dormak’s approval.
6. Store the equipment on a cool dry location,
out of reach of children. Do not store on the
outside.
03. LAWN-MOWER
ASSEMBLING

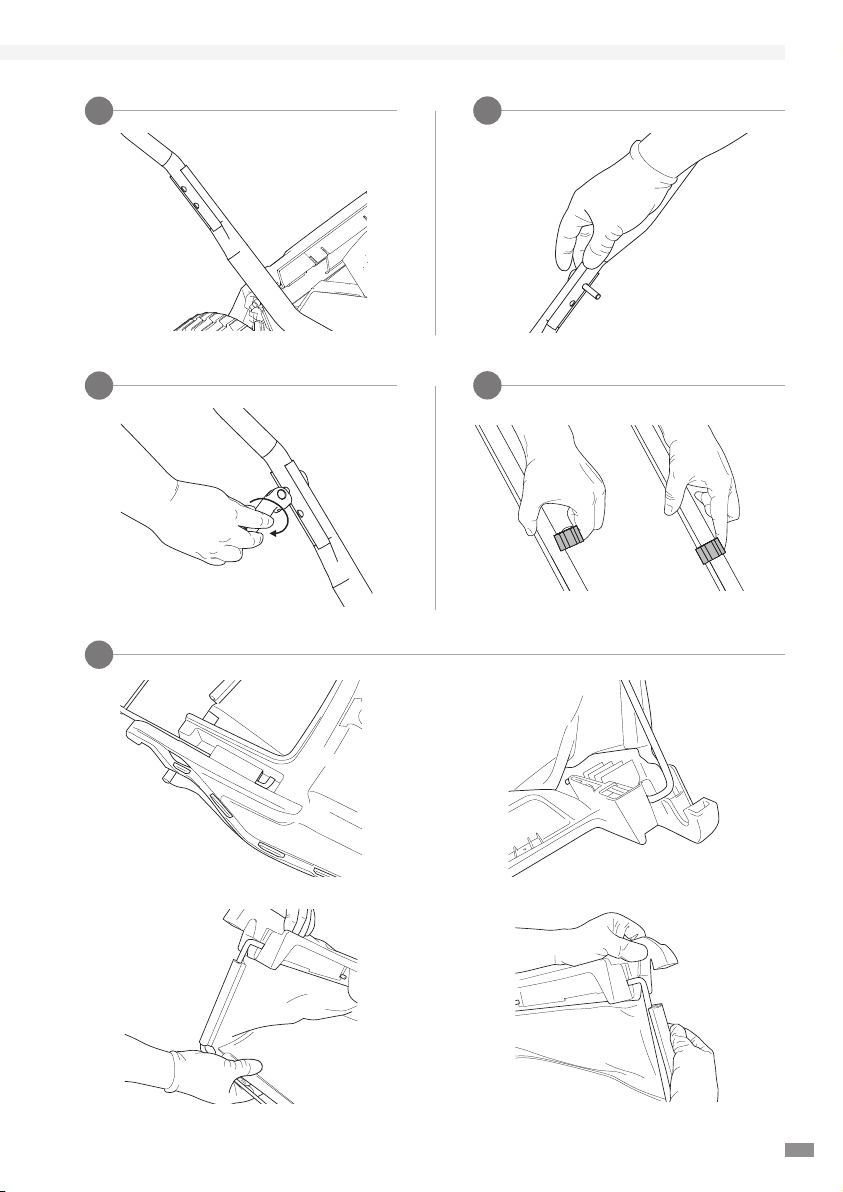

3.1. Guiding handlebar assembling
1. Remove the protective sponge which
covers the handlebar;
2. Make sure that the electric cable isn’t
wraped and position it on the outside of the
handlebar;
3. Insert the handlebar on the lower arm as
shown in picture A;
4. Select the required handlebar height, 1 or
2, and insert the screws (picture B);
5. Position the rapid clamping screw axle into
its hole (picture C), clamp it (X turns) and lock it.
6. Place the cable xing braces as shown on
picture D.
3.2. Grass bag assembling
1. Hook the suport wire of the grass bag on
the hard-top, as shown in picture E.

09
04. FUNCTIONING
4.1. How to adjust cutting height
Cutting height adjustment is made by moving
up or down-wards the height lever near the
wheels (picture F).
The lawn-mower allows 6 cutting height
positions from 20 mm up to 65 mm.
Note: the recommended cutting height for
most lawns corresponds to medium position.
The quality of cutting and grass colection may
be aected by a overly low cutting height.
4.2. How to start and stop
4.2.1. How to start the lawn-mower
1. Connect the extension cable to the comands
device;
2. Be sure that the extension cable doesn’t
stand under the lawn-mower;
3. Connetc the extension cable to the power
supply socket;
4. The comands device is equipped with a
“lock off” button, which helps to prevent
that the machine starts unexpectedly. Press
the button “lock off” and than press the
“on/off” lever on the device, keeping it
pressed for the entire period the machine
is intended to function. When the “on/off”
lever is pressed the “lock off” button must
be released (picture G)
Note: do not press/release the “on/o”
lever repeatedly, as this can cause serious
damages to the engine.
4.2.2. How to stop the lawn-mower
1. Release the “on/o” lever (Picture H).
4.3. How to know when the grass bag is full
As the grass bag becomes full the level
indicator cover becomes gradually closed
(picture I). When the cover is completely
closed, shut o the machine and empty the
grass bag contents.
4.4. How to apply the mulching adapter
1. For taking this procedure the lawn-mower
must be turned o and disconnected from
the power source. The user must wear
adequate gloves and clothing.
2. Remove the grass bag from the machine;

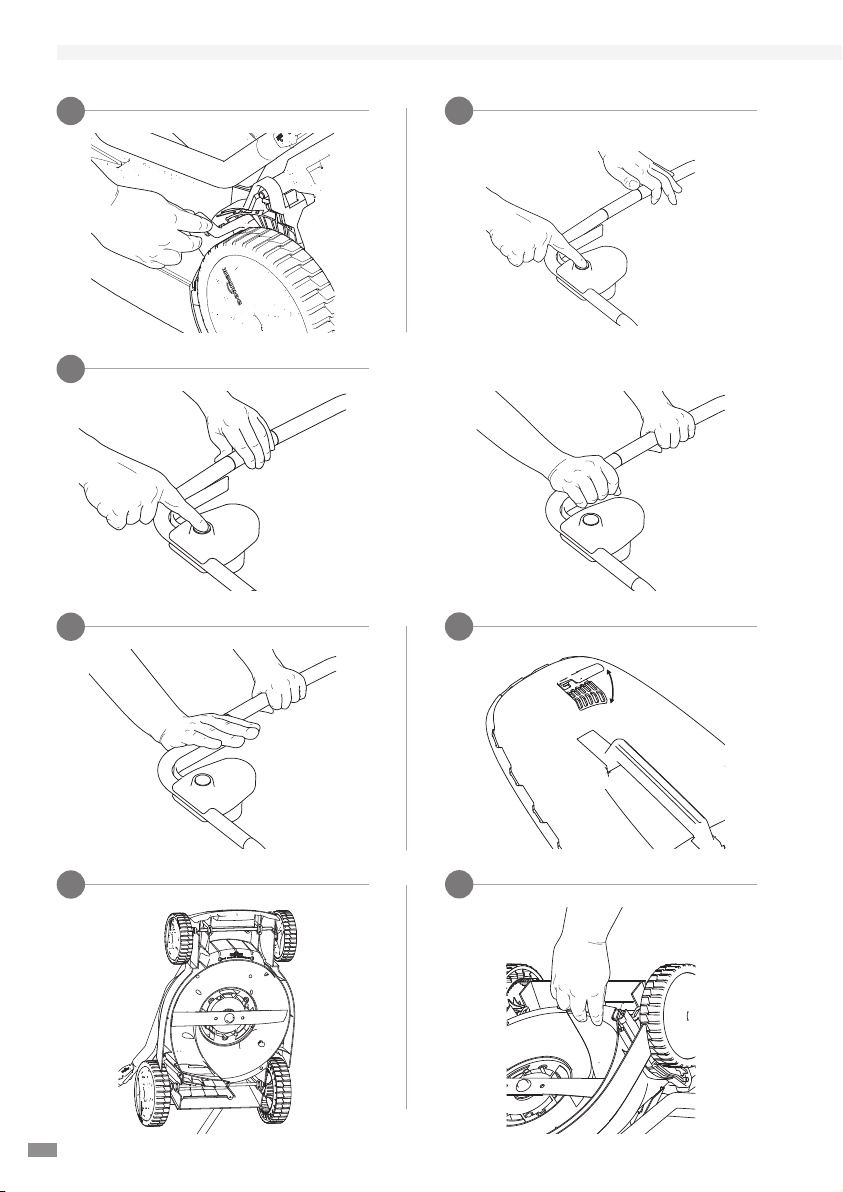

3. Position the machine as shown on picture J;
4. Place the mulching adapter as shown on
picture K. Be sure that the mulching adapter
is properly xed before replacing the
machine on its normal position.
4.5. How to mow
This lawn-mower can be used to mow in the
following dierent ways:
- With grass bag applied : the grass is eectively
colected and compressed inside the bag.
- With mulching adaptor : the grass is cut
and smashed in to very little pieces which
will turn into a good fertilizer for the lawn.

10
1. Start mowing on the area next to the
power supply socket, so that the extension
cable may extend over the lawn as you get
far from the socket.
2. Mow more often during the growth period,
as the grass must be cut maximum a 1/3
height at a time.
Do not overcharge the lawn-mower
Cutting a too high grass will lead to a lower
engine rotation which can be clearly heard.
As speed decreases, the engine may become
overloaded and the lawn-mower damaged. If
the grass is very high and dense the rst cut
must be made at a reasonable height, and, if
you want a shorter grass, cut it a second time
at a lower height. This is a good way to avoid
the engine overcharge.
05. CARE AND
MAINTENANCE OF THE
LAWN-MOWER
5.1. How to clean the equipment
- Always use adequate gloves;
- IMPORTANT: keeping the lawn-mower
clean is very important. Grass residues on
the air entrances or under the deck may be
dangerous for re hazard.
1. Wip out the grass from the deck with a
brush;
2. With a soft brush, remove all residues
from the air entrances, grass ejection gap
and grass bag;
3. Clean the visible surfaces of the machine
with a dry wiper.
- IMPORTANT: never clean the lawn-mower
with water. Do not use chemical products,
including gasoline, nor solvents – these
substances may damage some important
plastic pieces.
5.2. How to store the lawn-mower
Store it at a fresh dry palce, protected
from damages and out of children reach.
Never store outside.
At the end of the season:
1. Replace any nuts, oins or screws, if
necessary.
2. Properly clean the equipment.
3. Make sure the electric cable is quite tidy to
prevent damages.

11
06. SOLVING PROBLEMS
ProblEm SugEStIoN
MALFUNCTIONING
- Is the starting procedure correct? Consult “How to start the lawn-mower”.
- Is power on?
- Is the home switch on?
- If the home switch keeps shutting o, adress to an authorized Dormak service.
THE GRASS
IS BADLY
COLLECTED
1. Switch o the electricity;
2. Clean every air entrances, grass ejection gap and underneath the;
3. Choose a higher cutting heigth;
4. If the problem continues please adress to an authorized Dormak service.
TOO MUCH
VIBRATION
1. Switch o the electricity;
2. Check if the blade is well assembled.
3. If the blade is damaged or too worn replace it.
4. If vibration continues please adress to an authorized Dormak service.
THE MACHINE
BECOMES TOO
HEAVY WHEN
PUSHING
1. Switch o the electricity;
2. On the rst cutting procedure change to an higher cutting heigth.
3. Check if the wheels turn at ease, with no obstacles.
4. If the problem continues please adress to an authorized Dormak service.
07. WARRANTY
Dormak warrants this product for two years
from the purchase date. This warranty is
valid for every defects of the equipment
proven to be caused by fails or defaults on
manufacturing. During the warranty period,
Dormak will freely replace or repair the
equipment under the following conditions:
- The unit must have been dully handled
and the using instructions totaly observed.
- No repairing attempt has been made by the
buyer or any non-authorized third partie.
The blade is an element which wears out
naturally when used, so no warranty is
applied.
If your lawn-mower breaks down, please
adress a Dormak authorized service bringing
a purchase invoice and a short description
of the problem.
08. MAINTENANCE
ADVISES
We strongly recommend you to provide a
regular maintenance of the equipment, at
least once a year.

CR-001.12.UK
DORMAK, Lda
ZONA INDUSTRIAL DE VAGOS · LOTE 97/98
3840-385 VAGOS · PORTUGAL
T. 00351 234 914 686 · F. 00351 234 912 032
[email protected] · www.dormak.pt
OTHER PRODUCTS
SHREDDERS
LOG SPLITTER
HIGH GRASS MOWERS
SCARIFIER
