Dual 070XGPS251 Operating instructions

Warning: Do not apply pressure to the iPod screen
when removing
it from the Cradle. This can damage
youriPod.
USAGEill'
Tips for Best Performance
How 10 Remove thelPod from the CncIe
The correct way to remove the iPod from the GPS
~~~d~~~~ :hegGapl ~:Jreo:~~~:~~th~l~t~~~.h;;r·
gently on the iPod to remove it from the Cradle.
Holder Wiring
~~ =~~wer adaplor to connect Holder
to vehicle's power source to power GPS and charge
iPod.
Audio Out
Use Audio Out port 10 connect Holder to vehicle
stereo system
with 3.5 mm mini stereo audio cable.
Removing iPod
To remove iPod and Cradle from Holder. pull back
on tab at top of Holder. and iPod and Cradle will
slide out easily.
Note, The GPS will operate even when iPod and
Cradle are
not positioned in Holder.
INSTALLATION _
Tips for Best Performance
Hold tho GPS Cradle Upright
The GPS antenna is near the top of the Cradle and
faces
out the back. Try to aV(lid covering Ihe antenna
with your hand or laying it down on its back for
long periods of time. The CradLe performs best when
it has an unobstructed view of the sky.
Tem~,ilytum orrWlR
When turning on the GPS CradLe. you can often
shorten the amount
of time reqUired to determine
your position
by temporariLy turning off WiFi on the
iPod. Once the iPod is showing your location (in any
appl.
you can turn WiFi back on.
USB Porl
Use included mini USB 10 USB cable to connect unit
to computer for charging Isyncing iPod.
H .. dphone Jack
To listen wilh headphones. plug headphones inlo
headphone jack at base of unit.
Volume
Volume controls on Cradle allow easy volume
adjustment.
Power SwitdI
Move Power switch
to GPS to power GPS
fundion. When not
using GPS, move Power
switch
10 Battery to
charge iPodtouch orto
Off to save battery.
Battery Indicator
Press Battery Indicllor
bunoo, and Ihe four LED
lights above will illuminale to
indicate current charge.
Cradle Controls
Volume~
US8Porl~
HNdphOM Jack VolulM Up
4
_ INSTALLATION
Installation
INSTALLATION _
• Slide iPod touch and Cradle into Holderas
illustrated in Figure3 (above)
• To adjust viewing angle. lighten octagonal nul to
hold tke Holder in place. then rotate to desired
viewing angle.
~i~~=toCradleasiUustrated in

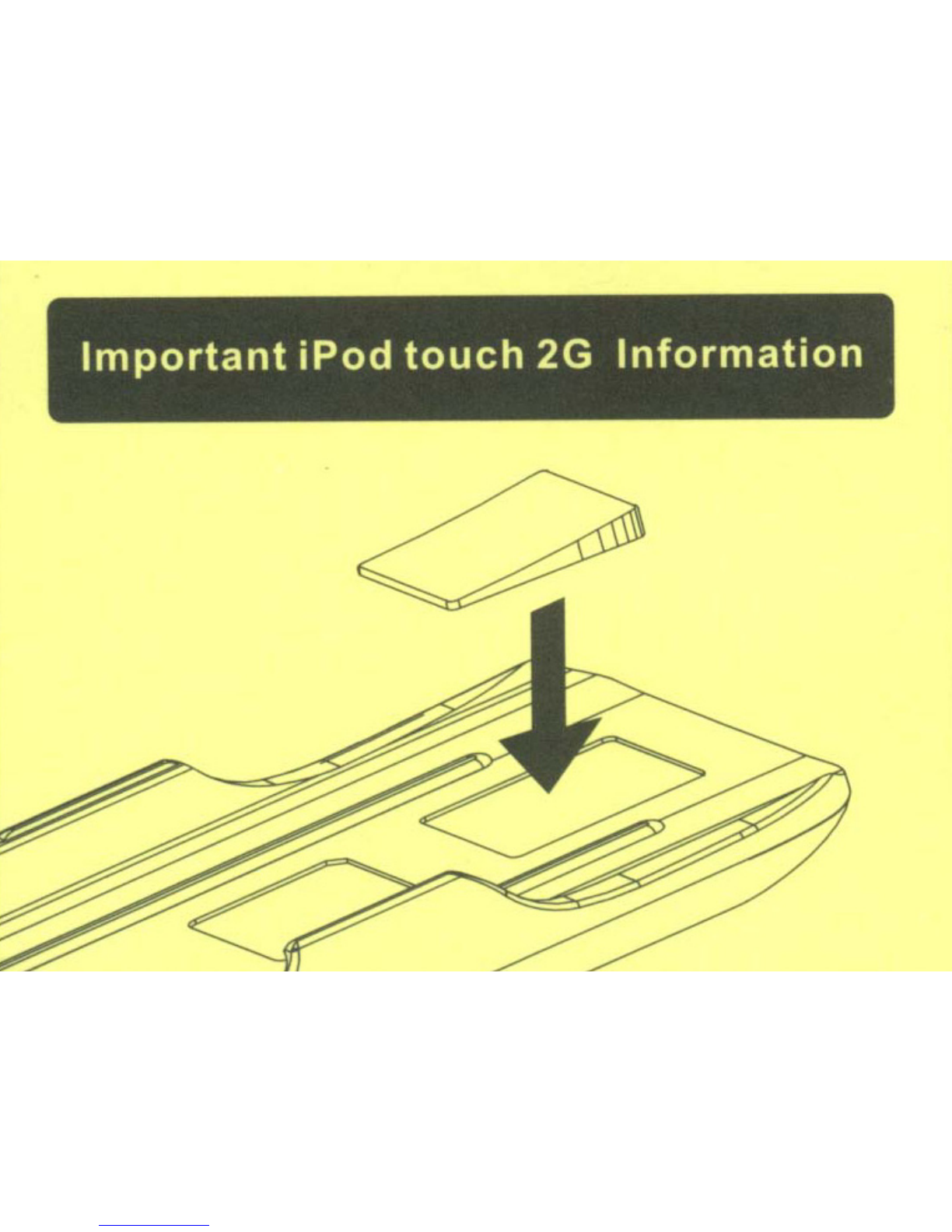

Figure 2(below). If using first generation iPod
touch. remove rubber spacer from Cradle before
inserting iPod.
Installing c.r Windshield Mount
• For best hold. first clean the windshield glass in
desired mounting tocation.
•Raise Ieveron Mount. attach to Mount 10 window
in desired Location and depress lever to secure.
Mounting Location
• Attach Mount in location Ihat is easity within reach
from driver's seat.
• Ensure Ihat chosen location will not obstruct
visibility. mirrors. airbags or any vehicle controls.
Not .. certain states regulate mounting locations
for safety reasons. Be sure to check and adhere to
local regulations when attaching Mount.
Atlachl"ll_
• Align four slots on
back of Holder with Figure 1
four clips on front of
Mount as illustrated
in Figure 1(at
rightl.5Udeunlil
Holder clicks
into place.
Preparation
The Portable GPS &Battery Cradle provides both GPS
Location data and backup ballery power to any 1st.
2nd or 3rd generation Pod louch~. Use the included
Car Windshield Mount to secure the iPod and GPS
CradLe in avehicle for easy access while on the road.
Note: The GPS Cradle is only designed to fit an ,Pod
touch. Inserting any olher device. such as iPhon~
can cause damage to both the unit and the device.
_ INSTALLATION
INSTALLATIONI
OWNER'S MANUAL
Portable GPS & Battery Cradle
for iPod touch

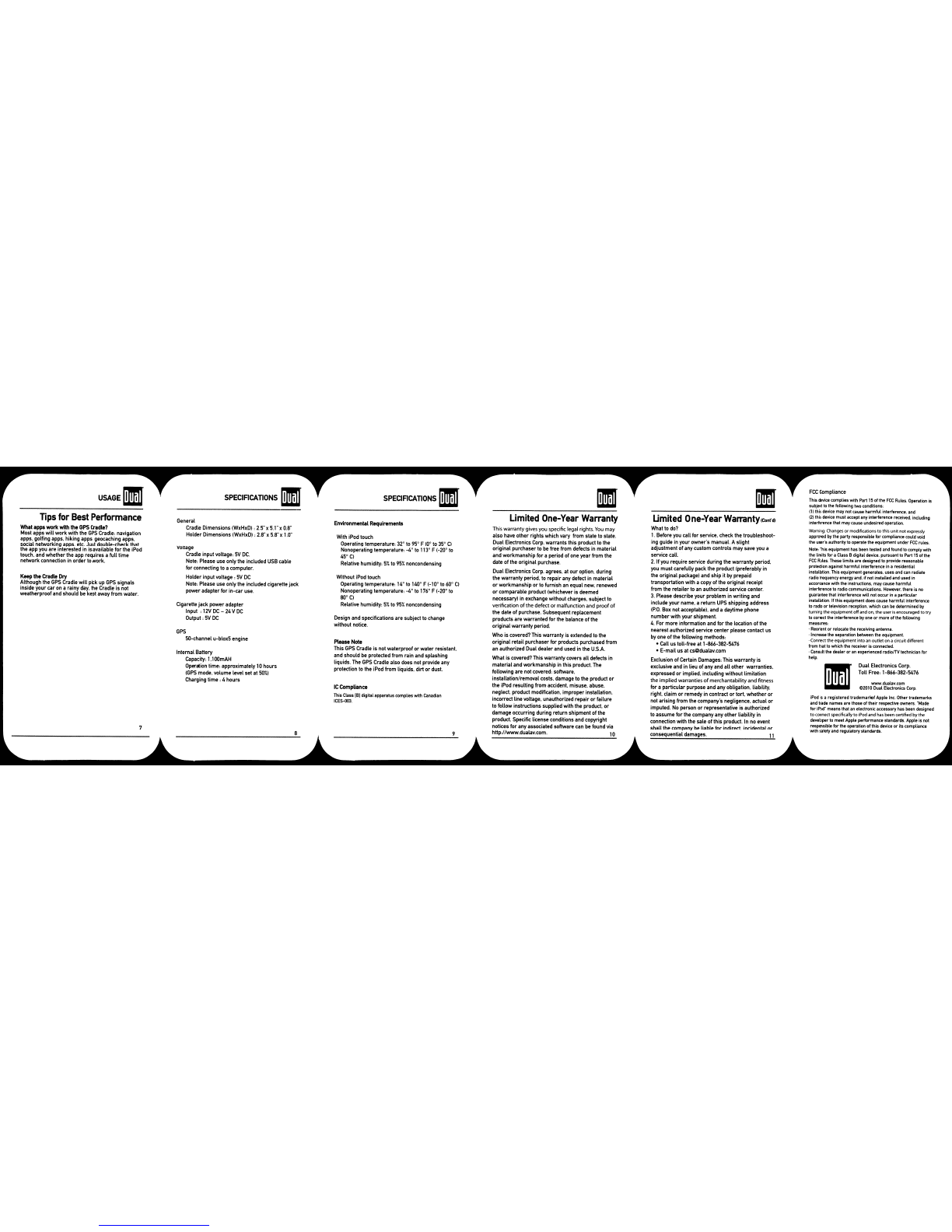

USAGE_
Tips for Best Performance
What apps workwith the GPS Cradle?
Most apps wiLL work with the GPS Cradle: navigation
apps. golfing apps. hiking apps. geocaching apps.
social networking apps. etc. Just double-check that
the app you
are interested in is available for the iPod
touch. and whether the app requires afull time
network connection in order to work.
KMjIlhe Crodle Dry
Although the GPS Cradle will pick up GPS signals
inside your car on arainy day. the Cradle is not
weatherproof
and should be kept away from waler.
SPECIACATIONS _
General
Cradle Dimensions (WxHxO): 2.5")( 5.1"x O.S"
Holder Dimensions (WxHxD); 2.8"x 5.S"x lO·
Voltage
Cradle input voltage: 5V DC.
Note, ptease use only the included USB cabLe
for connecting to acomputer.
Holder input voltage: 5V DC
Note: ptease use only the included cigarette jack
power adapter for in-car
use.
Cigarette jack power adapter
Input :12VDC-24VDC
Output: 5V DC
GPS
50-channel u-btox5 engine
Internal Battery
Capacity: l.100mAH
Operation time: approximately 10 hours
(GPS mode. volume level set at 50%)
Charging time, 4hours
SPEClACATlONS _
Environmental Requirements
WithiPodtouch
Operating temperature:
32° to 95° F (0° to 35° C)
Nonoperating lemperature: _4° to 113° F (_20° 10
45°C)
Relative humidity: 5% to 95X noncondensing
Without
iPod touch
Operating temperature: 14° to 140° F (_10° 10 bO° C)
Nonoperating temperature: _4° to 176° F (~20° to
SOOC)
Relative humidity, 5X to 95% noncondensing
Design and specifications are subjeclto change
without notice.
Please Note
This GPS Cradle is not waterproofor water resistant.
and should be protected from rain and splashing
liquids. The GPS Cradle also does not provide any
protection to the iPod from liquids. dirt or dust.
Ie CompUance
ThisC!ass IBJ digitalapparalus complies with Canadian
ICES-OOO.
Limited One-Year Warranty
This warranty gives you specific legal rights. You may
also have other rights which vary from state to state.
Duat Bectronics Corp. warrants this produclto the
original purchaser to be free from defects in material
and workmanship for aperiod of
one year from the
date of the original purchase.
Dual Electronics
Corp. agrees. at our option. during
the warranty period. to repair any defect in material
or workmanship or
to furnish an equal new. renewed
orcomparable product (whichever is deemed
necessary)
in exchange without charges. SUbject to
verification ofthe defe<t or malfunction and proof of
the date ofpurchase. Subsequent replacement
products
are warranted for the balance of the
original warranty period.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased from
an authorized Dual dealer and used in the U.S.A.
What is covered? This warranty covers all defects in
material and workmanship in this product. The
following are not covered: software.
installation/removal costs. damage to the product or
the iPod resulting from accident. misuse. abuse.
neglect. product modification. improper installation.
incorrect line voltage. unauthorized repair or failure
to follow instructions supplied with the product. or
damage occurring during return shipment ofthe
product. Specific license conditions and copyright
notices for any associated software
can be found via
httpdlwww.dualav.com. 10
Umited One-Year WarrantYICon"~
What to do?
1. Before you call for service. check the troubleshoot-
ing guide in your owner's manual. Aslight
adjustment of any custom controls may save you a
service call.
2. If you require service during the warranty period.
you must carefully pack the product (preferably in
the original package) and ship it by prepaid
transportation with a copy of the original receipt
from the retailer to an authorized service center.
3. Please describe your problem in writing and
include your name. areturn UPS shipping address
(P.O. Box not acceptable). and adaytime phone
number with your shipment.
4. For more information and for the location of the
nearest authorized service center please contact us
by one ofthe following methods:
•
Call us toll-free at 1-866-382-5476
•E-mail us at csOdualav.com
Exclusion
of Certain Damages: This warranty is
exclusive and in lieu of any and all other warranties.
expressed or implied. including without limitation
the implied warranties
of merchantability and fitness
for aparticular purpose and any obligation. tiability.
right. claim or remedy in contract ortort. whether or
not arising from the company's negligence. actual or
imputed.
No person orrepresentative is authorized
to assume for the company any other liability in
connection with the sale of this product. In no event
shall the company be liable for indirect. incidental or
consequential damages. 11
FCC Compliance
This device complies with Part 150fth. FCC Rules. Operalion is
subject to lhe following
two conditions
(ljthisdevicemaynolcauseharmfulint.rferenc'.and
(2) this device mustacctptanyinterlerencereceiYed. including
interference thaI
may cause undesirtd op*ration
Warning: Changes Of modifications to this unit not e~pressly
aPJIrovedbythepartyresponsibleforcompliancecouldvoid
the user's authority to operate the equipment under FCC rulK
Note, This tlqllipm.nl has been lested and found to comptywith
the limits
fora ctass Bdigitaldevice. pursuant to Pari 15 of the
FCC Rules. TheSl limits are designed to provide reasonable
prolectionagainstharmfulinterferenceinilresidenlial
installalion. This equipment generates. U5eS and can radiate
radio
frequenq energy and. if not inslalled and used in
accordance with the instructions. may cause harmful
interference to radio communications. However. there is no
guaranteethilt interferencewiU not occur in aparlicular
installation. Ifthis equipment does cause
harmlul interference
10 radio or television reception.wnichcan be determined by
turning
Ihe equipment ofl and on. the U!ief is encouraged 10 try
to correct the interference by one or more of the following
measures:
·Reorientorrtlocatelherect'ivinganlenna
.Increase theseparalion belween the equipment.
·Connecllheequipmentintoanoulletonacifcu;ldiffe.ent
from that to which the receiver is connected
.Consult the dealer
oran eltperienced radiofTV technician for
h.lp
InDual Electronics
Corp.
IToll Free: 1-866-382-5476
Iwww.dualav.com
C2010 Dual Electronics Corp.
iPod isa registeredtrademar1cllApple Inc. Othertrademar1ts
and trade names are those
ollhtir resplctiw owners. "Made
for iPod" means thaI an electronic accessory !las been designed
10 connect specifically 10 iPod and has ~n <enified by the
developer to meet Apple performance standards. Apple is nol
responsibl.efortheoperationoflhisdeviceoritscompliance
with safety and regulatory standards

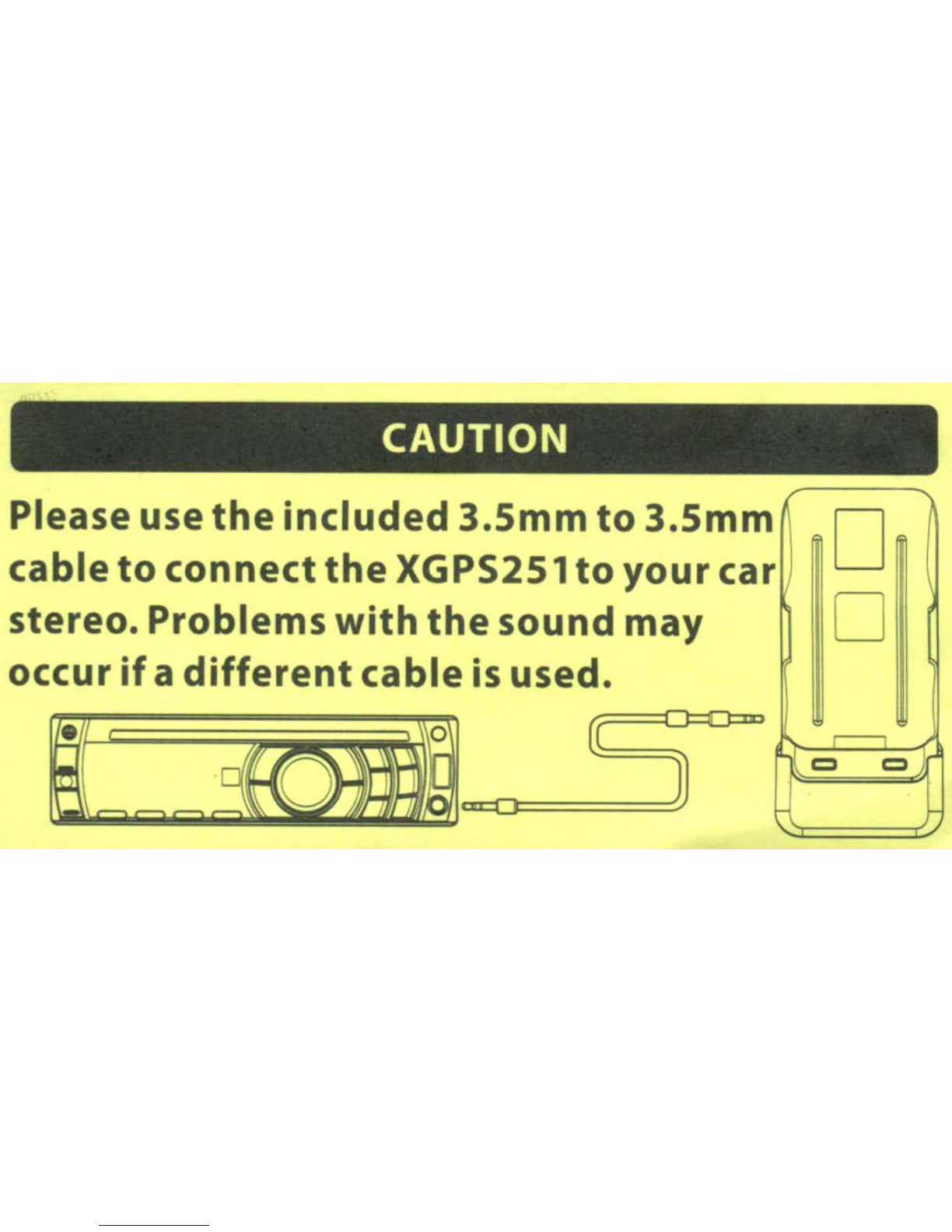

-CAUTION
~D
0
I I
~c Q~
~
r-
j
•
o3.5m
to you ear
ay
50 .
•5 5
3.5
XPS25
Ia U5 ·nc
cab toe c
eeo. ro Ie
oee iffe nea I

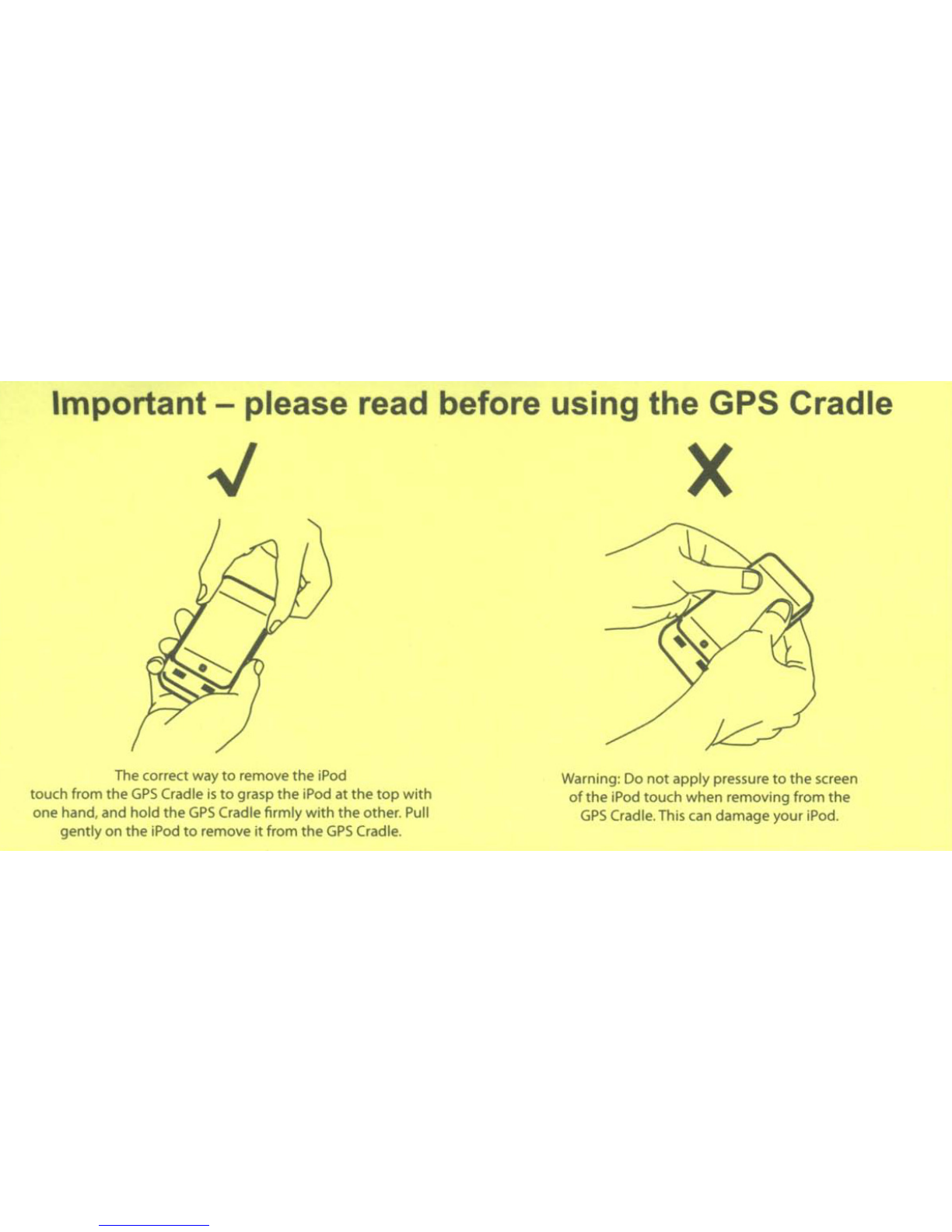

Important -please read before using the GPS Cradle
The correct way to remove the iPod
touch from
the GPS Cradle is to grasp the iPod at the top with
one hand, and hold the GPS Cradle firmly with the other. Pull
gentlyon the iPod
to remove it from the GPS Cradle.
x
Warning: Do not apply pressure to the screen
of the iPod touch when removing from the
GPS Cradle.This can damage your iPod.
