DURASUN Connect Li 1000 User manual

DC TELEVISION
16" inch & 21" inch
12 Volt
DC
USB
HDMI
Build
in
DVD
vga
input
20/25
Watts

16" 12 Volt DC Digital Solar TV and DVD Player
16" Digital Solar TV and
DVD Player
Connect Li 1000 Connect 2050 Connect 3050
No lamps on 2 hours 4 hours 6 hours
All lamps on for 3 hours 1 hour 3 hours 4.5 hours
The 12V TV and DVD player plugs directly into the Barefoot Connect 12V output.
It includes a multi-region DVD player and USB input for playing multimedia iles.
By utilising the latest LED technology and eficient power supply, average power consumption is
only 20W. Basic product speciications include;
1. 16 inch LED display
2. Remote control
3. Multi-region DVD player
4. USB input
5. AV input
6. HDMI inputs
7. Analogue/digital tuner
8. ON/OFF switch to disconnect
power to device
9. 12V Barefoot Connect power cable
10. 13W average power consumption
It is critical to switch the TV off at the
power cable when not in use to conserve
battery power. The TV will continue to use
power if left on, or in standby mode.
The TV is compatible with all 12Volt DC outputs of
Connect systems. However, it is recommended for use
only with larger system to preserve enough power
for lighting and other activities.
Durasun Solar Solutions provides a 12 month warranty on this accessory.
Runtime per full day of charging
Solar Solutions

16" Digital Solar TV and
DVD Player
Solar Solutions

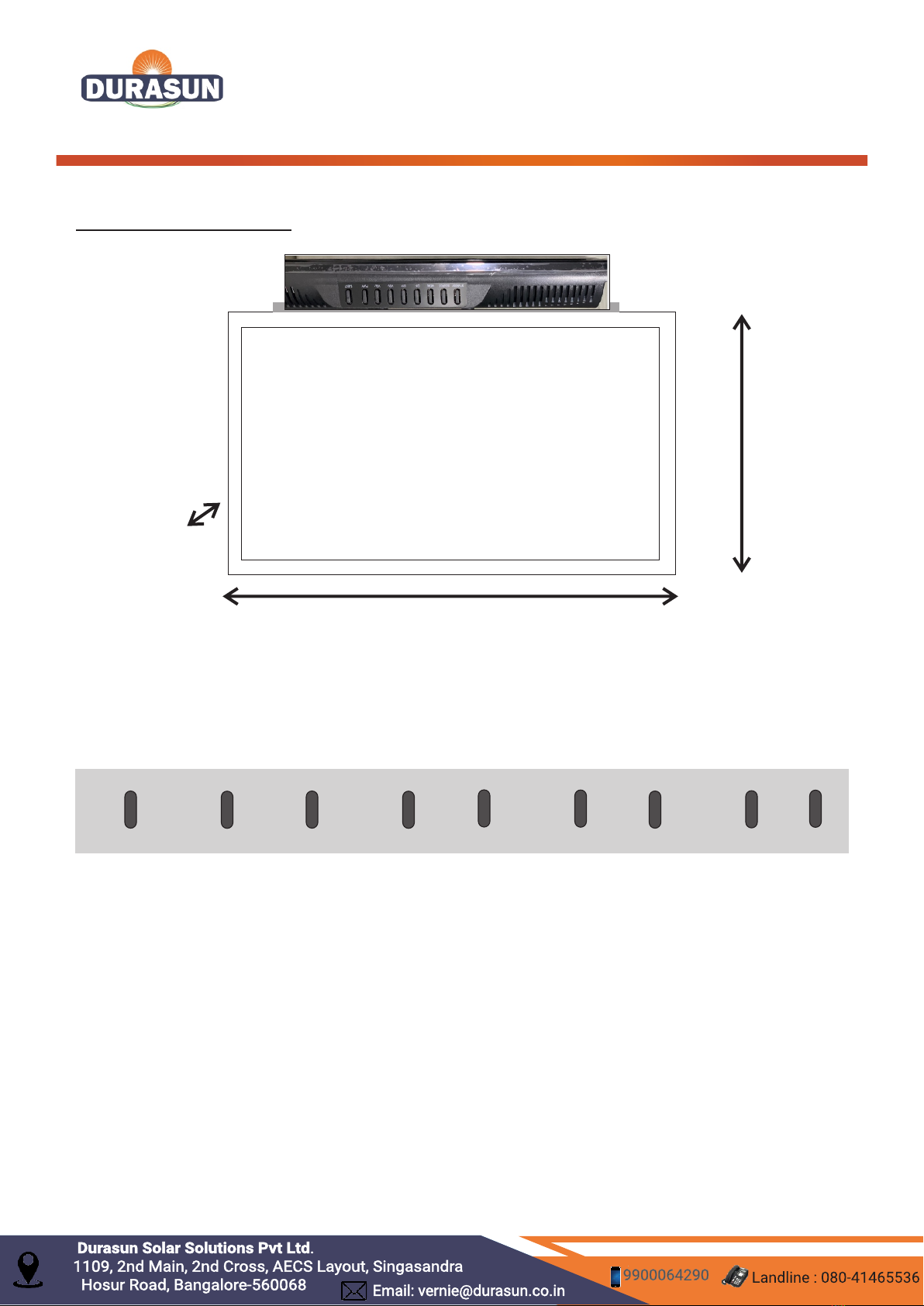

37 cms
23.6 cms
1. Remote Sensor
2. Standby Indicator
Indicates whether the unit is ON or in STANDBY (OFF) mode.
STANDBY SOURCE MENU ON OFF VOL- VOL+ PLAY EJECT
3. The functions of the buttons are described as below.
STANDBY : Press to turn the unit on or off.
SOURCE : Press to select the input of source of the TV.
MENU : Press to display the On Screen display menu, press again to exit the menu.
CH+/- : Press to scan through the channels.
VOL+/- :Press to adjust the volume.
PLAY : Play/ Pause the DVD disc playing.
EJECT : Eject the DVD disc.
3
1 2
3

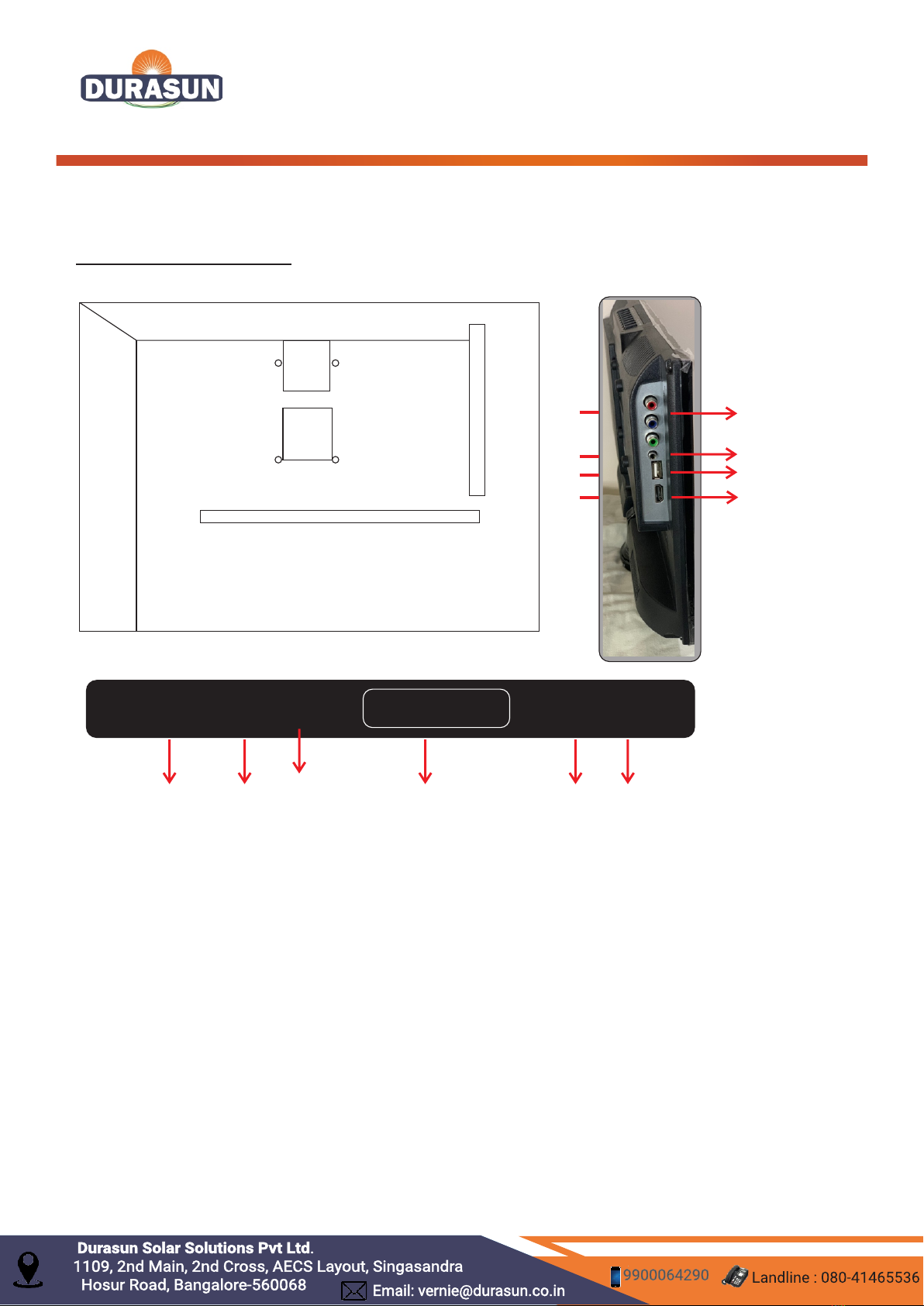

Device Overview
4.5 cms

16" Digital Solar TV and
DVD Player
Solar Solutions
Device Overview
USB
HDMI Input Jack
Headphone Jack
YPbPr Input Jack
DC In VGA PC RF SPDF
Audio CVBS L R
1 2 3 4 5 6
7
8
9
10
1. Power Cord 6. Coaxial Output Jack
2. VGA Input Jack 7. HDMI Input Jack
Connect to the PC output jack Connecting of HDMI signal
a personal computer
3. PC Audio Input Jack 8. USB
Connected to the audio output Connecting for USB device
jack on a personal computer
4. AV Input Jack 9. Headphone Jack
Connecting for composite signal
input in AV mode
5. Antenna Input Jack 10. YPbPr Input Jack
Connecting to external antenna Connecting for component signal
to receive the TV input in YPbPr mode

16" Digital Solar TV and
DVD Player
Solar Solutions
remote control

16" Digital Solar TV and
DVD Player
Solar Solutions
remote control

22" Digital Solar TV
Digital Solar TV
Connect Li 1000 Connect 2050 Connect 3050
No lamps on 2 hours 4 hours 6 hours
All lamps on for 3 hours 1 hour 3 hours 4.5 hours
The 12V 22" Solar TV plugs directly into the Barefoot Connect 12V output. It includes a USB input
for playing multimedia files.
By utilising the latest LED technology and eficient power supply, average power consumption is
only 25W. Basic product speciications include;
1. 16 inch LED display
2. Remote control
3. USB input
4. AV input
5. HDMI inputs
6. Analogue/digital tuner
7. ON/OFF switch to disconnect
power to device
8. 12V Connect power cable
9. 13W average power consumption
It is critical to switch the TV off at the
power cable when not in use to conserve
battery power. The TV will continue to use
power if left on, or in standby mode.
The DC TV is compatible with 12 volt output of
Connect systems. However, it is recommended for use
only with larger system to preserve enough power
for lighting and other activities.
Durasun Solar Solutions provides a 12 month warranty on this accessory.
Runtime per full day of charging
Solar Solutions

The Connect range of solar home
systems is designed to meet the needs of
households and businesses without reli-
able access to electricity. Durasun Connect
offers durable, convenient, and affordable
solar home systems. All Connect systems
include a quality power controller, eficient
LED lights and a robust polycrystalline
solar panel.
Connect includes two USB outputs and-
one 12V socket enabling users to easily
charge multiple phones and other devices
simultaneously.
The plug-and-play Connect kits come with
everything needed for installation, including
wiring clips and wall-screws for neat and
easy installation without any electrician.

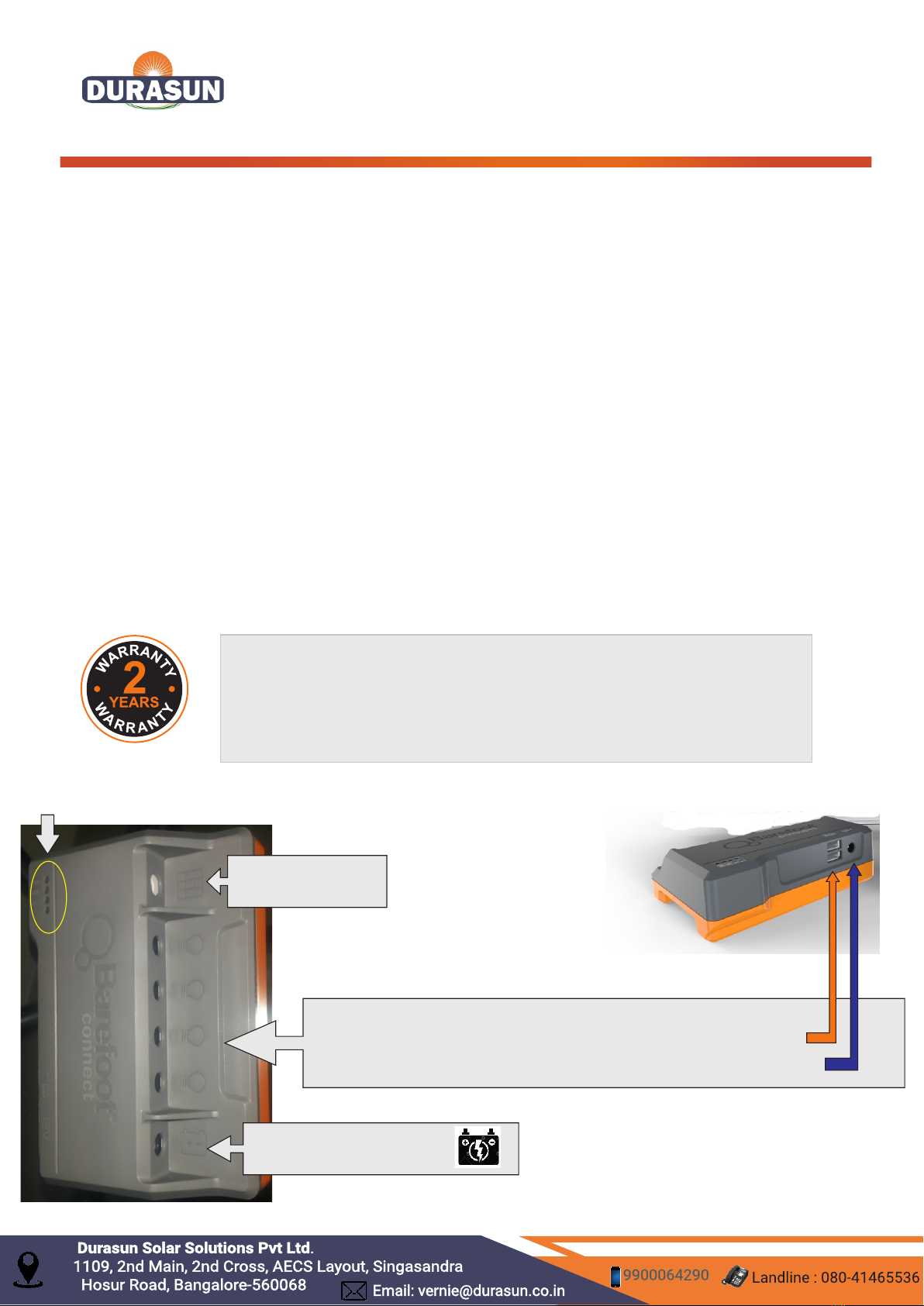

The Barefoot Connect controller includes
advanced four-stage charging technology
and protection circuits to extend the life of
the battery.
The microprocessor-controlled system
also includes LED indicators to show how
much power remains in the battery. As well
as lashing the red low-power LED, Bare-
foot Connect will double lash all the lights
if power is running low so the user is not
left in the dark.
All Connect systems, including batteries,
are maintenance-free and have no running
costs. The Connect series of products is
backed by a comprehensive 24-month
warranty. Connect products provide
brighter and safer lighting and will save the
¬ Expandable Charge controller from 5w to 60W
¬ Microprocessor manufactured using robotic arms
¬ Polycarbonate rust proof & shock proof
¬ Plug & Play
For charging battery
Battery charging Indicator
m 4 lighting points 1amp can be extended for lighting 10 lights
m 2 mobile charging points
m12Volt Port for Chargng Fans/TVs/Laptop Chargers
Solar Panel
Connecting port
CHARGE CONTROLLER
Solar Solutions
