DX Engineering DXE-NVIS-8040NM User manual

Near Vertical
Incidence
Skywave
(NVIS)
Antenna
DXE-NVIS-8040
DXE-NVIS-8040S
DXE-NVIS-8040NM
DXE-NVIS-8040SNM
DXE-NVIS-INS Revision 1
© DX Engineering 2019
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: [phone] ∙ Tech Support and International: [phone]
Fax: [phone] ∙ E-mail: [email protected]

- 2 -
Introduction
DX Engineering’s Near Vertical Incidence Skywave (NVIS) Antennas for both 80 and 40 meters
are available in two models. The difference between the two models is the foot print size area
needed. The larger version the DXE-NVIS-8040 is a full size 80 and 40 meter NVIS antenna that
uses no coils. The footprint for this model is approximately 158 feet by 75 feet. The second version
-DXE-NVIS-8040S uses two coils on the 80 meter legs which shrinks the footprint to
approximately 75 feet x 75 feet.
Both versions operate virtually identical to each other and provide the operator with a complete kit
to get on the air in an emergency or other temporary communications event. The NVIS antenna can
also be permanently installed for every day use.
For those that have their own non-metallic 15 foot mast, you can purchase the NVIS antenna kits
with all the parts except the mast assembly. Part numbers for those antenna kits are: DXE-NVIS-
8040NM and DXE-NVIS-8040SNM.

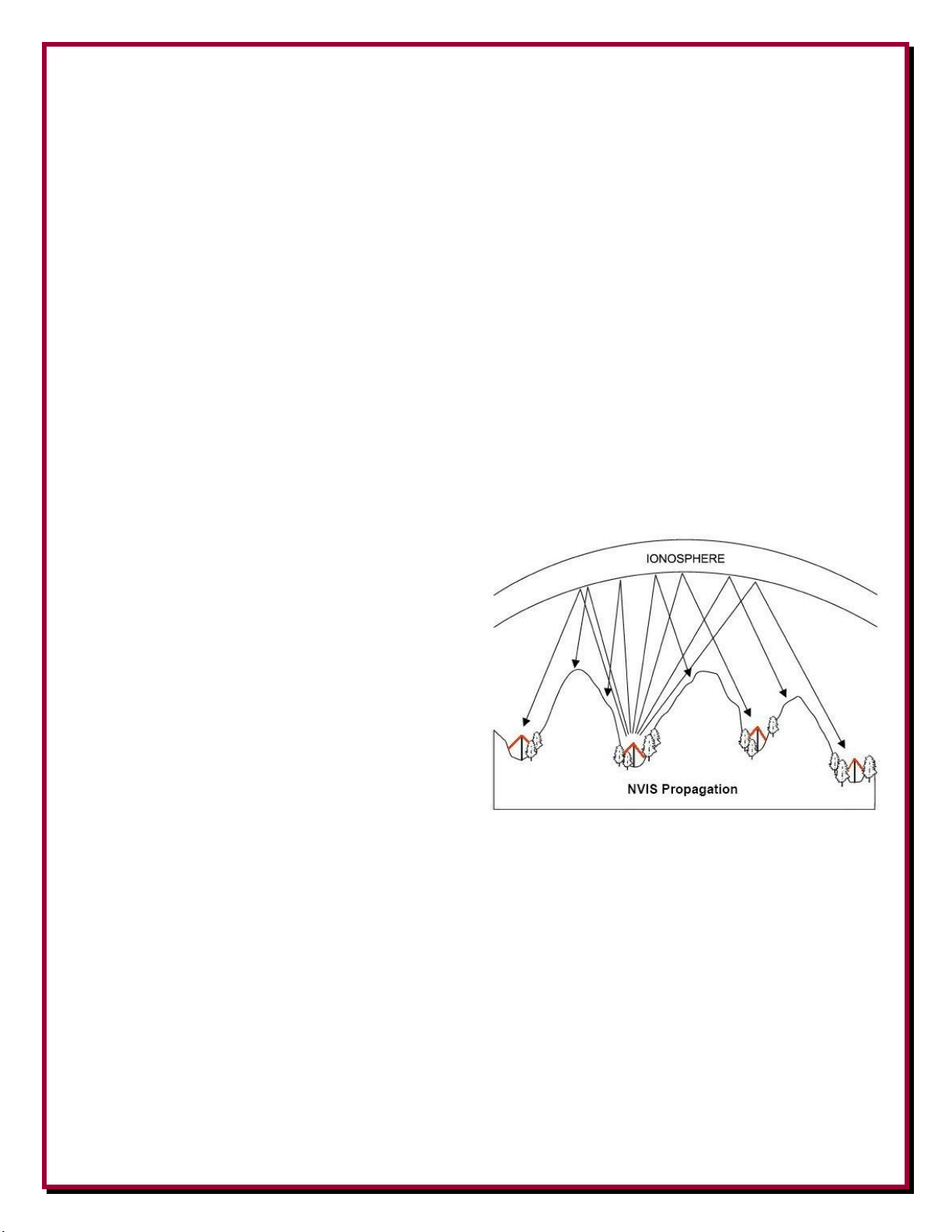

NVIS
Near Vertical Incidence Skywave (NVIS) is a
propagation mode which uses high angle
radiation to send signals almost straight up to be
reflected back to Earth for very effective short to
medium distance communications. This mode of
operation makes it ideal for in-state
communications during disasters or other
emergency situations. The military has used
NVIS techniques for decades to provide short
haul communication with other units on the
ground.
NVIS only works at frequencies from 2 MHz to
10 MHz. The signal must penetrate the D layer of the ionosphere, and bounce off the F layer.
Lower-frequency signals will not penetrate the D layer; higher frequencies will not bounce off the F
layer at these sharp angles and just goes out into space. Remember the Maximum Useable
Frequency (MUF) For amateur radio operators, we're looking at 40 and 80 meters primarily for
NVIS use.
A good NVIS antenna will not work well at DX distances. Antenna gain is a zero sum game. There
is a fixed amount of energy radiating. If we push it all out in one direction (the near-vertical angles),
we have to take it away from another direction (the low DX angles).
Regular height dipoles or vertical antennas have a lower take off angle and your signal may be
heard three states away, but not in your state due to the skip zone. This skip zone is the area
between the maximum ground wave distance and the shortest sky wave distance where no
communications are possible. Depending on operating frequencies, antennas, and propagation
conditions, this skip zone can start at roughly 10 to 20 miles and extend out to several hundred

- 3 -
miles, preventing communications with the desired station. The other term called ground wave is
where your signal does reach someone closer. A ground wave signal can go up to approximately 50
miles if conditions, including terrain and obstacles, are favorable.

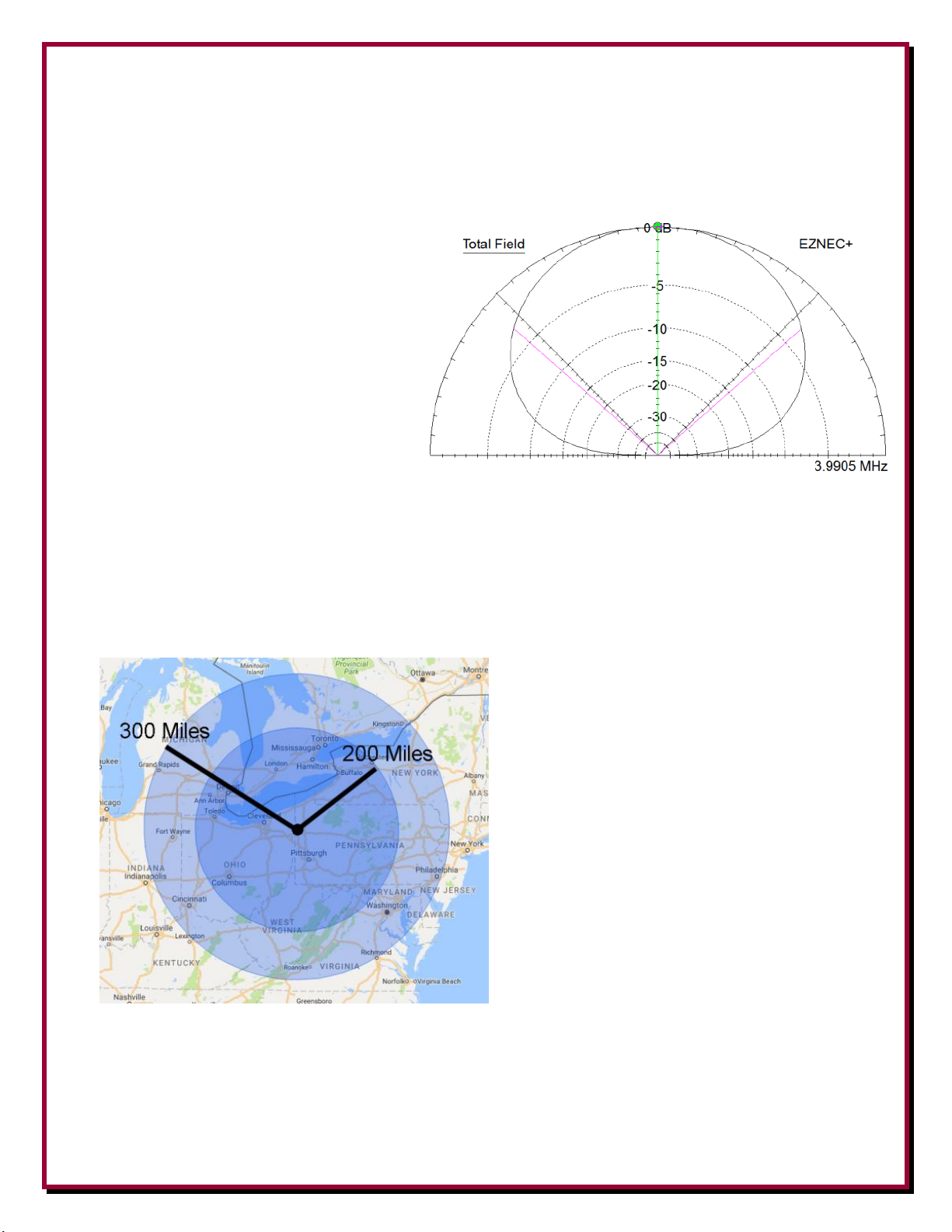

Using no skip zone or ground wave, the NVIS mode is used for making reliable HF
communications below 10 MHz
effective for a range to 600 miles. The
NVIS propagation mode works best on
HF below 10 MHz since these high
angle radio waves are reflected back to
Earth. Most often a low dipole is the
best antenna to use and will provide
reliable communications. This makes a
NVIS antenna an excellent choice for
emergency communications and for
staying in contact with other amateur
radio operators in nearby locations.
Dipoles only exhibit directionality once they reach 1/2 wavelengths above ground. However, NVIS
antennas are located from 1/4 to 1/10 wavelength above ground.
Vertical RF energy radiated at a low enough frequency is reflected back to earth at all angles.
The effect is similar to taking your garden hose with a fog nozzle and pointing it straight upwards.
The water coming back down gives you an omni-directional pattern without dead spots. It's a
continuous circular radiation pattern coming back down. Since it is omni-directional, dipole
orientation is not important.
The higher the angle, the lower the frequency
needed to work properly. Therefore lower
amateur radio frequencies such as 40 and 80
meters are ideal for NVIS use. NVIS
generally requires takeoff angles of 70 degrees
or higher. Radio waves directed vertically at
frequencies higher than the critical frequency
pass through the ionized layer out into space.
Typical expected ranges are up to 300 miles
when using NVIS antennas which make them
ideal for close in communications (not for
DXing).
The DX Engineering versions of the NVIS antenna have been designed and tested in real-world
situations and found to offer great performance for NVIS communications on both 80 and 40
meters.

- 4 -
WARNING!
INSTALLATION OF ANY ANTENNA NEAR POWER LINES IS DANGEROUS
Warning: Do not locate the antenna near overhead power lines or other electric light or power
circuits, or where it can come into contact with such circuits. When installing the antenna, take
extreme care not to come into contact with such circuits, because they may cause serious injury or
death.
Overhead Power Line Safety
Before you begin working, check carefully for overhead power lines in the area you will be
working. Don't assume that wires are telephone or cable lines: check with your electric utility for
advice. Although overhead power lines may appear to be insulated, often these coverings are
intended only to protect metal wires from weather conditions and may not protect you from electric
shock
Keep your distance! Remember the 10-foot rule: When carrying and using ladders and other long
tools, keep them at least 10 feet away from all overhead lines - including any lines from the power
pole to your home.
Fiberglass Information
The mast sections in this kit are fiberglass. Take normal precautions when handling any fiberglass
material. There may be fiberglass dust, slivers or particles present when the fiberglass parts
were manufactured. The use of typical fiberglass handling safety gear, (gloves, dust mask, eye
shield, clothing, etc.) when handling and working with fiberglass, is recommended. Use a damp rag
to wipe the parts. Do not use compressed air to clean fiberglass parts. Measures can be taken to
reduce exposure after a person has come in contact with fiberglass. Eyes should be flushed with
water and any area of exposed skin should be washed with soap and warm water to remove fibers.
Clothing worn while working with fiberglass should be removed and washed separately from other
clothing. The washing machine should be rinsed thoroughly after the exposed clothing has been
washed. Check with your local or state safety and/or environmental agencies for more detailed
precautions.
NVIS Features and Specifications:
Easy Assembly ideal for emergency set-up
Covers both 40 and 80 meter bands - ideal for NVIS
communication
Transports easily
Made with quality rugged parts for long service life
Tunable with modern transceivers that have internal tuners
Can be installed as a temporary or permanent system

- 5 -
Parts Lists
Parts Common to Both 8040 and 8040S Models
Qty
Part Number
Description
1
DXE-NVIS-MAST
Tubes and Hardware for the NVIS Mast
(1) 2” OD x 4 feet long, fiberglass tube
(1) 1-3/4” OD x 4 feet long, fiberglass tube
(1) 1-1/2” OD x 4 feet long, fiberglass tube
(1) 1-1/4” OD x 4 feet long, fiberglass tube
(1) Compression Clamp 2” to 1-3/4”
(1) Compression Clamp 1-3/4” to 1-1/2”
(1) Compression Clamp 1-1/2” to 1-1/4”
(1) Band Clamp for, 2.250" OD (use 5/16” Nut Driver)
(2) Band Clamp for, 2.000" OD (use 5/16” Nut Driver)
(2) Band Clamp for 1.750" OD (use 5/16” Nut Driver)
(1) Band Clamp for 1.500" OD (use 5/16” Nut Driver)
(1) Black Vinyl Cap for 1-1/4” Fiberglass Tube
1
COM-BAL-11150T
COMTEK 1:1 Single Core Balun
1
DXE-NVIS-BMB
Balun Mounting Bracket with Stainless Steel Hardware
(2) Hex Head Nut, Nyloc, Stainless Steel
(2) Flat Fender Washer, Stainless Steel
(2) DXE-ECLS-150 Studded Band Clamp, Stainless Steel, w/ hardware
1
DXE-CSR8X-1
Cable Strain Relief Kit for 8X Coaxial Cable
1
DXE-8XDX100
RG-8X Coaxial Cable, 100 Ft, with PL-259 connectors
1
SYN-DBR-125-100
Antenna Support Rope, 0.125” dia, 100 FT
2
DXE-TGI-2
Glass Antenna Insulators (2 packages, total of 4 insulators)
1
DXE-TENTPEGS4
Tent Peg Ground Stakes, Aluminum, 4
DXE-NVIS-8040
Qty
Part Number
Description
3
DXE-ANTW-75
Premium Antenna Wire, 14 ga, Relaxed PVC, 75 feet per roll
Plus the common parts listed above
DXE-NVIS-8040S
Qty
Part Number
Description
2
DXE-ANTW-75
Premium Antenna Wire, 14 ga, Relaxed PVC, 75 feet per roll
1
DXE-NVIS-80RES
(2) Resonator Coils for the 80 meter NVIS-8040S antenna
(2) MSG-ADC03 Wire Strain Relief Clamp, 3 mm
Plus the common parts listed above
NOTE: For those that have their own non-metallic 15 foot mast, you can purchase the NVIS
antenna kits with all the parts except the mast assembly. Part numbers for those antenna kits are:
DXE-NVIS-8040NM and DXE-NVIS-8040SNM.
DXE-NVIS-8040NM DXE-NVIS-8040SNM

- 6 -
Manual Updates
Every effort is made to supply the latest manual revision with each product. Occasionally a manual
will be updated between the time your DX Engineering product is shipped and when you receive it.
Please check the DX Engineering web site (www.DXEngineering.com) for the latest revision
manual.
Tools Required
Wire Stripper
Soldering Iron and Solder
Utility Knife and Lighter (for rope)
Nut Drivers: 1/4”, 3/8”, 516”
Wrench: 7 mm (for the 80 meter coil strain relief clamps)
Pliers
Gloves (see information on Fiberglass Tubing on page 4)
Hammer (for Tent Peg Ground Stakes)
Assembly
Mounting the BALUN to the BMB BALUN Mounting Bracket
1. The BMB BALUN Mounting bracket comes with the hardware required to
mount the BALUN. As shown, mount the BALUN in place on the
Mounting Bracket using the four #6 hex head bolts, eight #6 washers and
four #6 Nyloc hex nuts.
Note: The cupped ends are facing the rear.

- 7 -
Installing the Coaxial Cable and Coaxial Cable Strain Relief
1. The DXE-CSR8X-1 Cable Strain Relief has the parts needed to mount to the
previous assembly. The assembly will be slightly different that what is described in
the DXE-CSR8X-1 instructions.
2. Connect one end of the DXE-8XDX100 coaxial cable to the BALUN.
Fully insert the PL-259 to the balun and tighten the collar.
3. Loosely mount the DXE-CSR8X-1 Cable Strain Relief bracket to the
DXE-BMB-4P bracket using the DXE-ECLS-150 Studded Band
Clamp, with a flat washer and a Nyloc hex nut as shown.
4. Loop the coax cable through the ‘P’ clamps and form approximately a 6”
diameter loop of cable.
5. Mount the ‘P’ clamps on both sides of the bracket using the hardware (1” hex bolt, 1/4” spacer,
three star washers, and Nyloc hex nut) as shown. Using pliers will help hold the clamps and parts
together while you get the Nyloc hex nut started.
6. Once the cable is aligned between the Balun and the first ‘P’ clamp, tighten
the Nyloc hex nut that holds the Studded Band Clamp at the balun end of
the bracket. Ensure the cable going through the ‘P’ clamps is properly
aligned and has the loop. Tighten all the parts holding the ‘P’ clamps in
place.
7. The completed DXE-CSR8X-1 Cable Strain Relief installation should look
as shown below.

- 8 -
8. Mount the second Studded Band Clamp to the top of the Balun Mounting Bracket using two
large Flat Fender Washers and one Nyloc hex nut as shown.
Preparing the 40 meter Wire Elements

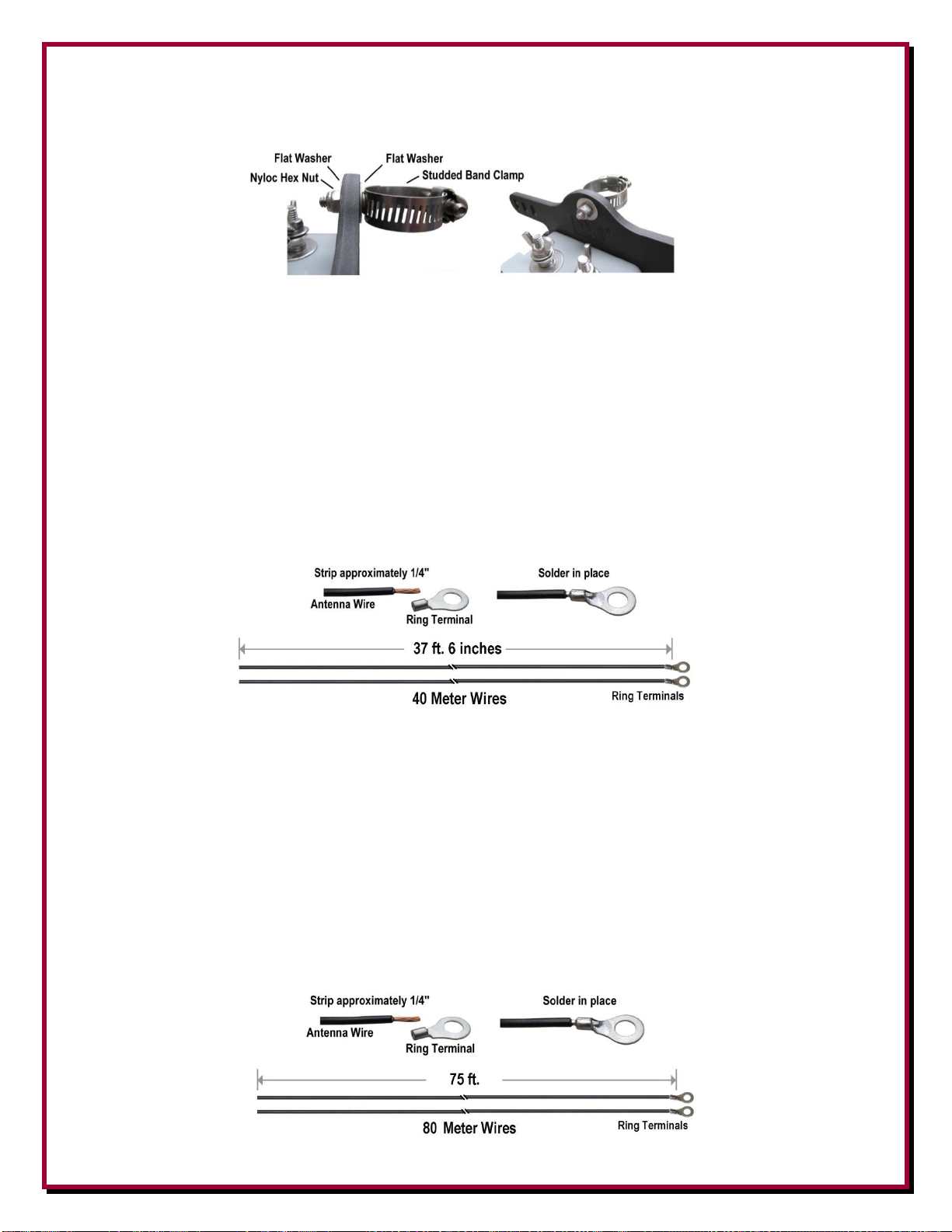

1. Both models of the NVIS antenna (DXE-NVIS-8040 and DXE-NVIS-8040S) use the same
lengths of antenna wire for 40 meters.

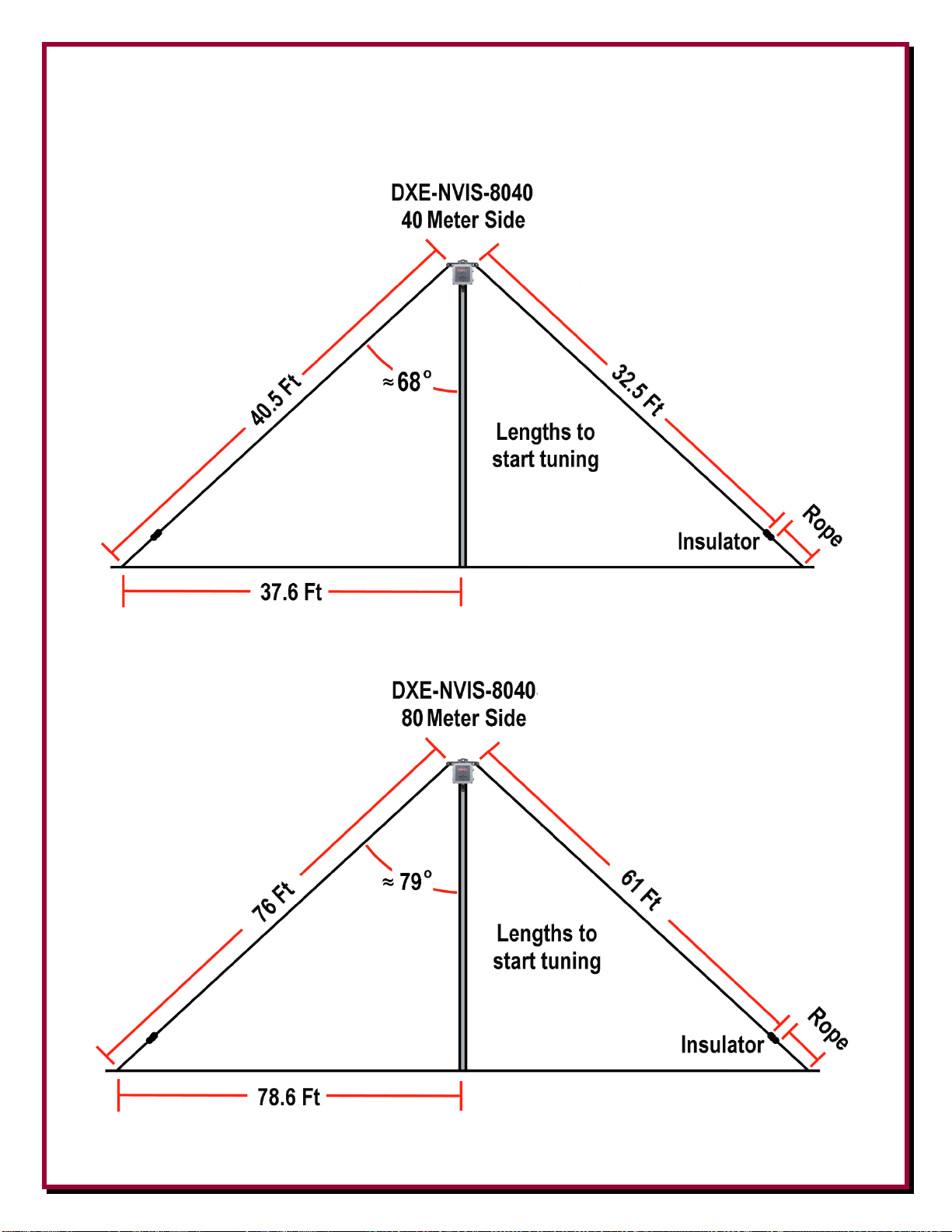

2. Using one roll of the DXE-ANTW-75 Antenna Wire, cut the wire length in half so you have two
pieces of wire approximately 37 feet 6 inches long. Note - The test antenna after tuning had the
40 meter length as 32 feet 5 inches each. Until you perform tuning, do not shorten the 37-1/2
foot wires.
3. On each wire, solder one Ring Terminal as shown.
Preparing the 80 meter Wire Elements
Each model of the NVIS uses different lengths of Antenna Wire for 80 meters.
For the DXE-NVIS-8040 there are no coils used. The wire lengths are two 75 foot wires for 80
meters. Note - The test antenna after tuning had the 80 meter length as 61 feet each. Until you
perform tuning, do not shorten the 75 foot wires.
1. Using two rolls of the DXE-ANTW-75 antenna wire solder one ring terminal as shown on one
end of each 75 foot roll of antenna wire.

- 9 -

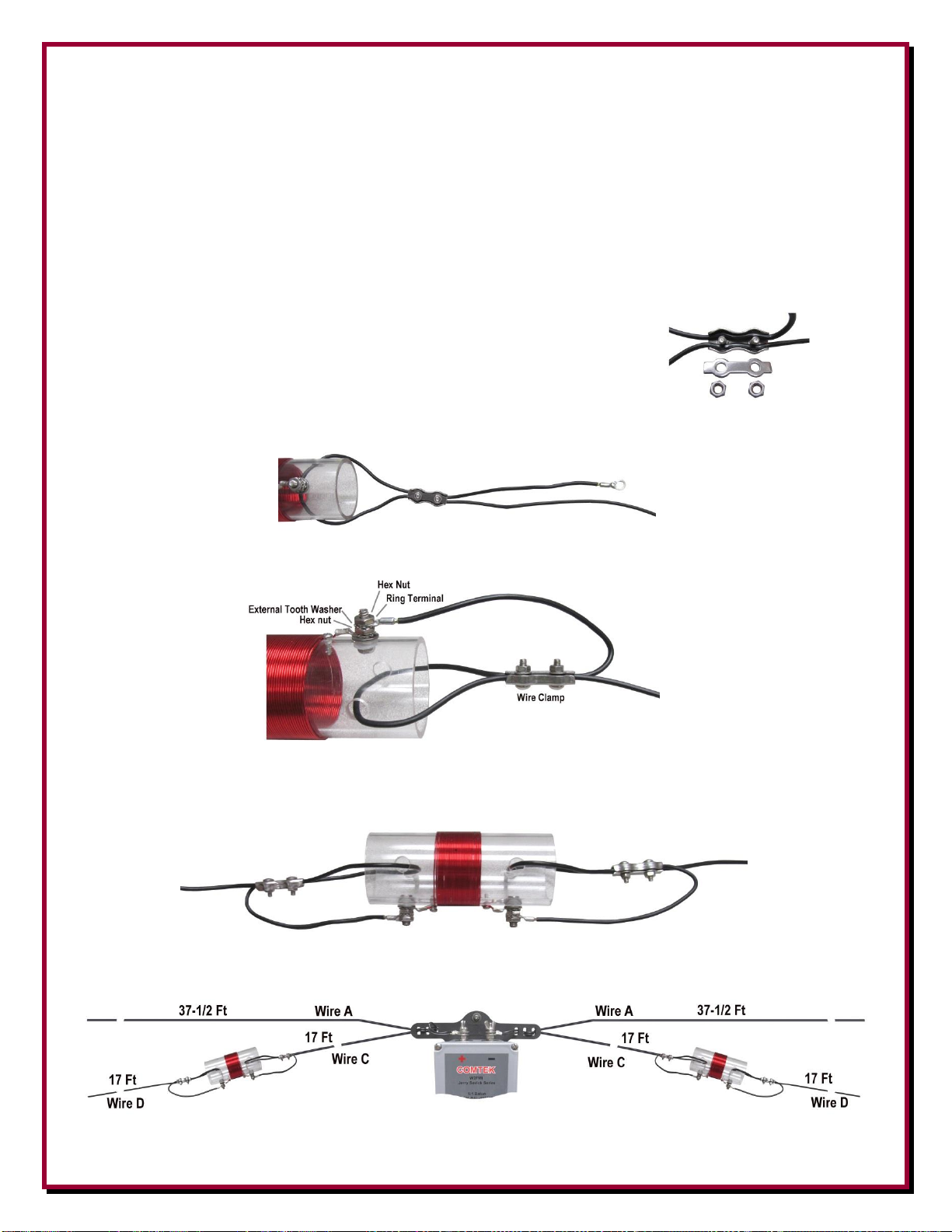

2. The DXE-NVIS-8040S uses two coils. There are four wires for 80 meters. After assembly,
each leg of the dipole will be approximately 32 feet. 16 feet in length between the BALUN and
the 80 Meter Coil and another wire, approximately 16 feet from the coil to the end insulator.
3. Cut one of the 75 foot antenna wire rolls so you have 4 pieces of antenna wire 17 feet long each.
4. On two of the wires, solder one ring terminal to each end of the wires as shown.
5. For the other two 17 foot wires, solder one ring terminal to one end of the wires as shown.
From this point on the wires will be designated as A, B, C, D to help make the assembly clear and
easy to understand.

- 10 -
Attaching the antenna element Wires to the Balun
Both models (DXE-NVIS-8040 and DXE-NVIS-8040S) use the same method for attaching the
antenna wires to the balun.
Wires Aand Bare connected to the BALUN for the DXE-NVIS-8040
Wires Aand Care connected to the BALUN for the DXE-NVIS-8040S
Attaching the 40 and 80 meter Wires for the DXE-NVIS-8040
1. Install one 40 meter wire (A) and one 80 meter wire (B) on each side of the Balun Bracket for
the DXE-NVIS-8040 as shown.
Note how the wires route through the three serpentine slots. Allow a bit of extra wire so there is
no strain on the wires when connecting them to the balun.
DXE-NVIS-8040

- 11 -
Attaching the 40 meter Wires and the 80 meter Coils for the DXE-NVIS-8040S
1. Install one 40 meter wire (A) and one 80 meter wire with two terminals (C) in each side of the
Balun Bracket for the DXE-NVIS-8040S as shown. Note in the previous picture, how the
wires route through the three serpentine slots.
2. The 80 meter coils are installed by routing and clamping the antenna wires to provide strain
relief for the coil assemblies. Using Wire Cthat is attached to the Balun, route the end through
the two holes on one of the 80 meter coils as shown. Allow enough slack to avoid sharp bends
and provide strain relief for the coil.
3. Using one of the wire clamps, press the wire Cin place in the clamp.
4. Adjust wire lengths if needed to avoid sharp bends and still allow strain relief as shown. Once
the wire is in place, install the clamp hardware as shown to hold the wire in place.
5. From the clamp, connect the ring terminal on wire Cto the coil bolt as shown.
6. Repeat the same sequence (steps 2 through 5) for wire Don the other end of the coil (the 17
foot wire with one ring terminal).
7. Again, repeat the above sequence (steps 2 through 6) for the other 80 wires (Cand D)
connected to the other side of the balun.
DXE-NVIS-8040S

- 12 -
Mast Assembly
NOTE: For those that have their own non-metallic 15 foot mast, you can purchase the NVIS
antenna kits with all the parts except the mast assembly. Part numbers for those antenna kits are:
DXE-NVIS-8040NM and DXE-NVIS-8040SNM.
The NVIS Mast Assembly is the same for
both the DXE-NVIS-8040 and DXE-
NVIS-8040S NVIS antennas.
The mast is made with four fiberglass
tubes, three telescoping mast clamps, six
element clamps and one vinyl cap.
1. On three of the fiberglass tubes (1.25” OD, 1.5” OD and 1.75” OD) make a mark on the tubes
4.25” from one end as shown.
2. Install the telescoping clamps on the element tubes using the supplied element clamps with the
overlap as shown. Install the vinyl cap on the top tube.

- 13 -

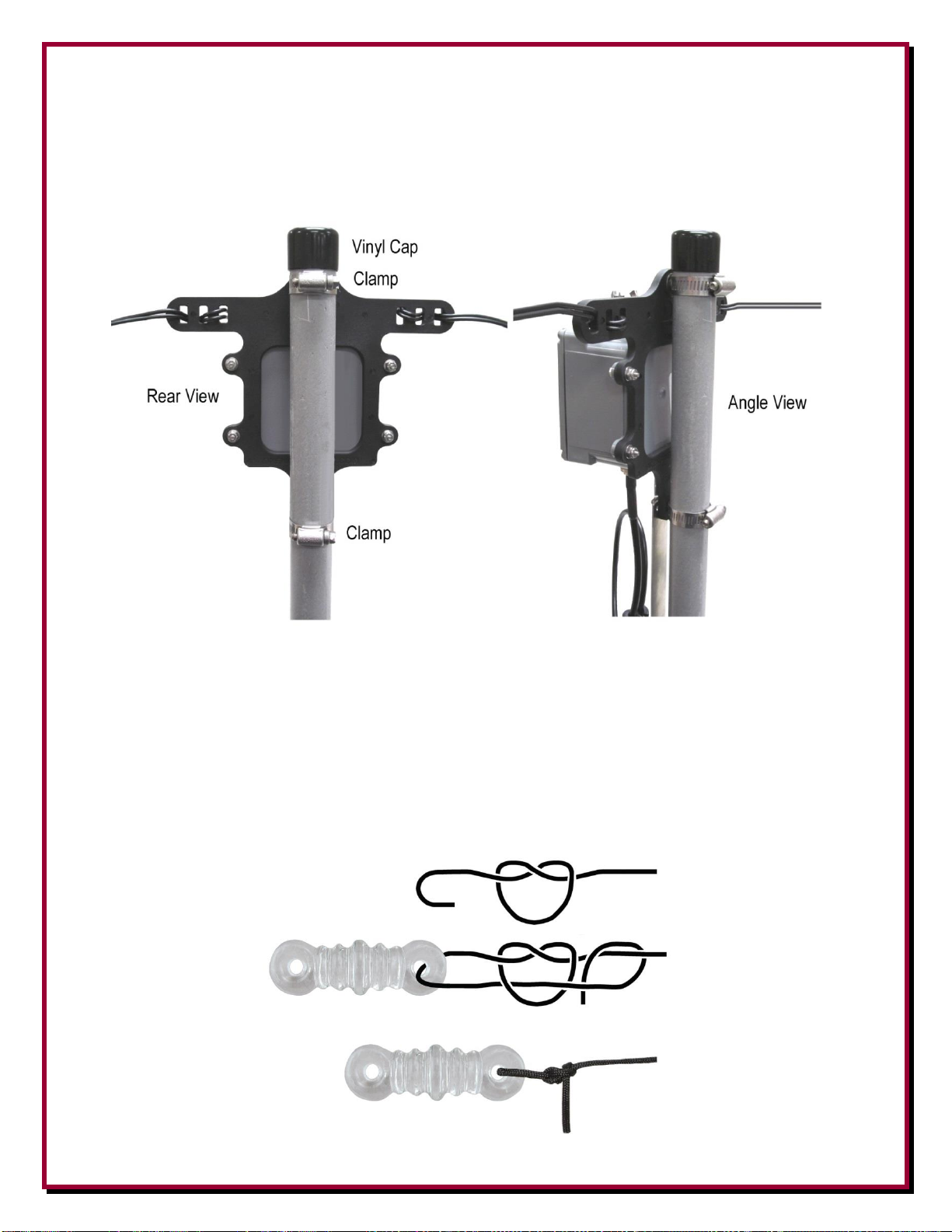

Mounting the BALUN to the top of the Mast
Loosen the band clamps on the Balun Mounting Bracket and install the bracket to the top mast
section as shown. The top element clamp will be even with the bottom of the previously installed
vinyl cap. Tighten the two clamps in place.
Attaching the End Insulators to the Guy Ropes
Using the supplied 100 foot roll of rope, cut four pieces of rope 25 feet each. Attach each guy rope
to one of the glass insulators.
One suggestion for attaching the guy rope is using a non-slip knot shown below. The ends of the
guy rope should be cauterized with a small flame to prevent the rope braid from fraying.

- 14 -

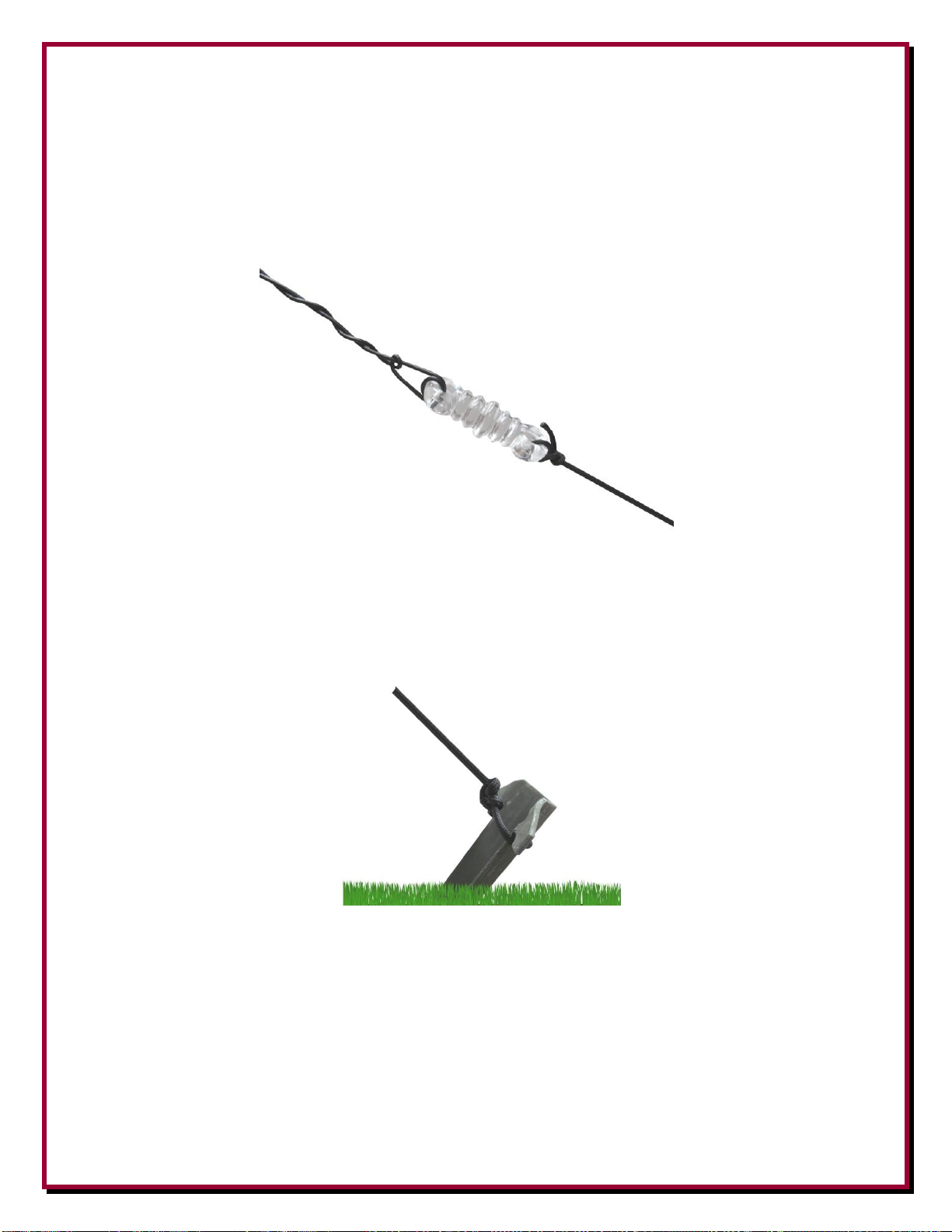

Attaching the End Insulators with ropes to the NVIS Antenna Elements
Attach one end insulator with rope to each of the four antenna elements. Since you will change
lengths on the wires during tuning, do not cut any wires at this time. Insert each wire through the
end insulator and then wrap the wire back on itself as shown below.

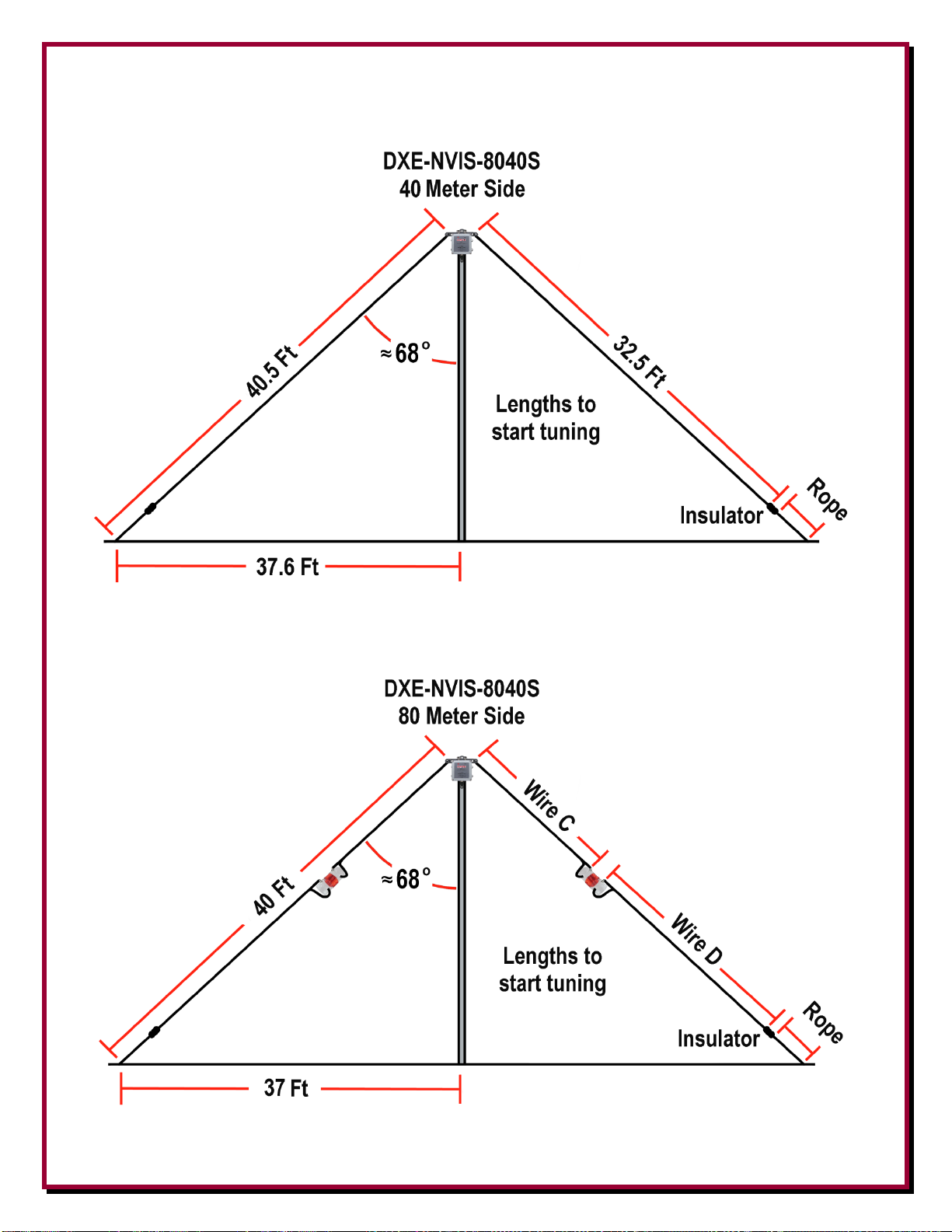

The starting lengths of wire are shown on pages 16 and 17.
Attaching the Guy Ropes to the Tent Pegs
Tie the guy ropes from each insulator to the Tent Pegs allowing approximately 8 feet of rope.
Reference the overhead and side views to see the tent pegs in place. Do not shorten the rope until
you are satisfied that the tuning is complete.

- 15 -
Setting up the
NVIS Antenna
It is advisable to use two
people when setting up the
NVIS antenna to ensure the
mast is held vertically in
place while the ropes and
tent stakes are installed as
shown in the diagrams.
Note how the antenna wire
elements are in reference to
the Balun Mounting Bracket.
These diagrams show
the DXE-NVIS-8040
and the DXE-NVIS-
8040S footprint view
from overhead. Note
the dimensions shown
are the footprint size,
not the wire/rope
lengths.
As an option to secure
the mast in place on
the ground, a 1-1/2”
OD pipe may be used.
Install the pipe in the
ground so it is sturdy.
Allow approximately
1 to 2 feet above
ground to slip the
bottom of the NVIS
antenna mast over it.
It is recommended
that the PL-259
connector be weather
proofed using
Temflex and Scotch
88 tape to avoid any
moisture entering the
coaxial cable and
fitting.

- 16 -
The following shows side views for the DXE-NVIS-8040 antenna.

- 17 -
The following shows side views for the DXE-NVIS-8040S antenna.

- 18 -
Tuning
Using a good quality Antenna Analyzer, connect the coaxial cable coming from the NVIS antenna.
40 Meters: Sweep the antenna for 40 meters to see where the SWR dip is located.
Ideally, you will want the 40 meter dip to be near the lower end or mid range on the 40 meter band.
If you are specifically going to use one frequency, then adjust for that frequency for best results.
If the dip is low, shorten the 40 meter antenna wires equally to raise the frequency dip. If the dip is
high, lengthen the 40 meter antenna wires equally to lower the frequency dip.
With the length described, the test antenna (NVIS-8040S) resonated at 7.261 kHz. The length of
each leg was then lengthened by 3 inches on each side and the measurement was then 7.147 kHz.
This works out to approximately 38 kHz per inch of change.
When changing wire lengths, wrap the excess wire back on itself rather than
cutting the wire. This will allow for future adjustments that may be needed.
Repeat the sequence above for 80 meters.
80 Meters: For 80 meters the bandwidth is a bit narrow and physical tuning of the 80 meter wires
may be needed to get in your desired area of the 80 meter band.
With the length described, the test antenna (NVIS-8040S) resonated at 3.410 kHz. The length of
each leg was then shortened by 8 inches, then 3 feet, then 2 feet on each side and the measurement
was then 8.96 kHz. To make it better, it was then lengthened by 4.8 inches, which brought the
resonant point to 3.972 kHz. All of this worked out to be 8.95 kHz per inch of change.
Once the antenna is
tuned, you can
connect the coaxial
cable to your
transceiver for
operation. Modern
transceivers that
have an internal
tuner should be able
to perform ‘touch-
up’ tuning easily on
this antenna.

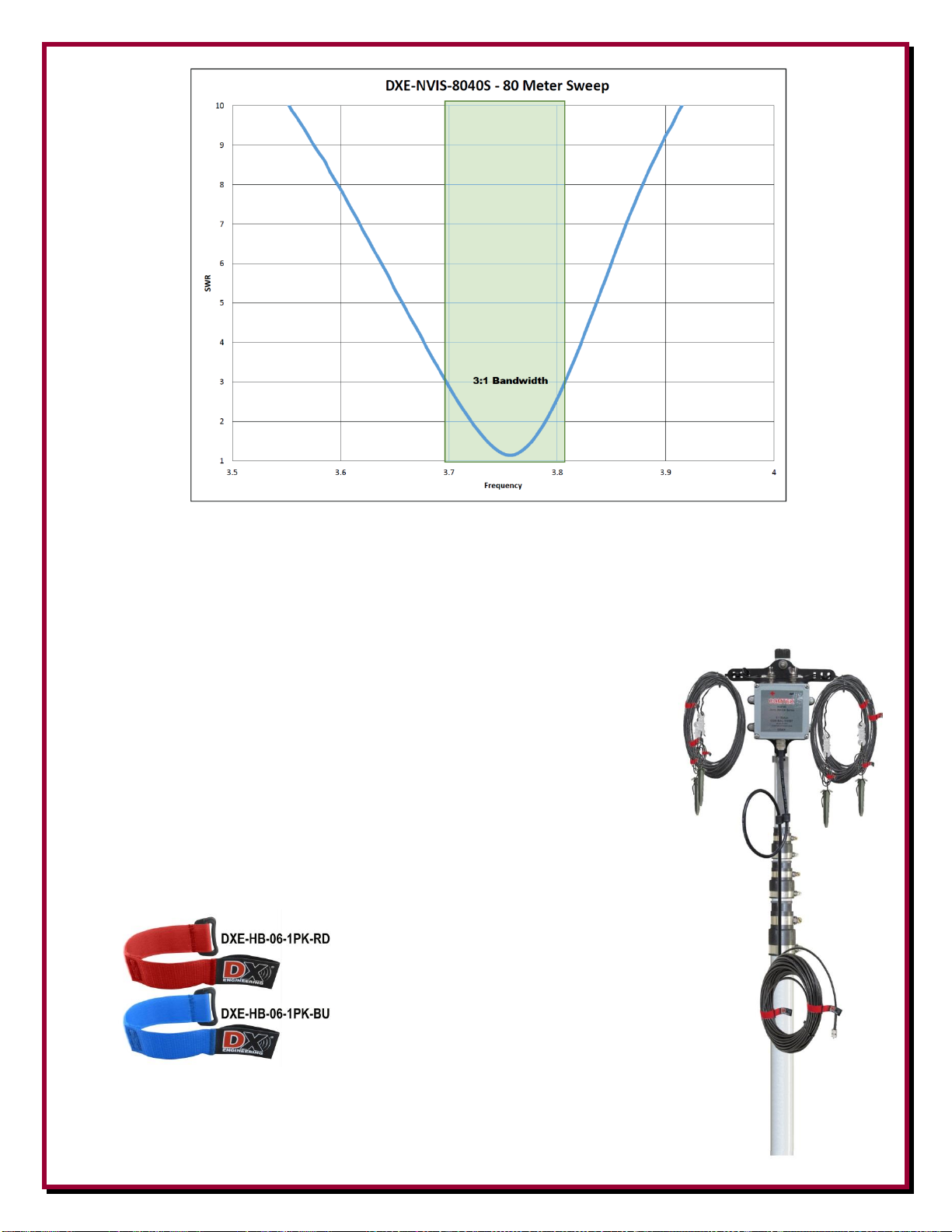

Typical 40 meter
and 80 meter SWR
sweeps using a Rig
Expert antenna
analyzer:

- 19 -
Transporting the NVIS Antenna
The DX Engineering NVIS antennas can be collapsed, wires wrapped and made ready for transport
without disassembling the entire antenna. This makes these antennas a viable option for on-the-go
emergency or portable operation.
Loosen the upper band clamp on one of the telescoping clamps to allow
the section to telescope inside the larger tube, snug the clamp in place,
then do the same for the other clamps. The antenna system will collapse
to less than 6 feet in length.
Secure the wires, ropes and coaxial cable to configure the antenna to be
easily transported.
DX Engineering offers Velcro style “Rip-Ties” that are perfect for
securing wrapped antenna wires, coaxial cable and ropes.
See the DX Engineering web site for details.
The DXE-NVIS-8040 ‘Ready to Go’.

- 20 -
Technical Support
If you have questions about this product, or if you experience difficulties during the installation,
contact DX Engineering at [phone]. You can also e-mail us at:
[email protected]
For best service, please take a few minutes to review this manual before you call.
Warranty
All products manufactured by DX Engineering are warranted to be free from defects in material and
workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under
these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other
than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts,
adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
If DX Engineering’s products are claimed to be defective in material or workmanship, DX Engineering shall,
upon prompt notice thereof, issue shipping instructions for return to DX Engineering (transportation-charges
prepaid by Buyer). Every such claim for breach of these warranties shall be deemed to be waived by Buyer
unless made in writing. The above warranties shall not extend to any products or parts thereof which have
been subjected to any misuse or neglect, damaged by accident, rendered defective by reason of improper
installation, damaged from severe weather including floods, or abnormal environmental conditions such as
prolonged exposure to corrosives or power surges, or by the performance of repairs or alterations outside of
our plant, and shall not apply to any goods or parts thereof furnished by Buyer or acquired from others at
Buyer’s specifications. In addition, DX Engineering’s warranties do not extend to other equipment and parts
manufactured by others except to the extent of the original manufacturer’s warranty to DX Engineering. The
obligations under the foregoing warranties are limited to the precise terms thereof. These warranties provide
exclusive remedies, expressly in lieu of all other remedies including claims for special or consequential
damages. SELLER NEITHER MAKES NOR ASSUMES ANY OTHER WARRANTY WHATSOEVER,
WHETHER EXPRESS, STATUTORY, OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS, AND NO PERSON IS AUTHORIZED TO ASSUME FOR DX
ENGINEERING ANY OBLIGATION OR LIABILITY NOT STRICTLY IN ACCORDANCE WITH THE
FOREGOING.
©DX Engineering 2019
DX Engineering®, DXE®, DX Engineering, Inc.®, Hot Rodz®, Maxi-Core®, DX Engineering
THUNDERBOLT®, DX Engineering Yagi Mechanical®, EZ-BUILD®, TELREX®, Gorilla Grip®Stainless
Steel Boom Clamps, Butternut®, SkyHawk™, SkyLark™, SecureMount™, OMNI-TILT™, RF-PRO-1B®,
AFHD-4®are trademarks of PDS Electronics, Inc. No license to use or reproduce any of these trademarks or
other trademarks is given or implied. All other brands and product names are the trademarks of their
respective owners.
Specifications subject to change without notice.
