3
Introduction
The Extra 260 3D Profile was designed by Aerodynamicist
and E-TOC champ George Hicks to give profile 3D foamie
fans a great-looking, lightweight plane with competition-
level performance. At the heart of its superb flight
characteristics is a rigid, carbon reinforced Depron foam
airframe. This unique design eliminates flex so control
response is crisp and precise.
The Extra 260 is constructed from 3mm laser-cut Depron
foam—the standard for durability and quality for pro 3D
foamie pilots everywhere. All pieces come with a sharp-
looking factory-applied color scheme.
Carbon Rod Reinforcement
Much of the Extra 260’s exceptional flight performance
comes from its carbon-reinforced airframe that eliminates
flex so control response is crisp and precise. The leading
and trailing edges of the wing come out of the box with
factory-applied carbon strips. Carbon rods are also
included that further strengthen the fuselage and tail.
Visit our web site at www.horizonhobby.com or
www.E-fliteRC.com for George Hicks’ flying tips.
Specifications
Wingspan: 32.5 in (825mm)
Length: 33 in (840mm)
Wing Area: 260 sq in (16.8 sq dm)
Weight w/o Battery: 6.5–7.75 oz (182–220 g)
Weight w/ Battery: 7.75–9.5 oz (220–270 g)
Using the Manual
This manual is divided into sections to help make assembly
easier to understand, and to provide breaks between each
major section. In addition, check boxes have been placed
next to each step to keep track of each step completed.
Steps with a single circle () are performed once, while
steps with two circles () indicate that the step will
require repeating, such as for a right or left wing panel,
two servos, etc.
Remember to take your time and follow the directions.

4
Contents of Kit/Parts Layout
Small Replacement Parts
EFL2305 Wheel Pants
EFL2306 Firewall Mount w/Hardware
EFL2307 Aileron Rods
EFL2308 Carbon Fiber Stiffeners
EFL2309 Landing Gear
EFLA200 Micro Control Horns
FLA203 Micro Control Connectors
EFLA221 Foam Park Wheels, 1.5"
Outrunner Setup
EFLM1150 Park 300 Brushless Outrunner Motor,
1380Kv
EFLA1010 10-Amp Pro Brushless ESC
APC08038SF 8x3.8 Slow Flyer Prop
THP4803SJPL 480mAh 3-Cell 11.1V Li-Po, JST
EFLC3005 Celectra™ 1–3 Cell Li-Po Charger
Variable Prop Outrunner Setup
EFLPVPP100 Showtime Variable Pitch Prop
EFLM1210HS Park 370 BL Outrunner, 1200Kv w/4mm
Hollow Shaft
EFLA1010 10-Amp Pro Brushless ESC
THP7303SJPL 730mAh 3-Cell 11.1V Li-Po, JST
EFLC3005 Celectra 1–3 Cell Li-Po Charger
Optional Accessories
EFLA110 Power Meter

5
You will need a minimum 6-channel transmitter (for proper
mixing and dual rate capabilities), crystals, micro receiver,
and three sub-micro servos. You can choose to purchase
a complete radio system that includes all of these items
or, if you are using an existing transmitter, just purchase
the other required equipment separately. We recommend
the crystal-free, interference-free Spektrum®DX6 2.4GHz
DSM®6-channel system, which includes a micro receiver
and 4 sub-micro 7.5 gram servos. If using your own
transmitter, we recommend the use of a JR SPORT™
6-channel UltraLite receiver and E-flite®S60 Super
Sub-Micro servos.
Complete Radio System
SPM2460 DX6 DSM 6CH Park Flyer w/4-S75
Or Purchase Separately
JSP30610 6-Channel UltraLite Rx w/o Crystal,
Positive Shift JR/AIR (72MHz)
JSP30615 6-Channel UltraLite Rx w/o Crystal,
Negative Shift Fut/HRC (72MHz)
JRPXFR** FM Receiver Crystal (JR only,
not AR6000)
Or
SPM6000 AR6000 DSM 6-Channel Park Flyer
Receiver
And
EFLRS60 6.0-Gram Super Sub-Micro Servo (4)
(5 with optional Variable Pitch Propeller)
Required Radio Equipment

6
Warning
An RC aircraft is not a toy! If misused, it can cause
serious bodily harm and damage to property. Fly
only in open areas, preferably at AMA (Academy of
Model Aeronautics) approved flying sites, following all
instructions included with your radio.
Keep loose items that can get entangled in the propeller
away from the prop, including loose clothing, or other
objects such as pencils and screwdrivers. Especially keep
your hands away from the propeller.
Required Tools and Adhesives
Tools & Equipment
EFLA250 Park Flyer Tool Assortment, 5-piece
Or Purchase Separately
EFLA257 Screwdriver, #0 Phillips (or included with
EFLA250)
Drill
Drill bit: 1/16" (1.5mm)
Cardstock
Foam Safe CA, Medium (EFLA209)
Foam Safe Accelerator (EFLA207)
Low Temperature Glue Gun w/Hot Glue
Hobby knife
Felt-tipped pen
Pliers
Square
Sandpaper

7
Note on Lithium Polymer Batteries
Lithium Polymer batteries are significantly
more volatile than alkaline or Ni-Cd/
Ni-MH batteries used in RC applications. All
manufacturer’s instructions and warnings must
be followed closely. Mishandling of
Li-Po batteries can result in fire. Always
follow the manufacturer’s instructions when
disposing of Lithium Polymer batteries.
Limited Warranty Period
Horizon Hobby, Inc. guarantees this product to be free
from defects in both material and workmanship at the date
of purchase.

Pursuant to this Limited Warranty, Horizon Hobby, Inc.
will, at its option, (i) repair or (ii) replace, any product
determined by Horizon Hobby, Inc. to be defective. In the
event of a defect, these are your exclusive remedies.
This warranty does not cover cosmetic damage or damage
due to acts of God, accident, misuse, abuse, negligence,
commercial use, or modification of or to any part of
the product. This warranty does not cover damage due
to improper installation, operation, maintenance, or
attempted repair by anyone other than an authorized
Horizon Hobby, Inc. service center. This warranty is
limited to the original purchaser and is not transferable.
In no case shall Horizon Hobby’s liability exceed the
original cost of the purchased product and will not
cover consequential, incidental or collateral damage.
Horizon Hobby, Inc. reserves the right to inspect any and
all equipment involved in a warranty claim. Repair or
replacement decisions are at the sole discretion of Horizon
Hobby, Inc. Further, Horizon Hobby reserves the right to
change or modify this warranty without notice.
REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. HORIZON HOBBY, INC. SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
As Horizon Hobby, Inc. has no control over use, setup,
final assembly, modification or misuse, no liability shall be
assumed nor accepted for any resulting damage or injury.
By the act of use, setup or assembly, the user accepts all
resulting liability.
If you as the purchaser or user are not prepared to accept
the liability associated with the use of this product, you
are advised to return this product immediately in new and
unused condition to the place of purchase.
Limited Warranty & Limits of Liability
8

Safety Precautions
This is a sophisticated hobby product and not a toy. It
must be operated with caution and common sense and
requires some basic mechanical ability. Failure to operate
this product in a safe and responsible manner could result
in injury or damage to the product or other property. This
product is not intended for use by children without direct
adult supervision.
The product manual contains instructions for safety,
operation and maintenance. It is essential to read and
follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate
correctly and avoid damage or injury.
Questions,Assistance, and Repairs
Your local hobby store and/or place of purchase cannot
provide warranty support or repair. Once assembly, setup
or use of the product has been started, you must contact
Horizon Hobby, Inc. directly. This will enable Horizon to
better answer your questions and service you in the event
that you may need any assistance.
Questions or Assistance
For questions or assistance, please direct your email to
[e-mail], or call 877.504.0233
toll-free to speak to a service technician.
Inspection or Repairs
If your product needs to be inspected or repaired, please
call for a Return Merchandise Authorization (RMA). Pack
the product securely using a shipping carton. Please note
that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Horizon Hobby,
Inc. is not responsible for merchandise until it arrives and
is accepted at our facility. Include your complete name,
address, phone number where you can be reached during
business days, RMA number, and a brief summary of the
problem. Be sure your name, address, and RMA number
are clearly written on the shipping carton.
9

Warranty Inspection and Repairs
To receive warranty service, you must include your
original sales receipt verifying the proof-of-purchase
date. Providing warranty conditions have been met, your
product will be repaired or replaced free of charge.
Repair or replacement decisions are at the sole discretion
of Horizon Hobby.
Non-Warranty Repairs
Should your repair not be covered by warranty and the
expense exceeds 50% of the retail purchase cost, you will
be provided with an estimate advising you of your options.
You will be billed for any return freight for non-warranty
repairs. Please advise us of your preferred method of
payment. Horizon Hobby accepts money orders and
cashiers checks, as well as Visa, MasterCard, American
Express, and Discover cards. If you choose to pay by
credit card, please include your credit card number and
expiration date. Any repair left unpaid or unclaimed
after 90 days will be considered abandoned and will be
disposed of accordingly.
Electronics and engines requiring inspection or repair
should be shipped to the following address (freight
prepaid):
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other products requiring inspection or repair should be
shipped to the following address (freight prepaid):
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
10

As the user of this product, you are solely responsible for
operating it in a manner that does not endanger yourself
and others or result in damage to the product or the
property of others.
Carefully follow the directions and warnings for this and
any optional support equipment (chargers, rechargeable
battery packs, etc.) that you use.
This model is controlled by a radio signal that is subject to
interference from many sources outside your control. This
interference can cause momentary loss of control so it is
necessary to always keep a safe distance in all directions
around your model, as this margin will help to avoid
collisions or injury.
• Always operate your model in an open area away from
cars, traffic, or people.
• Avoid operating your model in the street where injury or
damage can occur.
• Never operate the model out into the street or populated
areas for any reason.
• Never operate your model with low transmitter batteries.
• Carefully follow the directions and warnings for this and
any optional support equipment (chargers, rechargeable
battery packs, etc.) that you use.
• Keep all chemicals, small parts and anything electrical
out of the reach of children.
• Moisture causes damage to electronics. Avoid water
exposure to all equipment not specifically designed and
protected for this purpose.
Safety, Precautions, and Warnings
11

1. Locate the vertical and horizontal fuselage
pieces. Slide the horizontal fuselage into the
vertical fuselage starting at the opening for
the wing/radio equipment. Use care not to
damage any of the alignment tabs on the vertical
fuselage.
Airframe Assembly
Required Parts
Vertical fuselage
Horizontal fuselage
Wing w/ailerons
Stabilizer w/elevators
Motor mount
Required Tools and Adhesives
Foam-safe CA, Medium
Foam-safe accelerator (can be used to speed up cure time)
Square
12

2. Locate the wing and slide it into the vertical
fuselage underneath the horizontal fuselage.
Use care not to damage either the vertical or
horizontal fuselage pieces.
Hint: Fold one of the ailerons up and onto
the wing to make it a little narrower to install
into the fuselage. Push the wing past center to
move the aileron back into position, then center
the wing.
3. Slide the horizontal stabilizer into the fuselage,
being careful not to damage any of the alignment
tabs. You may need to move the horizontal
fuselage out of the vertical fuselage slightly to get
the stabilizer into position.
13

4. Align the stabilizer with the horizontal fuselage.
Use foam-safe CA to glue the stabilizer to ONLY
the horizontal fuselage.
5. Align the wing with the horizontal fuselage.
Use foam-safe CA to glue the wing to ONLY the
horizontal fuselage.
Hint: Use the holes for the aileron servos to
aid in the alignment between the horizontal
fuselage and wing.
Note: There are slots at the front and rear of
the wing. Lightly lift the area and apply CA
underneath for a greater gluing area.
14

Important: If you plan on using CA accelerator,
make sure it is foam compatible. Many
accelerators will destroy the foam used on this
model.

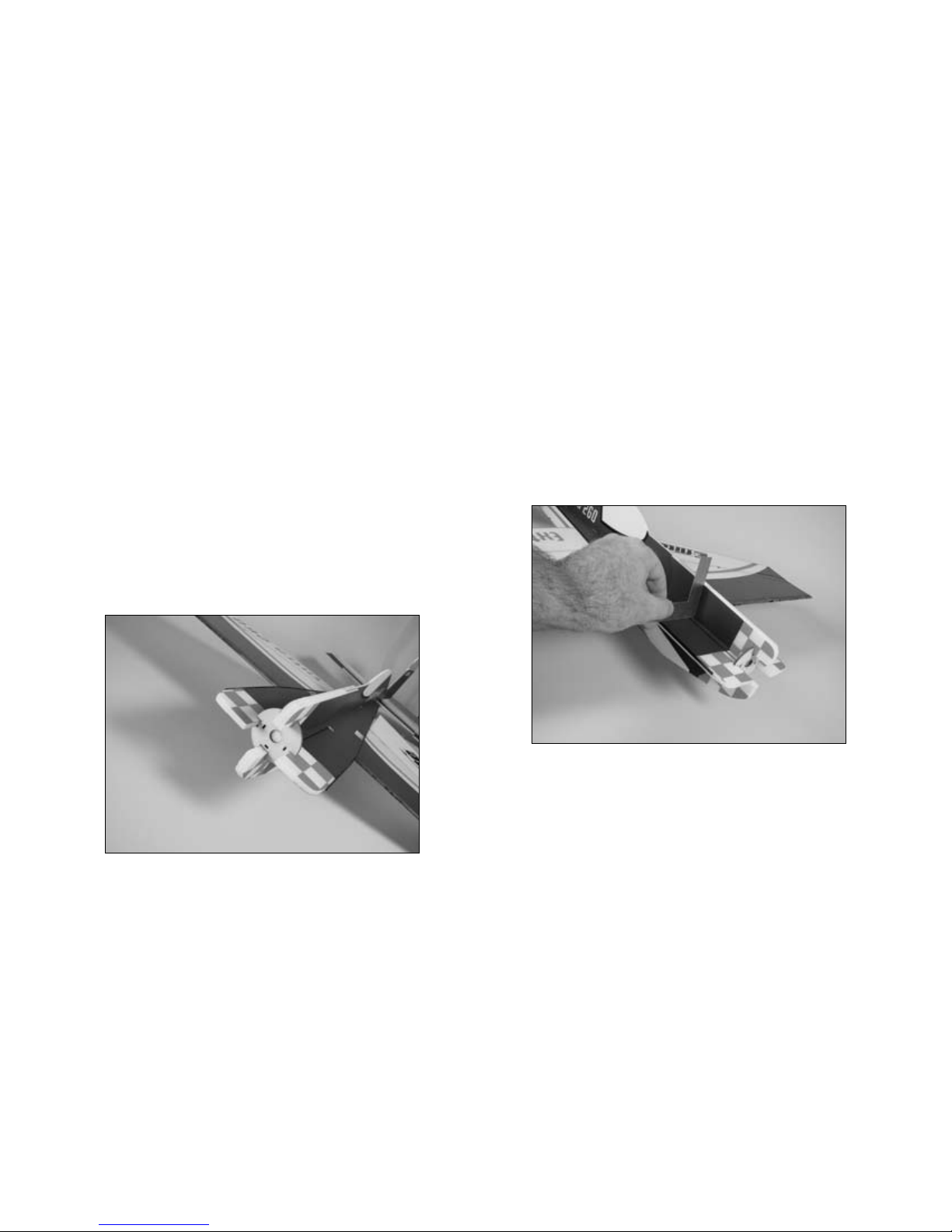

6. Place the motor mount in position to aid in
the alignment of the vertical and horizontal
fuselage pieces. DO NOT glue the mount until
instructed to do so. Position the horizontal and
vertical fuselage pieces until the mount rests flush
against both.
7. Apply foam-safe CA to the joint between the
vertical and horizontal fuselage pieces from
the leading edge of the wing to the front of the
fuselage. Use a square to make sure the two
pieces are aligned. Apply CA to both the top and
bottom of the vertical fuselage.
15

8. Complete gluing the vertical and horizontal
fuselage pieces together. Continue to use a
square to keep both pieces in alignment.
16

Installing the Bracing
Required Parts
Assembled airframe
Carbon rod, 9 7/8" (250mm) (2)
Carbon rod, 9 1/2" (240mm) (2)
Carbon rod, 4 3/4" (120mm) (2)
Carbon rod, 4 1/2" (113mm) (4)
Carbon rod, 4 1/8" (105mm) (4)
Required Tools and Adhesives
Foam-safe CA, Medium
Sandpaper
Hobby knife
Note: It is important that each carbon
rod attaches to the next, and to the
carbon blade spars on the edges of the
foam. This is necessary to provide the
stiffest airframe possible.
1. Locate the two 4 3/4" (120mm) carbon rods.
Pass the rods through the fin and stabilizer.
Use foam-safe CA to glue the rods to the fin
ONLY at this time.
17

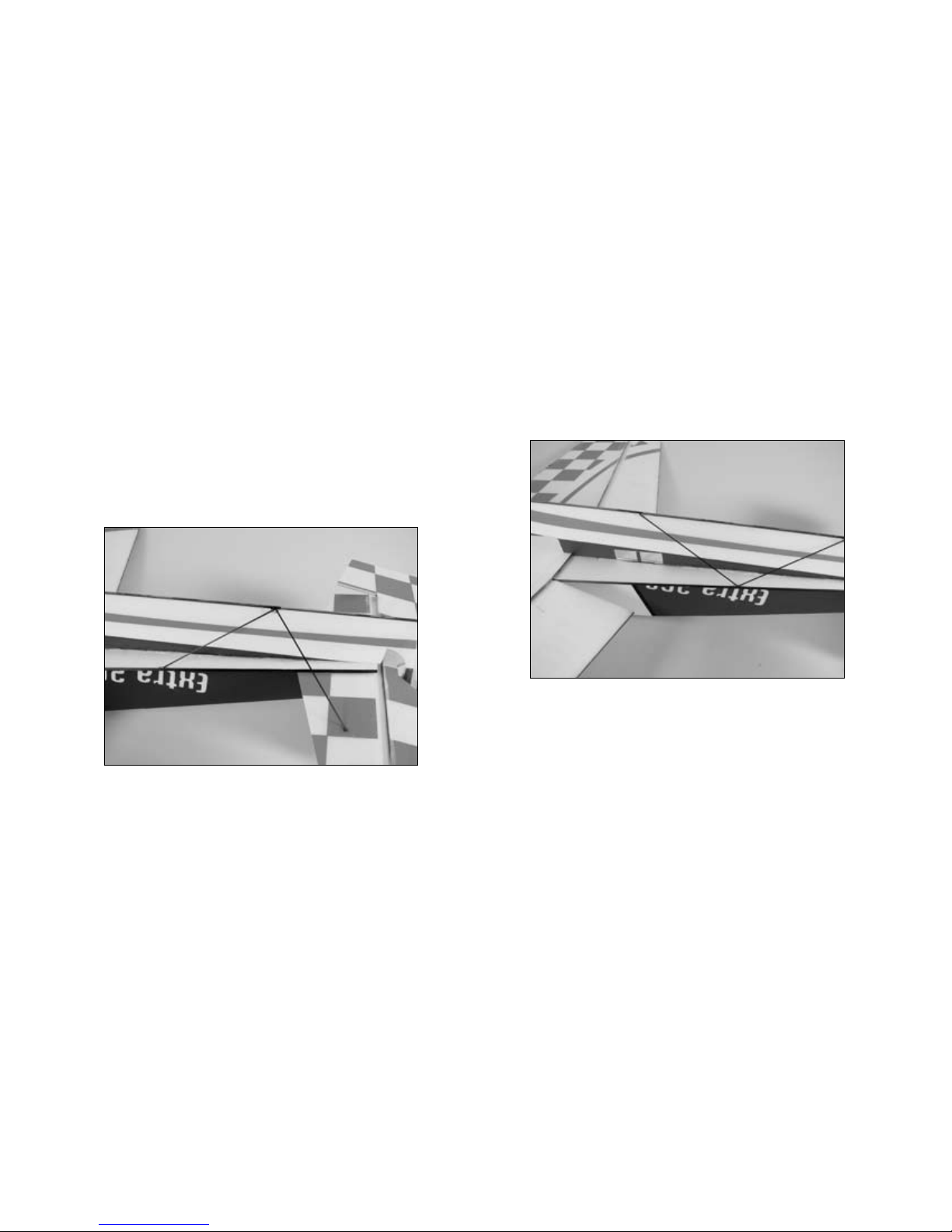

2. Place the 4 1/2" (113mm) carbon rods on the
bottom of the stabilizer to the bottom of the
vertical fuselage. There is a notch in the fuselage
for the rods to rest in. Make sure the rods are
touching each other as well as the carbon blade
spar. Use foam-safe CA to glue the rods at the
fuselage ONLY.
3. Check the alignment of the fin to the stabilizer.
They should be perpendicular to each other.
Check that the rods in the stabilizer are
touching. Use foam-safe CA to glue the rods
into position after checking alignment and that the
rods are touching.
18

4. Locate two of the 4 1/8" (105mm) carbon rods.
Install these rods, like the rods installed in Step
3, to the horizontal fuselage. Again, there are
notches for the carbon rods. Make sure the rods
are touching the previously installed rods and the
pre-installed carbon blade spars on the edges of
the foam.
5. The next rod to install is the 4 1/2" (113mm)
rod from the rod in Step 4 to the bottom of
the vertical fuselage.
19

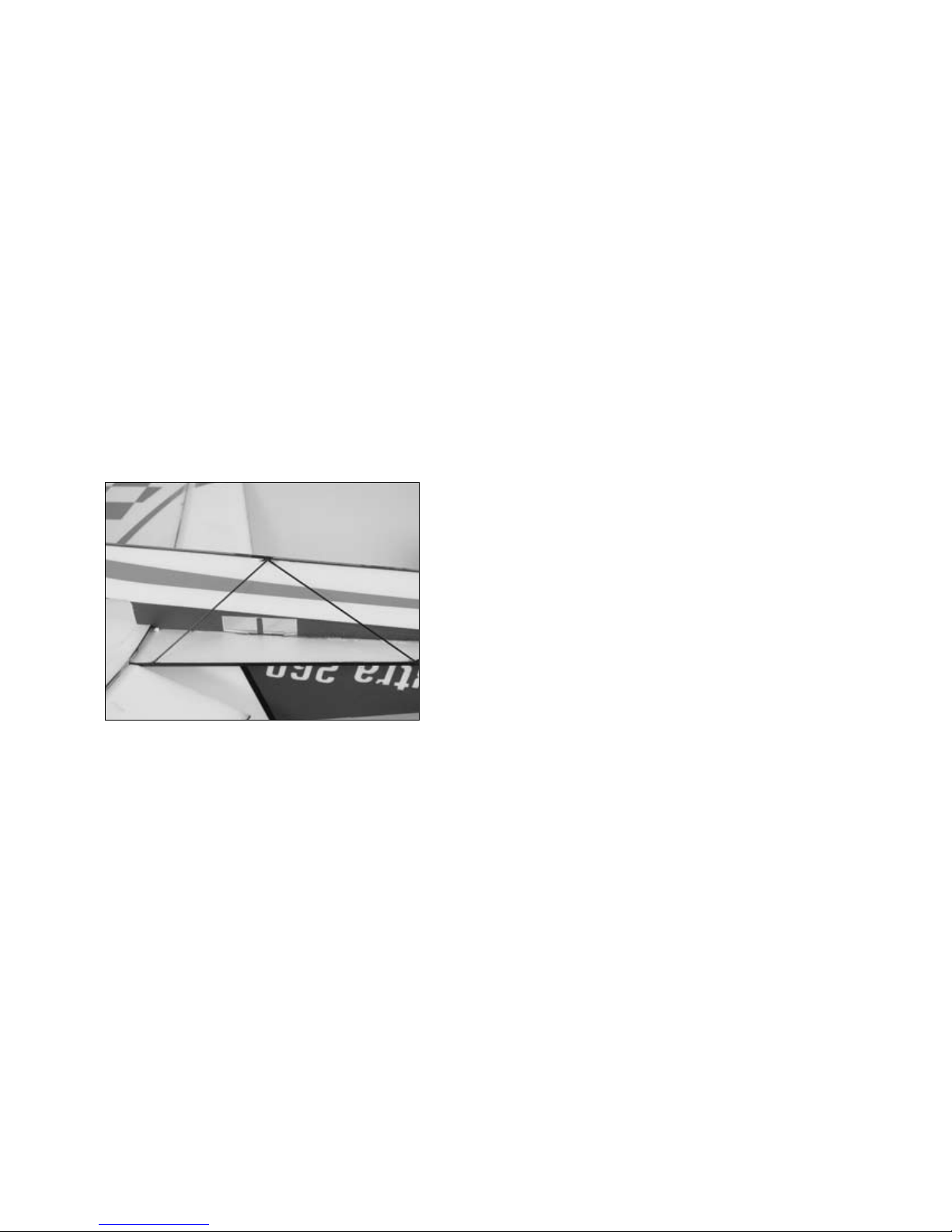

6. To complete the fuselage bracing, install a 4 1/8"
(105mm) rod from the previous rod back down to
the horizontal fuselage. You will need to trim the
fuselage to expose the carbon support so the rod
can be glued securely to the brace.
7. Check the joints in Steps 1 through 6 to ensure
you have a nice fillet of CA at every junction
where you have glued the carbon rods to each
other and the fuselage. Apply additional CA if
necessary to create this fillet.
8. Installing the wing bracing is similar to installing
the fuselage bracing, as you want the rods to be
glued to the carbon bracing that has been pre-
installed on the wing and fuselage. The longer
97/8" (250mm) rod is positioned toward the
aileron, while the shorter 9 1/2" (240mm) rod is
toward the leading edge. The rods are staggered
and fit into notches in the fuselage. Make sure
the rods are straight and are not flexing the
wing. Use foam-safe CA to glue the rods in
position. The wing should be flat and parallel
to the horizontal stabilizer, while also being
perpendicular to the vertical fuselage.
20
