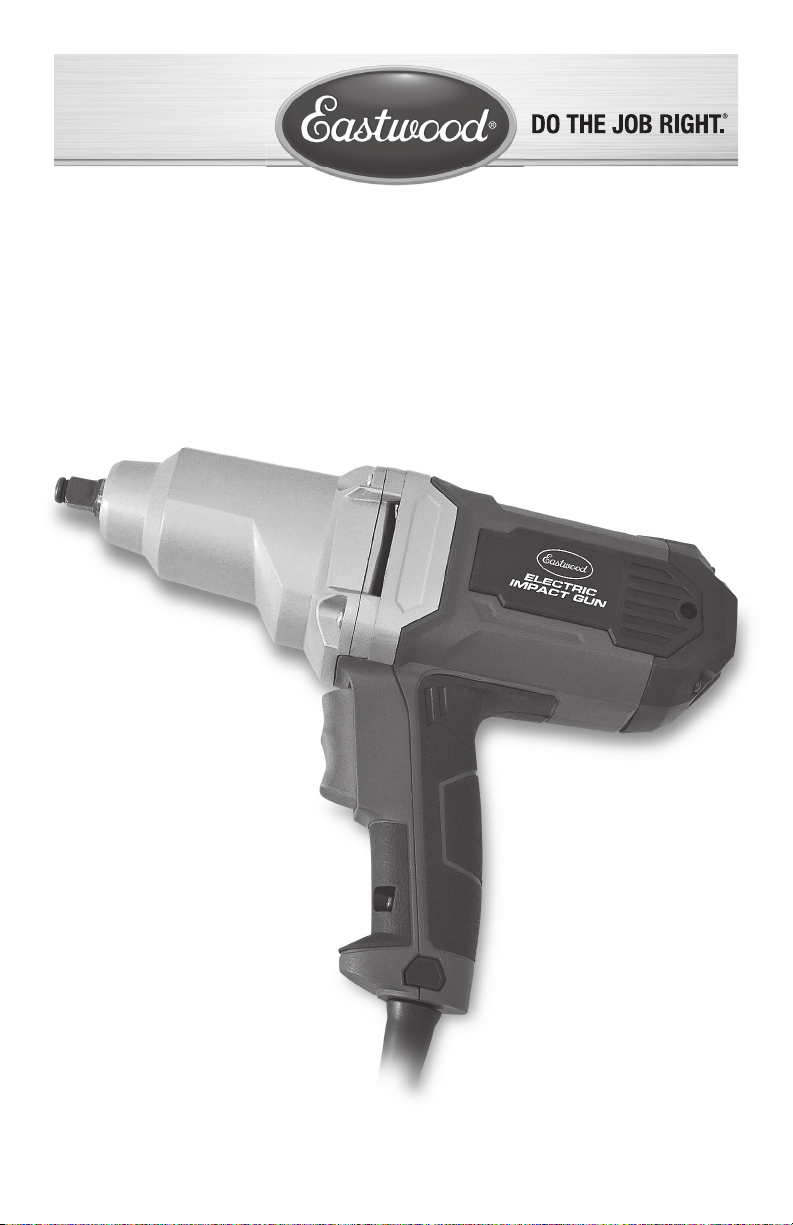

Eastwood 1/2” ELECTRIC IMPACT WRENCH User manual

ELECTRIC IMPACT GUN
INSTRUCTIONS
Item #31799

2Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
The EASTWOOD 1/2” ELECTRIC IMPACT WRENCH is great for use where a compressed air supply
is unavailable. The powerful 7.5 Amp motor and 1/2” square drive powers impact sockets and
accessories with ease. A simple, Reverse/Forward rocker switch provides instant response.
Features a “plugged–in” indicator lamp for safety and convenience.
CONTENTS
(1) Electric Impact Wrench
SPECIFICATIONS
Input Voltage: 120 VAC, 60 Hz
Input Amperage: 7.5 Amps
Plug type: 2-prong, polarized
Cord length: 7’- 6”
Certification: ETL
Maximum Torque Capacity: 230 lb. ft. [312nm.]
No-Load Speed: 2200 RPM
Impact BPM: 2700 bpm
Square Drive Capacity: 1/2”
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling, and on all other information
provided with this product:

To order parts and supplies: 800.343.9353 >> eastwood.com 3
GENERAL SAFETY RULES
Read all instructions. Failure to follow all instructions listed below may result in electric shock,
fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your
mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.

4Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before plugging in. Carrying
power tools with your finger on the switch or plugging in power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tools operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and
in the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.

To order parts and supplies: 800.343.9353 >> eastwood.com 5
4) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
SHOCK HAZARD!
• Never operate or store Impact Wrench in damp or wet conditions.
• Plug into a minimum 15 amp circuit. If using an extension cord, it must
be AWG 16 or greater, no longer than 25’.
HEALTH & INJURY HAZARDS!
• Dust and fine particles are generated while operating the Impact Wrench
which can contain hazardous or toxic substances. Breathing this dust can
cause many serious respiratory health conditions. Always use NIOSH ap-
proved respiratory protection while using this Impact Wrench. This Impact
Wrench can eject chips, particles and debris at high velocity during opera-
tion. Wear ANSI approved eye protection at all times while operating.
• The rotating drive and impact sockets can quickly catch loose clothing,
long hair or jewelry causing serious personal injury. Keep all loose clothing,
long hair and jewelry away from operating Impact Wrench.
• This Impact Wrench can quickly start up when handling while plugged
in to electrical supply causing serious personal injury. Always unplug the
tool from the electrical supply before changing sockets, accessories or
performing maintenance.
• Sharp metal fastener edges can cut. Always wear protective work gloves
while handling.
• Rotating Impact Wrench sockets, other accessories and fasteners can
quickly cause cuts. Keep hands and fingers away from sockets, other
accessories and fasteners.
• This Impact Wrench can quickly and violently kick back or twist while
operating causing severe hand and or wrist injury. Do not apply excessive
force to Impact Wrench while in use. Always operate Impact Wrench with
two hands.
• Damaged impact sockets and accessories can break at high torque levels
causing personal injury or property damage. If excessive vibration is felt,
discontinue use immediately and disconnect tool from electrical supply.
Inspect socket, accessory or Impact Wrench for damage. Do not resume
use until resolution is found.
ADDITIONAL SAFETY INFORMATION
