EAW DX810 User manual

DX810
8x10 Digital Matrix Mixer and Signal Processor
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 1 of 6
DIGITAL SERIES
EAW Commercial’s DX810 is a DSP-based
digital audio mixer and signal processor. It
is designed for use in a variety of installa-
tions such as churches, courtrooms,
convention centers, and hotels. It provides
eight balanced mic/line inputs and ten bal-
anced outputs allowing true 8x10 mixing.
Each of the eight mic/line input channels
is accessed by means of two Phoenix-type
detachable connectors. Each input is opti-
mized to accept either mic or line-level sig-
nals. Microphone preamplifiers use XDR™
technology to offer studio-grade audio
performance. Phantom power of 48 VDC is
switchable individually on each mic input.
Two auxiliary line-level inputs with trim are
provided. This allows analog signals to be
mixed with the A and B outputs. Master
outputs provide balanced line-level signals
to Phoenix-type connectors.
Each of the ten outputs represents a dis-
crete mix of the eight inputs, resulting in a
true 8x10 mixing matrix with virtual faders
at each crosspoint. Any combination of
gain elements can be assigned to one of
32 groups.
The DX810 offers an intuitive front panel
user interface, consisting of dual-function
LED bar graph meters for each input and
the A and B outputs (all ten outputs can
be monitored in the software interface).
Input meters indicate the presence of
signal prior to any signal processing (pre-
fader). Output A and B meters indicate
actual level at the output (post-fader).
Levels for Mix A and B are set by means of
UP/DOWN pushbuttons dedicated to each
input and output. A MODE button is used to
select between Mix A and B. This allows
adjustment of levels to two mix outputs
from the same set of input controls. A third
function of the MODE button allows the
user to LOCK the front panel controls until
a security unlock code is entered.
Two independent RS232 connectors are
provided, one on the front panel and one
on the rear. This allows for connection
to a computer or control system. A DB25
connector on the rear panel allows for
interfacing with the 10 Logic Inputs and 10
Logic Outputs. Logic I/O enables hardware
control and indication from custom control
panels. All logic inputs and outputs are
programmable in software.
A proprietary remote control bus allows
connection of the optional DX wired
remotes. These remotes can use a variety
of three-conductor cable. Remotes are
available in Volume Control (DX-RVC) and
4-switch versions (DX-SW4), and may be
combined to provide flexible configurations.

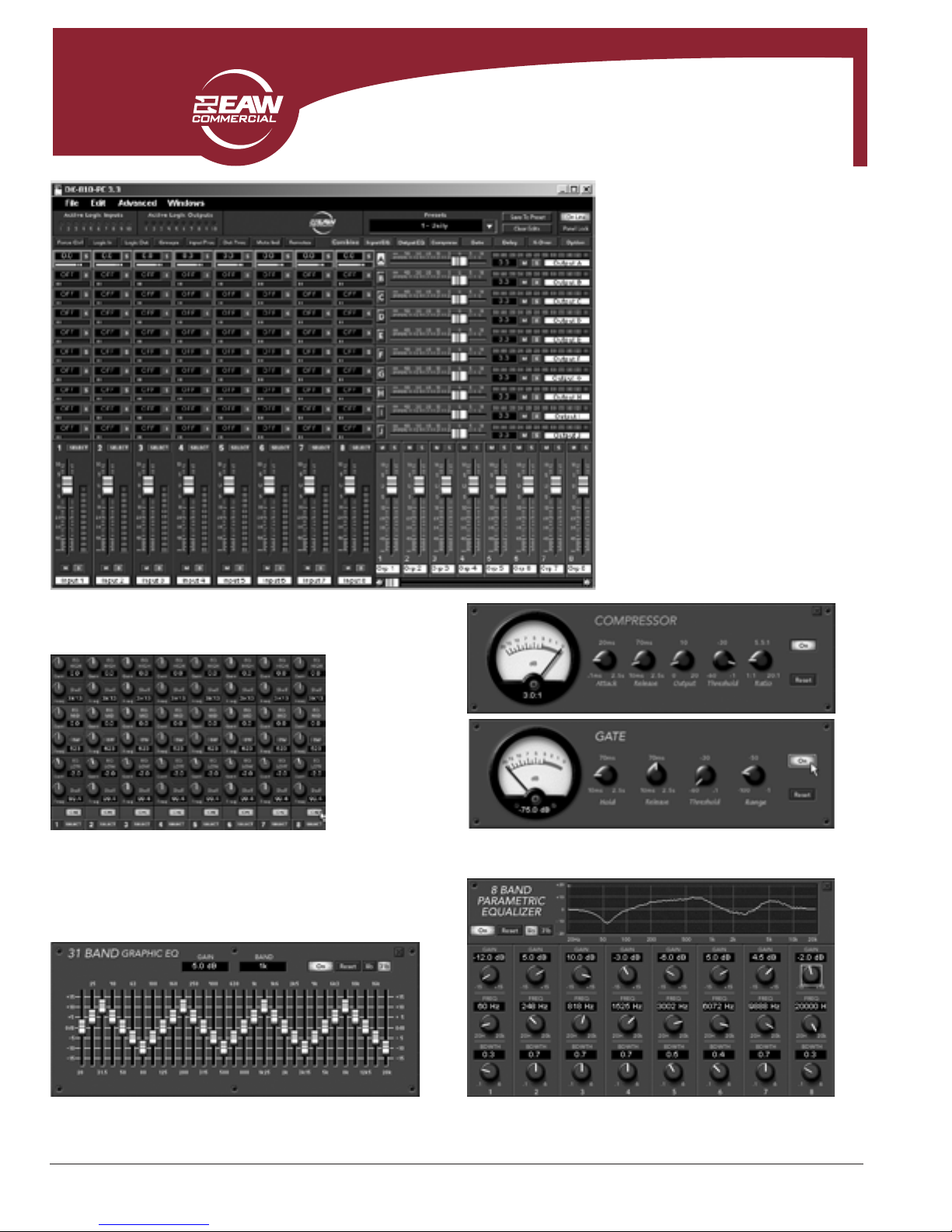

The DX810 is supplied with the DX-810-PC
software that allows access to all of the
system’s settings and configurations. The
software provides access to the three-
band input EQ, eight-band parametric
or 31-band graphic EQ for the outputs,
compressors, gates, delays, and crossover
configuration. In addition, the software
allows saving and recalling up to 32 pre-
sets, configuration for 32 control groups,
for input force on/force off functions with
priority, and for the logic input and output
connections. All settings and text labels
are retained in the DX810 as well as stored
on the computer’s local drive.
The DX810 is UL and CE approved and
designed for continuous use in profes-
sional fixed installation systems. An
internal auto-ranging power supply allows
connection to mains voltages from 90-240
VAC at 50/60 Hz. This requires no jumper
or switch setting changes. A 24 VDC input
is provided for applications where backup
battery power is required. Switchover to
backup power is automatic and silent.
FEATURES
·· 32-bit DSP and 24-bit Analog/Digital
Conversion
·· 8 balanced XDR™ Mic/Line inputs with
trim
·· 2 balanced Line inputs direct to mix buses
A and B
·· 10 Independent Mix Buses and balanced
Outputs
·· 2 unbalanced Record Outputs
·· 8 unbalanced Direct Channel Outputs
·· Individual Level/Peak (PPM) metering on
Inputs and Outputs
·· 2-band sweepable High and Low shelving
EQ with a parametric Mid control on each
Input
·· Gating on each Input
·· Solo button on each Input
·· 31-band Graphic EQ or 8-band Parametric
EQ on each Output
·· Fully variable Compressor on each Input
and Output
·· Variable delay on each Output
·· Configurable crossover for up to five
bands
·· 10 Programmable Logic Inputs
·· 10 Programmable Logic Outputs
·· 2 independent RS-232 interface ports
·· 48 VDC Phantom Power switch per input
·· 24 VDC Backup Power input
·· PC software application included
·· Remote Mapping feature provides individ-
ual button assignments for the DX-SW4
remote control
APPLICATIONS
·· Meeting Rooms
·· Hotels
·· Houses of Worship
·· BoardRooms
·· Courtrooms
·· Multizone Paging/Music Systems
·· Multi-Purpose Facilities

DX810
8x10 Digital Matrix Mixer and Signal Processor
DX810
8x10 Digital Matrix Mixer and Signal Processor
SPECIFICATIONS
INPUTS / OUTPUTS
Inputs 1-8: Balanced, Phoenix-type connectors
Bus A and B: Balanced, Phoenix-type connectors,
Direct to Mix Buses
Outputs A-J: Balanced, Phoenix-type connectors
Record Outputs A/B: Unbalanced, RCA
Direct Outputs 1-8: Unbalanced on DB15
(bottom row is signal return)
Logic Inputs: 10 Inputs on DB25
Series resistance: 570 Ω
Internal pull-up: 47 kΩ to +5 VDC
Input voltage: +5.5 VDC maximum
Active voltage: +1.0 VDC maximum
Logic Outputs: 10 open-collector outputs on DB25
Series resistance: 550 Ω
Internal pull-up: 10 kΩ to +5 VDC
Active current: 10 mA maximum
Active voltage: +0.8 VDC max @ 1 mA
Serial Ports: 2 RS-232C on DB9 (COMM PORTS)
PANEL CONTROLS
Input Trim: 8 Rotary Potentiometers
Input Gain: 2 Pushbuttons per Input
Master Output Gain: 2 Pushbuttons per Output
Mode Select: 1 Pushbutton
Power: Rocker Switch
Phantom Power Select: 8 DIP Switches
PANEL INDICATORS
Input Levels: 12-segment LEDs per ch.
Mode Status: 3 LEDs; A/B/LOCK
Output Levels: 12-segment LEDs per ch.
Volume Setting: 12-segment LED Bar Graph
SIGNAL PROCESSING
General: Five 32-bit floating-point DSP
24-bit A/D and D/A converters
512Kx16 Flash ROM
128Kx32 SRAM (with battery backup)
Inputs: 3-band shelving EQ with parametric mid
Gain: ±15 dB
Corner Frequency: LO: 20 Hz-500 Hz variable
HI: 500 Hz-20 kHz variable
Center Frequency: MID: 20 Hz-20 kHz variable
BW: 0.1 octave to 6 octaves
Gate on each Input: Threshold: –60 dBfs to –1 dBfs
Hold: 0 ms to 2550 ms
Release: 10 ms to 2500 ms
Range: –100 dB to –1 dB
Outputs:
Delay on each Output: Temp: –40°F to 122°F (–40°C to 50°C)
Coarse: 0 ms to 200 ms
Fine: 0 µs to 997 µs
Crossover: Polarity: 0°, 180°
Filter Type: High-Pass, Low-Pass, Band-Pass
Alignment: Linkwitz-Riley, Butterworth
Filter Slope: 12 dB/octave, 18 dB/octave,
24 dB/octave (Butterworth only)
Frequency: 20 Hz-20 kHz
1/3-Octave Graphic EQ on each Output:
Gain: ±15 dB
ISO-Centered Frequencies: 20, 25, 31.5, 40, 50, 63, 80, 100, 125, 60,
200, 250, 315, 400, 500, 630, 800, 1 k,
1.25 k, 1.6 k, 2 k, 2.5 k, 3.15 k, 4 k, 5 k,
6.3 k, 8 k, 10 k, 12.5 k, 16 k, 20 k
5-Band Parametric EQ on each Output:
Gain: ±15 dB
Center Frequency: 20 Hz-20 kHz variable
BW: 0.1 octave to 6 octaves
Compressor/Limiter on each Input and Output:
Threshold: –60.0 dB to –1.0 dB
Attack: 0.1 ms to 2500 ms
Release: 10 ms to 2500 ms
Ratio: 1:1 to 20:1
Output: 0 dB to +20.0 dB
AUDIO
Noise
(20 Hz-20 kHz bandwidth, Master Out, channel Trims @ unity gain, channel EQs
flat, all odd channels panned left, even channels panned right):
Master level @ unity, channel levels @ unity:
–82 dBu
Single channel to Master Out: –100 dBu
(referenced to 1% THD+N)
Total Harmonic Distortion (THD+N)
(1 kHz @ +10 dBu {unity level} 20 Hz-20 kHz):
Mic in to Master Out: < 0.005%
Crosstalk
(1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, any line input to adjacent
Direct Out, Trim to unity): < –90 dB
Frequency Response
Mic input to any output: 20 Hz–20 kHz, ±0.5 dB
Equivalent Input Noise (EIN)
Mic in to Direct out, max gain,
150 ohm termination: –129.5 dBm unweighted
Common Mode Rejection (CMR)
Mic in to Direct out, max gain,
1 kHz signal: better than 80 dB
Maximum and Nominal Levels and Ranges
Mic inputs: +18 dBu, +4 dBu, 0 to +60 dB gain
Line inputs: +18 dBu, +4 dBu, –30 to +30 dB gain
Bus A/B inputs: +18 dBu, +4 dBu, –20 to +20 dB gain
All outputs: +18 dBu, +4 dBu
Impedances
Mic inputs: 1.3 K ohms
Line inputs: 40 K ohms
All other inputs: 10 K ohms or greater
All outputs: 120 ohms
PHYSICAL
Dimensions (HxWxD): 3.5”/2 RU x 19” x 13.25”
(89 mm x 483 mm x 337 mm_
Net Weight: 12.9 lbs. (5.9 kg)
ELECTRICAL
AC Power: 90–240 VAC, 50/60 Hz, 1.0 A
DC Power: 24 VDC, 3 A
Phantom Power: +48 VDC, current limited
to 7 mA per input channel
Fuse Ratings: 1.6 A Slo Blo, 250 V
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 2 of 6

DX810
8x10 Digital Matrix Mixer and Signal Processor
DX810
8x10 Digital Matrix Mixer and Signal Processor
SPECIFICATIONS
PC SYSTEM REQUIREMENTS
OS: Windows® 95, 98, NT®, 2000, XP
Processor: Pentium® or faster
RAM: 16 MB minimum
32 MB recommended
Storage: 10 MB free disk space
Display: 800x600 pixels, 256 colors minimum
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
OL
2
4
7
10
15
20
25
30
35
40
50
12
15
9
6
3
0
3
6
9
12
15
2
OL
4
7
10
15
20
25
30
35
40
50
A B LOCK
MODE
POWER
COMM PORT
1
2
3
4
5
6
7
8HI
LO EQ
B
A MASTER
DX810 DIGITAL MIXER
B
REMOTE BUS
TRIM
BUS A
U
+20-20
A
TRIM
1
RECORD
AB
OUTPUTS
LOGIC I/O
TRIM
BUS B
U
+20-20
TRIM
2TRIM 3TRIM 4
TRIM
5TRIM 6TRIM 7TRIM 8
M
I
C
G
A
I
N
060
–
+
SERIAL NUMBER MANUFACTURING DATE
COMM PORT
DIRECT OUTPUTS
12345678
POWER
INPUT
22
- 28V DC,
3A MAX
2 3 4 5 6 7 81
–
+G
G+
–
MIC
LINE
LINELINELINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
M
I
C
G
A
I
N
060
-
30dB +30dB
U
PHANTOM POWER
48V DC
12 1 +5V
11G 1
G+
–
G+
–
G+
–
INPUTS
OUTPUTS
100
–
240V , 50/60Hz, 1A MAX
LISTED COMMERCIAL
AUDIO EQUIPMENT
9Z39
R
J
I
H
G
C
D
E
F
•
1
0
e
–
+
G
G
+
–
DX810 DIGITAL MIXER
front panel manual
adjustments via UP/
DOWN pushbuttons
Universal Power Input
90-240 volt 50/60Hz 24VDC
power input
Direct
outputs
Extra Bus A and B
input trim controls Rear panel
RS 232 Port
Main Bus C-J Outputs
Extra inputs fed
directly to Bus A
and B
Main Bus
A & B outputs
Input Phoenix-type
terminals
Individual 48 VDC phantom
power selectors for each
mic input channel
Recording output
from Bus A and B
Logic I/O expansion
port
Remote
control bus
12 segment
LED ladders
A/B/Lockout selector Front panel RS232 port

  
  
  
  
  
  
  
  
  
  
  
  
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 3 of 6

DX810
8x10 Digital Matrix Mixer and Signal Processor
DX810
8x10 Digital Matrix Mixer and Signal Processor
DX-810-PC SOFTWARE
The DX810 real-time DX-810-PC soft-
ware application provides access
to all of the DX810’s controls. The
user interface employs a full-matrix
mixer, making settings and opera-
tion clear and intuitive. The input,
output, crosspoint, and group faders
are visible at the same time, allowing
immediate access to all level controls.
Indicators for Active Logic Inputs
and Mute Groups are always visible,
as are the input and output signal
meters. Equalizer, compressor, gate,
delay, crossover, and setup screen
views are recalled from direct-select
buttons.
The main interface screen offers 8 input faders, 10 output faders,
80 crosspoint faders, and 32 group faders
The input EQ view offers three filters for each input, with
rotary gain and frequency controls for the High and Low
Shelving filters, and gain, frequency, and bandwidth con-
trols for the Bandpass filter
The Graphic EQ view offers 31 bands of control on ISO-cen-
tered frequencies for each of the ten outputs
The Parametric EQ view includes five bands of control for
each output, as well as a display window that graphically
represents the parameter settings
A full-featured compressor is provided for each input and
output, and a full-featured gate is provided for each input
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 4 of 6

DX810
8x10 Digital Matrix Mixer and Signal Processor
DX810
8x10 Digital Matrix Mixer and Signal Processor
DIRECT
OUTPUT
CHANNEL 1
32-BIT DSP
CHANNELS 2-8
(IDENTICAL TO CH 1)
3-BAND INPUT EQGATE
INPUT METER
INTERNAL DIGITAL
BUSES
ADC
24-BIT
PHANTOM POWER
+48 VDC
MUTE/ENABLE
TRIM
+5V
PC
OR OTHER
CONTROL
DEVICE
(OPTIONAL)
PC
OR OTHER
CONTROL
DEVICE
(OPTIONAL)
REMOTE
CONTROL
(OPTIONAL)
MIC
LINE
A B C D E F G H I J
LOGIC
IN
(1 OF 10)
FRONT PANEL
COMM PORT
REMOTE
CONTROL
+5V
LOGIC
OUT
(1 OF 10)
CONTROL
PROCESSING
REMOTE
CONTROL
(OPTIONAL)
TO ADDITIONAL
REMOTE CONTROLS
(OPTIONAL)
REAR PANEL
COMM PORT
COMPRESSOR
DAC
24-BIT
8-BAND PARAMETRIC EQ
BUSES E-J
(IDENTICAL TO A-D)
MUTE/ENABLE
X-OVER
31b
8b
31b
8b
31b
8b
31b
8b
DELAY
A
B
C
D
INTERNAL ANALOG
BUSES
A B C D E F G H I J
31-BAND GRAPHIC EQ
DAC
24-BIT
COMPRESSOR
COMPRESSOR
OUTPUT METER
OUTPUT METER
RECORD
OUTPUTS
A
OUTPUT
B
OUTPUT
C-F
OUTPUTS
A
–
+
G
–
+
G
–
+
G
–
+
G
–
+
G
–
+
G
G-J
OUTPUTS
–
+
G
–
+
G
–
+
G
–
+
G
B
BUS A
INPUT
BUS B
INPUT
TRIM TRIM
EAW Commercial DX810 (v3.3) BLOCK DIAGRAM (6/30/03 DF)
MUTE/ENABLE
X-OVER
DELAY
MUTE/ENABLE
X-OVER
DELAY
MUTE/ENABLE
X-OVER
DELAY
DAC
24-BIT
DAC
24-BIT
COMPRESSOR
COMPRESSOR
OUTPUT METER
OUTPUT METER
8-BAND PARAMETRIC EQ
31-BAND GRAPHIC EQ
8-BAND PARAMETRIC EQ
31-BAND GRAPHIC EQ
8-BAND PARAMETRIC EQ
31-BAND GRAPHIC EQ
Room combining allows multiple outputs to be combined to
output a single mix. Up to sixteen user-configurable com-
binations are available, which can be selected by remote
control or a logic input
The X-over view allows grouping two or more outputs
into crossover groups, with adjustable parameters includ-
ing time delay, center frequency, bandwidth, three filter
types, three filter slopes, and the choice of Linkwitz-Riley,
Butterworth, and Bessel filter characteristics
The Delay screen provides coarse and fine time delay in
milliseconds and microseconds for each of the ten outputs
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 5 of 6

DX810
8x10 Digital Matrix Mixer and Signal Processor
CSI PRODUCT SPECIFICATIONS FOR DESIGNERS, SPECIFIERS, AND CONSULTANTS
(Also known as “A&E Specications”)
The following are “Part 2 Products” CSI-type specifications. It is assumed that “Part 1 General – Administrative and Procedures” and
“Part 3 Execution – Installation and Maintenance” are part of an overall audio system or project specification.
PART 2 PRODUCTS
2.01 Approved Manufacturer/Product
A. EAW Commercial, One Main Street, Whitinsville, MA 01588 USA
B. Model number: DX810
2.02 Design
A. Conguration: 8-channel digital audio mixer
1. Inputs:
a. Eight balanced mono mic inputs (Eight 3-pin Phoenix-type connectors)
b. Ten balanced mono line inputs (Ten 3-pin Phoenix-type connectors)
2. Outputs:
a. Ten balanced line outputs (Two 3-pin and two 12-pin Phoenix-type connectors)
b. Eight unbalanced direct line outputs (one DB15 connector)
c. Two unbalanced RECORD outputs (two RCA line-level output jacks)
3. Other
a. Ten logic inputs and ten logic outputs (one DB25 connector)
b. One remote bus connector (one 3-pin Phoenix-type connector)
c. Two RS-232C serial ports (two DB9 connectors)
B. Powering Mode
1. Internal AC power supply, 90 - 240 VAC, 50/60 Hz, 1 A
2. External DC power supply, 22 - 28 VDC, 3 A
2.03 Electrical Properties
A. Frequency Response (± 0.5 dB):
20 Hz to 20 kHz
B. Total Harmonic Distortion (20 Hz to 20 kHz @ 0 dBu output):
< 0.005%
C. Noise (20 Hz to 20 kHz BW, 150 ohm source impedance):
1. Equivalent Input Noise (EIN):
–129.5 dBm unweighted
2. Output Noise
a. Master level at unity, channel levels at unity:
–82 dBu
b. Single channel to Master out:
–100 dBu
D. Common Mode Rejection (@ 1 kHz, Gain at maximum):
80 dB
E. Crosstalk (@ 1 kHz, any input to adjacent direct output):
–90 dB
F. Input Gain Control Range:
1. Mic In: 0 dB to +60 dB
2. Line In: –30 dB to +30 dB
G. Phantom Power: +48 VDC @ 7 mA per input channel
H. Rated Output:
1. Nominal Output: +4 dBu
2. Maximum Output: +18 dBu
2.04 Physical Properties
A. Dimensions
1. Height: 3.5 in/89 mm
2. Width: 19 in/483 mm
3. Depth: 13.25 in/337 mm
B. Weight
1. Net Weight: 12.9 lb/5.9 kg Part No. 0009777 Rev. B 07/04
LOUD Technologies Inc. continually engages in research related to product improvement. New material,
production methods, and design renements are introduced into existing products without notice as a routine
expression of that philosophy. For this reason, any current EAW Commercial and LOUD Technologies product
may differ in some respect from its published description, but will always equal or exceed the original
design specications unless otherwise stated. ©1999–2004 LOUD Technologies Inc. All rights reserved. EAW
Commercial is a trademark of LOUD Technologies Inc.
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 6 of 6
