Thank you very much for buying this ECE product. Be-
fore using your ECE refrigerator, please read this op-
eration manual to ensure that you gain the maximum
benefit from it.
REFRIGERATOR - FREEZER
OPERATION MANUAL
EFR 250
CONTENTS
• WARNING ............................................. 2
• CAUTION .............................................. 2
• INSTALLATION .................................... 3
• DESCRIPTION ..................................... 3
• OPERATION ......................................... 4
• STORING FOOD .................................. 6
• CARE AND CLEANING ....................... 7
• WHAT TO DO BEFORE YOU CALL
FOR SERVICE ...................................... 8
EFR 250

2
WARNING
1. This refrigerator is airtight. TO PREVENT FA-
TAL ACCIDENTS TO CHILDREN, please com-
pletely remove the door prior to discarding the
refrigerator.
2. Highly volatile and inflammable materials such
as ether, petrol, propane gas, adhesive agents
and pure alcohol etc. are liable to explode. Do
not store these materials in the refrigerator.
3. To prevent damage to the outer cabinet, avoid
contact with lacquer, and paint, etc.
4. When cleaning your refrigerator, do not splash
water directly on the outer cabinet or the inte-
rior. This may lead to rusting and deterioration
of the electrical insulation.
5. If any areas adjacent to electrical components
have to be cleaned, unplug the refrigerator first
to prevent electric shock, then wipe the area
with a dry cloth.
6. Should electrical components be accidentally
immersed in water, unplug the refrigerator, dry
the parts and contact your nearest service
agent approved by ECE.
7. This refrigerator is designed solely for the pur-
pose of storing foodstuff for domestic use in
accordance with the instructions given in this
manual. Using the refrigerator for other pur-
poses might be harmful to persons or prop-
erty.
8. This refrigerator is not suitable for the storage
of materials requiring precise temperatures.
Deterioration of these materials will be dan-
gerous.
9. Dust deposited on the power plug may cause
fire. Wipe it off carefully.
10. When replacing the lamp bulb, unplug the re-
frigerator first to prevent electric shock.
11. Do not attempt to change or modify this refrig-
erator. This may result in fire, electric shock or
injury.
12. Information regarding disposal of the
appliance
Flammable insulation blowing gases should be
disposed appropriately. Take the cabinet and
doors to a recycling plant for flammable insu-
lation blowing gases.
1. Do not touch the compressor unit or its pe-
ripheral parts, as they become extremely hot
during operation and the metal edges may
cause injury.
2. If the power supply is accidentally discon-
nected, please wait for at least 5 minutes be-
fore re-connecting the power, as back pres-
sure in the compressor may trip the overload
relay.
3. Avoid removing food from the freezer with your
bare hands. Directly touching products stored
at sub-zero temperatures can result in frost-
bite.
4. To prevent accidental power disconnection,
plug the refrigerator directly to the source. Do
not use a double adaptor as loss of power could
lead to the spoiling of the stored food.
5. Do not place bottles in the freezer as they may
crack when frozen.
6. Keep the door securely closed. If the door is
left ajar, the controlled inner temperature will
rise, resulting in food spoilage and increase in
electricity costs.
7. Do not install the refrigerator in a damp or wet
location as this may cause damage to the in-
sulation and a leak. Condensation may also
build on the outer cabinet and cause rust.
8. When installing or moving the refrigerator,
make sure that you do not nip or kink the power
cord. Damage of the power cord may cause
electric shock or fire.
9. Do not use this refrigerator when the power
cord or plug is damaged, or the outlet attach-
ment is loose, as they may cause electric shock
or fire.
10. Disconnect from the mains electricity supply
by removing the mains plug from the electric-
ity supply socket. Do not remove by pulling the
mains lead. This may cause electric shock or
fire.
11. Make sure that you leave adequate ventilation
space around the refrigerator to prevent the
compressor from overheating and stopping.
Please follow the instructions given for instal-
lation.
12. The refrigeration system behind and inside the
refrigerator contains refrigerant. If this system
is punctured it could result in serious damage
to your refrigerator, therefore do not allow any
sharp objects to come into contact with the re-
frigeration system.
13. Should the flexible supply cord be damaged, it
must be replaced by service agent approved
by ECE as a special cord is required.
14. In case of gas leak, ventilate the area by open-
ing a window, etc. Do not touch the refrigera-
tor or the power outlet.
15. Do not place heavy or easily broken objects
on top of the refrigerator. Objects may fall when
opening or closing the refrigerator, causing in-
jury.
16. Do not place objects containing liquid on top
of the refrigerator. Spillage may cause electric
shock or fire.
17. Do not drop objects inside the refrigerator or
strike the inner wall. This may cause the inner
surface to crack.
18. This refrigerator is not intended for use by
young children or infirm persons without su-
pervision. Young children should be supervised
to ensure that they do not play with the refrig-
erator.
CAUTION

3

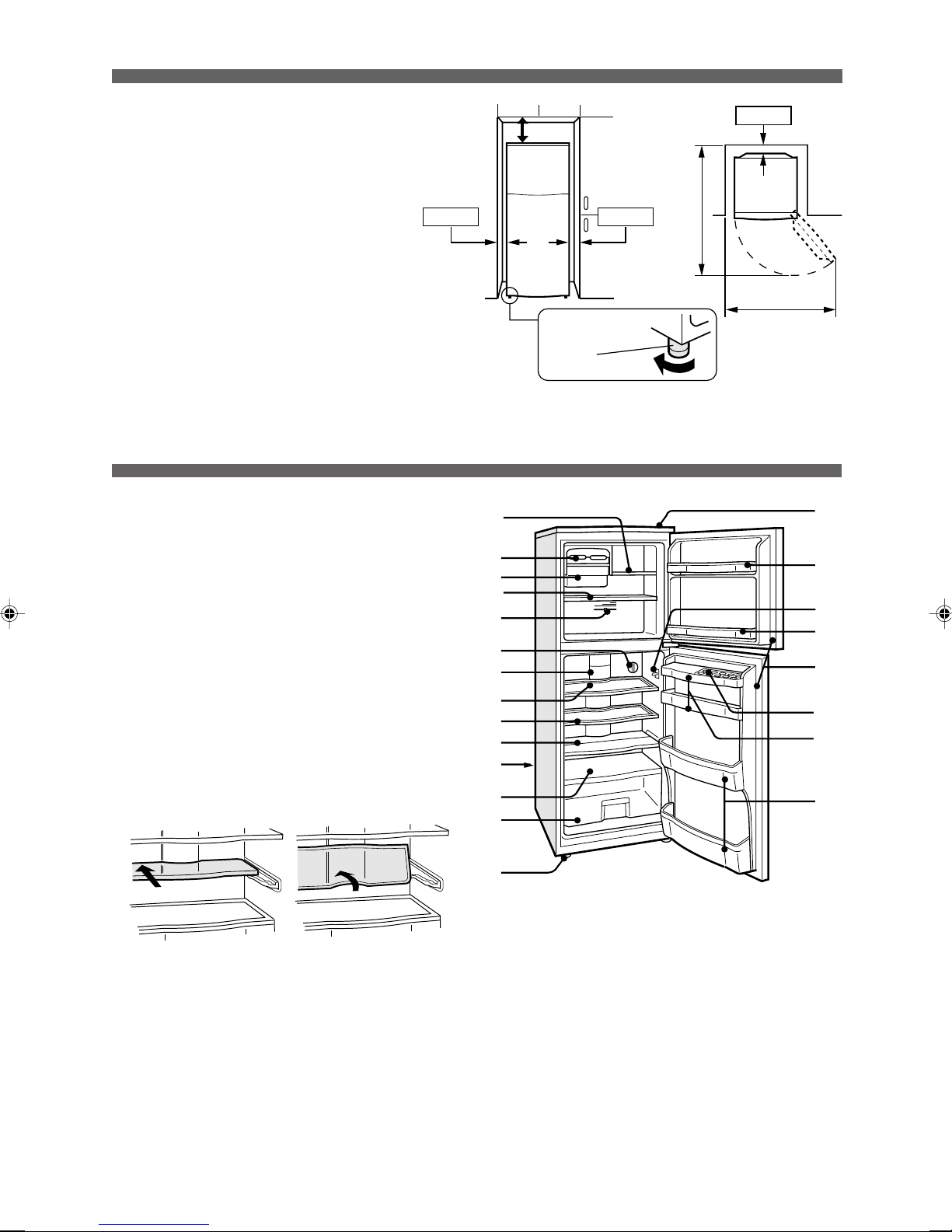

1. To ensure adequate ventilation for your
refrigerator, it is recommended to pro-
vide space of 6cm on both sides and
at the back, and space of 9cm above
the refrigerator. Insufficient spacing will
decrease the cooling efficiency, result-
ing in unnecessary consumption of
electricity.
6cm6cm
9cm
Adjustable
foot
6cm
113 cm
103 cm
INSTALLATION
DESCRIPTION
8. Refrigerator shelf (Small)
9. Refrigerator shelf (Large)
10. Three position adjustable shelf
This shelf has three positions, it can be
partly or fully extended or be fully folded
away simply by pushing the shelf back
then lifting it up.
11. Evaporating pan (rear side)
12. Shelf
13. Fruit and vegetable crisper
14. Adjustable foot
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
17
16
18
19
20
21
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide
suitable stand.
NOTE:
2. Using the front Adjustable foot, ensure
that the refrigerator is positioned firmly
and level on the floor.
15. Table top
Do not place hot objects on the Table
top. The table may melt and deform.
The table can resist temperatures up
to 100°C.
16. Freezer shelf
17. Light switch
18. Magnetic door seal
19. Egg holder
20. Free pocket
21. Bottle pocket
1. Freezer shelf (Small)
2. Ice cube maker
3. Ice cube box
4. Freezer shelf (Large)
5. Freezr temp. control knob
6. Refrigerator temp. control knob
7. Light

4
OPERATION
MAX
4123 567
Coldest
(WINTER SEASON)
MEDMIN
FREEZER TEMP. CONTROL
CONTROLLING TEMPERATURES
The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as
follows.
Freezer compartment
FREEZER TEMP. CONTROL regulates the quantity of cold air to the freezer.
•7 (MAX) setting directs more cold air to
the freezer compartment. (making the
freezer compartment colder)
•1 (MIN) setting directs less cold air to
the freezer compartment. (making the
freezer compartment less colder)
•If the freezer does not cool even when
setting FREEZER TEMP. CONTROL to
7(MAX), set REFRIGERATOR TEMP.
CONTROL to 5 (Coldest) as well.
7(MAX)
4(MED)
1(MIN)
For making ice rapidly or
fast freezing.
When frozen food or ice
cream is not stored.
For normal freezing.
Refrigerator compartment
REFRIGERATOR TEMP. CONTROL controls the compressor running time of the refrigeration system.
5(Coldest)
3(MED)
1(MIN)
For keeping foods fresher
tasting.
When the refrigerator does
not provide sufficient cooling.
For normal operation.
When the refrigerator pro-
vides excessive cooling.
•5 (Coldest) setting will result in colder
temperature in the both (refrigerator and
freezer) compartments.
•1 (MIN) setting will result in warmer tem-
perature in the both (refrigerator and
freezer) compartments.
•If the refrigerator is operated for a long
time with REFRIGERATOR TEMP.
CONTROL set at 5 (Coldest), foods
stored in the refrigerator compartment
may also freeze.
•Low ambient temperature may cause placed foods to freeze even if RE-
FRIGERATOR TEMP. CONTROL is set to 1 (MIN).
•The freezer compartment may not cool sufficiently when leaving REFRIG-
ERATOR TEMP. CONTROL as 1 (MIN) for an extensive period. To cool the
freezer compartment properly, set REFRIGERATOR TEMP. CONTROL
closer to 5 (Coldest).
MIN
1
234
5 Coldest
MED
REFRIGERATOR
TEMP. CONTROL

5
Ice cube box
Lever
MED MAX
MAX
4123 567
Coldest
(WINTER SEASON)
MEDMIN
FREEZER TEMP. CONTROL
MED MAX
MAX
4123 567
Coldest
(WINTER SEASON)
MEDMIN
FREEZER TEMP. CONTROL
NOTE:
•For hot summer conditions (about over 35°C ambi-
ent temperature), set your FREEZER TEMP. CON-
TROL to less colder than 4(MED) towards 1(MIN).
This is because 7(MAX) setting may result in too little
air flow to the refrigerator compartment, causing too
warm temperature in the refrigerator compartment.
And set your REFRIGERATOR TEMP. CONTROL to
colder than 3(MED).
HINTS WHEN MAKING ICE
1.Do not over fill the Ice cube trays; otherwise the ice cubes
will be joined together when frozen.

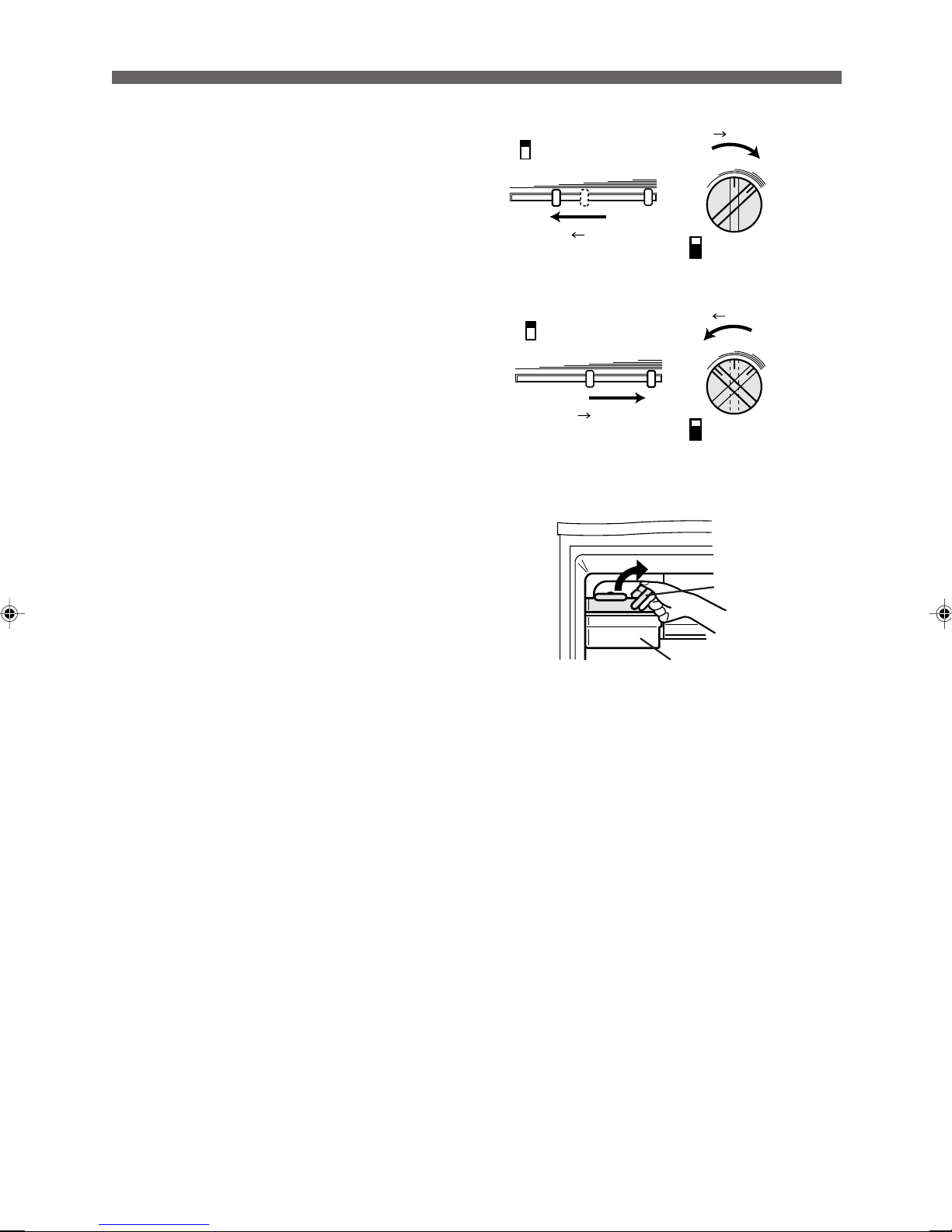

2.When the ice cubes are made, turn the lever clockwise
to empty the ice into the Ice cube box.
NOTE:
•In a cold kitchen (about under 10°C ambient tem-
perature), set your FREEZER TEMP. CONTROL to
7(MAX) to avoid too warm temperature in the freezer
compartment. This is because the compressor op-
eration is too short in winter, and not enough cold air
is provided to the freezer compartment. And if the
foods in the refrigerator compartment freeze, you
must set REFRIGERATOR TEMP. CONTROL to less
colder setting towards 1(MIN).
•With FREEZER TEMP. CONTROL set to 7(MAX),
there will be less cold air directed to the refrigerator
compartment, and the refrigerator compartment may
not become cold enough.
To prevent damage to the Ice cube box, do not make
ice in the Ice cube box or pour oil into it.
DEFROSTING
MIN Coldest
MIN
1
234
5 Coldest
MED
REFRIGERATOR
TEMP. CONTROL
MIN Coldest
MIN
1
234
5 Coldest
MED
REFRIGERATOR
TEMP. CONTROL
Defrosting is fully automatic due to a unique energy saving system. Whereby the defrost cycle start time
is proportional to the running time of your refrigerator compressor, i. e., the less time the refrigerator
compressor operates (during the winter season or you’re away on holidays), the longer the time between
each defrost cycle.

6
IN
OUT
MILK
MILK
STORING FOOD
Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products,
ensure that the food is of the freshest possible quality. The following is a general guide to help promote
longer food storage.
Fruit / Vegetables
To minimize moisture loss, fruit and vegetables should
be loosely enclosed in a plastic material e.g. wrap,
bags ( do not seal ) and place in Fruit and vegetable
crisper. Those fruits and vegetables with thick skins
e.g. oranges do not require wrapping.
Dairy Products & Eggs
•Most dairy products have a use by date on the outer
packaging which informs the recommended tem-
perature and shelf life of the product.
•Eggs should be stored in the Egg holder.
Meats / Fish / Poultry
•Place on a plate or dish and cover with paper or
plastic wrap.
•For larger cuts of meat, fish, or poultry, place to the
rear of the shelves.
•Ensure all cooked food is wrapped securely or
placed in an airtight container.
NOTE:
•Evenly place the food on the shelves to
allow the cooling air to circulate efficiently.
•Hot foods should be cooled before stor-
ing. Storing hot foods increases the tem-
perature in the unit and increases the risk
of food spoilage.
•Do not block the outlet and inlet of the cool
air circulating circuit with foods or contain-
ers; otherwise the foods will not be evenly
cooled throughout the refrigerator.
FOR BEST FREEZING
•Quality of foods should be fresh.
•Freeze small quantities of food at a time to freeze them quickly.
•Food should be properly stored or covered and the air should be removed to seal tightly.
•Evenly place the food in the freezer.
•Label bags or containers to keep an inventory of freezing food.
Do not place food directly in front
of cold air outlet. This may lead
to the food freezing.

7
CARE AND CLEANING
1.Remove the shelves and pockets from the cabi-
net and door. Wash them in warm soapy
dishwashing water; rinse in clean water and dry.
2.Clean the inside with a cloth soaked in warm
soapy dishwashing water. Then, use cold wa-
ter to wipe off soapy water.
3.Wipe the exterior with a soft cloth each time it
is soiled.
4.Clean the Magnetic door seal with a toothbrush
and warm soapy dishwashing water.
5.Whenever the refrigerator is moved to clean or
repositioned, the Evaporating pan should be
removed and cleaned.
Evaporating pan;
How to remove
Move the Evaporating
pan to the left to pull it
toward yourself.
Set the Evaporating pan
so that the two protru-
sions on the machine
come through its corre-
sponding holes, and
move the pan to the
right.
How to set
NOTE:
When cleaning all plastic
parts inside this refrigerator,
only use diluted dishwashing
liquid(soapy water). Make
sure that all plastic parts are
thoroughly rinsed with water
after cleaning.
Please pay attention to
the safety since the
compressor is very
hot.
Make sure the back
end of the Evaporating
pan rests securely on
the rail. Otherwise wa-
ter will leak.
• Do not use polishing powder, benzine, hot wa-
ter etc.
• If undiluted detergent is used or soapy water
is not wiped off thoroughly, cracking of plastic
parts can result.
• Wipe any food oils adhered to plastic compo-
nents as they can cause cracking of the plas-
tic surface.
Switching off your refrigerator
If you switch your refrigerator off when you are
going away for an extended period, remove all food,
clean the interior thoroughly. Remove the power
cord plug from the power socket and leave all doors
open.
Evaporat-
ing pan
Compressor
Protrusion
Hole
Evaporating pan
Protrusion
Evaporating
pan
Rail
Hole
Some household cleaning chemicals may affect
the inside surfaces and plastic shelves result-
ing in splitting or cracks occurring.
Replacing method of the lamp bulb
1.Unplug the refrigerator
first to prevent electric
shock.
2.Remove the light cover.
3.Replace the lamp bulb
with the same type.
Light cover
base E12, MAX 10W, T-20

8
(Company No. 15955-H)
ADVANCED ELECTRONICS (M) SDN. BHD.
11A, JALAN 215, 46050 PETALING JAYA,
SELANGOR DARUL EHSAN,
MALAYSIA.
TINS-A629CBRZ 04DK TH
1
WHAT TO DO BEFORE YOU CALL FOR SERVICE
Before you call for service, check the following
point .
•Loud noise produced by the compressor when
operation starts --- Sound becomes quieter af-
ter a while.
•Loud noise produced once a day by the com-
pressor --- Operating sound produced immedi-
ately after automatic defrost operation.
•Sound of flowing fluid (gurgling sound, fizzing
sound) --- Sound of refrigerant flowing in pipes
(sound may become louder from time to time).
•Cracking or crunching sound --- Sound produced
by expansion and contraction of inner walls and
internal parts during cooling.
•Squeaking sound --- Sound produced by expan-
sion and contraction of internal parts.
IT IS NORMAL that the outside of a cabinet may
be hot when touched. The hot pipe is in the cabi-
net in order to prevent dew generation.
IF YOU STILL REQUIRE SERVICE
Refer to your nearest service agent approved by
ECE.
IT IS NORMAL for the refrigerator to produce the
following sounds.
