Effio 700TVL User manual

700TVL
REAL WDR/3DNR/DEFOG/IR OPTIMIZE/ SCENE SELECTION
DOME CAMERA
USER’S MANUAL
700TV REAL WDR DOME CAMERA
51-002-301
■ Sony 960H Double Scan CCD II
■ Horizontal Resolution of over 700 TV Lines
■ IR LED : 30 units (IR Type)
■ Night View Distance : Indoor 35 / Outdoor 25m(IR Type)
■ Real Wide Dynamic Range
■ True Day & Night(ICR)
■ Day & Night(w/o ICR)
■ 2D&3D Noise Reduction
■ IR-Optimizer
■ Digital Image Stabilizer
■ Defog(Auto. Detection)
■ Motion Detection (Frame rate link)
■ Multi-languages OSD
■ Polygon Privacy mask
■ Intelligent scene recognition
■ Lens shading compensation
■ Coaxial communication
■ 3-Axis Gimbal & Vandalproof Dome Housing(Vandalproof Type)
■ 3-Axis Gimbal & Plastic Dome Housing
■ Weatherproof (IP66)(Vadalproof Type)

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
This installation should be made by a qualified service person
and should conform to all local codes.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

Precaution
Do not install the camera in
extreme temperature conditions.
To avoid malfunctions, never
use the camera close to a gas
or oil leak
Do not Keep the camera face to
strong light directly
Do not disassemble the camera
even if troubles happened
Do not drop the camera or
subject them to physical shocks.
Do not install the camera under
unstable lighting conditions
Do not install or use the camera
in an environment where the
humidity is high
Do not expose the camera to
rain or spill beverage on it.

1. Features
■ DEFOG
This camera supports DEFOG function which does a process of clearing
blurred image caused by fog and snow by analyzing the brightness of
input image and compensating the color of the image.
■ Horizontal Resolution
Over 700TVL with 960H CCD
■ DNR(Digital Noise Reduction)
-Improved “blur” of moving objects
-Fine color reproduction in low luminance
■ Low Light Performance
High sensitivity : Rich color infomation in even low luminance
Clear image under IR LED : Not saturated image by “ IR optimizer”
■ IR Optimizer
Intelligent control for clear image under IR LED light
- PWM control for IR LED light
- Prevention of saturated image by AE
- Compensation of shading for IR LED hot spot
■ Real W DR (Wide Dynamic Range)
- Improvement of visibility under high contrast scene by double shutter
and intelligent image processing
- Easy tuning for high contrast scene
■ Auto Scene Recognition
Provide the best image automatically for every situation
by intelligent scene analysis
■ Scene Selection
Provide the best image by automatic tuning for selected scene manually

FOCUS
ZOOM
⑤
④
②
②
②
②
①
③
③
①⑥
①
①
IR LED Type
Non IR LED Type

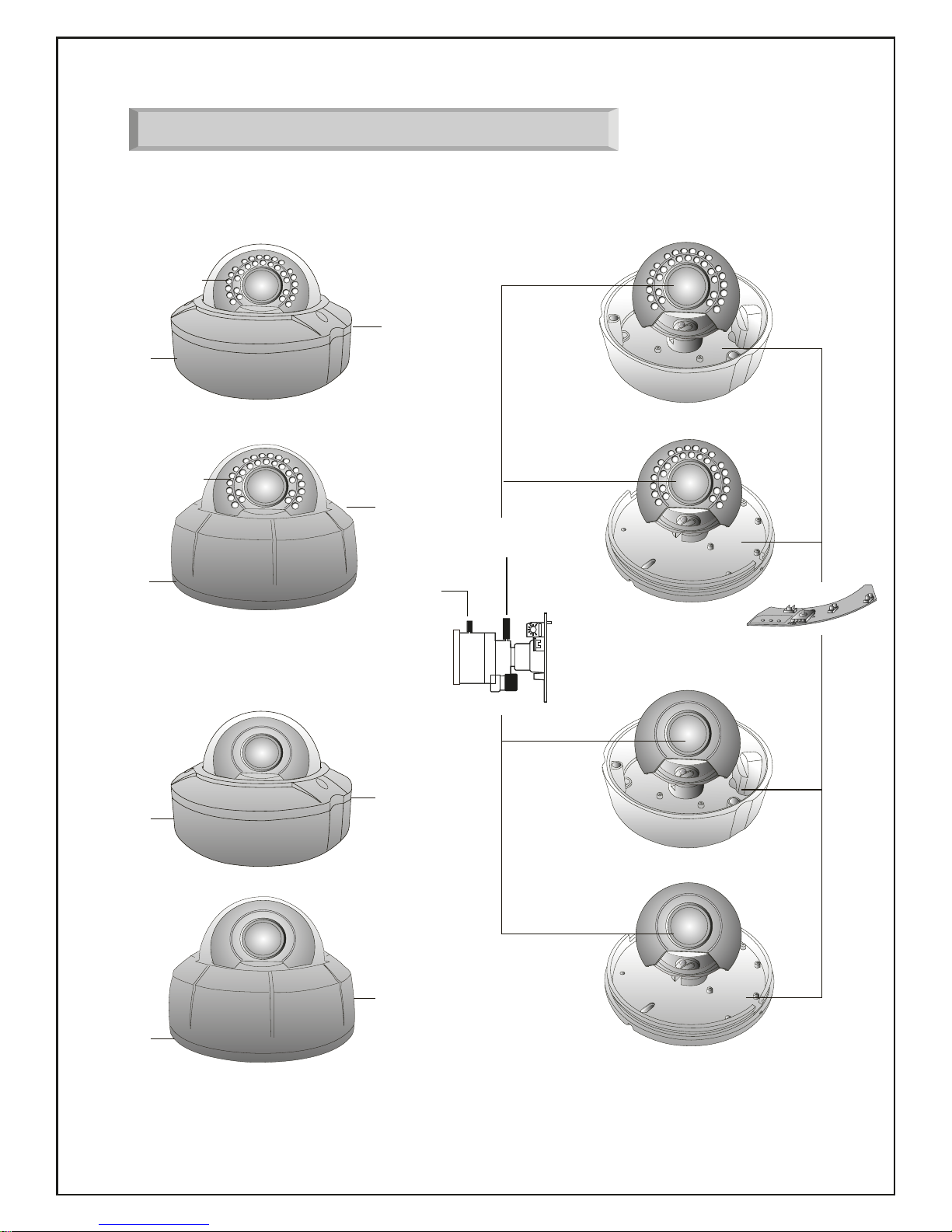

2. Names and Functions of Parts

3. Components
①Base
②Dome Cover Ring
③ IR LEDs
④ Focus Handle
Used to provide for accurate of an object within the
lens field of view
⑤ Zoom Handle
Used to adjustzoom magnification by turning
⑥OSD Board
Service Video
WDR/3D DNR DOME CAMERA
WDR / 3D DNR
DOME CAMERA
USER’S MANUAL
WDR/3DDNR
ZeroDefect
HighResolution of 600 TV Lines
SensUp(x512, DSS)
DIS(DigitalImage Stabilization)
PolygonalPrivacy Masking
D.Zoom(x1~x10)
Eclipse
HighSensitivity Day&Night
CEILING PAD
SCREW
MANUAL
L-WRENCHSERVICE VIDEO
SERVICE VIDEO
WDR/3D DNR DOME CAMERA
WDR / 3D DNR
DOME CAMERA
USER’S MANUAL
WDR/3DDNR
ZeroDefect
HighResolution of 600 TV Lines
SensUp(x512, DSS)
DIS(DigitalImage Stabilization)
PolygonalPrivacy Masking
D.Zoom(x1~x10)
Eclipse
HighSensitivity Day&Night
SCREW
DOME COVER OPENER
MANUAL
DOWN RIGHT
LEFT ENTER UP

4. Installation & Connection
Wall
Note :
* Ceiling pad(gasket) should be sticked to above base in installation
place.
* Wall mounting backet and other instruments should be used
with dome camera if the installation condition is not appropriate
to cover the whole dome base.
Wall
Plastic Dome CameraVandalproof Dome Camera

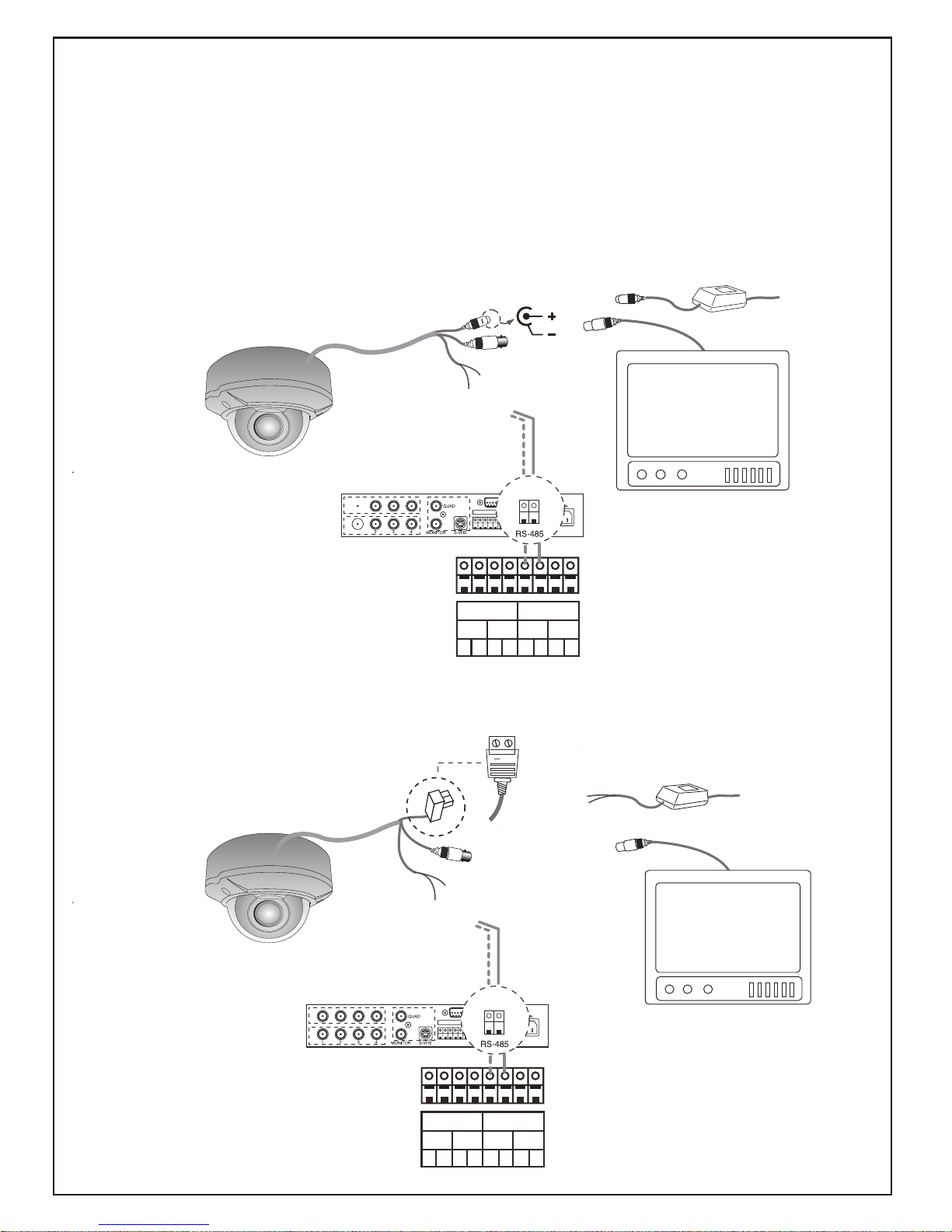

DC Power Connecting
Monitor
Power
(Adaptor Plug)
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
AC Power Connecting
Monitor
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
Power
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
+

5. Setup Menu Flow
SCENE SELECT
CUSTOM
FULL AUTO
INDOOR
OUTDOOR
BACKLIGHT
ITS
SHUTTER/
AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
FIX
MANUAL
AUTO
AT W
PUSH
USER1
USER2
ANTI-CR
MANUAL
PUSH LOCK
OFF
HLC
BLC
OFF
ATR-EX
WDR
DAY
NIGHT
AUTO
SHUTTER
AGC
SHUTTER
AGC MAX
AE LEVEL
AGC MAX
SENS UP
SPEED
DELAY CNT
ATW FRAME
ENVIRONMENT
B-GAIN
R-GAIN
B-GAIN
R-GAIN
LEVEL
CLIP LEVEL
CONTRAST
CLEAR FACE
CONTRAST
CLEAR FACE
LEVEL
BURST
BURST
CNTL SIGNAL
DELAY CNT
DAY→NIGHT
NIGHT→DAY
SETUP MENU ADVANCED MENU

IR OPTMIZER
LENS SHD COMP
DEFOG
FLKLESS
OFF
ON
OFF
ON
OFF
ON
OFF
ON
MODE
IR AREA
LEVEL
IR LED
COLOR NIGHT
IR SHADE COMP
PATTERN
POSH
POSV
LEVEL
MODE
TOP
BOTTOM
LEFT
RIGHT
WEIGHT
OFF
FIX
DAY/NIGHT
OFF
ON
OFF
ON
LEVEL
LEVEL MIN
LEVEL MAX
COLOR GAIN
PATTERN
POSH
POSV
ADVANCED MENU

PICT ADJUST
EZOOM
DIS
PRIVACY MASK
MOTION DET
SYS SETTING
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
COLOR GAIN
MAG
PAN
TILT
AREA SEL
DISPLAY
POSITION
COLOR
TRANSP
MOSAIC
DETECT SENSE
INTERVAL
BLOCK DISP
MASK AREA
MOTION AREA
SYNC MODE
LENS
AREA SEL
AREA MODE
TOP
BOTTOM
LEFT
RIGHT
INT
LL
VSL
MANUAL
AUTO
PHASE
PHASE
TYPE
MODE
ADJUST
SPEED
SETUP MENU ADVANCED MENU

SYS SETTING
LANGUAGE
VERSION
MAINTENANCE
EXIT
FLIP
LCD/CRT
COMMUNICATION
CAMERA ID
W.PIX MASK
CAMERA RESET
SAVE
NOT SAVE
CANCEL
BACK
PROTOCOL
ADDRESS
BAUD RATE
DATABIT
PARITY
STOP BIT
OFF
ON
MANUAL
AUTO
DATA CLEAR
POS
REGISTRATION
REG. POINT
CURSOR COLOR
BLINK
REG.NUMBER
RUN
BACK
SETUP MENU ADVANCED MENU

6. Dimension
unit :mm
145
106
144
103
SHUTTER/
AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT

7. SPECIFICATIONS
TV System
Sensor
Total Pixels
Effective Pixels
Synchronization
Scanning System
Horizontal Resolution
Min. Illumination
Video Output
S/N
Function
Scene Select
Auto Gain Control
Shutter Speed
Digital Slow Shutter
Flickerless
Wide Dynamic Range
Defog
BLC/HLC
Day & Night
White Balance
NTSC PAL
Sony 960H Double Scan CCD II
(H)1020 x (V)508 (H)1020 x (V)596
(H)976 x (V)494 (H)976 x (V)582
H/V 15.734/59.94Hz H/V 15.625/50Hz
2:1 Interlace
700 TV Lines in color
Color : 0.3 Lux
B/W : 0.1 Lux
VBS 1.0Vp-p (75ohm Terminated)
More than 50dB
Custom / Auto Scene / Indoor / Outdoor / Backlight / ITS
OFF / ON
1/60~1/120,000 1/50~1/120,000
OFF / AUTO (5X)
OFF / ON / AUTO
OFF / MANUAL / AUTO
OFF / ON
OFF / ON
DAY / NIGHT / AUTO / EXT 1 / EXT 2 (IR-Optimizer)
ATW / PUSH / MANUAL / USER 1 / USER 2 / PUSH LOCK

Design and specifications are subject to change without notice
Digital Noise Reduction
Flip(Mirror)
Effect
Lens Shading Compensation
Polygon Privacy Mask
Motion Detection
Blemish Compensation
Communication
Language
Electrical
IR LED Type Non IR LED Type
IR LED
Night View Distance
Day & Night System
Lens
Lens(Option)
Operating Temperature/Humidity
Storage Temperature/Humidity
Power(Max.)
Dimension(mm)
2D, 3D (OFF / 1~6)
OFF / H / V / HV
POSITIVE / NEGATIVE
1 ~ 20 Steps
OFF / On (15 masks)
OFF / ON (24 x 16 Block)
MANUAL / AUTO (64 point)
COAX : PELCO-C / RS-485 : PELCO-D
English / Espanol / Russian / Potugal / DEUTSCH /
France / Japanese
30 units
Outdoor 25m
ICR(Option w/o ICR)
2.8~12mm DC Auto Iris Varifocal Lens
2.8~12mm Varifocal Lens
-20℃ ~50℃ / 30% ~80%
-30℃~60℃ / 20% ~90%
DC 12V 450mA DC 12V 120mA
[Recommended-Voltage : +/- 20%, Current:
Adapter with rated power of 2 times(than real using current]
Vandalproof type :145(Ø) x 106(H)mm / Plastic Type :144(Ø) x 103(H)mm
PICT ADJUST
EZOOM
DIS
PRIVACY MASK
MOTION DET
SYS SETTING

PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor  / Outdoor 
- Power supply SPECIFICATION :
DC12V  / AC24V 
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture 
- Bad image 
- No power 
- Water damage 
- LED ON  / OFF 
- ETC.  :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
