Ego Power+ PS1000 User manual

OPERATOR’S MANUAL
56-VOLT LITHIUM-ION
POLE SAW
MODEL NUMBER PS1000/PS1000-FC
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
POLE SAW
FILL OIL TANK WITH BAR AND
CHAIN OIL BEFORE FIRST USE
Español p. 85
Français p. 41

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC2
TABLE OF CONTENTS
Safety Symbols ..........................................4
Safety Instructions.....................................5-10
Introduction ............................................11
Specications ..........................................11
Packing List ............................................12
Description .........................................13-15
Assembly ...........................................16-20
Operation ...........................................21-28
Maintenance ........................................29-35
Troubleshooting ......................................36-37
Warranty ...........................................38-39

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 3
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR'S MANUAL
WARNING: Some dust created by power cutting contains chemicals known to
the state of California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
◾Lead from lead - based paints
◾Crystalline silica from bricks and cement and other masonry products, and
◾Arsenic and chromium from chemically - treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemical: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to lter out microscopic particles.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC4
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this machine. Failure to follow all instructions listed below
may result in electric shock, re, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May
be used in conjunction with other symbols or pictographs.
WARNING! The operation of any machines can result in foreign
objects being thrown into your eyes, which can result in severe eye
damage. Before beginning machine operation, always wear safety
goggles or safety glasses with side shields and a full face shield
when needed. We recommend a Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields. Always use eye
protection which is marked to comply with ANSI Z87.1.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 5

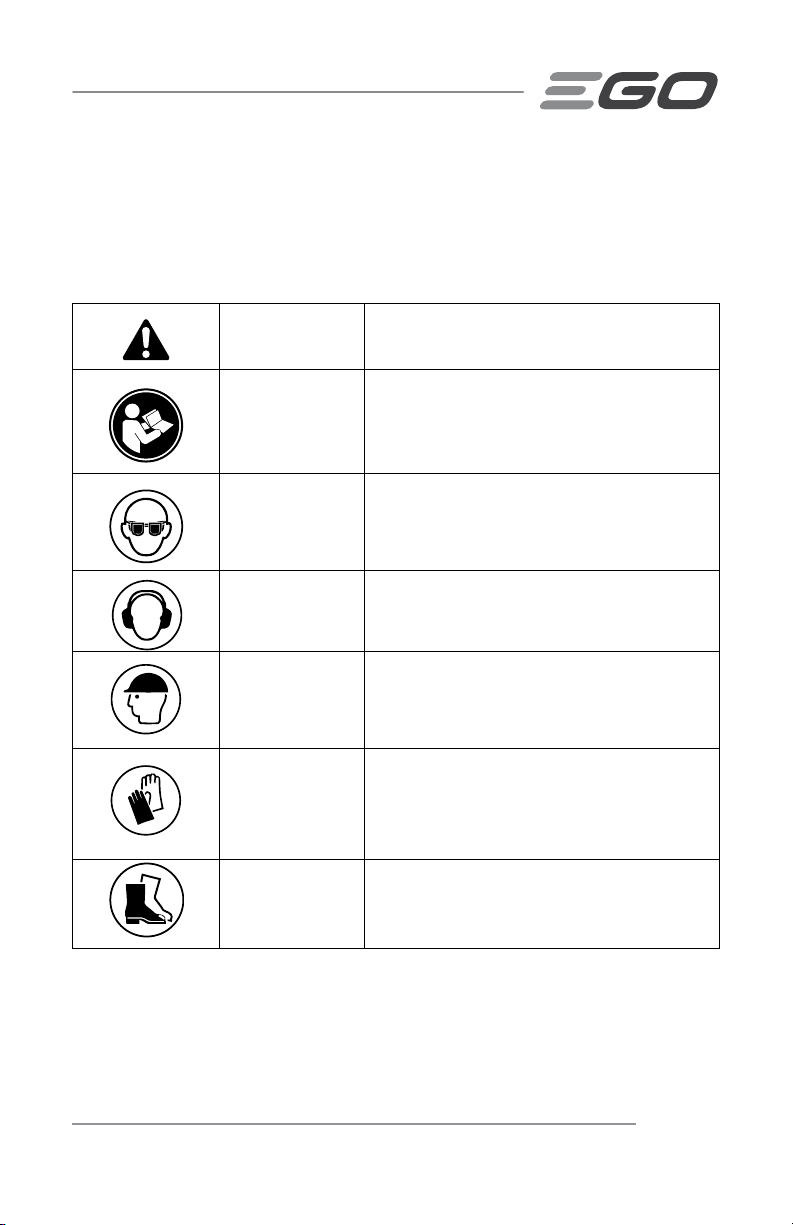

SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may appear on this product. Read,
understand, and follow all instructions on the machine before attempting to assemble
and operate it.
Safety Alert Indicates a potential personal injury hazard.
Read &
Understand
Operator’s
Manual
To reduce the risk of injury, user must read
and understand the operator’s manual before
using this product.
Wear Eye
Protection
Always wear safety goggles or safety glasses
with side shields and a full face shield when
operating this product.
Wear Ear
Protection
Pole saw noise may damage your hearing.
Always wear sound barriers (ear plugs or ear
mufers) to protect your hearing.
Wear Head
Protection
Wear an approved safety hard hat to protect
your head.
Wear Protective
Gloves
Protect your hands with gloves when
handling saw and saw chain. Heavy-duty,
nonslip gloves improve your grip and protect
your hands.
Wear Safety
Footwear
Wear non-slip safety footwear when using
this equipment.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC6
Keep sufcient
distance away
from electrical
power lines
To prevent electrocution, do not operate
within 50 ft. (15m) of overhead electrical
lines. Contact with or use near power lines
may cause serious injury or electric shock
resulting in death.
Recycle Symbol
This product uses lithium-ion (Li-ion)
batteries. Local, state, or federal laws may
prohibit disposal of batteries in ordinary
trash. Consult your local waste authority for
information regarding available recycling and/
or disposal options.
IPX4 Ingress Protection
Degree Protection from splashing water
V Volt Voltage
mm Millimeter Length or size
cm Centimeter Length or size
ft Foot Length or size
in. Inch Length or size
kg Kilogram Weight
lb Pound Weight
°C Degrees Celsius Temperature
°F Degrees
Fahrenheit Temperature
Direct Current
(DC) Type or a characteristic of current
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using electric gardening machines, basic safety precautions
should always be followed to reduce the risk of re, electric shock, and personal injury,
including the following:

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 7
READ ALL INSTRUCTIONS
DANGER! Do not operate near electrical power lines. The unit has not been
designed to provide protection from electric shock in the event of contact with
overhead electric lines. Consult local regulations for safe distances from overhead
electric power lines and ensure that the operating position is safe and secure before
operating the pole saw.
CAUTION! Wear appropriate personal hearing protection during use. Under some
conditions and durations of use, noise from this product may contribute to hearing loss.
◾Avoid dangerous environment – Don’t use machines in damp or wet locations.
◾Keep children away - All visitors should be kept at a distance away from work
area.
◾Dress properly - Do not wear loose clothing or jewelry. They can be caught in
moving parts. Use of rubber gloves and substantial footwear is recommended
when working outdoors. Wear protective hair covering to contain long hair.
◾Use safety glasses. Always use face or dust mask if operation is dusty.
◾Use right machine - Do not use machine for any job except that for which it is
intended.
◾Do not grasp the exposed cutting blades or cutting edges when picking up
or holding the machine.
◾Do not force machine - It will do the job better and with less likelihood of a risk
of injury at the rate for which it was designed.
◾Do not overreach - Keep proper footing and balance at all times.
◾Stay alert - Watch what you are doing. Use common sense. Do not operate
machine when you are tired.
◾Keep all parts of the body away from the saw chain. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the switch
is off when clearing jammed material. Saw chain continues to move after the
switch is turned off. A moment of inattention while operating the pole saw may
result in serious personal injury.
◾Carry the pole saw by the handle with the saw chain stopped. When
transporting or storing the pole saw, always t the chain sheath. Proper handling
of the pole saw will reduce possible personal injury from the saw chain.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC8
◾Hold the pole saw by insulated gripping surfaces only, because the saw
chain may contact hidden wiring. A saw chain contacting a “live” wire may
make exposed metal parts of the pole saw “live” and could give the operator an
electric shock.
◾Do not use the pole saw in bad weather conditions, especially when there is
a risk of lightning. This decreases the risk of being struck by lightning.
◾To reduce the risk of electrocution, never use near any electrical power
lines. Contact with or use near power lines may cause serious injury or electric
shock resulting in death.
◾Always use two hands when operating the pole saw. Hold the pole saw with
both hands to avoid loss of control.
◾Always use head protection when operating the pole saw overhead. Falling
debris can result in serious personal injury.
◾Store idle machines indoors - When not in use, machines should be stored
indoors in a dry and high or locked-up place with the battery pack removed and
out of reach of children.
◾Maintain machine with care - Keep cutting edge sharp and clean for best
performance and to reduce the risk of injury. Follow instructions for lubricating
and changing accessories. Keep handles dry, clean, and free from oil and grease.
◾Check damaged parts - Before further use of the product, a guard or other part
that is damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting, and any other condition
that may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced by an authorized service center unless indicated
elsewhere in this manual.
◾Do not charge the battery pack in rain, or in wet locations.
◾Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to battery pack, picking up or carrying the machine.
Carrying the machine with your nger on the switch or energizing machine that
have the switch on invites accidents.
◾Disconnect the battery pack from the machine before making any
adjustments, changing accessories, or storing machine. Such preventive
safety measures reduce the risk of starting the machine accidentally.
◾Do not modify or attempt to repair the machine or the battery pack (as
applicable) except as indicated in the instructions for use and care.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 9
◾Do not use a battery pack or machine that is damaged or modied. Damaged
or modied batteries may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
◾Use machines only with specically designated battery packs. Use of any
other battery packs may create a risk of injury and re.
◾Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2240T, BA2240T-FC, BA2242T, BA2242T-FC,
BA2800T, BA2800T-FC, BA3360T, BA3360T-FC,
BA4200T, BA4200T-FC, BA5600T, BA5600T-FC,
BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC,
CH7000, CH7000-FC
◾Do not dispose of the battery in a re. The cells may explode. Check with local
codes for possible special disposal instructions.
◾Do not open or mutilate the battery. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
CAUTION! The electrolyte is a dilute sulfuric acid that is harmful to the skin and
eyes. It is electrically conductive and corrosive.
◾Exercise care in handling batteries in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
◾Replacement Parts - When servicing, use only identical EGO replacement parts.
Use of any other accessory or attachment may increase the risk of injury.
◾Battery machines do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards even when the machine is not operating. Take care when performing
maintenance or service.
◾Remove or disconnect the battery pack before servicing, cleaning or
removing material from the product.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC10
◾Do not wash with a hose; avoid getting water in motor and electrical
connections.
◾Do not incinerate the machine even if it is severely damaged. The batteries
can explode in a re.
◾Do not expose a battery pack or machine to re or excessive temperature.
Exposure to re or temperature above 212 °F (100 °C) may cause explosion.
◾If situations occur that are not covered in this manual, use care and good
judgment. Contact the EGO Customer Service Center for assistance.
SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others
who may use this product. If you lend this product to someone else, also lend these
instructions to them to prevent misuse of the product and possibly injury.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 11
INTRODUCTION
Congratulations on your selection of the EGO POLE SAW. It has been designed, engineered
and manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on the safe assembly, operation and
maintenance of your product. Read it carefully before using the product. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP THEM IN A
SAFE PLACE FOR FUTURE REFERENCE
SPECIFICATIONS
Rated Voltage 56 V
Guide Bar Length 10” (250 mm)
Chain Pitch 1/4” (6.4 mm)
Chain Gauge 0.043” (1.1 mm)
Oil Tank Capacity 2.7 oz (80 ml)
Number of Drive Links 56
Machine Length (without extension pole) Max. 9.58 ft (292 cm)
Min. 7.64 ft (233 cm)
Machine Length (with extension pole) Max 12.86 ft (392 cm)
Min 10.92 ft (333 cm)
Recommended Operating Temperature 5°F – 104°F (-15°C – 40°C)
Recommended Storage Temperature -4°F – 158°F (-20°C – 70°C)
Weight (without battery pack and chain
sheath)
9.37 lb. (4.25 kg)

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC12
PACKING LIST
PART NAME QUANTITY
Pole Saw Attachment 1
Power Head 1
Saw Chain 1
Guide Bar 1
Front-assist Handle 1
Chain Sheath 1
Shoulder Strap 1
Operator’s Manual 1
Recommended Bar and Chain for this Pole Saw
PART NAME MODEL NUMBER
Guide Bar AG1000Q
Saw Chain AC1000Q

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 13
DESCRIPTION

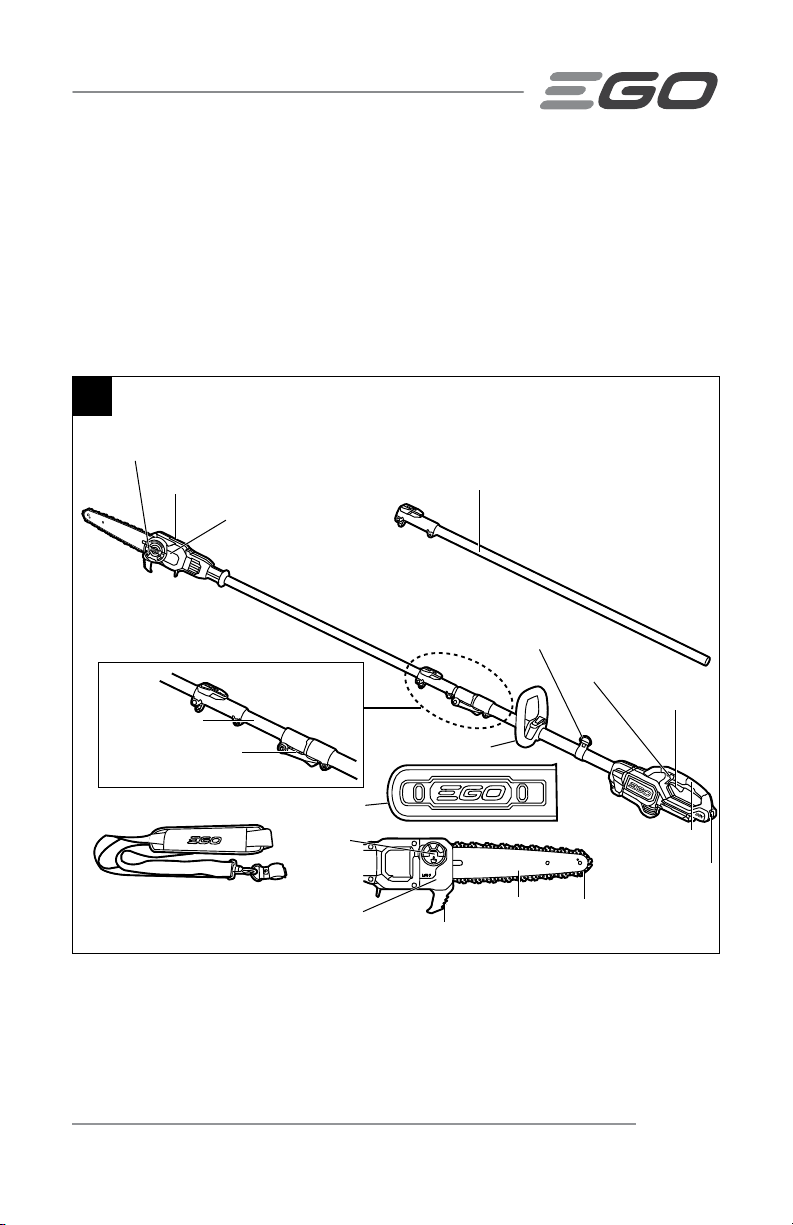

KNOW YOUR POLE SAW (Fig. 1)
The safe use of this product requires an understanding of the information on the
machine and in this operator’s manual, as well as knowledge of the project you are
attempting. Before using this product, familiarize yourself with all operating features
and safety rules.
1
Quick Chain-tension Adjust Knob
Extension Pole (SOLD SEPARATELY)
Shoulder Strap Loop
Front-assist Handle
Chain Sheath
Lock-off Button
Trigger Switch
Rear Handle
Saw Chain
Bucking Spikes
Oil Tank
Oil Tank
Cap
Guide Bar
LED Light
Side Cover
Telescopic Pole
Quick Release Lever
Battery Release
Button
Shoulder Strap

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC14
TRIGGER SWITCH
Turns the pole saw On and Off.
LOCK-OFF BUTTON
Helps to prevent accidental or unauthorized activating of the trigger switch. It must be
depressed before the trigger switch can be activated.
TELESCOPIC POLE
An inner pole used to extend the length of the machine.
QUICK RELEASE LEVER
Locks and unlocks the telescopic pole.
QUICK CHAIN-TENSION ADJUST KNOB
Permits quick precise adjustment of saw chain tension without use of additional
machines.
SIDE COVER
Covers the drive sprocket and secures the guide bar.
LED LIGHT
Illuminates the position of the saw chain so that user can see the chain when cutting
branches high up.
GUIDE BAR
Supports and guides the saw chain.
SAW CHAIN
A loop of chain tted with cutting teeth that cuts the wood when it is driven by the
power head and supported by the guide bar.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 15
CHAIN SHEATH
The chain sheath prevents the operator from coming in contact with the sharp chain
blades when the machine is not in use. It also helps keep the chain blades from being
nicked or damaged when the machine is transported or stored.
OIL TANK
Stores the lubricant for the saw chain and allows user to see when to add lubricant by
means of the semi-transparent tank housing.
OIL TANK CAP
Seals the oil tank.
BUCKING SPIKES
The pointed tooth or teeth for use when felling or bucking to pivot the saw and maintain
position while sawing.
FRONT-ASSIST HANDLE
For easy control of the pole saw during cutting.
REAR HANDLE
Ergonomic handle improves comfort and grip.
BATTERY-RELEASE BUTTON
Press to release the battery pack from the machine.
SHOULDER STRAP
A harness to be worn by the operator for support and balance during cutting operations.
SHOULDER STRAP LOOP
A quick release mechanism in hazardous situation to enable a rapid emergency release
of the machine from the shoulder strap.

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC16
ASSEMBLY
WARNING: If any parts are damaged or missing, do not operate this product
until the parts are replaced. Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or modication is misuse
and could result in a hazardous condition leading to possible serious personal injury.
WARNING: Always remove the battery pack from the product when you are
assembling parts, making adjustments, cleaning, or when the product is not in use.
UNPACKING
◾This product requires assembly.
◾Carefully remove the product and any accessories from the box. Make sure that
all items listed in the packing list are included.
◾Inspect the machine carefully to make sure that no breakage or damage occurred
during shipping.
◾Do not discard the packing material
until you have carefully inspected
and satisfactorily operated the
machine.
◾If any parts are damaged or missing,
please return the product to the
place of purchase.
ASSEMBLING THE GUIDE BAR
AND CHAIN
1. Remove the battery pack.
2. Lay the pole saw on a rm, at
surface, so that the side cover is
facing upwards.
3. Wear gloves. Remove the side cover
by turning the quick chain-tension
adjust knob counterclockwise (Fig. 2).
4. Lay the new saw chain in a loop on
a at surface and straighten any
kinks (Fig. 3).
Chain Cutters
Rotation
Direction
Chain Drive Links
3
2
Quick Chain-tension Adjust Knob

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 17

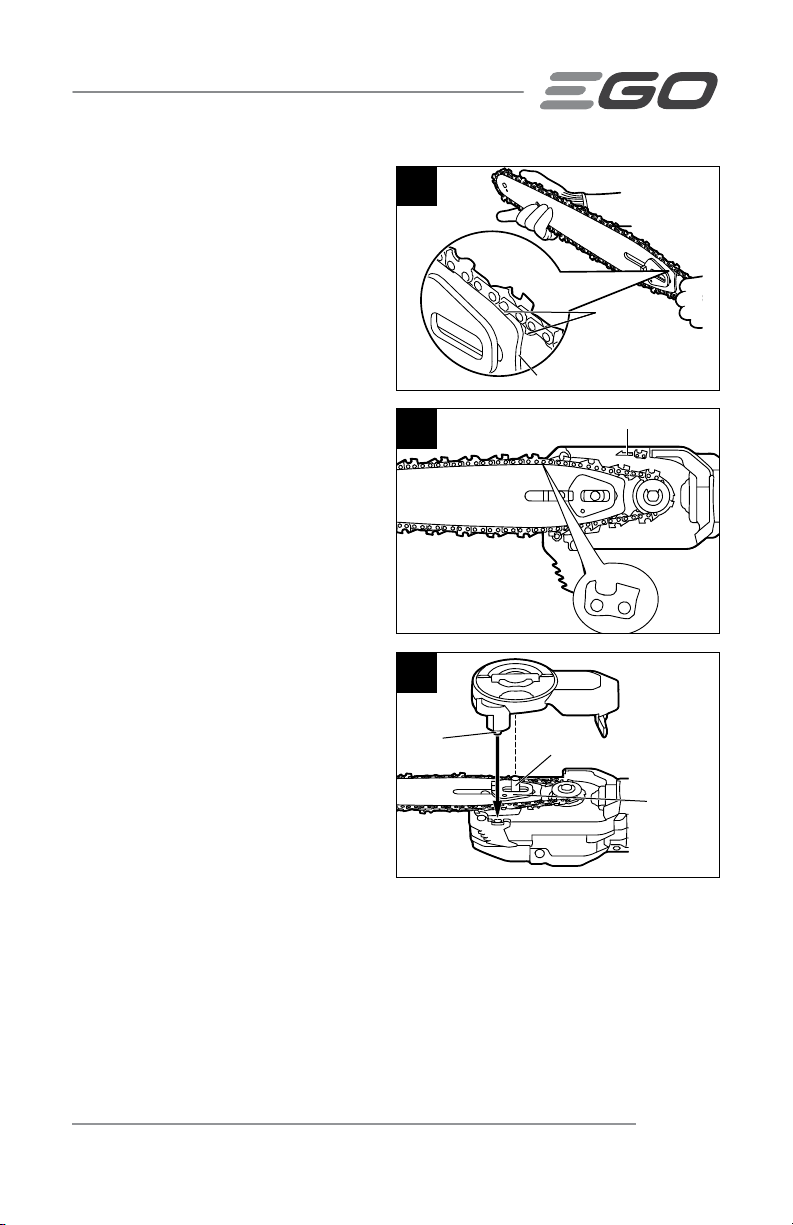

5. Place the chain drive links into the
guide bar groove. Position the chain
so there is a loop at the back of the
guide bar (Fig. 4).
6. Hold the chain in position on the
guide bar and place the loop around
the drive sprocket of the pole saw.
NOTICE: A small direction arrow and
a cutter pictogram is engraved in the
machine housing (Fig. 5). When looping
the saw chain onto the guide bar, make
sure that, after mounting the guide
bar, the direction of the saw chain will
correspond to the rotation direction arrow
on the machine housing and the shape
of the cutters on the top of the guide
bar are consistent with that of the cutter
pictogram on the housing. If they face in
opposite directions, reassemble the saw
chain onto the guide bar with the arrows
facing the same direction. The guide bar
should be mounted with the adjustment
plate facing away from the housing.
7. Keep the bar and chain parallel
to the mounting surface with
one hand. Attach the side cover
to the housing so that the holes/
pins and fastening bolt /thread
hole are aligned with each other
properly (Fig. 6). Press the side
cover towards the housing, then fully tighten the quick chain-tension adjust knob
clockwise. The eccentric gear inside the side cover is designed to ensure that the
chain will not be over-tensioned.
NOTE: If the chain gets loose, turn the quick chain-tension adjust knob
counterclockwise at least one turn, then fully tighten the knob clockwise.
8. Rotate the chain by hand to check whether the chain is properly assembled
without binding. Otherwise, reassemble the chain and bar.
5Rotation Direction Arrow
4
Chain Drive
Links
Guide Bar Groove
6
Adjustment
Plate
Facing Out
Fastening Bolt
Pin

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC18
CONNECTING THE POLE SAW ATTACHMENT TO THE POWER HEAD
This pole saw works as a combination of the pole saw attachment and the power head
(Fig. 7a).
WARNING: Never attach or adjust any attachment while the power head is
running or with the battery installed. Failure to stop the motor and remove the battery
may cause serious personal injury.
The pole saw attachment connects to the power head by means of a coupler device.
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Align the arrow on the pole saw shaft with the arrow on the coupler and push
the pole saw shaft into the coupler until you hear a clear “click” sound which
indicates the pole saw shaft is mounted into place (Fig. 7b).
4. Pull the shaft of the attachment to verify it is securely locked into the coupler. If not,
rotate the pole-saw shaft from side to side in the coupler until it snaps into place.
5. Tighten the wing knob securely.
WARNING:
Be certain that the wing knob is fully tightened before operating the
equipment; check it periodically for tightness during use to avoid serious personal injury.
7a
Pole Saw Attachment Power Head
7b
Arrow on the Pole
Saw Shaft
Wing Knob
Shaft Release Button
Arrow on the
Coupler

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC 19
CONNECTING THE EXTENSION
POLE BETWEEN THE POWER
HEAD AND THE POLE SAW
ATTACHMENT (Model #EP1000
Sold Separately)
WARNING: Never attach or adjust
any attachment while the power head
is running or with the battery installed.
Failure to stop the motor and remove the
battery may cause serious personal injury.
This extension pole is designed to only be used with EGO PS1000/PS1000-FC. Never
use it with other EGO attachments.
The extension pole increases the machine length by 3.28 ft (100cm), extending the
cutting range. It should be connected between the pole saw attachment and the power
head. A maximum of two extension poles can be used on one machine.
Follow the process in the section “CONNECTING THE POLE SAW ATTACHMENT TO
THE POWER HEAD” to install the extension pole between the pole saw attachment and
power head (Fig. 8).
NOTICE: Once assembled correctly, the pole saw attachment, extension pole and the
power head should not separate when pulled. Always test the connection by pulling
them. Repeat the steps above if the pieces can be separated during test .
WARNING: Failure to secure the attachment and power head/extension pole as
instructed above could result in serious injury or death.
REMOVING THE POLE SAW ATTACHMENT FROM THE POWER HEAD
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft release button and, with the button depressed, pull or twist the
pole saw shaft out of the coupler to separate it from the power head or the
extension pole (if used).
4. Repeat the process to separate the extension pole from the power head (if
extension pole is used).
8Coupler on the
Extension Pole
Coupler on the
Power Head
Extension Pole

56-VOLT LITHIUM-ION POLE SAW — PS1000/PS1000-FC20
MOUNTING AND ADJUSTING THE FRONT-ASSIST HANDLE
1. Stop the motor and remove the battery pack.
2. Loosen the wing nut and remove it with the clamp bolt from the front-assist
handle (Fig. 9a).
3. Position the slant of the assist handle forward towards the sawing end of
the machine (Fig. 9b). Press the handle onto the power head shaft within the
mounting zone between the shoulder strap loop and the telescopic pole sleeve
(Fig. 9c).
4. Insert the clamp block and assemble the clamp bolt with the wing nut (Fig. 9d).
5. Do not fully tighten the wing nut. Adjust the front-assist handle position within
the mounting zone (Fig. 9b). The handle should be adjusted so that your arm is
straight when using the pole saw.
6. Press down the lock lever and tighten the wing nut so that the front-assist handle
is secured from rotation or moving on the power head shaft.
9a Front-assist Handle
Lock Lever
Wing Nut
Clamp Bolt
Clamp Block
9c
Power Head Shaft
9b
Mounting Zone
Shoulder Strap Loop
9d
14
2
3
Correct Incorrect
