INSTALLATION AND INSTRUCTION MANUAL
WASHING MACHINE EW 806 F

2

3
CONTENTS
TECHNICAL SPECIFICATIONS
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Water drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Getting to know your machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Programme guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Washing hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Wash care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Wich detergent to use?… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
And in wich form? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Use of detergent and additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Using your machine
Washing 4.5 kg of white cotton at 60¡C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Washing 2.25 kg of synthetic fabrics at 40¡C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Maintenance and cleaning
Descaling, after each wash, external cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Cleaning the dispenser drawer, cleaning the drawer recess, the dangers of freezing . . . . . . . . . . . . . . . . . . . . . . page 15
Cleaning the filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
The water inlet filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Something not working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Electrolux Service Force Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18/19
DIMENSIONS Width 60cm / 23.6 ins
Height 85cm / 33.5 ins
Depth 55cm / 22.7 ins
ELECTRICAL Voltage 230-240 V
Frequency 50 Hz
CONNECTION Max. Power
Absorbed 2100 W (10A)
WATER Minimum (cold) 5N/cm2(7psi)
PRESSURE Minimum (hot) 3N/cm2(4psi)
Maximum 80N/cm2(110psi)
CAPACITY Cotton, Linen 4.5 Kg (10lb)
RECOMMENDED Synthetics &
LOAD delicate fabrics 2.25 Kg (5lb)
Wool 1 Kg (2,2lb)
SPIN SPEED Maximum 800 r.p.m.
This appliance carries the ÒCEÓ mark and complies with the following directives:
-89/336 CEE on electromagnetic compatibility
-73/23/CEE low voltage directive

4
Installation
¥ This appliance is heavy. Care should be taken when
moving it.
¥ It is dangerous to alter the specifications or attempt to
modify this product in any way.
¥ Care must be taken to ensure that the appliance does not
stand on the electrical cable.
¥ All packing and transit bolts must be removed before use.
Serious damage can occur to the product and to property
if this is not adhered to. See relevant sections.
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent
person.
• If your machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
¥ This product should be serviced by an authorised
Electrolux Service Centre, and only genuine Electrolux
spare parts should be used.
Child Safety
¥ This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
¥ Pets and children have been known to climb into washing
machines. Please check your drum before use.
¥ The glass door becomes very hot during the washing
cycle. Keep children away from the vicinity of the
appliance whilst it is in operation.
During Use
¥ Do not overload the appliance. See relevant section in
the instruction book.
¥ Only wash fabrics which are designed to be machine
washed. If in doubt, consult the care label on the clothes.
¥ Only use the advised quantities of detergent and fabric
softener. Damage to the fabric can ensue if you over-fill.
Refer to the manufacturerÕs recommendations of
quantities.
¥ Before washing, ensure that all pockets are empty and
buttons and zips are fastened.
¥ Avoid washing frayed or torn articles and treat stains such
as paint, ink, rust, and grass before washing. Underwired
bras must NOT be machine washed.
¥ Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
¥ The users should always check that they have not left
their gas lighters (disposable or otherwise) in their
clothing.
¥ Wash small items such as socks. laces, washable belts,
etc. in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the inner
drum.
¥ As some duvets and eiderdowns should be washed in
large commercial machines because of their bulk, please
check with the manufacturer of the item before washing in
a domestic machine.
¥ Garments which have been in contact with volatile
petroleum products should not be machine washed. If
volatile cleaning fluids are used, care should be taken to
ensure that the fluid is removed from the garment before
placing in the machine.
¥ Always look through the glass door to check if water has
drained before opening the door. If water is present do
not open the door before draining the water. If in doubt,
refer to your instruction book.
¥ Always unplug the appliance and turn off the water after
use.
¥ Leave the porthole door slightly ajar between washes to
preserve the door seal.
¥ Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact you local Electrolux Service Centre. Always
insist on genuine Electrolux spare parts.
WARNINGS
It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure
that the new owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using
the appliance.

5
INSTALLATION
Unpacking
Before starting the machine up, the transport security
bolts must be removed as follows:
You are advised to keep all the packaging for re-use in
case the appliance has to be transported again.

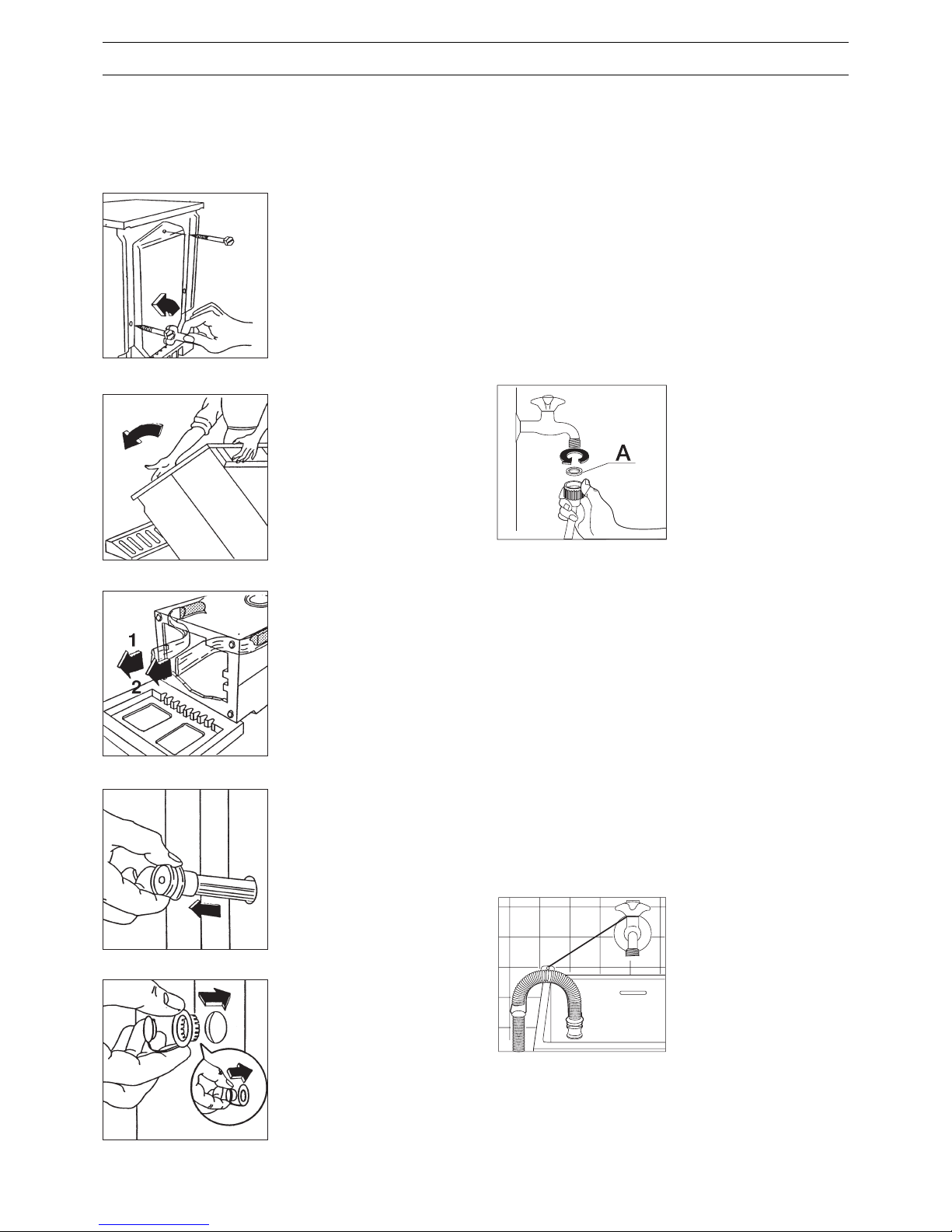

1. Unscrew and remove the
three rear transit bolts
(using a spanner).
2. Lay the machine gently
on its back, making sure
that the hoses are not
squashed.
We suggest a
polystyrene angle
bracket from the packing
is placed on the floor
before tilting it back to
avoid the hoses being
squashed.
3. Carefully remove the
polythene bags located
at the base of the
machine by pulling them
toward the centre of the
machine.
4. Place the machine in an
upright position and
remove the three plastic
bolts.
5. Plug the 3 holes with the
plastic plugs which you
can find in the envelope
containing the instruction
booklet.
Positioning
Your new Electrolux washing machine has been designed
to be permanently plumbed in to you homeÕs water supply
and drainage system. However, if this is not possible, it
may be connected to suitable existing taps, with the drain
hose discharging into the sink.
The appliance has two inlet hoses, hot and cold, with
female 3/4Ó BSP thread connectors. If this connection is
not compatible with the plumbing of the existing installation,
a variety of connectors are available from good hardware
stores and plumbers merchants to suit most domestic
plumbing. Any alterations to your existing plumbing must
be carried out by a competent person, or qualified plumber.
Water inlet
The inlets on the back of the appliance are colour coded,
blue for cold and red for hot.
Before connecting the
hoses, be sure to fit the
black washers supplied as
per diagram.
If only a cold water supply
is available, connect the
two hoses to a cold water
outlet by means of a ÔYÕ
connection piece.
Installation should comply with local water authority and
building regulation requirements.
The appliance must be given a separate cold water supply
and not be connected to a mixer tap, a single outlet water
heater or a booster pump. A minimum water pressure or
7psi is required for safe operation of the appliance.
If you cannot make the cold water connection direct from
the rising mains, you may be able to operate the appliance
from your cold water storage system.
There should be a minimum distance of 5.02m (16 1/2ft)
between the applianceÕs inlet and the bottom of the tank.
There will be sufficient pressure for the hot water supply
from the hot water cylinder if the height between the
applianceÕs inlet and the bottom of the cold water storage
cistern (not between the appliance and the hot water
cylinder) is at least 2.74m (9ft).
Set the hoses correctly by loosening the ring nuts. After
positioning the inlet hoses, be sure to tighten the ring nuts
again to prevent leaks.
Water drainage
If you intend the drain hose
from the machine to empty
into a sink, make sure that
the sink is empty and that
the plug hole is not blocked.
If the machine is
permanently plumbed in,
hook the end of the hose
into a standpipe installed for
the purpose. The standpipe
must have an internal
diameter of at least 40mm (1 1/2Ó) in order that there is an
air gap between the drain hose and the standpipe. Make
sure, that it is designed in such a way, that the end of the
drain hose cannot be covered with water.

6
Important
Before connecting up the machine to new pipework or to
pipework that has not been used for some time, run off a
reasonable amount of water to flush out any debris that
may have collected in the pipes.
Whether discharging
into a sink or a
standpipe, check that
the end of the drain
hose is neither too high
nor too low. The top of
the curve in the hoseÕs
end should be no more
than 85 cm (34Ó) and
no less than 50 cm
(20Ó) above floor level.
Levelling
Level the washing machine by loosening or tightening the
feet. Accurate levelling prevents vibration, noise and
displacement of the machine during operation. After
levelling the machine, secure the feet by tightening the ring
nuts with the aid of a screwdriver.
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible, always
place the machine on a solid floor.
Special conditions
If the floor is carpeted with a deep-pile carpet or covered
with crumbly or soft material, insert a rigid support base
under the feet to prevent noise, vibration or displacement.
The base should protrude a few centimetres beyond the
edges of the machine.
Warning
The machine should NOT be placed directly on deep pile
carpeting.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
All plumbing and electrical work required to install this
appliance must be carried out by competent persons or
qualified plumbers or electricians.
IN THE INTEREST OF THE
ENVIRONMENT
Washing machines and dishwashers should be connected
to the FOUL drainage system, the water will then be taken
to a sewage works for treatment before being discharged
safely into a river.
It is essential that these appliances are not connected to
the surface water drainage system as this water is
discharged directly into a river or stream and may cause
pollution.
If you require any further advice please contact your local
authority drainage department.
40 mm
inside dia min
500 mm min
850 mm max
500 mm min
850 mm max

7
WARNING: THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for
your socket outlet, it must be cut off and the appropriate
plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the
hazard of shocks in case it should be plugged into a 13
amp socket in another part of your home.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Green and yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in ghe
mains lead of your appliance may not correspond with the
markings identifying the terminals in your plug, proceed as
follows:
Connect the green and yellow (earth) wire to the terminal in
the plug which is marked with the letter ÒEÓ or the earth
symbol or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the plug
which is marked with the letter ÒNÓ or coloured black.
Connect the brown (live) wire to the terminal in the plug
which is marked with the letter ÒLÓ or coloured red.
The plug moulded onto the lead incorporates a fuse. For
replacement, use a 13 amp BS1362 fuse. Only ASTA or
BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is lost.
The cover/carrier is indicated by the coloured insert at the
base of the plug.
A replacement cover/carrier must be obtained from your
local Electrolux Service Centre whose address is listed at
the back of this instruction manual.
ELECTRICAL CONNECTIONS

8

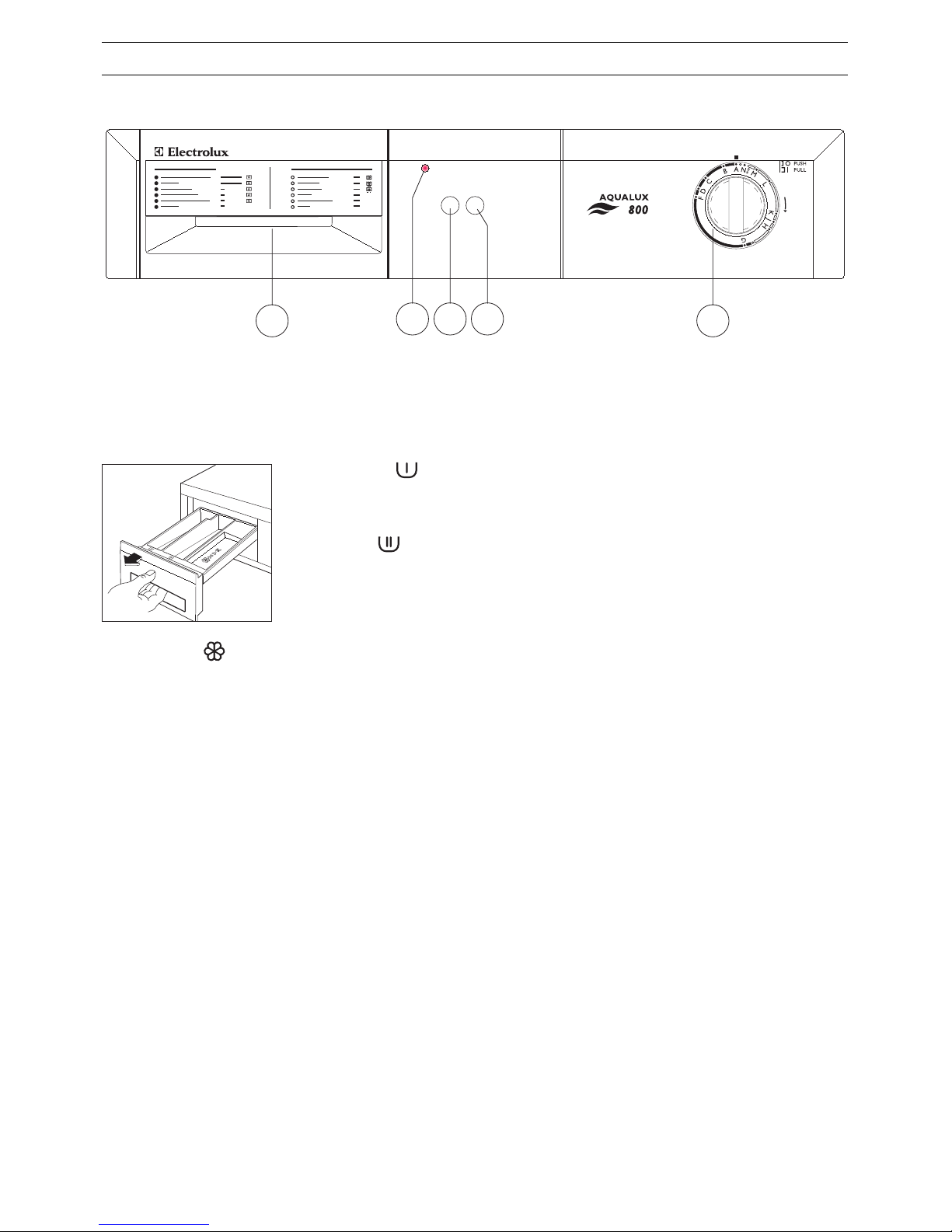

GETTING TO KNOW YOUR MACHINE
125
3 4
PROGRAMMES
EW 806 F
HALF
LOAD 90°C
WASH
MAINS
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
1. Detergent dispenser drawer
The dispenser drawer has 3 compartments marked with the
following symbols:
Prewash symbol
indicates the compartment
for the prewash detergent.
Wash symbol
indicates the compartment
for the main wash
detergent.
Fabric softener indicates the compartment for the
fabric conditioner. This compartment is fitted with a
removable filter. To open the dispenser, pull the handle
gently.
2. On/off pilot light
This light will illuminate when the machine starts working.
3. Half load button
Select this button to reduce water consumption on the rinse
cycle when washing a smaller load of cottons or linens.
Maximum load size 2.25 kg.
4. "90°C WASH" button
By depressing this button prior to selecting wash
programmes 1 and 2 you will obtain an increase in the
wash tempŽrature from 60¡C to 90¡C. The 90¡C wash
programmes are particularly suitable for heavily soiled white
cottons and linens.
5. Programme selector knob
To select the required programme, turn the knob clockwise
until the programme letter coincides with the marker. If you
turn the control knob too far, do not attempt to turn the
control knob anticlockwise, instead, continue turning
clockwise until the desired programme has been selected.
To start the programme, pull the dial outwards, and the pilot
light will illuminate. At the end of the programme, push the
dial inwards, and the pilot light will go out.
Control Panel

9
The machine will stop after the last rinse with the water left in the drum. To prevent water spillage you must select either
DRAIN (N) or SPIN (G) before attempting to open the door.
PROGRAMMES FOR COTTON AND LINEN
Recommended load: max.4.5 kg (10lb)
DESCRIPTIONPROGRAMMES DEGREE
OF SOIL
COMPARTMENTS
TO USE
( IF REQUIRED)
PROGRAMME
DIAL POSITION
WHITES WITH
PREWASH Heavy APrewash
Wash at 60¡C
Rinses. Spin
WHITES WITH
PREWASH Heavy A+ Prewash. Wash at 90¡C
(button pressed)
Rinses. Spin
WHITES
ACTION WASH Normal BWash at 60¡C
Rinses
Spin
WHITES Normal B+ Wash at 90¡C (button
pressed)
Rinses. Spin
SPIN GSpin at 800 rpm
90°
FAST
COLOUREDS Normal CWash at 60¡C
Rinses
Spin
60°
FAST
COLOUREDS
FREQUENT WASH
Normal DWash at 60¡C Rinses
Spin
60°
NON-FAST
COLOUREDS Normal FWash at 40¡C
Rinses
Spin
40°
90°
60°
60°
PROGRAMMES FOR SYNTHETICS, DELICATES AND WOOL
Recommended load: max 2.25 kg (5lb); wool max: 1 kg (2.2lb)
MINIMUN
IRON Normal H
Wash at 50¡C.
Rinses
Stop with water left in the tub.
DELICATES Normal J
Wash at 40¡C.
Rinses
Stop with water left in the tub.
WOOLLENS Normal K
Wash at 40¡C.
Rinses
Stop with water left in the tub.
RINSES L
Rinses, with fabric
softener, if required.
Stop with water left in the tub.
DRAIN N
Draining of
water
SOFTENER
RINSE M
Rinse, with fabric
softener, if required
Stop with water left in the tub.
40°
50°
40°
(¥) This 60¡ programme is the reference programme for the Energy label according to the article 2, paragraph 1 of the EEC
Directive 92/75.
Water filling: 30/40/50 programmes: cold water only
60/90 programmes hot and cold water
DESCRIPTIONPROGRAMMES DEGREE
OF SOIL
COMPARTMENTS
TO USE
( IF REQUIRED)
PROGRAMME
DIAL POSITION
(•)

10
WASHING HINTS
Do NOT overload the machine. Weigh the laundry the first
few times you use the appliance.
The average weights of the most common items are listed
below as a guide:
1000g = 1 kg
Sheet 700-1000g
Pillow case 100-200g
Tablecloth 400-500g
Serviette 50-100g
Tea towel 70-120g
Linen hand towel 100-150g
Towelling hand towel 150-250g
Towelling bath towel 700-1000g
Bath robe 1000-1500g
ManÕs shirt 200-300g
Apron 150-200g
¥ Sort the laundry according to the type of fabric, colour-
fastness and how dirty it is.
¥ Close poppers and zips, and fasten loose buttons.
¥ Load the laundry loosely alternating large items with small
ones.
¥ Avoid washing unhemmed or torn items as they may fray.
¥ Before washing, empty all pockets of small objects which
may have been left inside (coins, keys, screws, etc.), as
these could damage the drain pump.
¥ When washing curtains, remove the hooks.
¥ It is essential to wash new coloured items separately
when washing for the first time.
¥ When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
¥ White items should not be washed with coloured items.
¥ Very small items (handkerchiefs, ribbons, socks, etc.)
should be washed in a washing bag or pillow case.
¥ Use a good quality detergent suitable for automatic
washing machines.
¥ Use the correct quantities of detergent.
¥ For wool, use a gentle detergent only in small quantities.
¥ Bleach is very corrosive; it should be used with care and
kept out of reach of children.
¥ Some stains such as fruit, wine, grass, rust, etc. are
difficult to remove and should be treated before washing
with specific products, which can be found in most
hardware shops. In some cases it may help to soak the
stain before washing with a special pre soak product or
biological detergent.
¥ Only wool marked ÒPure New Wool - washable,
preshrunkÓ can be washed in the machine using the wool
programme; other types of wool should be washed by
hand or dry cleaned.
¥ Once you have finished using the machine, you are
advised to unplug it and turn off the water tap.
¥ To avoid an excessive and damaging amount of lather
when washing net curtains, it is advisable to wash large
curtains singularly and take extra care when measuring
the detergent.
Should an excess of lather accidentally occur, switch off
the machine, select the spin programme which is
preceded by a drain cycle, to remove the lather and then
start the wash again.

11
WASH CARE SYMBOLS
Normal (Maximum) White Cotton or Linen
Without Special Finishes
Normal (Maximum) Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60¡C
Reduced (Medium) Nylon, Polyester/Cotton,
Viscose with Special Finishes
Cotton/Acrylic Mix
Normal (Maximum) Cotton, Linen or Viscose
Colourfast at 40¡C but not
60¡C
Reduced (Medium) Acrylics, Acetate, Triacetate,
Wool mixes, Polyester/wool
blends.
Much Reduced (Minimum) Wool, Wool mixtures, Silks
Hand wash only Do not machine wash
BLEACHING
Chlorine bleach may be used
IRONING
Hot Iron Cotton, Linen, Viscose
Warm Iron Polyester mixtures, Wool
Cool Iron Acrylic, Nylon, Polyester
DRY CLEANING
May be dry cleaned. Other letters and/or a bar beneath the circle will indicate
the required process to the dry cleaner.
TUMBLE DRYING
May be tumble dried
with high heat setting
with low heat setting
A cross through any symbol means "DO NOT"
IMPORTANT NOTES
Wash care labels inside garments recommend how to launder your clothes with the best results The care labelling code is in
line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your
washing machine.
WASHING SYMBOL WASHING ACTION FABRIC
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing it in
gently. This is particularly important if you are using fabric
conditioner to avoid the conditioner entering the machine
prematurely.
When using liquid detergent and a prewash programme,
place the detergent into the correct compartment in the
dispenser drawer, after the prewash has finished.
95°
60°
50°
40°
40°
40°

12
* If you use a dosing device in a washer dryer,
please ensure the dosing device/ball is
removed before carrying out a drying
programme.
Fabric Conditioners
These are ideal for improving ÒsoftnessÓ, and also
reduce static cling on synthetics and make ironing
easier. They are available in two types:
For example Lenor liquid fabric
softener, for use in the washing
machine/washer dryer. The
liquid fabric softener should be
poured into the compartment
marked with the symbol .
Follow the manufacturerÕs dosage
instructions and never exceed the
MAX level.
Bounce conditioning sheets for
use in a tumble dryer. We
recommend the conditioning
sheets are pinned (using a safety
pin) to an article of laundry and
placed in the tumble dryer.
To ensure you obtain the best wash results from
your appliance, it is important to use the right
detergent in your everyday wash, and only
detergents recommended for use in automatic
machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer
you should use different types of detergent for
different washes, whether for whites, colours or
delicates.
Whites
We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.
Non Biological
If you prefer to use a non
biological detergent, which does
not contain enzymes we
recommend Fairy. Fairy provides
good cleaning and stain removal.
Coloureds
For coloured items you should
use a detergent which is
designed to clean while
maintaining the original colour.
Ariel Color does not contain
bleach and therefore helps to
preserve colours.
Delicate Items
When washing delicates such as
woollens, you should use a
product which is specially
designed to care for fine fabrics.
Dreft Automatic is suitable for
woollens and other delicates.
Laundry Bleach
For additional stain removal you
may wish to use a product such
as Ace Gentle Bleach which is
used in addition to your chosen
detergent. Ace is suitable for all
washable fabrics including silks,
woollens and coloureds.
Not only are there different types of detergent, but
they are also available in different forms. Whether
you choose a powder or liquid in traditional or
compact form is down to personal choice.
Traditional Powders
Pour the powder directly into the dispenser drawer.
Do not sprinkle powder onto clothes in the machine
drum.
Traditional Liquids
Liquid can be placed in the main wash
compartment of the detergent drawer marked with
the symbol , start the machine immediately
upon placing the detergent in the dispenser drawer.
Alternatively the detergent is measured into the
specially designed dosing device* which should be
placed on top of the laundry, and at the back of the
machine drum.
Compact Powders and Liquids
Compact detergents (or concentrates as they are
also known) are available in liquid or powder form,
and generally require a smaller dosage. Follow the
manufacturerÕs instructions to ensure the most
economical usage. Pour the detergent directly into
the dispenser drawer, or alternatively measure the
detergent into the specially designed dosing
device* which should be placed on top of the
laundry, and at the back of the machine drum.
AND IN WHICH FORM?
WHICH DETERGENT?

13
USING YOUR MACHINE

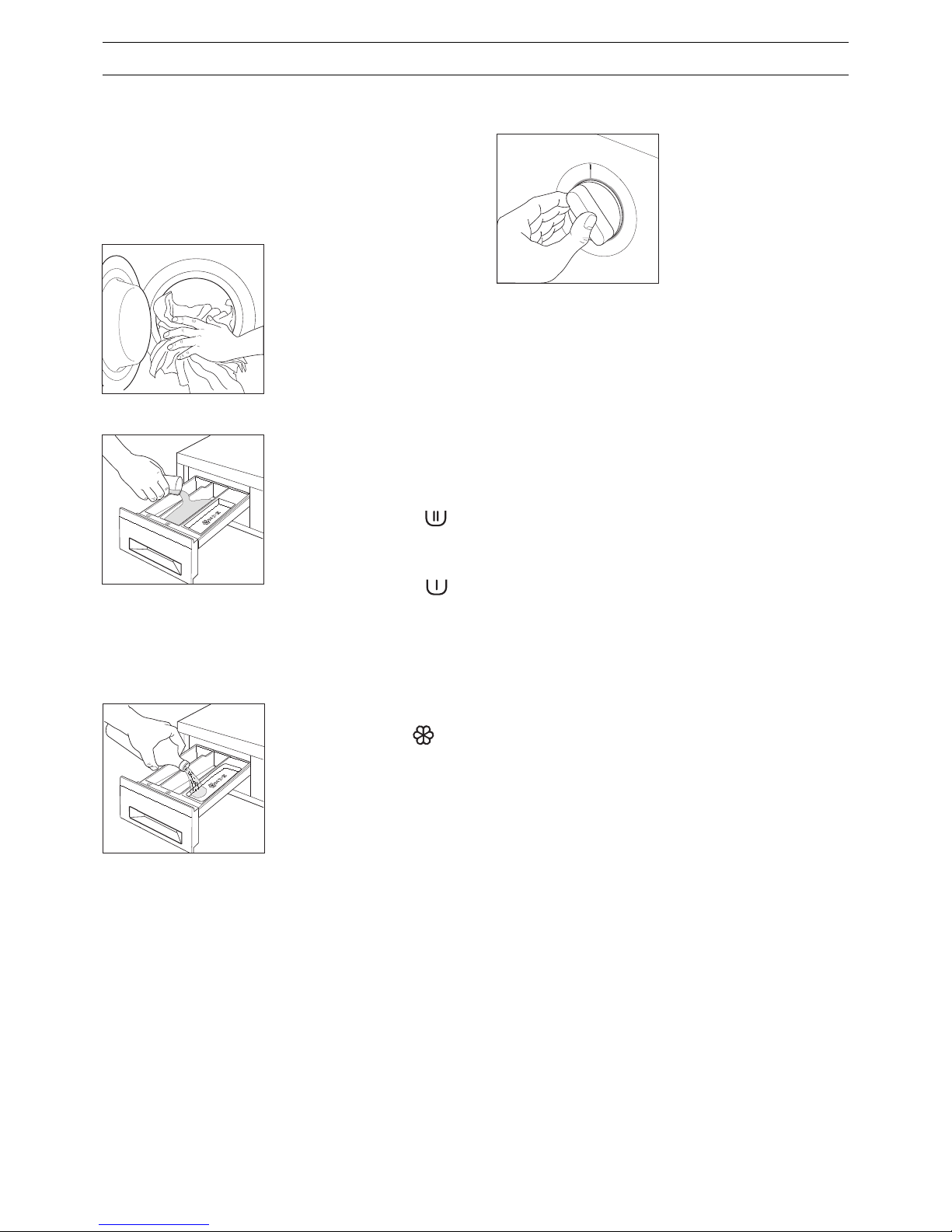

WASHING 4.5 KG OF COLOUR FAST
COTTON AT 60°C
Suppose you have 4.5 kg normally soiled laundry to wash.
It is cotton and is colour fast at 60¡C.
1 Load the laundry
Open the door by pulling the catch outward.
Load the items one at a time
and close the door.
2 Measure out the detergent
Pull out the detergent
dispenser drawer from the
control panel. Measure out
the amount of detergent
required and pour into the
main wash compartment .
If you wish to carry out a
prewash(*), pour the amount
of detergent required into the
"prewash" compartment .
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the
compartment marked .
Do not exceed the MAX.
level and then close the
drawer gently.
4 Depress the option button required
Depress HALF LOAD button if required.
5 Select Programme D
Turn the programme selector
dial clockwise to the
required programme.
6 Start the machine
Before starting up the machine, check that:
¥ the appliance is plugged in
¥ the water supply taps are turned on
¥ the drain hose is correctly and securely positioned
¥ the door and the detergent dispenser drawer are closed.
Pull the programme selector dial outwards.
The operating pilot light will illuminate and the machine will
start operating.
7 At the end of the programme
The machine stops automatically and the operating pilot
light goes out.
The door is controlled by a safety device which releases 2
minutes after the end of the programme.
Before opening the door ensure there is no water in the
drum.
Switch the machine off by depressing the programme
selector dial.
When the programme has finished, you are advised to
unplug the appliance and turn off the water taps.
(*) Prewash is available only on
programme A
P0004
90
P0345
D

14
USING YOUR MACHINE

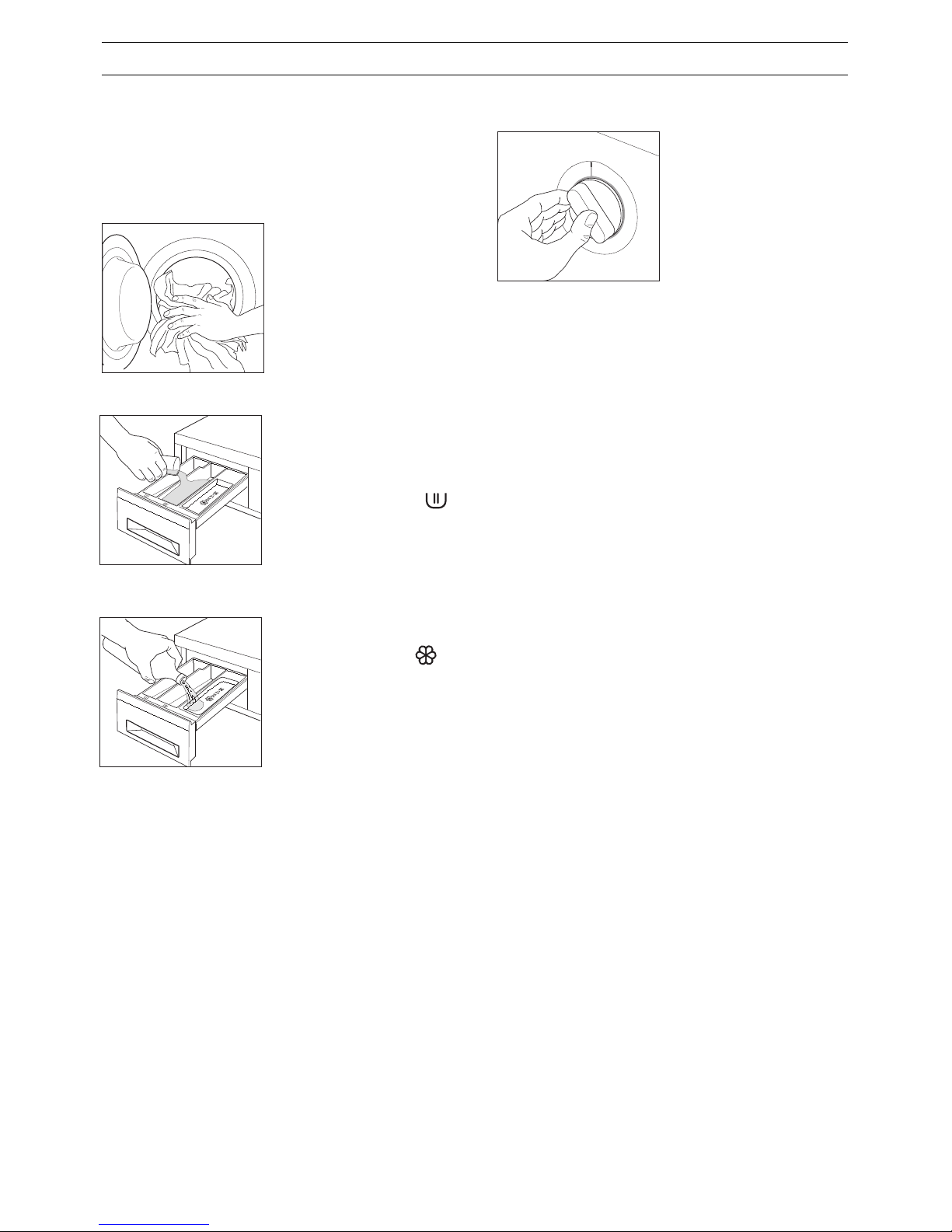

WASHING 2.25 KG OF SYNTHETICS AT 40°C
Suppose you have 2.25 kg of synthetic fabric laundry to
wash. They are rather delicate fabrics and should not be
washed at a high temperature.
1 Load the laundry
Open the door by pulling the
catch outward.
Load the items one at a time
and close the door.
2 Measure out the detergent
Pull out the detergent
dispenser drawer from the
control panel. Measure out
the amount of detergent
required and pour into the
main wash compartment .
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the
compartment marked .
Do not exceed the MAX.
level and then close the
drawer gently.
4 Select the required wash programme
Turn the programme selector
dial clockwise to the
required programme.
5 Start the machine
Before starting up the machine, check that:
¥ the appliance is plugged in
¥ the water supply taps are turned on
¥ the drain hose is correctly and securely positioned
¥ the door and the detergent dispenser drawer are closed.
Pull the programme selector dial outwards.
The operating pilot light will illuminate and the machine will
start operating.
6 At the end of the programme
After the last rinse, the machine will stop with water left in
the drum. This prevents the clothes from creasing if they
are left in the machine at the end of the wash cycle. Turn
the selector dial to DRAIN (N) or SPIN (G) to drain the
water. The door is controlled by a safety device which
releases 2 minutes after the end of the programme.
Before attempting to open the door you must ensure
there is no water in the drum.
Switch the machine off by depressing the programme
selector dial.
When the programme has finished, you are advised to
unplug the appliance and turn off the water taps.
WARNING: To prevent any water spillage, you must
select a draining programme, and ensure there is no
water in the drum, before opening the door.
P0004
90
P0345
J

15

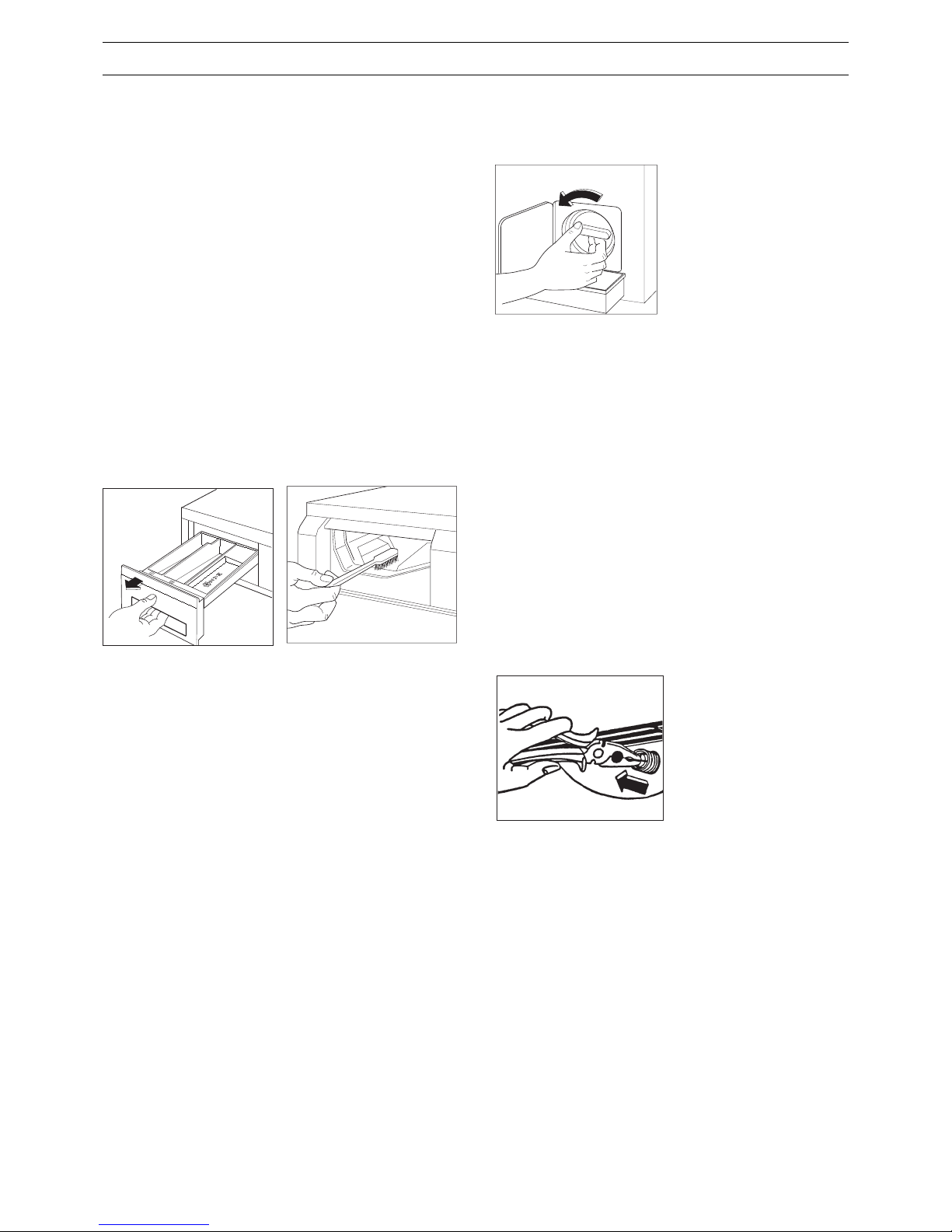

MAINTENANCE AND CLEANING
Before any maintenance or cleaning is carried out you must
DISCONNECT the appliance from the electricity supply.
Descaling
The water we normally use contains lime. It is a good idea
to periodically use a water softening powder in the machine.
Do this separately from any laundry washing, and according
to the softening powder manufacturerÕs instructions. This
will help to prevent the formation of lime deposits.
After each wash
Leave the door ajar for a while. This helps to prevent mould
and stagnant smells forming inside the appliance. Keeping
the door open after a wash will also help to preserve the
door seal.
External cleaning
Clean the exterior cabinet of the appliance with soapy water
only, then dry thoroughly.
Cleaning the dispenser drawer
Having removed the drawer, use a small brush to clean the
recess, ensuring that all washing powder residue is
removed from the upper and lower part of the recess.
Replace the drawer and run the rinse programme for a few
minutes without any clothes in the drum.
The dangers of freezing
If the machine is exposed to temperatures below 0¡C,
certain precautions should be taken.
¥ Turn off the water taps.
¥ Select a wash programme and run for a few seconds.
¥ Unscrew the inlet hoses.
¥ Unhook the drain hose from the rear support and position
the end in a bowl. Run the draining programme for a few
seconds.
¥ When you intend to start the machine up again, make
sure that the room temperature is above 0¡C.
Cleaning the filter
The water drain filter
A clean filter is important for
the correct functioning of the
machine, and should
therefore be cleaned after
every wash.
Open the filter door and
place a container
underneath to catch any
spillage. If the filter is
blocked and the machine is
unable to drain, you will
need to drain the water from the machine manually at this
stage. To do this, unhook the drain hose from the
standpipe or sink, and hold the end of the hose over a bowl
on the floor. The water should drain by gravity into the
bowl. When the bowl is full, hook the hose back up and
empty the bowl. Repeat the procedure until water stops
flowing out.
Unscrew and remove the filter.
Clean carefully under a fast running tap.
Warning
When the appliance is in use and depending on the
programme selected there can be hot water in the filter.
Never remove the filter during a wash cycle, always wait
until the appliance has finished the cycle, and is empty.
When replacing the filter, ensure it is securely retightened
so as to stop leaks and young children being able to
remove it.
The water inlet filters
If your water is very hard or
contains traces of lime
deposit, the water inlet filters
may become clogged.
It is therefore a good idea to
clean them from time to time.
Turn off the water taps.
Unscrew the water inlet
hoses.
Remove and clean the filters using a hard bristle brush.
Replace the filters and tighten up the inlet hoses.
P0341

16
Before contacting your nearest Electrolux Service
Centre, please make the following checks:
The machine does not start up
¥ The programme selector dial has not been pulled out
¥ The door is not closed properly
¥ No water is entering the machine (see: the machine does
not fill)
The machine does not fill
¥ The water taps are not turned on
¥ The water supply has been disconnected
¥ The inlet hoses are kinked
¥ The water pressure is too low
¥ The water inlet filters are clogged
The machine empties as it fills
¥ The end of the drain hose is too low
¥ The end of the drain hose is submerged in water
¥ Drain pipe has no vent hole
The machine does not drain or spin
¥ You have selected a gentle wash cycle
¥ The drain filter is clogged
¥ The drain hose is kinked
¥ The drainage system pipes are blocked
¥ The drain hose extension is incorrect
If you require an engineer or you wish to purchase spare parts contact your local Electrolux Service Force Centre by
telephoning:
0990 929929
Your call will be routed to the Service Centre covering your post code area.
When you contact the Service Centre you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date
The machine leaks or overflows
¥ Too much detergent
¥ Unsuitable detergent
¥ The inlet hose is loose
¥ The detergent dispenser drawer or recess is clogged
¥ The end of the drain hose is not securely positioned
The machine vibrates or is noisy
¥ The internal packing has not been removed
¥ The machine is not level
¥ The machine is in contact with the wall or furniture
¥ The washing load is badly distributed
¥ The machine is overloaded
The door does not open
¥ The safety device has locked it
If after the above checks there is still a fault contact
your local Electrolux Force Centre.
In-guarantee customer should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Please note that proof of purchase is required for
any-guarantee service calls.
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
CUSTOMER CARE
For general enquiries or for further information on Electrolux products, please contact our Customer Care Department:
Electrolux
Customer Care Department
PO Box 47
Newbury
Berkshire RG14 5XL
Tel: [phone]

17
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is
proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same
FREE OF CHARGE for labour, materials or carriage on condition that:
¥ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate
¥ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs instructions
¥ The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not authorised by us
¥ All service work under this guarantee must be undertaken by a Electrolux Service Force Centre.
¥ Any appliance or defective part replaced shall become the CompanyÕs property
¥ This guarantee is in addition to your statutory and other legal rights
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which
case a premium will be charged.
Exclusions
This guarantee does not cover:
¥ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts
of glass or plastic
¥ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United
Kingdom
¥ Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements
¥ Products of Electrolux manufacture which are not marketed by Electrolux
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the
following qualifications:
¥ The guarantee starts from the date you first purchased your product
¥ The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this
brand or range of products
¥ This guarantee relates to you and cannot be transferred to another user
¥ Your new home is within the European Community (EC) or European Free Trade Area
¥ The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household
¥ The product is installed taking into account regulations in your new country
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home.
They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Newbury [phone]

35.292.392/1
