Electronic M101H User manual

Tablet PC Operating Instructions
Last Revised: 01/20221
Operating instructionsfor tabletPC
M101H/S,M101B//BKBL/BT/P/Q8/RK/WK
This documentation is applicable to all the versions of the product
which are supplied.
The tablet PC is designed solely foruse as a portable unit orfor
use with the optional docking station in mechanical and plant engi-
neering systems fornormal machine applications and industrial
use.
The product designation also includes the following models:
·M101B//H/S/P/Q8/WK/RK
25.7 cm(10.1")LCD 1920 ×1200pixels
·M101BL25.7 cm(10.1")LCD 1280 ×800 pixels
·M101BT25.7 cm(10.1")LCD 1280 ×800 pixels and
smart card reader
·M101H/S/WKdifferent CPU version
·M101Q8/RKdifferent CPU version/Android
·M101BK 20,3 cm(8”)LCD 1280 x 800 with Keyboard
Please note the safety information inthe general operating in-
structions suppliedwith theproduct!
Also available with the product designation (see type plate)under
https://www.tl-electronic.de/download/driver:
·Quick Start Guide (English)
·UserManual (English)
Productlabelling
Type plate
The type plate is located on the inside of thebattery compart-
ment.
Product designation
Mains supply
Serial number
MAC address
Othermarket approvals
EU declaration of conformity: TL Electronic GmbH
hereby declares that the radio equipment type
M101Bx/P, M101H/S/WK and M101Q8/RKcomplies
with Directive 2014/53/EU. The full text of the EUdeclaration of
conformity is available at the following Internet address:
https://www.tl-electronic.de/download/driver
This product is supplied with the following wireless features: Wire-
less LAN, Bluetooth 3.0/4.0, GPS, 3G/4G (optional)
Ambientconditions
Protect the product fromdust, moisture, heat and mechanical
stress, such as strong vibrations and impact. Keep the product out
of direct sunlight. Install the product in such a way that itdoes not
constitute a hazard (e.g. so that itcannot tip overorfall down).
Operation
Operating tempera-
ture
M101Bx/P
-10 °C to 50 °C
with CompactFlash, IDEFlash or
automotive hard drive
Operating tempera-
ture
M101H/S/WK
-10 °C to 50 °C (battery operation)
-20 °C to 60 °C (mains operation)
Operating tempera-
ture
M101Q8/RK
-20 °C to 60 °C (battery operation)
-10 °C to 50 °C (mains operation)
Atmospheric hu-
midity
M101H/S/WK
10 %to 90 %non-condensing
Atmospheric hu-
midity
M101Bx/P/Q8/RK
30 %to 90 %non-condensing
Transportand storage
Storage tempera-
ture
M101Bx/P
-20 °C to 65 °C
Storage tempera-
ture
M101H/S/WK
-30 °C to 70 °C
Storage tempera-
ture
M101Q8/RK
-20 °C to 60 °C
Atmospheric hu-
midity
10 %to 90 %non-condensing

Tablet PC Operating Instructions
Last Revised: 01/20222

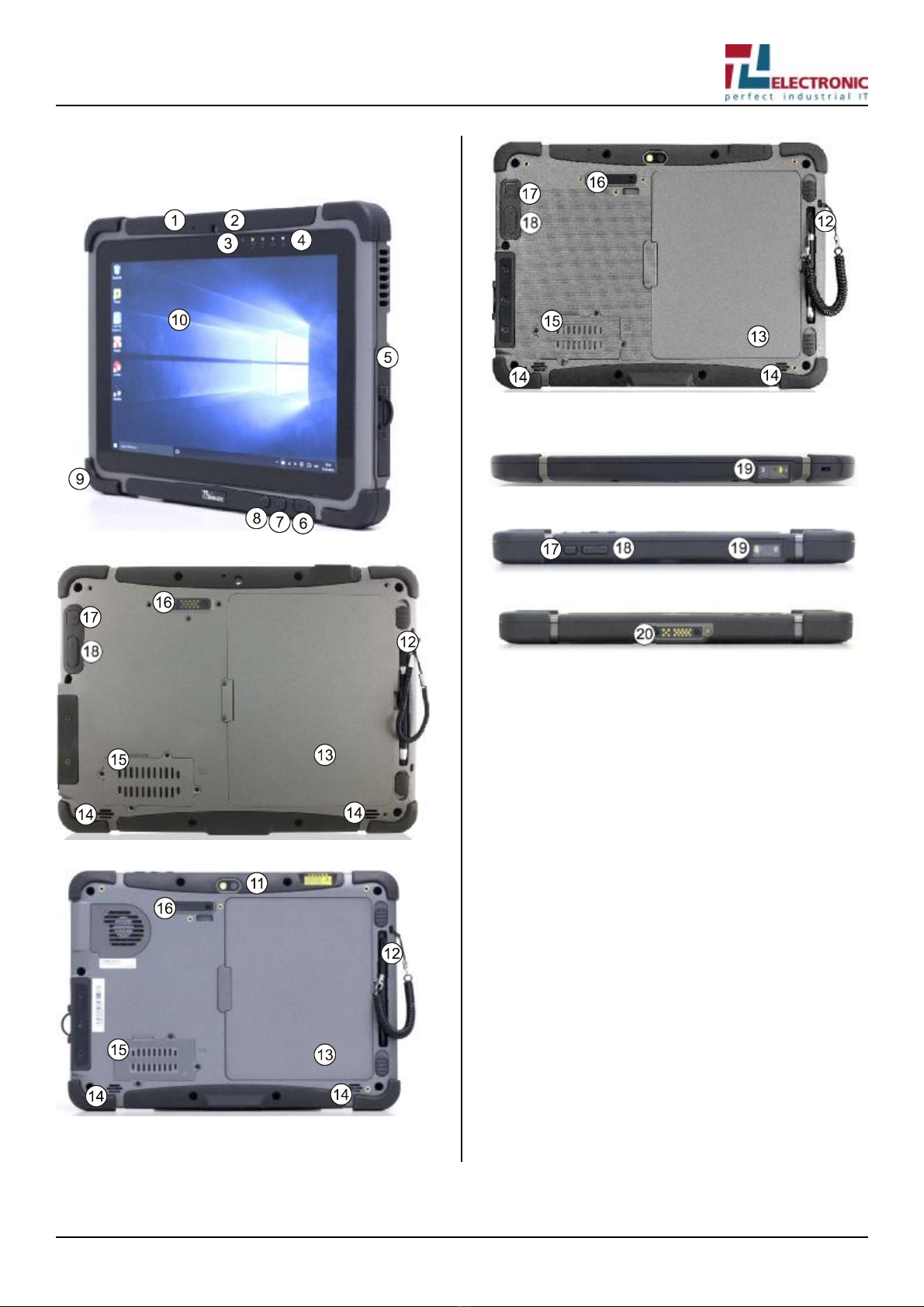

Overview
Controls and interfaces
Front
RearM101Bx/P
RearM101H/S/WK
RearM101Q8/RK
Top M101Bx and M101Q8/RK
Top M101H/S/WK
Underside
1. Microphone (M101Bx/P/Q8/RKand M101H/S/WKonly)
2. Front camera
3. Light sensor(M101Bx/P/Q8/RKand M101H/S/WKonly)
4. LED indicators
M101Q8/RK: orange =charging, green =charged,
blue =receiving data
5. I/O ports M101Bx/Pand M101H/S/WK: Micro-HDMI, LAN/COM
combo, USB3.0, audio line out and mic in, microSD, charger/
mains adaptersocket
M101Q8/RK: USB2.0 OTG, audio line out and mic in, mi-
croSD, charger/ mains adaptersocket
6. Home / menu button
7. On/off switch: switches the product on oroff
8. Function key
9. Rubbercornerprotector
10. Touch screen display
11. Camera
12. Capacitive stylus
13. Battery compartment
14. Loudspeaker
15. Slot coverfor3G module and SIMcard
16. Connection foroptional extensions
17. Function key
18. Volume control
19. 2D barcode scanner(optional)
20. Docking station connection

Tablet PC Operating Instructions
Last Revised: 01/20223
Charger/ mains adaptersocket
On the right side of the housing there is a socket underneath a flap
forconnecting the powersupply.
Connections on M101Bx/Pand M101H/S/WK
Connections on M101Q8/RK
Only use the mains adaptersupplied with the product to charge the
product.

Tablet PC Operating Instructions
Last Revised: 01/20224
Operation
Plug the powersupply cable into the powersupply socket on the
product and then connect it to themains supply in orderto charge
it.
Note the information on the mains voltage on the type plate.
Switching on
The product is fitted with an on/off switch on the front. Press the
on/off switch fora few seconds tostart up the product.
Switching off
First shut down then switch off! The operating systemmust be shut
down first and then the product may be switched off. Otherwise the
systemmay be damaged in such a way as to prevent the product
fromstarting up again.
The product is not completely disconnected fromthe power
supply when the on/off button ormains switch is switched off!
Rights should be assigned in the control software in such a way
that users who are not allowed to close the software are also de-
nied permission to switch off the product. If the product is switched
off during a write operation, this file will be destroyed. Control soft-
ware usually executes write operations automatically every few
seconds, so damage can very easily be caused by switching off
while the software is running.
Service
Contactdetails
Tel.: [phone]
Fax: [phone]
email: [e-mail]
If you contact the service staff, please have the serial number
ready which can be found on the type plate on the product.
Company headquarters
TL Electronic GmbH
Bgm.-Gradl-Str. 1
85232 Bergkirchen-Feldgeding
Germany
Tel.: [phone]
Fax: [phone]
email: [e-mail]
You can also visit ourwebsite at www.tl-electronic.de
Technical data
Dimensions (W×D ×
H)
M101Bx/P:
M101H/S/WK:
M101Q8/RK:
271.8 ×197.2 ×19 mm
271.8 ×197.2 ×21 mm
271.8 ×197.2 ×19 mm
271.8 ×198.2 ×21 mm (inc. barcode
reader)
Weight
M101Bx/P:
M101H/S/WK:
M101Q8/RK:
1.2 kg
1.25 kg
1.15 kg
Protection class IP65
Wireless capabilities
M101Bx/P
M101H/S/WK
WLAN: IEEE 802.11 a/b/g/n
Bluetooth 4.0
GPS
3G (optional)
Wireless capabilities
M101Q8/RK
WLAN: IEEE 802.11 a/b/g/n
Bluetooth 3.0
GPS
3G/4G (optional)
Rechargeable battery
M101Bx/P:
M101H/S/WK:
M101Q8/RK:
7.4 volts DC
Li-polymerbattery (2S1P)
5300 mAh
5300 or10600 mAh
5140 mAh
Powersupply External mains adapter
Supply voltage
M101Bx/P/RKand
M101H/S/WK:
M101MQ8:
19 volts DC
12 volts DC
