Electrothermal MH8516 User manual

Page 1 of 20 M8015 issue 2.1
PARAFFIN SECTION MOUNTING BATH
MH8516 MH8516/x1, MH8516/x6
INSTRUCTION BOOK

Page 2 of 20 M8015 issue 2.1
Please take your time to read this Instruction book in order to understand the
safe and correct use of your new Electrothermal product.
It is recommended the Responsible Body for use of this equipment reads this
Instruction book and ensures the user(s) are suitably trained in its operation.
CONTENTS
Section 1
Introduction
Page 3
Section 2
Symbols and using this Instruction book
Page 4
Section 3
Safety Information.
Page 5
Section 4
Unpacking and contents
Page 7
Section 5
Installation
Page 8
Section 6
Environmental Protection.
Page 9
Section 7
Product Operation.
Page 10
Section 8
Technical Specification.
Page 12
Section 9
Maintenance
Page 13
Section 10
Customer Support
Page 15
Section 11
Spares and Accessories
Page 17
Section 12
Notes
Page 18
Section 13
EC declaration of Conformity
Page 20
Appendix A
Decontamination Certificate.
Page 16
©The copyright of this Instruction book is the property of Electrothermal. This instruction book is supplied
by Electrothermal on the express understanding that it is to be used solely for the purpose for which it is
supplied. It may not be copied, used or disclosed to others in whole or part for any purpose except as
authorised in writing by Electrothermal . Electrothermal reserve the right to alter, change or modify this
instruction book with out prior notification.
In the interest of continued development Electrothermal reserve the right to alter or modify
the design and /or assembly process of their products without prior notification.
This product is manufactured in Great Britian by Electrothermal Engineering Limited. Part of the
Bibby Scientific Group of companies. Registered address.
Electrothermal .
Electrothermal House.
Unit12A, Purdeys Way.
Purdeys Industrial Estate.
Rochford,
Essex. SS4 1ND
Great Britain.
Tel [phone]
Fax[phone]

Page 3 of 20 M8015 issue 2.1
1. INTRODUCTION.
The MH8516 Paraffin section bath is designed for use as a heated, distilled water floating out
bath for the manipulation and location of paraffin wax sections onto glass slides.
The MH8516 Paraffin bath uses an energy regulator designed to supply power to a silicon
rubber mat heater in controlled timed pulses in order to maintain accurate water
temperatures. A thermal fuse is fitted as in integral part of the heater mat in order to protect
against any over temperature conditions.
With a PTFE black interior and stove enamaled white alluminium exterior your Electrothermal
Paraffin section bath is vertually maintanance free and extremly easy to clean.
This product is supplied with an IEC moulded cord and lead set for ease of operation and the
IEC socket houses protection fuses for both the live and neutral power supply lines. A White
neon indicates the presence of power while the Amber neon indicates when the heater is in
an ‘on’ state.

Page 4 of 20 M8015 issue 2.1
2. SYMBOLS AND USING THIS INSTRUCTION BOOK
2.1. Throughout this Instruction book the following symbols are shown
to identify conditions which pose a hazard to the user, or to identify actions that
should be observed. These symbols are also shown on the product, or its packaging.
When a symbol is shown next to a paragraph or statement it is recommended the
user takes particular note of that instruction in order to prevent damage to the
equipment or to prevent injury to one’s self or other people.
To prevent injury or equipment damage it is the manufacturer’s
recommendation that all persons using this equipment are suitably trained
before use.
2.2. Symbols defined.
Caution, risk of danger. See note or adjacent symbol.
Protective conductor terminal to be earthed.
(Do not loosen or disconnect).
Caution / risk of electric shock
Recyclable Packing Material
Do not dispose of product in normal domestic waste.
Caution. Hot surface.
Refer to Instruction book
This symbol adjacent to an indication lamp means mains power
Off/On when lamp non-illuminated / illuminated
This symbol is used to identify the Bath Heater on Control and bath
heater “ON” indicator.
Bio Chemical Hazard. Caution required. Will require decontamination.

Page 5 of 20 M8015 issue 2.1
3. SAFETY INFORMATION.
This product has been designed for safe operation when used as detailed in accordance
with the Manufacturer’s instructions.
NOTE: Failure to use this equipment in accordance with the manufacturer’s instructions
may compromise your basic safety protection afforded by the equipment and may
invalidate the warranty / guarantee. The warranty / guarantee does not cover damaged
caused by faulty installation or misuse of the equipment
3.1. Prevention of Fire and Electric Shock.
To prevent a risk of fire or electric shock, DO NOT open your product
case without authorisation. Only qualified Service personnel should
attempt to repair this product.
Replace fuses only with the type as listed in section, ‘Technical
Specifications and Parts and Accessories’ (See fuse type and rating).
Ensure the Mains Power Supply conforms to rating found on the data
plate located on the back of this product.
Never Operate this equipment without connection to earth / ground.
Ensure the mains supply voltage is correctly earthed / grounded in
accordance with current area legislation.
3.2. General Safe Operating Practice.
Always follow good laboratory practice when using this
equipment. Give due recognition to your company’s safety and legislative
health & safety procedures and all associated legislation applicable to your
areas of operation.
Only use this equipment for the purpose intended.
Ensure equipment is used on a clean, dry, non-combustible, solid work
surface with at least 300mm suitable clearance all around from other
equipment.
Do not position the product so that it is difficult to disconnect from the mains
supply.
Do not lean or stretch over equipment.
Do not immerse unit in water or fluids.
Do not spill chemicals over this product. If spillage does occur, disconnect
unit from mains supply and follow instructions as detailed in Maintenance.
(Section 9).
Do not cover this equipment whilst in use or obstruct cooling vents.
Do not leave equipment switched on when empty.
It is not recommended to leave any heating apparatus unattended during
operation.
Only use Original Equipment ‘Manufacturer’s Spares and Accessories’. Ref
Section 11.

Page 6 of 20 M8015 issue 2.1
The equipment is not spark, flame or explosion proof and has not been
designed for use in hazardous areas in terms of BSEN 60079-14:1997.
Keep flammable, low flash point substances away from the apparatus.
Do not operate or handle any part of the product with wet hands.

Page 7 of 20 M8015 issue 2.1
4. UNPACKING AND CONTENTS
4.1. Please check the contents of your carton against the diagram.
Contents.
Item
Description
Qty
1
Paraffin Section Mounting Bath
1
2
Instruction book (this document).
1
3
Mains lead and moulded IEC plug set.
(Illustration may be different to lead set supplied depending on country of use).
1
For future reference
please record your
products Serial and
Model Number.
Serial Number
Model Number

Page 8 of 20 M8015 issue 2.1
5. INSTALATION
5.1. Electrical safety and installation.
5.1.1. This equipment is designed for safe use under the following conditions:-
Indoor use.
Altitude up to 2000 meters.
Temperatures between 5 C and 40 C.
Maximum relative humidity 80% for temperatures up to 31 C decreasing
linearly to 50% relative humidity at 40 C.
Mains supply voltage fluctuations up to 10% of the nominal voltage.
Transient overvoltages typically present on the mains supply.
Applicable rated pollution degree 2.
5.2. This equipment must be earthed / grounded to a fixed earth / grounded mains
socket outlet. The mains supply is to be earthed / grounded in accordance with
current legislation.
5.3. Ensure only the correct rated mains input fuses are fitted. (Where applicable ensure
the correct Mains cord and moulded IEC plug and lead set fuse if fitted). See
Technical Specification Section 8 of this Instructions book.
5.4. Check the voltage on the product data label on this product unit and those of any
accompanying electrical accessory. Ensure the rating conforms to your local supply.
5.5. It is recommended this product be connected to a mains supply source which
incorporates an RCD or GFCI device.
5.6. Do not install this product or accessories on a surface which may
become wet.
5.7. The unit is supplied with a Mains cord wired as follows:
Green / Yellow
or
Green
=
Earth / Ground
Blue
or
White
=
Neutral
Brown
or
Black
=
Live / line hot.

Page 9 of 20 M8015 issue 2.1
6. ENVIRONMENTAL PROTECTION.
6.1. Electrothermal has given due consideration to environmental issues within the
design and manufacturing process without compromising end product performance
and value.
6.2. Packaging materials have been selected such that they may be sorted for
recycling.
6.3. At the end of your product and accessories life, it must not be discarded as
domestic waste. Ref: EU Directive 2002/96/EC on Waste Electrical and Electronic
Equipment Directive (WEEE). Please contact your distributor / supplier for further
information. For end users outside of the EU consult applicable regulations.
6.4. This product should only be dismantled for recycling by an authorised recycling
company.
This product and accessories must be accompanied by a completed
Decontamination Certificate prior to any disposal. Copies of the Certificate are
available from your distributor of Electrothermal products, or you may copy
and enlarge from ‘Appendix A’ of the instruction book.
Electrothermal is registered as Electrothermal Engineering Limited with the Environment Agency as a producer of WEEE
(Waste Electronic and Electrical Equipment) through b2b Compliance,an authorised waste collection compliance scheme.

Page 10 of 20 M8015 issue 2.1
7. PRODUCT OPERATION.
7.1. The Paraffin Bath has been designed for easy operation. The illustration below
shows a detailed layout of the product.
1
Bath tank
2
Mains power on neon (White).
3
Heater on neon. (Amber).
4
Temperature control regulation knob
5
Read instruction book label
6
Mains IEC plug socket and protection fuses
7
Data plate label
8
Earth bonding test point.
9
Earth bonding point attention label.
7.2. With the unit disconnected from the mains electricity supply, half fill the bath tank
with distilled water.
Note: For best operation of this equipment, fill the unit with sterilized distilled water.
The acceptable resistivity range is 50K to 1 Megohms (conductivity 1 to 20 micro
Siemens). The acceptable pH range is 7 to 9.
Caution: Using chlorinated tap water or additives that contain chorine will void the
manufacture warranty. Similary, high purity (deionized) water that does not fall within
a restivity range of 50K to 1 Megohms and pH range of 7 to 9 will void the
manufacture warranty. If you have any questions, please contact Customer support
(see page 15 of this instruction book).
7.3. Plug the unit into the mains electrical supply. Observe the illumination of the White
neon indicating the presence of power.
7.4. Turn the Temperature control voltage regulator knob to the maximum setting. The
objective is to set the shortest warn up time. When the heater cuts in and turns on,
the amber neon will illuminate. This indicates when the heater is on.

Page 11 of 20 M8015 issue 2.1
Note: The Amber neon will switch on and off as the energy regulator cuts in and out.
7.5. When the distilled water has reached the required temperature, reduce the heating
temperature and allow it to stabilise. Add further distilled water if required.
7.6. If an over temperature condition occurs, the bath will turn off. Disconnect from the
mains electricity supply and check there is sufficient distilled water in the bath. When
the unit has cooled down the thermal fuse will reset itself and operation may
commence. If a lack of distilled water isn’t the reason for the over temperature fault
condition, refer to section 10 Customer support.
Take care not to get hot distilled water onto hands /skin
7.7. Regularly check the volume of distilled water present in the unit. Replenish as
required.

Page 12 of 20 M8015 issue 2.1
8. TECHNICAL SPECIFICATION.
8.1. Specifications.
Mains Power Supply
Voltage
MH8516 and MH8516x6 230V –AC 50/60 Hz or
MH8516x1 115V –AC 50/60 Hz as stated on the data plate
label.
Maximum Power
Consumption
240 Watt max at 230V
240 Watt max at 115V
Operational temperature
and performance.
70 C Nominal with 2 litres water. Obtained within 120 minutes.
Operational climatic
conditions.
Temperature range 5 C to 40 C. Humidity not to exceed 80%.
Mains Power Lead set
(UK) 13A BS1362
3 core earthed / ground. 2 meters long
Moulded IEC plug and Lead set –supply cord H05 V V-F-
Replace only with equivalent cable.
Mains Power Lead set
(Europe)
3 core earthed / ground. 2 meters long
Moulded IEC plug and Lead set –supply cord H05 V V-F-
Replace only with equivalent cable.
Mains Power Lead set
(USA)
3 core earthed / ground. 2 meters long
Moulded IEC plug and Lead set –supply cord SJT VW 1-
Replace only with equivalent cable.
Lead set plug fuse (UK –
only)
13A BS1362
Product Fuse Rating
230V –F1.25A (IEC127) Quick Blow Fuse 20mm x 5mm
Glass.
115V –F5A (IEC127) Quick Blow Fuse 20mm x 5mm Glass.
Heating Element
Silicone Rubber Mat Heater.
Over Temperature
Protection
Over temperature protection with resettable thermal fuse.
Maximum Bath Capacity
2.25 litres (0.6 US gallon), (0.5 UK gallon).
Case Construction
Aluminium bath coated interior. Stove enamelled aluminium
white exterior.
Neon indicators
Power on –Clear
Heater on –Amber
Controls: Bath Heater
Rotary control energy regulator labelled with graded
temperature scale.
The Ingress protection rating for this product is classified as IPX 1.

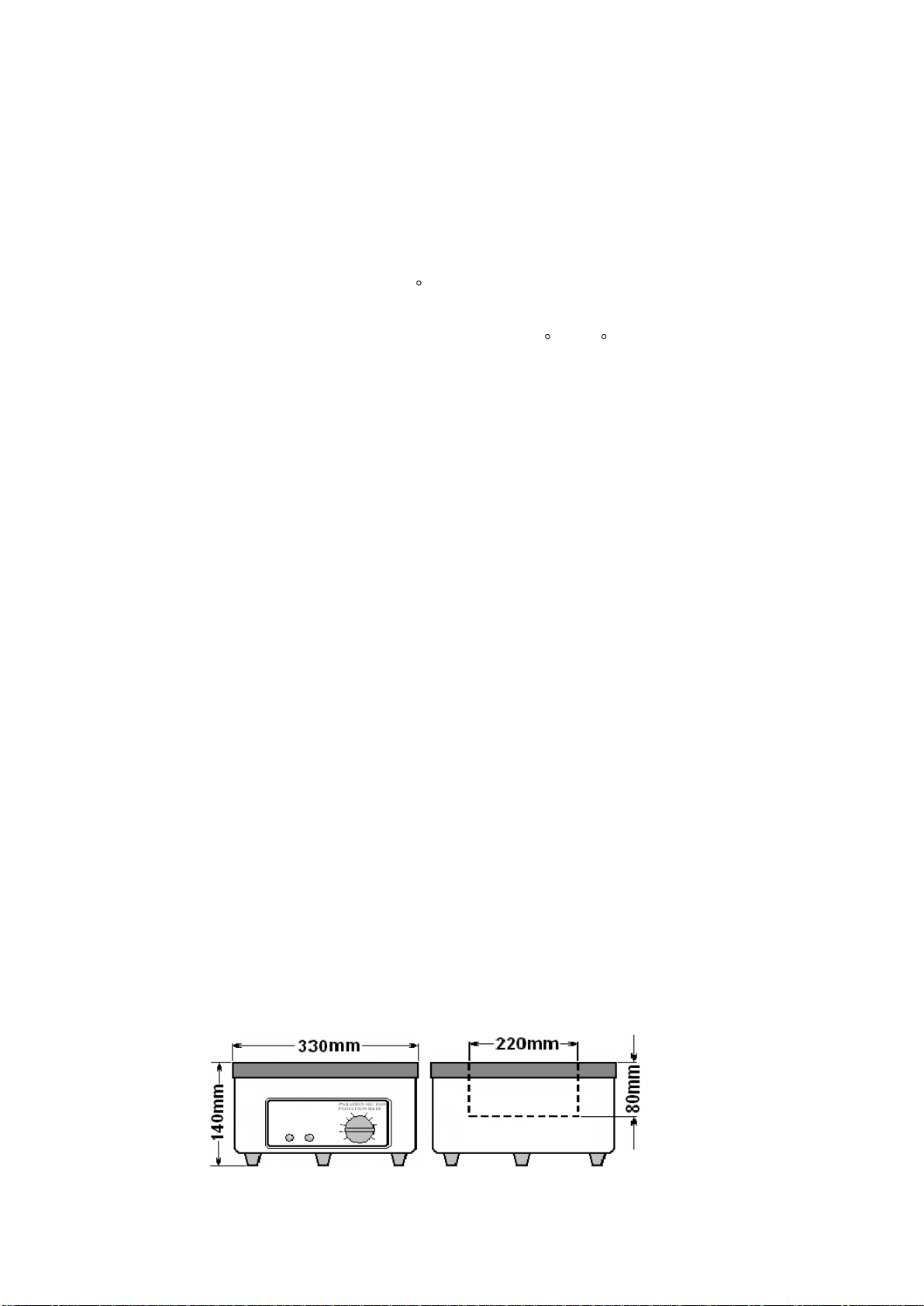

8.2. Dimensions and Weight. (unpacked and empty)
Weight 2.7Kg

Page 13 of 20 M8015 issue 2.1
9. MAINTENANCE
9.1. General Information.
Unplug the unit from the mains voltage supply and allow it to cool before
undertaking any maintenance tasks.
Maintenance should only be carried out under the direction of the Responsible
Body, by a competent electrician. Failure to do so may result in damage to the
product and in extreme cases be a danger to the end user.
With proper care in operation this equipment has been designed to give many years
of reliable service. Contamination or general misuse will reduce the effective life of
this product and may cause a hazard.
Maintenance for the unit should include:
Periodic electrical safety testing (an annual test is recommended as the
minimum requirement).
Regular inspection for damage with particular attention to the mains lead and
plug.
Routine cleaning of the equipment should be undertaken using a clean cloth.
Hot water may be used to remove any solidified wax. Allow the equipment to
dry thoroughly before reconnecting the to the mains electricity supply.
DO NOT USE SOLVENTS FOR CLEANING ANY PART OF THIS
EQUIPMENT.

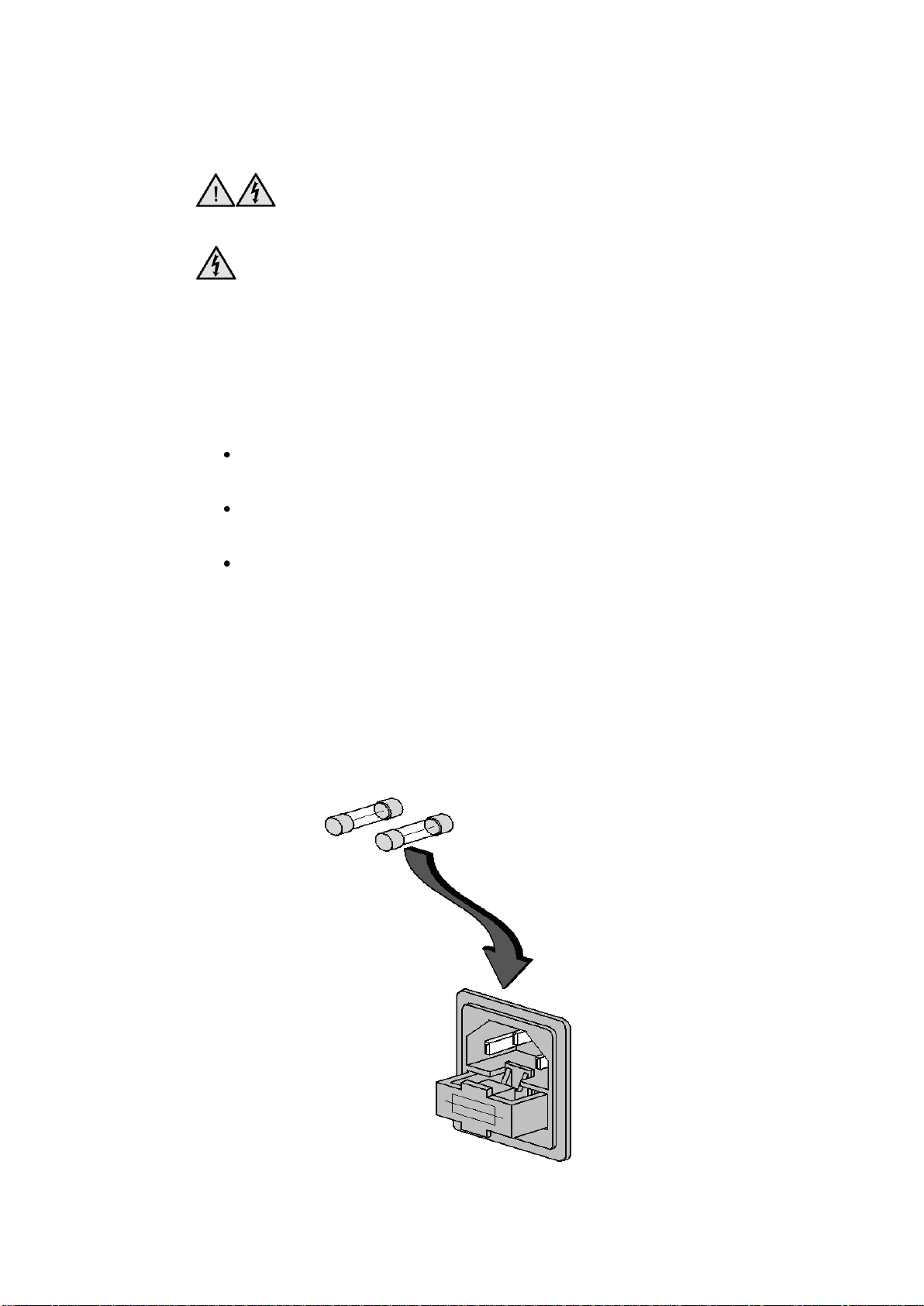

9.2. Internal Fuse Replacement.
The mains fuse holder is located at rear your product. Refer to Technical
Specification, ‘Fuse Rating’ for correct fuse type and rating. Turn your product off and
remove it from the mains supply. Open fuse draw and remove fuses. Fit replacement
fuses and close the draw.

Page 14 of 20 M8015 issue 2.1
9.3. Spillage and Decontamination.
In the event of spillage switch off and unplug this product from the mains electrical
supply. Wipe off all excess liquid from the bath and surrounding area using an
absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before
commencing with use.
If in doubt please consult Customer Support. Refer to section 10.
If the equipment has been exposed to contamination, the
Responsible Body is responsible for carrying out appropriate
decontamination. If hazardous material has been spilt on or inside the
equipment, decontamination should only be undertaken under the control of
the Responsible Body with due recognition of possible hazards. Before using
any cleaning or decontamination method, the Responsible Body should check
with the manufacturer the proposed method will not damage the equipment.
Prior to further use, the Responsible Body shall check the electrical safety of
the unit. Only if all safety requirements are met can the unit be used again. The
above procedure is intended as a guide. Should spillage occur with a toxic or
hazardous fluid then special precautions may be necessary.
Decontamination Certificate.
Note: In the event of this equipment or any part of the unit becoming damaged, or
requiring service, the item(s) should be returned to the manufacturer for repair
accompanied by a decontamination certificate. Copies of the Certificate are
available from Distributor/Manufacturer. Appendix A of this instructions book
may be copied and enlarged.
At the end of life, this product must be accompanied by a Decontamination
Certificate. See section 6.3 and 6.4

Page 15 of 20 M8015 issue 2.1
10.CUSTOMER SUPPORT
For help and support in using this product, please contact at the
following address.
Electrothermal.
Electrothermal House.
Unit12A, Purdeys Way.
Purdeys Industrial Estate.
Rochford,
Essex. SS4 1ND
Great Britain.
Tel [phone]
Fax[phone]
Email: General enquiries:
[email protected]
Orders: [email protected]
Help with existing products:
[email protected] and
[email protected]
www.electrothermal.com
For the America’s and Canada, contact:
Techne Incorporated, 3 Terri Lane,
Suite 10 Burlington, NJ 08016 USA.
Toll free:800-225-9243Tel: [phone]
Fax: [phone]
Email: [email protected]
Http www.techneusa.com

Page 16 of 20 M8015 issue 2.1
APPENDIX ‘A’. DECONTAMINATION CERTIFICATE.
Electrothermal . Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford. Essex.
SS4 1ND. Great Britain
Phone:[phone] Fax:[phone]. E-mail: [e-mail]
DECONTAMINATION CLEARANCE CERTIFICATE
For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment.
Prior to a Service Engineer working on equipment that has been in an environment where substances hazardous to health may have been
used, you are requested to provide the following information:
CUSTOMER DETAILS
Company:-
Address:-
Department:-
Contact Name:-
Tel No:-
Fax No:-
Post Code:-
Product Description
Model No:-
Serial No:-
Has the equipment been exposed to any of the following, Please answer all questions by deleting YES/NO as applicable and by providing
details in section 2 below.
A. Blood, body fluids, Pathological
specimens
YES/NO
Provide details if YES
B. Biodegradable material that could
become a hazard
YES/NO
Provide details if YES
C. Other biohazard
YES/NO
Provide details if YES
D. Chemical or substances hazardous to
health
YES/NO
Provide details if YES
E. Radioactive substances State name(s)
and quantities of isotopes and checks
made for residual activity
YES/NO
Provide details if YES
F. Other hazards
YES/NO
Provide details if YES
2. Please provide details of any hazard present as indicated above. Include details of names and quantities of
agents as appropriate:-
3. Your method of decontamination (please describe):-
4. Are there likely to be any areas of residual contamination (please specify)
I declare that the above information is true and complete to the best of my knowledge and belief.
Authorised signature:-
Name (please print):-
Title/Position:-
For and behalf of:-
Date:-

Page 17 of 20 M8015 issue 2.1
11.SPARES AND ACCESSORIES
230V
115V
Qty
Neon Clear
AZS4329
CRM5619
1
Neon Amber
AZS4330
CRM5620
1
Energy Regulator
AZ9127
AZ9128
1
Control Knob
124721
124721
1
Fuse
AZ9039 (F1.25A)
AZ9007 (F5A)
10
Plug and lead set (UK)
CRM6902
-
1
Plug and lead set
(Europe)
CRM6332
-
1
Plug and lead set (USA)
-
CRM6288
1

Page 18 of 20 M8015 issue 2.1
12.NOTES.

Page 19 of 20 M8015 issue 2.1

Page 20 of 20 M8015 issue 2.1
13.EC DECLARATION OF CONFORMITY.
CE marked products and associated accessories covered by this Instruction book conform to
the essential requirements of the following directives:
EMC Directive.
Low Voltage Directive.
A full copy of the EC Declaration / Conformity document can be obtained from the manufacture
at the email address [email protected]
Electrothermal.
Electrothermal House.
Unit12A, Purdeys Way.
Purdeys Industrial Estate.
Rochford,
Essex. SS4 1ND
Great Britain.
Tel [phone]
Fax[phone]
Email: General enquiries:
[email protected]
Orders: [email protected]
Help with existing products:
[email protected] and
[email protected]
www.electrothermal.com
For the America’s and Canada, contact:
Techne Incorporated, 3 Terri Lane,
Suite 10 Burlington, NJ 08016 USA.
Toll free:800-225-9243Tel: [phone]
Fax: [phone]
Email: [email protected]
Http www.techneusa.com
2012 Electrothermal. All rights reserved.
Printed in Great Britain
Distributors Stamp
