Element ELAFT191 User manual

19”/22” 720p LCD HDTV/DVD
Player Combo
Instruction Manual
Read all of the instructions before using this TV and keep the
manual in a safe place for future reference.
ELAFT191
ELAFT221

Important Safety Instructions
• Read these instructions – All the safety and operating instructions should be read before this product
is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture –for
example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart or rack is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
• WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
• WARNING: The wall socket plug is used as disconnect device, the disconnect device shall remain readily
operable.
• WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
•
- This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user -serviceable
parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance instructions in the literature accompanying the appliance.
• The apparatus should be connected to an electrical wall outlet with a protective grounding connection.

2
Contents
Caution................................................................ 3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
What’sIncluded........................................................ 5
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6-7
Front / Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TV Terminal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting to External Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Operating Your Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-19
Select Your Onscreen Language Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Navigating the Onscreen Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Choosing a TV Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Selecting Input Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Video Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Picture Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Audio Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TV Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ChannelSkip.......................................................17
Setup Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Caption............................................................18
PCMode...........................................................19
Parental Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
USB multimedia operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-35
DVDoperation......................................................23-32
FCC.................................................................. 36
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3
Caution
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.

4
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the instructions
in this user guide, especially the safety information below.
Electrical safety
•The TV set should only be connected to a main power supply with voltage that matches the
label at the rear of the product.
•To prevent overload, do not share the same power supply socket with too many other
electronic components.
•Do not place any connecting wires where they may be stepped on or tripped over.
•Do not place heavy items on them, which may damage the leads.
•Hold the main plug, not the wires, when removing from a socket.
•During a thunderstorm or when not in using the television for long periods, turn off the
power switch on the back of the television.
•Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist
areas, such as bathrooms, steamy kitchens or near swimming pools.
•Pull the plug out immediately, and seek professional help if the main plug or cable is
damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if
anything accidentally penetrates the ventilation slots or if the set does not work normally.
•Do not remove the safety covers. There are no user serviceable parts inside. Trying to
service the unit yourself is dangerous and may invalidate the product’s warranty. Qualified
personnel must only service this apparatus.
•To avoid battery leakage, remove exhausted batteries from the remote control, or when not
using for a long period.
•Do not break open or throw exhausted batteries on a fire.
Physical safety
•Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but
ensure at least 5cm (2”) clearance all around.
•Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care
of the remote control.
•To clean the TV use a soft dry cloth. Do not use solvents or petroleum based fluids.
•Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider then the other. A grounding type plug has two blades and a
third grounding prong, the wide blade, or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs.
•Unplug the apparatus during lightning storms or when unused for long periods.
•Refer all servicing to a qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture,
does not operate normally, or has been dropped.
•Please always connect your television to a power outlet with protective ground connection.

5
What’s Included

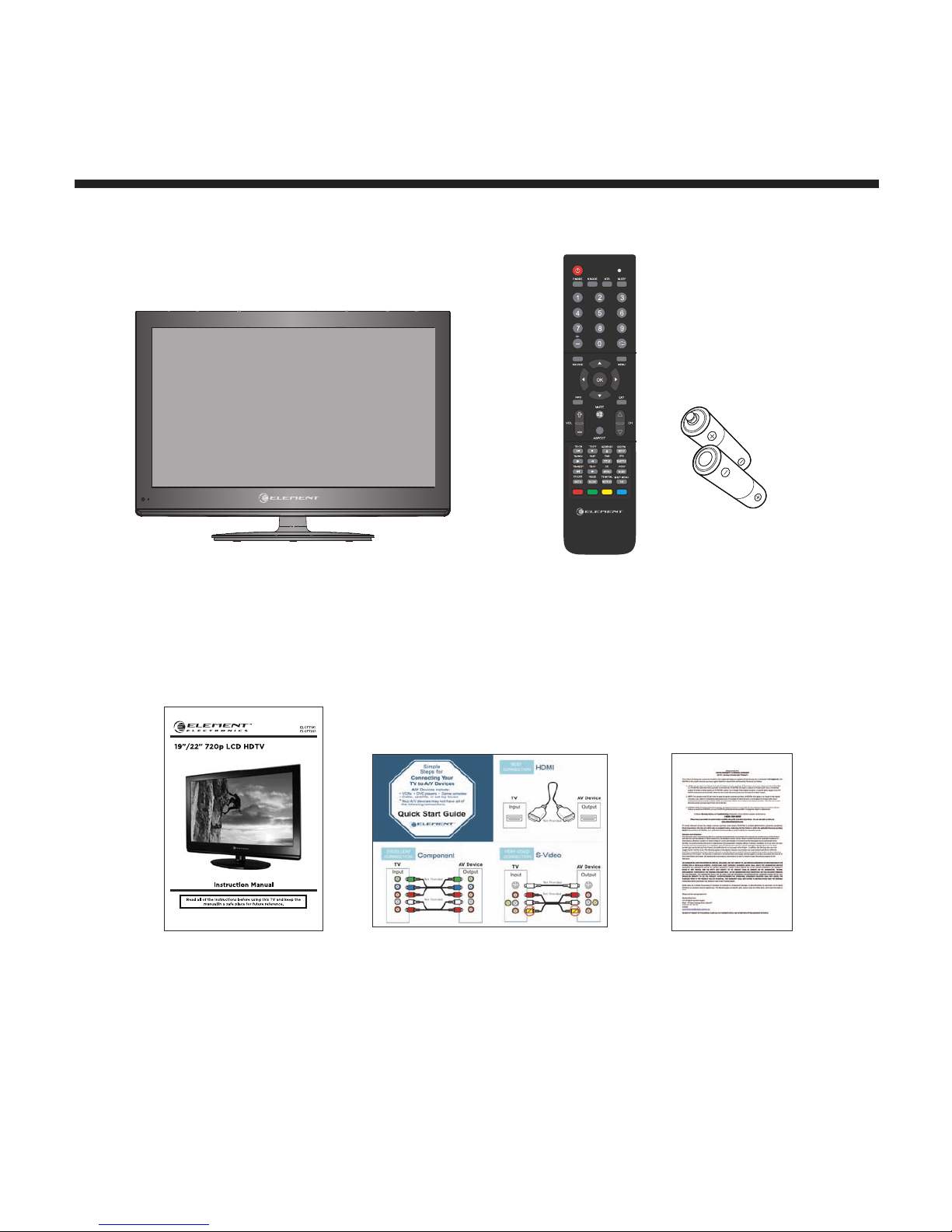

Unit and Accessories
TV Set Remote control with batteries
User’s Manual Quick Start Guide warranty card

6

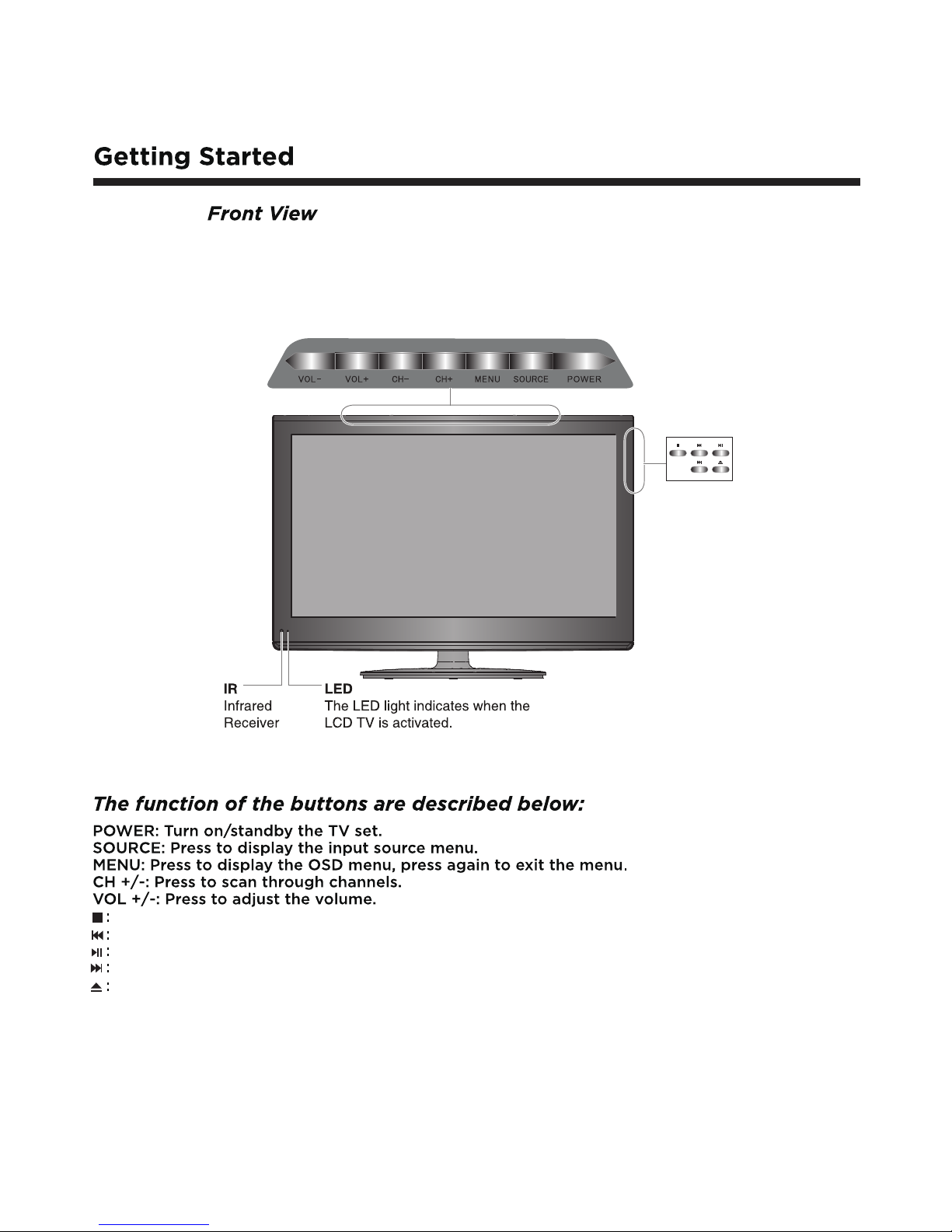

Stop button for DVD.
Prev button for DVD.
Play/Pause button for DVD.
Next button for DVD.
Open/Close button for DVD.

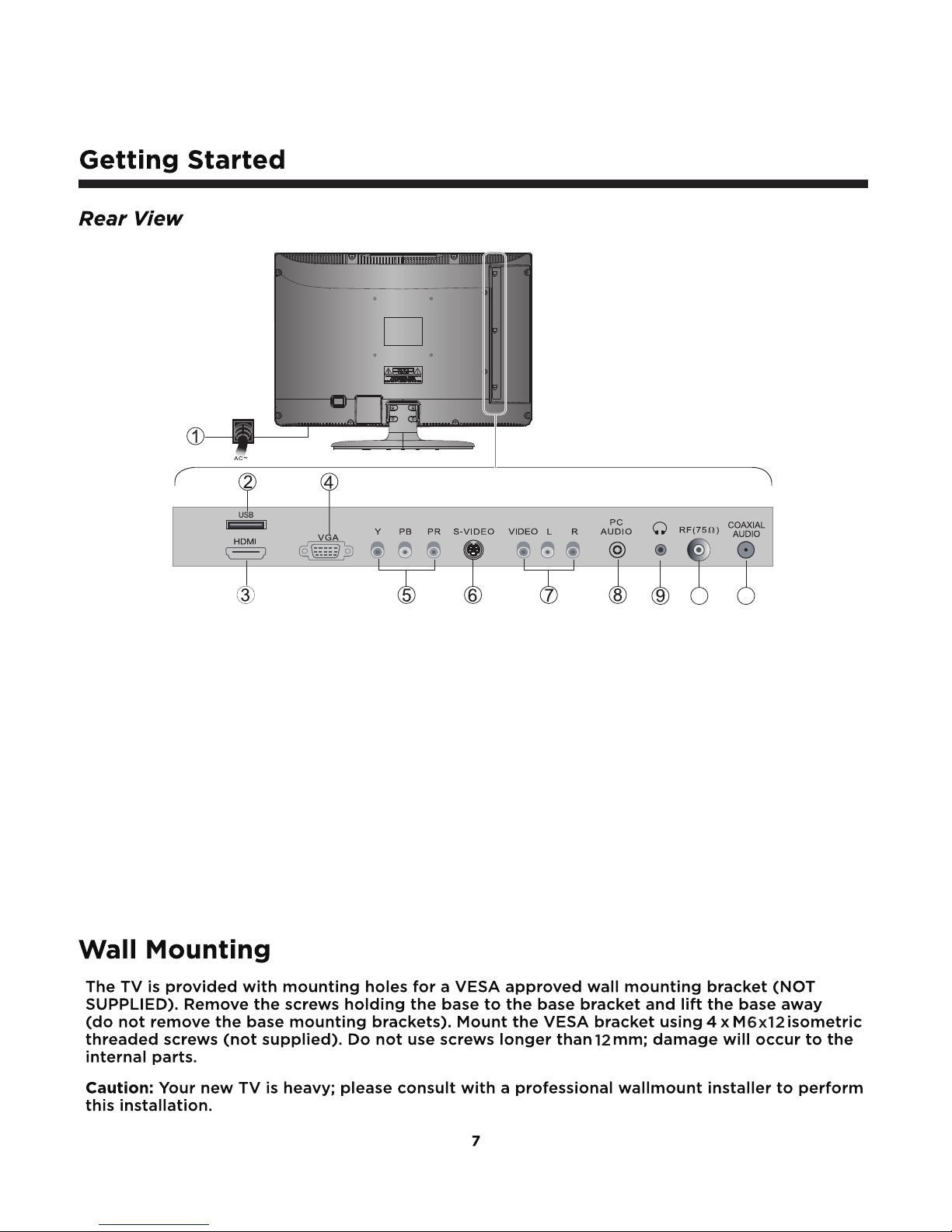

1. AC power input terminal
2.USB port
3. HDMI input.
4. VGA input.
5.
Coaxial audio signal out plug.
6. S-VIDEO input.
7.
Component input terminal.
8.
AV input .
9.
PC audio input.
10.
Headphone output.
11.
Antenna input (75 Ohm VHF/UHF).
10 11

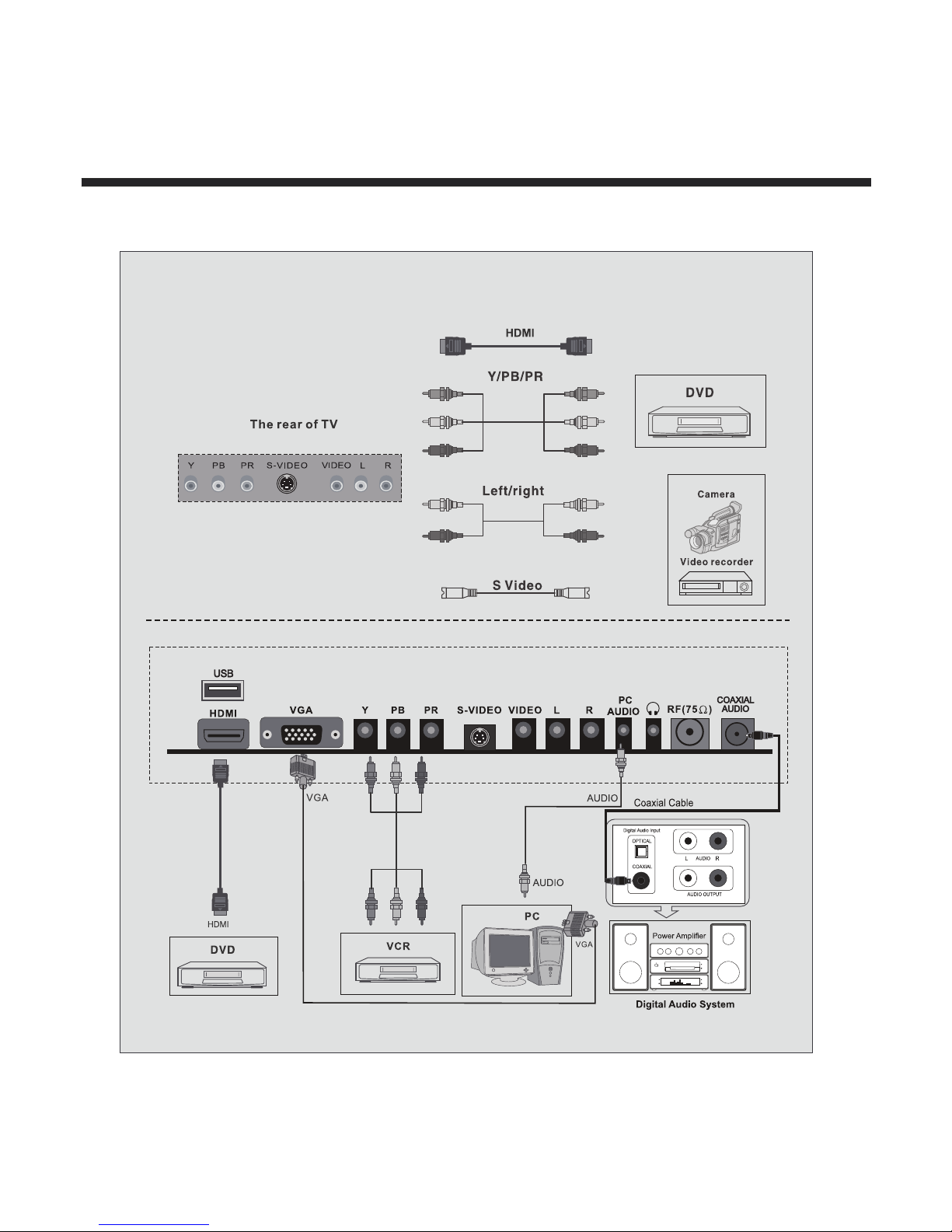

Connecting to external devices
Connecting external devices to your LCD TV
8

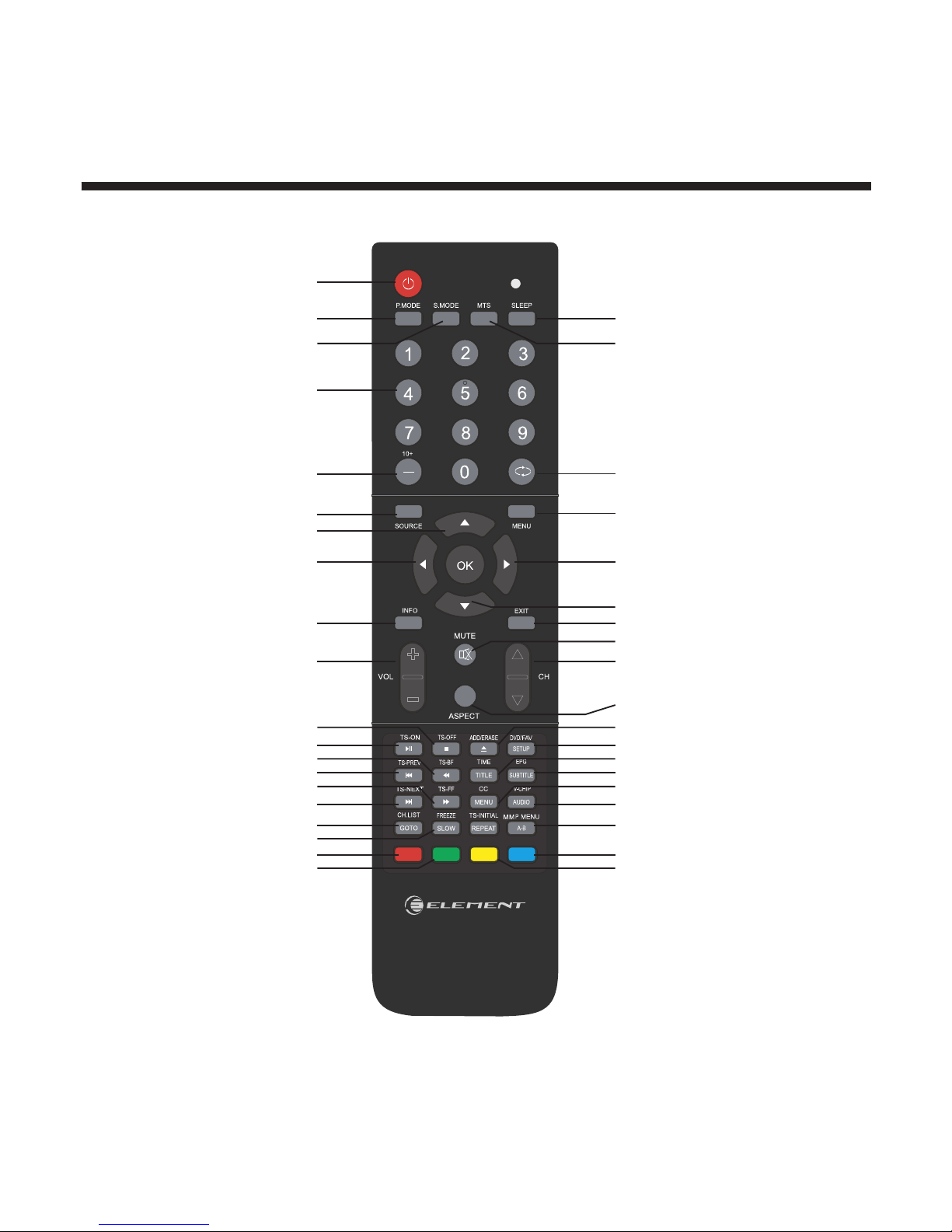

Remote Control Key Functions
Mute button
Return channel button
TV setup menu
ENTER
RIGHT
Down
9
Power button
Numeric buttons
Channel setup / DVD 10+ button
Signal source selection button
UP
LEFT
Picture mode button Sleep button
MTS button
Sound mode button
Exit the OSD menu button
Aspect button
Information button
Channel selection buttonVolume adjust button
Play / Pause button
Rewind button
Prev button
Forward button
NEXT button
CH.LIST & Goto button
Freeze & Slow button
RED button
Green button
Stop button
FAV & DVD Setup button
Time & Title button
EPG & Subtitle button
CC & DVD Menu button
V-CHIP & Audio button
MMP Menu & A-B button
Blue button
Yellow button
ADD / Erase & Open / Close button
If there is light around the TV, the remote control may fail or work abnormally.
Remote control function keys to practice prevail.
If not using the remote for a long period of time, please remove the batteries.

10
/DVD

11
Place DVD into the slot with the DVD disc label facing the back.

Operating Your Television

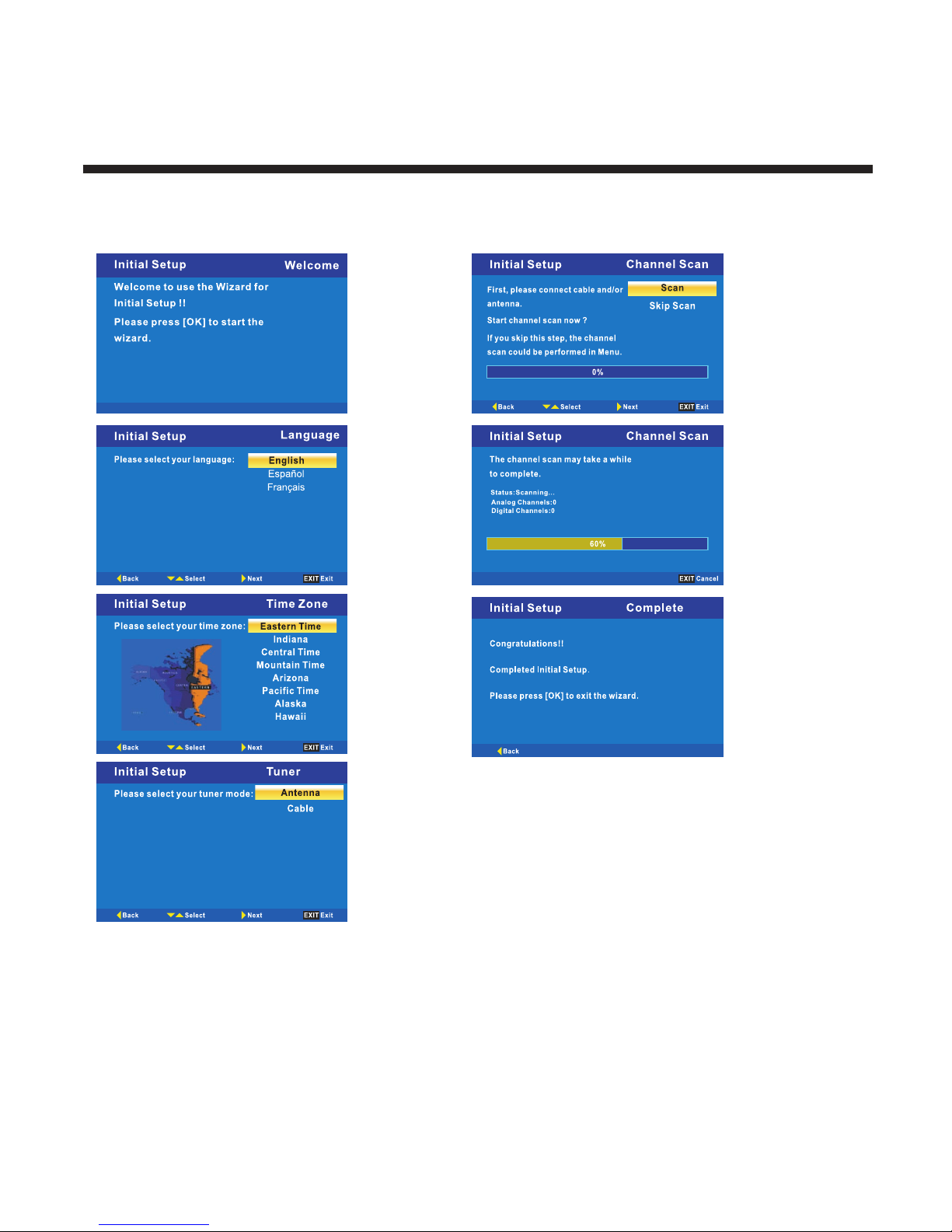

Menu Setup TV(When Using For The First Time Only)
1. Turn on TV, Please press OK to start the wizard.
2.Please select your language.
3.Please select your time zone.
4.Please select your tuner.
5.Connect antenna and Press OK button start channel scan.
12

13
Operating Your Television
Basic Operations
Turning Your TV On and Off
TURN ON LCD TV
1. Connect to power with the main power cable, at this time the TV will enter STANDBY mode
and the LED will be red.
2. From the STANDBY mode, use the POWER button either on the main unit or on the remote
to turn your television on.
TURN OFF LCD TV
From ON mode, use the POWER button either on the main unit or on the remote to turn your
television to STANDBY mode.
Select Your Onscreen Language Preference
Note: If using your LCD TV for the first time, you should select the language which will be used
for displaying menus and information boxes.

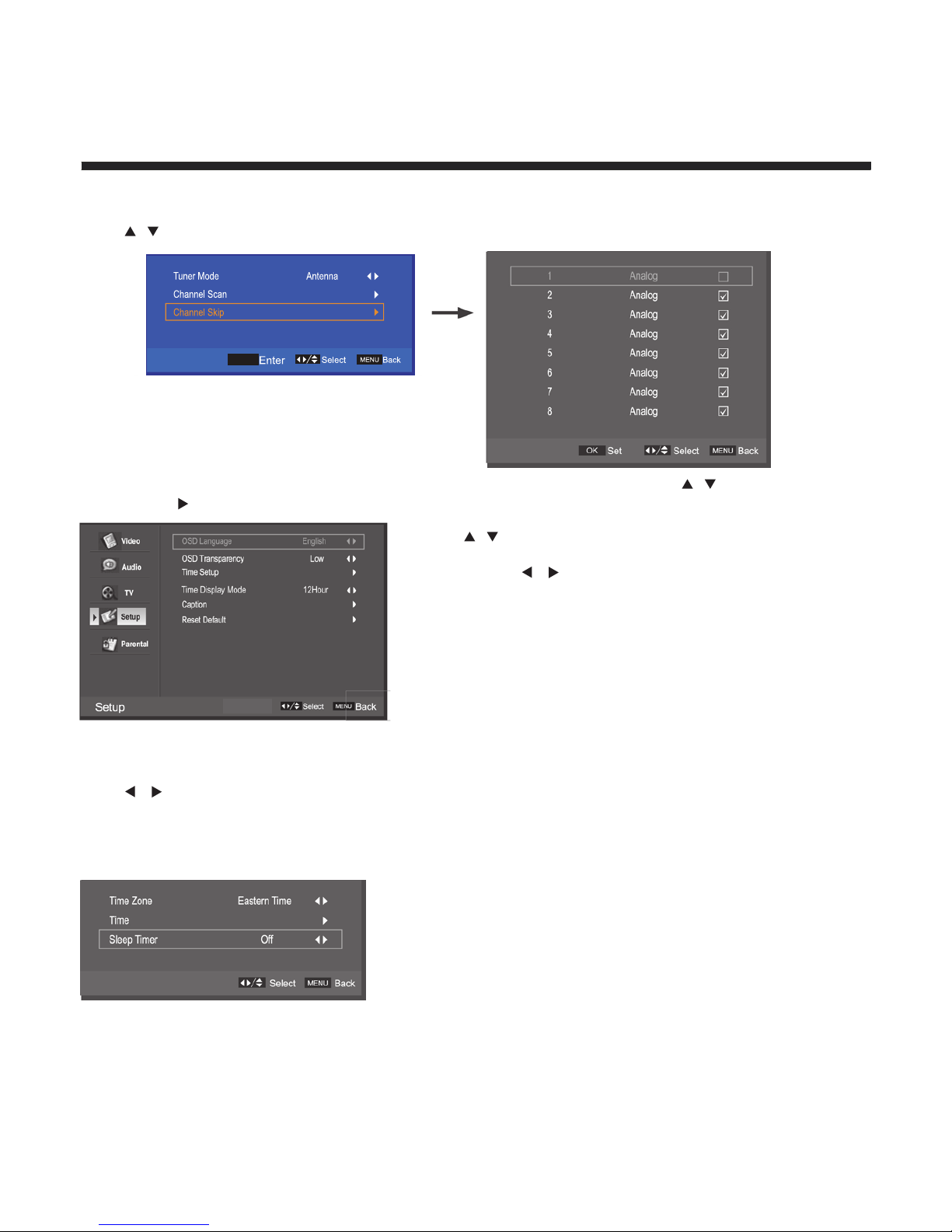

•Press MENU to display the main menu.
•Press / repeatedly to select the SETUP (left picture), press OK or button to enter
(picture right).
•Select OSD LANGUAGE.
•Press / button to select your desired language.
•When you are satisfied with your choice, press the MENU to exit.
Volume Adjustment
1. Press VOL +/- to adjust the volume
2. If you want to switch the sound off, press the MUTE , Press again to resume.

14
Operating Your Television
Navigating the Onscreen Display

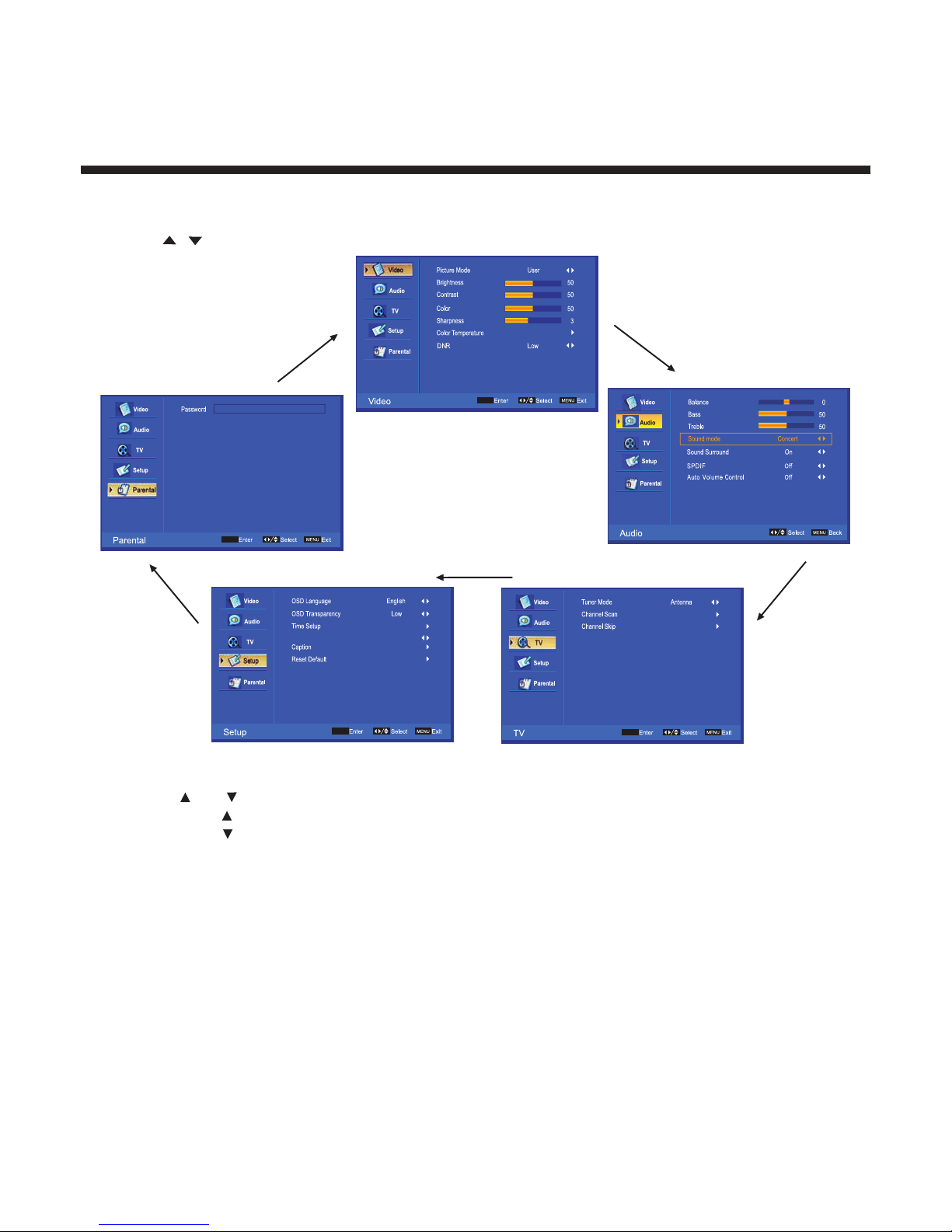

•Press the MENU button to display the main menu.
•Use / buttons to navigate and select the available menus.
OK
OK
OK
OK
Time Display Mode 12Hour
Choosing a TV Channel
1. Use the CH /CH on the front panel or on the remote control.
•Press CH to increase the channel.
•Press CH to decrease the channel.
2. Using 0-9 remote keys.
Enter the channel number with the 0-9 remote keys, then press “OK” to select the channel.
For example:
1. Press 4, then press “OK” to select channel 4.
2. Press 4, then press 5, then press “OK” to select channel 45.
3. Press 1, then press 2, then press 1, finally press “OK” to select channel 121.

15
Operating Your Television
Selecting Input Source
You can display the input screen menu by pressing SOURCE on the
remote control or SOURCE on the front panel, press / button to
select, press “OK” to confirm.
Video Menu Options
Press the MENU on the front panel or MENU on the remote control and then use / to select the Video
menu, press or OK to enter (see picture below).
1. Use / to select what you want to adjust in the Video menu.
2. Press OK or / to adjust (according to the hint below)
3. When you are satisfied with your adjustment, press MENU
to exit.
Picture Mode
Select the type of picture which best corresponds to your viewing preferences by selecting Picture Mode in
the VIDEO menu. You may select the picture mode directly by pressing the P.MODE button on the
remote control.
Brightness
Press / and then use / to adjust the brightness of the picture.
Contrast
Press / and then use / to adjust the contrast of the picture.
Color
Press / and then use / to adjust the color of the picture.
Sharpness
Press / and then use / to adjust the sharpness of the picture.
Color Temperature
Press “OK” to enter the submenu for Color Temperature. Press / to select mode
----- User, Cool, Standard, Warm
Then press / to select “R Gain, G Gain, B Gain” in “User” mode.
DNR
Press / and then use / to adjust the Digital Noise Reduction of the picture.
TV
AV
S-VIDEO
YPBPR
VGA
HDMI
DVD
USB
OK

16
Operating Your Television
Audio Menu Options
Press MENU on the front panel or MENU on the remote control and then use / to select the AUDIO
menu, press or OK to enter (see picture below).
1. Use / to select the option you want to adjust
in the Audio menu.
2. Press OK or / to adjust (according to the hints below)
3. When you are satisfied with your adjustment, press MENU
Audio Mode
You can select the type of sound which best corresponds to your listening requirements by selecting
Sound in AUDIO menu.
Balance
Press / and then use / to adjust the audio output between left and right speakers.
Bass
Press / and then use / increase or decrease the level of the lower-pitched sounds.
Treble
Press / and then use / to increase or decrease the level of higher-pitched sounds
Sound Mode
Press / to select one of the modes options: Concert, Jazz, User, Voice
Sound Surround
Press / to switch Surround Sound On or Off
Auto Volume Control
Press / to switch auto volume control On or Off. s volume to be controlled automatically.
SPDIF
Press / to select between PCM, OFF or RAW
TV Menu Options
Press the MENU on the front panel or MENU on the remote control and then use / to select the TV
menu, press or OK to enter (see picture below).
1. Use / to select the option you want to adjust
in the TV menu.
2. Press OK or / to enter the desired function.
3. When you are done, press MENU to exit.
Tuner Mode
Select the signal input mode: Antenna or Cable
Channel Scan
Select “Channel Scan”; press OK to start the channel scan.
Press MENU to stop or continue until the scan is complete;
Stopping in the middle of a scan will save the
scanned channels up to the stop point.
to exit.
This function allow
75
80
OK

17
Operating Your Television
Channel Skip
Select “Channel Skip”; press OK to enter the submenu.
Press / to select the desired channel, then press OK.
Setup Menu Options
Press the MENU on the front panel or MENU on the remote control and then use / to select the Setup
menu, press or OK to enter (see picture below).
1. Use / to select the option you want to adjust
in the setup menu.
2. Press OK or / to adjust (according to the hint below).
3. When you are done with your adjustments, press MENU
to exit.
OSD Language
To select language of the OSD menu
OSD Transparency
Press / to select the transparency mode Low, High or Middle.
Time Setup
Select: “Time Setup ”, Press OK to enter the submenu.
Time zone
To select time zone
Time
To set power on and power off times. Press OK to enter to set
the time.
Sleep timer
To select the sleep timer
Time Display mode
To select the Time Display Mode in 12 or 24 hour mode
Caption
(See next page)
Reset Default
Select “Reset Default”, Press OK, and it will display “Are you sure”, select “OK” to select the factory
default settings.
OK

18
Operating Your Television
Caption
Select “Caption”, press OK to enter the submenu (see below)
Analog Closed Caption
Press / to select CC1/CC2/CC3/CC4/TEXT1/TEXT2/TEXT3/TEXT4, or select Off.
Digital Closed Caption
Press / to select Service1/Service2/Service3/Service4/Service5/Service6, or select Off.
Digital Caption Style
This item allows you to set the closed caption, press OK to enter Digital Caption style menu:
•Caption Style: press / to select As Broadcaster or Custom. When you select As Broadcaster, all other
options are disabled and can not be adjusted.
•Font Size: press / to select Medium/Large or Small.
•Font Color: press / to select Red/Green/Blue/Yellow/Magenta/Cyan/Black or White.
•Font Opacity: press / to select Solid/Transparent or Translucent.
•Background Color: press / to select Black/White/Red/Green/Blue/Yellow/Magenta/ or Cyan.
•Background Opacity: press / to select Solid/Transparent or Translucent.
•Window Color: press / to select Black/White/Red/Green/Blue/Yellow/Magenta/ or Cyan.
•Window Opacity: press / to select Solid/Transparent or Translucent.
O K

19
Operating Your Television
PC Mode
Press OK to enter PC setup
noitisoptseboterutcipruoytsujdaotuA
noitisoplatnozirohlortnocManually
Manually
Manually
Manually
:noitisop.H
noitisoplacitrevlortnoc:noitisop.V
esahplortnoc:esahP
kcolclortnoc:kcolC
VGA Mode
Resolution Vertical Frequency (Hz)
06084X046
06006X008
06867X4201
06768X1360
Connect your computer to the TV using a VGA cable. Change the source to VGA, then press “MENU” and
select “VGA”
