Elite PRO-530HD Setup guide

ELITE
Projection TV Training Guide
PRO-530HD/PRO630HD/PRO730HD
Multimedia & Web Training Department
545 Nolan Drive Suite 100
Southlake, Texas 76092

Table Of Contents
Safety Precautions………………..3~4
Features………………………..…5
Basic Connections……………..…6
Connections Front & RGB……...7
DVI Connections………………....8
Remote Control………………..…9
Screen Modes…………………….10
Scan Modes………………………11
Power Management……………..12
PCB Block Front View………….13
PCB Rear View………………….14
Digital Input Copy Protection….15~16
Block Diagram (Video & “S”)…17~18
Block Diagram (Component)….......19~20
Block Diagram (DVI & RGB)…….21~22
Block Diagram (Audio)……………23~24
Explanation (Video & “S” Block…..25
Explanation (Component Block)…..26
Explanation (DVI & RGB Block)….27
Explanation (Audio Block)………...28
Circuit Locations By PCB…………29~32
Disassembly……………………..…33~36
Adjustments…………………….…37~59
Power Down Troubleshooting……60~63
Specifications………………………64

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
This manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
1. SAFETY PRECAUTIONS
NOTICE : Comply with all cautions and safety related notes
located on or inside the cabinet and on the chassis or
picture tube.
The following precautions should be observed :
1. Do not install, remove, or handle the picture tube in any manner
unless shatterproof goggles are worn.
People not so equipped should be kept away while picture tubes
are handled.
Keep picture tube away from the while handling.
2. When service is required, even though the HDTV PROJECTION
MONITOR an isolation transformer should be inserted between
power line and the set in safety before any service is performed.
3. When replacing a chassis in the set, all the protective devices
must be put back in place, such as barriers, nonmetallic knobs,
adjustment and compartment covershields, isolation resistor-
capacitor, etc.
4. When service is required, observe the original lead dress. Extra
precaution should be taken to assure correct lead dress in the
high voltage circuitry area.
5. Always use the manufacture's replacement components.
Especially critical components as indicated on the circuit
diagram should not be replaced by other manufacture's.
Furthermore where a short circuit has occurred, replace those
components that indicate evidence of overheating.
6. Before returning a serviced set to the customer, the service
technician must thoroughly test the unit to be certain that it is
completely safe to operate without danger of electrical shock,
and be sure that no protective device built into the set by the
manufacture has become defective, or inadvertently defeated
during servicing.
Therefore, the following checks should be performed for the
continued protection of the customer and service technician.
Leakage Current Cold Check
With the AC plug removed from the 120V AC 60Hz source, place
a jumper across the two plug prongs. Turn the AC power switch
on. Using an insulation tester (DC 500V), connect one lead to the
jumpered AC plug and touch the other lead to each exposed metal
part (input/output terminals, screwheads, metal overlays, control
shafts, etc.), particularly any exposed metal part having a return
path to the chassis should have a minimum resistor reading of
0.3MΩand a maximum resistor reading of 5MΩ. Any resistor
value below or above this range indicates an abnormality which
requires corrective action. Exposed metal parts not having a return
path to the chassis will indicate an open circuit.

Leakage
current
tester
Reading should
not be above
0.5 mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
Leakage Current Hot Check
Plug the AC line cord directly into a 120V AC 60Hz outlet (do not
use an isolation transformer for this check). Turn the AC power
switch on.
Using a "Leakage Current Tester (Simpson Model 229 equivalent)",
measure for current from all exposed metal parts of the cabinet
(input/output terminals, screwheads, metal overlays, control shaft,
etc.), particularly any exposed metal part having a return path to
the chassis, to a known earth ground (water pipe, conduit, etc.).
Any current measured must not exceed 0.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE SET TO THE CUSTOMER.
High Voltage
This set is provided with a X-ray protection for clearly indicating
that voltage has increased in excess of a predetermined value.
Comply with all notes described in this Service Manual regarding
this hold down circuit when servicing, so that this X-ray protection
may correctly be operated.
Serviceman Warning
In the status of the black picture (video muting is being applied)
when no signal is input, high voltage of this set during operation is
less than 30.5kV. In case any component having some relation to
the high voltage is replaced, confirm that the high voltage is lower
than 30.5kV in the status of the black picture when no signal is
input.
To measure H. V. use a high impedance H. V. meter.
Connect (–) to earth and (+) to the FBT anode cable connector.
(Refer to section "7.1.2 DISASSEMBLY".)
X-radiation
TUBE : The primary source of X-radiation in this set is the picture
tube.
For continued X-radiation protection, the replacement tube must be
the same type as the original, PIONEER approved type.
The picture tube (CRT Service Assy R, G, B) used in this set holds
complete guarantee against X-ray radiation when the X-ray is
sealed (next page ). Accordingly, when the current in flowing to the
picture tube (CRT Service Assy R, G, B), be sure to perform it by
putting the tube into X-ray sealed applied state. Avoid absolutely to
flow the current to the picture tube (CRT Service Assy R, G, B)
itself. Moreover, when the voltage of the high voltage circuit
becomes abnormally a little higher, the picture tube radiates X-rays.
Accordingly, when servicing the high voltage circuit be sure to
replace as an assy with the POWER SUPPLY Assy in the manner
in which has been adjusted to perform normal operation.
Many electrical and mechanical parts in PIONEER set have special
safety related characteristics. These are often not evident from
visual inspection nor the protection afforded by them necessarily
can be obtained by using replacement components rated for higher
voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in this Service Manual.
Electrical components having such features are identified by
marking with a >on the schematics and on the parts list in this
Service Manual.
The use of a substitute replacement component which dose not
have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in this
Service Manual, may create shock, fire, X-radiation, or other
hazards.
Product Safety is continuously under review and new instructions
are issued from time to time. For the latest information, always
consult the current PIONEER Service Manual. A subscription to, or
additional copies of, PIONEER Service Manual may be obtained at
a nominal charge from PIONEER.
PRODUCT SAFETY NOTICE

Progressive Scan/HDTV monitor
All SDTV and HDTV signals are converted to 1080i and displayed at
high resolution.
DVI (Digital Visual Interface) with Copy Protection
system
The combination of Digital Visual Interface (DVI) and High-bandwidth
Digital Content Protection (HDCP) is important for viewing copy-
protected digital contents through SAT/CATV BOX or DVD player.
DIGITAL input terminal receives the signal in the form of digital
information. In this way, all signals coming into this interface have a
very high resolution and less noise compared to an analog interface.
Dual System Component Input for NTSC/
Progressive
Connection to a DVD player using the component output terminals
makes possible a high picture-quality display, superior to that of a S-
VIDEO terminal connection. This also handles high resolution
component input (1080i, 480p), which will function as an interface
for high-quality images in future.
Dual Tuner (Split Screen and CH Search screen
function)
Two TV tuners are provided, making it possible to split the screen
vertically in two areas in order to display moving images
simultaneously on each of them. In addition, the channel search
function makes it possible to check and perform other functions etc.,
on the program that you choose to run in the background, while
viewing the foreground program. This adds remarkable convenience
when you are concerned with viewing two programs.
Pioneer PureCinema III Format Converter
An advanced and exclusive I/P (Interlace/Progressive) third generation
format converter called “PureCinema III”, delivers a high-resolution
progressive picture (480p) or Interlaced picture(1080i). *This is USER
SELECTABLE
It reproduces film material in a very smooth and film-like image.
This is perfect technology for movie lovers.
Anti-Reflective Tinted Protection Panel
The accompanying protective panel is AR (Anti-Reflective) coated
and tinted.
This is not only to protect the screen, but to present a more natural
and high contrast image with less light reflection. This AR coating is
very durable against scratching.
Lens System for HDTV
The adoption of a specialized lens system for high-resolution HDTV
which faithfully reproduces HDTV 1080i signals allows for highly color-
saturated images to be displayed at high resolution. Also, by
incorporating an “achromatic coated” lens for the blue CRT, the
picture image is reproduced with less halo and appears sharp.
Reference Theater mode and PRO mode
<Reference Theater Mode>
This mode reproduce film material just like a real film image. By
cutting video enhancement circuits, the picture becomes more natural
and looks film-like.
<PRO Mode>
This mode offers pro level video adjustment to the user. You can go
into several areas such as: LTI (Luminance Transient Improvement),
Gamma, White Balance.
Fully Illuminated Remote Control Unit
A fully illuminated universal remote control is used that makes it
possible to operate other devices. Remote operations can thus be
performed easily even in dark rooms and similar environments.
Multi-Point Convergence System
Convergence of the red, green, blue guns* in the TV is critical to a
good picture. Thanks to new convergence system digital technology,
not only can the center of the screen be adjusted, so can an amazing
72 other points across the entire viewing area. This ensures color
accuracy throughout the screen. The adjustment is easily done from
the remote control. (*guns = cathode ray tubes)
Room Light Sensor (RLS)
When you select RLS “on” (LEVEL1, LEVEL2), in accordance with
the ambient light of your room, the TV automatically adjusts the
picture brightness to reduce eye strain.
Program Block (V-CHIP)
You can block selected programs based on the established rating
system for television programs and movies. The rating systems are
defined below:
<U.S.A. RATING SYSTEM>
The TV parental Guidelines are used to rate television programming:
<TV-Y>, <TV-Y7>, <TV-G>, <TV-PG>, <TV-14> and <TV-MA>.
The Motion Picture Association of America(MPAA) guidelines are used
to rate movies: <G>, <PG>, <PG-13>, <R>, <NC-17>, <X> and <NR>.
<CANADIAN RATING SYSTEM>
The Canadian English Language Rating System is used to rate
television programming: <C>, <C8+>, <G>, <PG>, <14+> and <18+>.
The Canadian French Language Rating system is used to rate

CONNECTING VIDEO/AUDIO EQUIPMENT
(MONO)
L
R
Component video output
of a DVD player can be
connected to both BNC or
RCA types.
Use these terminals to input signals from
a DVD player which has component video
output terminals(Y, P
B , P R ).
The video output can
be connected to BNC
or to RCA types.
RGB
INPUT 3
INPUT
ANTENNA
/CABLE
A
B
CONTROL
SERVICE
ONLY
IN OUT
COMPONENT VIDEO
COMPONENT VIDEO
P B/ C B
/
C B
P B
Y
Y
P
R/ C R
/
C R
P R
INPUT 1 PROFESSIONAL
INPUT 1
INPUT 1 INPUT 2 INPUT 3
INPUT 2 INPUT 2INPUT 3 INPUT 1
VIDEO
INPUT
INPUTS
S-VIDEO
INPUTS
VIDEO
AUDIOAUDIO
INPUTS OUTPUT INPUT
CENTER
/TV
MONITOR
/VAR
FIXED
AUDIO
VIDEO
Rear panel
SAT tuner
VCR
DVD/LD player
SIGNAL
SIGNAL
SIGNAL
SIGNAL
SIGNAL
SIGNAL SIGNAL
SIGNAL
V
RL
VCR
OUTPUT
VIDEO S-VIDEO
AUDIO
RL
VLR
VLR
OUTPUT
VIDEO S-VIDEO
AUDIO
RL
V
RL
V
RL
V
RL

INPUT jacks
The monitor is equipped with input jacks 1 to 6.
Refer to the following explanation for information about each
jack.
COMPOSITE VIDEO INPUT jacks
There are 4 sets of inputs for VCR and DVD/LD players. Use
RCA-type pin plug cords (the same as those used in Hi-Fi
systems) for connections. When the audio source to be
connected is mono, connect the source to the L-(MONO) jack.
S-VIDEO INPUT jacks
•Inputs signals from a DVD/LD player that has an S-VIDEO
output jack.
•When the signal input from the S-VIDEO INPUT jack is output
from the MONITOR/TV OUTPUT jack, the output signal will
be a composite of Y and C.
COMPONENT VIDEO INPUT jack
Inputs three signals –Y, P B/ CBand PR/ CR–output from DVD
players and the like.
CONNECTING VIDEO/AUDIO EQUIPMENT
NOTE:
When the 3 signals, RGB signal, composite signal, and S signal,
are simultaneously input to INPUT 3, the RGB signal will be
displayed on screen.
N
O)
RGB
INPUT 3
INPUT
COMPONENT VIDEO
COMPONENT VIDEO
P B/ C B
/
C B
P B
Y
Y
P
R/ C R
/
C R
P R
INPUT 1 PROFESSIONAL
INPUT 1 INPUT 2 INPUT 2INPUT 3 INPUT 1
VIDEO
INPUT
INPUTS
VIDEO
AUDIOAUDIO
INPUTS OUTPUT INPUT
CENTER
/TV
MONITOR
/VAR
FIXED
AUDIO
VIDEO
SIGNAL
SIGNAL
RL
AUDIO
RL
RL
RGB
OUTPUT
Digital tuner
RLVIDEO
OUTPUT
INPUT 4
S
- VIDEO L - AUDIO - RVIDEO
(MONO)
S-VIDEO
LRLV
R
V
Video movie/VCR
Front panel
RGB INPUT jack
Inputs five signals –R, G, B, H and V –output from digital
tuners and the like.
Digital tuner 1080 i 33.75 kHz 60 Hz
Horizontal Vertical
Format frequency frequency
Input format in which images can be received.
NOTES:
•SPLIT screen, FREEZE screen and SEARCH screen functions
cannot be used when 1080i or 720p component signals are input.
•Signals from MONITOR/TV OUTPUT jacks will not be output
when component signals or RGB signals are input.
•The RGB input jack is designed for use in connecting a digital
tuner with RGB signal output, and it should accordingly never
be used for connecting to a personal computer or other device.
480 i 15.734 kHz 60 Hz
DVD player, etc. 480 p 31.468 kHz 60 Hz
720 p 45.00 kHz 60 Hz
1080 i 33.75 kHz 60 Hz
Digital tuner, etc.
480 p 31.468 kHz 60 Hz
Horizontal Vertical
Format frequency frequency
Input formats in which images can be received.

CONNECTING VIDEO/AUDIO EQUIPMENT

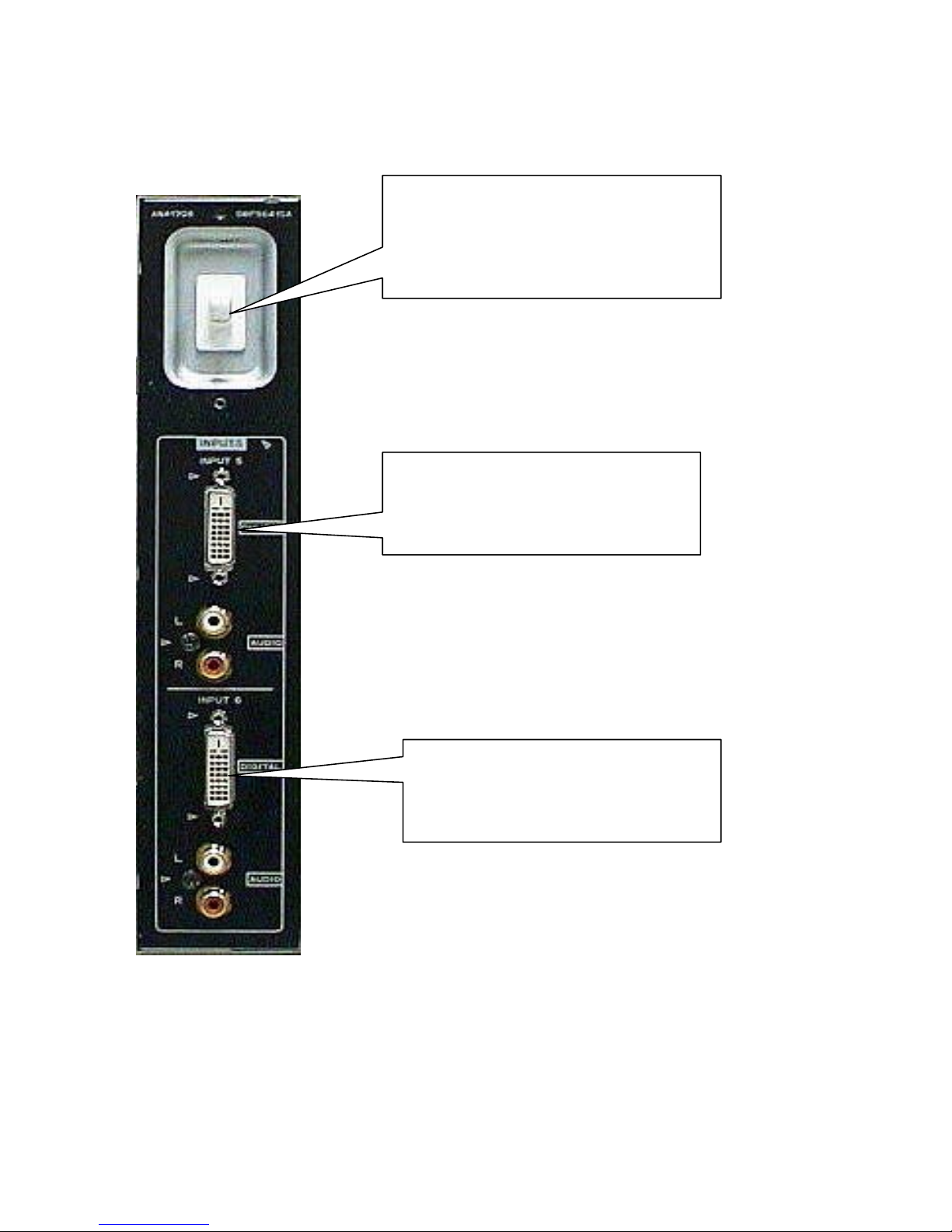

DIGITAL INPUT jacks
This jack is used to connect devices with digital video output
(digital set top box, DVD player, etc.) compatible with HDCP.
Before attempting to connect one of these devices, read its
operating instructions to make sure that it can be connected.
(HDCP = High-bandwidth Digital Content Protection)
NOTES:
• This jack is used only for 1080i and 480p video signals.
• It is not a jack intended to be used with a personal computer.
• Use a DVI 25 pin cable (available on the market) as the
connecting cable.
(MONO)
L
R
ANTENNA
/CABLE
A
B
CONTROL
SERVICE
ONLY
IN OUT
C
Y
INPUT 1
P
INPUT 1
INPUT 1 INPUT 2 INPUT 3
INPUT
2
VIDEO
INPUTS
S-VIDEO
VIDEO
AUDI
O
INPUT
S
L
R
INPUT 6
AUDIO
L
R
OUTPUT
DIGITAL
AUDIO
L
R
INPUT 5
INPUTS
DIGITAL
DIGITAL
AUDIO
DVD player Digital tuner
L
R
OUTPUT
AUDIO DIGITAL
RLRL
RLRL
MONITOR/TV OUTPUT jacks
These are used for connecting the monitor to a VCR for
recording, or for linking it to another monitor. These jacks output
the video and audio signals of the source currently selected
by the INPUT SELECT. Connect these output jacks to your VCR's
inputs. Connect the VCR's outputs to the monitor's VIDEO
inputs.
When the system connection is ON, the jack is TV OUTPUT
(refer to page 75).

Set the mode switch to TV.
1TV Power button (STANDBY/ON)
Turns the power of the monitor on and off.
2INPUT Selector buttons (TV, INPUT 1 to INPUT 6)
Press the button to select the source you wish to watch.
The screen will display your selection.
3SCREEN MODE button
Press to select the SCREEN MODE. (Refer to page 41.)
4DISPLAY button
Press to display the input source, channel, setting and other
screen indicators for a few seconds.
5Direct channel selection buttons
Press the button (or buttons) that corresponds to the
channel that you wish to watch.
6CH (channel) +, –button
Press plus (+) or minus (–) to tune in a higher or lower
channel. Only the preset channels can be tuned in using
these buttons.
7MUTING button
Press to temporarily turn off the sound. Press again to return
to the previous volume level.
8Select/Adjust/Set buttons (SET/ENTER, |, \, », «)
|, \, », «: Press to select or adjust items on the menu
screen.
SET/ENTER: Press to activate the selected function.
9FAVORITE CH buttons
These buttons call up the channels that have been assigned
to them.
0ANT (antenna selector) button
Press to switch between ANTENNA-A and ANTENNA-B
when you wish to watch TV.
REMOTE CONTROL UNIT FUNCTIONS
EDIT/
LEARN
SOURCE
INFO
RECEIVER
4
¢
MENU
INPUT
GUIDE
8
POWER
VCR REC
VOLVOL
1
4
7
5
8
6
9
2 3
0
DISPLAY SELECT
MUTING
MENU
MODE
SUB CH
SPLIT
SWAP
SLEEP
SEARCH
1 2 3 4
56
INPUT
FAVORITE CH
TV ANT
TV
CH
ENTER
RETURN
CH
FREEZE
17 3¡
VOL
CH
SET/
ENTER
DTV/SAT
DTV/DVD TOP
SCREEN DIGITAL
DTV/SAT
TV/SAT/DVD
HDTV PROJECTION MONITOR
Î
TV CBL
/SAT
/DTV
DVD
/LD
VCR
8
6
7
1
2
3
5
4
9
Mode switch
-
=
0
~
!
@
#

MODE
SCREEN
CHANGING SCREEN SIZE
EDIT/
SOURCE
INFO
RECEIVER
4
MENU
VOL
INPUT
VOL
GUIDE
8
LEARN
POWER
TV
TV CBL
/SAT
/DTV
DVD
/LD
VCR
DTV/SAT
DTV/DVD TOP
DTV/SAT
HDTV PROJECTION MONITOR
Î
MENU
SET/
ENTER
TV/SAT/DVD
POWER
13
2
46
5
79
8
0
CH
ENTER
4
¢CH
CH VOL
MUTING
RETURN
VCR REC
17 3¡
SLEEP
1234
56
INPUT
TV ANT
SCREEN DIGITAL
DISPLAY SELECT
SUB CH
SPLIT
SWAP
SEARCH
FREEZE
FAVORITE CH
MODE
SETTING SCREEN MODE
Different source material have specific screen modes they should use.
Some films are mode in Vista some in cinemascope etc. check video/DVD
packaging for info. Regular TV program are 4:3, so 4:3 is the standard
mode.
•This Monitor is provided with modes to deal with screens of various
aspect ratios. It is recommended that programs and software be
watched in the appropriate mode.
•When 4:3 images are fully displayed on a wide TV screen in the
NATURAL WIDE mode, CINEMA WIDE mode, ZOOM mode, or FULL
mode, some parts of the images may be cut off or distorted.
NOTES:
• When 1080i, 720p component signals or RGB
signals, 1080i DIGITAL signals are input, SCREEN
MODE will be limited to FULL.
• In PURE DIGITAL: ON state during digital signal
input (INPUT 5,6), SCREEN MODE is fixed at FULL.
• Continuous operation for extended periods in 4:3
NORMAL mode may burn out the screen. We thus
recommend that this mode be used only in
conjunction with another SCREEN mode.

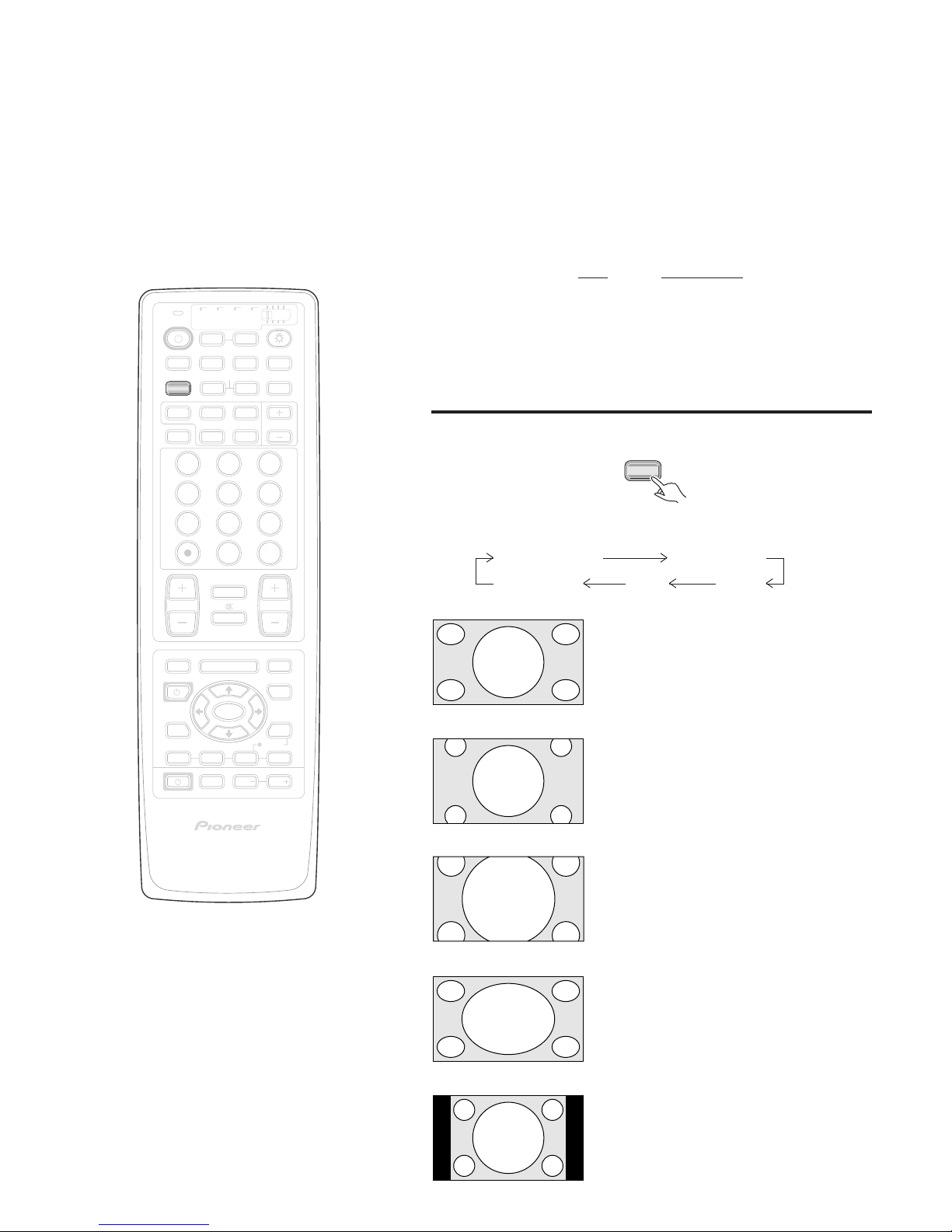

Press the SCREEN MODE button.
NATURAL WIDE CINEMA WIDE
4:3 NORMAL FULL ZOOM
NATURAL WIDE
Suitable for when viewing regular TV news
or sports programs. Movies or sports
programs can be viewed with an expansive
powerful image.
CINEMA WIDE
Mainly suitable for viewing Vista size and
other such movie images.
Provides a more expansive, powerful image.
This screen size is convenient when viewing
a Cinemascope size image that has subtitles.
ZOOM
Mainly suitable for viewing Cinemascope
size and other such movie images.
Provides a more expansive, powerful image.
FULL
Suitable for wide screen images.
4:3 NORMAL
Suitable for when viewing news sit coms or
any regular TV programs. Video software can
be viewed in its original screen frame size
with this mode.
•Each time the SCREEN MODE button is pressed, the mode changes in
the following order.

EDIT/
SOURCE
INFO
RECEIVER
4
MENU
VOL
INPUT
VOL
GUIDE
8
LEARN
POWER
TV
TV CBL
/SAT
/DTV
DVD
/LD
VCR
DTV/SAT
DTV/DVD TOP
DTV/SAT
HDTV PROJECTION MONITOR
Î
TV/SAT/DVD
POWER
1 32
4 65
7 98
0
CH
ENTER
4
¢
CH
CH VOL
MUTING
RETURN
VCR REC
17 3¡
MODE
SLEEP
1 2 3 4
56
INPUT
TV ANT
SCREEN DIGITAL
DISPLAY SELECT
SUB CH
SPLIT
SWAP
SEARCH
FREEZE
FAVORITE CH
SET/
ENTER
MENU

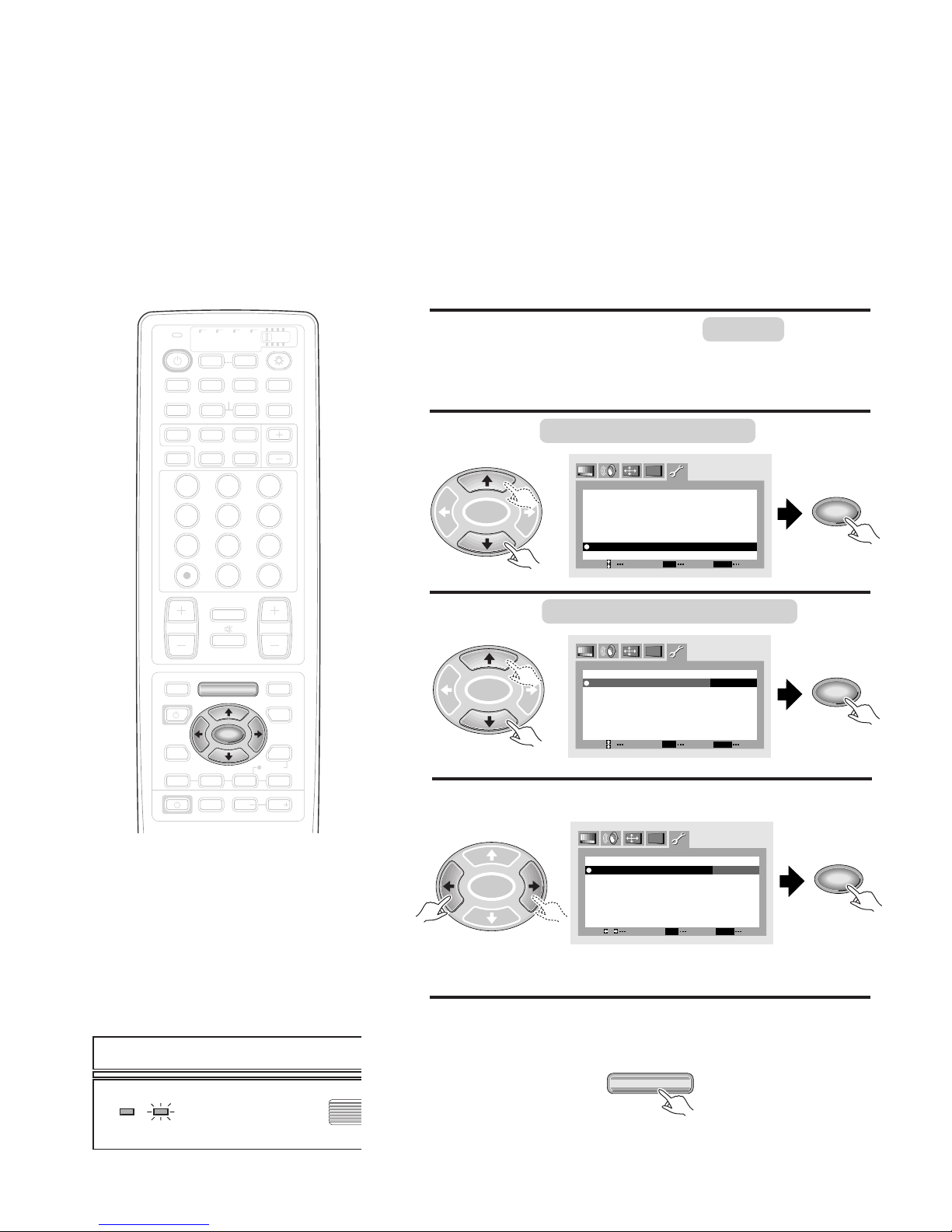

This function switches the display on the screen between 480p (progressive
scan) and 1080i (interlace scan) during 480i and 480p.
1
2
SET/
ENTER
MENU END
SET SET
SELECT
SCREEN
c
c
MTS :MA I N
SCAN MODE :
H.POSITION:
INPUT3
NATURAL WIDE
V.POSITION:
0
1080i
0
SET/
ENTER
3Change SCAN MODE.
4After adjusting, press MENU to turn the
menu off.
MENU
TV/SAT/DVD
Press MENU and select SCREEN by
using the |or \button and then
pressing «button. (Refer to page 26.)
Select SCAN MODE .
SET/
ENTER
MENU END
SET SET
ADJUST
SCAN MODE : 1080i 480p
SET/
ENTER
NOTE:
This function cannot be used during “INPUT1, 2
component 1080i, 720p,”“INPUT3 RGB Signals,”
“INPUT 5, 6 Digital Signals 1080i,”and “PURE
DIGITAL ON.”
CHANGING SCAN MODE
1080i ........ This is optimum for viewing moving
video.
480p ......... This is optimum for viewing still pictures
or text.

DIGITAL INTERFACE
POWER MANAGEMENT
This function automatically turns on power management mode if no digital
signal is input when digital signal input is selected.
When digital signal input restarts, power management mode is cancelled.
2Select DIGITAL INTERFACE .
SET/
ENTER
MENU END
SET SET
SELECT
SET UP
c
c
CONVERGENCE
PROGRAM BLOCK
CHANGE P AS SWORD
SYSTEM IN /OUT
CHANNEL SET UP
RLS :OFF
D IG I TAL I NT ERFACE
SET/
ENTER
3
MENU END
SET SET
SELECT
c
c
PURE DIGITAL: ON
POWE R MAN AGEMEN T : OF F
D IG I TAL I NT ERFACE
EXI T
SET/
ENTER
5After setting, press MENU to turn the
menu off.
MENU
TV/SAT/DVD
1Press MENU and select SETUP
by using
the |or \button and then pressing «
button. (Refer to page 26.)
Select POWER MANAGEMENT .
SET/
ENTER
4
MENU END
SET SET
SELECT
c
c
PURE DIGITAL: ON
POWE R MAN AGEMEN T : ON OFF
D IG I TAL I NT ERFACE
EXI T
SET/
ENTER
Set POWER MANAGEMENT to ON.
SET/
ENTER
EDIT/
SOURCE
INFO
RECEIVER
4
MENU
VOL
INPUT
VOL
GUIDE
8
LEARN
POWER
TV
TV CBL
/SAT
/DTV
DVD
/LD
VCR
DTV/SAT
DTV/DVD TOP
DTV/SAT
Î
TV/SAT/DVD
POWER
1 32
4 65
7 98
0
CH
ENTER
4
¢
CH
CH VOL
MUTING
RETURN
VCR REC
17 3¡
MODE
SLEEP
1 2 3 4
56
INPUT
TV ANT
SCREEN DIGITAL
DISPLAY SELECT
SUB CH
SPLIT
SWAP
SEARCH
FREEZE
FAVORITE CH
SET/
ENTER
MENU
ON ........... Turns on power management mode
OFF .......... Turns off power management mode.
NOTES:
• It can be used only during digital signal input
(INPUT 5, 6).
• When power management mode is operating, the
POWER STANDBY indicator (green) flashes.
At this time, power management mode can be shut
off to operate the monitor by pushing either the
INPUT SELECT, or MENU button on the front panel
or on the remote control. Pushing the POWER
button sets it in standby status.
STANDBY
ROOM LIGHT
SENSOR
ON
Control panel of the monitor

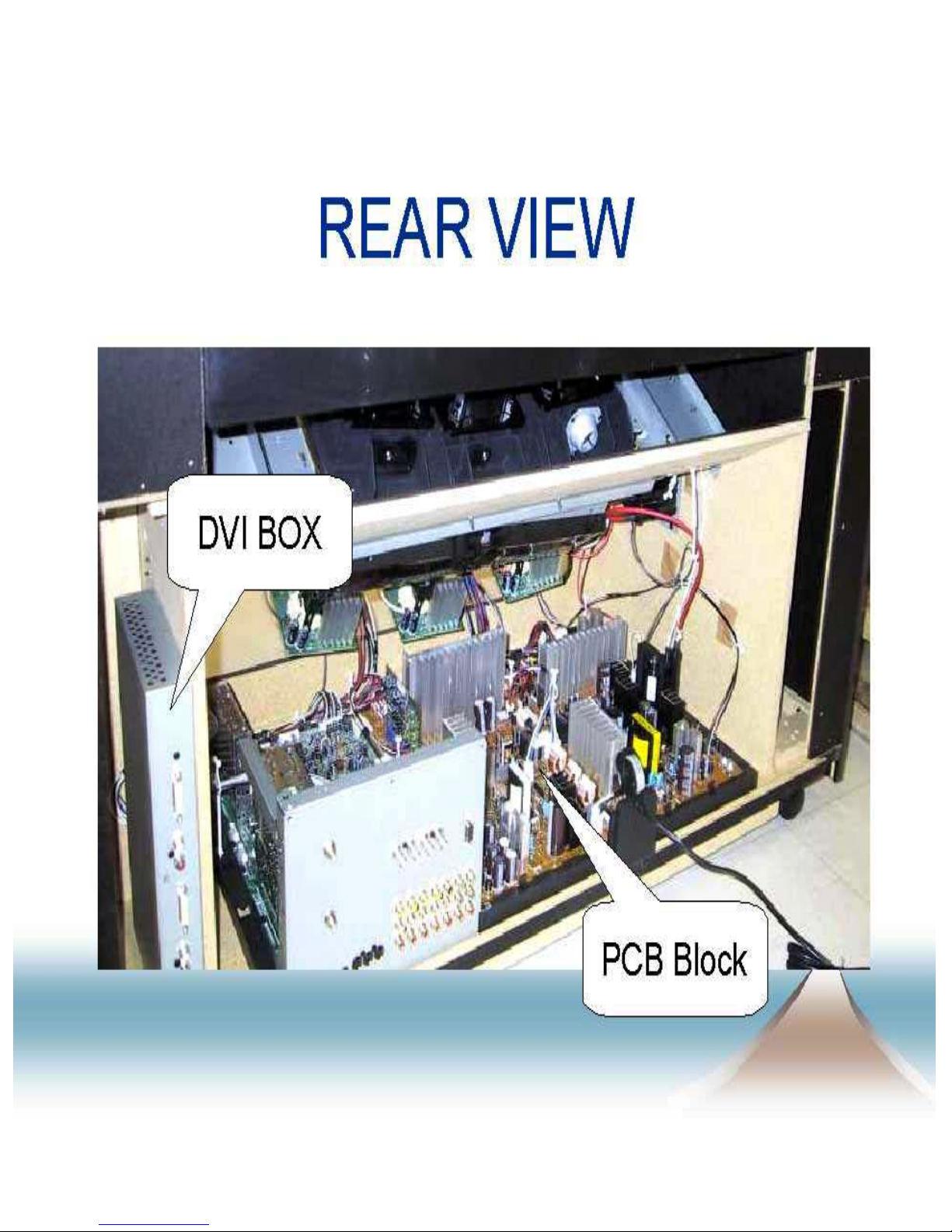

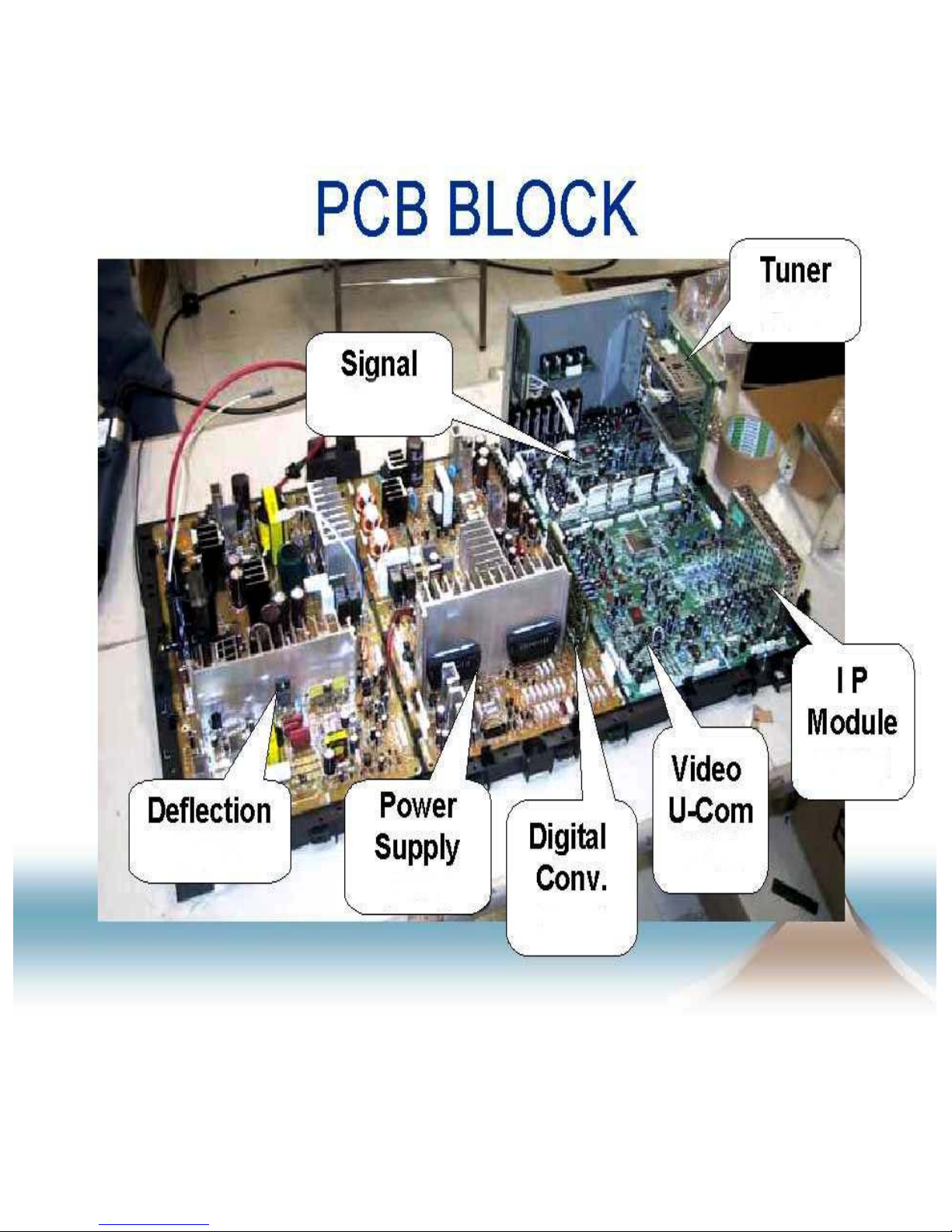

Copy Protect
Detection Switch
DVI Input
5
DVI Input
6
Caution:
Switch must be closed
for set to operate

DIGITAL INPUT Copy Protection
The DVI module on this model utilizes DIGITAL INPUT COPY PROTECTION (DVI Ver1.0 with HDCP).
The High Band Digital Content Protection System will activate when it detects one of the actions below has occurred.
1. If you turn on the power with the rear cover removed.
2. If you remove the cover while the set is on.
3. If you turn on the power with the lead wire cable disconnected to the DVI Assy.
4.If you turn on the power with the DVI Shield Case removed.
When the protection function activates, main power SW is the state of ON, and standby LED (red) flashes.
(repeat flashing :250ms on and 250ms off)
When in protection mode, the set will not operate until protection mode has been released.
•Release method is as follows
1. Press the "RETURN" key on the front panel more than five seconds, or until the standby LED lights constanty.
2. Press the "POWER" key →"RETURN" key →"INPUT/SET" key in order within five seconds after standby LED lighted.
3. Press the "POWER" key, and turn on the product.
4. If you were not able to press the keys within five seconds in step 2 operation or mistook key operation, repeat steps1 and 2. As the
set has entered the protection mode again.
5. When confirming a problem with the product, enter the test mode temporarily so that the protection function does not activate
again.
Press the FACTORY key on the Front Panel twice, and enter the 2nd FACTORY mode. Press "48" key with the remote control unit,
and enter the TEST mode. (display "TEST MODE" on the screen, and it should release the protect mode.)
6. After work completion, return the product to the original state. Enter the 2nd FACTORY mode, and release the test mode by pressing
the "47" key.
•Flashing of The Power LED
1. Specification of red LED
• Standby
lighting
•After having shifted from power management operation to normal standby (operation released the power management by turning
the power off), continue lighting after flashing three times: Repeat 500ms off and 500ms on three times, and continue lighting.
• During copy protection operation
Flashing: Repeat 250ms on and 250ms off.
• Relay welding
Repeat three times flashing and once stop: Repeat 100ms on ,100ms off ,100ms on ,100ms off ,100ms on ,100ms off and 1S off.
2. Specification of green LED
• Power on
lighting
• During power-saving mode operation (power management)
Flashing: Repeat 2s on and 2s off.
About power management:
When input signal disappears only at INPUT 5 or 6, it enters the power-saving mode.

SH
MH
SV
Y
Cb/Pb
Cb/Pb
Cr/Pr
YVM
CM
3D Y/C
SEPA
4M
DRAM
Y
Cr/Pr
DVIRGB
IC2803
TA1340F
IC2806
TA1340F
IC2804
M52055FP
IC2805
M52055FP
IC1905
M62399FP
MAIN UCOM
IC1906
PD5815C8
IC3906
CXA2171Q
IC3901
CXA2171Q IC1903
24LC32A(I)P
ANT A
ANT B
SCL1,SDA1,
AFT1
FE1
FE2
S.DET
SCL1
SDA1
S.DET
INPUT 1
INPUT 2
INPUT 3
INPUT F
TV1 TV2
INPUT 1
INPUT 2
INPUT 3
INPUT 5
2LY
2LC
IC2503
UPD64083GF-3BA
IC2701
TC90A45F
SCL2
SDA2
HBLK
VBLK
MCCY
OSDRGB
OSDBLK
OSDHALF
SCL2
SDA2
MONITOR
OUT
SCCY
RGB/
YCbCr
MATRIX
INPUT SELECT INPUT
SELECT
RGB/
YCbCr
MATRIX
SYNC
SEP.
SYNC
SEP.
SY
SCB
SCR
MY
MCB
MCR
SCL3
SDA3
V
Y
C
S.DET
AV SW
7 INPUT
3 OUTPUT
V
Y
C
S.DET
V
Y
C
S.DET
V
Y
C
S.DET
IC2201
CXA2069Q
SCCY
EEPROM
RS-232C
232C
DRIVER
RXD0
TXD0
RxD
TxD
RTS
IC1801
SP3232ECY
DAC IC
SCL2
SDA2
DVIH
DVIV
MH
MV
SH
SV
MH
MV
SH
SV
HS
VS
SYNC
SEP.
COLOR
DEMOD. 6dB
AMP
MCCY
3DY
3DC
FIL
TER
SUB
N/HSW
MAIN
N/HSW
RGB
DSUBRGB
DSUBH
DSUBV
DSUBRGB
DVI
RGB
RGB
DSUB/DVISW
IC3907
M52055FP
SCL1
SDA1
SCL1
SDA1
SCL1
SDA1
SCL1
SDA1
SCL2
SDA2
ESCL
ESDA
2LINE
Y/C
SEP
HS1
HS2
SCL1,SDA1,AFT2
ANTSW
SCL3
SDA3
DVI DAC IC
IC6016 CXA1875AN
INPUT 6
RECEIVER
RECEIVER
SELECTOR
SY
SCB
SCR
MY
MCB
MCR
MY MCB
MCR
SY
SCB
SCR
SYNC
SEP.
COLOR
DEMOD. 6dB
AMP
FIL
TER
IC4608
CXA2180Q

YCBCR
SY SCB
SCR
SH
SV
MH
MV
IC4305
M52055FP
IC4306 M52055FP
DY DCB
DCR
SCL2
SDA2
KMASK
DHS
MY MCB
MCR
SCL2
SDA2
31K/33K
PURE
RGB
STDSW
RGB
DVS
R
G
B
R
G
B
PROGRESSIVE UNIT
AXY1061
IC4606
CXA2153S
OSDRGB
VM
HDRV
VDRV±
VDRV
±
RGB
APL
RESIZE
SDRAM 3DNR
AD
AD
DA
PLL
PLL
UCOM
CRT
AMP
ABL
ACL
LIN
WHITE
RGB
ENCODER
SVM
DHS
DVS
OSDRGB/CVRGB
V
H
CPURST
PDF.B. +B
P.D.
H.BLK
GEN.
H.DEF
OUT
H.DEF
CONTROL
H.DEF
DRV
HIGH
VOLTAGE
OUT
HVRST
HSIZE
+B
HDRV
FP
HBLK
HOUT
ANODE
SCREEN FOCUS
ANODE
D.F
DF
DYNAMIC
FOCUS
FOCUS
PACK
ABL
AMP
IC1204
CM0022AF
CMUTE
EEP ROM
L
P
F
L
P
F
MUTE
6ch
DAC IC
DIGITAL
CONVERGENCE
PLL
AMP
V.DEF
PD
P.D.
PRE.
AMP
HBLK
SCL2
SDA2
CBUSY
WP
CRESET
VBLK
CVRGB
CVBLK
IC4602
TC74HC4053AF
APL DET
VBLK
APL HS
VS
IC4601
M52055FP
IC4610
TC74HC126AF
IC4610
TC74HC126AF
IC1203
24LC64(I)P
IC1205
CD0031AM IC401, IC402 STK392-180
SHARP-
NESS
CP
GEN.
SCP
DCLP
IC4301
AN5395FBP
SCL2
SDA2
PURE
RGB
SPASS
COMP
FULL
DY
CTI
ABL
LTI
SYNC
PROCESS
AFC
VM
HPIN
COMP
FULL
OSDBLK
V MUTE
HBLK 1
HBLK 1
CVBLK
OSDBLK
OSDBLK
HPIN
PGAIN
PBRT
SHARP-
NESS
DETAIL
IC2807
TA74ACT04
INVERTER
MMUTE
SMUTE
MMUTE SMUTE
31KSW
SHARP
SW
TY TCB TCR
HS VS
DY DCB DCR
OSDRGB
CVRGB
YCBCR MASK
GEN.
HBLK1
GEN.
IPHBLK
KMASK
ABL
IP CONVERTER TWIN PICTURE
I2C
INTERFACE
RGB
MATRIX
RGB MIX
COMPENSATION
OSD SW
DRIVE
CUTOFF
BLACK LEVEL
COMPENSATION
H.V.
CONTROL
H.V. CR
BLOCK
IC4608
CXA2180Q
IC4608
CXA2180Q

SH
MH
SV
Y
Cb/Pb
Cb/Pb
Cr/Pr
YVM
CM
3D Y/C
SEPA
4M
DRAM
Y
Cr/Pr
DVIRGB
IC2803
TA1340F
IC2806
TA1340F
IC2804
M52055FP
IC2805
M52055FP
IC1905
M62399FP
MAIN UCOM
IC1906
PD5815C8
IC3906
CXA2171Q
IC3901
CXA2171Q IC1903
24LC32A(I)P
ANT A
ANT B
SCL1,SDA1,
AFT1
FE1
FE2
S.DET
SCL1
SDA1
S.DET
INPUT 1
INPUT 2
INPUT 3
INPUT F
TV1 TV2
INPUT 1
INPUT 2
INPUT 3
INPUT 5
2LY
2LC
IC2503
UPD64083GF-3BA
IC2701
TC90A45F
SCL2
SDA2
HBLK
VBLK
MCCY
OSDRGB
OSDBLK
OSDHALF
SCL2
SDA2
MONITOR
OUT
SCCY
RGB/
YCbCr
MATRIX
INPUT SELECT INPUT
SELECT
RGB/
YCbCr
MATRIX
SYNC
SEP.
SYNC
SEP.
SY
SCB
SCR
MY
MCB
MCR
SCL3
SDA3
V
Y
C
S.DET
AV SW
7 INPUT
3 OUTPUT
V
Y
C
S.DET
V
Y
C
S.DET
V
Y
C
S.DET
IC2201
CXA2069Q
SCCY
EEPROM
RS-232C
232C
DRIVER
RXD0
TXD0
RxD
TxD
RTS
IC1801
SP3232ECY
DAC IC
SCL2
SDA2
DVIH
DVIV
MH
MV
SH
SV
MH
MV
SH
SV
HS
VS
SYNC
SEP.
COLOR
DEMOD. 6dB
AMP
MCCY
3DY
3DC
FIL
TER
SUB
N/HSW
MAIN
N/HSW
RGB
DSUBRGB
DSUBH
DSUBV
DSUBRGB
DVI
RGB
RGB
DSUB/DVISW
IC3907
M52055FP
SCL1
SDA1
SCL1
SDA1
SCL1
SDA1
SCL2
SDA2
ESCL
ESDA
2LINE
Y/C
SEP
HS1
SCL1,SDA1,AFT2
ANTSW
SCL3
SDA3
DVI DAC IC
IC6016 CXA1875AN
INPUT 6
RECEIVER
RECEIVER
SELECTOR
SY
SCB
SCR
MY
MCB
MCR
MY MCB
MCR
SY
SCB
SCR
SYNC
SEP.
COLOR
DEMOD. 6dB
AMP
FIL
TER
IC4608
CXA2180Q
