Emerald DELUX INFLATABLE DOME User manual

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
0
!
Instructions
EMERALD™ inflatable planetarium
MODEL: DELUX INFLATABLE DOME
f
Revision date: January 2017
V.0735
EM ERAL D
TM
DIGITAL PLANETARIUM SYSTEMS

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
1
L
EMERALD TM inflatable planetarium domes
MODEL:DELUXINFLATABLEDOME
EMERALD™ planetarium domes are inflatable domes designed to be
easily set up and taken down. The dome design is based upon years of
experience with the unique aspects of digital dome projection and
inflatable dome manufacturing.
Note:
I
It is important to note that the domes are not designed for outdoor use. We
do not warranty domes that show damage from outdoor use, direct sun, if
a Dome is frozen or stored outdoors in below freezing conditions.
Domes must be stored and used at room temperature only.
See also 'Warranty & usage conditions

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
2
Contents
Features summery..................................................................................................................3
Operating the EMERALD™ Dome .........................................................................................5
Inflating the dome....................................................................................................................7
Inserting the projection system...............................................................................................8
Deflating the dome..................................................................................,..,... ,......,................10
Folding the dome...................................................................................................................11
Storage.................................................................................................,......,...........,...........12
Warranty & usage conditions................................................................................................13

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
3
- .
Supporting springlines
I Yes
--
Yes
-r
Yes
IYes
' Yes
l
1
1 15
j
Features summery
EMERALD
TM
PORTABLE PLANETARIUM
• The highest quality projection surface hides wrinkles and enhances black levels and contrast
• Hemispherical projection, suitable for digital projection
• 10-15 minute setup and takedowntime
• Easy vertical zippered doorway for entry and exit without crawling or squeezing
• Stays inflated while people entering or exiting the dome
• The dome has no floor, allowing for easy emergency exits
• Wheelchair accessible
• A high velocity-controlled blower, inflates the dome and provides continual fresh air exchange
• Inflation airflow is directed away from the audience for comfort, via dedicated vents
• Quiet operation with adjustable fan speed control
• Proprietary matt-grayfabric
l
.,
Height at zenith j 2.8 meters
3.3 meters i 3.9 meters l 4.6 meters j 5.1 meters
I .J .!
Estimated Max seating adults j 25 adults 45 adults 60 adults 1 70 adults
capacity or 20 or40 or60 or 80 or 90
young young
1 young young young
children children I children _ children children

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
4
DETAILS
The EMERALD™ PORTABLE PLANETARIUM dome provides a matte projection surface which
hides wrinkles for high quality digital projection. The gray interior enhances the black level of
digital projectors for a truer black night sky.
The structure supports people's entrance and exit to the dome, the dome should stay inflated for
quite some time.
We recommend entering any audience members in wheelchairs first, by lifting the side of the
dome and wheeling them under. This avoids unnecessary wear on the fabric near the door.
Set up takes about 15 minutes, and take down from 10-15 minutes. In case of emergency, the
dome can be flipped over the audience within a few seconds since there is no floor on the dome.
Alternately, people can duck under the skirt of the dome to exit quickly.
Although the domes are opaque, they can acquire a pinhole light leak over time. These are
usually visible only in a bright room. A pinhole is easily patched with a small circle of the extra
cloth provided.
It is advised to turn off any light or heat source above the dome.
We advise against using the domes outdoors.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
5
Operating the EMERALD™ Dome
Unpacking
Note: we highly recommend using the dome inside a
sun-and wind-protected environment.
Step 1
The dome is being shipped folded, inside a soft carry bag.
I..
U
Unpack the inflatable dome and place it on a clean and firm surface
*It is highly recommended to place the dome on a carpet/mat and let the
audience to enter barefoot or with socks only
Step 2
Place theAir blower next tothe dome. Make sure that it isturned OFF.
Connect the air blower into a suitable electric source.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
6

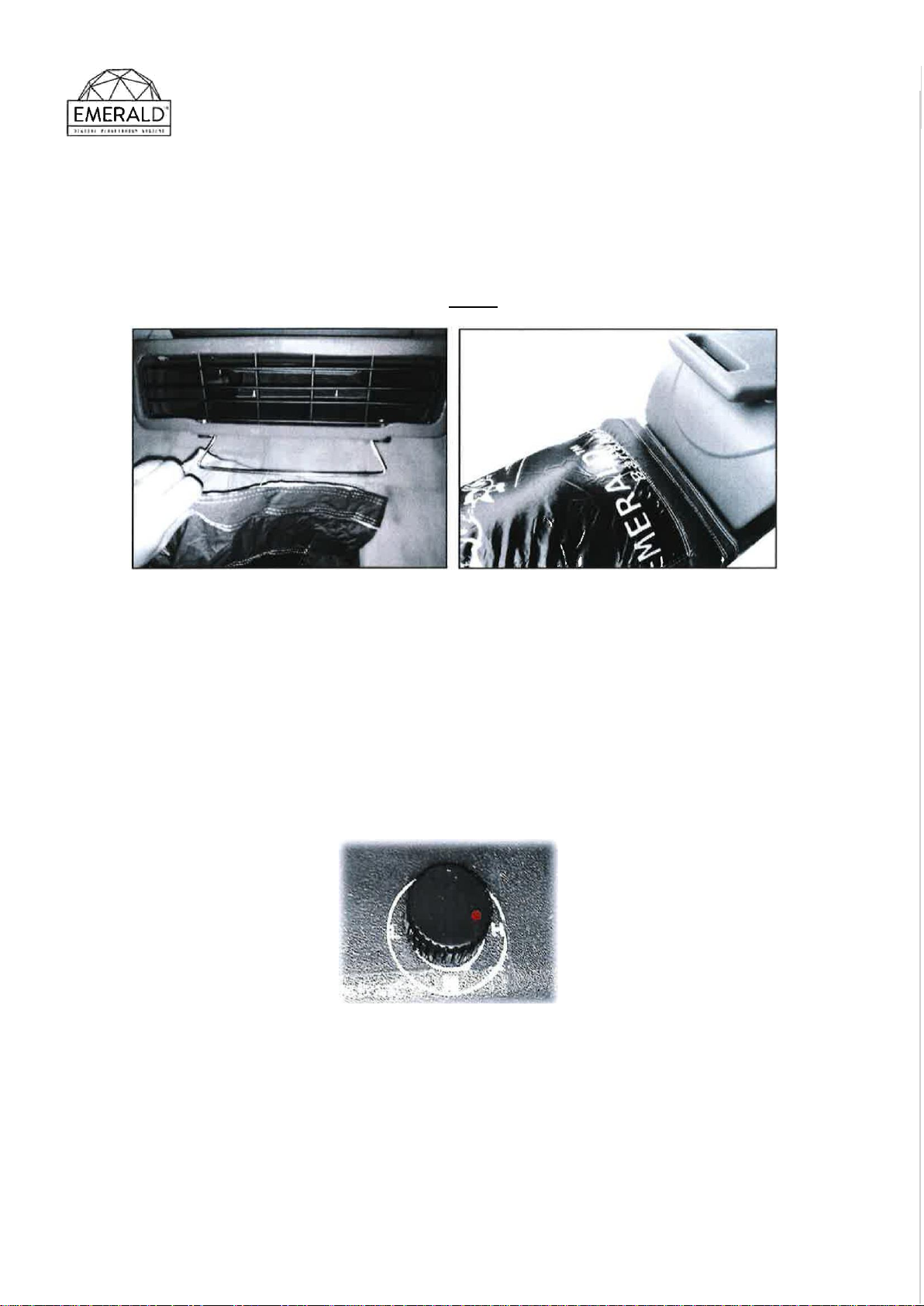

Step 3
Connect the air tube into the Air blower.
Use the Velcro stripe and tighten it firmly to the air blower.
l..
Step 4
Turn the Air blower ON
Note: There are 3 different operation speeds .
After full inflation one can reduce the speed from HIGH to -
MEDIUM or LOW. This will enable a more quite operation.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
7
Inflating the dome
Step 4
Lift the entrance hall inorder to allow the inflation of the dome
(you can leave the entrance hall free, after it stands byitself)
Make sure that the air tube is paralleled to the ground,
and in one line with the air blower
I
L
l
• Wait for 5-10 minutes for full inflation of thedome
• It is r ecommended to enter the dome barefoot or with socksonly.
- Shoes/dust may ruin the dome and create pinholes over time.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
8
<

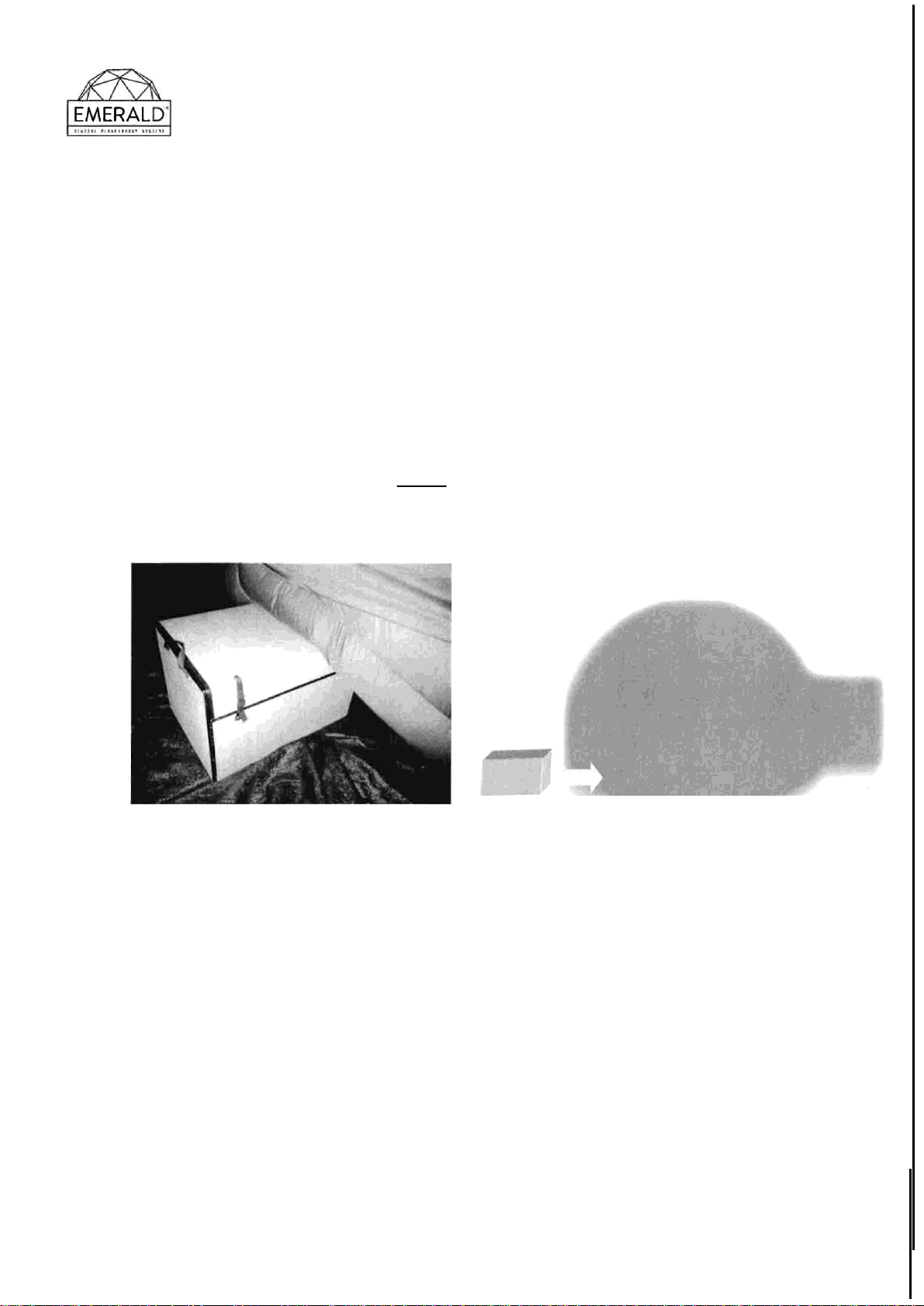

Inserting the EMERALD™ projection system
Into the Dome
Oncethedome isfully inflated, approach theopposite side of the entrance,
lift the dome with one hand and gently insert (push) the wooden box (with
theprojector init) inside the dome with your free hand.
Place the EMERALD™ projector (black case) in the centerof the
dome.
It's recommended to place the projection unit on top of the
wooden box.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
9

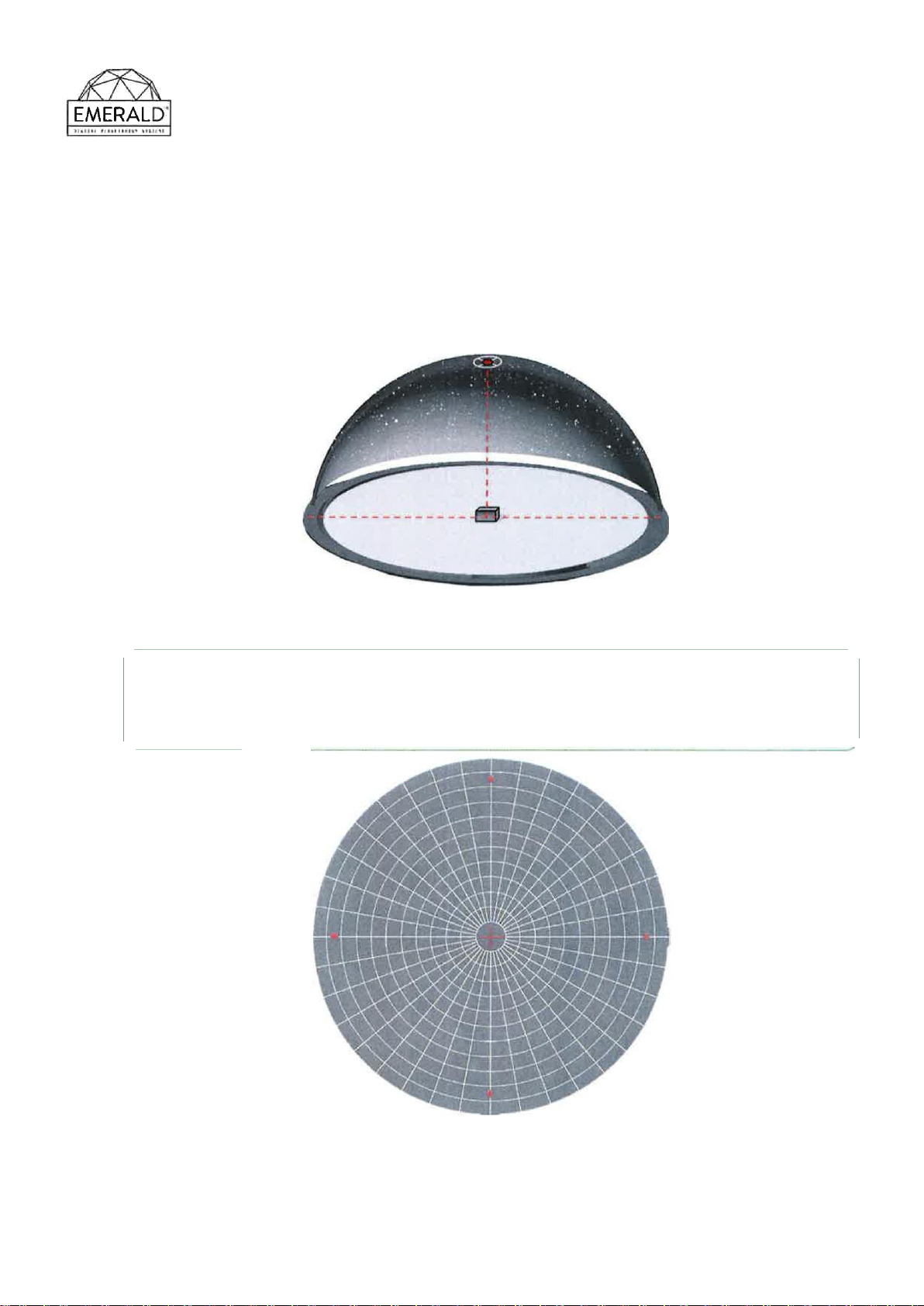

Itisrecommended using a small lamp inside the dome, in order to
setupinalightened andsafeenvironment.
Dome's central point
"Above the head"
Tip: use the "Align grid", located on the EMERALD™ PC's desktop in order to
refine the final projector’s alignment within the dome.
9

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
10
"
n
Deflating thedome
Step 1
Take all the equipment out of the dome.
The dome has to be completely empty.
Step 2
Turn the air blower off.
Detach the air tube from the blower and let the dome to completely
deflate(5-10minutes).

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
11
Folding the dome
Step 1
Fold the dome into 2 halves - with the gray screen on the inside
It is important to protect the gray screen from getting diriy.
Fold the dome like a sleeping bag - see image.
Start folding from the door's opposite side.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
12
Storage
Keep the dome inside the protective bag, in room temperature
and dry environment.
Direct sun can cause the dome to heat to over 40 degrees Celsius
damaging the glue that covers the dome seams.
If a Dome is frozen or stored outdoors in below freezing
conditions, it is possible that the flocked surface will
delaminate.
Domes must be stored and used at room temperature only.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
13
'11
Warranty & usage conditions
EMERALD™ INFLATABLE PLANETARIUM DOME
Three-Year-Limited-Warranty
Our domes are not warranted for outdoor use.
Make sure to operate the equipment on leveled, clean and dry surfaces only.
Emerald™ planetariums warrants that the Emerald™ portable planetarium will be free from defects of
workmanship and materials for a period of three (3) years from the original purchase invoice date
from Emerald™ planetariums-Bareket observatory (warranty period). During the warranty period,
should a defect arise which results from a breach of warranty, Emerald™ planetariums will repair or
replace the product free of charge other than shipping and handling charges. In no event will
Emerald™ planetariums liability exceed the product purchase price. Emerald™ planetariums stand
behind theproducts itsells.
This warranty does not cover damage caused by accident, improper care, modifying the
system and its components, negligence, getting the system wet, storing in an environment
below freezing, pinholes in the dome, normal wear and tear, or the natural breakdown of
colors and materials over extended time and use.
Damage not covered under warranty will be repaired for a reasonable rate and a fee will be charged
for repair and return shipping. Customer is responsible for allreasonable collection costs, court costs,
and attorneys' fees (whether or not suitisfiled) incurredinthe collection of any amount due.
Warranty does not apply to any product on which original identification information, Emerald stickers
or warranty stickers have been altered, defaced, or removed.
External brands hardware:
The system may include components from external brands. These may have special warranties for
each country. The warranty should be global, however Emerald planetariums has no direct means to
enforce a given brand's warranty, as it depends on the local support efforts of each brand.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
14
Tech specs of the final product may vary from time to time, depending on the available hardware. The
Bareket observatory is working consistently in order to create the most optimal products, while staying
up-to-date for the latest technological developments.
This warranty gives you specific legal rights; you may have other rights, which vary from country to
country. This warranty policy supersedes all previous warranty policies. Conditions may be changes
without notice, keep updated about the latest warranty conditions at the
Emerald planetariums web site: http://emerald-planetariums.com/faqs.html#warranty
We wish you a successful and enjoyable usage of your new
Emerald™ planetarium!
The Bareket observatory team
EMERALD"
11
f

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
15
Warranty & usageconditions
EMERALD™ PLANETARIUM PROJECTOR
Three-Year-Limited-Warranty
Emerald™ planetariums warrants that the Emerald™ digital planetarium systems and Emerald™ dome &
inflatable domes will be free from defects of workmanship and materials for a period of three (3) years from
the original purchase invoice date from Emerald™-planetariums-Bareket observatory (warranty period).
During the warranty period, should a defect arise which results from a breach of warranty, Emerald™
planetariums will repair or replace the product free of charge other than shipping and handling charges. In
noevent willEmerald™ planetariums liability exceed theproduct purchase price.
Emerald™ planetariums stands behind the products it sells.
This warranty only covers defective or workmanship encountered in normal use and service of a Product
and does not apply in the following cases:
a. This warranty shall not apply to any Product that shall have been subject to misuse, abuse, accident,
disaster,improper cleaning orwhichhasbeen contrary tocurrent instructions.
b. If a Product is defective as a result ofleaking batteries or damage due to water orother liquid.
c. Defective materials or workmanship where the defect is due to a Product having been serviced or
modified byother thanEmerald™ official service.
d. Malfunction resulting from the use of accessories, attachments, supplies, parts or devices (including,
without limitation, batteries, drivers, USB attachments, hard drives and other accessories) that do not
conform to Emerald™ specifications.
e. Damage resulting during shipment. (Claim must be presented and examined bythe shipper).
f. Damage or service resulting from modifications or alterations to a Product in any way (including any
alteration or removal ofitsserial number or identificationmarks).
g. Projector's lamp replacement or issues due to overheat or the natural breakdown of colors and
materials over extended time and use.
Warranty does not apply to any product on which original identification information, Emerald stickers or
warranty stickers have been altered, defaced, or removed.
I
Damage not covered under warranty will be repaired for a reasonable rate and a fee will be charged for
repair and return shipping. Customer is responsible for all reasonable collection costs, court costs, and
attorneys' fees (whether or not suit is filed) incurred in the collection of any amount due.

EMERALDTM Planetarium Systems
http://emerald-planetariums.com
16
External brands hardware:
The system may include components from external brands (ie BenQ, Dell, Sony or else). These may have
special warranties and conditions for each country. The warranty should be global, however Emerald
planetariums has no direct means to enforce a given brand's warranty, as it depends on the local support
efforts of each brand. Either way we will do our best to assist with future potential failures as they may
occur. Tech specs of final product may vary from time to time, depending on the available hardware.
The Bareket observatory is working consistently in order to create the most optimal products, while staying
up-to-date for the latest technological developments.
The images in this booklet and/or at the official website are for demonstration purposes only.
Software:
Stellarium is being offered for free (we are not selling it). For non-commercial or education use only. For
profit use by commercial entities is not allowed by the general license, and would require a different license
terms. Please contact the software developers for legal options.
Shows - the standard-package is provided 'as is' with the system, for no cost, while subordinate to the
specific producer's terms/conditions of use.
This warranty gives you specific legal rights; you may have other rights, which vary from country to
country.Thiswarranty policy supersedes allprevious warranty policies.
Conditions may be changes without notice, keep updated about the latest warranty conditions at the
Emerald planetariums web site
http://emerald-planetariums.comlfaqs.html#waffanty
We wish you a successful and enjoyable usage of your new Emerald™ planetarium!
{ The Bareket observatory team
EMERALD
i :, !J : I.,, "' '1' r F .-
L
