Emofa E-Toffli Power User manual

E-Töffli Power

Name of E-bike
E-Töffli Power
Length
1770mm
Width
680mm
Height
1050mm
Wheelbase
1200mm
Height above
ground
120mm
Seat height
730mm
Capacity
one person
Weight
59kg
Range
35km
Climbing ability
6 degree
Motor type
Brushless
Rated output
800w/1000w
Rated torque
12N.M
Battery type
lead acid battery/lithium battery
Battery voltage
48v(12v* 4)
Battery capacity
12Ah/17Ah
Battery driving
sealed maintenance-free battery
Low voltageprotection
value
42V
Valueover current
protection
17A
Brake
Front
front & rear drum break
Back
Tire size
Front
2.125-18/2.5-18
Back
2.125-18/2.5-18
Tire pressure
Front
250kPa(2.50kgf/cm2)
Back
270kPa(2.70kgf/cm2)

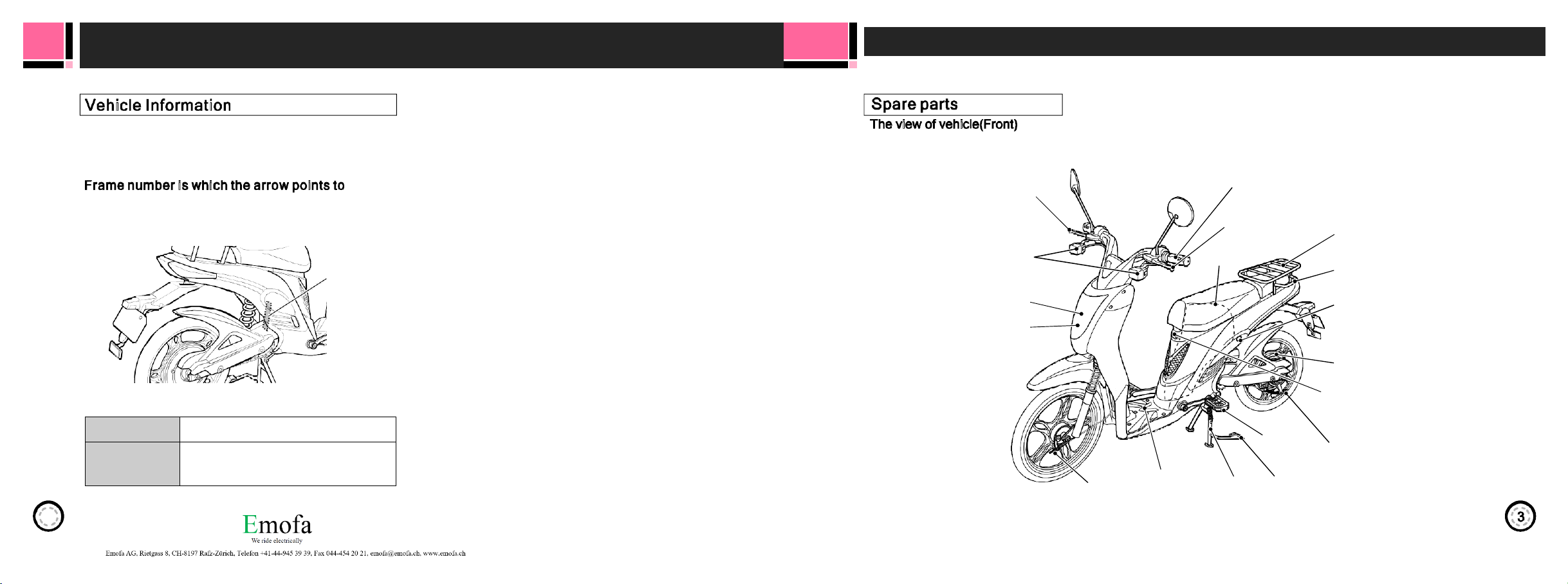

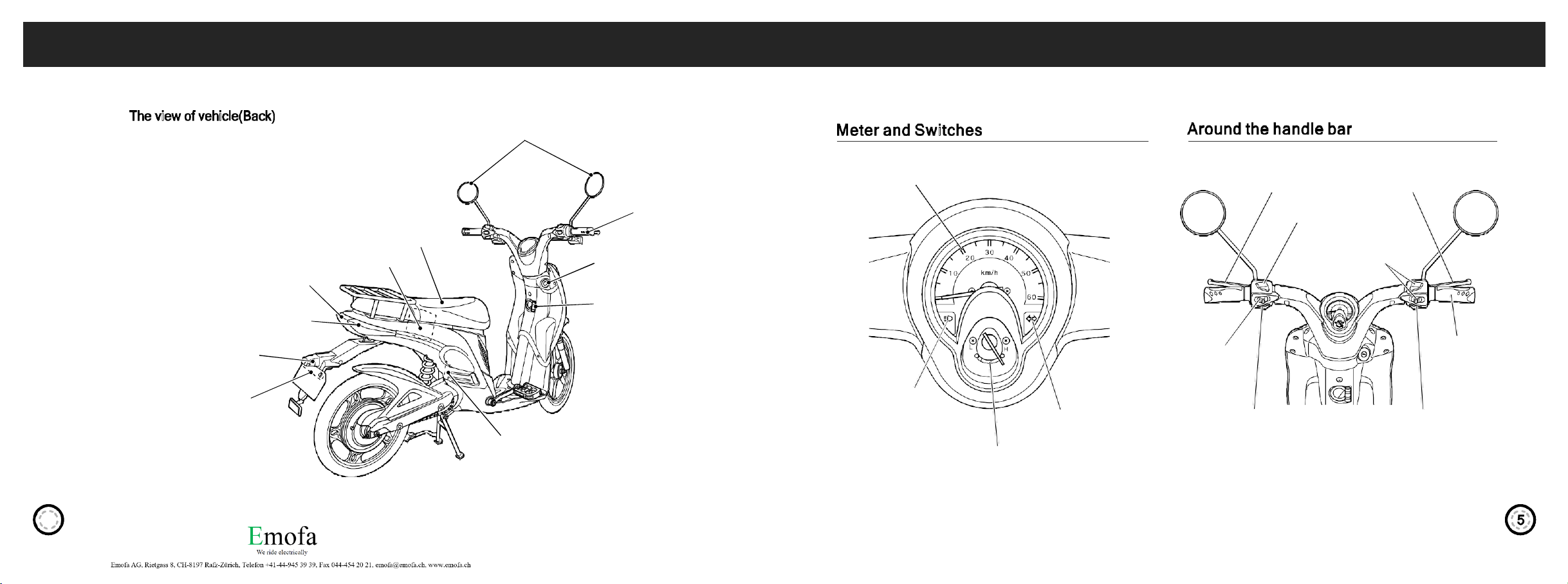

Vehicle information

The name for spare parts and usinginstruction
Frame number
Frame number is the special number for the vehicle.It
will be used in insurance.repair.routine attention.
brake lever forfront wheel handle bar
brake lever for rear
carrier
Frame number
indicator
headlight
orientation light
seat
pedal
arm rest
seat cask lock
motor
charger socket
rear brake
front brake footplate stand treadle of stand
2
Vehicle Information
Name of E-bike
E-Töffli Power
Frame number

rearview mirror
throttle
speedometer rear hand brake front wheel hand break
rear brake light
seat cask
seat
switch
licence lamp
indicator
hook
winker
licence plate
vehicle number
battery indicator
switch of left horn
switch of right horn
4
high beam
blinker
headlight changing switch
switch
lamp switch
throttle

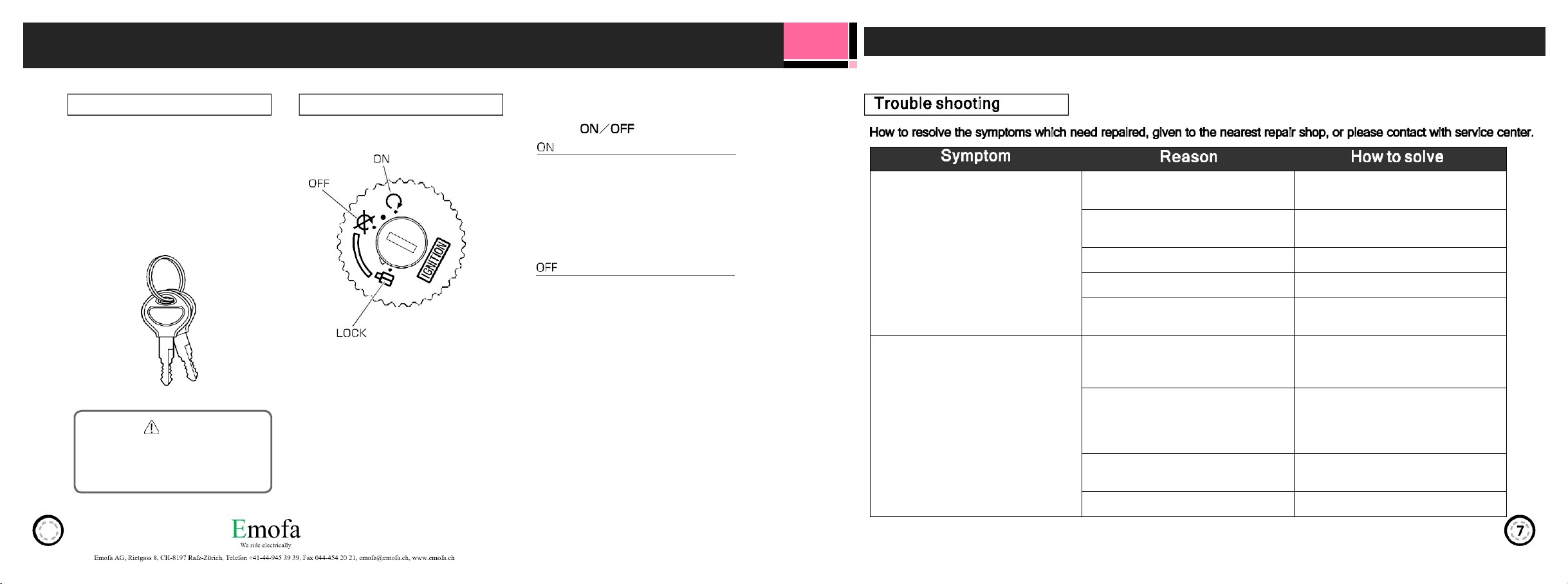

How to use the key
Main switch entity
At times like this
The key is used to switch on the bike and lock
the compartment under the seat,it's
important,please keep it safe and don't lost it.
T h i s v e h i c l e i s e q u i p pe d w i t h t w o
keys,please keep one of them well,so that you
can reserve.if lost or damage,please replace
that with following parts.
main switch:start power(ON/OFF)
steering wheel lock( lock/unlock) Power
When the key is in this place,the headlight,
Instrument light,blinker,tail light and Licence
li ght ca n use,i f mot or suppl y p ower
normally,this e-bike can start.
When the key is in this place,the headlight,
instrument light,blink er,tail light and
licence light extinguish,power stop,e-bike
can't keep riding,at this time you can take
out the key.
Notice
Please attention when you use the metal k
e yc ha i n ,do n' t us e m o r e t ha n t w o
keychain,in order to avoid scratching
surface of bike,you had better use cloth
keychain.
6
Can't charge the power
The plug of the charger is off
Whether the charger connect well
according to the instruction.
The fuse of the charger is cut off
Change the fuse accroding to the
instruction.
The charger is broken
The charger need to be repaired.
The fuse of the battery is cut off
Change the fuse of the battery.
The electrical system has an unusual
The electric wire,connector,return
circuit need to be repaired.
Exclusive use charger can't charge
enough in 12 hours (The safety
green light is not lighted)
Can't charge enough
Long time not use after the first
charge,the charging time will be
longer,please charge enough in
one time.
The function of the battery is low
Need to replace the battery, the life of
the battery is connect with the driving
distance.
Wrong way to charge
Please refer to the charging instruction.
The setting of the charger doesn'tmatch
Please refer to the charging instruction.

The scooter is not moving when
the switch is on.
The fuse of the battery is cut off
Change the fuse of the battery.
The electrical system has an unusual
The electric wire,connector,return
circuit need to be repaired.
If the brake lever can't get back to
When the switch is on,the head
light and horn is normal,but the
motor doesn't work.
Brake lever cannot get back to
its original position
its original position when it is not
u s ed , p l ea s e t ur n o f f t h e
headlight,cut off the battery,then
the brake lever will recover.
Vehicle dynamic system, electrical
Need to be repaired
system fault, please repair (motor, etc)
When the switch is on,the motor is
normal,but the head light and horn
doesn't work.
The electrical system is fault
Need to be repaired
Can't speed up.
Without using of special charger to
charge
Please use exclusive use charger
The remain battery power is small,
can't speed up
Please use exclusive use charger
The using period of the battery is
finished.
Due to the different speed, different
driving conditions(loading,wind load
etc)
Can't speed up
The using period of the battery is
finished.
Need to replace batteries.The life
of battery is different according to
the driving condition.
Driving distance shortened
Without using of special charger to
charge
Please use exclusive use charger.
The charging time is not enough
He indicator lights of the charger
shows green,the battery is full.
The fuse of the charger is cut off,
can't charge any more
Please transfer the charger to
no r ma l re f er t o t he c har g er
instruction.
External temperature is low
It is most suitable for using the
vehicle in 10℃ ～ 30℃.It will
shorten the life of the battery in
cold weather.
Overload driving
The driving range and speed of the vehicle
will be different according to the different
driving condition (loading,wind load,etc).
The pressure of the tyre is
under-inflation
Please adjust the pressure of the
tyre to normal.
The pressure of the tyre is
under-inflation
Need to replace batteries.The life
of battery is different according to
the driving condition.
8

The driving distance shortens
The battery faults
Please change the battery.
The throttle is not operative
（speed instability, the brake
statement is faulty in driving ）
The power of the battery is less,the
voltage of the battery is not enough
Please use exclusive use charger.
The throttle is unnormal(The
throttle doesn't work,too loose,or
too tight,the connector losts
Please repair.
The brake is unnormal
It inflows when driving in the puddle
Please dry the wet part of the bake.
The brake regulator is not adjusted
fully
The braking effect is influenced by
the adjusting the brake regulator.
The brake pads finishes life
Change the brake pads.
Stops suddenly when driving
(throttle don't work)
The battery meter shows charge
to low
Please use exclusive use charger.
The voltage of the battery is
unnormal,the fuse is cut off
Change the fuse of the battery.
Pedal idling
Chain losts
Chain snaps
The power transmission unit like gear is faulty
Need to be repaired
The pedal is not turning
The position of the pedal and
crank is not correct
Please adjust the crank and
pedal in correct way
The pedal is lost in the driving
The screw which assembling the crank
and pedal is loose
The pedal is assembled in the opposite
Please repair if can't adjust the
padel and crank correctly
10
11

12
filament.
Change the bulb
Take off the nut of thefuse.
Change the fuse
Take off the screws which fix
the position lamp lens.
Take off the position lens.
Take off the headlight lens.

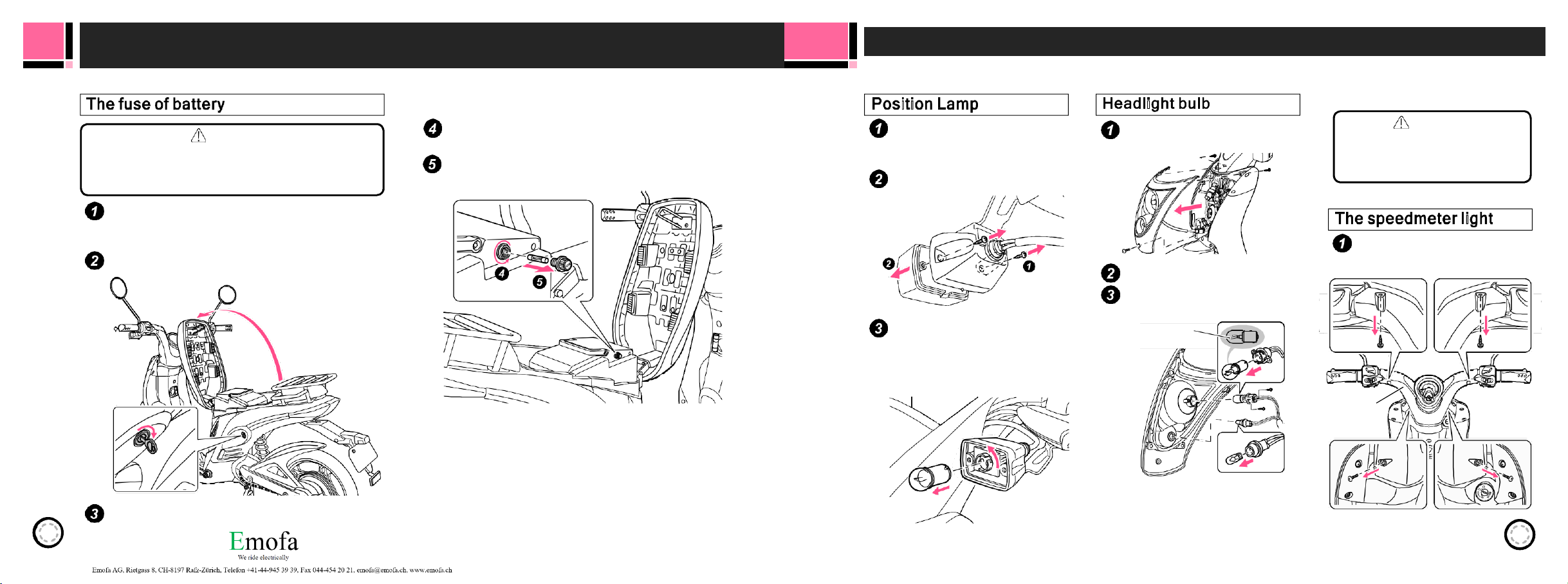

To open the seat,please put the keyinto the
lock under the seat and turn right.
Open the seat from the behind slowly.
Change the position lamp bulb.
Take off the screws which fix
the headlight lens.
Change the bulb Take off thelong
Take off the screws which fix
the speedmete.
The headlight bulb can be
taken off by turning the bulb
opposite.
Take off the wires of the battery.
The bulb is LED.Please pay
attention to the direction of the
bulb.Please test it after changing,if
it is not lighting,try to turn opposite.
Attention!
When replacing the fuse, be sure to close the vehicle power,and
don't conncet the battery wire, if so, it may be short and will be
dangerous.
Change the fuse
Handle bar A
Attention
Replace the bulb,pay attention to the
positive and negative,if opposite,the high
beam and low beam will be opposite ,it
will be dangerous.
13

Take off the plastic parts of
the handle bar A.There is 4
fixing hasps on the plastic
parts.Put the screwdriver
into the certain hasps and it
is easy to take off thehasps.
Take off the screws of thehandle
bar B
Bulb for the board
Battery show
Winker lamp
show bulb
Take off the screws which fix
the licence lamp.
Take off the licence lamp.
Take off the screws which fix
the rear fender.
Take off the rear fender.
Take off two nuts which are inside
of the rear fender.
Take the lamp from the rear fender. Take off the screws which fix
the tail light.

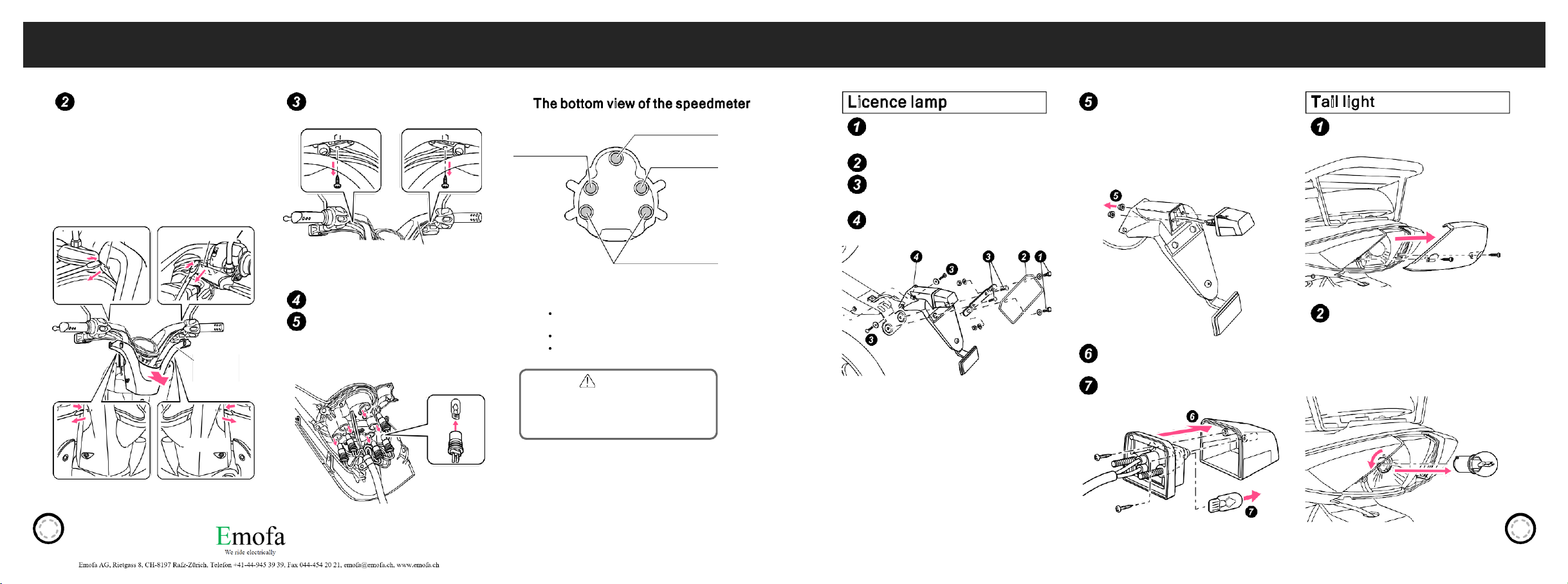

Handle bar B
Take off the plastic of the handlebar B.
Pull off the plug at the bottom of
the board,change the bulb.
Speedmeter
bulb for the board×3
(speedmeter,battery show)
High beam×1
Winker lamp show bulb×1
Take off the lens .
Change the bulb.
Change the bulb.
Turn the bulb opposite and
take it off.
Install the bulb,turn the bulb
clockwise.
15
14
Fix
Fix
Handle bar A
Fix
Fix
Attention
If there is free wire connections,please
don't connect wires,lest it will damage the
vehicles.

Take off the screws which fix
the seat.
Take off the seat.
Take off the screws which fix
the rear seat.
Take off the plastic parts in
front of the rearseat.
Take off the rearseat.
Take off the four screws which fix
the rear rack.
Take off the rear rack.
Take off the screws which fix
the body cover under theseat.
Take off the connecter,take
off the seat cover.
Take off the all the screws which
fix the plastic parts.
Take out the wires with pliers,
the front of the wires need to
be fixed.
Take off the cover carelly and
softly,or it will damage the
cover.
Take off the body cover. Pull of the plug,change the
rear winker lamp.
17
Attention
Move to add Saidokauru excessive force,
may be broken Saidokauru claws.
16
Please take off the battery when changing
the rear winker lamp.
T h i s m a n u a l i s o n l y f o r
reference.The exact condition
please according to the vehicle.
Attention
it is impossible take off the body cover
completely because the wires is fixed
together.
