EMPERO EMP.7FG010 User manual

1
GAS FRYERS
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 3
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G INJECTOR CHANGE AND GAS SETTING Page 9
H GAS CONNECTION IMAGES Page 10
I SPARE PART LIST- EXPLODING DRAWING Page 11

2
GAS FRYERS
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
GAS FRYERS
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Gas Fryers,that provides high efficiency has been designed to be used in
industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.7FG010
400x730x850
63
480x800x1020
EMP.7FG020
800x730x850
96
830x800x1020
A2 TECHNICAL INFORMATION
Product
Code
Capacity
(lt)
Power
(KW)
Gas Consumption
(NG)
Gas Consumption
(LPG)
EMP.7FG010
18
10,5
0,70 m³/h
0,52 kg/h
EMP.7FG020
2x18
21
1,40 m³/h
1,05 kg/h
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.

4
GAS FRYERS
Kasap Tip Dik Buzdolapları
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Gas Fitment must be done by authorized person.
*The area where the appliance is must have enough ventilation and vent-hole.
*The appliance must be connected correctly according to local and national gas standards of
your country.
*The appliance gas entrances are indicated with ‘’G’’ label on the body.
*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric
valve.The spheric valve must be immobilized to a place that is far away from heat and
accessible during the danger.After gas entrance connection done,gas leakages must be
checked.
*According to the datas on appliance information plate,gas and pressure must be adjusted.If
the gas type that is adjusted is not the suitable with gas type that is at installation place,apply
the instructions that is about adjustment of different gas type. (Event :G)
*If the location where gas fryers placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.

5
GAS FRYERS
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*If there is gas leakage where the appliance is, .do not fire absolutely and do not use
electric.
*Definitely do not allow to check the sealing with flame.
*Level of oil mustn’t be less than minimum level.Otherwise it can be ignited.
*Level of oil mustn’t be more than maximum level.Otherwise the oil that overflows
from fryer may cause combustion.
*Do not put the unstrained and frozen foods into the hot oil.
!
!
!
!
!
!
!
!
!
!
!
!

6
GAS FRYERS
Kasap Tip Dik Buzdolapları
D OPERATION

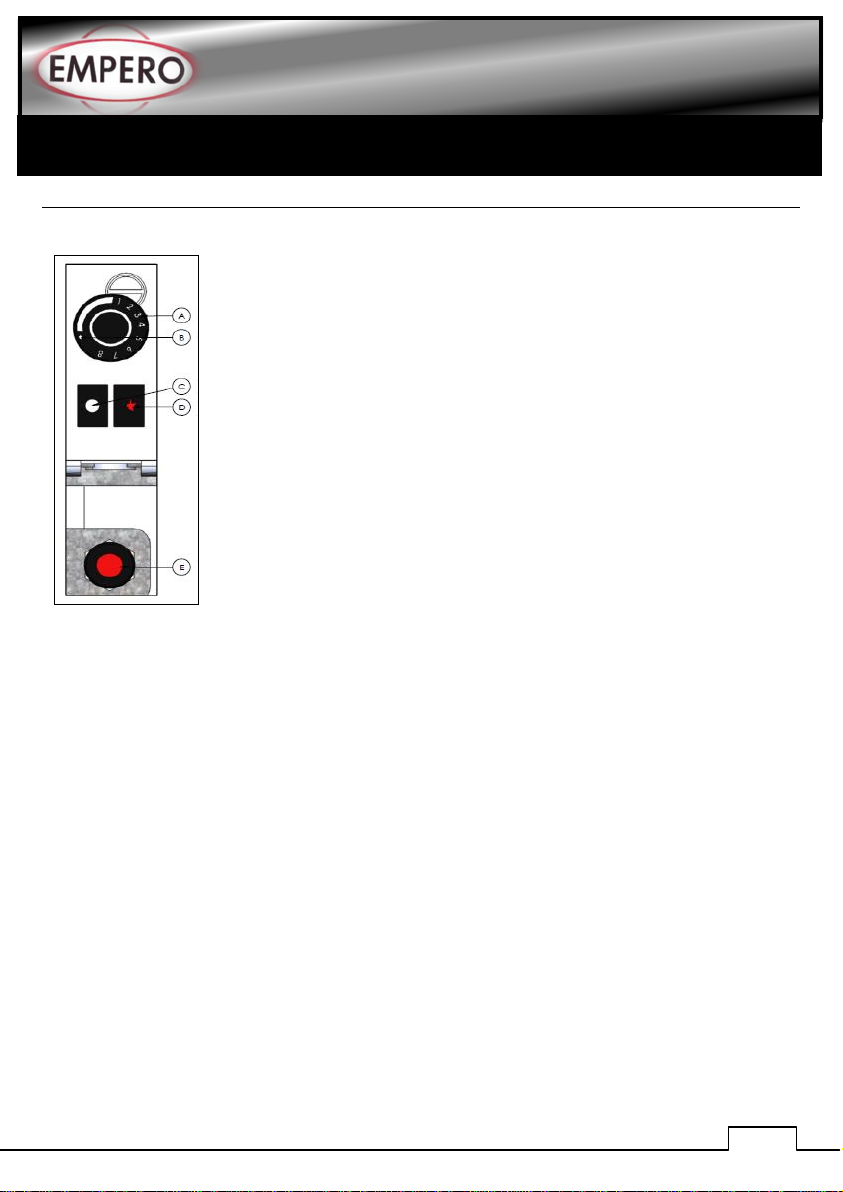

*Control Panel;
A : Heating Value (1-8)
B : Lighter Position
C : Gas Flow Stopping Button
D : Gas Flow Button
E : Lighter
*Operating;
According to type of use,make gas entrance connection from behınd the grill.Because the
machine is operated with LPG and NG.
Turn on the gas valves.
Before operating the fryer,place filter and filter into the tank.
Before operating the fryer,
Be sure that oil drainage valve is off.
Open the lid and put oil to the tank.Pay attention to both minimum and maximum lines
while adding oil into the tank.
Provide the valve of gas group to be at lighter position.Press the button and be sure that
pilot group is operated.
Adjust the appliance’s heat (0-8) gradually.
When the oil temperature reaches indicator temperature,heaters are disabled through the
agency of limit thermostat.When the oil temperature is lower than indicator
temperature,the limit thermostat steps in and heaters start to work.Signal lamp is on
again.
Put the materials that will be fried into the tank in the basket during oil heating.
After frying process,swtich the thermostat to (0) position and unplug the appliance.
Before draining the oil from fryer,leave it to be cooled.
In order to drain the oil from fryer,connect the draining pipe to oil valve that is in cabinet
and then drain the oil.

7
GAS FRYERS
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Turn off the gas connection before cleaning.
Clean the outer surface of the appliance with a wet cloth.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not wash the appliance with pressure water.
Do not clean the appliance with a materials that may damage chrome material.
While cleaning the inside of the fryer,take off the basket and filter that are in tank.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
These parts ; Gas storage,pilot,thermocouples,taps,burner,lighter and spark plug
cable are not maintained so they need to be changed when they have error.
Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the
hoses.
Ventilate the area where the device is in periodic times.
Clean the oil tank according to frequency of use.Fill the tank with water and heat.

8
GAS FRYERS
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the gas connection is done or
not.
2. If there is no gas entrance to pilot,the
appliance is not operated.
3. Check if the injector holes are opened or
not.
4. If the hoses that have gas entrance lose
gas due to slit,hole.etc.,the appliance is
not operated.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at suitable gas
setting or not.
2. Check the level of oil.
THE APPLIANCE STOPPED
1. Gas flow is stopped automatically when
the flame is off due to having gas tap
that has safety valve.In this situation the
appliance is not operated.
2. When there is gas leakage,if there is
solenoid gas stopper alarm,gas flow is
stopped and the appliance is not
operated.Ventilate the area through the
agency of vent-hole.
If frying is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
GAS FRYERS
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
GAS FRYER BURNER-INJECTOR CHANGE CHART
Gas Group
Gas
7FG010
7FG020
Injector mm
Injector mm
2
G20
1,2
1,2
G25
1,2
1,2
3
G30
30 mbar
1,6
1,6
50 mbar
1,6
1,6
G31
37 mbar
1,6
1,6
50 mbar
1,6
1,6

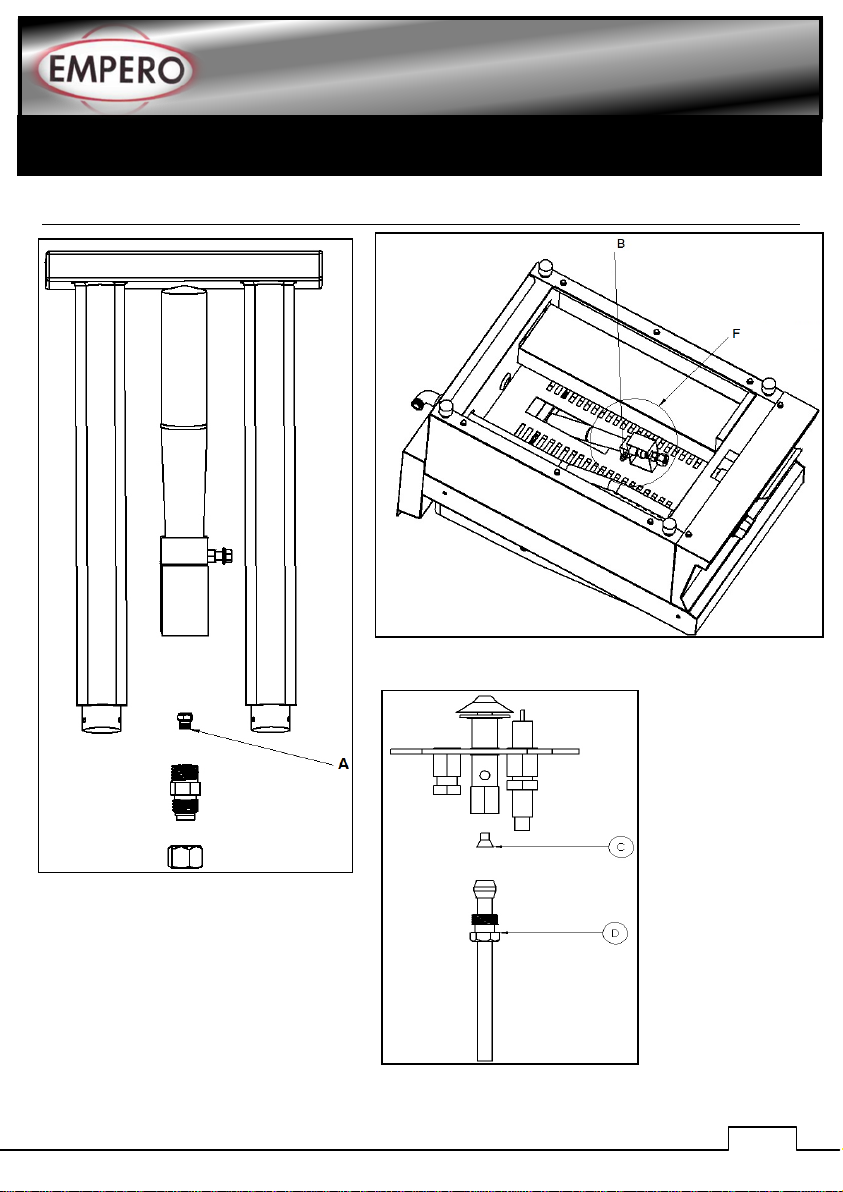

Change of Burner Injector;
1. Rip off the injector at the entrance of burner with a suitable tool.
2. Change A injector by paying attention to the datas at chart with suitable injector.
(Image 1)
3. Adjust the burner entrance setting (F) by loosening ‘B’ bolt and moving the valve to
forward-back. (Image 2)
4. Change C injector by paying attention to the datas at chart with suitable injector.For
this it is enough to take off ‘D’ fitting and pull the gas pipe to down. (Image 3)

10
GAS FRYERS
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 2
Image 1
Image 3

11
GAS FRYERS
Kasap Tip Dik Buzdolapları

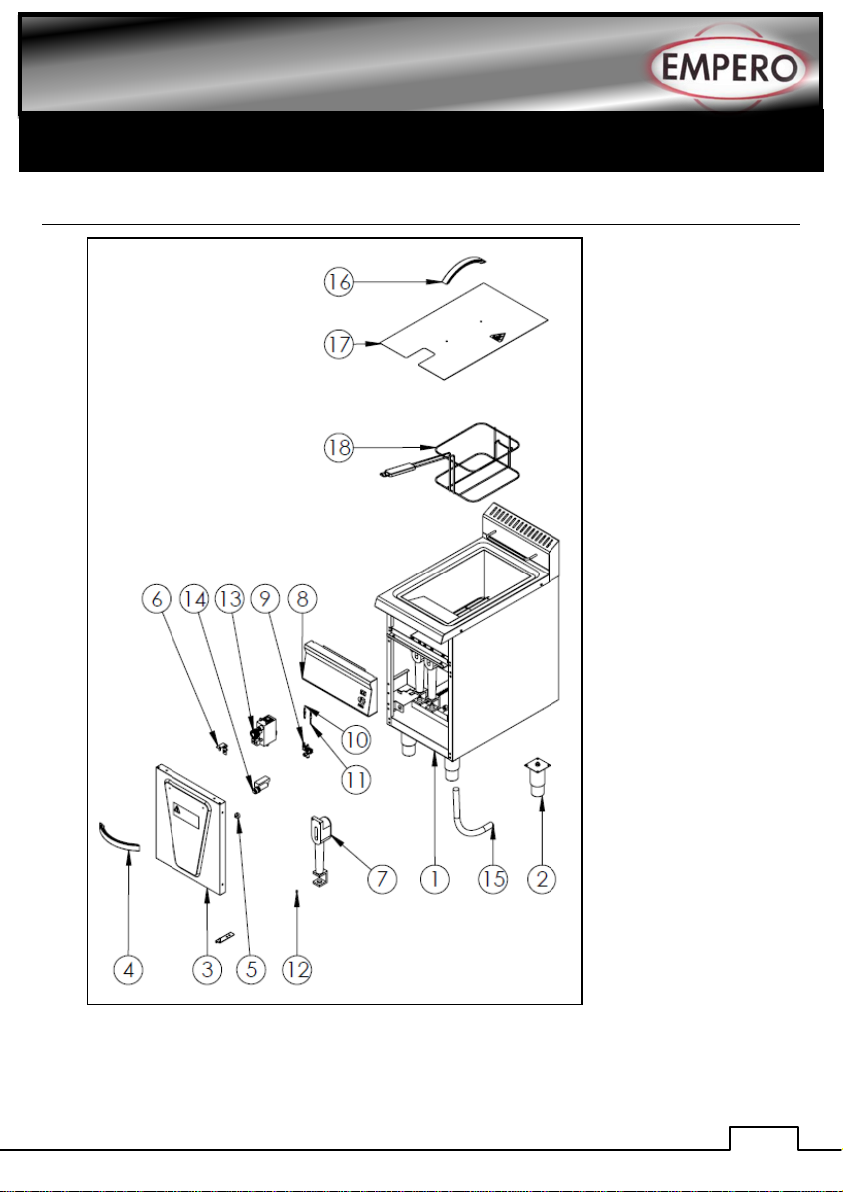

I SPARE PART LIST-EXPLODING DRAWING
EMP.7FG010

12
GAS FRYERS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING

13
GAS FRYERS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.7FG020

14
GAS FRYERS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
