Empire Heating Systems DV-20E-5 Quick start guide

Page 1
INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
Patent # 5.664.555
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
FAN TYPE
DIRECT VENT
WALL FURNACE
For Installation in
Manufactured (Mobile Home),
Modular or Residential Homes
MODELS
DV-20E-5
DV-40E-5
This appliance may be installed as an OEM
installationinamanufacturedhome(USAonly)
or mobile home and must be installed in ac-
cordancewiththemanufacturer'sinstructions
andtheManufacturedHomeConstructionand
SafetyStandard,Title24CFR,Part3280,inthe
United States, or the Mobile Home Standard,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. A conver-
sion kit is supplied with the appliance.
Installer: Leave this manual with the appli-
ance.
Consumer:Retain this manual for future refer-
ence.
 -
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
  
  
use any phone in your building.
  
neighbor’s phone. Follow the gas suppli-
er’s instructions.
  

— Installation and service must be performed by

supplier.
WARNING: If the information in these instruc-

may result causing property damage, personal
injury or loss of life.

19562-4-0610Page 2
SECTION PAGE
Important Safety Information ..............................................................................................3
Safety Information for Users of LP Gas ..............................................................................4
Requirements for Massachusetts .........................................................................................5
Introduction..........................................................................................................................6
Specications.......................................................................................................................6

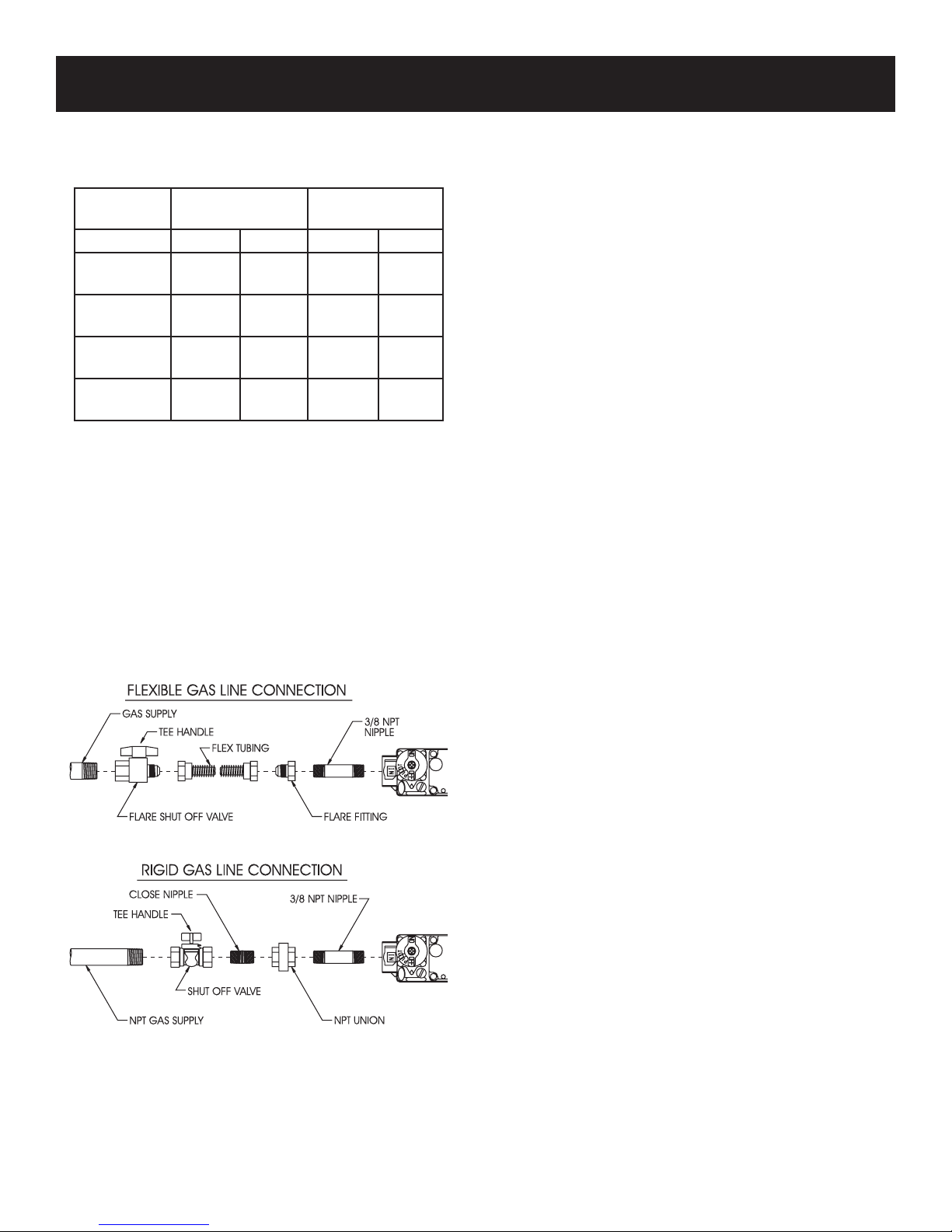

Gas Supply...........................................................................................................................7
Gas Conversion Instructions................................................................................................8

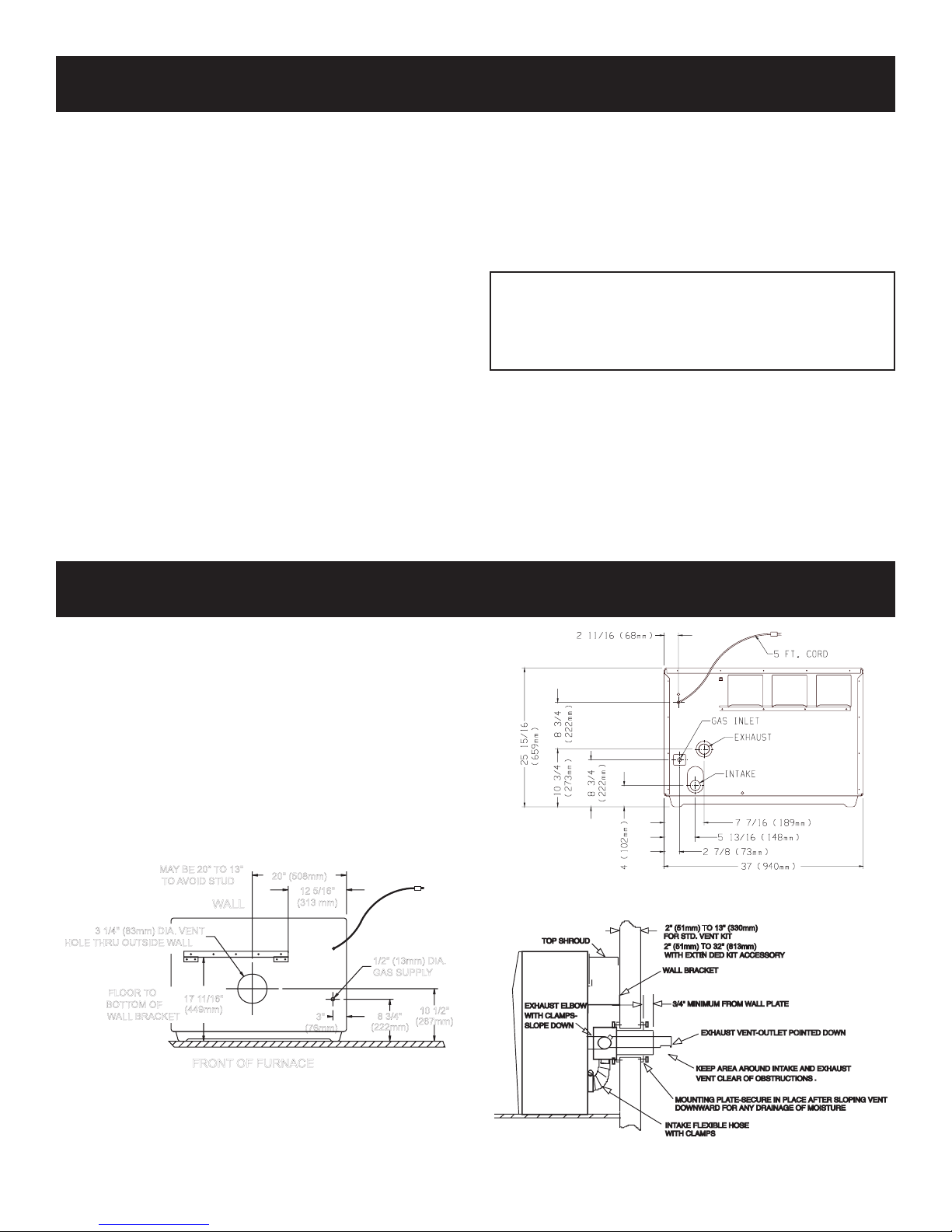

Clearances............................................................................................................................9
Furnace Installation........................................................................................................ 9-12
Lighting Instructions .........................................................................................................13
Wiring ................................................................................................................................14
Maintenance.......................................................................................................................15
Operation and Troubleshooting ................................................................................... 15-16
How to Order Repair Parts.................................................................................................16
Parts List ...........................................................................................................................17

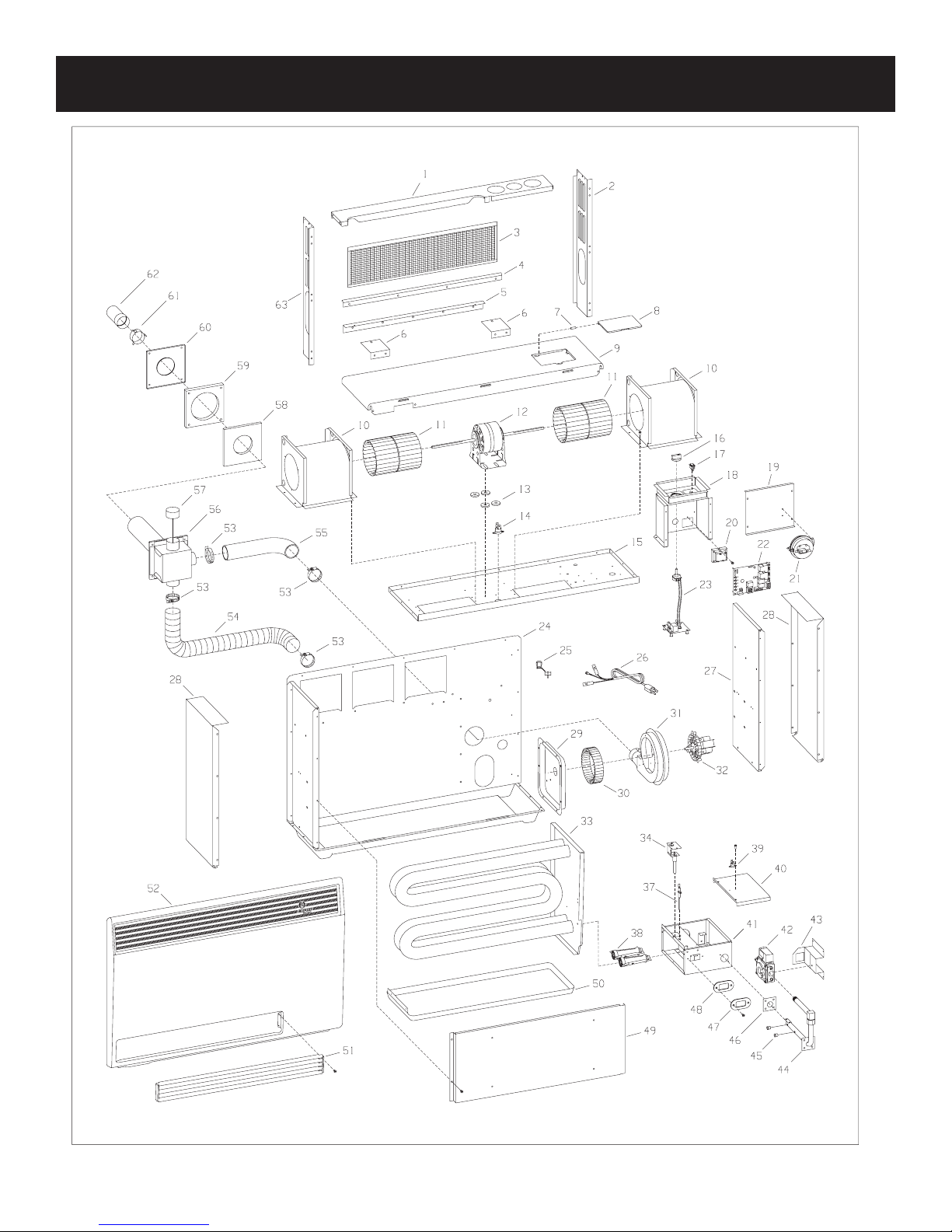

Parts View..........................................................................................................................18
Service Notes.....................................................................................................................19
TABLE OF CONTENTS

19562-4-0610 Page 3
 

 
high surface temperatures and should stay away to avoid
burns or clothing ignition.
 
are in the same room as the appliance.
 
on or near the appliance.
         
appliance must be replaced prior to operating the
appliance.
 
 
 
residential installation convertible for use with natural

for the simple conversion from one gas to the other.
 Installation and repair should be done by a QUALIFIED
SERVICE PERSON. The appliance should be inspected

person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
   put anything around the furnace that will

  keep the appliance area clear and free from
     
vapors and liquids.
  examine venting system periodically and replace
damaged parts.
 make a periodic visual check of burner. Clean and
replace damaged parts.
 use this heaterif any part has been under water.

the heater and to replace any part of the control system
and any gas control which has been under water.
THIS IS A HEATING APPLIANCE
DO NOT OPERATE THIS APPLIANCE WITHOUT FRONT PANEL INSTALLED.
IMPORTANT SAFETY INFORMATION

19562-4-0610Page 4
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can lter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels.Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a ammable gas which can cause res and
explosions. In its natural state, propane is odorless and colorless.
You may not know all the following safety precautions which can
protect both you and your family from an accident. Read them
carefully now, then review them point by point with the members
of your household. Someday when there may not be a minute to
lose, everyone's safety will depend on knowing exactly what to
do. If, after reading the following information, you feel you still
need more information, please contact your gas supplier.
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to
nd out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualied, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualied, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service
or making adjustments.
• Sometimes a basement or a closed-up house has a musty smell
that can cover up the LP-Gas odor. Do not try to light pilot
lights, perform service, or make adjustments in an area where
the conditions are such that you may not detect the odor if
there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are lled and allowed to set too
long before relling. Cylinders and tanks which have been out
of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question about
the gas odor, call your LP-gas dealer. A periodic sniff test of
the LP-gas is a good safety measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete "gas out," (the container is under
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
through openings such as pilot light orices. If this occurs,
some new internal rusting could occur. If the valve is left
open, then treat the container as a new tank. Always be sure
your container is under vapor pressure by turning it off at the
container before it goes completely empty or having it relled
before it is completely empty.
• Do not operate electric switches, light matches, use your phone.
Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such as
basements. When you have reason to suspect a gas leak, keep
out of basements and other low areas. Stay out until reghters
declare them to be safe.
• Use your neighbor's phone and call a trained LP-Gas service
person and the re department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and reghters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMTION FOR USERS OF LP-GAS

19562-4-0610 Page 5
REQUIREMENTS FOR MASSACHUSETTS
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but
not limited to decks and porches, the following requirements
shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETEC-
TORS. At the time of installation of the side wall horizontal
vented gas fueled equipment, the installing plumber or
gastter shall observe that a hard wired carbon monoxide
detector with an alarm and battery back-up is installed on
the oor level where the gas equipment is to be installed.
In addition, the installing plumber or gastter shall observe
that a battery operated or hard wired carbon monoxide
detector with an alarm is installed on each additional
level of the dwelling, building or structure served by
the side wall horizontal vented gas fueled equipment. It
shall be the responsibility of the property owner to secure
the services of qualied licensed professionals for the
installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an
attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the
next adjacent oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installa-
tion, the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Eachcarbonmonoxidedetectorasrequiredinaccordance
with the above provisions shall comply with NFPA 720
and be ANSI/UL 2034 listed and IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be
permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in
line with the exhaust vent terminal for the horizontally
vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2)
inch in size, 
CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment shall
not approve the installation unless, upon inspection, the
inspectorobservescarbonmonoxidedetectorsandsignage
installed in accordance with the provisions of 248 CMR
5.08(2)(a) 1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or
structure separate from the dwelling, building or
structure used in whole or in part for residential
purposes.
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
ventingsystem design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and
the venting system shall include:
1. Detailed instructions for the installation of the
venting system design or the venting system
components; and
2. Acompletepartslistfortheventingsystemdesign
or venting system.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
ventinginstructions,and/orallventing design instruc-
tions shall remain with the appliance or equipment
at the completion of the installation.

19562-4-0610Page 6
Introduction
Always consult your local Building Department regarding
regulations, codes or ordinances which apply to the installation of
a direct vent wall furnace.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card supplied
with furnace.
3. Installer should show owner how to start and operate furnace
and thermostat.
4. Installer must locate unit near a grounded wall receptacle for
115VAC power and must provide gas supply and vent the unit
properly for safe operation.
Warning:
Any change to this furnace or its control can be dangerous.
This is a heating appliance and any panel, door or guard
removed forservicing an appliance must be replaced prior
to operating the appliance.
General Information
This series is design certied in accordance with American National
Standard/CSA Standard Z21.86 and CSA 2.32 by the Canadian
Standards Association as a Fan Type Direct Vent Wall Furnace to
be installed according to these instructions.
Any alteration of the original design, installed other than as
shownintheseinstructionsorusewithatypeofgasnotshownon
the rating plate is the responsibility of the person and company
making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
Notice: During initial ring of this unit, oil from the heat exchanger
may bake out and smoke may occur.To prevent triggering of smoke
alarms, ventilate the room in which the unit is installed.
Installation in Residential Garages
Gas utilization equipment in residential garages shall be installed
so that all burners and burner ignition devices are located not less
than 18" (457mm) above the oor.
Such equipment shall be located, or protected, so it is not subject
to physical damage by a moving vehicle.

Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performed only by a qualied agency. The term "qualied agency"
means any individual, rm, corporation or company which either in
person or through a representative is engaged in and is responsible
for (a) the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment, who is
experienced in such work, familiar with all precautions required
and has complied with all the requirements of the authority having
jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas tter in the Commonwealth of
Massachusetts.
The installation must conform with local codes, or in the absence
of local codes, the National Fuel Gas Code,ANSI Z223.1/NFPA54
or Natural Gas and Propane Installation Code, CSA B149.1.
*Available from the American National Standards Institute, Inc.,
11 West 42nd St., New York, NY 10036.
Amanufacturedhome(USAonly)ormobilehomeOEMinstallation
mustconformwiththeManufacturedHomeConstructionandSafety
Standard, Title 24 CFR, Part 3280, or, when such a standard is not
applicable,theStandardforManufacturedHomeInstallations,ANSI
Z225.1, or Standard for Gas Equipped Recreational Vehicles and
Mobile Housing, CSA Z240.4.
High Altitudes
Foraltitudes/elevationsabove2,000feet(610m),inputratingsshould
be reduced at the rate of 4 percent for each 1,000 feet (305m) above
sea level, this may be accomplished by reducing manifold pressure.
Themaximumallowablereductionin manifoldpressureforNatural
gas shall be from 3.5" w.c. (.872kPa) to 2.8" w.c. (.697kPa). The
maximum allowable reduction in manifold pressure for Propane
(LP) gas shall be from 10.0" w.c. (2.49kPa) to 8.0" w.c. (1.99kPa).
For Canadian high altitude applications, this appliance is suitable
for installation at elevations between 0 feet (0m) and 4,500 feet
(1,372m) without change.
INTRODUCTION
SPECIFICATIONS
Model DV-20E DV-40E
Input BTU/HR (KW/H) 20,000 (5.9) 40,000 (11.7)
Height 26" (660mm) 26" (660mm)
Width 37" (940mm) 37" (940mm)
Depth with Shroud 15 3/4" (400mm) 15 3/4" (400mm)
Gas Inlet (Pipe) 1/2" (13mm) 1/2" (13mm)
Electrical - Unit as a 5' (1.5m) 3 pronged cordset for connec-
tion to an approved 115 VAC 60HZ maximum
AMPs - 5A wall receptacle.
Accessories
Extended Vent Terminal
For walls up to 32" (813mm)
DVT-2
Intake/Exhaust Extension Kit
54" (1371mm) Vent Kit with 2 Elbows DVE-1
54" (1371mm) Vent Kit (straight)
for Extended Vent Runs
DVE-2
(use with DVE-1)
Floor Pad DVP-1

19562-4-0610 Page 7
Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/
CGA-B149 (.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm
Note: Never use plastic pipe. Check to conrm whether your local
codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a exible
appliance connector cannot exceed three feet in length.
Figure 1
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
Amanual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate, con-
tact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liqueed petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.

be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with

A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required by
the National Fuel Gas Code that a drip line be installed near the gas
inlet. This should consist of a vertical length of pipe tee connected
into the gas line that is capped on the bottom in which condensation
and foreign particles may collect.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3mm) N.P.T.
plugged tapping, accessible for test gauge connection, must be
placed immediately upstream of the gas supply connection to
the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve duringany
pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess


Checking Manifold Pressure
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.872kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 5.0" w.c.
(1.245kPa) for the purpose of input adjustment to a maximum of
10.5" w.c. (2.614kPa) Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 11.0" w.c.
(2.739kPa) for the purpose of input adjustment to a maximum of
13.0" w.c. (3.237kPa).
A 1/8" (3mm) N.P.T. plugged tapping, accessible for test gauge
connection, is located on the outlet side of the gas control.
GAS SUPPLY

19562-4-0610Page 8

gas conversion label are provided in conversion kit attached to manifold pipe.
1. Make sure gas supply to furnace is off prior to conversion and disconnect electrical power to unit.
2. Open brass union located between the gas valve and burner box. Remove
the 4 mounting screws securing manifold plate to the burner box. Remove
the top 2 screws holding the burner box top in place and then remove the
1 screw holding the end of the manifold pipe in place. Grasp union and
remove manifold pipe.
3. Remove (1) Natural gas main burner orice marked 44 for DV-20E or
(2) Natural gas main burner orices marked 44 for DV-40E located in
the manifold pipe and replace with (1) LP gas main burner orice marked
55 for DV-20E or (2) LP gas main burner orices marked 55 for DV-40E
supplied in conversion kit.
4. Replace manifold pipe being sure to locate orice(s) in the end of the burner. Secure the manifold and top burner box cover in
place using the screws earlier removed. Reconnect the brass union.
5. Remove the vinyl cap and unscrew the gas control convertible regulator and reverse to LP gas side (red ring on regulator) and screw
back into place. Reattach vinyl cap. Refer to gure illustrating the gas valve.
6. Place Natural gas main burner orice(s) in conversion kit. Attach conversion kit to manifold pipe. Attach new label to unit name-
plate indicating that the unit was converted to LP gas.
7. Turn on gas supply to furnace and check all gas connections for leaks with soap solution, watching for bubbles on all gas connec-
tions.
8. Turn on electrical power to unit and turn on furnace to verify proper operation. It may take several tries for ignition to completely
purge all the air from the gas line.

gas conversion label are provided in conversion kit attached to manifold pipe.
1. Make sure gas supply to furnace is off prior to conversion and disconnect electrical power to unit.
2. Open brass union located between the gas valve and burner box. Re-
move the 4 mounting screws securing manifold plate to the burner box.
Remove the top 2 screws holding the burner box top in place and then
remove the 1 screw holding the end of the manifold pipe in place. Grasp
union and remove manifold pipe.
3. Remove (1) LP gas main burner orice marked 55 for DV-20E or (2) LP
gas main burner orices marked 55 for DV-40E located in the manifold
pipe and replace with (1) Natural gas main burner orice marked 44 for
DV-20E or (2) Natural gas main burner orices marked 44 for DV-40E
supplied in conversion kit.
4. Replace manifold pipe being sure to locate orice(s) in the end of the burner. Secure the manifold and top burner box cover in
place using the screws earlier removed. Reconnect the brass union.
5. Remove the vinyl cap and unscrew the gas control convertible regulator and reverse to Natural gas side and screw back into place.
The red LP ring will be up just under the vinyl cap. Reattach vinyl cap. Refer to gure illustrating the gas valve.
6. Place LP gas main burner orice(s) in conversion kit. Attach conversion kit to manifold pipe. Attach new label to unit nameplate
indicating that the unit was converted to Natural gas.
7. Turn on gas supply to furnace and check all gas connections for leaks with soap solution, watching for bubbles on all gas connec-
tions.
8. Turn on electrical power to unit and turn on furnace to verify proper operation. It may take several tries for ignition to completely
purge all the air from the gas line.
TOPVIEW
BACKEND VIEW
GASCONTROLLEVERSHOWN
IN "OFF"POSITION
OFF
CONVERTIBLE
REGULATOR
VINYLCAP
RED LP RING
CONVERSION INSTRUCTIONS FROM NATURAL GAS TO (LP) PROPANE GAS
TOPVIEW
BACKEND VIEW
GASCONTROLLEVERSHOWN
IN "OFF"POSITION
OFF
CONVERTIBLE
REGULATOR
VINYLCAP
RED LP RING
GAS CONVERSION INSTRUCTIONS
CONVERSION INSTRUCTIONS FROM (LP) PROPANE GAS TO NATURAL GAS

19562-4-0610 Page 9
1. Pick a location on a wall with a clear space of 36" (91.4cm)
high by 43" (109cm) wide in the room. In selecting a location
for installation, it is necessary to provide adequate accessibility
clearances forservicingandproperinstallation. Be suretolocate
the unit close enough to a 115 VAC wall receptacle to properly
power appliance.
2. Unit is supported by a wall bracket secured to the wall.
3. When facing the front of the furnace the minimum clearances
from casing to combustible construction are 10" (254mm) on
top, 3" (76mm) on each side, recommend 18" (457mm) on right
side for servicing and 0" (0mm) from the oor and 0" (0mm)
to rear wall.
4. The black ocked exhaust pipe, contained in DVE-1 Kit or DVE-
2 Kit, has zero (0") inches (0mm) clearance to combustibles.
5. The minimum distance from the center of the vent cap to the
nearest outside corner or obstruction is 12" (305mm).
6. The minimum wall depth is 2" (51mm) and the maximum is
10" (254mm) [or 32"(813mm) using the extended vent terminal
kit accessory]. The use of vent tubes not supplied by the
manufacturer may result in unsatisfactory performance.
The vent terminal of a direct vent appliance, with an input of
50,000 BTU (14.6KW) per hour or less shall be located at least 9"
(229mm) from any opening through which ue gases could enter
a building.
The bottom of the exhaust vent terminal and the air intake shall
be located at least 12" (305mm) above grade and must be vented
outside.
WARNING: The nearest point of the vent cap should be

any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.83m) distance will reduce the chance of
gas entering the vent cap.
Installation on Rugs and Tile
If this appliance is to be installed directly on carpeting, tile, or other
combustible material, other than wood ooring, the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.
The base referred to above does not mean the re-proof base as
used on wood stoves. The protection is primarily for rugs that may
be extremely thick and light-color tile that can discolor.
Locating Wall Opening (Figures 2, 3 and 4)
The recommended location for this furnace is on an outside wall.
(The unit can be located on an inside wall but must be vented
using the extended vent kit and should not exceed 15' (4.6m) in
exhaust vent length.) Locate wall studs so that wall vent opening
will be located between wall studs. The wall studs can be used for
attachment of wall mounting bracket. The wall opening required
for venting is a 3 1/4" (83mm) minimum diameter opening.
Referto Figure2forpositioning thefurnaceon wall andforlocating
gas line connection and vent opening. Furnace can sit on the oor
and should be secured to the wall through the wall bracket secured
to the rear top shroud.
3"
(76mm)
8 3/4"
(222mm)
12 5/16"
20" (508mm)
(313 mm)
(267mm)
10 1/2"
1/2" (13mm) DIA.
GAS SUPPLY
WALL
MAYBE20" TO 13"
TO AVOID STUD
31/4"(83mm) DIA. VENT
HOLE THRU OUTSIDE WALL
17 11/16"
(449mm)
FLOOR TO
BOTTOM OF
WALL BRACKET
FRONT OF FURNACE
Figure 2
Figure 3
2" (51mm) TO 13" (330mm)
2" (51mm) TO 32" (813mm)
Figure 4
CLEARANCES
FURNACE INSTALLATION

19562-4-0610Page 10
Installing Wall Bracket (Figures 5 and 6)
After nding a location for the furnace, gas supply and vent, the
wall bracket must be positioned and installed. The bracket should
be mounted to the wall studs, if possible, or anchored solidly to the
wall. Use the (2) 10 x 1" (25mm) hex-head screws or (2) plastic
anchors provided. Drill (2) 5/16" (8mm) diameter holes in wall if
plastic anchors are used. Attach the two wall mounting brackets
to the casing back by using (4) 10 x 1/2" (13mm) hex-head screws
provided.
Figure 5
WALL
CASING
BACK
#10X1"
WALL MOUNTING BRACKET
WALL
BRACKET
#10X1/2"
#10X1/2"
4" (102mm)
Figure 6
WALL
INTAKE FLEX HOSE
WITH CLAMPS
EXHAUST
INTAKE AIR
MOUNTING PLATE
EXHAUST ELBOW MAY
BE CUT TO LENGTH
TO FIT VENT BOX.
SECURE IN PLACE
USING HOSE CLAMPS
PROVIDED.
KEEP CAP ON
UN-USED AIR
INTAKE OPENING
Figure 7
EXHAUST AIR
ORANGE SILICONE
ELBOW CONNECTOR
INTAKE AIR
BLACK FLEXIBLE HOSE
Figure 8
Figure 9
Venting (Figures 7, 8 and 9)
This unit is vented directly out the back using the concentric vent
tube assembly provided. See Figure 2 for vent hole location. This
hole location can be conveniently moved closer to unit exhaust
outlet tube to avoid wall stud interference if necessary. The orange
silicone exhaust elbow would need to be cut to length. Do not
locate vent directly behind the exhaust outlet. Do not use the orange
silicone elbow for extended vent runs where the possibility of
ue condensate exists unless the run is horizontal and the elbow is
sloped downward away from the heater. See Figure 12 for extended
vertical venting.
The vent provided will accommodate walls up to 10" thick and
can be cut shorter for thinner walls if desired by using a hacksaw
or cut-off saw. Be sure to leave the minimum 3/4" of tube length
extending beyond the outside wall plate. Both the inner and outer
tube will be cut to the same length as the inner exhaust tube has an
extension piece which is added during nal outside assembly.
VENT TUBING SILICONE COUPLING
HOSE CLAMP
HOSE CLAMP
EDGE
EXHAUST CONNECTIONS
INTAKE FLEX HOSE CONNECTION
WITH INTERNAL METAL COUPLING
VENT COUPLING CONNECTIONS
EXTENDED VENT

19562-4-0610 Page 11
Be sure to deburr the ends with a le after cutting. Installation is
easy after cutting the wall opening secure the vent terminal box
in place using the (4) 10 x 1" hex-head screws provided. Locate
the box so that the middle exhaust tube is directed toward the
furnace exhaust outlet opening. See Figure 8. Attach the black 2"
exible inlet air hose to the bottom 2" connector on the vent box
using a hose clamp. Secure the other end to the lower inlet air
box connector using the hose clamp. Do not kink hose. Attach the
long straight end of the 2" orange silicone exhaust elbow to the
middle vent terminal tube and rotate the elbow toward the furnace
exhaust outlet. Secure the hose to the vent box using a hose clamp.
Carefully push the furnace back closer to the wall and secure the
exhaust elbow to the 2" exhaust tube exiting the unit. Secure the
elbow in place using the last remaining hose clamp. The furnace
can now be secured to the wall.

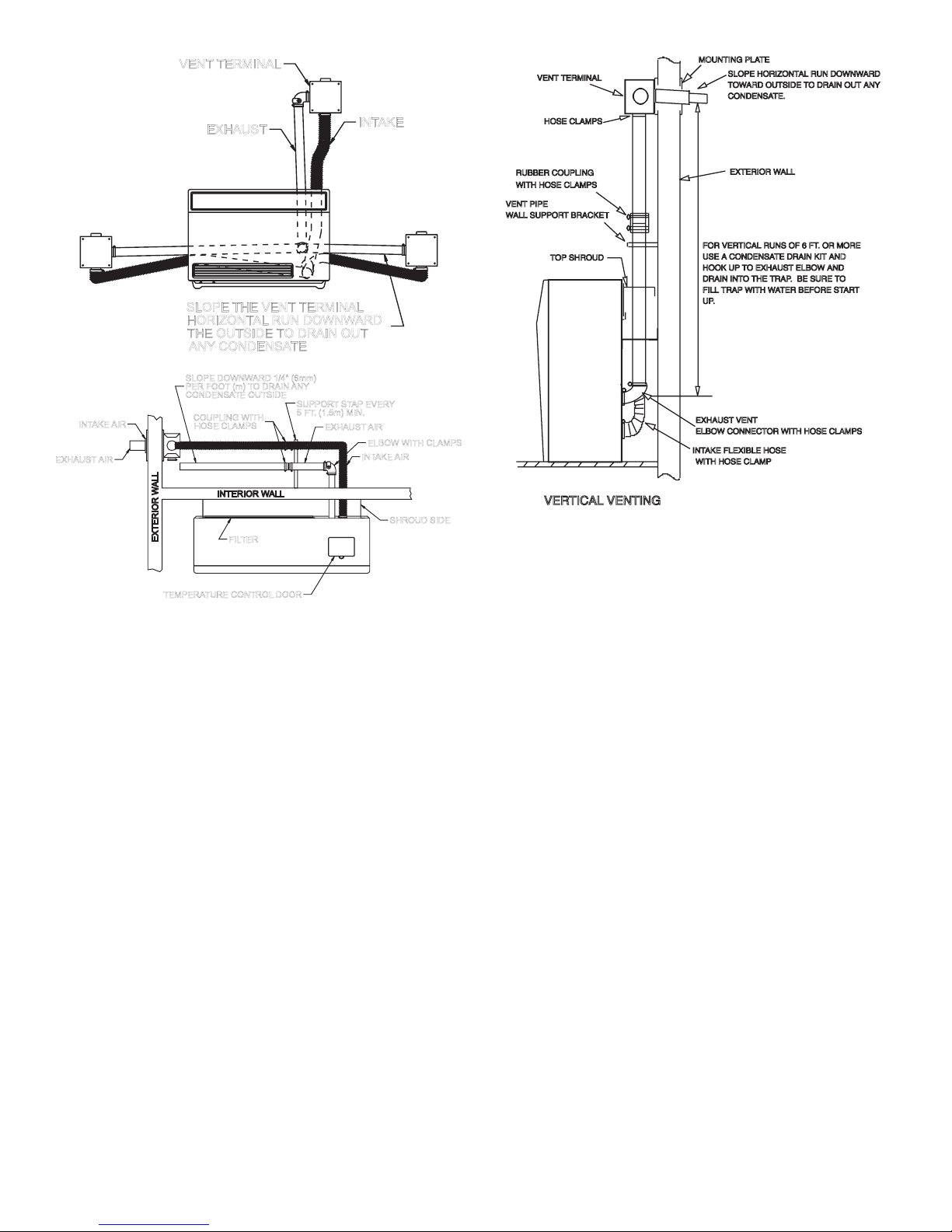

The furnace can be vented with up to a maximum length of 15'
(4.6m) including termination vent and using 2 - 90° elbows. Also,
the furnace can be vented with up to a maximum length of 10'
(3m) including termination vent and using 3 - 90° elbows. For
longer vent lengths order the vent kit, Part Number DVE-1 and
DVE-2. See Figures 11 and 12 illustrating extended vent run and
venting options.
Note: If the extended vent kit is used and the exhaust vent pipe
is run through a cold space, such as an attic or a garage, the pipe
should be insulated using 1/2" (13mm) thick berglass insulation
or equivalent to keep the ue products warm enough to avoid
condensation. Also, slope 1/4" (6mm) per foot (305mm) the vent
terminal horizontal run downward toward the outside of the house
to assure any condensate ow out of vent system. Horizontal
vent pipe runs of 5 feet (1.5m) or more in length may accumulate
condensation in the exhaust pipe and must, therefore, be sloped
downward to drain any condensate out of the end vent terminal.
Use straps or other suitable supports spaced every 5 feet (1.5m) to
adequately hold pipe. Be sure to avoid any low spots or sags in
pipe run. Be sure all connections are tight using the hose clamps
as shown in Figure 9, "Vent Coupling Connections."

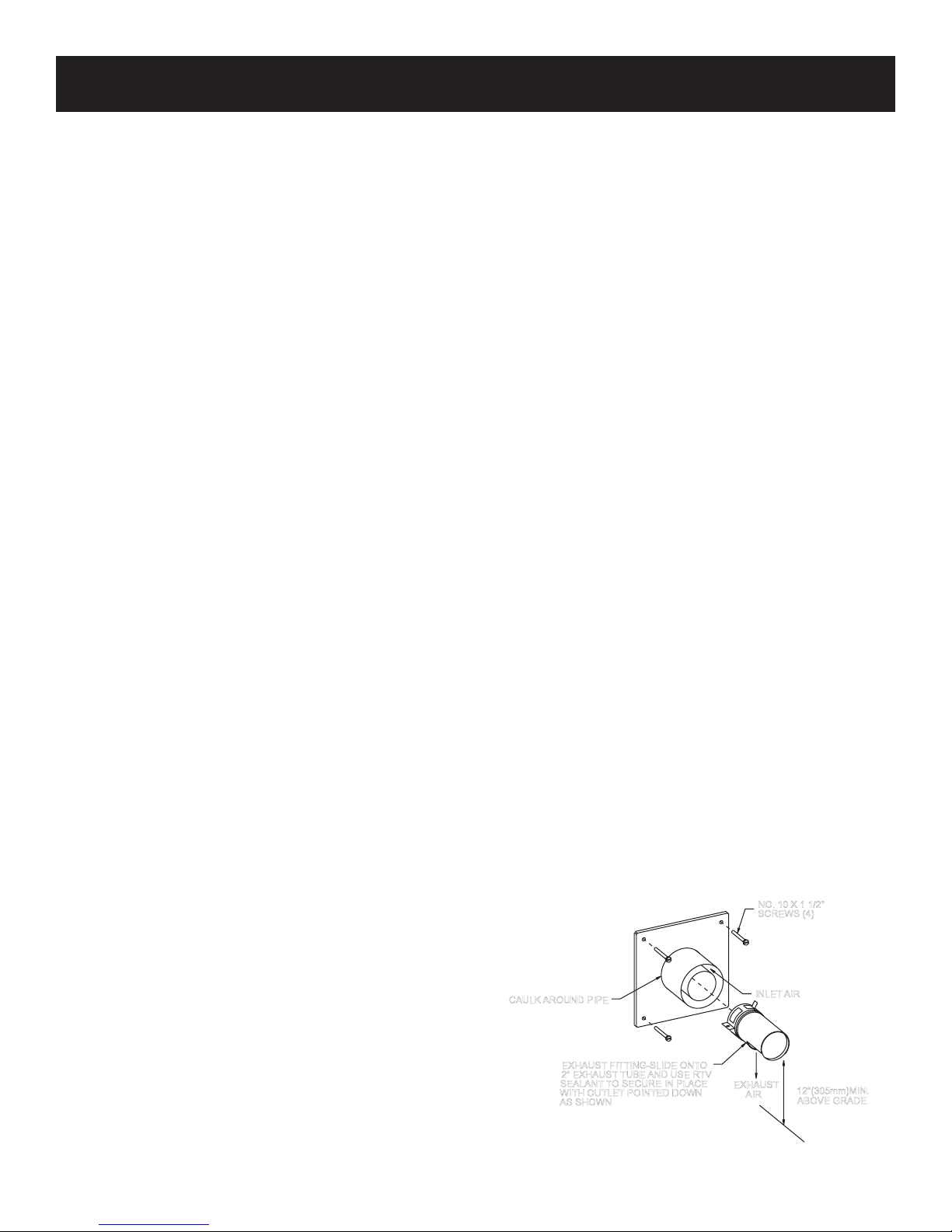

For wall depths thicker than 10" (254mm) order the extended vent
terminal kit which will cover walls to 32" (813mm) thickness.
The vent pipes must be cut to length to assemble for desired wall
thickness.
Forextendedventing,itisalsoacceptabletouse2"(51mm)diameter
PVC or ABS pipe for the combustion air intake supply piping
only to the unit. If this is used, the pipe and ttings must conform
to ANSI and ASTM Standards D1785 for SCH. 40 PVC, D2665
for PVC-DWV, D2241 for SDR-21 and SDR-26 PVC, D2661 for
ABS-DWV and F628 for SCH. 40 ABS. Pipe cement and primer
must be used and conform to ASTM Standard D2564 for PVC or
D2235 for ABS. This PVC or ABS pipe must not be used for
the exhaust vent pipe run.
Note: Type SDR pipe is not approved for use in Canada.
For new construction installation, the intake and exhaust vent
can be run inside a wall, a vertical or horizontal distance prior to
exiting the wall. This can be done but not the preferred method of
installation due to the inability to perform periodic inspection of
the vent system. In doing this, it is important to securely seal the
vent system and slope all horizontal runs downward 1/4" (6mm)
per foot (305mm) toward the vent terminal outside to drain out
any condensate. It is also necessary to adequately support both the
exhaust and intake and to center the exhaust pipe in the wall.
Besureto consultlocalcodes priortoinstallationtoverifyallowable
procedures.
Installation of Shroud
To complete inside installation, secure furnace to the wall bracket
by attaching the two wall mounting brackets to the wall bracket
by using (2) 10 x 1/2" (13mm) hex-head screws provided (See
Figures 4 and 6). To attach the right shroud and left shroud to the
casing back, the 3/4" wide ange on the shroud must be positioned
toward the casing side. When positioned correctly, the (6) louvers
on the shroud will be facing up and the knock-out on the shroud
will be facing down. Attach the right shroud and left shroud to the
casing back with (3) 10x1/2" hex-head screws supplied in hardware
package, for each shroud. Attach top shroud to right shroud and
left shroud with (4) Phillips-head screws, supplied in hardware
package. Insert air lter into top shroud.
Attention:Iftherightshroudandleftshroudareinstalledincorrectly,
with the 3/4" wide anges facing inward, the top shroud will not
be able to be installed onto the side shrouds. The top shroud will
appear to be 2 inches, too narrow.
Vent Terminal (Figure 10)
Place the 6 3/8" x 6 3/8" (162mm x 162mm) black foam, wall plate
gasket within the mounting plate. The 4 3/4" (121mm) diameter
hole in the black foam gasket will allow for installation of the
concentricventtube assembly.Slidethe outsidemountingplateinto
place on the concentric vent tube assembly. The outside mounting
plate should seal against the face of the building and be secured
in place using (4) 10 x 1" hex-head screws. Be sure to caulk and
seal around the pipe on the exterior using high temperature exterior
grade, silicone caulk rated at 204°C/400°F. Wipe some silicone
sealant on the 2" (51mm) exhaust pipe extension. The end cap can
be pushed into place on the exhaust outlet tube.
Attention: The opening on the bottom of the end cap must be
positioned toward the ground. The opening on the bottom cannot
be pivoted to the right or left, it must be centered toward the
ground.
Figure 10
NO. 10X11/2"
SCREWS (4)
INLETAIR
EXHAUST
AIR 12"(305mm)MIN.
ABOVE GRADE
CAULK AROUND PIPE
EXHAUST FITTING-SLIDE ONTO
2" EXHAUST TUBE AND USE RTV
SEALANT TO SECURE IN PLACE
WITH OUTLET POINTED DOWN
AS SHOWN
FURNACE INSTALLATION (continued)

19562-4-0610Page 12
Figure 11
Condensate Removal (Figures 11 and 12)
The condensate drain kit is used in conjunction with DVE and
DVE-2, intake/exhaust extension kits. The condensate drain kit is
required whenever there is a vertical vent run, in a heated room [10
ft. (3m) or more for DV-40E or 6 ft. (1.8m) or more for DV-20E],
in the intake/exhaust venting.
Whenever a vertical vent run, in a heated room [10 ft. (3m) or more
for DV-40E or 6 ft. (1.8m) or more for DV-20E] and a horizontal
vent run are combined, you must purchase the optional condensate
drain kit, part number DV-1108. If the vertical vent run lengths are
less than those required for the condensate drain kit, you can slope
the horizontal vent run portion, downward 1/4" (6mm) per foot
(.3m) to the outside. However, if local codes prohibit condensate
from draining outside and the appliance produces condensate, the
horizontal portion of the vent run must slope downward, to the
appliance,1/4"(6mm)perfoot(.3m). Thiswillallowanycondensate
to ow into the condensate drain kit. Do not use the orange silicone
elbow supplied with unit to catch condensate. You can route the
condensate from the condensate drain kit to an existing drain or
into the condensate drain pan located within the appliance.
Whenever a horizontal vent run is used, where local codes allow,
you can slope the exhaust pipe downward, to the outside, 1/4"
(6mm) per foot (305mm). The downward slope on the exhaust
pipe will allow any condensate to ow out of the exhaust pipe. If
local codes prohibit condensate from draining to the outside and
the appliance produces condensate you must purchase condensate
drain kit, part number DV-1108.
INTAKE
SLOPE THE VENT TERMINAL
HORIZONTAL RUN DOWNWARD
THE OUTSIDE TO DRAIN OUT
ANY CONDENSATE
EXHAUST
VENT TERMINAL
EXHAUST AIR
ELBOW WITH CLAMPS
INTAKE AIR
SUPPORTSTAP EVERY
5FT. (1.5m) MIN.
SHROUD SIDE
EXHAUST AIR
INTAKE AIR
EXTERIOR WALL
COUPLING WITH
HOSE CLAMPS
SLOPE DOWNWARD 1/4" (6mm)
PER FOOT (m)TO DRAIN ANY
CONDENSATE OUTSIDE
FILTER
TEMPERATURE CONTROL DOOR
INTERIOR WALL
Figure 12
Reassembly and Resealing Vent-Air Intake System
When vent-air intake system is removed for servicing the furnace,
the following steps will assure proper reassembly and resealing
of the vent-air intake assembly. Be sure all hose connections and
elbow assemblies are re-secured in place using the hose clamps
removed. Reattach all screws securing mounting anges and inspect
all connections for a tight t. Use high temperature silicone caulk
rated at 204°C/400°F to reseal the inlet air vent pipe and exhaust
air vent pipe to the mounting plate.

19562-4-0610 Page 13
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: If you do not follow these instructions exactly, a re or explosion may result caus-
ing property damage, personal injury or loss of life.
A. This appliance does not have a pilot. It is equipped with
an ignition device which automatically lights the burner.
Do not try to light the burner by hand.
B. BEFORE OPERATING smell all around the appliance
area for gas. Be sure to smell next to the oor because
some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in
or turn by hand, don't try to repair it; call a qualied
servicetechnician. Force or attempted repair mayresult
in a re or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
1. STOP! Read the safety information above.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition
device which automatically lights the burner. Do not try
to light the burner by hand.
5. Remove control access panel (front panel).
6. Turn gas control knob clockwise to
"OFF."
7. Wait ten (10) minutes to clear out any gas.
Then smell for gas, including near the oor. If you smell
gas, STOP! Follow "B" in the safety information above.
If you don't smell gas, go to the next step.
8. Turn gas control knob counterclockwise
to "ON".
9. Replace control access panel (front panel).
10. Turn on all electric power to the appliance.
11. Set thermostat to desired setting.
12. If the appliance will not operate, follow the instructions
"TO TURN OFF GAS TO APPLIANCE" and call your
service technician or gas supplier.
OPERATING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if
service is to be performed .
3. Remove control access panel (front panel).
4. Turn gas control knob clockwise to
"OFF." Do not force.
5. Replace control access panel (front panel).
TOPVIEW
BACKEND VIEW
GASCONTROLLEVERSHOWN
IN "OFF"POSITION
OFF
CONVERTIBLE
REGULATOR
VINYLCAP
LIGHTING INSTRUCTIONS

19562-4-0610Page 14
The appliance, when installed, must be electrically grounded in ac-
cordance with local codes or, in the absence of local codes, with the
NationalElectricalCode,ANSI/NFPA70or CanadianElectricalCode,
CSA C22.1, if an external electrical source is utilized.
This appli-
ance is equipped with a three-prong [grounding] plug for your

into a properly grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug. For an ungrounded
receptacle, an adapter, which has two prongs and a wire for ground-
ing, can be purchased, plugged into the ungrounded receptacle and
its wire connected to the receptacle mounting screw. With this wire
completing the ground, the appliance cord plug can be plugged into
the adapter and be electrically grounded.
CAUTION:Labelallwirespriorto disconnection whenservicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Note: For testing ame sensor circuit use a micro-amp meter in
series with sensor. Minimum current should be 1 micro-amp dur-
ing operation. Be careful as ame sensor is in the 115VAC circuit.
If current is below 1 micro-amp, remove sensor, clean with light
sandpaper and retest.
Note: This heater is equipped with a remote bulb electronic thermistor
control located down low at the back of the furnace. Sometimes due
to eld locations different air currents may effect the control sensing
of the thermistor. This sensing bulb can be re-located if necessary to
provided for better room air sensing and control.
Replacement of Thermistor with 24 Volt Wall Thermostat
1. If furnace is installed, turn off gas supply and electric supply.
2. Remove casing front.
3. Remove black hose from front nipple on pressure switch.
4. Remove junction box cover (4 screws).
5. Please refer to wiring diagram for removal of the following
wires.
6. Internal Electronic Thermostat/Temperature Control
Board
Attention! No 24 volt wall thermostat wires are to be at-
tached to the internal electronic thermostat.
7. Control Board
A. Remove white wire form screw marked W.
B. Remove yellow wire from screw marked C.
C. Remove red wire from screw marked R.
8. Route (2) wires from any 24 volt wall thermostat through the
casing back of furnace to the screws marked W and R on the
control board.
9. Replace junction box cover (4 screws).
10. Replace black hose onto front nipple on pressure switch.
11. Replacement of thermistor with 24 volt wall thermostat is
completed.
CIRCULATING AIR BLOWER
WHT
FS
LS
RED
YEL
RED
BLK
1
PUR
PUR
INDUCER
BLOWER
BLU
BLU
6
5
3
IF ANYOFTHE ORIGINAL WIRE AS SUPPLIED WITH THE
APPLIANCE MUST BE REPLACED, IT MUST BE REPLACED
WITHAWIRE OF AT LEAST 105 ° C TEMPERATURE RATING.
LIMIT SWITCH
SECONDARY
FIELD INSTALLED
THERMOSTAT
24 VOLT
115VAC
SWITCH
LIMIT
3A FUSE
GND
BLACK
WHITE
ON/OFF
ROLLOUT PRESSURE
SWITCH
R-8191
VALVE
GAS
TRANSFORMER
24 VAC
PRIMARY115 VAC
COMMON
DISCONNECT INTEGRAL THERMOSTAT "R", "W", AND "C" LEADS AND ATTACH WALL THERMOSTAT AS SHOWN
RW
5
6
PSROS
RED
GRN
ORG
7
8
9
ORG
ELECTRONIC
THERMOSTAT
INTEGRAL
WHT YEL RED
2
3
GRY
BRN
BRN
GV
GRY 24 V WHT
BLK 115 V
OPTIONAL WALL MOUNT THERMOSTAT
XFMR
ON/OFF
BLACK NEUTRAL
RIBBED
INSULATION
BLACK HOT
SMOOTH
INSULATION
CIRCULATING AIR
BLOWER MOTOR
RED LED
STATUS
LIGHT
IGN
HOT SURFACE
IGNITOR
POWER SWITCH
INDUCER MOTOR
FLAME SENSOR
COMBUSTION AIR
ROS = ROLLOUT LIMIT SWITCH
IGN = HOT SURFACE IGNITOR
PS=PRESSURE SWITCH
XFMR=TRANSFORMER
CORDSET 115VAC
FS=FLAME SENSOR
GV=GAS VA LV E
LS=LIMIT SWITCH
4
2
4 1
WIRING

19562-4-0610 Page 15
The hot surface ignitor is energized and after a 17 second warm-
up, the gas valve circuit is energized, opening the gas valve
and igniting the burners. After burning for about 30 seconds,
the circulating air blower comes on, delivering warm air to
the room. If ignition does not occur, the ignition sequence is
repeated again up to 2 more times. (3 trials for ignition-total)
3. After the furnace operates and satises the thermostat, the gas
valve closes and the circulating air blower continues to run for
about 2 minutes and then shuts off. The inducer blower runs
for 5 seconds and shuts off.
If for any reason ignition and operation does not occur, the
control board will blink the red fault status LED, a sequence
code, indicating what to look for as a troubleshooting guide.
If the red LED is ON but not blinking check the electronic
temperaturecontrolto verifyitsoperation.Thiscanbeeasilydone
bydisconnecting the 3electronictemperature control leadsfrom
the main furnace board and using a pig tail jumper to connect
R & W together on the board. If the furnace comes on and runs
normally the temperature control board is malfunctioning. If
the heater still does not come on, then the main furnace board
is malfunctioning. Look for any fault codes below and verify
the 3 amp fuse is not blown.
Your new furnace should provide many years of trouble free
performance, however, a yearly inspection of the burners , ue
passageways and the outlet vent assembly should be done. Be
sure all passageways are open and clear of any obstruction, or soot
build up. Be sure to shut off all power to the unit while performing
this inspection.
Periodically remove the circulating air lter and clean with water
to remove all dirt. Shake dry and reinstall in unit.
System Operation
1. This furnace has an electronic thermostat and control board
to monitor the room temperature and then control the furnace
operation to provide the best comfort and performance from a
heating appliance. To operate unit turn ON/OFF switch to ON
and then turn temperature control knob clockwise slowly till
furnace turns on. For typical room comfort, the control knob
should be pointed toward medium.
2. The furnace control board follows sequence of operation which
allows for self diagnosis in the event there is a problem. The
control then blinks a status light, a set number of blinks based
on what problem has been encountered. When the furnace is
on and there is a no fault condition, the red LED is on.
On a typical call for heat by the integral thermostat 24 VAC is
applied to the W terminal on the board.
The inducer blower circuit is energized and the inducer blower
comes on for 15 seconds pre-purging out any gas and closing
the pressure switch.
Proper Main Burner Flame
The proper main burner ame will be a blue primary (inner) ame
with a larger, lighter blue secondary (outer) blue ame.
Figure 13
Cleaning Main Burner(s)
Remove main burner(s) and apply air pressure inside the throat and
ports of the main burner(s).
Removing Main Burner(s)
1. Remove front grill assembly.
2. Remove burner compartment access panel (2 screws).
3. Remove main burner(s) from burner compartment (2 screws
per main burner).
Removing Gas Valve
1. Remove front grill assembly.
2. Disconnect manifold union assembly at gas valve.
3. Remove (2) two 24 volt wires from gas valve. Label wires prior
to disconnection from gas valve.
4. Remove gas valve from gas valve bracket.
)
1. Remove front grill assembly.
2. Remove burner compartment access panel (2 screws).
3. Disconnect manifold union assembly.
4. Disconnect manifold union assembly brackets (5 screws).
Removing Ignitor and Flame Sensor
1. Remove front grill assembly.
2. Remove ignitor from burner compartment (2 screws).
3. Remove ame sensor from burner compartment (1 screw).
Cleaning Combustion (Exchanger) Assembly
A QUALIFIED SERVICE PERSON should remove the
combustion (exchanger) assembly. Apply air pressure to the
inside of the combustion (exchanger) assembly in order to clear
all passageways.
Oiling
The blower motor has an oil hole located on each end of the motor.
Use #20 motor oil only. It is best to oil the motor several times
during the heating season using 2 or 3 drops each time.
MAINTENANCE
OPERATION AND TROUBLESHOOTING

19562-4-0610Page 16
FURNACE CONTROL BOARD
DIAGNOSTICS
FAULT SEQUENCE CODE — TROUBLE SHOOTING GUIDE
# of Blinks Fault Condition Fault Correction
Steady On Control OK
1 Flash Temperature limit switch is open -Check Circulating Air Blower Inlet or Grill Outlet for Blockage, Inducer
Blower/Circulating Air Blower Run to Cool Heat Exchanger and Limit
-Check for Flame Roll Out Condition Causing Roll Out Limit Switch on
Burner Box to Open
-Clean Circulating Air Filter
2 Flashes Pressure switch is open with inducer on -Check Heat Exchanger and Flue System, Outlet and Inlet for Restriction
-Check Inducer Blower/Wheel for Operation/Airow
-Check Pressure Switch
3 Flashes Pressure switch is closed with inducer off -Check Pressure Switch and Replace
4 Flashes Lockout due to failed ignition -Check for Broken Ignitor
-Check for Bent Ignitor Bracket - Ignitor too far from Burner
-Check for Flame Sensor Malfunction/or False Ground
-Check Gas Valve
-Reset Thermostat
5 ashes L1/Neutral reversed or voltage not present
on L1 -Shut Off Power to Unit and Dis-Connect Cordset Plug from Wall Recep- tacle.
Open Junction Box and Un-Reverse Polarity of Incoming Power Leads
Rapid Flash Flame sense or internal control fault -Check Ignitor Operation
-Check Flame Sensor for Malfunction or False Grounding
-Check Gas Valve
-Reset Thermostat
Note: If the hot surface ignitor is to be replaced, be sure to disconnect all power to the unit. Be very careful in handling the new ignitor
as they are fragile and can be broken easily if hit or dropped.
Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts through
the distributor. Parts can be shipped directly to the service person/dealer.
All parts listed in the Parts List have a Part Number. When ordering parts, rst obtain the Model Number from the name plate on your
equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the following appropriate
illustration and list. Be sure to give all this information.
Furnace Model Number Part Description
Furnace Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, res and all causes beyond our control.
Empire Comfort Systems, Inc. Nine Eighteen Freeburg Ave. Belleville, IL 62222-0529
HOW TO ORDER REPAIR PARTS

19562-4-0610 Page 17
PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide.
PARTS LIST
INDEX
NO.
PART NO. DESCRIPTION
1 DV-1378 SHROUD TOP
2 DV-1376 SHROUD SIDE RIGHT
3 R-2521 AIR FILTER
4 DV-1375 FILTER RETAINER
5 DV-1379 WALL MOUNTING BRACKET
6 DV-1048 WALL BRACKET - 2 REQUIRED
7 R-2586 CONTROL DOOR PIN - 2 REQUIRED
8 19676 CONTROL DOOR ASSEMBLY
9 DV-1373 CASING TOP
10 DV-1368 BLOWER HOUSING - 2 REQUIRED
11 R-2584 BLOWER WHEEL - 2 REQUIRED
12 R-2573 BLOWER MOTOR
13 R-2598 MOTOR BASE WASHER - 4 REQUIRED
14 R-1279 LIMIT SWITCH
15 DV-1367 INNER TOP
16 R-2546 CONTROL KNOB
17 R-2522 ON/OFF SWITCH
18 19561 JUNCTION BOX
19 DV-1370 JUNCTION BOX COVER
20 R-1995 TRANSFORMER
21 R-6989 PRESSURE SWITCH
22 R-8140 CONTROL BOARD
23 R-2577A TEMPERATURE CONTROL BOARD
24 DV-1365 CASING WELDED ASSEMBLY
25 R-1468 STRAIN RELIEF BUSHING
26 R-2099 CORD SET
27 DV-1371 INNER END
28 DV-1372 CASING SIDE - 2 REQUIRED
29 15790 COLLECTOR BOX (DV-20E-5 ONLY)
29 15791 COLLECTOR BOX (DV-40E-5 ONLY)
30 R-2519 INDUCER WHEEL
31 DV-1169 INDUCER BLOWER HOUSING
32 R-2523 INDUCER MOTOR
33 15783 EXCHANGER ASSEMBLY (DV-20E)
33 15784 EXCHANGER ASSEMBLY (DV-40E)
34 27523 IGNITOR KIT
37 R-2543 FLAME SENSOR
38 R-2541 BURNER (2 REQUIRED ON DV-40E-5)
39 R-2575 FLAME ROLLOUT SWITCH
40 DV-1038 BURNER COMPARTMENT ACCESS PANEL
41 DV-1039 BURNER COMPARTMENT
42 R-3237 GAS VALVE (NAT GAS)
42 R-3238 GAS VALVE (LP GAS)
43 DV-1366 VALVE BRACKET ASSEMBLY
44 DV-1016 MANIFOLD ASSEMBLY (DV-20E-5 ONLY)
44 DV-1013 MANIFOLD ASSEMBLY (DV-40E-5 ONLY)
45 P-88-44 ORIFICE (NAT GAS) - 1 REQUIRED ON DV-
20E-5
45 P-88-55 ORIFICE (LPG GAS) - 1 REQUIRED ON DV-
20E-5
45 P-88-44 ORIFICE (NAT GAS) - 2 REQUIRED ON DV-
40E-5
45 P-88-55 ORIFICE (LPG GAS) - 2 REQUIRED ON DV-
40E-5
46 M-148 MANIFOLD GASKET
47 DV-781 OBSERVATION HOLE COVER ASSEMBLY
48 M-155 OBSERVATION HOLE COVER GASKET
49 DV-1040 FRONT SHIELD ASSEMBLY
50 DV-1024 BOTTOM SHIELD
51 DV-1363 FRONT GRILL ASSEMBLY
52 DV-1380 CASING FRONT ASSEMBLY
53 R-2539 HOSE CLAMP - 4 REQUIRED
54 R-3113 INLET HOSE
55 R-3111 OUTLET ELBOW
56 DV-1192 VENT PAN ASSEMBLY
57 R-3114 INLET CAP
58 R-3115 WALL PLATE GASKET - INSIDE
59 R-2587 WALL PLATE GASKET - OUTSIDE
60 DV-1195 WALL PLATE - OUTSIDE
61 DV-1193 TUBE SPACER
62 DV-1194 END CAP ASSEMBLY
63 DV-1377 SHROUD SIDE LEFT
NS DV-1361 BAFFLE - 1 REQUIRED ON DV-20E-5
NS DV-1108 Condensate Kit
NS DV-1132 Elbow Kit
NS R-8142 WIRE ASSEMBLY - CONTROL BOARD
NS - NOT SHOWN
INDEX
NO.
PART NO. DESCRIPTION

19562-4-0610Page 18
PARTS VIEW

19562-4-0610 Page 19
SERVICE NOTES

19562-4-0610Page 20
EMPIRE
EMPIRE
Comfor t Systems
Empire Comfort Systems Inc.
918 Freeburg Ave. Belleville, IL 62220
If you have a general question about our products, please e-mail us at
[email protected].
If you have a service or repair question, please contact your dealer.
www.empirecomfort.com
