Erbauer ERB069PRW User manual

Congratulations on your purchase of a quality power tool from Erbauer. This
product should give you reliable service but for your peace of mind this
power tool does carry a 12-month guarantee, the terms of which are
detailed below.
If this product develops a fault within the guarantee period contact your retailer.
Please retain this handbook in case you needto referto safety, care or guarantee
information in the future.
GUARANTEE
This product carries an Erbauer guarantee of 12 months. If your
product develops a fault within this period, you should, in the first instance
contact your retailer. If the fault occurs within the first 12 months, you may
return the goods for a full refund or we will repair or replace the goods if you
prefer. When repair is not practical or identical goods are not available,
alternative goods of similar specification and quality will usually be provided
but, failing this, you will be offered a partial or full refund depending on the
time period since purchase.
This guarantee specifically excludes losses caused due to:
-Fair wear and tear
-Misuse or abuse
-Lack of routine maintenance
-Failure of consumable items (such as batteries)
-Accidental damage
-Cosmetic damage
-Failure to follow manufacturer's guidelines
-Loss of use of the goods
-Repairs attempted by anyone, unless authorised.
This guarantee does not affect your statutory rights.
This guarantee is only valid in the UK.
GUARANTEE

We wish to thank you for choosing our machine. We are confident that the
high quality of our machine will meet with your satisfaction and appreciation
and that your pressure washer will give you long-lasting service. Before
starting to use your machine, make sure to read with care this manual, which
has been purposely drawn up to provide you with all the necessary information
for proper use of the machine, in compliance with basic safety requirements.
EQUIPMENT DESCRIPTION
Read this manual carefully and become familiar with your pressure
washer. Know its applications, its limitations and any hazards invol-ved.
This manual contains information for a pressure washer that operates at 87
bar at a flow rate of 300 litres per hour.
This high quality residential system features, axial cam pump with stainless
steel pistons, chemical injection system, adjustable spray nozzle, turbo nozzle.
Every effort has been made to ensure that information in this manual is accurate
and current.However, we reserve the right to change, alter or otherwise improve
the product and thisdocument at any time without prior notice.
EQUIPMENT DESCRIPTION
SAFETY RULES

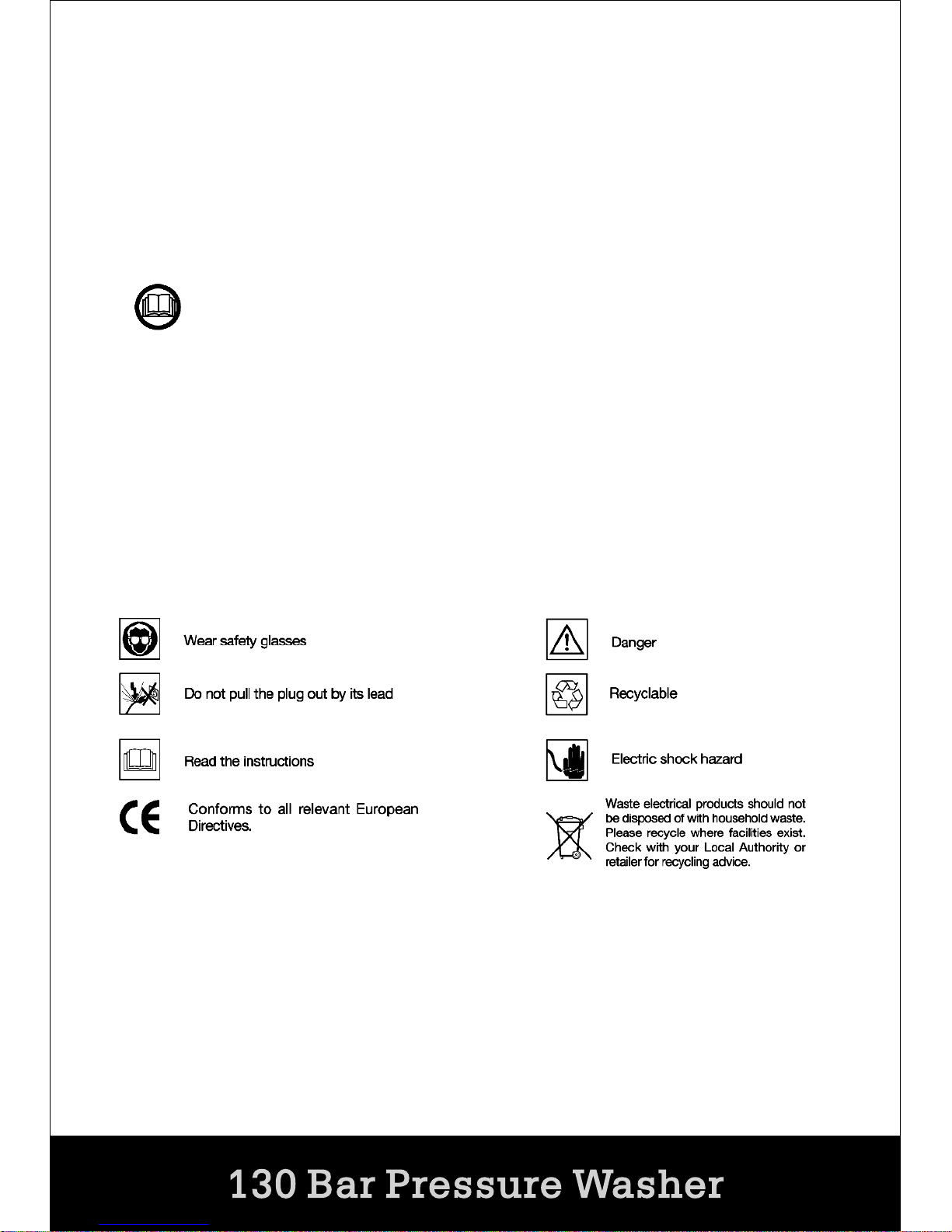

The label on your tools and manual may show symbols. These represent
important information about the product or instructions on its use.
Safety precautions are essential when any mechanical equipment is involved.
These precautions are necessary when using, storing, and servicing machanical
equipment. Using this equipment with respect and caution will considerably
reduce the possiblilities of personal injury. If safety precautions are overlooked
or ignored, personal injury or property damage may occur.
The following symbols shown below are used extensively throughout this
manual. Always heed these precautions, as they are essential when using
any mechanical equipment.
SAFETY RULES

WARNING This warning symbol identifies specific instructions or
procedures, which if not correctly followed could result in personal
injury or death.
CAUTION This caution symbol identifies specific instructions or
procedures, which, if not strictly observed, could result in damage to,
or destruction of equipment.
This unit was designed for specific applications. It should not be
modified and/or used for any application other than that for which it
was designed.
When using this product basic precautions should always
WARNING
be followed, including the following:
WARNING
CAUTION
WARNING
!!
WARNING
!!
WARNING
!!
CAUTION
1. Read this manualcarefully-know your equipment.Consider the applications,
limitations, and thepotential hazards specificto your unit.
2. Do not touchplug or outletwith wet hands.
3. Avoid accidental starts.Move switch onunit to "O"position before connectingor
disconnecting cord toelectrical outlets.
4. Water spray must never bedirected towards anyelectric wiring ordirectly towards
the pressure washermachine itself. Fatalelectric shock mayoccur.
5. Never carry yourpressure washer bythe cord. Donot pull onthe cord to
disconnect from theoutlet.
6. To prevent damage, thecord shold notbe crushed, placed next to sharpobjects
or near aheat source.
7. Stay alert, watch what you are doing.
8. Follow maintenance instructions specified in this manual.
9. Check power cordsbefore using. Damagedcords can reduce performance of
pressure washer orcause a fatalelectric shock.
10. Keep operatingarea clear ofall persons or animals.
11. Toreduce the riskof injury, do not operate near children.
12. Always useboth hands whenoperating pressure washer to maintain complete
control of thewand.
13. Do nottouch nozzle orwater spray while operating.
14. Wear safety goggles whileoperating.
15. Disconnect power plug from the outletwhen not inuse and prior to detaching the
high-pressure hose.
16. Only appropriatepressure washer hosesand nozzles should be used.
17. Never tieknots or kinkthe high-pressure hose as damage could result.
18. Prior to starting the pressure washerin cold weather, be sureice has notformed
in any partof the equipment.
19. Carefully observeall detergent instructions and warning before using.
20. The pressurewasher should notbe used in areas where gas vapours may be
present. An electric spark could cause an explosion or fire.
21. To minimise the amountof water gettinginto the pressurewasher, theunit should
be placed asfar as possiblefrom the cleaningsite during operation.

22. To prevent accidental discharge, the spray gun should be secured by
locking the trigger when not in use.
23. Do not operate this product when fatigued or under the influence of
alcohol or drugs.
24. To allow free air circulation, the pressurewasher should NOT be covered
during operation.
25. Know how to stop the product and bleed pressure quickly. Be thoroughly
familiar with the controls.
26. Do not over reach or stand on unstable support. Keep good footing and
balance at all times.
27. WARNING: Risk of injection or injury. Do not direct discharge stream at
persons or animals.
28. See page 10 for information on extension cords.
WARNING:

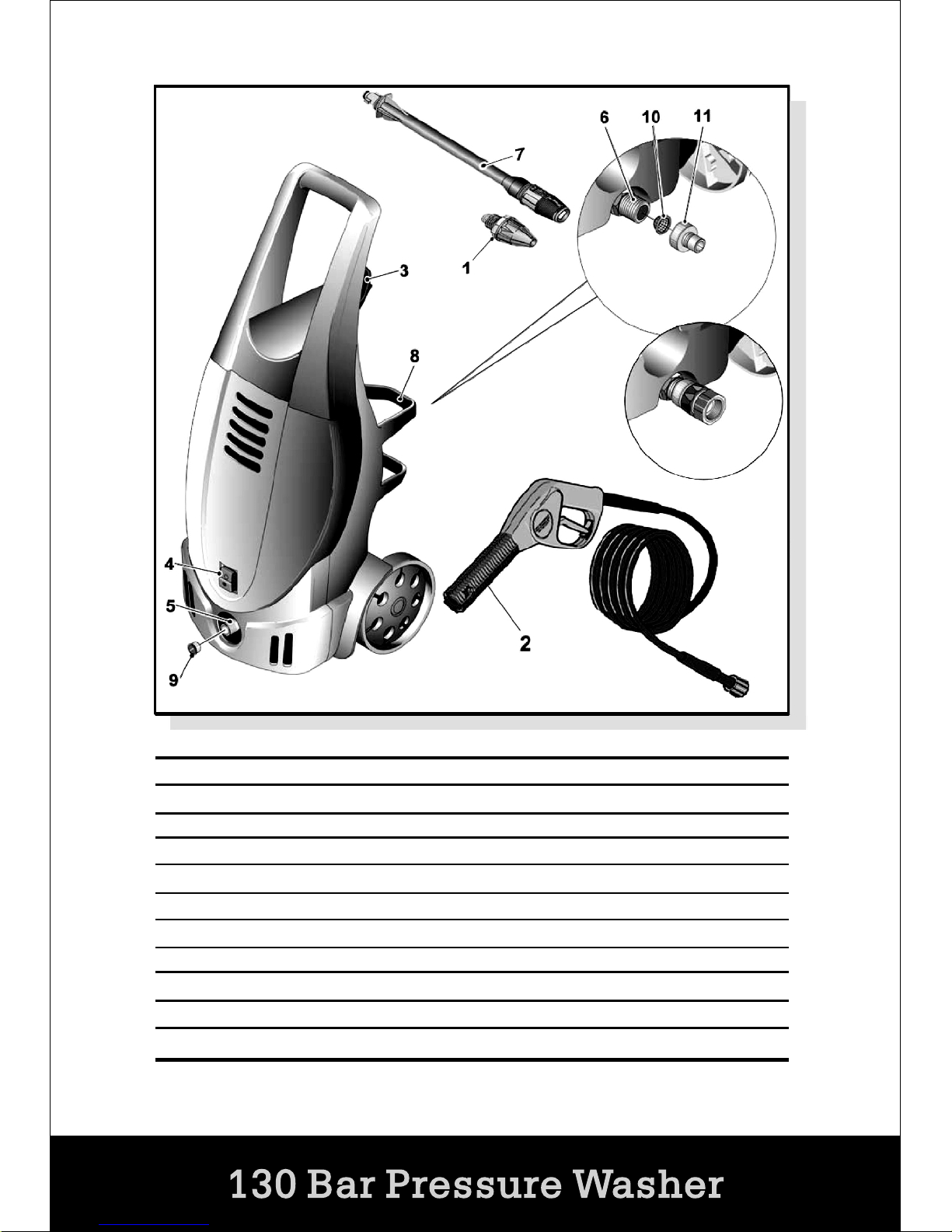

1. Turbo nozzle head
2. Spray gun with high-pressure hose
3. Holder for power cable
4. I/O switch
5. High-pressure hose connector
6. Threaded water inlet
7. Wand with adjustable nozzle
8. Holder for accessories
9. Water plug
10. Screen filter
11. Garden hose inlet nipple

TECHNICAL DATATECHNICAL DATA
Running Pressure 87bar
Max. Pressure 130 bar
Max. Flow Rate 300 litres per hour
Rated Voltage/Frequency 230-240V/50Hz
Max. Motor Capacity 1600W
IP Degree IPX5
Use liquid detergent approved for pressure washers
Shipping Weight 16 kg
Guaranteed sound power level 94dB (A)
KNOW YOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your pressure
washer.
Compare the illustrations with your pressure washer to familiarize yourself
with the locations of various controls and adjustments. Save this manual for
future reference.
Adjustable Nozzle - Attached to nozzle extension.Adjustable nozzle allows
you to adjust spray pressure and spray pattern.
Turbo Nozzle - Attached to nozzle extension. Turbo nozzle is not adjustable
and can be used in a variety of applications.
- Use to siphon detergent
Chemical Injection Siphon/Filter (not shown)
or other pressure washer chemicals into the low pressure stream.
High Pressure Hose - Connect one end to water pump and the otherend
to spray gun. Spray Gun - Controls the application of water onto cleaning
surface with trigger device.Includes trigger lock.
Water Inlet - Connection for garden hose.
KNOW YOUR PRESSURE WASHER
Adjustable Nozzle
Turbo Nozzle
Chemical Injection Siphon/Filter (not shown)
High Pressure Hose
Water Inlet
Siphon Pipe

11
ASSEMBLY
HIGH-PRESSURE HOSE
Remove and discard the water plug (Fig.1). Attach the high-pressure hose
by carefully inserting the fitting with the o-ring into the high-pressure outlet
and tightening the threaded nut by hand (Fig.1).
ASSEMBLY
HIGH-PRESSURE HOSE
WATER CONNECTION
Before connecting,run water through the garden hose (not supplied) to flush
out any foreign matter. Attach garden hose to the pressure washer water inlet
connection (Fig.2).
WATER CONNECTION
11
Fig.1
Fig.2

POWER SUPPLY CONNECTION
The pressure washer is factory-equipped with an electrical cord. This cord
should only be connected to an electrical outlet installed in accordance with
local safety regulations.
A. Connect only to a properly earthed outlet.
ALWAYS use RCD adaptor with this product.
B. Inspect cord before using. Do not use if cord is damaged.
C. Keep all connections dry and off the ground.
D. Do not touch plug with wet hands.
E. If replacement of the plug or cord is needed, use only identical replacement
parts. Contact Supplier for proper replacement parts.
Extension cords are notrecommended.
POWER SUPPLY CONNECTION
!!
WARNING

OPERATIONOPERATION
WARNING:
WARNING:
START-UP PROCEDURESTART-UP PROCEDURE
1. Make sure water supply is connected and turned on.
2. Make sure the unit is plugged in.

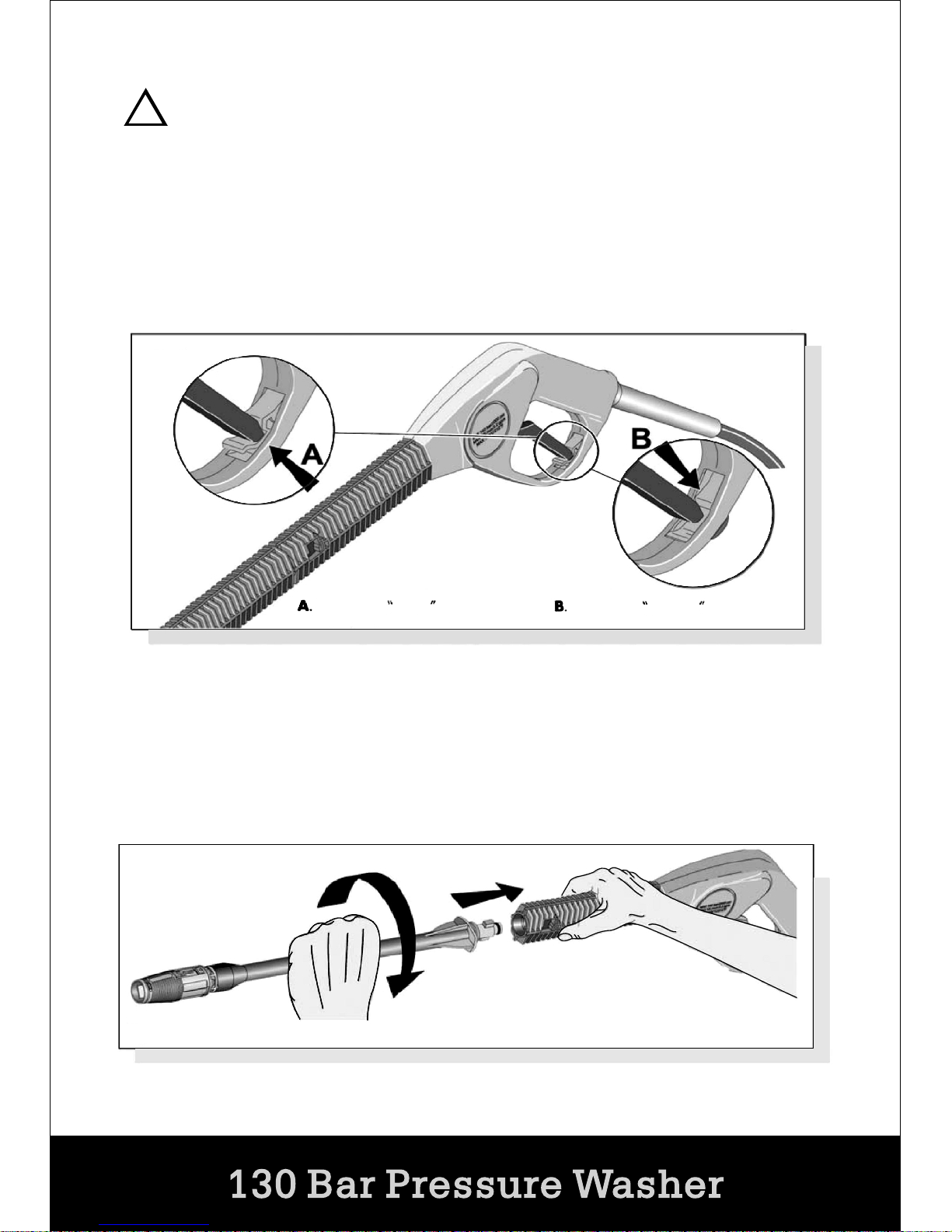

3. Release gun safety if locked. (Fig.3).
4. To allow air to escape from the hose,squeeze trigger on the gun until there
is a steady stream of water.
5. Remove any dirt or foreign matter from the gun outlet and the male
connector of the wand.
6. Insert the required wand into the gun's quick-connect coupling by pushing
firmly and twisting the wand 1/4 of a tum to lock into place. (Fig.4).
Make sure wand is locked.
NOTE: Make sure wand is locked.
NOTE:
!!
WARNING
Fig.3
Fig.4
Do Not Switch the power onto the machine
Safety lock locked Safety lock unlocked
Risk of injection or injury. Do not direct discharge
stream at persons or animals.

OO
II
WARNING:WARNING: If the wand is not securely locked into place,it could be
ejected under high pressure when operating the gun, possibly
causing injury or damage.
squeeze trigger on the spray gun.
then
7.

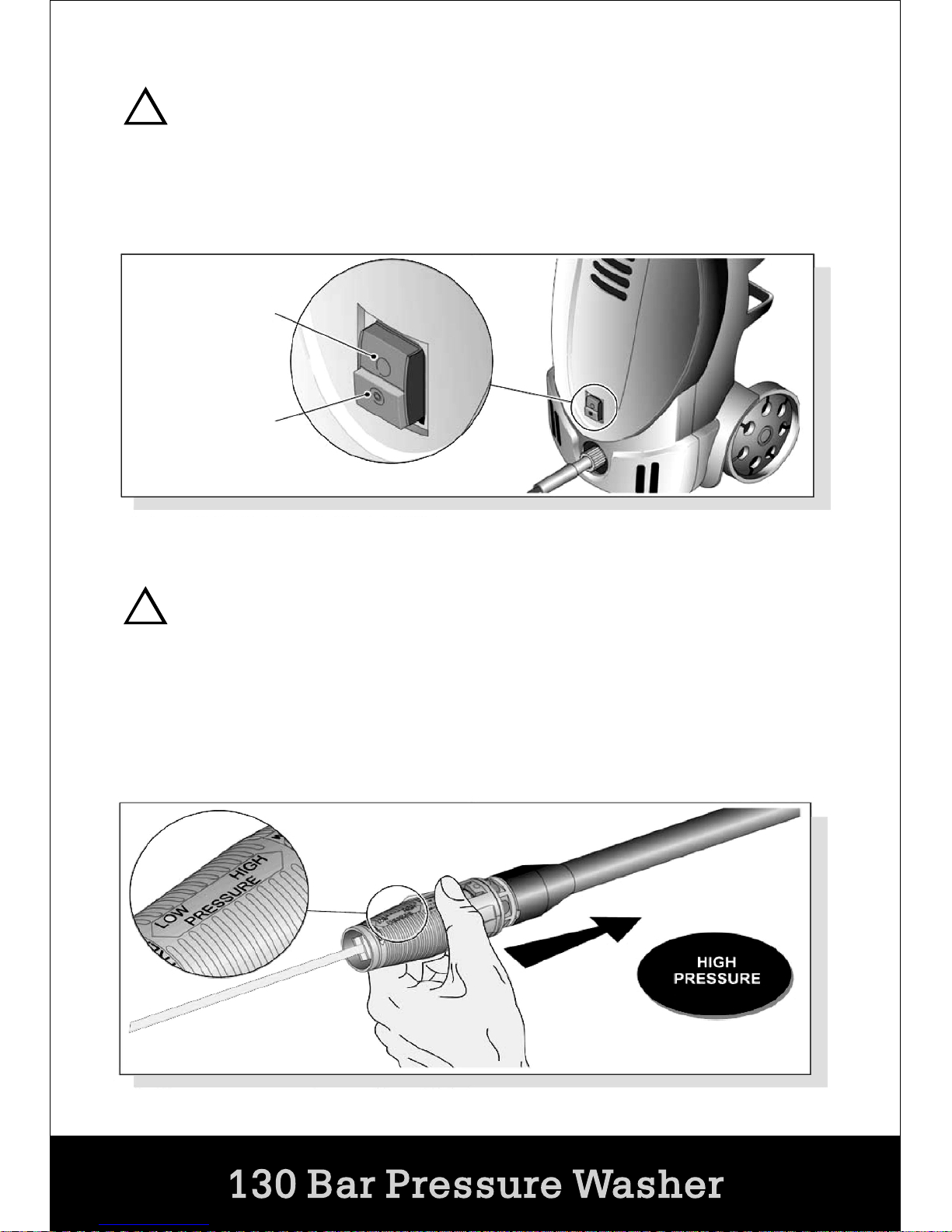

8. Press the on/off button to start pressure washer(Fig.5).
!!
WARNING
HIGH-PRESSURE/LOW-PRESSURE
(Fig.6,7).
CAUTION:Do not adjust the nozzle while the trigger is squeezed.
The high-pressure nozzle position is intendedfor cleaning. When high-pressure
is required,grasp collar and slide the collar and nozzle toward the gun.
NOTE: Make sure the collar is pulled to the extreme rear position(towards
the gun) to lock the nozzle in the high-pressure position.
HIGH-PRESSURE/LOW-PRESSURE
CAUTION:
NOTE:
!!
CAUTION
(Fig.6)
Fig.5
Fig.6
Now put on your safety goggles,

To decrease angle to a jet spray, turn clockwise.
ADJUSTABLE SPRAY NOZZLE
The adjustable spray nozzle can adjust from fan to jet in the high-pressure
position only. The spray is adjusted by turning the nozzle (Fig.8).
CAUTION: The jet spray adjustment is very powerful, and potentially
damaging.
For most cleaning applications, a 20°spray angle should be used to avoid
damage to the surface being sprayed.
NOTE: The pressure of the spray on the surface you are cleaning increases
as you move the wand closer to the surface.
To increase angle to a fan spray, turn counter-clockwise.
ADJUSTABLE SPRAY NOZZLE
CAUTION:
NOTE:
When low-pressure is required,grasp collar and slide collar and nozzle away
from the gun. (Fig.7)

HIGH-PRESSURE/TURBO SPRAY
CAUTION: Do not try to adjust the turbo nozzle.
The high-pressure turbo nozzle (Fig.9) is intended for maximum
cleaning effect. Keep the spray wand 6-8'' away from the cleaning
surface al all times.
HIGH-PRESSURE/TURBO SPRAY
CAUTION:
!!
CAUTION
DETERGENT USE
CAUTION: Only use cleaningdetergents recommended for pressure
washers.
1. Open a container of pressure washer detergent and place next to the unit
near the injection tube.
2. Inspect injection tube filter and ensure that it is not dogged.
3. Insert the injection tube into the detergent container and push to the bottom.
4. Move adjustable nozzle forward to the low pressure position by sliding
collar toward the nozzle.
The detergent will automotically be mixed with the water and discharged
through the nozzle.
WHEN THE ADJUSTABLE NOZZLE IS MOVED TO THE HIGH-
NOTE:
PRESSURE POSITION, CHEMICAL WILL NOT BE DISCHARGED.
DETERGENT USE
CAUTION:
NOTE:
!!
CAUTION

CLEANING Techniques
When cleaning with thepressure washer, some cleaning tasks can be completed
with water alone,but for most tasks it is advantageous to use a detergent.
A detergent ensures a quick soaking of the dirt allowing the high-pressure
water to penetrate and remove the dirt more effectively.
The low-pressure position provides a gentle application of detergent.
This position is alsorecommended to rinse a surface after wax application or
for other applications that require the low-pressure of a garden hose.
Low-pressure is the equivalent of a garden hose set at the lowest output to
properly apply detergent.
APPLICATION OF DETERGENT
1. Apply the solution to a DRY work surface. NOTE: WETTING THE
SURFACE FIRST IS NOT RECOMMENDED, AS IT DILUTES THE
DETERGENT AND REDUCES ITS CLEANING ABILITY.
On a vertical surface, apply horizontally form side to side starting from the
bottom to avoid streaking.
2. Allow detergent to remain on the surface for a short time before rinsing.
CAUTION: Damage may occur to painted surface if chemical is allowed to
dry on the surface. Wash and rinse a small section at a time. Avoid working
on hot surfaces or in direct sunlight.
3. Rinse with clean water under high-pressure. On a vertical surface,
first rinse from the bottom up, then rinse from the top down. Hold nozzle 6-8″
from the work surface at a 45°angle using the flat spray as a peeling tool
rather than a scrub brush.
NOTE: Ensure that thedetergent injection system is completely clean prior
to switching from one detergent to another.
CLEANING Techniques
APPLICATION OF DETERGENT
CAUTION:
NOTE:

NOTE: Completely screw the nozzles on the wand up to the complete lock.
(See picture)
Reconnect and restart the pressure wahser and depress the trigger on the
spray gun. If the pressure is still too high, repeat above items 1-4.
LUBRICATION
The pressure washer is designed with a permanent lubrication system.
Conventional oil check and oil changes are not necessary.
NOTE: A SMALL AMOUNT OF OIL LEAKAGE IS NORMAL.
WATER SCREEN
The pressure wsher is equipped with a water inlet screen to protect the pump.
CAUTION: If the screenis not kept clean, the flow of water to the
pressurewasher will be restricted and the pump may be damaged.
To clean inner water screen, remove quick-connect and remove the filter
screen from the pump inlet.
Backflush screen to clean.
Replace screen and quick-connect immediately to prevent any foreign matter
from entering the pump.
NOTE:
LUBRICATION
NOTE:
WATER SCREEN
CAUTION:
1. Make sure that the pressure washer is turned off and that the power cord
is unplugged.
2. Make sure that the water supply is turned off, and that the trigger is
squeezed to depressurise the unit.
3. Separate the nozzle from the wand (Fig.12)
4. Clear the nozzle.
5. Flush the nozzle backwards with water.
6. Reconnect the nozzle to the wand.
!!
CAUTION

CAUTION: Do not damage the screen while removing or cleaning.
Any foreign particles entering the pump may cause damage.
COOLING SYSTEM
The air vents, located in and around the pressure washer, must be kept clean
and free of any obstructions to ensure proper air cooling of the motor during
operation.
WARNING: Prevent water from penetrating the vents of the pressure
washer to minimise the risk of damage to the machine and to reduce
the risk of electric shock to the operator.
MOVING AND STORAGE INSTRUCTIONS
CAUTION: Always store your pressure washer in a location where
the temperature will not fall below 0℃（32°F）. The pump in this
machine is susceptible to permanent damage if frozen.
DAMAGE CAUSED BY FREEEZING IS NOT COVERED BY THE
WARRANTY.
If you must store your pressure washer in a location where the temperature
is below 0℃（32°F）, you can minimise the chance of damage to your machine
by utilizing the following procedure:
1. Stop the pressure washer
2. Squeeze the trigger of the discharge gun to drain all water from the wand
and hose.
3. Detach supply hose and high-pressure hose.
4. Restart the pressure washer and let it run briefly (about 5 seconds) until
water no longer discharges from the high pressure outlet.
CAUTION:
WARNING:
CAUTION:
COOLING SYSTEM
MOVING AND STORAGE INSTRUCTIONS
!!
CAUTION
!!
WARNING
!!
CAUTION
Never spray water directly onto the pressure washer for cleaning.
C
C

Water or oil leaking from
bottom of pump.
Trigger will not move.
Unit will not stop when
trigger is released.
Motor running but pump
not building maximum
pressure or has irregular
pressure.
Extension cord length
or gauge incorrect.Loose
or disconnected power
plug.Pressure washer
thermal switch is tripped.
Spray gun trigger not
operating properly.
Defective spray gun.
Circuit overload.
Extension cord too long
or wire size too small.
Nozzle partially blocked.
Excessive pressure.
A small amount of
leakage is normal.
Spray gun safety lock
engaged.
Spray gun trigger system
not operating properly.
Faucet closed.Waterinlet
screen clogged.Gun and
hose failure.Kink in garden
hose.Wand nozzleworn
out.Air in pump.
Clogged nozzle.
Use proper extension
cord. See Operator's
Manual section 2.0.
Reconnect power plug.
Allow to cooland
restart unit.
Remove gun, aimwater
stream away from
electrical source, and
press ON. Ifmachine
starts, gun isdefective.
Check that the circuit
is rated15A orgreater.
Use proper extension
cord asrecommended
in operator's manual
section 3.3.Cleannozzle
as instructedin section
5.2.Clean nozzle as
instructed in section
5.2.
If excessive leaking
occurs, Contact
Supplier
Release safety
lock.
Open faucet.Clean
screen, see section
5.4.Replace gun and
hose.Straighten hose.
Replace spray wand.
Let pressure washer
run with gun open and
wand removed until
steady stream of water
is released.Clean nozzle,
see manual section 5.2.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE COMMON
SOLUTIONS
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE COMMON
SOLUTIONS
Motor will not start or
stops while operating.
Circuit breaker trips or
fuse blown in fuse box.
Contact Supplier
