INTRODUCTION
This manual contains installation instructions for the Orion Mobile
Radio Unit and associated accessories. These instructions cover the
mounting and cabling of the radio; interconnection and wiring diagrams
are provided for reference. Before installation the radio should be
programmed using an IBM compatible personal computer and the
following items:
Serial/Flash Programming Interface Module TQ3370
Programming Cable TQ3377
EDACS Programming Software TQ3374
or
Conventional Programming Software TQ3367
IMPORTANT NOTICE
ORION UHF MOBILES
The PC programmer automatically defaults the receiver oscillator shift
to position No. 2. When field programming the receive frequencies for
ORION UHF mobiles, the oscillator shift must be programmed to
position No. 1 or No. 3. Enter the CONVENTIONAL and/or
TRUNKED FREQUENCY SET screen of the PC programmer and set
the values in the “OS” column to “1” or “3”.
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the radio and identify each item in the shipping
container as listed below. If damage has occurred to the equipment
during shipment, file a claim with the carrier immediately. The
available options for the Orion Mobile Radio are covered in Table 1.
•Orion Mobile Radio Unit
•Microphone D2MC3W or D2MC3Z
•Speaker D2LS1F or D2LS1H
•Power Cable D2CE1V
•Fuse Kit D2PD1J
•Control Cable D2CE1Y

4
•Front Mount Bracket Kit D2MA3N
or
•Remote Mount Kit D2MA3R
with
•Control Unit Mount Kit D2MA3J
•Operator's Manual LBI-38888
•Installation Manual LBI-38901

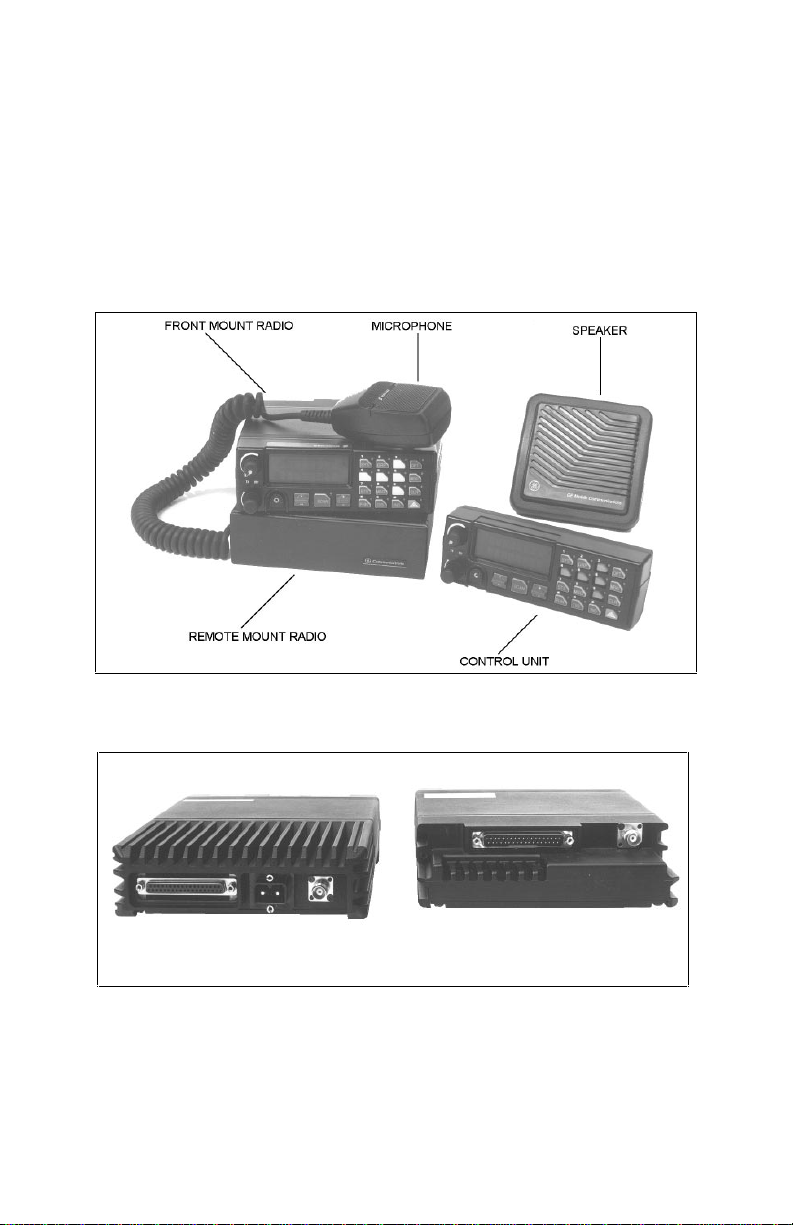

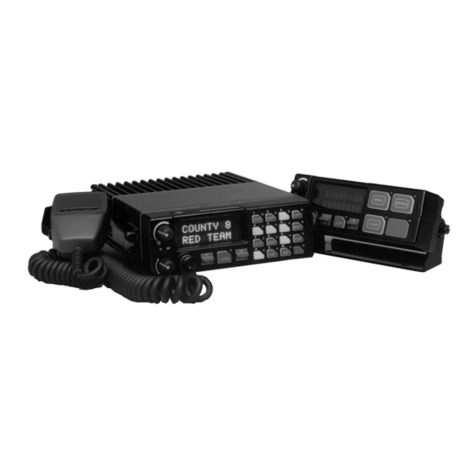

Figure 1 - Orion Mobile Radio Components And Mounting
Hardware
Figure 2 - Rear View Of Radios
USA EURO
33
8. Connect the extended option accessory plug P4 to the following
options (if used, see Figure 29):
•Mobile Data Terminal
•Public Address (External Amplifier)
•External Microphone
•External Tone Encoder
•External Tone Decoder
•Output (User Defined)
•Input (User Defined)
CAUTION
Refer to accessory manual supplement for details regarding the
extended options listed above. DO NOT CONNECT DIRECTLY TO
A PC OR DATA TERMINAL. DAMAGE COULD RESULT!!!
9. With the handle assembly in the UNLOCKED position (out in front
of the control unit), insert the radio into the cassette assembly.
Slide the radio into the cassette assembly until the back of the radio
meets the back of the cassette assembly.
NOTE
Caution should be used while engaging the radio in the cassette the
first few times until the cabling in the cassette mount assembly has had
an opportunity to work into its permanent location. To insure proper
first time engagement, the following procedure should be used:
Insert radio into cassette mount opening and slide in until you feel
some spring resistance. Holding the handle, jiggle the radio a bit to
give it a chance to find the connectors. Then engage the radio handle
in the sheet metal hooks which protrude from the lower corners of the
cassette mount casing. Rotate the handle upward to fully engage the
radio. See Figure 30. DO NOT FORCE THE CONNECTOR
ENGAGEMENT portion of the travel.
If the radio does not go in using this procedure, a large flat blade
screwdriver may be used to re-position the 37 pin connector slightly to
assist the first time engagement.

32

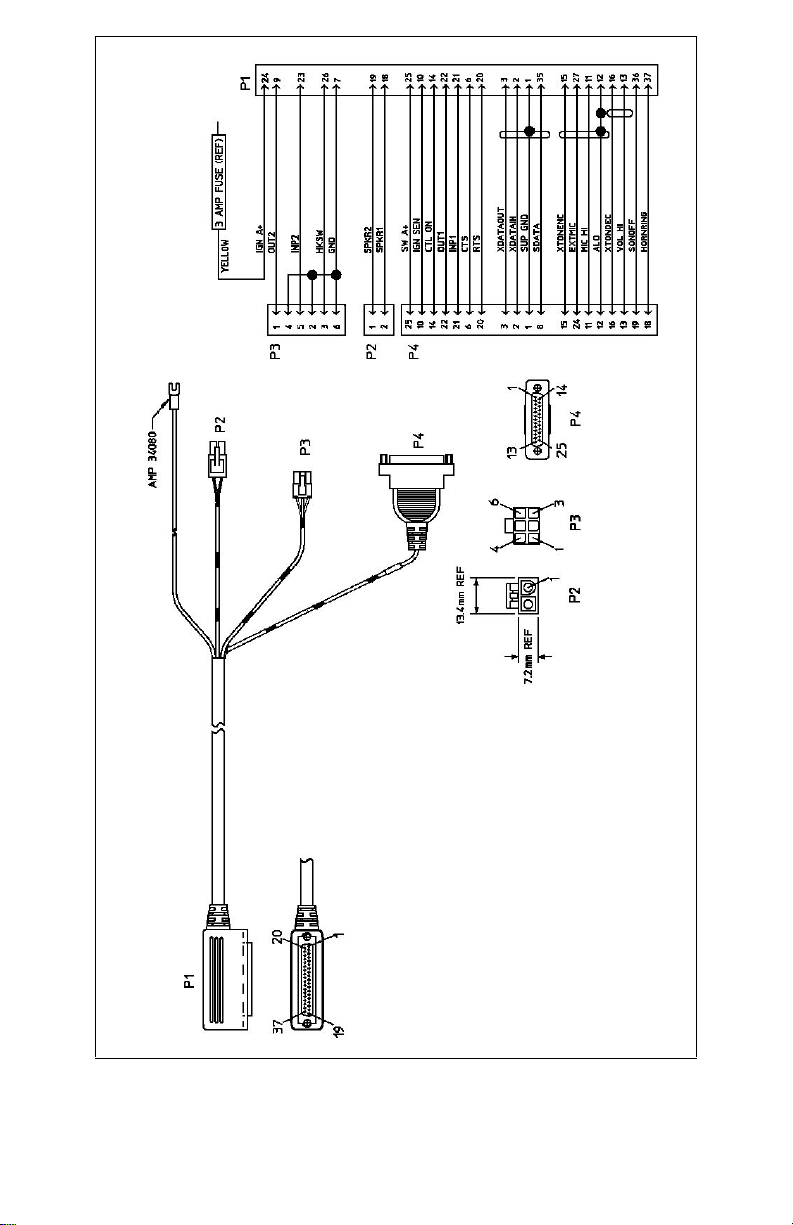

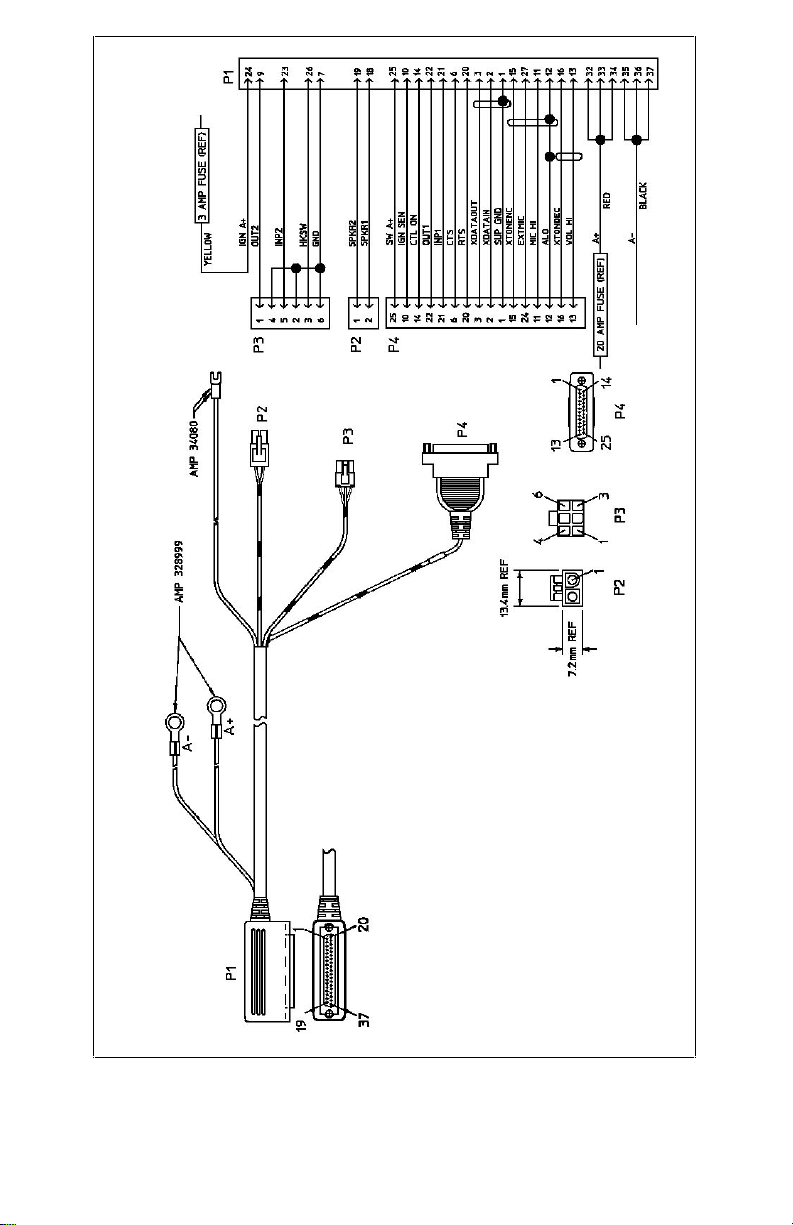

Figure 29 - Cassette Assembly Schematic Diagram
5

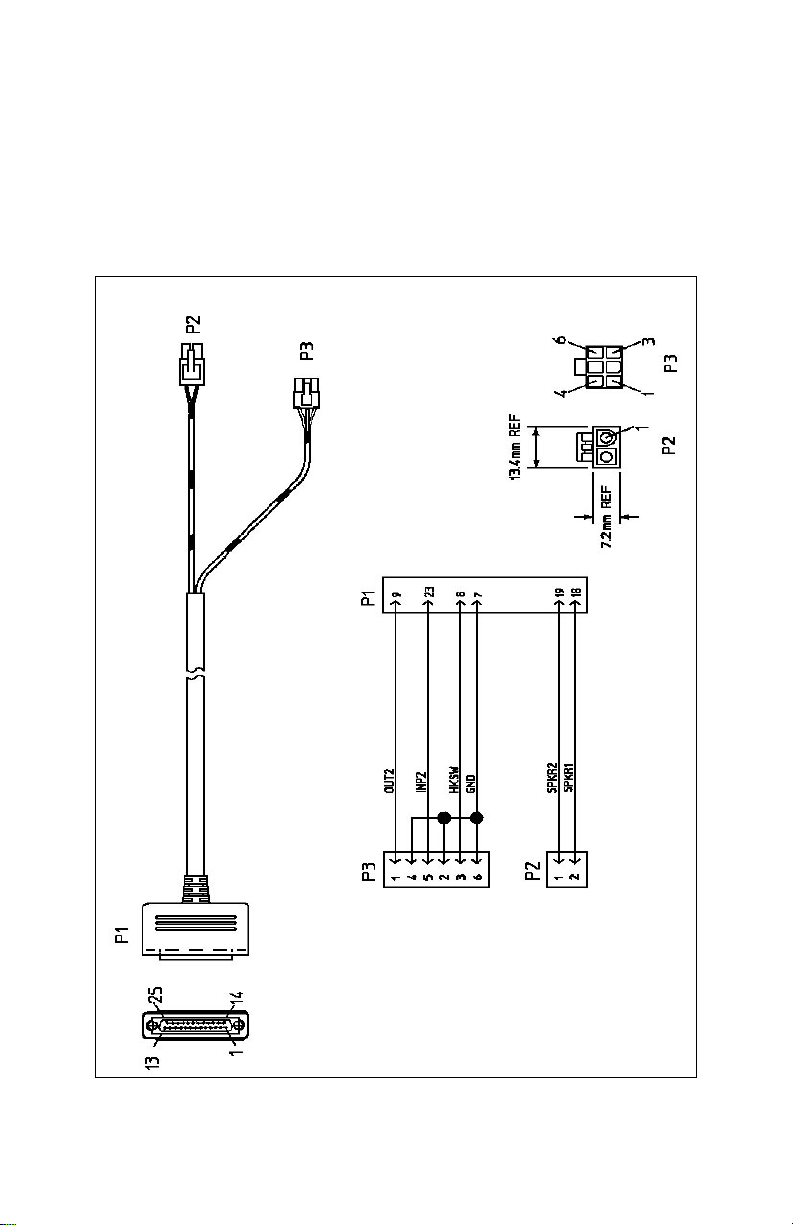

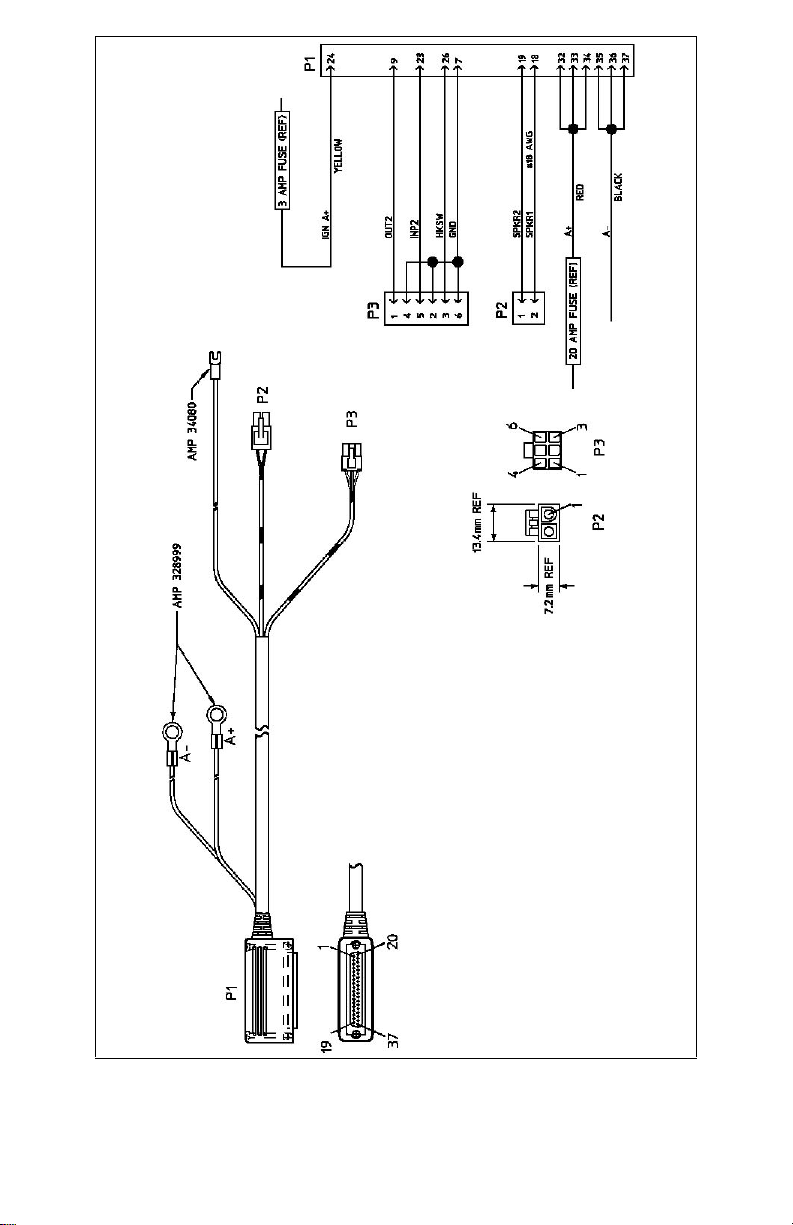

Figure 3 - Cables

6
Table 1 - Orion Mobile Radio Optional Accessories
Option Description Part Number
D2AN1M 900 MHz, 1/4 Wave Whip Antenna 19B801182P3
D2AN1L 800 MHz 1/4 Wave Whip Antenna 19B209568P5
D2AN1R VHF/UHF, 1/4 Wave Whip Antenna 19B209568P6
D2CE1V Power Cable, 7.5 M 19B802622P1
D2CE1W Accessory Cable, Front Mount 19B802554P1
D2CE1X Accessory Cable, Rear Mount 19B802554P6
D2CE1Y Control Cable, Remote Mount, 5.5 M 19B802554P3
D2CE1Z Accessory Cable, Front Mount EURO 19B802554P11
D2CE5R Extended Option Accessory Cable Front Mount 19B802554P2
D2CE5S EXT Option Control Cable, Remote Mount, 5.5 M 19B802554P4
D2CE5T EXT Option Accessory Cable, Remote Mount 19B802554P7
D2CE5U EXT Option Accessory Cable, Front Mount, EURO 19B802554P12
D2CE5V Control Cable, Remote Mount, EURO, 5.5 M 19B802554P13
D2CE5W EXT Option Control Cable, Remote Mount, 5.5 M 19B802554P14
D2CE5Z Dual Control Cable, Remote Mount, 9.0 M 19B802554P9
D2CE7A Dual Radio Cable, Remote Mount, 2.0 M 19B802554P10
D2CE7B Dual Control Cable, Remote Mount, 9.0 M, EURO
D2CE7C Dual Radio Cable, Remote Mount, 2.0 M, EURO
D2LS1F Speaker, GE Label 19A149590P1
D2LS1H Speaker, ERICSSON Label 19A149590P11
D2MA3J Mounting Bracket Kit, Remote Control Unit 344A4584G2
D2MA3N Mounting Bracket Kit, Front Mount Radio 19B802672P1
D2MA3R Mounting Bracket Kit, Remote Mount Radio 19B802673P1
D2MA3W Mounting Bracket Kit, Remote Mount Radio, EURO 19B802672P1
D2MA3X Cassette Mounting Bracket Kit, Front Mount, EURO 19B852366P1
D2MC3W Microphone, GE Label
D2MC3Z Microphone, Ericsson Label
D2MK3E Keycap Kit, SCAN Control Unit 19C852359P101
D2MK3F Keycap Kit, SYSTEM Control Unit 19C852359P102
D2MN1A Microphone Hanger 7141414G2
D2PD1J Transmit Fuse Holder Kit, 20/30A (USA Only) 19A149701G2
PLANNING THE INSTALLATION
Figure 4 provides an example of a typical mobile radio installation.
Before starting, plan the radio installation carefully so that it will be:
•safe for the operator and passengers
•convenient for the operator to use
•neat
•protected from water damage
•easy to service
•out of the way of auto mechanics
•out of the way of passengers
31
Cassette Assembly Mounting
1. Insert the cassette assembly in the mounting location. Secure the
cables with the sheet metal screws and retaining straps provided.
2. Secure the back of the cassette assembly using the mounting stud
(located at the back of the cassette assembly), No. 6 flat washer, No.
6 split lock washer and No. 6 wing nut.
3. Several tabs are located on the top, bottom and sides of the cassette
assembly. These tabs are conveniently located near the front of the
assembly and may be bent out as needed to further secure the
cassette assembly to the vehicle.
4. Next install the Handle Assembly:
a. Turn the radio upside down. Remove the two small machine
screws on the bottom of the radio, near the front. Use upward
pressure on screws to engage captivated threads for removal.
b. Using the machine screws and flat washers provided with the
handle assembly, attach the handle to the bottom of the radio.
The two holes on the handle should align with the two holes on
the radio created by step (a). Once installed, the rubber handle
should rotate freely from over top of the radio to just out in
front of the control unit (approximately 90 degrees). Be sure to
torque the two mounting screws within 6.5 to 8.25 in/lb limits.
5. Connect the antenna coaxial cable to the cassette mounting
assembly rear connector.
6. Connect the Power leads and the Ignition Sense leads as described
in previous sections. See Figure 29.
7. Connect the speaker cable connector P2 to the speaker and the basic
accessory connector P3 to the following options (if used, see Figure
29): Option Plug & Pin
Ext. Hookswitch P3-3 (HOT)
P3-6 (GND)
Foot Switch P3-5 (HOT)
P3-2 (GND)
Horn Relay P3-1 (HOT)
P3-4 (GND)

30
Figure 27 - Remote Mounting Bracket Installation
Cassette Mounting (EURO ONLY)
The cassette mounting assembly is designed to mount in a standard DIN
space in the instrument panel or console. This mounting permits rapid
insertion and removal of the radio unit from the vehicle. All
connections are made through a quick disconnect connector at the rear
of the cassette mounting assembly to the radio unit. This connector is
part of the cassette assembly. The cassette assembly is shown in Figure
28.
Figure 28 - Cassette Assembly
Top Mount
Bottom Mount
7

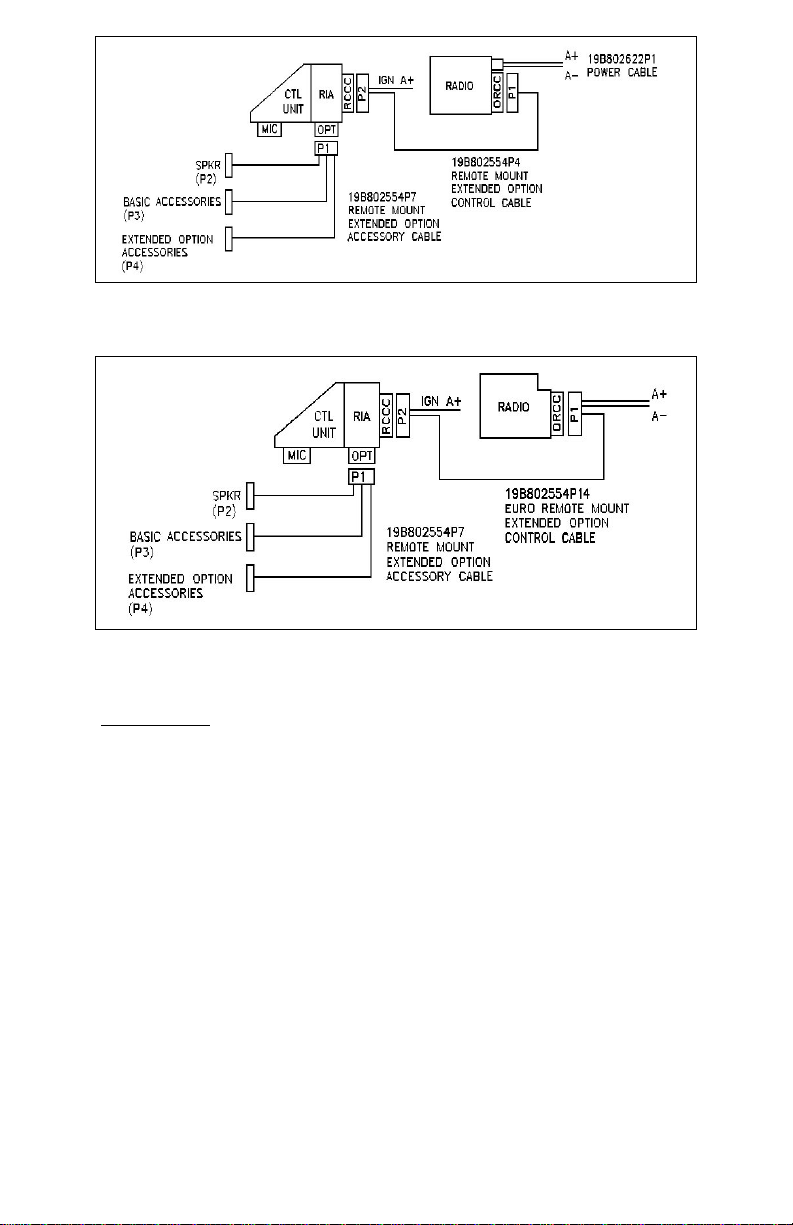

Figure 4 - Typical Installation (Remote Mount Shown)
It is suggested that the radio be installed by one of the many authorized
General Electric Service Stations located throughout the United States.
These experienced service stations can provide a proper radio
installation and make any final adjustments that may be needed.
WARNING
•Vehicular Electronics-Electronic fuel injection systems, electronic
anti-skid braking systems, electronic cruise control systems, etc.,
are typical of the types of electronic devices which may be prone
to malfunction due to the lack of protection from radio frequency
energy present when a radio is transmitting. If the vehicle
contains such equipment, consult the dealer to determine if such
electronic equipment will perform normally when the radio is
transmitting.
•For passenger safety, mount the radio securely so that the unit
will not break loose in the event of a collision. This is especially
important in station wagons, vans and similar type installations
where a loose radio could be extremely dangerous to the vehicle
occupants.

8
EQUIPMENT REQUIRED
The equipment required for installing the Orion Mobile Radio is listed
below:
•Crimping Tool for fuse holder
•Electric drill for drilling mounting holes
•Drills and circle cutters as follows:
No. 31 (1/8-inch) drill
No. 27 (9/64-inch) drill
5/8-inch drill or circle cutter
3/4-inch circle cutter, hole saw or socket punch
•Phillips and flat-blade screwdrivers
•POZIDRIV driver
•No. 20 Torx driver
Torx is a registered trademark of CAMCAR Division TEXTRON, Inc.
POZIDRIV is a registered trademark of Phillips International Company.
CAUTION
•Be careful to avoid damaging some vital part (fuel tank,
transmission housing, etc.) of the vehicle when drilling mounting
holes. Always check to see how far the mounting screws will
extend below the mounting surface before installing.
•If pilot holes must be drilled, remove all metal shavings from
drilling holes before installing screws.
29
Remote Mount Installation
The bracket shown in Figure 27 is used for Remote Mounting (USA
Only). In some applications the bracket shown in Figure 26 can also be
used for Remote Mounting. The following instructions are for a Remote
Mount installation using the bracket shown in Figure 27.
1. Using the bracket as a template, mark and drill the mounting holes
using a No. 27 drill. Be sure to leave enough room at the rear of
the radio unit for the cable connections.
2. Secure the Mounting bracket using four 1/4"-14 x 3/4" sheet metal
screws (use 1/4"-14 x 1" if needed.) The bracket can be used
mounted so that it is either above or below the radio for the user's
convenience.
3. Slide the radio unit into the bracket by aligning bracket guides with
grooves on each side of radio (rear of radio should be inserted first).
Slide radio back until screw holes in front of bracket align with
screw holes in side of radio. See Figure 27.
4. Secure radio to the bracket with two M4 x 10 mm socket head
screws provided.
5. Connect antenna coaxial cable to antenna connector (TNC).
6. Connect remote control cable connector P1 to the ORCC connector
on the radio unit and secure with the two captive screws.
7. Connect other end of remote control cable to the remote control
cable connector (RCCC) on the remote control unit.
8. Connect remote mount accessory cable connector P1 to the option
connector (OPT) on control unit. Then connect the speaker to
connector P2 and accessory connector P3 to any options
(hookswitch, etc.). If connector P3 is not used, insulate and tie back
to main cable.
9. Recheck all connections and cables. Insert fuse into transmit fuse
assembly.

28
Figure 26 - Mounting Bracket Installation
6. Connect front mount accessory cable connector P2 to speaker cable
connector.
7. Connect power cable to power connector on rear of radio unit and
secure with the two captive screws to the radio unit.
8. Connect microphone connector to connector on front panel and
secure with captive screw.
NOTE
Do not torque microphone connector screw greater than 2 in-lb.
Alternatively, finger tight plus 1/4 turn is acceptable.
9. If there are no other accessory connections, tie back plug P3 to main
cable.
10. Recheck all connections before inserting fuse into transmit fuse
assembly.
Top Mount
Bottom Mount
9
INSTALLATION IN VEHICLES POWERED
BY LIQUEFIED (LP) GAS
Radio installation in vehicles powered by liquefied petroleum gas
with the LP gas container in the trunk or other sealed-off space
within the interior of the vehicle must conform to the National Fire
Protection Association Standard NFPA 58 which requires that:
•Space containing radio equipment shall be isolated by a seal from
the space containing the LP gas container and its fittings.
•Outside filling connections shall be used for the LP gas container.
•The LP gas container space shall be vented to the outside of the
vehicle.
INSTALLATION
RUNNING CABLES
To assure the feasibility of the planned cable routings, it is suggested
that the cables be run before mounting the radio. The Orion mobile
radio may be installed as a Front Mount, Remote Mount or Cassette
Mount. The type of mount, the application and the options to be
installed should be considered when planning the cable runs. Figures 5-
12 provide Interconnection Diagrams for typical installations. Figures
5-12 should be referenced throughout this manual and throughout the
installation.
Be sure to leave some slack in each cable going to the radio so that the
radio may be pulled out for servicing with the power applied and
antenna attached. Coil any surplus cables and secure them out of the
way. Try to route the cables away from locations where they will be
exposed to heat (exhaust pipes, mufflers, tailpipes, etc.), battery acid,
sharp edges or mechanical damage or where they will be a nuisance to
automobile mechanics, the driver or passengers. Keep wiring away from
electronic computer modules, other electronic modules and ignition
circuits to help prevent interference to these components and radio
equipment.
In addition, try to utilize existing holes in the firewall, trunk wall and
the channels above or beneath doors. Channels through door and
window columns that are convenient for running cables may also be
used, unless rigid or flexible conduit is to be installed for cable runs.

10
Figure 5 - Front Mount Basic Accessory Interconnections (USA
Models Only)
Figure 6 - Front Mount Basic Accessory Interconnections (EURO
Models Only)
Figure 7 - Front Mount Extended Option Accessory
Interconnections (USA Models Only)
27
Figure 25 - Speaker Mounting
RADIO MOUNTING AND FINAL HOOK-UP
Front Mount
Typically the bracket shown in Figure 26 is used for Front Mount
applications. The bracket can be mounted so that it is either above or
below the radio for the user's convenience. The bracket pictured in
Figure 24 can also be used for Remote Mount application but is not
recommended for 110 watt VHF radios or 100 watt UHF radios.
The following instructions are for a Front Mount installation using the
bracket shown in Figure 26.
1. Use the supplied mounting bracket as a template to locate the
position for each of the drill holes. Be sure to leave enough room at
the front and rear of the radio for cable connections. Drill No. 27
(9/64) pilot holes.
2. Mount bracket with four 1/4"-14 x 3/4" sheet metal screws (use
1/4"-14 x 1-1/2" screws if needed).
3. Place radio into mounting bracket and secure with the four M4 x 10
mm hex head screws, M4 flat washers and M4 lock washers
supplied. No. 20 Torx.
4. Connect antenna coaxial cable to antenna connector (TNC).
5. Connect front mount accessory cable connector P1 to the
Option/Remote Control Connector (ORCC) and secure with the two
captive screws in the connector to the radio.

26
Figure 24 - Control Unit Mounting Bracket Installation
SPEAKER D2LS1F
The speaker kit includes the speaker, mounting bracket and connecting
cable. Mount the speaker so it is directed to the operator but does not
present a hazard in the event of an accident. The speaker may be
mounted on the lower edge of the instrument panel, the firewall or above
the windshield in some trucks.
1. Use the mounting bracket as a template for locating the mounting
holes and mount the speaker as shown in Figure 25.
2. Refer to the applicable installation procedures for connection of the
speaker to the accessory cable.
MICROPHONE HANGER AND/OR HOOKSWITCH
MOUNTING
The microphone hanger or hookswitch should be mounted in a location
convenient to the operator where it will not interfere with the safe
operation of the vehicle or be a hazard to the vehicle passengers. The
hanger or hookswitch is designed to be mounted with the open end of
the mounting button slot pointed upward. Use the hanger or hookswitch
as a template to mark and drill the mounting holes. Mount the hanger
or hookswitch with the self-tapping screws provided.
Top Mount Bottom Mount
11
Figure 8 - Front Mount Extended Option Accessory
Interconnections (EURO Models Only)
Figure 9 - Remote Mount Basic Accessory Interconnections (USA
Models Only)
Figure 10 - Remote Mount Basic Accessory Interconnections (EURO
Models Only)

12
Figure 11 - Remote Mount Extended Option Accessory
Interconnections (USA Models Only)
Figure 12 - Remote Mount Extended Option Accessory
Interconnections (EURO Models Only)
Power Cable
The USA power cable (19B802622P1) consists of a red lead A+ and a
black lead A- connected to a molded 2-pin power connector and
supplied with ring terminals. The EURO power cable also consists of a
red lead A+, a black lead A- and is terminated with ring terminals, but it
is connected to P1 of the Accessory Cable or P1 of the Control Cable (in
remote applications). To install the power cable:
1. Drill a 5/8-inch hole in the firewall for the cable run and insert the
rubber grommet. Run the cable through this grommet to the battery
location. Secure the cable at several locations within the engine
compartment to prevent possible damage to cable.
2. Strip back the insulation approximately 3/8 of an inch from the end
of the black lead. Slide one of the large heat shrink sleeves onto the
wire and crimp a battery ring terminal onto this lead. Heat shrink
25
Figure 23 - EURO Extended Options Remote Control Cable
19B802554P14

24
Figure 22 - USA Extended Options Remote Control Cable
19B802554P13
13
the sleeve over the crimp connection. Connect the black lead
directly to the battery negative (-) or ground frame member.
3. Cut off 12-18 inches from the red lead. Strip back the insulation
approximately 3/8 of an inch on each end of the wires. Insert the
wire ends into the small openings at the end of each fuse holder
section and crimp a fuse connector to each wire. Prepare the other
end of the short wire in the same manner as in Step 2 and connect
to the positive (+) terminal of the battery.
NOTE
Do not install fuse into fuse holder until installation is completed and
all connections have been checked.
Figure 13 - Power Cable 19B802622P1 (USA Only)
Accessory Cable
Front Mount
The Basic Accessory Cable, at one end, consists of the basic accessories
connector (P3), the speaker connector (P2) and the ignition sense lead.
At the other end is plug P1. P1 connects to the Option/Remote Control
Connector (ORCC) which is mounted on the back of the radio. The
EURO Accessory Cable also contains the red and black leads of the
Power Cable.
NOTE: The EURO ORCC is the opposite gender from the USA ORCC.
The Extended Option Accessory Cable is the same as the Basic Cable
but with the addition of the Extended Option Plug (P4). See Figures 14-
17.

14
Figure 14 - USA Front Mount Standard Accessory Cable
19B802554P1
23
Figure 21 - USA Remote Extended Option Control Cable
19B802554P4

22
Figure 20 - USA Remote Control Cable 19B802554P3
15
Figure 15 - EURO Front Mount Standard Accessory Cable
19B802554P11

16
Figure 16 - USA Front Mount Extended Option Accessory Cable
19B802554P2
21
CAUTION
Certain problems may be encountered when accessory equipment is
connected to the ignition or accessory lines of the vehicle, where these
lines may have large filter capacitors and a leakage path present. If
the radio does not turn off within a reasonable amount of time after
the ignition is turned off, first try a different accessory or ignition
sense pick up point in the vehicle. Many vehicles have more than one
circuit that is switched by the ignition switch, and one may be
available that does not have large filter capacitors or a leakage path
present.
If a different pickup point cannot be found, then add a 470-ohm, 1-
watt resistor from the ignition sense pick point to ground. This will
discharge the capacitor(s) or reduce the leakage voltage to a low
value. Current drain through this resistor will be minimal (less than
0.03A) when the ignition is switched on.
Control Cable (Remote Mount Only)
The Control Cable is used to connect the Control Unit (through the RIA)
to the Radio Transceiver in remote applications. Plug P2, at one end,
connects to the Remote Control Cable Connector (RCCC) which is
mounted on the back of the RIA. The Ignition Sense wire is also part of
P2. The other end of the Control Cable (P1) connects to the ORCC
which is mounted on the back of the radio. P1 of the EURO Control
Cable also contains the Power Cable leads. See Figures 20-23.
CONTROL UNIT MOUNTING (REMOTE
APPLICATIONS ONLY)
1. Using the bracket as a template, mark and drill the mounting holes.
Be sure to leave enough room at the rear of the control unit for the
cable connector. Refer to Figure 24 for control unit mounting
bracket installation.
2. Secure the mounting bracket using the four No. 10 x 3/4 self-
tapping screws supplied (use No. 10 x 1-1/2 if needed.).
3. Secure the control unit to the bracket with the two 1/4-20 x 5/8 hex
head screws and lock washers provided.

20
Ignition Sense (All Applications)
NOTE
•
The radio as shipped from the factory has the "ignition sense"
feature disabled. As such the radio will be powered ON or OFF as
determined by the front panel ON/OFF/VOLUME control only
(assuming A+ and A- are connected). If it is desired to enable the
"ignition sense" feature, open top cover of radio and remove shield
from logic PWB. Slide switch SW601 from position 3-2 to 1-2.
Replace shield and top cover. Be sure to apply correct torque to
screws holding top cover in place. See Maintenance Manual.
•
The "Accessory" point should drop to ZERO volts when cranking
the engine and return to +12 volts after the engine is started. If a
point is chosen that drops to a voltage between zero and +12 volts,
the radio may execute a power-up cycle several times during start
up. It is recommended that the terminal be measured with a
voltmeter to be sure it shuts off (goes to zero volts) during the
cranking of the engine.
The fuse holder must be attached to the yellow sense lead along with the
ring terminal as follows:
1. Cut the yellow sense lead approximately 6-12" from the end that
will be connected to the power source.
2. Strip the insulation from each end of the short lead and from the
end of the long lead at least 3/8".
3. Insert the stripped end of the long lead and one end of the short lead
into the narrow end of each fuse holder half.
4. Crimp the leads in the fuse holder halves with a crimping tool.
5. Insert the 3 amp fuse into one end of the fuse holder and join the
two fuse holder halves firmly together.
6. Attach the ring terminal to the end of the short lead and connect
this lead to the ignition "ON" sense point [preferably an
"Accessory" point (in the vehicle fuse panel) that is switched on
when the vehicle ignition switch is in the ACCESSORY and RUN
positions].
17
Figure 17 - EURO Front Mount Extended Option Accessory Cable
19B802554P12

18
Remote Mount
The Basic Accessory Cable, at one end, consists of the basic accessories
connector (P3) and the speaker connector (P2). At the other end is the
plug P1. P1 will connect to the Option Connector (OPT) which is
mounted on the back of the Radio Interface Adapter (RIA). The
Extended Option Accessory Cable is the same as the Basic Cable but
with the addition of the Extended Option Plug (P4). See Figures 18 and
19.
Figure 18 - Remote Mount Standard Accessory Cable 19B802554P6
19
Figure 19 - Remote Mount Extended Option Accessory Cable
19B802554P7

18
Remote Mount
The Basic Accessory Cable, at one end, consists of the basic accessories
connector (P3) and the speaker connector (P2). At the other end is the
plug P1. P1 will connect to the Option Connector (OPT) which is
mounted on the back of the Radio Interface Adapter (RIA). The
Extended Option Accessory Cable is the same as the Basic Cable but
with the addition of the Extended Option Plug (P4). See Figures 18 and
19.
Figure 18 - Remote Mount Standard Accessory Cable 19B802554P6
19
Figure 19 - Remote Mount Extended Option Accessory Cable
19B802554P7

20
Ignition Sense (All Applications)
NOTE
•
The radio as shipped from the factory has the "ignition sense"
feature disabled. As such the radio will be powered ON or OFF as
determined by the front panel ON/OFF/VOLUME control only
(assuming A+ and A- are connected). If it is desired to enable the
"ignition sense" feature, open top cover of radio and remove shield
from logic PWB. Slide switch SW601 from position 3-2 to 1-2.
Replace shield and top cover. Be sure to apply correct torque to
screws holding top cover in place. See Maintenance Manual.
•
The "Accessory" point should drop to ZERO volts when cranking
the engine and return to +12 volts after the engine is started. If a
point is chosen that drops to a voltage between zero and +12 volts,
the radio may execute a power-up cycle several times during start
up. It is recommended that the terminal be measured with a
voltmeter to be sure it shuts off (goes to zero volts) during the
cranking of the engine.
The fuse holder must be attached to the yellow sense lead along with the
ring terminal as follows:
1. Cut the yellow sense lead approximately 6-12" from the end that
will be connected to the power source.
2. Strip the insulation from each end of the short lead and from the
end of the long lead at least 3/8".
3. Insert the stripped end of the long lead and one end of the short lead
into the narrow end of each fuse holder half.
4. Crimp the leads in the fuse holder halves with a crimping tool.
5. Insert the 3 amp fuse into one end of the fuse holder and join the
two fuse holder halves firmly together.
6. Attach the ring terminal to the end of the short lead and connect
this lead to the ignition "ON" sense point [preferably an
"Accessory" point (in the vehicle fuse panel) that is switched on
when the vehicle ignition switch is in the ACCESSORY and RUN
positions].
17
Figure 17 - EURO Front Mount Extended Option Accessory Cable
19B802554P12
