ESLABON DE LUJO AWH 651 - ESLABON User manual

SERVICE Whirlpool Europe
Customer Services
Model AWH 651 - ESLABON
Version 8537 651 41360 Page
Technical data 2
Spare part list 3 - 4
Exploded view 5 - 6
Wiring diagram 7
Circuit diagram 8
Program diagram 9
Service Manual
Washing machine
Toploader
AWH 651 - ESLABON
ESLABON DE LUJO
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations.
Date: 26.01.2001 Subject to modification
Document-No.: 4812 712 15931

SERVICE
26.01.2001 / Page 2 AWH 651 - ESLABON Whirlpool Europe
Doc. No: 4812 712 15931 8537 651 41360 Customer Service
Technical data
Dimensions
Height 88.0 cm
Width 40.0 cm
Depth 60.0 cm
Weight
Net weight ~65 kg
With package ~69 kg
General specifications
Voltage 220 ±10% V
Frequency 50 Hz
Connected load ~ 2.2 kW
Fuse 10 A
Drum data
Drum speed
Washing 55 rpm
Spinning max. 500 rpm
Capacity
Volume 43 l
Max. load dry laundry 5 kg
Electrical building parts
Heating
Type Tubular radiator
Power consumption 1.85 kW
Nominal voltage 230 V
Drain pump
Power consumption ~ 40 W
Capacity 11.5 l/min.
Rotation speed ~ 3000 rpm
Height of drain hose max. 1.00 m
min. 0.55 m
Motor
Type Asynchronous 2/16
Capacitor
Type 16 µF
Timer
Type EATON EC 4453
The timer chart includes
2 basic programmes - normal washing
- delicate washing
- & wool
Thermostat
A - a fixed thermostat 40 ˚C
B - a fixed thermostat 60 ˚C
C - a fixed thermostat 90 ˚C
D - a temperature limiter 107 ˚C
Pressostat (without laundry)
Low level 9 ±1 l
High level ~ 22 l
Foam level ~ 2 l
Overflow level ~ 30 l
Rotary switch
Temperature selector 7 pos.
Push button switch
- On / Off 2 pol.
- No spinning) 1 pol.

SERVICE Whirlpool Europe AWH 651 - ESLABON 26.01.2001 / Page 3
Customer Service 8537 651 41360 Doc. No: 4812 712 15931
Spare part list
Model AWH 651 - ESLABON
Service No. 853765141360
Version 853765141360
Pos. No. 12NC Code Description
001 0 4819 440 19493 Cabinet
002 0 4819 440 18975 Door
010 0 4819 459 48755 Frame
010 1 4819 404 78394 Water conveyor
012 4 4819 528 78045 Roller rear
013 0 4819 462 48485 Adjust.foot
022 0 4819 440 18976 Panel,side
025 0 4819 440 19651 Bracket
041 0 4819 417 19334 Hinge
053 0 4819 440 19142 Plinth
061 0 4819 466 88818 Counter weight front
061 1 4819 466 88978 Counter weight lower
061 2 4819 401 18789 Clamping piece
080 0 4819 529 18054 Shock absorber
100 0 4819 440 19719 Door
110 0 4819 498 69902 Handle,door
121 0 4819 440 19599 Door,inner
130 0 4819 535 78144 Pin Lock
141 0 4819 440 19602 Door,inner
143 0 4819 459 48757 Frame
200 0 4819 418 18342 Tub
201 0 4819 440 19606 Cover
220 0 4819 418 18311 Drum
223 0 4819 418 49713 Drum lifter
252 0 4819 404 49227 Clamp thermostat
252 1 4819 310 38541 Gasket Klixon
271 0 4819 310 39159 Belt,driving
272 0 4819 528 88106 Pulley (drum)
272 1 4819 532 28263 Ring Cone 10 degres
292 0 4819 532 68244 Gasket tub
301 0 4819 453 19632 Control panel
303 0 4819 498 68772 Handle
331 0 4819 412 58372 Knob,timer
332 0 4819 410 28652 Push button
337 0 4819 412 58373 Knob
343 3 4819 528 38131 Coupling piece
401 0 4819 361 58047 Motor 2/16 pol.
420 0 4819 121 18284 Capacitor 16 µF 450 V
421 0 4819 121 18266 Interf.filter
430 0 4819 360 18203 Pump,draining synchronus
451 0 4819 259 28459 Heating element 1850 W
451 2 4819 404 49558 Clamp Heating element
490 0 4819 321 18156 Cable,mains
491 0 4819 290 68113 Connectionblock
501 0 4819 282 18678 Timer EC 4453.01D
551 4 4819 282 48256 Thermostat 40 degree
551 6 4819 282 48255 Thermostat 60 degree
551 9 4819 282 48254 Thermostat 90 degree
554 0 4819 273 28249 Selector
567 0 4819 282 48071 Thermostat 107 degree
571 0 4819 281 28265 Valve,magnet
582 0 4819 271 28925 Pressostat
620 0 4819 276 18265 Switch
621 0 4819 276 38342 Switch ON/OFF
633 0 4819 271 38287 Door lock
Pos. No. 12NC Code Description
633 1 4819 404 78969 Support
701 0 4819 530 28932 Hose, inlet 1.5 m cold water
702 0 4819 530 28896 Hose
710 0 4819 459 48613 Door,outer
711 0 4819 418 78965 Door cpl.
712 1 4819 535 98514 Shaft
712 2 4819 535 98278 Spring
717 0 4819 323 28009 Bowden cable
717 1 4819 466 98972 Rocker
717 5 4819 528 38432 Cam
753 0 4819 530 28811 Chamber,air
754 0 4819 530 28504 Drainhose inner Tub/Pump
755 0 4819 530 48443 Hose over flow
760 0 4819 360 78363 Lid pump
781 0 4819 530 28953 Tube,discharg.
781 2 4819 532 68554 Sleeve hose
794 5 4819 530 58026 Gasket Air chamber
794 6 4819 530 58031 Gasket
794 7 4822 532 50428 Gasket
794 8 4819 532 58159 Gasket 1/2
901 0 4819 401 18283 Strap
901 1 4819 492 68337 Strap
901 2 4819 401 18362 Strap SNP 8
901 3 4819 401 18563 Clamp,hose
901 5 4819 535 38038 Clip bearing
902 1 4819 401 18579 Bracket
902 5 4819 401 18572 Holder hose
902 8 4819 404 78396 Tube,stabilizer over flow
903 2 4819 404 49431 Support overflow
903 3 4819 492 68338 Clip tub
903 5 4819 401 18585 Fastener sleeve
903 7 4819 492 68381 Clip
903 9 4819 404 49688 Support Top
910 0 4819 502 38231 Screw
910 1 4819 502 18417 Screw
910 5 4819 502 38265 Screw VAB 4,5x20
910 9 4819 502 38286 Screw PLASGOB ST 45
911 0 4819 502 38235 Screw TC N 6x1/2
911 2 4819 502 38232 Screw TF 4x20
911 4 4819 502 38289 Screw
911 5 4819 502 18202 Screw CHC 6x25
912 0 4819 500 18108 Screw TH 8x60
912 7 4819 502 18209 Screw JAPY 8x160
912 8 4819 502 18208 Screw JAPY 8x110
913 1 4819 502 18206 Screw TF 4x12
913 4 4819 502 18211 Screw earth
914 0 4819 532 68363 Fastener
914 1 4819 505 18283 Nut M 5
915 1 4822 505 10547 Nut
923 0 4819 532 38101 Washer
923 5 4822 505 10148 Washer
923 6 4819 532 58107 Washer 8,3 x 30
923 7 4819 532 18174 Small plate
931 2 4819 492 38084 Spring Slide
932 3 4819 492 48131 Spring

SERVICE
26.01.2001 / Page 4 AWH 651 - ESLABON Whirlpool Europe
Doc. No: 4812 712 15931 8537 651 41360 Customer Service
Spare part list
Model AWH 651 - ESLABON
Service No. 853765141360
Version 853765141360
Pos. No. 12NC Code Description
934 0 4819 492 48125 Spring right
934 1 4819 492 48124 Spring left
941 0 4819 520 28029 Bearing, kit
941 1 4819 520 28026 Bearing
951 0 4819 530 58029 Gasket
953 0 4819 325 68041 Gasket V25
961 0 4819 440 19472 Shutter
993 0 4819 530 29028 Bow
993 4 4819 526 48128 Adapter

SERVICE Whirlpool Europe AWH 651 - ESLABON 26.01.2001 / Page 5
Customer Service 8537 651 41360 Doc. No: 4812 712 15931
Exploded view

SERVICE
26.01.2001 / Page 6 AWH 651 - ESLABON Whirlpool Europe
Doc. No: 4812 712 15931 8537 651 41360 Customer Service

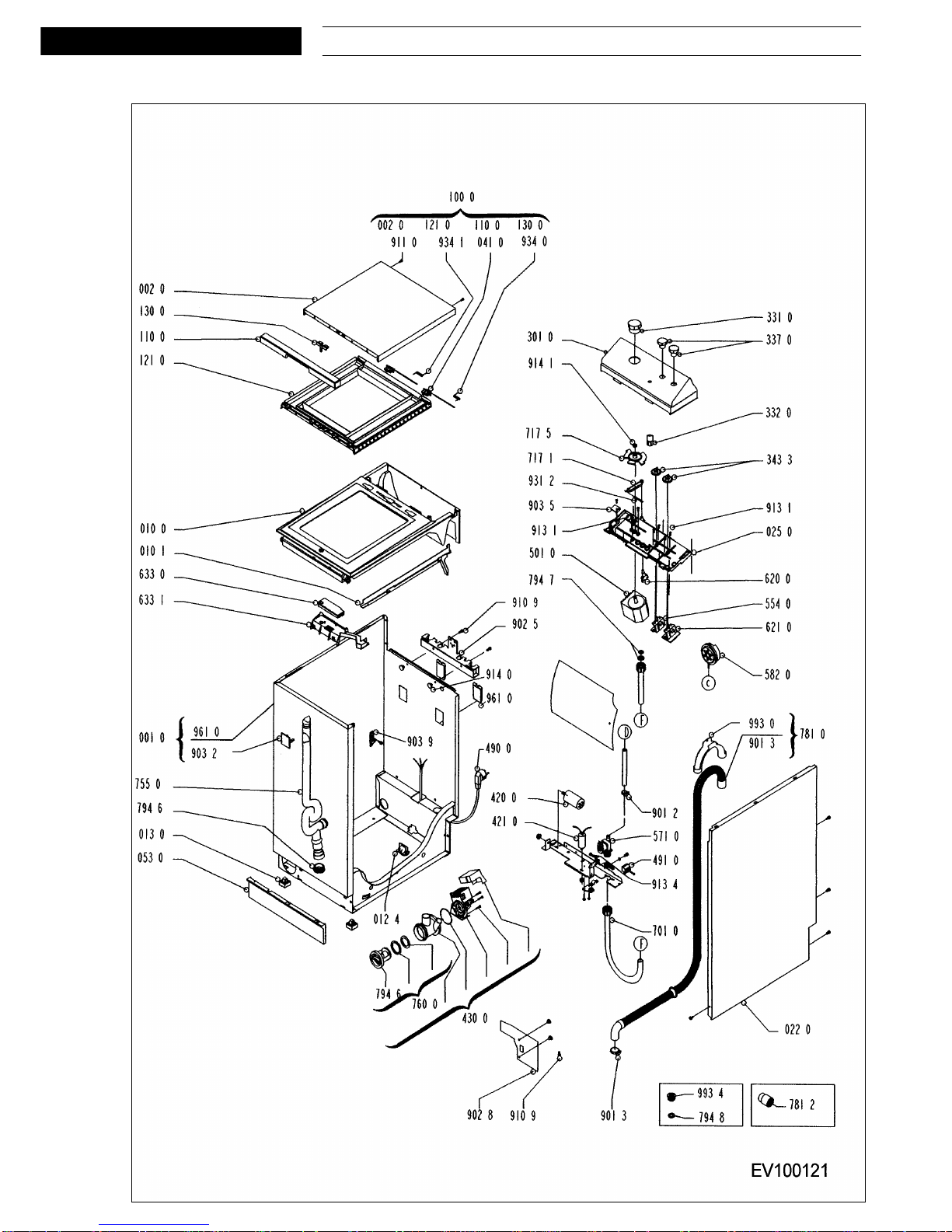

Exploded view

SERVICE Whirlpool Europe AWH 651 - ESLABON 26.01.2001 / Page 7
Customer Service 8537 651 41360 Doc. No: 4812 712 15931
Wiring diagram
TL 60˚ FIXED THERMOSTAT 60˚C
TL 90˚ FIXED THERMOSTAT 90˚C
TE CONNECTING BLOCK
IF INTERFERENCE CAPACITOR
HE HEATING ELEMENT
TL 107˚ TEMPERATURE LIMITER
DPM DRAINING PUMP MOTOR
M MOTOR
WV WATER INLET VALVE
C CAPACITOR
DSS DOOR SAFETY SWITCH
SDS SPIN DRYING SWITCH
PR PRESSOSTAT
PRL PRESSOSTAT LOW LEVEL
PRM PRESSOSTAT FOAM LEVEL
PREH PRESSOSTAT OVERFLOW LEVEL
MS MAINS SWITCH
TES TEMPERATURE SELECTOR
TL 40˚ FIXED THERMOSTAT 40˚C

SERVICE
26.01.2001 / Page 8 AWH 651 - ESLABON Whirlpool Europe
Doc. No: 4812 712 15931 8537 651 41360 Customer Service

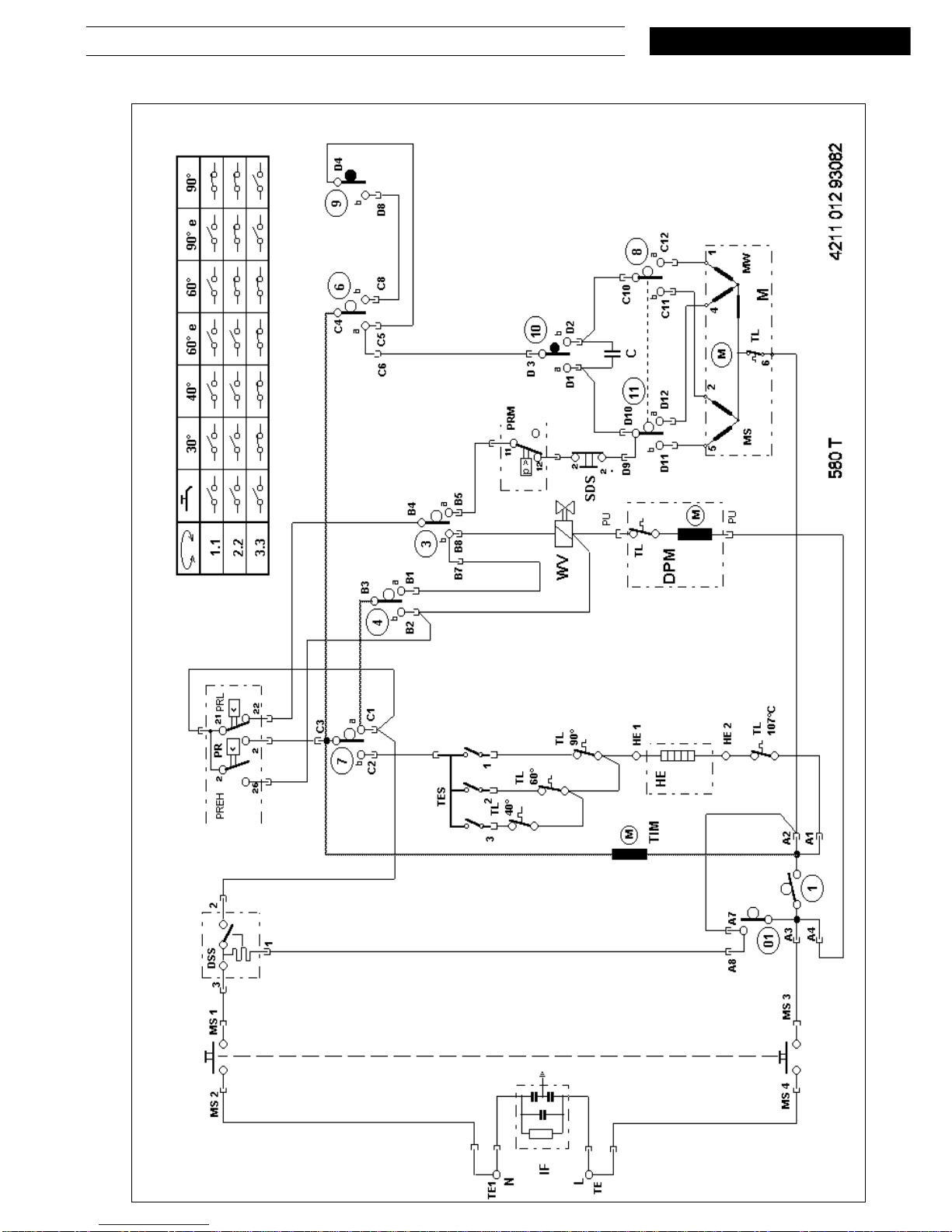

Circuit diagram

SERVICE Whirlpool Europe AWH 651 - ESLABON 26.01.2001 / Page 9
Customer Service 8537 651 41360 Doc. No: 4812 712 15931
Program diagram
