Esteam PRO DRY User manual

PRO DRY AIRMOVER
Owner’s Manual
Please Read And Save These Instructions
GENERAL SAFETY WARNINGS
When using any electrical equipment,
basic precautions should always be
followed, including the following:
�Not intended for outdoor use.
�Do not operate the unit with a cut or
frayed power cord.
�Do not unplug the unit by pulling on the
cord. Grasp the plug firmly and pull it out
of the wall socket or power receptacle.
�Always use a grounded outlet.
�Use only as described in this manual.
�Never operate electrical equipment in
standing water.
�Never operate with safety grills removed.
Personal Injury may result!
�Do not stick fingers or other objects
through the safety grills.
�Never restrict airflow to the unit. This may
cause it to overheat.
�Never service or clean this unit while it is
plugged in.
�Never sit or stand on the unit or use as a
shelf.
�Ensure that children do not have access
to the equipment. Do not allow children to
play with or near the equipment, or in its
airflow.
� Do not use when you are tired, distracted
or under the influence of drugs, alcohol or
medication.
�Do not handle plug with wet hands.
�To reduce the risk of fire or electric
shock, do not use this air mover with any
solid-state speed control device.
�Do not leave device plugged in when not
in use.
�Store this equipment indoors; do not
expose to harsh weather.
�Use only Manufacturer’s recommended
attachments.
�Do not pull or carry by the cord, use the
cord as a handle, close doors on the cord,
or pull the cord around sharp edges.
�Do not run over cord.
�Keep cord and housing away from heated
surfaces.
�Turn the unit off before unplugging.

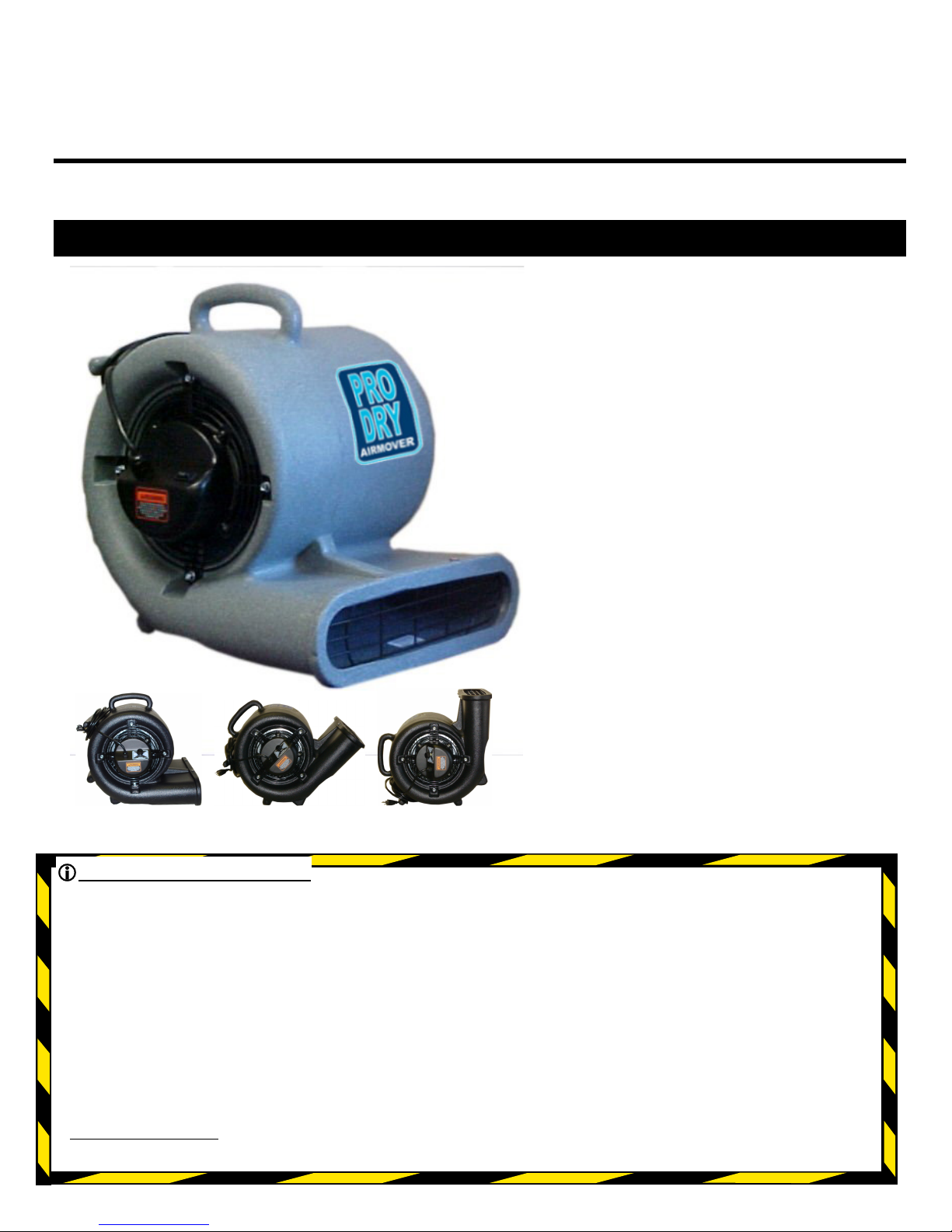

PRO DRY
2.5-AMP
2-Speed 1/3 Horsepower Motor
Maximum velocities up to 3200 FPM
Best Balanced Air Flow
Stackable for storage/use
Directional Airflow
Horizontal
45° Angle
90° Angle
SPECIFICATIONS:
Power: 115 VAC, 60 Hz
Drive Motor: 1/3 Horsepower, 2-Speed
Shipping Weight: 35 Pounds
Speed RPM FPM AMPS
High 1100 3200 2.5
Low 790 1800 2.0

OPERATING INSTRUCTIONS
1. Check the machine for any obstructions in the fan or airflow
areas before plugging in the unit or operation of the unit.
2. Set the machine to desired position for operation.
3. Plug the power cord into a GFCI outlet.
Do not use an extension cord in conjunction with the standard
power cord.
4. The machine has three power settings. ALWAYS turn the
power knob to the HIGH position then to the desired speed.
WARRANTY INFORMATION
All equipment for warranty MUST be
returned to your distributor
Troubleshooting
SYMPTOM PROBLEM SOLUTION
Unit will not turn on Not plugged in Plug unit into proper outlet
Switch is worn Replace Switch
Tripped circuit
breaker
Reset Breaker
Short in power cord Replace power cord or
replace cord end
Capacitor on motor is
damaged
Replace motor
Air mover will not
operate on all speeds
Switch is worn Replace switch
Capacitor on motor is
worn or damaged
Replace motor
Air Mover runs/starts
slowly
Capacitor terminal
may be shorting
Reposition or insulate
terminal
The fan is rubbing Fan is out of round Replace fan
Air mover is making
strange noises
There is a foreign
object stuck
Turn off motor and remove
object
Motor bearing is worn Replace motor
Fan is rubbing Replace Fan
WARRANTY AND LIMITATION OF LIABILITY
The Company warrants to the first end-user purchaser that the equipment
and parts thereof, when shipped, will be free from defects in materials and
workmanship. If any such defects exist or later appear, the Company shall
provide prompt remedial action, as stated herein, to correct the defect. The
Company shall have no obligation or liability under this Warranty unless the
customer has obtained a Material Return Authorization (MRA). To get an
MRA you must present proof of purchase, by the use of the original sales
receipt. To obtain an MRA, call your Distributor and ask for the Customer
Service Department, which will then issue an MRA number and will arrange
for repair or replacement, at our option, according to the following schedule:
This warranty covers Centrifugal Air Movers – Model PRO DRY
Metal fan wheels shall be warranted for 90 days from
original purchase date.
90 Day – 100% labor and parts (all components other
than that noted above).
Year One – 100% parts only (all components other than
that noted above).
Year(s) Two through Seven – Only materials and
workmanship of the housing are covered
Warranty service shall only be performed by an authorized
service provider.
Freight to Distributor is the responsibility of the end-user.
The end-user is responsible for normal care and proper
return packaging.
Equipment or Parts thereof, manufactured by others are
warranted hereunder only to the extent of such
manufacturer’s warranty to.
Since after purchase, the Equipment and Parts thereof are
under the sole control of the Purchaser, this Warranty is
subject to, and shall be applicable only if, the following
conditions are met:
a. Pro Dry instructions as to usage, operation and
maintenance have been followed;
b. The Equipment and Parts thereof, have been used
under normal indoor operating conditions.
c. The Equipment and Parts thereof have been
correctly operated and maintained and have not
been damaged by misuse, neglect, or accident.
d. The purchaser has not attempted or performed
corrective work or change on the Equipment and/or
Parts thereof.
e. The Company shall have received notice (MRA
Request) of any defect no later than thirty (30)
days after the Purchaser first had knowledge of
the same.
This warranty is in lieu of any and all other
warranties, express, implied or statutory including,
without limitation, warranties of merchantability
and fitness for a particular purpose or use.
LIMITATION OF LIABILITY
THE COMPANY SHALL HAVE NO LIABILITY WHATSOEVER IN
ANY EVENT FOR PAYMENT OF ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, WATER DAMAGE (THE END-USER SHOULD
TAKE PRECAUTIONS AGAINST SAME), LOST PROFITS,
DELAY, OR LOSS OF USE, OR DAMAGES FOR INJURY TO ANY
PERSON OR PROPERTY. BY ACCEPTING THE EQUIPMENT
AND/OR PARTS THEREOF, THE FIRST END-USER
PURCHASER OR SUBSEQUENT USER AGREES THAT THE
COMPANY SHALL NOT BE LIABLE FOR INDEMNIFICATION OR
CONTRIBUTION (IN WHOLE OR IN PART) EITHER
EXPRESSLY OR BY IMPLICATION.
IF FOR ANY REASON ANY OF THE FOREGOING PROVISIONS
SHALL BE INEFFECTIVE, THE COMPANY’S LIABILITY FOR
DAMAGES ARISING OUT OF ITS MANUFACTURE OR SALE OF
ITS EQUIPMENT OR PARTS, OR USE THEREOF, WHETHER
SUCH LIABILITY IS BASED ON WARRANTY, CONTRACT,
NEGLIGENCE, STRICT LIABILITY IN TORT OR OTHERWISE,
SHALL NOT IN ANY EVENT EXCEED THE FULL PURCHASE
PRICE OF SUCH EQUIPMENT AND PARTS THEREOF.
Any action against the Company based upon any liability or
obligation arising from or under any law applicable to the sale
of its Equipment or Parts, or the use thereof, must be
commenced within six months after the cause of such action
arises.

PRO DRY AIRMOVER
Exploded view with
Parts List
Item Description Qty Req. Part# Item Description Qty
Req. Part#
1 Guard, Fan Side 1 560-020 9 Switch, Rocker, 2-Speed 1 305-100
2 Blower Wheel, SM Metal 1 333-024 10 Flange Bolt, 1/4-20x3/4 4 405-008
3 Bolt, 1/4-20x3/4 Hex Head 2 405-005 11 Motor, 1/3 HP 115V 1 300-036
4 Front, Guard 1 560-022 12 Housing, Blower Blue 1 495-140
5 1/4-20 Nylon Nut 2 400-135
6 Screw, 8-15x3/4 4 410-125
7 Guard, Black Cord 1 560-021
8 Strain Relief 1 335-020
1
2
3
4
5
6 8
9
10
7
11
12
