Euro Appliances ECT60G4X User manual

USAGE AND
CARE GUIDE
PRODUCT
CODE:
ECT60G4X
cooking

Preface
Thank you for choosing our gas cooktop. To use this appliance correctly and prevent
any potential risk, read these instructions before using the appliance. Keep these
instructions in a place where you can find them easily. If you are unsure of any of the
information contained in these instructions, please contact our customer care centre.
The manufacturer shall not be responsible for any damages to persons or property caused
by incorrect installation or use of the appliance. The appliance has been certified for use
in countries other than those marked on the appliance.
The manufacturer also reserves the right to make any modifications to the products as
may be considered necessary or useful, also in the interests of the user, without
jeopardising the main functional and safety features of the products themselves.
The appliance is designed for a domestic environment and not a commercial one.
1

Contents
Preface
Instructions for use and maintenance
Safety Warning
Safety Instructions
Installation
Child and People Safety
During Use
Cleaning and Service
8
Environmental Information
Description of the appliance
How to Use the appliance
Safety and Energy saving advice
Cleaning and Maintenance
Technical instructions
6
16
17
18
21
15
13
12
23
2
5
4
3
8
9
10
22
24
Using instructions
Positioning
Installing the appliance
Gas Connection
Gas Specifition
Electrical Connection
Gas adjustment
Trouble shooting

Danger/Warning
Caution Neglect of this mark may result in minor personal injury
or property damage.
Caution No Access
No Fire Tool Must Do
Danger
•Do not turn on the light.
•Do not switch on/off any electrical appliance and do not touch any electric plug.
•Do not use a telephone.
1 Stop using the product and close the middle valve.
2 Open the window to ventilate.
3 Contact our service centre by using a phone outside.
* The fuel gas contains mercaptan, so that you can smell the gas leak (smell of rotten
garlic or egg) even where only 1/1000 of the gas in the air.
The following marks are used in the Instruction Manual
as follows:
3
If gas seems to leak,take the actions as follow:
Neglect of this mark may result in severe personal injury
or death.
Safety Instructions
Please take the time to read this Instruction Manual before installing or using the appliance.
This instruction booklet must be kept with the appliance for any future reference.
If the appliance is sold or transferred to another person,ensure the booklet is passed on to
the new user.
The manufacturer declines any liability should these safety measures not be observed.
The following marks are made to be easily understood so that you can prevent any
accident caused by misuse in advance, and use the appliance more conveniently.
Read the following contents thoroughly and ensure you understand them.

Installation
Warning
This appliance shall be installed in
accordance with regulations in force
and only used in a well ventilated
space.
Prior to installation,ensure that the
gas and electrical supply complies
with the type stated on the rating
plate.
Do not use this appliance as a
space heater.
The gas pipe and electrical cable
must be installed in such a way that
they do not touch any parts or the
appliance.
Caution
4
220V-240V
■ This appliance should be installed by a qualified technician or installer.
■ The adjustment conditions for this appliance are stated on the label or data plate.
■ Remove all packaging before using the appliance.
■ After unpacking the appliance, make sure the product is not damaged and that the
connection cord is in perfect condition. Otherwise, contact the dealer before installing the
appliance.
■ The adjacent furniture and all materials used in the installation must be able to wothstand
a minimum temperature of 85˚C above the ambient temperature of the room it is located in,
whilst in use.
■ In the event of burner flames being accidentally extinguished, turn off the burner control and
do not attempt to re-ignite the burner for at least one minute.
■ The use of a gas cooking appliance results in the production of heat and moisture in the room in
which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open
or install a mechanical ventilation device (mechanical extractor hood).
■ Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example increasing the level
of mechanical ventilation where present.

Child and People Safety
Do not allow children to play near or with the appliance.
The appliance gets hot when it is in use.
Children should be kept away until it has cooled.
Warning
Caution
5
■ This appliance is designed to be operated by adults.
■ Children can also injure themselves by pulling pans or pots off the appliance.
■ This appliance is not intended for use by children or other persons whose physical,
VHQVRU\RUPHQWDOFDSDELOLWLHVRUODFNRIH[SHULHQFH
sensory or mental capabilities or lack of experience and knowledge prevents them
from using the appliance safety without supervision or instruction by a responsible
person to ensure that they can use the appliance safety.

During Use
Warning
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is
well ventilated : keep natural
ventilation holes open or install a
mechanical ventilation device
(mechanical
extractor hood).
Never leave the appliance unattended
when cooking.
Burner
panel is not designed to operate from
an external timer or separate remote
control system.
6
■ Only use the appliance for preparing
food.
in contact with water. Do not operate
this appliance with wet hands.
■ Do not use this appliance if it comes
■ The heating and cooking surfaces of
the appliance become hot when they
are in use, take all due precautions.
■ Do not use large cloths, tea towels or
similar as the ends could touch the
flames and catch fire.
■ Unstable or misshapen pans should
not be used on the appliance as they
can cause an accident by tipping or
spillage.

uri se
this appliance while it is in operaiton. ‘ ’ position when not in use.
Caution
is made of glass-cracked, switch off the appliance to avoid defeat electr cution
adjacent burners.
If the surface
Do not use a tea towel or similar materials in place of a pot holder.Such cloths can
catch fire on a hot burner.
pots or pans.
the appliance surfaces of the cooking appliance.
Danger of fire:
Do not store
items on the
cooking surface

Cleaning and Service
Environmental Information
Warning
Caution
8

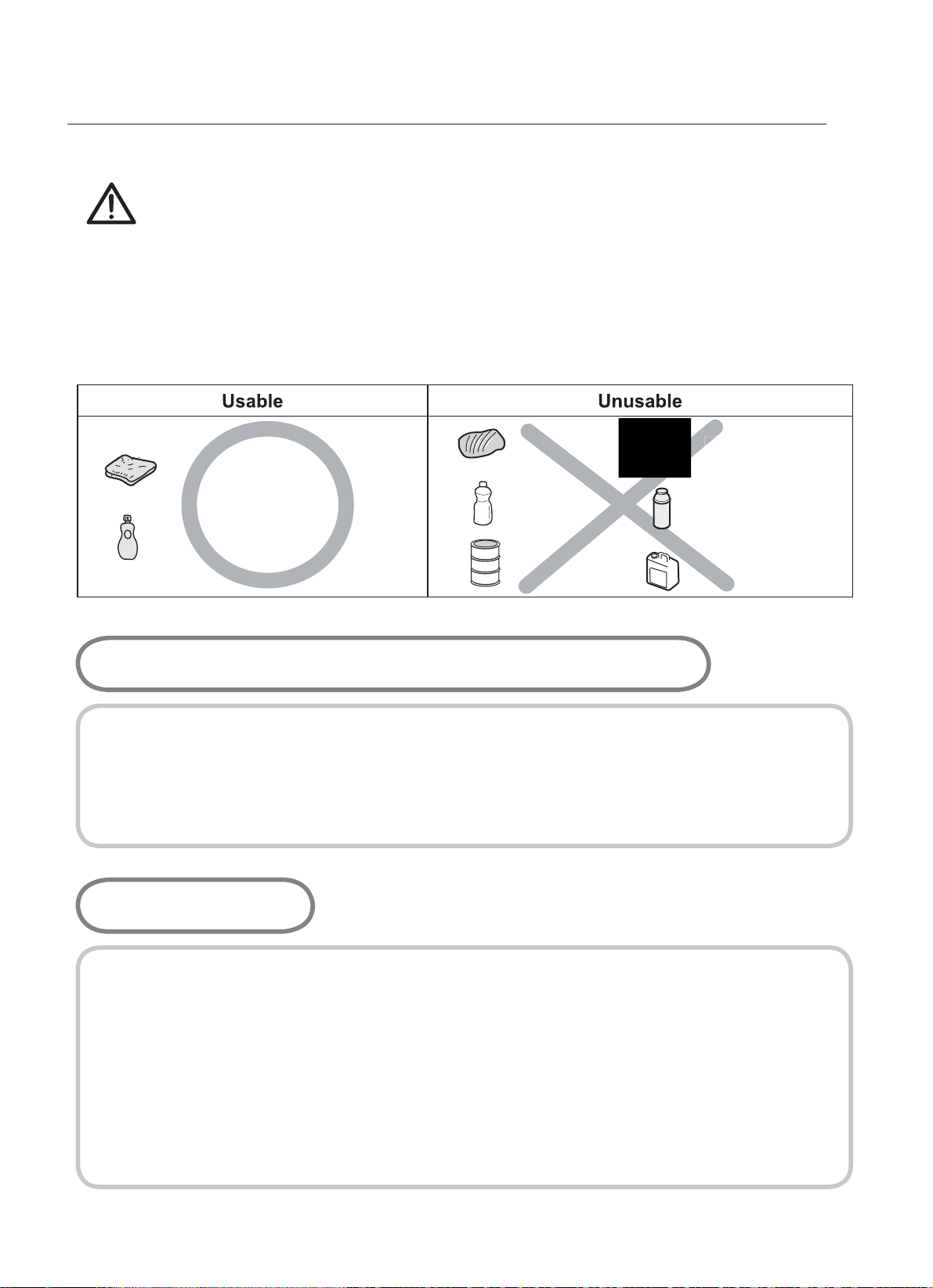

■ Never use abrasive or caustic cleaning
agents.
■ This appliance should only be repaired
or serviced by an authorised Service
Engineer and only genuine approved
spare parts should be used.
■ Before attempting to clean the appliance, it should be disconnected from the mains
and cooled.
■ You should not use a steam jet or any other high pressure cleaning equipment to
clean the appliance.
■ After installation, please dispose of the packaging
with due regard to safety and the environment.
■ When disposing of an old appliance, make it
unusable, by cutting off the cable.
■ This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of waster and recycle it responsibly to
promote the sustainable reuse of material resources.
■ Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can take
this item for environmentally safe recycling.
■ Business users should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

Description of the appliance
590*510*90
Dimension
(W*D*H)
Ignition
device
Gas
Connection
Electric
supply
Burner
Feature
Continuous
Ignition
Type
220-240Vac,
2W
Top Plate
50Hz-60Hz,
G1/2 thread
Triple-Crown(1),
Semi-rapid(2),
Auxiliary (1)
Stainless
Steel
30.4MJ/h
Nominal Gas
Consumption

How to use the Appliance
Accessories
Description of the appliance
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
Automatic ignition with flame failure safety device
10
Bracket (4) Sponge (4) Pressure regulator (1)
(4) Pressure joint(1) Screw
(4)
Elbow
(1) Instruction
Manual (1)
The appliance is fitted with a flame failure safety device on each burner,
which is designed to stop the flow of gas to the burner head in the event of the flame
going out.
The minimum setting is at the end of the anti-clockwise rotation of the control handle.
All operation positions must be selected between the maximum and minimum position.
The symbol on the control panel,next to the control handle will indicate which burner it
operates.
The following symbols will appear on the control panel, next to each control handle :

How to Use the appliance
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each burner, which
is designed to stop the flow of gas to the burner head in the event of the flame
going out.
To ignite a burner:
o Press in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
o If you keep the control knob depressed, the automatic ignition for the
burner will operate.
o
o After this 15-second interval, to regulate the flame you should continue
turning the control knob anti-clockwise until the flame is at a suitable level.
The operating position MUST be at a position between the maximum and
minimum position.
o To switch the burner off, turn the control knob fully clockwise to the gas off
position.
o In case of power failure, the burners can be lit by carefully using a match.
11
You should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15s the burner has not lit, stop operating the
device and open the compartment door and/or wait at least 1 min before
attempting a further ignition of the burner.
Abnormal Operation
Any of the following are considered to be abnormal operation and may require servicing:
- Yellow tipping of the hob burner flame.
- Sooting up of cooking utensils.
- Burners not igniting properly.
- Burners failing to remain alight.
- Burners extinguished by cupboard doors.
- Gas valves, which are difficult to turn.
In case the appliance fails to operate correctly, contact the authorised service provider in your
area.

Safety and Energy saving advice
- The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS
200mm 240mm
200mm 240mm
160mm
NO YES
120mm 160mm
180mm
12
Triple-Crown
Rapid
Semi-Rapid
Auxiliary
PANS
min. max.
Do not use small diameter cookware on large
burners.
The flame should never come up the sides of
the cookware.
Avoid cooking without a lid or with
the lid half off as this wastes energy
Do not use a pan with a convex or
concave bottom.
Do not place cookware on one side of a
burner,as it could tip over.
Do not use cookware with a large diameter
on the burners near the controls,which when
placed on the middle of the burner may
touch the controls or be so close to them
that they increase the temperature in this
area and may cause damage.
Never place cookware directly on top of the
burner.
Do not place anything,eg.flame
tamer,asbestos mat,between pan and pan
support as serious damage to the appliance
may result.
Do not use excessive weight and do not
hit the cooktop with heavy objects.
Always use cookware that is
suitable for each burner, to avoid
wasting gas and discolouring the
cookware.
Place a lid on the cookware.
Only use pots,saucepans and
frying pans with a thick,flat
bottom.
Always place the cookware right
over the burners,not to one
side.
Place the cookware on top of
the trivet.
Handle cookware carefully when
they are on the burner.
Ŷ'RQRWXVHFRRNZDUH
WKDW
 
RYHUODSVWKHHGJH of the
burner.
It is not recommended to use roasting pans,frying pans or grill stones
heated simultaneously on several burners because the resulting heat
build-up may damage the appliance.
Do not touch the top plate and trivet whilst in use for a certain period
after use.
As soon as a liquid starts boiling,turn down the flame so that it will
barely keep the liquid simmering.

Cleaning and Maintenance
Soft cloth
Neutral Detergent
Nylon Brush
13
Edible Oil
Abrasive
Detergent
Thinner/Benzene
Metal Brush
Acidic/Alkali
■ Take off the Pan support.
■ Clean these and the control handles with a damp cloth, washing up liquid and warm
water. For stubbon soiling, soak beforehand.
■ Dry everything with a clean soft cloth.
3DQVXSSRUW&RQWUROKDQGOHV
7RSSODWH
■ Regularly wipe over the top plate using a soft cloth well rung-out in warm water to
which a little washing up liquid has been added.
■ Dry the top plate thoroughly after cleaning.
■ Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid
the risk of corrosion.
■ Stainless steel parts of the appliance may become discoloured over time. This is
normal because of the high temperatures. Each time the appliance is used these parts
should be cleaned with a product that is suitable for stainless steel.
Ŷ &OHDQLQJRSHUDWLRQVPXVWRQO\EHFDUULHGRXWZKHQWKHDSSOLDQFH is
completely cool.
Ŷ7KHDSSOLDQFHVKRXOGEHGLVFRQQHFWHGIURP\RXUPDLQVVXSSO\EHIRUH
FRPPHQFLQJDQ\FOHDQLQJSURFHVV
Ŷ&OHDQWKHDSSOLDQFHUHJXODUO\SUHIHUDEO\DIWHUHDFKXVH
Ŷ$EUDVLYHFOHDQHUVRUVKDUSREMHFWVZLOOGDPDJHWKHDSSOLDQFHVXUIDFH
you should clean it using water and a little washing up liquid.

Cleaning and Maintenance
14
212
33
44
57
66
75
1.Place the flame spreader ( 4 ) on to the burner cup ( 5 ) so that the ignition device
and the flame supervision device extend through their respective holes in the flame
spreader.The flame spreader must click into place correctly.
2.Position the burner lid ( 1,2,3 ) onto the flame speader ( 4 ) so that the retaining pins
fit into their respective recesses.
■ Remove the burner lids and Flame Spreaders by pulling them upwards and away
from the top plate.
■ Soak them in hot water and a little detergent or washing up liqui.
■ After cleaning and washing them, wipe and dry them carefully. Make sure that the
flame holes are clean and completely dry.
■ Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
■ Gently wipe the ignition device and flame supervision device with a well wrung-out
cloth and wipe dry with a clean cloth.
■ Before placing the burners back on the top plate, make sure that the injector is not
%851(56
ʄ5HDVVHPEOHWKH$X[LOLDU\6HPL5DSLG5DSLGDQG
Triple-Crown burners as follows:
5HSODFHSDUWVLQWKHFRUUHFWRUGHUDIWHUFOHDQLQJ
'RQRWPL[XSWKHWRSDQGERWWRP
7KHORFDWLQJSLQVPXVW¿WH[DFWO\LQWRWKHQRWFKHV
blocked.

Warnings
sing instructions
15
appliance
installation
be installed and connected in accordance with current
life hob.
This appliance is not suitable for use with aftermarket lids or covers.

650 mm between the highest point of the hob surface (including the burners)
and the underside of any horizontal surface directly above it.
horizontal surface is in line with the outer edge of the hob. If the underside of
the horizontal surface is lower than 400 mm, then it must be at least 50 mm
away from the outer edges of the hob.
50 mm clearance around the appliance and between the hob surface and any
45 mm
You must have a gap of at least 25 mm and at most 74 mm between
the
o
o
o
o
o
This appliance is to be built into a kitchen unit or 600mm worktop,providing
the following minium distances are allowed;
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
600mm
650mm
400mm
400mm
FO 0813
60mm
560mm
490mm
in
0.
0mm
M
2

Installing the appliance
Sponge
Bottom view
The thickness of the sponge is 5 mm.
The width of the sponge is 7 mm.
of the screws.There are one set of screw holes in each
corner of the hob (H) .
Slightly tighten a screw (C) through the bracket (B) so
that the bracket is attached to the hob, but so that you
can still adjust the position
.
2. Carefully turn the hob back over and then gently lower
it into the aperture hole that you have cut out.
3. On the underneath of the hob, adjust the brackets
into a position that is suitable for your worktop.
Then fully tighten the screws (C) to secure the hob into
position.
(A) SEALING STRIP
(C) SCREW (B) BRACKET
17
Remove the pan supports, the burner lid
and flame spreader and carefully turn the
appliance upside down and place it on a
cushioned mat.
Take care that the Ignition devices and
flame supervision devices are not damaged
in this operation.
2.
3.
1.
1. Place the bracket (B) over the holes that match the size
7KLVZLOOPDNHLWGLI¿FXOWWRUHPRYHWKH
DSSOLDQFHIURPWKHDSHUWXUHLQIXWXUH
SDUWLFXODUO\LILWQHHGVWREHVHUYLFHG
Do not use a silicon sealant to seal the
appliance against the aperture.
Apply the sponge provided around the edge
of the appliance.
Do not leave a gap in the sealing agent or
overlap the thickness.
IMPORTANT: Additional to the sponge around
the edge of the appliance; ensure an additional
strip is applied on each side as per the diagram.
4.

Gas Connection
18
Keep away from inflammable materials around appliance.
Before work, put on gloves.
CAUTION
Cool off the appliance for a while right after using appliance for your safety
because you can get burners by high temperature from the appliances.
B: Lock tightly a replaceable gas-type fitting onto the main gas tube.
Turn off power for safety and appliance protection. Close middle valve to
prevent gas leakage.
Most of the tools that you might need are shown below. Some are optional.
Replacement of gas-type fitting
Tool: Open-end wrench
Steps for operation:
A: Disassemble with a wrench the gas-type fittings from main gas tube.
When you disassemble/assemble gas connection, use 2 spanners. One for fixing gas
connection elbow, the other for tightening gas hose.
Ŷ7KLVDSSOLDQFHPXVWEHLQVWDOOHGDQGFRQQHFWHGLQDFFRUGDQFHZLWKLQVWDOOD
WLRQUHJXODWLRQVLQIRUFHLQWKHFRXQWU\LQZKLFKWKHDSSOLDQFHLVWREHXVHG
Ŷ7KLVDSSOLDQFHLVVXSSOLHGWRUXQRQQDWXUDOJDVRQO\DQGFDQQRWEHXVHGRQ
DQ\RWKHUW\SHRIJDVZLWKRXWPRGL¿FDWLRQ&RQYHUVLRQIRUXVHRQ/3*DQG
RWKHUJDVHVPXVWRQO\EHXQGHUWDNHQE\DTXDOL¿HGSHUVRQ
1
2

Gas onnection
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ AS/NZS 3000 - Wiring Rules
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
all connections for gas soap and
correct method of operation. In case the appliance
fails to operate
Natural gas connection
95
115
LPG gas connection
pressure test point
pressure test point
Check for satisfactory operation of the ignition system on all burners
both individually and combined.
