EUROTAG BR20C4 User manual

User’s Manual
Note: please read this manual carefully before use,
and make sure to operate according to the
instr uction.
BR20C 4
Suita ble for models:
Attention, important! All the datas in the manual may
have any differ from the cooling device you bought, We will
preserve right of final explanation.
User's manual
Power cord AC/DC adapter
(Optional item)
freezer

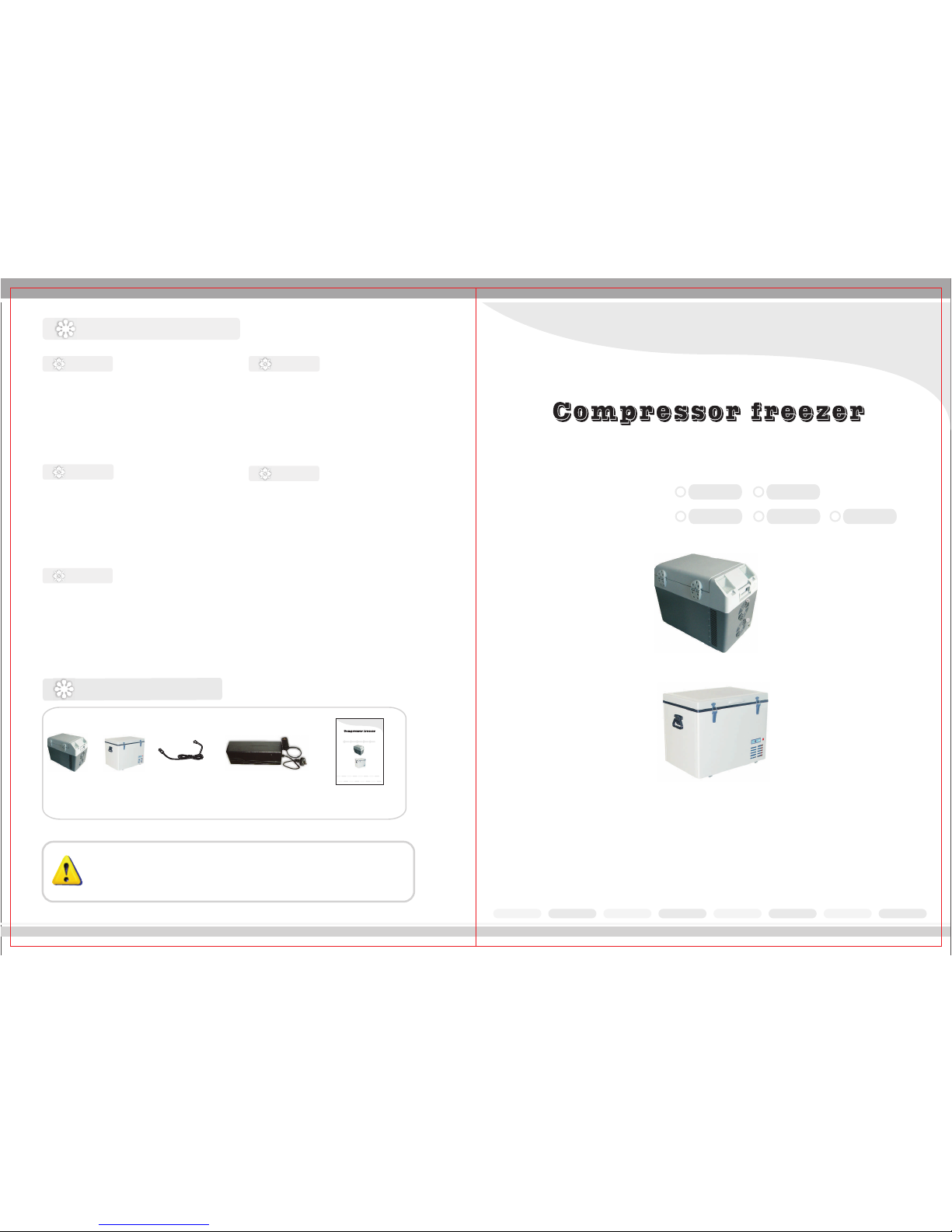

Included items
BR30C 4
BR60C 4 BR70C 4 BR80C 4
Technical Data
Application: 12V DC
Power input: Approx. 50W
Capacity: 20 litres
Net Weight: 13.5kg
Cooling capacity:Max. -18℃ at 30℃
ambient temperature
Insulation: 40mm Polyurethane foam
Dimension: 541(L)X365(D)X432(H)mm
/ 24V
BR20C4
Application: 12V DC
Power input: Approx. 50W
Capacity: 30 litres
Net Weight: 15.5kg
Cooling capacity:Max. -18℃ at 30℃
ambient temperature
Insulation: 40mm Polyurethane foam
Dimension: 541(L)X365(D)X552(H)mm
/ 24V
BR30C4
Application: 12V DC
Power input: Approx. 55W
Capacity: 60 litres
Net Weight: 21kg
Cooling capacity:Max. -18℃ at 30℃
ambient temperature
Insulation: 50mm Polyurethane foam
Dimension: 650(L)X450(D)X475(H)mm
/ 24V
BR6 0 C4 B R 70C 4
Application: 12V DC
Power input: Approx. 55W
Capacity: 70 litres
Net Weight: 22kg
Cooling capacity:Max. -18℃ at 30℃
ambient temperature
Insulation: 50mm Polyurethane foam
Dimension: 650(L)X450(D)X535(H)mm
/ 24V
Application: 12V DC
Power input: Approx. 55W
Capacity: 80 litres
Net Weight: 23kg
Cooling capacity:Max. -18℃ at 30℃
ambient temperature
Insulation: 50mm Polyurethane foam
Dimension: 650(L)X450(D)X575(H)mm
/ 24V
BR8 0 C4
or
Use r’s Manu al
Note: pl ease rea d this m anual ca refu lly befo re use ,
and make su re to operat e ac co rd in g to the
instru ct io n.
BR20C4
Suitable for models:
BR30C4 BR60C4 BR70C4 BR80C4

Up
Down

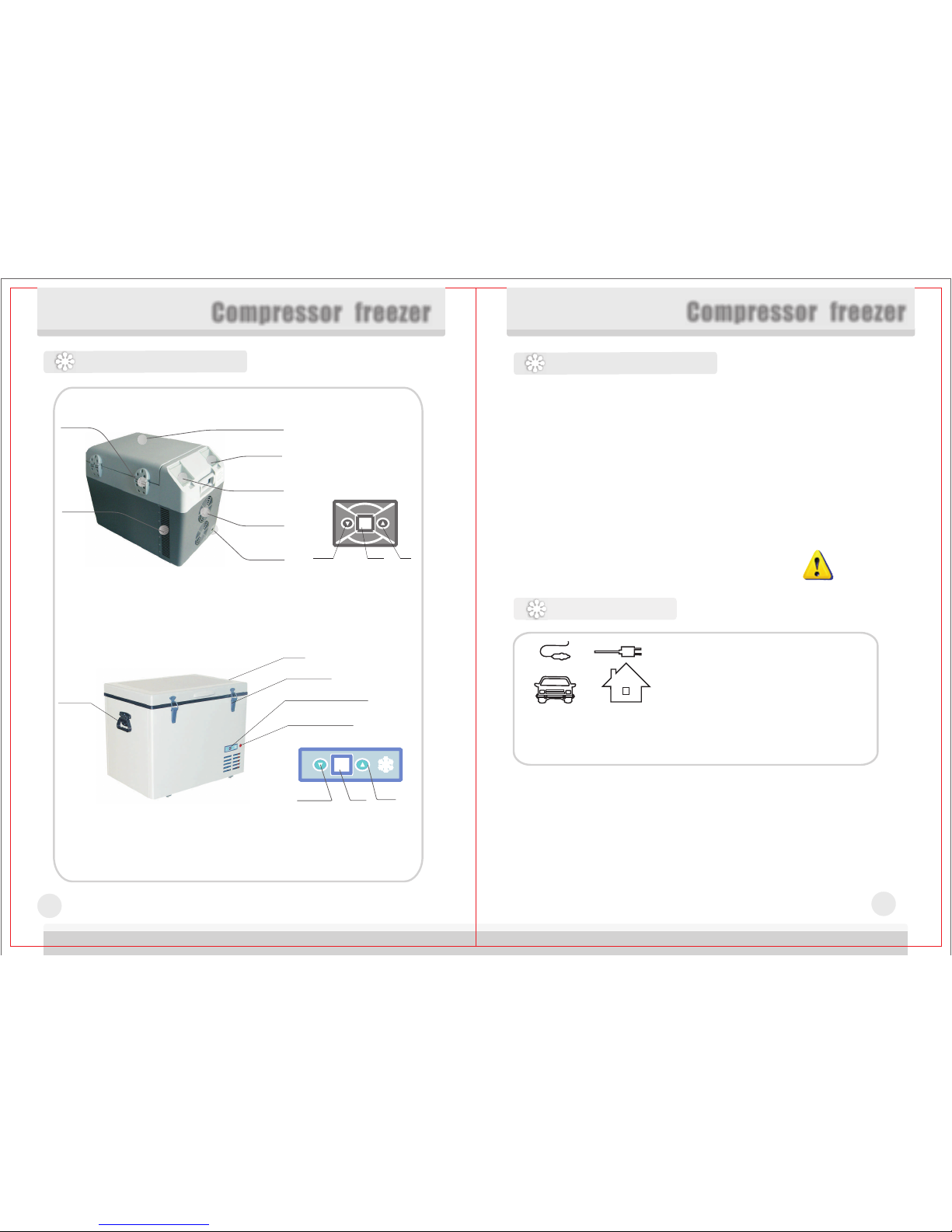

Structure drawing
3
LED
● Do not carry corrosives or solvent material in your cooler.
● Never obstruct vents as they supply necessary airflow to motor and fan.
● Do not fill cooler with liquid or ice.
Safety indications in the text are marked with this symbol:
The cooler is ideal to use on camping trips. If you wish to refrigerate
medicines, first check the cooling capacity meets the recommendation listed on
the medication.
Application
4
Compressor freezer Compressor freezer
DC 12V/24V or optional AC 110/220V
Ensure input power of 12V DC or 24V DC
Suggested uses:
●Travelling
●Picnics
●Camping
●4WDs
●trucks
●others outdoor activities
Lid
Hinge
Fan motors
Operation
panel
Swicth
Socket for
DC cord
Vents
Up
Down LED
Lid
Door flap
Power switch
Operation panel
Handle
BR20C4,BR30C4
BR60C4,BR70C4,BR80C4
● Keep cooler upright while it is turned on and in use.
● Never switch the cooler on with wet hands or when your feet are in contact with
water!
● Do not turn cooler on when vehicle engine is not turned on.
● Always ensure that the correct voltage and current is applied to the cooler. The
voltage and current is clearly marked on the manufacturer's label which can be
found underneath the cooler.
● Ensure power source can safely supply the required current when you use the
AC/DC adapter.
Safety Instructions

The freezer is an advanced fridge,combing the latest compressor and
computerized digital control system technology.The high efficiency of the
compressor will freeze as -18°C at 30°C ambient temperature.(The
computerized digital control system will indicate direct readout display
inbox actual cooling temperature).It is in energy saving mode when the
actual cool temperature is below “set-temperature”(setting with press
down/up button) 1°C,and the compressor ceases operation.After the
inbox temperature is higher than “set-temperature” 2°C,the compressor
run again, but interal time will be two minutes at least.
Please pay an attention,when turn the freezer on,the compressor will
be run at once.
Once the desired temperature is setted,wait with 5 seconds(”di,di”
5 noise)to confirm the setting.
Please make sure that no parts are missing after unpacing the cooler.
Installation
Operating Instr uctions
Place the cooler on a dry surface where it is protected from water.
The cooler should not be used where it may be exposed to rain.
The cooler should be installed in a position that allows adequate ventilation.
Do not locate the cooler anywhere the room temperature is below 0℃ .
The cooler can be operated with 12 V/24V DC. Prior to connection, check
whether the voltage indicated on the manufacturers label is in accordance with
the battery voltage. Connect your cooler to cigarette lighter socket of your
vehicle with the 12V/24V DC .
NOTE:The cooler can be operated between 10.3V and 17V DC or 22V and
30V DC.If the voltage is out of range,the cooler will be not work.Over
voltage could cause damage to the electronic components of the cooler.
When using the cooler indoors from mains,please use the AC/DC adapter
supplied with your unit.
Uing an AC/DC adapter,otherwise, it may cause damage to the cooler use
others.

Table of Contents
Feature ………………………..…..
Structure drawing…………………. Page 3
Safety Instructions……………….. Page 4
Application ............................. Page 4
Installation ………………………… Page 5
Operating instructions …………….Page 5
Temperature setting………………. Page 5
Tips for energy saving …………… Page 5
Storage ………………………………Page 6
Cleaning ……………………………. Page 6
Trouble shootiing . . . ……………….. Page 6
Technical Date ………………..Back cover
...
Included items…….…………… Back cover
Page 2
6
Compressor freezer Compressor freezer

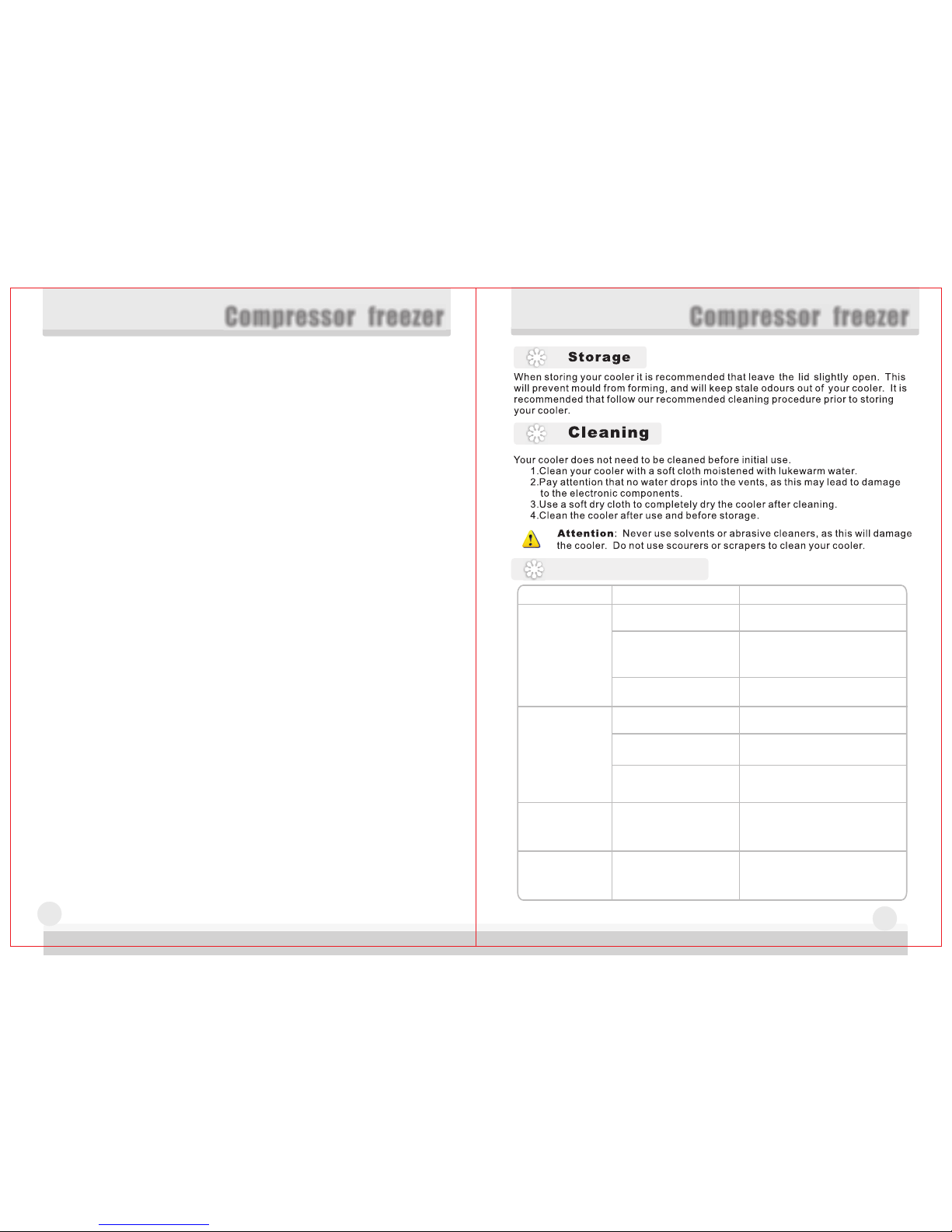

Trouble Shooting
Unit is malfunctioning.To prevent breakdown,turn the
unit off immediately and unplug
it from cigarette lighter.Contact
a local repair center.
To prevent breakdown,turn the
unit off immediately and unplug
it from cigarette lighter.Contact
a local repair center.
Unit is malfunctioning.
There is a burning
smell or the case
is deformed.
Problem Cause Solution
Cooling function
does not work.
Loose contact between
plug ang unit socket.
Plug firmly into unit socket and
cigarette lighter.
There is a strange
noise or vibration
during operation.
Unit is exposed to
direct sunlight.
Place the unit in a shady,cool
place with good airflow.
Power voltage is out of
range.
Check unit whether it's plugged
into power supply of 12V or 24V,
ensure that battery charge is not
too low or too high.
Ventilator or propeller
is blocked.
Clean the ventilator and the
propeller ,make sure the unit
have good ventilation.
The temperature sensor
is malfunctioning.
Contact a local repair center to
replace a temperature sensor.
Cooling efficiency
is bad.
The fan motor does not
work.
Contact a local repair center to
replace a fan motor.
