EVBIKE C965 User manual

INSTALLATION MANUAL
LCD display C965
EVLCD-CMS-C965

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
Contens:
1/ INFORMATION
2/ BASE SETTINGS
3/ ADVANCE SETTINGS
4/ ERROR CODES
5/ INSTALATION
Thank you for purchasing EVBIKE product and we hope that you will become a happy user. Carefully read the
entire manual prior to installation and first use! If you find any fact in the manual that would prevent you from
using our product, please contact your reseller for further discussion and keep the original packaging. The
reseller will advise you how to proceed properly.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
ELECTRICAL PARAMETERS
- 36V/48V battery supply
- Rated operating current: 10mA
- Max operating current : 30mA
- Off leakage current < 1uA
- Buzzer tone > 55db ( 20cm)
- Output current to the controller : 50mA
- Operating temperature : -18°C ~ +60°C
- Storage temperature: -30°C ~ +70°C

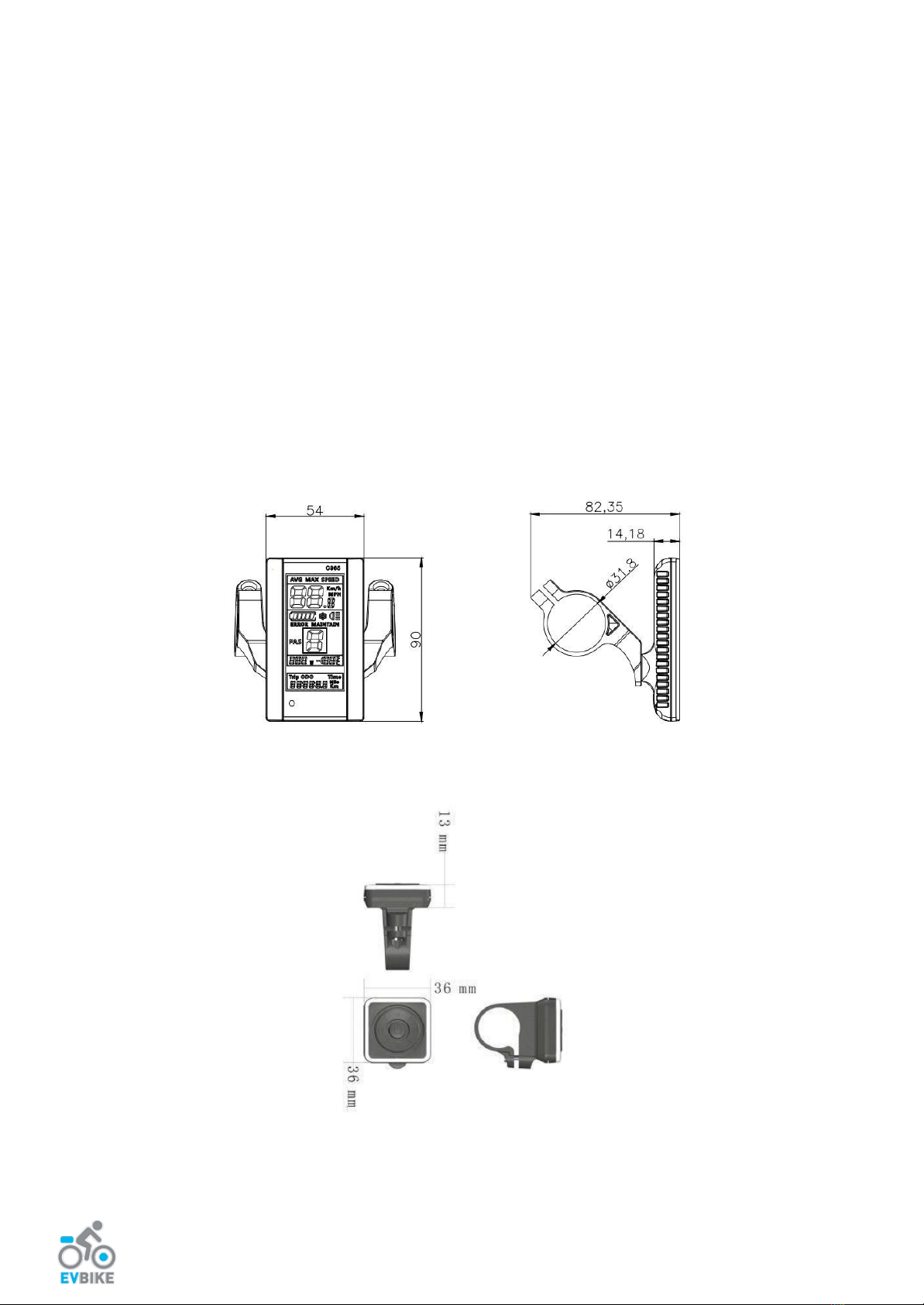

DIMENSION & MATERIAL
Product shell is ABS, transparent window is made with high strength Acrylic, the stiffness equals the tempered
glass.
- Dimensions : host/L90mm*W54mm*H13.3mm
- Dimensions : host/L36mm*W36mm*H13mm

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
FEATURES
- Two-way serial communication, 5-way button, very easy to operate.
- Speed display: AVG SPEED, MAX SPEED, real time SPEED.
- Kilometer / Mile: Can be set according to customers’ habits.
- Smart battery indicator: Provide a reliable battery indicator, it will not fluctuate
- with the motor on/off.
- Automatic headlamps & background ligh : 800U can automatically open/close the headlamps &
backlight according to the external light.
- Buzzer remind: Built-in buzzer, sound alert in multi-state, such as Key tone / Low temperature
warning / Low battery indicator / Failure warning…
- Temperature display: Indicate ambient temperature, indication range is -20 ℃ ~50 ℃ , higher than
- 50 ℃ will display HI, lower than -20 ℃ will display Lo.
- Maintain remind : 800U can indicate the maintain information according to the battery cycle times
and the riding mileage(ODO). 800U can estimated the battery cycle life .
- Low temperature warning : 800U can alarm the user by LCD&BUZZER when the temperature is below
freezing.
Low temperature warning
- The brightness of the backlight adjustable : 5-sections
- 9-level ASSIST : 3-ASSIST/5-ASSIST/6-ASSIST/9-ASSIST optional
- Power indicator : Real-time battery output power indication
- Mileage indicator : Odometer/Trip distance/ Riding time
- Parameter settings : Multiple parameter can be set through computer USB port, including ASSIST
level / Wheel diameter / Voltage / Speed limit / Magnetic steel / Number of halls…
- Error code indicator

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK

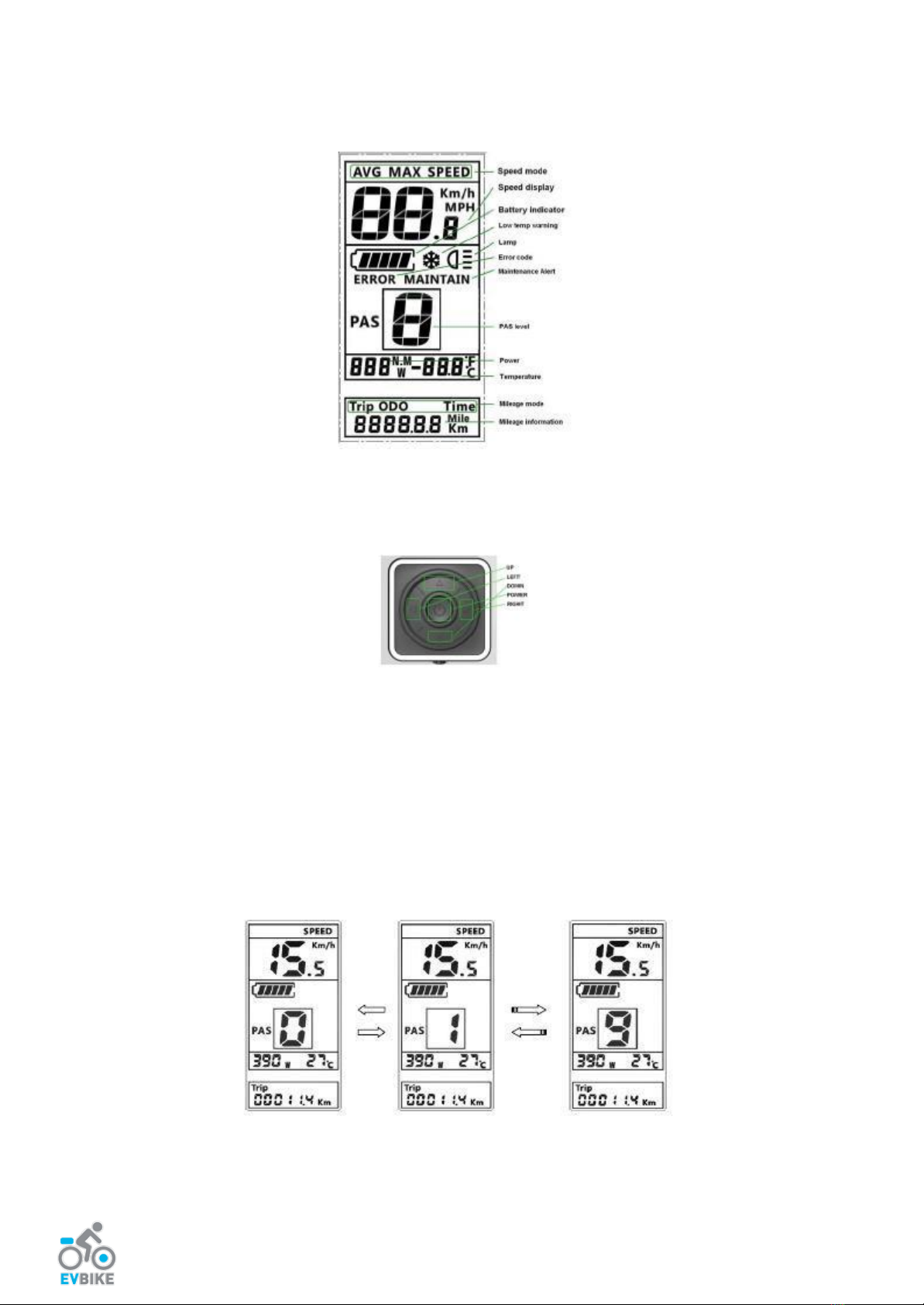

LCD INSTRUCTION:
FUNCIONAL DESCRIPTION
Power On/Off
Press and hold Power button for 1 second can turn on/off the Display. The Display will automatically shut down
when there is no operate & ride for 5 minutes.
ASSIST operating
Short press UP/DOWN button can change the ASSIST level. Top ASSIST level is 9, 0 for neutral. Level quantities
can be adjusted according to the customer requirements.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK

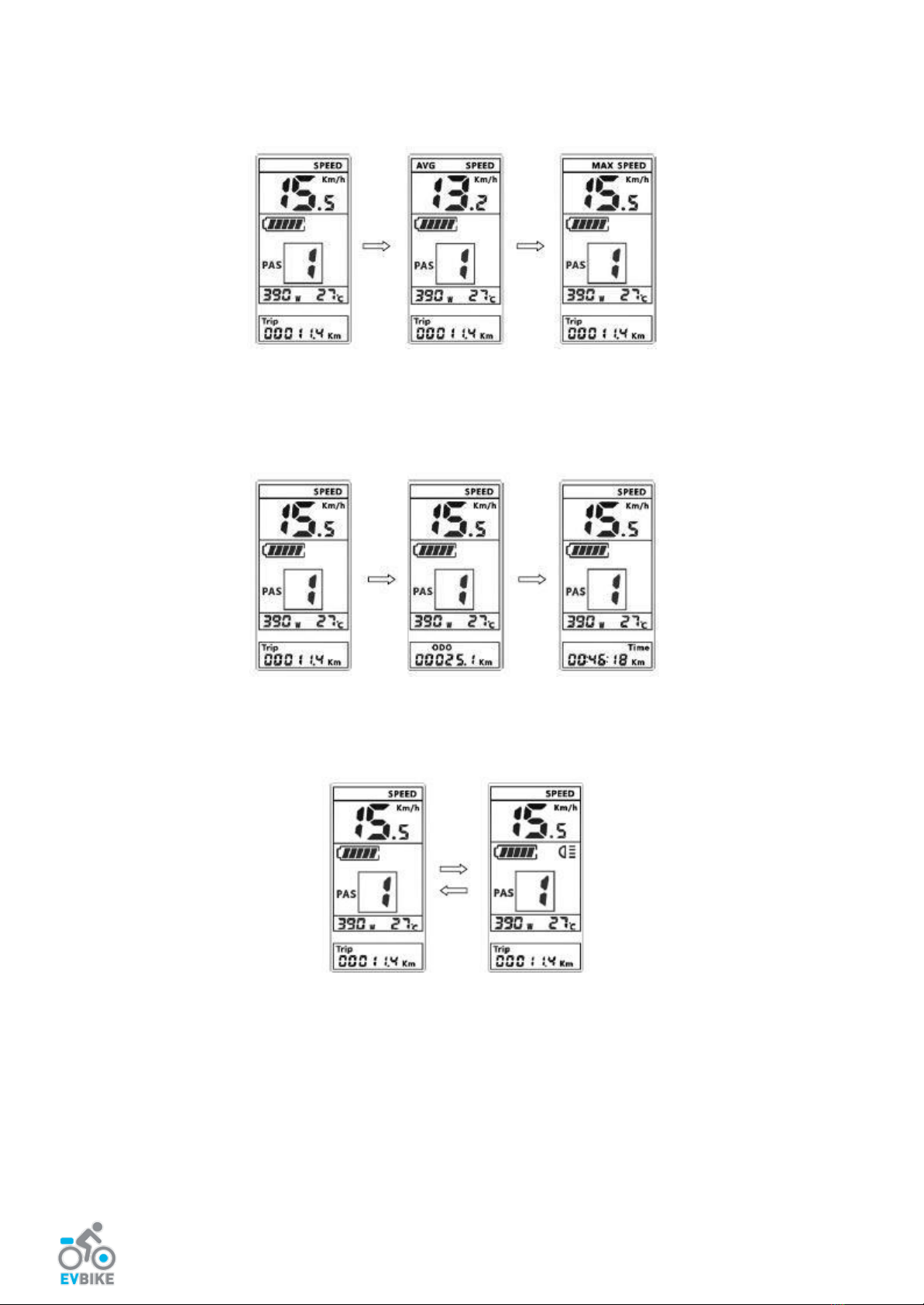

Speed mode switch
Short press LEFT button can change the speed mode, Speed->AVG Speed->MAX Speed.
*If there is no operation for 5 seconds, the display will return Speed (Real-Time) display automatically.
Mileage mode switch
Short press RIGHT button can change the mileage mode, Trip->ODO-> Time.
Headlight / backlight On / Off
Press and hold UP button for 1 second can turn on/off the headlight/backlight.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
6 km - walk
Press and hold DOWN button for 1 seconds can get into 6km walk mode, out of the mode when release the
button.
Data cleanup
Press and hold RIGHT button for 1 seconds can cleanup the several temporary data, the temporary data
include AVG Speed / MAX Speed / Trip / Time.
PARAMETER SETTINGS
Double press POWER button(press interval less than 0.3 second), the Display get into parameter setting state,
the current parameter flashing, short press UP/DOWN buttons to set the parameter values, short press
LEFT/RIGHT buttons to switch the parameters, short press POWER button to exit the parameter setting state.
The display will automatically exit the parameter setting state when there is no operation for 10 seconds.
The order of parameter settings are as follows:

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
Kilometer / Mile
The location of speed display symbol S7, press UP/DOWN button rotate display the symbol km/h / MPH
(Km / Mile).
Temperature
℃ / ℉ : the location of speed display symbol CF, press UP/DOWN button rotate display the symbol ℃ / ℉.
Light sensitive
The location of speed display symbol bL0, press UP/DOWN button display symbol 0~5 , 0 indicate automatic
headlight/backlight OFF. 1~5 indicate automatic headlight/backlight ON. 1 indicates the brightest on (auto turn
on the backlight at bright environment), 5 indicates the darkest on (auto turn on the backlight at dark
environment).

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
Backlight brightness:
The location of speed display symbol bL1, press UP/DOWN button display symbol 1~5 to change the brightness
of the backlight.
Buzzer On / Off
The location of speed display symbol bEP, press UP/DOWN button rotate display symbol 0/1, 0 indicates
buzzer off, 1 indicates buzzer on.
Auto off time
The location of speed display symbol OFF, press UP/DOWN button display symbol 1~9, represent automatically
shutdown delay time (minutes), default value is 5 minutes.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
Power display
The location of speed display symbol Pod, press UP/DOWN button display symbol 0/1, represent whether to
show the power indicate on LCD.
Maintain remind
The location of speed display symbol nnA(ma), press UP/DOWN button rotate display symbol 0/1, 0 represent
maintain reminding off, 1 represent maintain reminding on.
Wheel diameter
The location of speed display symbol Wd, press UP/DOWN button rotate display the symbol
16/18/20/22/24/26/700C/28/29, value represents the diameter of the wheel (inch). Wrong wheel diameter
setting will cause speed abnormal.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK

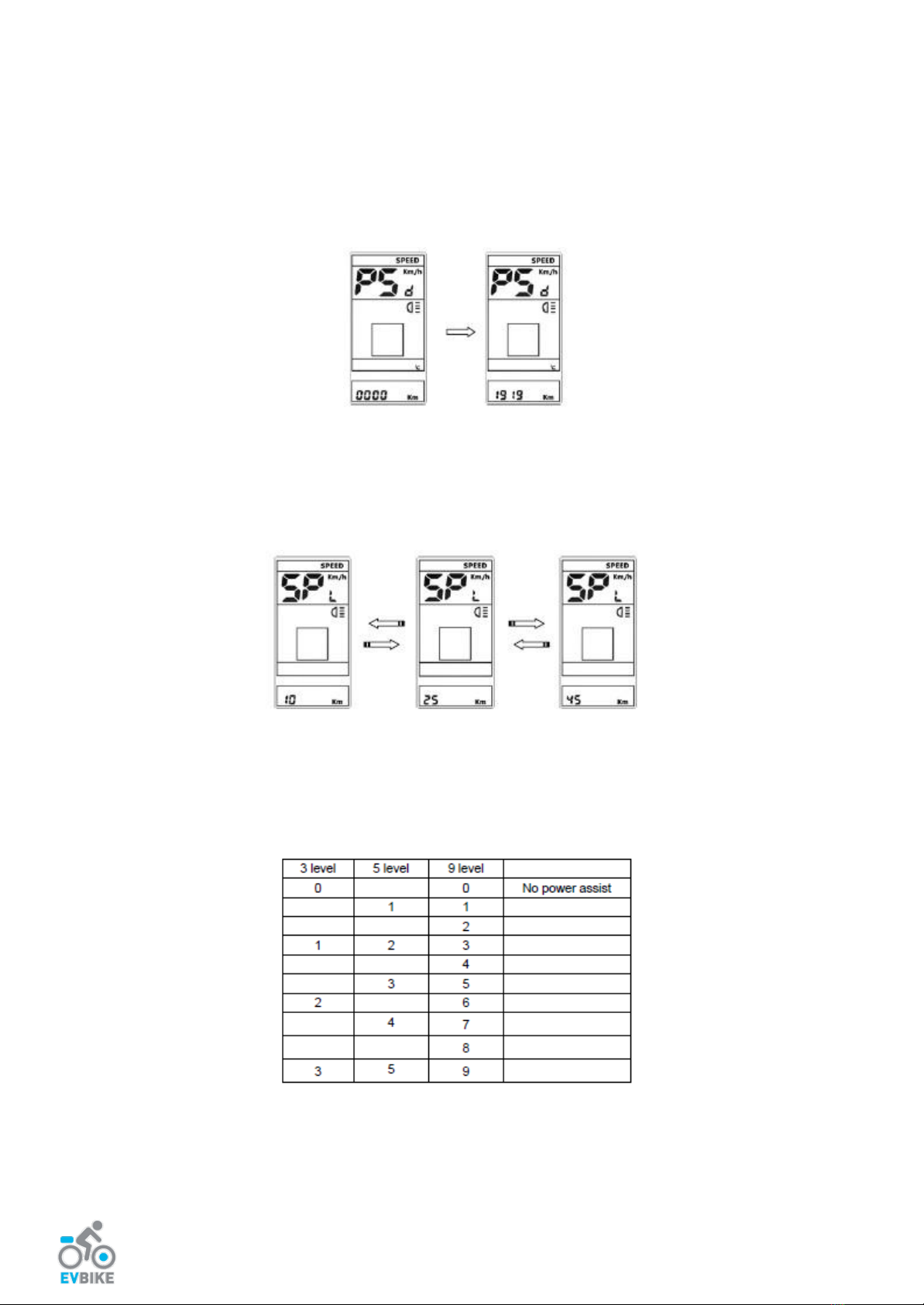

Password
The location of speed display symbol PSd, remind to input passwords, press UP/DOWN buttons to setup
password value (0~9), press LEFT/RIGHT buttons to switch the password item, password is 4 digits, the default
password is "1919". Press POWER button when password adjustment is completed. Display will return to the
Voltage set item if the password is incorrect. Correct password will enter the Speed limit set item.
Speed limit set
The location of speed display symbol SPL, the location of mileage display speed limit value, the default value is
25km/h. Press UP/DOWN buttons to adjust the speed limit value, speed limit value can be adjust from 10 to 40
- 60 km/h. Press POWER button to confirm when you finish the adjustment.
The maximum speed is restrict by the motor and controller, probably can’t reach the set value.
PAS level instruction
PAS level can be customized UbE, 0 - 3, 0 –5, 0 –9, PAs common used PAS level see the table below:

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK

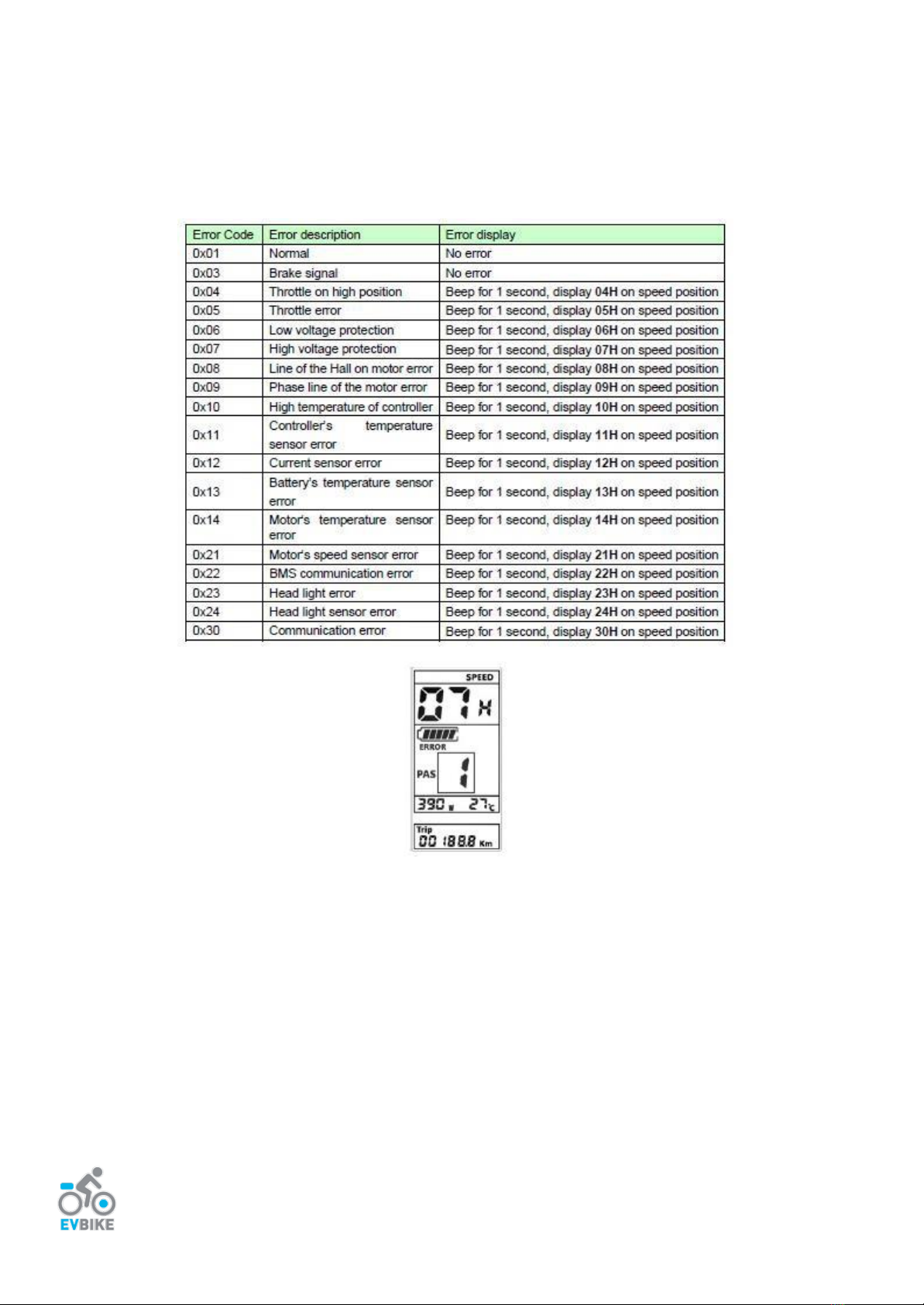

ERROR CODE DEFINE
C965 can give warning when E-bike has error, LCD display error icon and error code in speed position, Error
code from 01H~30H, definition see the table below:

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
ASSEMBLY INSTRUCTION
Please pay attention to the screw’s torque value, damaged caused by excessive torque is not within the scope
of the warranty.
There are two installation methods for the clamp, forward or backward, according to user’s demands. Different
assembly methods will need different cable length.
Clamps suit for 3 size of handlebar diameter, 31.8mm, 25.4mm, 22.2mm, there are different transfer rings for
25.4mm and 22.2mm, transfer ring must assembly in right direction, see the figure below, pay attention to the
green arrow position.

Importer: PHOYLO LTD, CZ684609501,
Enterprise House, Pass Street 2, 0L9 6HZ Oldham,
Manchester, UK
WARNING
There is waterproof membrane inside the sound hole. Don’t insert sharp object into the hole, it will causes
waterproof failure. Sun exposure may cause high temperature indicate, this is not display’s failure.
OUTPUT WIRE INSTRUCTIONS
