Everet EVP412 User manual
EVERET EVP412
12x UHD 4K PTZ Video Camera
User Manual
Version V1.0
（English)
CONTENT
SAFETY GUIDES 2
PACKING LIST 3
QUICK START 3
1. Check all cable connections before power on. 3
2. Dial Switch Settings (at the bottom of the camera) 4
PRODUCT HIGHLIGHTS 5
TECHNICAL SPECIFICATIONS 6
CAMERA INTERFACE 8
CAMERA DIMENSIONS 8
IR REMOTE CONTROLLER 9
VISCA IN（RS232 PORT) 11
VISCA PROTOCOL 13
PART1 CAMERA RETURN COMMAND 13
PART2 CAMERA CONTROL COMMAND 13
PART3 CAMERA CONTROL COMMAND 19
VISCA PAN TILT ABSOLUTE POSITION VALUE 22
VISCA PAN TILT SPEED VALUE 22
PELCO-D PROTOCOL COMMAND LIST 23
PELCO-P PROTOCOL COMMAND LIST 24
OSD MENU 25
IP ADDRESS SETTING 29
WEB SETTINGS 30
USING VLC TO VIEW RTSP/RTMP VIDEO 35
VISCA OVER IP 35
HOW TO USE VISCA OVER IP 36
1 WWW.EVERETIMAGING.COM
SAFETY GUIDES
1.Before operation, please fully read and follow all instructions in the manual.
2.For your safety, always keep this manual with the camera.
3.The camera power input range is 100-240 VAC (50-60Hz), ensure the power supply input
within this rate before powering on.
4.The camera power voltage is 12VDC, rated currency is 2A. We suggest you use it with the
original power supply adapter supplied by the factory.
5.Please keep the power cable, video cable and control cable in a safe place. Protect all
cables especially the connectors.
6.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not
put anything inside the camera, and keep away from the corrosive liquid.
7.Avoid stress, vibration and damp during transportation, storage and installation.
8.Do not detatch the camera housing and cover. For any service, please contact authorized
Everet technicians.
9.Video cable and control cable should be individually shielded, and cannot be substituted
with other cables.
10.Do not direct the camera lens towards strong light, such as the sun or the intensive light.
11.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent
when there is need to clean. To avoid damage on the camera lens, never use strong or
abrasive cleaning agents on the camera housing.
12.

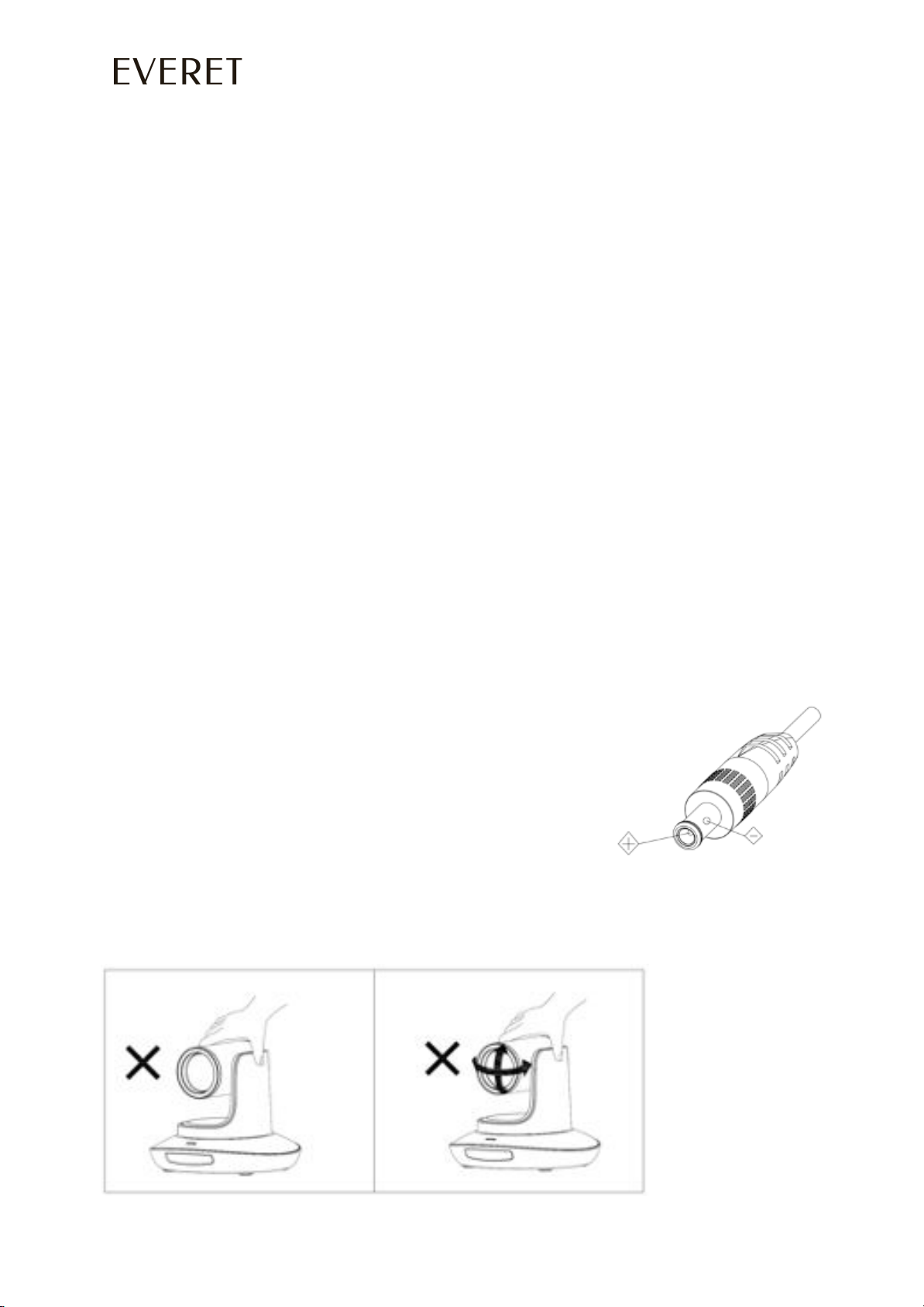

Do not move the camera by holding the camera head. To avoid mechanical trouble, do not
rotate the camera head by hand. NEVER MOVE THE CAMERA MANUALLY WHEN IT IS
WORKING.
13.Put the camera on fixed and smooth desk or platform,
avoid leaned installation.
14.Power Supply Polarity (Drawing)
Note:
The video quality may be affected by the specific frequencies of
electromagnetic fields.
Never grasp the head of the camera, and never move the camera by hand when it is working,
otherwise the camera will breakdown.
2 WWW.EVERETIMAGING.COM
PACKING LIST
Check all bellow items when open the package:
Camera
1
Power Adapter
1
Power Cable
1
RS232 Control Cable
1
USB 3.0 Cable
1
Remote Controller
1
QUICK START

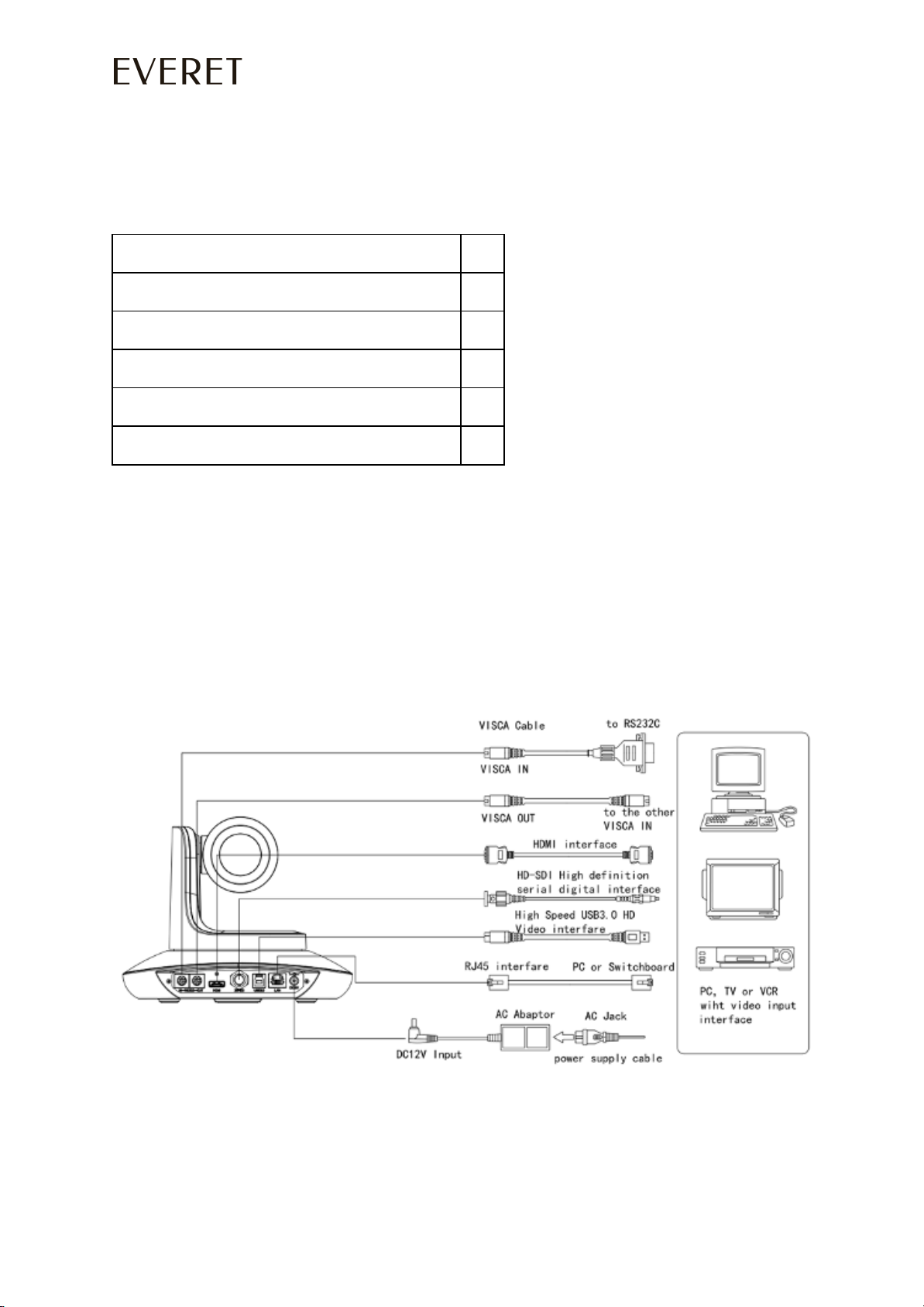

1. Check all cable connections before power on.
3 WWW.EVERETIMAGING.COM

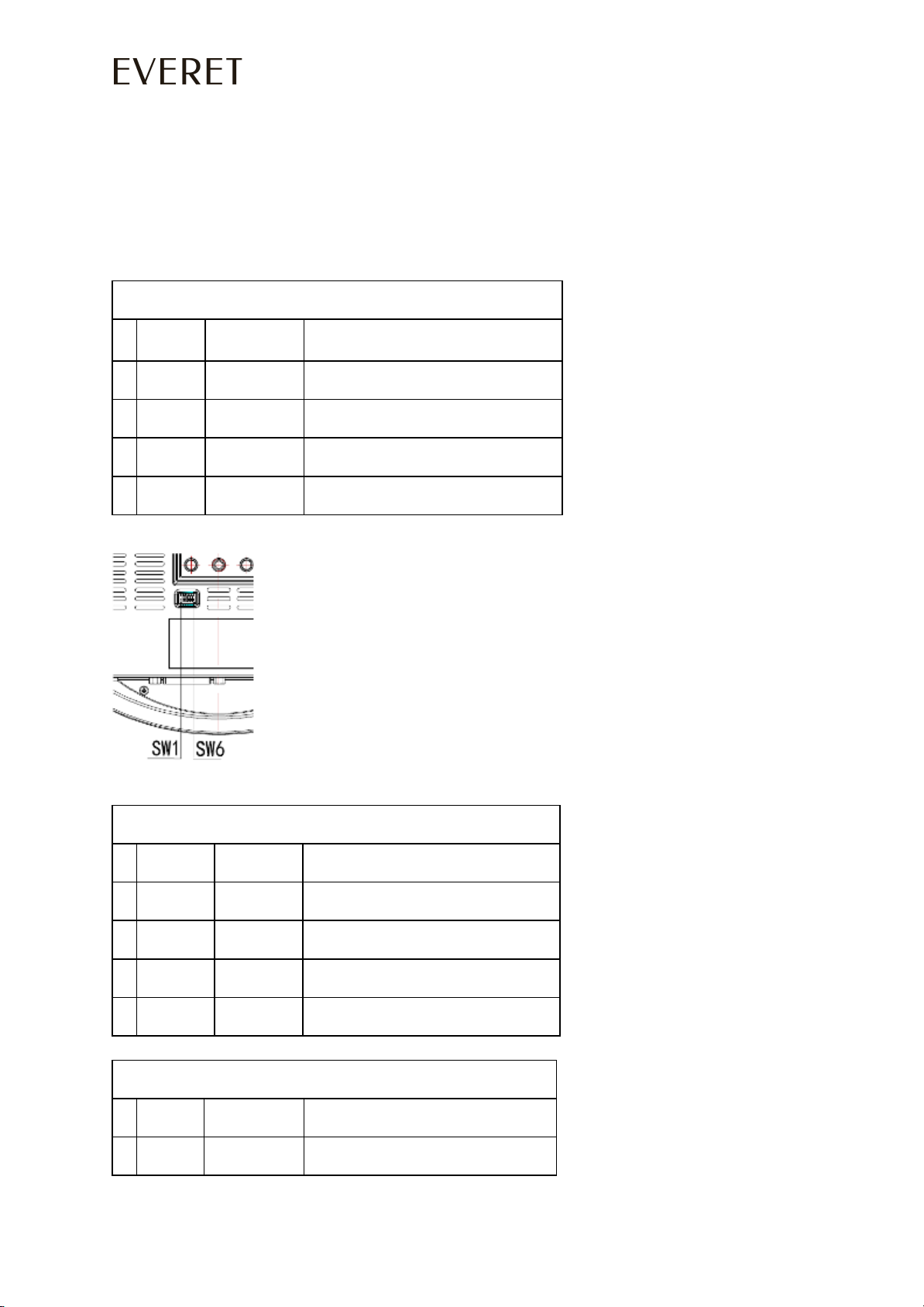

2. Dial Switch Settings (at the bottom of the camera)
Dial Switch（ARM）
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode
Dial Switch
SW-3
SW-4
Instruction
1
OFF
OFF
reserve
2
ON
OFF
reserve
3
OFF
ON
reserve
4
ON
ON
reserve
Dial Switch (USB)
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
4 WWW.EVERETIMAGING.COM
2
ON
OFF
Working mode
3
OFF
ON
Updating mode
4
ON
ON
Undefined
PRODUCT HIGHLIGHTS
●Sony Adopts most advanced ISP, 1/2.5 inch 8.5MP sensor, providing 3840x2160 p30
Ultra HD video resolution
●4K wide angle optical lens: 12x optical zoom and 2x digital zoom , with 72.5 degree
field of view;
●4K video over IP, H.264, H.265 encoding;
●IP, HDMI, 3G-SDI, USB video outputs interface
●White Balance, Exposure, Focus, Iris can be adjusted automatically or manually
●Support POE: easy to use one RJ45 cable to get video, control and power supply
●Special Focusing Algorithm: fast and precise focusing performance when zooming or
moving
●Smooth PTZ mechanical design, accurate pan tilt motor control
●128 presets supported
●Standard Sony VISCA, VISCA over IP, PELCO-P, PELCO-D control protocol; IP VISCA
over both TCP and UDP
●Daisy chain supported, max 7 cameras connected in VISCA protocol
●Image flip function, support upside-down installation
●Supplied with functional IR remote controller
●Fast video format switch: less than 3 seconds
●Supported field upgrade for ISP, ARM, FPGA and USB
●USB3.0 port compatible with USB2.0 output.
●Support RS232/RS485/UVC control
●Standard UVC1.5 protocol, seamlessly compatible with major video conferencing
software and platform
●Support IR transfer function, code of the third party remote controller can be
transferred to the host via VISCA IN port, in case client’s development
●OSD menu in English, IP address, streaming resolution and size can be set in OSD
menu
5 WWW.EVERETIMAGING.COM
TECHNICAL SPECIFICATIONS
Video Format
HDMI
3840*2160P30/25
1920*1080P60/50/30/25/59.94/29.97/24
1920*1080I60/50/59.94
1280*720P60/50/30/25/59.94/29.97
SDI
1920*1080P60/50/30/25/59.94/29.97/24
1920*1080I60/50/59.94
1280*720P60/50/30/25/59.94/29.97
USB
1920*1080P60/50/30/25（USB3.0）
1280*720P60/50/30（USB3.0）
1280*720P25（USB3.0 & USB2.0）
1024*576P30（USB3.0 & USB2.0）
960*540P30（USB2.0）
640*360P30（USB2.0）
512*288P30（USB2.0）
IP
3840*2160@1~30 / 1920*1080@1~30 (Main Stream）
1280*720@1~30 / 1027*576@1~30 / 640*360@1~30 (Sub stream）
Video Interface
HDMI, 3G-SDI, RJ45, USB3.0
Sensor
1/2.8” 8.5MP Panasonic CMOS sensor
Zoom
F3.92～47.32mm (12X), View Angle:72.5° (Far) - 6.43° (Near)
Rotation Angle
Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed
Pan: 0°~120°/s ; Tilt: 0°~80°/s
Preset:
Remote controller: 10; RS232: 128; Accuracy: 0.1°
Control Port
RS232、RS485 (optional)、RJ45 (VISCA over IP)、USB3.0 (UVC1.5), USB2.0
(UVC1,1)
Network Speed
1000M
Video encode
H.264/H.265(default: H.264)
Bit Rate Control
Variable Bit Rate, Constant Bit Rate
Video Bit Rate
0Kbps~15360Kbps
IP Protocol
TCP/IP, HTTP, RTSP, DHCP , Onvif
6 WWW.EVERETIMAGING.COM
POE
Supported
Daisy Chain
Support RS232 serial daisy chain
Minimum Lux
0.1 lux
White Balance
Auto/Indoor/Outdoor/Manual/Auto/Sodium Lamp Auto/Sodium Lamp
Exposure
Auto/Manual/Bright/Shutter/Iris
Focus
Auto / Manual
Iris
Auto / Manual
Electric Shutter
Auto / Manual
Gamma
Supported
WDR
Supported
BLC
Supported
2D/ 3D Noise
Reduction
Supported
Anti Flicker
OFF/50Hz/60Hz
Pan Tilt Flip
Supported
Input Voltage
DC12V / POE
Dimension
220mm×190mm×173mm
Net Weight
1.4KG（3.1LBS）
Note: When HDMI outputs 4K the 3G-SDI & USB3.0 will have no image. If you need
simultaneous 3G-SDI and HDMI output image, the HDMI needs to output 1080p or
lower than 1080p resolution.
7 WWW.EVERETIMAGING.COM

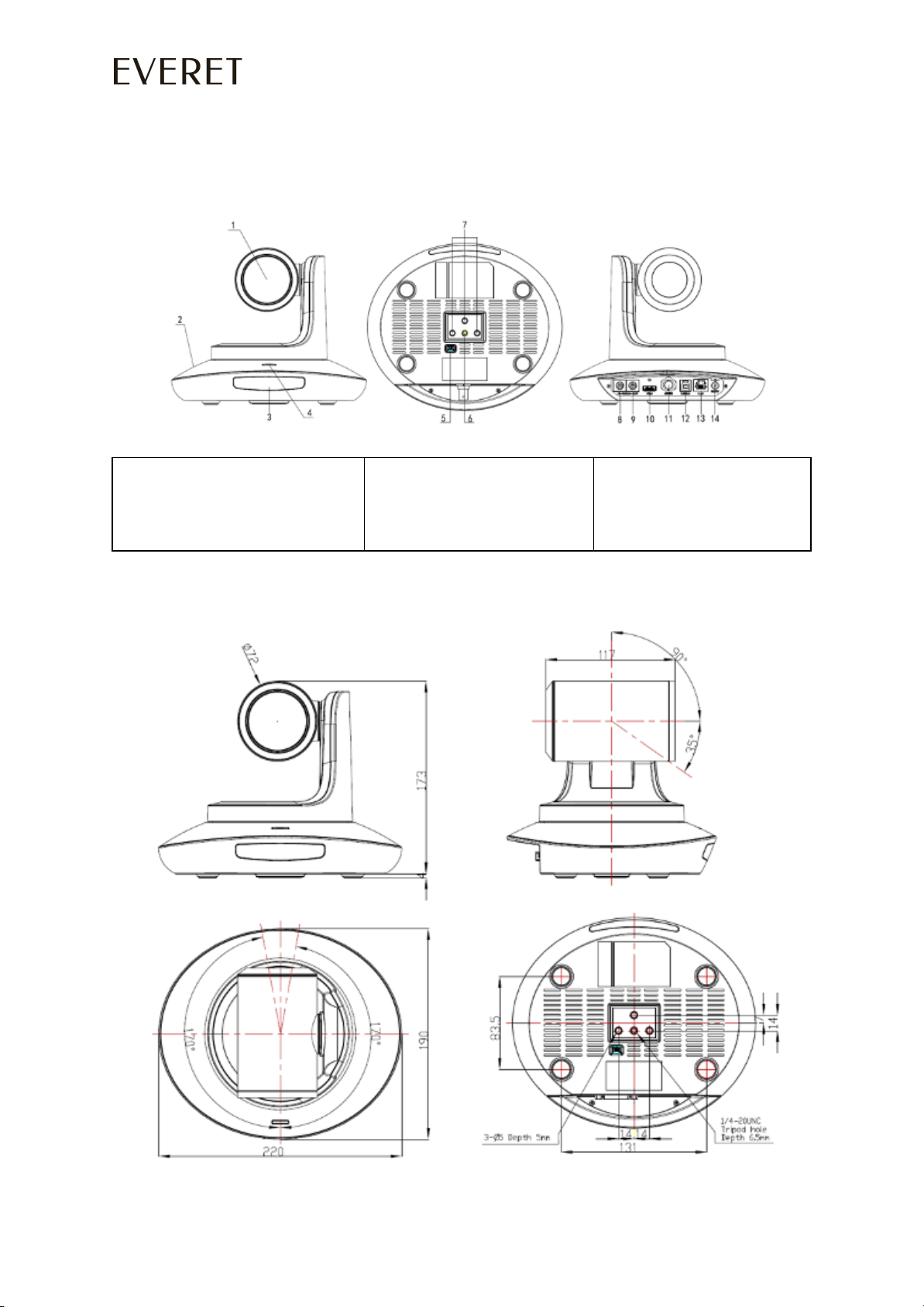

CAMERA INTERFACE
1.Camera Lens
2.Camera Base
3.IR Receiver Panel
4.Power Indicator Light
5.Dial Switch
6. Tripod Screw Hole
7. Installation Hole
8. RS232 control port (input)
9. RS232 control port(output)
10. HDMI port
11.3G-SDI port
12, USB port
13, RJ45 port
14. DC12V plug
CAMERA DIMENSIONS
8 WWW.EVERETIMAGING.COM
IR REMOTE CONTROLLER
POWER
Under normal working mode, short press
POWER key, to enter standby mode;
Press it again, the camera will do
self-configuration, then go back to HOME
position.
It will go to preset position if power on model
has been set before.
FREEZE （Not Supported in USB）
Short press FREEZE key to freeze/ unfreeze the
image.
IRT (IR Transfer/IR Pass)
Open / close the IR pass function. Once press
the IRT key, the camera will receive and
Pass the IR remote control signal to the
codec/terminal (via VISCA IN port).
SET 1~SET4 ADDRESS SETTING
Long press for 3 seconds until the key light ON,
to set camera address.
CAM1~CAM4（CAMERA SELECTING）
Short press to select the relative camera.
PRESET NUMBER KEY (1-9)
Set preset: long press (3 seconds) the number
key to set preset.
Run preset: Short press the number key to run
preset.
CLR PRE (CLEAR PRESET)
CLR PRE+ number key:
to clear the relative preset.
Long press to clear all presets.
9 WWW.EVERETIMAGING.COM
FOCUS KEY ( ON THE LEFT)
Manual focus, only valid under manual focus
model.
ZOOM KEY( ON THE RIGHT SIDE)
Set the zoom rate
NAVIGATE KEY: UP/DOWN/LEFT/RIGHT
Under working mode, use navigate key to set
the pan tilt, and select menu when enter OSD.
OK /HOME KEY
Under working mode, short press OK to make
the camera go back to HOME position; and
confirm the selection when enter OSD.
AF: Auto Focus
MF: Manual Focus
RESET: Press 3 seconds to reset camera
MENU: Enter OSD menu
LEARN+LIMIT L key:
Set the pan tilt left limit position.
LEARN+LIMIT R key:
Set the pan tilt right limit position.
LEARN+LMT CLR key:
Clear the limit position.
BLC OFF/ BLC ON: Not Available
BRIGHT-/BRIGHT+: Set image brightness, only
valid under bright priority exposure mode.
Video Format Keys:
Long press 3 seconds to select different video
format output.
Note:
Long Press F3 to switch to 3840*2160P30
mode (HDMI)
Long Press F4 to switch to 3840*2160P25
mode (HDMI)
10 WWW.EVERETIMAGING.COM

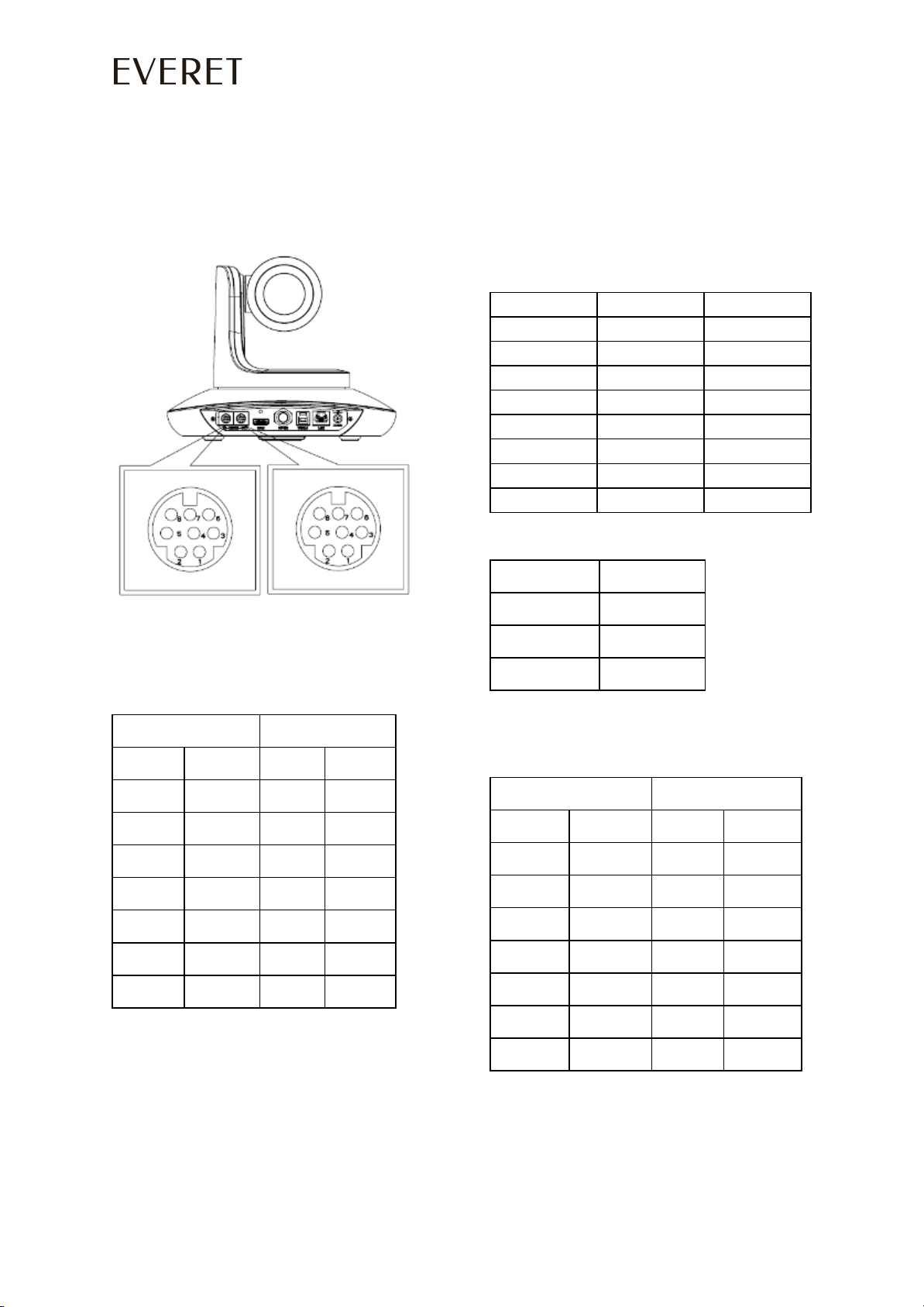

VISCA IN（RS232 PORT)
VISCA IN & Mini DIN Connection
Camera VISCA IN
Mini DIN
1
DTR
1
DSR
2
DSR
2
DTR
3
TXD
5
RXD
4
GND
4
GND
5
RXD
3
TXD
6
A(+)
6
NC
7
IR OUT
7
NC
8
B(-)
8
NC
No.
V_IN
V_OUT
1
DTR
DTR
2
DSR
DSR
3
TXD
TXD
4
GND
GND
5
RXD
RXD
6
A
7
IR OUT
8
B
VISCA IN
RS485
6
A (+)
7
IR OUT
8
B (-)
VISCA IN & DB9 Connection
Camera VISCA IN
Windows DB-9
1
DTR
6
DSR
2
DSR
4
DTR
3
TXD
2
RXD
4
GND
5
GND
5
RXD
3
TXD
6
A(+)
7
IR OUT
8
B(-)
11 WWW.EVERETIMAGING.COM

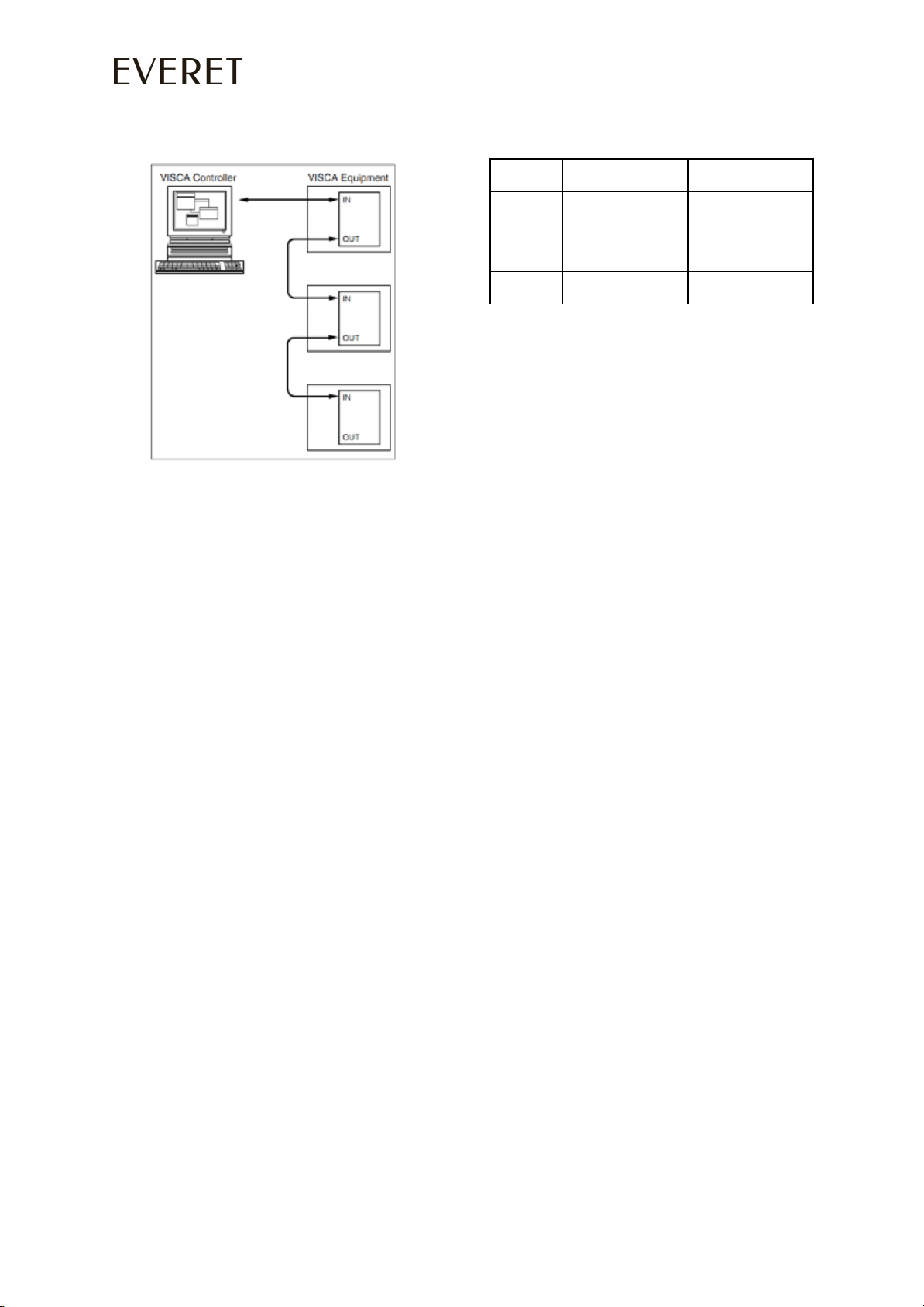

VISCA NETWORK SETUP:
SERIAL PORT CONFIGURATION:
Parameter
Value
Parameter
Value
Baud rate
2400/4800/9600/115
200
Stop Bit
1bit
Start Bit
1 bit
Check Bit
None
Date Bit
8 bit
12 WWW.EVERETIMAGING.COM
VISCA PROTOCOL
PART1 CAMERA RETURN COMMAND
Ack / Completion Message
Command
Packet
Note
ACK
z0 41 FF
Returned when the command is accepted.
Completion
z0 51 FF
Returned when the command has been executed.
z = camera address+8
Error Messages
Command
Packet
Note
Syntax Error
z0 60 02 FF
Returned when the command format is different or when a command with illegal
command parameters is accepted
Command Not
Executable
z0 61 41 FF
Returned when a command cannot be executed due to current conditions. For example,
when commands controlling the focus manually are received during auto focus.
PART2 CAMERA CONTROL COMMAND
Command type
function
Command packet
Note
AddressSet
Broadcast
88 30 01 FF
Address setting
IF_Clear
Broadcast
88 01 00 01 FF
I/F Clear
CommandCancel
8x 21 FF
CAM_Power
On
8x 01 04 00 02 FF
Power ON/OFF
Off
8x 01 04 00 03 FF
CAM_Zoom
Stop
8x 01 04 07 00 FF
Tele(Standard)
8x 01 04 07 02 FF
Wide(Standard)
8x 01 04 07 03 FF
Tele(Variable)
8x 01 04 07 2p FF
p = 0(low)~7(high)
Wide(Variable)
8x 01 04 07 3p FF
Direct
8x 01 04 47 0p 0q 0r 0s FF
pqrs: Zoom Position (0(wide)
~0x4000(tele))
Direct with speed
8x 0A 04 47 0t 0p 0q 0r 0s FF
t: spd 0~7
pqrs: Zoom Position (0(wide)
~0x4000(tele))
CAM_DZoom
ON
8x 01 04 06 02 FF
13 WWW.EVERETIMAGING.COM
OFF
8x 01 04 06 03 FF
Combine Mode
81 01 04 36 00 FF
Combine with optical zoom control
Separate Mode
81 01 04 36 01 FF
Separate with optical zoom control
Stop
81 01 04 06 00 FF
Enable In separate mode
Tele (Variable)
81 01 04 06 2p FF
Enable In separate mode
Wide (Variable)
81 01 04 06 3p FF
Enable In separate mode
Direct
81 01 04 46 0p 0q 0r 0s FF
Enable In separate mode
CAM_Focus
Stop
8x 01 04 08 00 FF
Far(Standard)
8x 01 04 08 02 FF
Near(Standard)
8x 01 04 08 03 FF
Far (Variable)
81 01 04 08 2p FF
p=0 (Low) to 7 (High)
Near (Variable)
81 01 04 08 3p FF
p=0 (Low) to 7 (High)
Direct
8x 01 04 48 0p 0q 0r 0s FF
pqrs: Focus Position
Auto Focus
81 01 04 38 02 FF
Manual Focus
81 01 04 38 03 FF
One Push AF
8x 01 04 18 01 FF
CAM_ZoomFocus
Direct
8x 01 04 47 0p 0q 0r 0s
0t 0u 0v 0w FF
pqrs: Zoom Position (0(wide)~
0x4000(tele))
tuvw: Focus Position
CAM_WB
Auto
8x 01 04 35 00 FF
Indoor
8x 01 04 35 01 FF
Outdoor
8x 01 04 35 02 FF
OnePush
8x 01 04 35 03 FF
ATW
8x 01 04 35 04 FF
Manual
8x 01 04 35 05 FF
Sodium lamp
8x 01 04 35 08 FF
fluorescent
8x 01 04 35 09 FF
OnePush Trigger
8x 01 04 10 05 FF
CAM_RGain
Reset
8x 01 04 03 00 FF
Manual Control of R Gain
Up
8x 01 04 03 02 FF
14 WWW.EVERETIMAGING.COM
Down
8x 01 04 03 03 FF
Direct
8x 01 04 43 00 00 0p 0q FF
pq: R Gain (0~0xFF)
CAM_Bgain
Reset
8x 01 04 04 00 FF
Manual Control of B Gain
Up
8x 01 04 04 02 FF
Down
8x 01 04 04 03 FF
Direct
8x 01 04 44 00 00 0p 0q FF
pq: B Gain (0-0xFF)
CAM_AE
Full Auto
81 01 04 39 00 FF
Automatic Exposure mode
Manual
81 01 04 39 03 FF
Manual Control mode
Shutter Priority
81 01 04 39 0A FF
Shutter Priority
Automatic Exposure mode
Iris Priority
81 01 04 39 0B FF
Iris Priority Automatic
Exposure mode
Bright
81 01 04 39 0D FF
Bright Mode (Manual control)
CAM_Shutter
Reset
8x 01 04 0A 00 FF
Shutter Setting
Up
8x 01 04 0A 02 FF
Down
8x 01 04 0A 03 FF
Direct
8x 01 04 4A 00 00 0p 0q FF
pq: Shutter Position (0~0x15)
CAM_Iris
Reset
8x 01 04 0B 00 FF
Iris Setting(0~0xD)
Up
8x 01 04 0B 02 FF
Down
8x 01 04 0B 03 FF
Direct
8x 01 04 4B 00 00 0p 0q FF
pq: Iris Position (0~ 0x11)
CAM_Gain
Reset
8x 01 04 0C 00 FF
Gain Setting (0~0x0F)
Up
8x 01 04 0C 02 FF
Down
8x 01 04 0C 03 FF
Direct
8x 01 04 0C 00 00 0p 0q FF
pq: Gain Positon (0~0x0E)
CAM_Bright
Reset
8x 01 04 0D 00 FF
Bright Setting
Up
8x 01 04 0D 02 FF
Down
8x 01 04 0D 03 FF
Direct
8x 01 04 4D 00 00 0p 0q FF
pq: Bright l Positon (0~0x1B)
15 WWW.EVERETIMAGING.COM
CAM_WDR
On
8x 01 04 3D 02 FF
Exposure Compensation ON/OFF
Off
8x 01 04 3D 03 FF
Direct
8x 01 04 2D pq FF
pq: ExpComp Position (0~0x6)
CAM_BackLight(BLC)
On
8x 01 04 33 02 FF
BackLight On
Off
8x 01 04 33 03 FF
BackLight Off
CAM_Sharpness
Reset
8x 01 04 02 00 FF
Aperture Control
Up
8x 01 04 02 02 FF
Down
8x 01 04 02 03 FF
Direct
8x 01 04 42 00 00 0p 0q FF
pq: Aperture Gain (0~0x0F)
CAM_Memory(preset)
Reset
8x 01 04 3F 00 0p FF
p: Preset Number(=0 to 127)
Corresponds to 0 to 9 on the Remote
Commander
Set
8x 01 04 3F 01 0p FF
Recall
8x 01 04 3F 02 0p FF
CAM_LR_Reverse
On
8x 01 04 61 02 FF
Image Flip Horizontal ON/OFF
Off
8x 01 04 61 03 FF
CAM_PictureFlip
On
8x 01 04 66 02 FF
Image Flip Vertical ON/OFF
Off
8x 01 04 66 03 FF
CAM_RS485Ctl
On
8x 01 06 A5 02 FF
Off
8x 01 06 A5 03 FF
CAM_Saturation
Saturation
8x 01 04 A1 00 00 0p 0q FF
pq :saturation level 0x00~0xff
CAM_Contrast
Contrast
8x 01 04 A2 00 00 0p 0q FF
pq :Contrast level 0x00~0xff
CAM_SpeedByZoom
On
8x 01 06 A0 02 FF
Off
8x 01 06 A0 03 FF
CAM_PTSpeed
PT Speed
8x 01 04 C1 00 00 0p 0q FF
pq :PT speed 0x05~0x18
CAM_ZoomSpeed
Zoom Speed
8x 01 04 D1 00 00 0p 0q FF
pq :Zoom speed 0x01~0x07
CAM_ZoomDisplay
On
8x 01 06 C2 02 FF
Off
8x 01 06 C2 03 FF
CAM_IRaddress
IR address
8x 01 06 D8 0p FF
p:IR address 1~4
16 WWW.EVERETIMAGING.COM
CAM_Gamma
Gamma set
81 01 04 5B 0p FF
P:Gamma NO. (0~4)
CAM_MountMode
UP
8x 01 04 A4 02 FF
Mount Up
Down
8x 01 04 A4 03 FF
Mount Down
CAM_ColorGain
Direct
8x 01 04 49 00 00 00 0p FF
(0~0x0E)
CAM_2D
Noise Reduction
Direct
8x 01 04 53 0p FF
(0~0x05)
CAM_3D
Noise Reduction
Direct
8x 01 04 54 0p FF
(0~0x03)
FLICK
50HZ
81 01 04 23 01 FF
60HZ
81 01 04 23 02 FF
OFF
81 01 04 23 00 FF
VideoSystem Set
(camera)
8x 01 06 35 00 pp FF
pp: Video format
1080P60 0x00
1080P50 0x01
1080I60 0x02
1080I50 0x03
1080P30 0x 04
1080P25 0x05
720P60 0x 06
720P50 0x07
720P30 0x08
720P25 0x09
1080P59.94 0x0E
1080I59.94 0x0F
1080P29.97 0x10
720P59.94 0x13
720P29.97 0x14
1080P24 0x11
1080P23.98 0x12
4K@30 0x15
4K@25 0x16
VideoSystem
Set(Sony)
81 01 04 24 72 0p 0q FF
pq: Video format
1080P60 0x2e
1080P50 0x2f
1080I60 0x01
1080I50 0x04
1080P30 0x06
1080P25 0x08
720P60 0x09
720P50 0x0c
720P30 0x0e
720P25 0x11
1080P59.94 0x13
1080I59.94 0x02
1080P29.97 0x07
720P59.940x0a
720P29.970x0f
1080P24 0x2a
1080P23.98 0x2b
4K@30 0x1D
4K@25 0x1E
CAM_IDWrite
8x 01 04 22 0p 0q 0r 0s FF
pqrs: Camera ID (=0000 to FFFF)
17 WWW.EVERETIMAGING.COM
DHCP control
DHCP off
8x 01 04 AE 00 FF
DHCP off
DHCP on
8x 01 04 AE 01 FF
DHCP on
Mainstream
resolution
8x 01 04 C2 00 0p 0q 0r 0s 0m
0n 0x 0y FF
pqrs : Column(x size)
mnxy: Line (y size)
only support:
1920*1080
3840*2160
rate
8x 01 04 C2 01 0p 0q 0r 0s 0m
0n 0x 0y FF
pqrsmnxy: bitrate (0~15360)
Substream
resolution
8x 01 04 C3 00 0p 0q 0r 0s 0m
0n 0x 0y FF
pqrs : Column(x size)
mnxy: Line (y size)
only support:
1280*720、1024*576、640*360
rate
8x 01 04 C3 01 0p 0q 0r 0s 0m
0n 0x 0y FF
pqrsmnxy: bitrate (0~15360)
Tally control
Tally on/off
8x 01 7E 01 0A 00 0p FF
P: 2: on(LED GREEN)
3: off(LED RED)
IP address control
IP set
8x 01 04 AB 0p 0q 0r 0s 0m 0n
0x 0y FF
Set ip to :pq.rs.mn.xy
Mask set
8x 01 04 AC 0p 0q 0r 0s 0m 0n
0x 0y FF
Set mask to :pq.rs.mn.xy
Gateway set
8x 01 04 AD 0p 0q 0r 0s 0m 0n
0x 0y FF
Set gateway to : pq.rs.mn.xy
Color adjust
Color adjust OFF
8x 01 04 B6 00 FF
Color adjust off
Color adjust ON
8x 01 04 B6 01 FF
Color adjust on
brightness balance OFF
8x 01 04 B7 00 FF
Keep Brightness
brightness balance ON
8x 01 04 B7 01 FF
No keep Brightness
Flare red
8x 01 04 B8 dat FF
Flare mode red value
Default is 32
Flare green
8x 01 04 B9 dat FF
Flare mode green value
Default is 32
Flare green
8x 01 04 BA dat FF
Flare mode blue value
Default is 32
SYS_Menu
Menu On
8x 01 06 06 02 FF
Turn on the menu
Menu Off
8x 01 06 06 03 FF
Turn off the menu
Menu Back
8x 01 06 06 10 FF
Menu step back
Menu Ok
8x 01 7E 01 02 00 01 FF
Menu ok
IR_Receive
On
8x 01 06 08 02 FF
IR(remote commander)receive ON/OFF
18 WWW.EVERETIMAGING.COM
Off
8x 01 06 08 03 FF
On/Off
8x 01 06 08 10 FF
Pan_tiltDrive
Up
8x 01 06 01 VV WW 03 01 FF
VV: Pan speed 0x01 (low speed) to 0x18
(high speed)
WW: Tilt speed 0x01 (low speed) to 0x14
(high speed)
YYYY: Pan Position(TBD)
ZZZZ: Tilt Position(TBD)
Down
8x 01 06 01 VV WW 03 02 FF
Left
8x 01 06 01 VV WW 01 03 FF
Right
8x 01 06 01 VV WW 02 03 FF
Upleft
8x 01 06 01 VV WW 01 01 FF
Upright
8x 01 06 01 VV WW 02 01 FF
DownLeft
8x 01 06 01 VV WW 01 02 FF
DownRight
8x 01 06 01 VV WW 02 02 FF
Stop
8x 01 06 01 VV WW 03 03 FF
AbsolutePosition
8x 01 06 02 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
RelativePosition
8x 01 06 03 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
Home
8x 01 06 04 FF
Reset
8x 01 06 05 FF
Pan-tiltLimitSet
Set
8x 01 06 07 00 0W
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
W:1 UpRight 0:DownLeft
YYYY: Pan Limit Position(TBD)
ZZZZ: Tilt Limit Position(TBD)
Clear
8x 01 06 07 01 0W
07 0F 0F 0F 07 0F 0F 0F FF
PART3 CAMERA CONTROL COMMAND
Command type
command
return
note
CAM_PowerInq
8x 09 04 00 FF
y0 50 02 FF
On
y0 50 03 FF
Off(Standby)
CAM_ZoomPosInq
8x 09 04 47 FF
y0 50 0p 0q 0r 0s FF
pqrs: Zoom Position
CAM_FocusModeInq
8x 09 04 38 FF
y0 50 02 FF
Auto Focus
y0 50 03 FF
Manual Focus
CAM_FocusPosInq
8x 09 04 48 FF
y0 50 0p 0q 0r 0s FF
pqrs: Focus Position
19 WWW.EVERETIMAGING.COM
Other manuals for EVP412
1
Table of contents
Other Everet Camcorder manuals
