Dear User,
Our objective is to make this product provide you with the best output
which is manufactured in our modern facilities in a careful working
environment, in compliance with total quality concept.
Therefore, we suggest you to read the user manual carefully before using the
product and, keep it permanently at your disposal.
NOTE:
This user manual is prepared for more than one model. Some of the
features specified in the Manual may not be available in your appliance.
All our appliances are only for domestic use, not for commercial use.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ
THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
GB

CONTENTS:
Important warnings
Technical features of your oven
Installation of your oven
If the appliance does not operate
Description of oven & control panel
Using cooker section
Using oven section
Using grill deflector
Maintenance and cleaning
Usage of Coffeepot support
1

IMPORTANT WARNINGS
Electrical Connection and Security:
1.Your oven requires 16 or 32 Ampere fuse according to the appliance's power.
If necessary, installation by a qualified electrician is recommended.
2.Your oven is adjusted in compliance with 230V~50-60Hz. (or
230V/400V~50-60Hz.) electric supply. If the mains are different from this
specified value, contact your authorized service.
3.Electrical connection of the oven should only be made by the sockets with
earth system installed in compliance with the regulations. If there is no proper
socket with earth system in the place where the oven will be placed,
immediately contact a qualified electrician. Manufacturer shall never be
responsible from the damages that will arise because of the sockets connected
to the appliance with no earth system. If the ends of the electrical connection
cable are open, according to the appliance type, make a proper switch
installed in the mains by which all ends can be disconnected in case of
connecting / disconnecting from / to the mains.
4.If your electric supply cable gets defective, it should definitely be replaced
by the authorized service or qualified electricians in order to avoid from the
dangers.
5.Electrical cable should not touch the hot parts of the appliance.
6.Please operate your oven in dry atmosphere.
Gas Connection and Security:
Please operate your oven in dry atmosphere.
1.Fit the clamp to the hose. Push one of the hose until it goes to the end of the
pipe.
2.For the sealing control; ensure that the buttons in the control panel are
closed, but the gas cylinder is open. Apply some soap bubbles to the
connection. If there is gas leakage, there will be foaming in the soaped area.
3.The oven should be using a well ventilation place and should be install on flat
ground.
4.Re-inspect the gas connection.
5.When placing your oven to its location, ensure that it is at the counter level.
Bring it to the counter level by adjusting the feet if necessary.
6.Do not make gas hose and electrical cable of your oven go through the heated
areas, especially through the rear side of the oven. Do not move gas connected
oven. Since the forcing shall loosen the hose, gas leakage may occur.
GB
2

7.Before using the appliance, in order to ensure safe use, be sure to fix the
appliance to the wall using the chain and hooked screw supplied. Ensure
that the hook is screwed into the wall securely.
8.Please use flexible hose for gas connection.
3
Before using the appliance, in order to
ensure safe use, be sure to fix the
appliance to the wall using the chain and
hooked screw supplied. Ensure that the
hook is screwed into the wall securely.
230~/ 400V 2N~ 50-60Hz
230V~ 50-60Hz 230~ / 400V 3N ~ 50-60Hz

INSTALLATION OF YOUR OVEN
1500 W 2000 W
1800 W 2200 W
800 W 1000 W
1000 W 1200 W
15 W 15 W
48 lt 61 lt
330 mm 330 mm
400 mm 400 mm
360 mm 460 mm
855 mm 855 mm
630 mm 630 mm
500 mm 600 mm
Outer width
Outer depth
Outer height
Inner width
Grill heating element
Turbo heating element
Top heating element
Bottom heating element
Lamp power
Inner Volume
Inner height
Inner depth
SPECIFICATIONS
TECHNICAL FEATURES OF YOUR OVEN
50x60 60x60
GB
4
Min:570mm
640mm
850mm
*Min:500-600mm 20mm
20mm
Min:650mm

BURNER INJECTOR VALUES ACCORDING TO THE GAS
TYPE
Wok Burner
Rapid Burner
Semi Rapid Burner
Auxiliary Burner
Oven Burner
Grill Burner
Injector Ø mm
Injector Ø mm
Injector Ø mm
Injector Ø mm
Injector Ø mm
Injector Ø mm
0,96 1,30 1,40
NG
G25/25mbar
NG
G20/20mbar
LPG G30/28-
30mbar
0,85 1,15 1,20
0,65 0,97 0,95
0,50 0,72 0,70
0,70 0,97 0,95
0,60/0,65 0,95 0,92/0,95
Power kW
Power kW
Power kW
Power kW
Power kW
Power kW
3,60 3,35 3,66
3,00 2,77 3,00
1,78 1,78 1,61
0,88 0,99 0,88
2,16/2,22 1,83/2,00 1,72/1,70
1,50/1,72 1,78/1,85 1,50/1,60
Consuption Gr/h,m³/h
Consuption Gr/h,m³/h
Consuption Gr/h,m³/h
Consuption Gr/h,m³/h
Consuption Gr/h,m³/h
Consuption Gr/h,m³/h
284 0,3 0,365
286 0,253 0,326
140 0,167 0,174
70 0,092 0,094
170/175 0,178/0,179 0,183/0,178
118/135 0,162/0,169 0,162/0,173
Supply Voltage
1000 WHot Plate 145 mm
Hot Plate 180 mm
Hot Plate rapid 145 mm
Hot Plate rapid 180 mm
1500 W
1500 W
2000 W
220V-240V AC,50-60Hz (Or 230V400V AC,50-60
Hz)
5

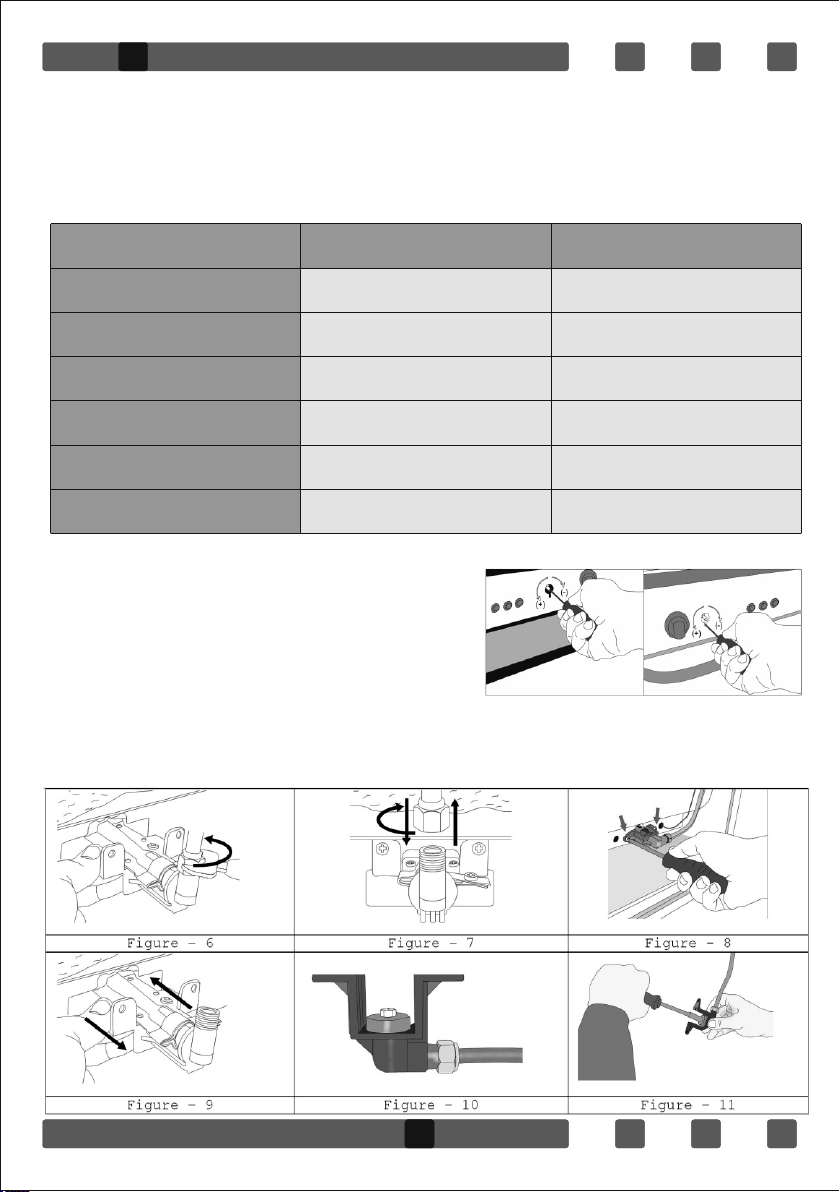

Nozzle change operation:1. Please use driver with special head for
removed and install nozzle as figure-1 2. Please remove nozzle (Figure
-2) from burner with special nozzle driver and install new nozzle
(Figure -3)
Fgure-1 Fgure-2 Fgure-3

Reduced Flame Gas Cock Adjustment:
In order to adjust your oven to the gas type, make the adjustment for
reduced flame carefully by turning with a small screwdriver as shown
below on the screw in the middle of the gas cocks as well as nozzle
changes.
For oven burners:
1.Please remove nut from on nozzle body
with nutdriver and disconnect gas pipe
from body as Figure-6 and 7.
2.Please remove nozzle body and burner
from cavity as Figure -8/9 and remove nozzle from injector body (Figure-
10/11) and change. Than re-install nozzle body and burner on cavity by
screws.
From LPG to NG
From NG to LPG
Rapid Burner
3 Turns Counterclockwise
3 Turns Clockwise
Semi-Rapid Burner
2.5 Turns Counterclockwise
2.5 Turns Clockwise
Auxiliary Burner
2 Turns Counterclockwise
2 Turns Clockwise
WOK Burner
4 Turns Counterclockwise
4 Turns Clockwise
Oven Burner
4,5 Turns Counterclockwise
4,5 Turns Clockwise
Grill Burner
4 Turns Counterclockwise
4 Turns Clockwise
GB
6

If your oven has another type of oven burner, oven burner nozzle replacement
will be:
IMPORTANT WARNINGS:
1.Pay attention to minimum health and safety requirements.
2.The cooker is supplied setup according to the conditions shown on the
rating label which is stuck to the rear of the appliance. From this sticker you
can learn for which gas type (LPG or NG) this appliance is configured when
supplied.
3.Keep the electrical cable of your oven away from the hot areas.
4.If the supply cord is damaged, it must be replaced by the manufacturer its
services agent or similar qualified persons in order to avoid hazard.
5.Ensure that the appliance is switches off before replacing the lamp to avoid
the possibility of electric shock.
6.In case of power failure, readjust your timer definitely. Otherwise, the oven
will not operate (Digital Timer).
7.Your oven can be having different output pressure according your countries
gas and pressure specifications. Be sure that the cooker is configured
correctly for local requirements (for example, the jets must be suitable for
local gas type and gas pressure).
8.Connect your oven to LPG in shortest way and without any leakage. Min. 40
cm Max. 125 cm.
9.When making gas leakage check, never use any flame type like those of
lighter, matches, cigarette fire or similar ones.
10.Usage of your appliance creates moisture and heath in the room it is
placed, make sure that your kitchen is ventilated well. Maintain the natural
ventilation ducts properly.
7

11.CAUTION! Do not touch hot parts with bare hands and keep children well
supervised
12.When the oven is hot never touch the oven glass by hand.
13.Before starting to use your appliance, keep curtain, tulle, paper or
inflammable things away from your appliance. Do not keep combustible or
inflammable things in or on the appliance.
14.This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating. All our appliances are only for domestic
use, not for commercial use.
15.For disconnection from the supply mains having a contact separation in
all poles that provide full disconnection, must be incorporated in fixed
wiring in accordance with the wiring rules.
16.Some models are supplied without a plug-an-lead set. In this case please
use a flexible cable to suitable for connection to mono phase: H05 VV-F 3 G
4 mm2 or for 3 phase: H05 VV-F 5 G 1.5 mm2
17.This appliance is produced in accordance with the safety regulations.
Incorrect use will harm people and appliance.
18.Children should be supervised to ensure that they do not play with the
appliance. Never let them play with the appliance.
19.Unattended cooking on a hob with fat or oil can be dangerous and may
result in fire.NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
20.Danger of fire: do not store items on the cooking surfaces
21.This appliance is not intended for use by persons (including children)
with reduced physical, sensory and mental capabilities or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible
for their safety.
22.“Caution: Accessible parts may be hot when the grill is in use. Young
children should be kept away”
WARNING-- This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental
capabilities or lack ofexperience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
GB
8

Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
IF THE APPLIANCE DOES NOT OPERATE
1.Please check the plug of power supply cord has a well connection with
wall socket or not.
2.Please check the electric network.
3.Please check the fuse.
4.Please check power supply cord for any damage problems.
5.If you can not solve the problem, get in contact with manufacturer-
supplier service agent or similar qualified persons.
DESCRIPTION OF OVEN and CONTROL PANELS
THERMOSTAT KNOB; In order to operate the oven, thermostat must be
adjusted to desired temperature. Your thermostat has a feature of
adjustment to 50 - 280 degree.
MECHANIC TIMER KNOB (Optional); In order to operate the oven, timer
switch should be adjusted to desired time from 0-90 minute. You can
use cooking time table.
Turnspt Fan
Top + Bottom heatng element Turbo heatng + Fan
Lamp Bottom + Top heatng elements + Fan
Bottom heatng element + Fan Grill heating element+fan
Grill heating e Grill burner / grill heating element
Grill heating element+lamp Top heating element
Electrical timer Oven burner / Bottom heating element
Flame Ignition lighter
9

1-Rapid burner
2-Semi-rapid burner
3-Auxiliary burner
4-Command panel
5-Oven handle
6-Top plate
7-Top lid (glass or metal)
8-Oven door
9-Dish warmer Drawer
DESCRIPTION OF THE OVEN and CONTROL PANELS
1
2
3
4
5
66
7
8
9
USING COOKER SECTION
WOK Burner
24-28cm
Big Burner
22-26cm
Normal Burner
18-22cm
Small Burner
12-18cm
Using Gas Burners:
Closed
Fully open
Half open
1.In order to obtain maximum output, be careful that the saucepan which
will be used should be flat bottomed, and use the saucepans with
dimensions given herein above.
2.The valves controlling the gas cookers have special security mechanism.
In order to light the cooker;
Always press on the switch forward and bring it to flame symbol by turning
counterclockwise. All of the lighters shall operate and the cooker you
controlled shall light only. Keep the switch pressed until ignition is
performed. Press on the lighter button and turn the knob counter
clockwise.
GB
10

3.Do not continuously operate the igniter for more than 15 seconds. If the
burner does not ignite, wait minimum one minute before try again. If the
burner is extinguished because of any reason, close the gas control valve
and wait minimum one minute before try again.
4.In models with Gas Security System, when flame of the cooker is
extinguished, control valve cuts off the gas automatically. For operate the
burners with gas security system you must press the knob and turn counter-
clock-wise. After the ignition you must wait nearly 5-10 second for gas
security systems activation. If the burner is extinguished for of the any
reason, close the gas control valve and wait a minimum of one minute
before trying again.
Using Hot Plates:
1.Electric hotplates have standard of 6 temperature levels (as described
herein above)
2.When using first time, operate your electric hotplate in position 6 for 5
minutes. This will make the agent on your hotplate which is sensitive to
heat get hardened by burning.
3.Use flat bottomed saucepans which fully contact with the heat as much
as you can, so that you can use the energy more productively.
Before operating your hob please make sure that the burner caps are well
positioned. The right placement of the burner caps are shown as below.
850 W
500 W
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6
145 mm 95 W
115 W
135 W
175 W 220 W
165 W
175 W
155 W
300 W
250 W
250 W
250 W
600 W
400 W
1150 W
750 W
850 W
750 W
2000 W
1500 W
1500 W
1000 W
180 mm
145 mm rapd
180 mm rapd
11


USING OVEN SECTION
Using oven burners:
1.If your oven equipped with burners that operates with gas, appropriate
knob should be used in order to ignite the burners. Some models have
automatic ignition from the knob; it is easy to ignite the burner by
turning the knob. Also, burners can be ignited by pressing the ignition
button or they can be ignited with a match.
2.Do not continuously operate the igniter for more than 15 seconds. If the
burner does not ignite, wait minimum one minute before trying again. If the
burner is extinguished for of the any reason, close the gas control valve and
wait a minimum of one minute before trying again.
Using oven heating elements:
1.When your oven is operated first time, an odor will be spread out which
will be sourced from using the heating elements. In order to get rid of this,
operate it at 250 °C for 45-60 minutes while it is empty.
2.Oven control knob should be positioned to desired value; otherwise oven
does not operate.
3.Kinds of meals, cooking times and thermostat positions are given in
cooking table. The values given in the cooking table are characteristic
values and were obtained as a result of the tests performed in our laboratory.
You can find different flavors suitable for your taste depending on your
cooking and using habits.
4.You can make chicken revolving in your oven by means of the accessories.
5.Cooking times: The results may change according to the area voltage and
material having different quality, amount and temperatures.
6.During the time when cooking is being performed in the oven, the lid of
the oven should not be opened frequently. Otherwise circulation of the heat
may be imbalanced and the results may change.
7.Using cake forms while cooking cake gives better result.
8.5 - 10 min. preliminary heating should be done prior cooking.
GB
12

Meals
Creamed cake
Pastry
Biscuit
Cookie
Cake
Braided cookie
Filo Pastry
Savory pastry
Lamb meat
Veal
Mutton
Chicken (pieced)
Fish
150-170 30-35
35-45
20-25
20-35
25-35
30-40
35-45
20-30
90-120
90-120
90-120
75-100
40-50
200-220
160-170
160-170
160-180
200-220
180-220
160-180
210-230
210-230
210-230
210-230
190-210
2
2
2
2
2
2
1
3
3
1
1
1
3
Temperature (°C) Rack position Cooking time (min.)
Cooking Time Table:
13

MAINTENANCE and CLEANING
1.Disconnect the plug supplying electricity for the oven from the socket.
2.While oven is operating or shortly after it starts operating, it is extremely
hot. You must avoid touching from heating elements.
3.Never clean the interior part, panel, lid, trays and all other parts of the
oven by the tools like hard brush, cleaning mesh or knife. Do not use
abrasive, scratching agents and detergents.
4.After cleaning the interior parts of the oven with a soapy cloth, rinse it and
then dry thoroughly with a soft cloth.
5.Clean the glass surfaces with special glass cleaning agents.
6.Do not clean your oven with steam cleaners.
7.Before opening the upper lid of the oven, clean spilled liquid off the lid.
Also, before closing the lid, ensure that the cooker table is cooled enough.
8.Never use inflammable agents like acid, thinner and gasoline when
cleaning your oven.
9.Do not wash any part of your oven in dishwasher.
10.In order to clean the front glass lid of the oven; remove the fixing screws
fixing the handle by means of a screwdriver and remove the oven door. Than
clean and rinse it thoroughly. After drying, place the oven glass properly and
re-install the handle.
14
GB
14
2
1
1
2
34

CLEANING AND MAINTENANCE OF THE OVEN'S FRONT DOOR GLASS
Remove the profile by pressing the plastic latches on both left and right
sides as shown in Figure 1 and pulling the profile towards yourself as shown
in Figure 2. Then remove the inner-glass as shown in Figure 3. If required,
middle glass can be removed in the same way. After cleaning and
maintenance are done, remount the glasses and the profile in reverse order.
Make sure the profile is properly seated in its place.
USAGE OF COFFEEPOT SUPPORT:
Coffeepot support is to use small diameter pots with your cooker. Place
the support part on the grid centerly and then put the pot on it to start
using.
15
15
Figure 2Figure 1
Figure 3

Cher utilisateur,
Notre objectif est que ce produit fabriqué dans nos installations modernes
dans un excellent environnement de travail, en conformité avec le concept de
qualité totale, vous donne totale satisfaction.
Par conséquent, nous vous suggérons de lire attentivement le manuel de
l'utilisateur avant d'utiliser le produit et de le garder en permanence à votre
disposition.
Remarque:
Ce manuel de l'utilisateur est préparé pour plus d'un modèle. Il se peut que
certaines des caractéristiques spécifiées dans ce manuel ne soient pas
disponibles dans votre appareil.
Avertissement: Tout nos appareils sont destinées uniquement à un usage
domestique et non à un usage commercial.
CET APPAREIL DOIT ETRE INSTALLE SELON LES REGLEMENTS EN VIGUEUR ET
UTILISE DANS UN ESPACE BIEN AERE. LIRE LES INSTRUCTIONS AVANT
D'INSTALLER OU D'UTILISER CET APPAREIL.
FR
15
16

TABLE DES MATIERES:
Mises en garde importantes
Caractéristiques techniques de votre four
Installation de votre four
Si votre four ne fonctionne pas
Description du four & des panneaux de commande
Utilisation de la table de cuisson
Utilisation du four
Utilisation du bandeau de protection des boutons
Maintenance et nettoyage
Utilisation du support de cafetière
17

Connexion Electrique Et Sécurité:
1.Votre four fonctionne avec des fusibles de 6 ou 32 Ampères selon la
puissance du four. (Pour 2 + four, pour les modèles électriques - 32
Ampère) Si nécessaire, une installation par un électricien qualifié est
recommandée.
2.Votre four est réglé en conformité avec une alimentation électrique de
230 / 400 V, 50 /60 Hz. Si le courant est différent de cette valeur
spécifiée, contactez votre centre de service autorisé.
3.Le four doit être relié à la terre et il faut que la connexion soit installée
en conformité avec les réglementations (le câble et les prises devant
avoir un fil de terre). S'il n'y a pas de prise adéquate avec la terre là où
le four sera installé, contactez immédiatement un électricien qualifié. Le
fabricant ne sera jamais responsable des dommages dus au fait que
l'appareil est connecté à des prises sans la terre. Si l'extrémité du câble
de connexion électrique est ouverte, selon le type d'appareil, installez un
interrupteur de secteur approprié sur le réseau par lequel toutes les
extrémités peuvent être déconnectées en cas de connexion /
déconnexion du /au réseau.
4.Si le cordon d'alimentation est endommage il doit être remplace par
le fabricant, un réparateur agrée ou toute personne qualifiée, afin
d'éviter tout danger.
5.Le câble électrique ne doit pas être en contact avec les pièces
chaudes de l'appareil.
Connexion Au Gaz Et Sécurité:
1.Adaptez le collier de serrage au tuyau. Poussez un des tuyaux jusqu'à
ce qu'il aille au bout du conduit.
2.Pour contrôler l'étanchéité, assurez-vous que les boutons dans le
panneau de commande sont fermés, mais que la bouteille de gaz est
ouverte. Mettez du savon sur la connexion. S'il y a une fuite de gaz, il y
aura de la mousse.
3.Le four doit être installé dans un endroit bien ventilé et sur un sol plat.
4.Veuillez faire fonctionner votre four dans une atmosphère sèche.
FR
18
