SnoCobra Ski System
User’s Manual
Every Season Products
1-866-377-0045
PO Box 236
697 Kelly Ave
Dresser, WI 54009
www.snocobra.com

ii
WARNING: Before installation and use, read entire manual, especially the safety
precautions and instructions on pages 3 –7.
Precautionary Warnings
Understanding Warnings:
This page, along with pages 3 –6 identify safety symbols and signal words that appear in this
manual and in the safety labels attached to the product.
These warnings are meant to alert operators to the potential hazards that may result in personal
injury or damage to the SnoCobra Ski System or vehicle.
Become familiar with these warnings and their meanings. Read this manual carefully.
DANGER!
This safety alert indicates that if a hazard is not avoided, death or serious injury, or damage to
the vehicle and the SnoCobra Ski System, WILL occur.
WARNING!
This safety alert indicates that if a hazard is not avoided, death or serious injury, or damage to
the vehicle and the SnoCobra Ski System, CAN or MAY occur.
CAUTION!
This safety alert indicates that if a hazard is not avoided, minor to moderate injury, or damage
to the vehicle and the SnoCobra Ski System CAN occur.
NOTICE!
This signal word indicates the chance or property damage if the instruction is not followed.
NOTE
A note alerts operators to important information or instructions.
Operator Warning Labels
With this manual, an additional operator safety label has been provided to attach to a vehicle
equipped with the SnoCobra ski system. Attach the provided label to inform drivers of the
SnoCobra equipped vehicle about safety instructions. Please follow the directions below and
place the label on your vehicle in full view of the driver.
Directions
1. Find a location on the vehicles dash, fender, gas tank, or handle bars that
provides a smooth surface area that has enough open space for the label. Be
sure not to cover any warning labels that are already on your vehicle and in
plain sight.
2. Clean the surface area with rubbing alcohol and dry for optimum label
adhesion.
3. Apply the label to your vehicle. Do not allow air bubbles to become trapped
behind the warning label.

iii
Note: If for some reason any safety label is lost or removed, please contact Every Season
Products (1-866-377-0045) or your local Dealer and we will provide you with new
labels for free.
Table of Contents
Every Season Products
Precautionary Warnings ............................................................................................................................... ii
Welcome....................................................................................................................................................... 1
General Information ..................................................................................................................................... 2
Warnings....................................................................................................................................................... 3
Installation/Handling/Removal................................................................................................................. 3
Operation (Ski) ................................................................................................................................. 4
Operation (Vehicle).......................................................................................................................... 4
Towing....................................................................................................................................................... 6
Illustrated Parts Breakdown ......................................................................................................................... 7
Ski Adjustment Instructions.......................................................................................................................... 8
Section A) Saddle Adjustment Instructions............................................................................................... 8
Section B) Tire Strap Adjustment Instructions......................................................................................... 12
Installation Instructions .............................................................................................................................. 13
Removal.................................................................................................................................................. 15
Operation ...............................................................................................................................................16
Before Riding....................................................................................................................................... 16
Protective Apparel .............................................................................................................................. 16
Trail Obstacles.....................................................................................................................................16
Snow and Ice ....................................................................................................................................... 17
Operating Speeds................................................................................................................................17

iv
Operating in Ruts ................................................................................................................................ 17
Operating in Icy Conditions.................................................................................................................17
Towing or Winching .............................................................................................................................. 6
Operating in Reverse...........................................................................................................................18
Climbing, Turning, and Decending Hills .............................................................................................. 18
Maintenance ...............................................................................................................................................19
Maintenance Schedule ...........................................................................................................................19
Replacing Parts........................................................................................................................................ 19
Composite Ski Care..................................................................................................................................19
Washing the Skis...................................................................................................................................... 21
Storage........................................................................................................................................................ 20
Break-In Period ........................................................................................................................................... 17
Torque Specifications.................................................................................................................................. 21
Warranty SnoCobra..................................................................................................................................... 22
Limited Warranty ................................................................................................................................ 22
Customer Remedies............................................................................................................................ 22
NO OTHER WARRANTIES.....................................................................................................................22
LIMITAATION OF LIABILITY.................................................................................................................. 22
NO LIABILITY FOR CONSEQUENTIAL DAMAGES.................................................................................. 22
Every Season Products........................................................................................................................ 22
Technical Support ....................................................................................................................................... 23

1
Welcome
Thank you for selecting the SnoCobra Ski System by Every Season Products. This unique and patented
design provides you with the ability to convert an existing summer vehicle into a highly efficient winter
vehicle. Whether it is for recreation, utility, or performance the SnoCobra Ski System will extend your
investment.
This Ski System is built for high performance on snow. To keep the skis in great condition only use them
on snow or ice. SnoCobra Skis are not designed to be operated on anything other than snow or ice.
Operating the SnoCobra Ski System on any other type of terrain besides snow or ice will void the
manufacturer’s warranty.
Every Season Products offers several products in the SnoCobra product line. Visit snocobra.com to view
all products offered by Every Season Products.
Every Season Products
PO Box 236
Dresser, WI 54009
1-866-377-0045

2
General Information
Before use, read and understand the User/Owner’s Manuals for the vehicle and the Track as
we as for the SnoCobra ski system. These manuals contain important information
concerning safety, installation, operation, maintenance, appropriate apparel, etc.
Every Season Products will not be responsible for any property damage caused by the failure
to follow the instructions and safety precautions in these manuals.
SnoCobra Ski System.
The SnoCobra Ski System is designed for use on ATV’s and UTV’s only. Do not under any
circumstances install the SnoCobra Ski System on any vehicle with a GVW of more than 2,000lbs.
Typical Installation
The installation instructions contained within this owner’s manual are intended to provide a
general overview of the SnoCobra Ski System installation. Installation for each front tire size of
vehicle will differ, depending on the diameter, width, and tread of the front tire. Read and
follow all the precautionary warnings in this manual.
Renderings and photos in this manual are for general reference. Your make and model of
vehicle may differ from what is represented in this manual.
General
All figures, information or photos presented in this document are up to date at the time of
publication. Every Season Products reserves the right to change this information without notice.
This document is an integral part of the SnoCobra Ski System. Pass this guide along to any new
System owner.
Before use, consult legal authorities where you drive your vehicle equipped with the SnoCobra
Ski System to ensure that you are aware of and follow all applicable laws and regulations.
Vehicle track systems are designed to reduce ground pressure and increase vehicle traction.
However, during normal operating conditions, vehicle speed will be reduced, as compared to a
wheeled vehicle, including when the SnoCobra Ski System is installed with a track system.

3
This sheet only contains a summary of general safety warnings. You must read the entire Ski System’s
user manual to become aware of all of the manufacturer’s warnings.
Safety Warnings
IMPORTANT: Failure to follow these safety precautions below could result in serious injury, death or
property damage to the vehicle, SnoCobra Ski System or other property.
Installation/Handling/Removal/Maintenance
Do not allow anyone that has not read and understood both this document and the ATV owner’s
manual to install or operate a vehicle equipped with the SnoCobra ski system.
Reread your ATV’s owner’s manual as needed. Its contents remain useful after the SnoCobra ski
system has been installed.
When handling SnoCobra skis, do not place fingers on or around the cam lever or around the pinch
point by the cam lever. Doing so could result in pinched fingers.
Do not operate without a properly installed strapping system on each front tire.
Do not operate without properly mounted and adjusted saddle brackets.
If you have added any other after-market accessory or have modified your ATV, be sure they allow
the SnoCobra ski system to be operated and to steer unobstructed.
Before driving the ATV into the saddle for installation, remove any snow, material, or debris from
the ski and saddle to ensure the tires are in proper contact with saddle.
Check for properly installed and tightened fasteners (bolts, washers and nuts) when attaching
SnoCobra ski system, and periodically during use.
Do not leave any SnoCobra ski system components on the vehicle when it has been reconfigured to
again be used with tires.
Lack of proper maintenance can cause damage to the SnoCobra ski system and vehicle, and possible
injury. Follow the recommended maintenance schedules described later in this manual.

4
Operation (Ski)
Never put vehicle in 4WD with SnoCobra ski system installed. The front wheels cannot be powered
or allowed to rotate when secured to the SnoCobra ski system.
Never put vehicle in 4WD when only rear track system is installed. The rotation speed of the front
wheels will be different from the rotation speed of the tracks. Doing so can cause both serious injury
and damage to the vehicle and/or the track system.
Do not drive vehicle in reverse with SnoCobra ski system installed.
Only the rear brakes will work on a vehicle equipped with the SnoCobra ski system. The front
wheels will not be rotating or in contact with the surface underneath the vehicle. Verify that the
vehicles’rear brakes provide enough stopping power to safely operate the vehicle.
Do not operate vehicle equipped with skis in any terrain except for snow or ice.
Never put your feet or hands or tools and other objects on a moving SnoCobra ski system.
When learning to operate a vehicle equipped with SnoCobra skis, it is important to take additional
precautions until you are familiar with its operation. This includes driving at slower speeds, avoiding
hazardous terrain, and being aware of any changes in vehicle or SnoCobra ski system performance.
Do not operate the SnoCobra ski system with damaged parts.
Keep hands and feet away from the SnoCobra ski system until (1) the vehicle is stopped, (2) the
parking brake is engaged and (3) the vehicle’s engine is turned off.
Operation (Vehicle)
Vehicles equipped with the SnoCobra ski system should be operated only by trained, authorized
personnel over the age of 16.
Do not exceed 25 mph with the SnoCobra ski system installed.
Respect rules, regulations, and laws in areas where you use the SnoCobra ski system attached to an
ATV. Prior to use, review published regulations for ATV use.
Always observe your ATV manufacturer’s rules and regulations. Never exceed the vehicle
manufacturer’s operating recommendations.
Allow more than the usual braking distance required to stop the vehicle when the SnoCobra ski
system is installed. Periodically apply brakes while riding to eliminate ice buildup on brake
components.
When rear tracks are installed with the SnoCobra ski system, follow all track manufacturer’s
installation and operating recommendations.

5
The driving characteristics of your ATV will change with the installation of the SnoCobra ski system.
It is important to take the time to become familiar with the SnoCobra ski system and how it affects
use of the ATV.
Adapt your driving to surrounding conditions (weather, traffic, etc.) and according to your driving
abilities.
It is the driver’s responsibility to verify that the engine air intake of the vehicle is well adapted to
weather conditions and is not blocked by snow accumulation.
When operating on smooth bare ice surfaces, loss of steering control may occur. Vehicle may have
a tendency to wander and follow imperfections in the surface, which can cause unexpected lateral
movement of the vehicle. Avoid areas of bare ice, and reduce ATV speed on hard snow or ice
covered surfaces.
When operating in obscured terrain (deep snow), beware of debris and hidden objects in the snow.
Do not attempt to climb steep ascents. If the vehicle does not make it up a steep hill, it may begin
to slide backwards. The SnoCobra ski system is not designed for use in reverse and thus, sliding
backwards down a hill may cause loss of vehicle control. The skis may catch on the terrain while
going backwards and cause the tips of the skis to rotate upwards and into the vehicle.
It is not advised to attempt driving down steep descents. When coming down a steep descent, you
have very limited braking power available. Only your rear tracks will have the braking power to slow
the vehicle down. Steep descents can cause loss of vehicle control and/or cause the vehicle to roll
over.
If a steep descent cannot be avoided, it is not advisable to change direction while descending. This
can lead to a serious malfunction of the vehicle’s steering system and track systems or a roll over.
During a steep descent, it is recommended to keep the skis pointed straight out in front of the
vehicle. Do not begin turning the vehicle until it is in contact with flat ground.
Do not attempt to side hill with your vehicle. This can lead to a serious malfunction of the vehicle’s
steering system and track systems or a roll over.
Keep skis in contact with snow or ice surface at all times. Do not attempt to jump vehicles equipped
with track and ski systems. Becoming airborne may allow the ski to freely rotate and can cause
irreparable damage to the SnoCobra ski system, loss of vehicle control and personal injury.
The SnoCobra ski system is not designed to withstand the forces that are associated with the vehicle
becoming airborne. A vehicle equipped with the SnoCobra Ski System must never be used for the
following activities: racing, rallies, jumps, stunts, acrobatics or any other extreme applications.

6
The SnoCobra ski system is not designed to take excessive abuse. For example, the system is not
designed to withstand the forces associated with hitting obstacles such as rocks, stumps, etc.
without damage being caused to the ski system. It is not advisable to attempt to drive over any such
obstacle, or over a steep ridge that could lodge itself between the front skis and the rear track
systems and immobilize the vehicle. The best option is to bypass this type of obstacle. If this is not
possible, insert a log or a stone near the obstacle to make slowly driving over it easier and safer.
A vehicle equipped with the SnoCobra ski system cannot cross open water. They were not designed
to skip water and do not float. Stay away from open water and thin ice.
Towing/Winching
Do not attach a chain, tow strap, or hook directly to, or around the SnoCobra ski, saddle
brackets, or ski handle. Read the ATV Operator’s Manual to learn where the towing points are
on the vehicle frame, front and back.

7
Illustrated Parts Breakdown
1. Ski
2. Left Hand Side Saddle
3. Right Hand Side Saddle
4. Tire Strap
5. Front Cross Plate
6. Ski Handle
7. Locking Collars
8. Cam Lever
9. Wear Pads
10. Wear Bars
11. Rear Cross Plate
12. Locking Pin
13. Saddle Hardware

8
Section A
Saddle Adjustment Instructions

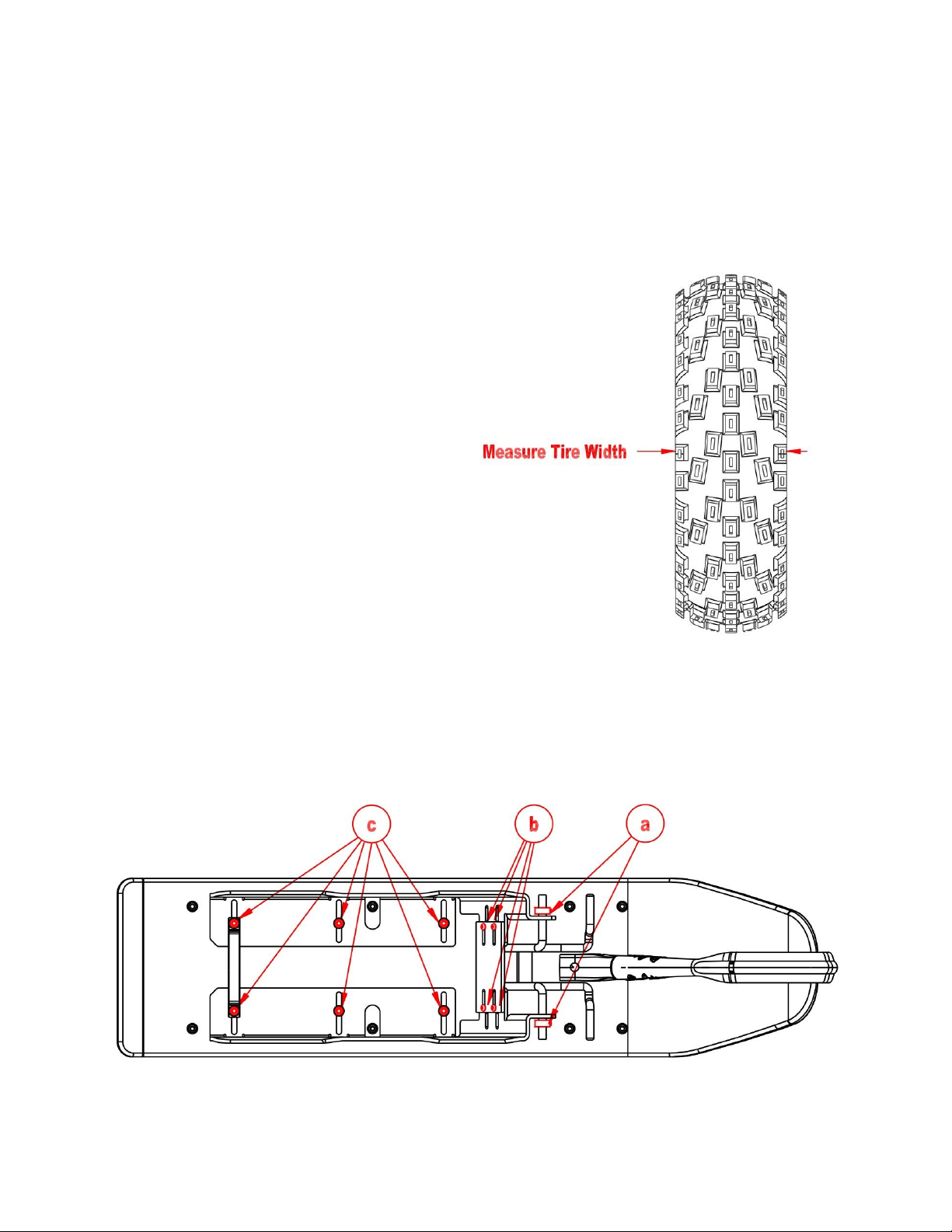

Note: Every tire is different depending on the diameter, width, wear, tread pattern, and manufacturer.
The Saddles are made to adjust from 6 ½” – 11 ½” width tire size.
1. Determine Tire Width
2. Loosen:
a. Loosen Cam Lever Collars (A)
b. Loosen Cross Plate mounting nuts (B)
c. Loosen Saddle mounting nuts (C)

9

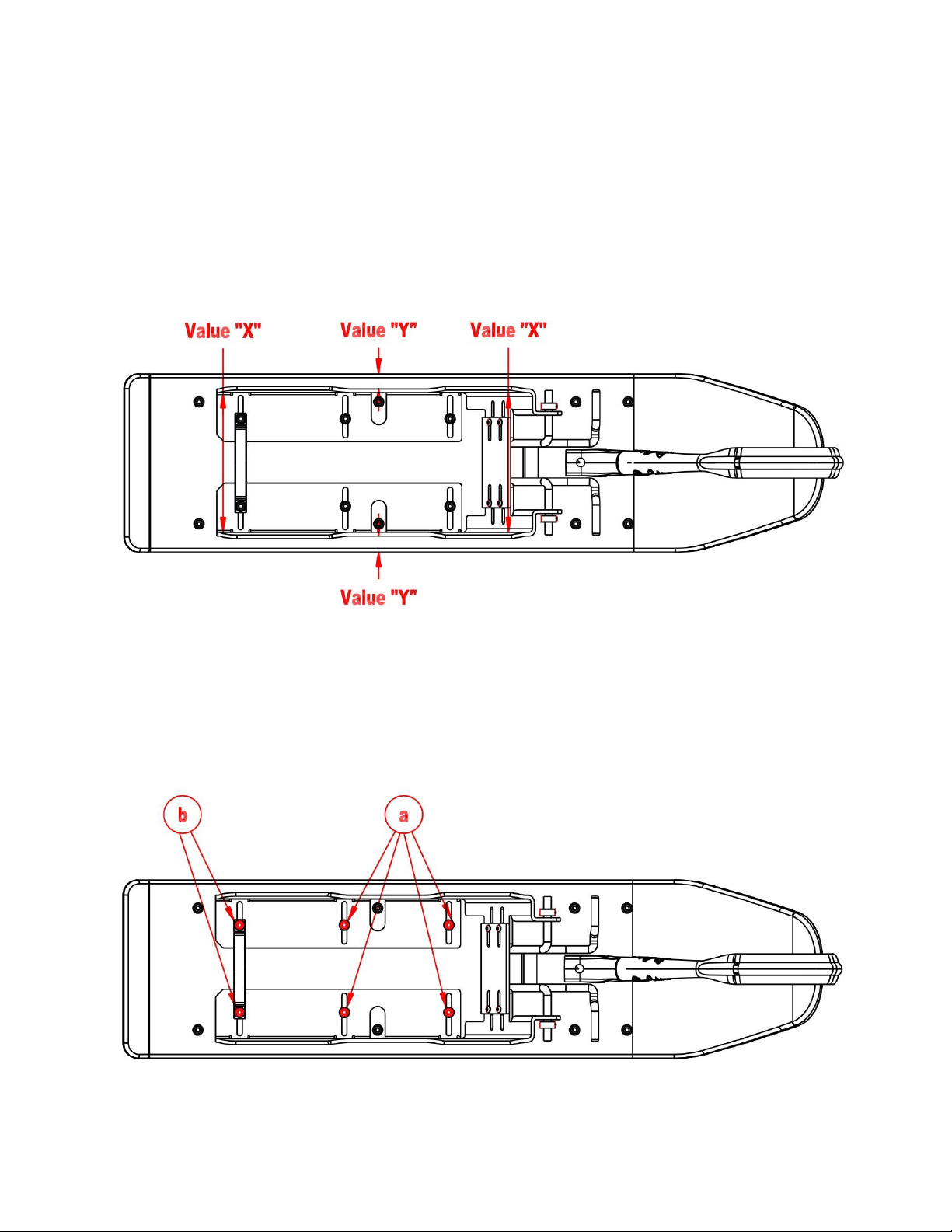

3. Adjust Saddle:
a. Adjust Saddle to be ½” wider than tire width. (Value X).
b. Verify correct saddle width on front of saddle. (Value X).
c. Verify same saddle width on rear of saddle. (Value X).
d. Verify saddle is centered on ski. Outside of
LHS and RHS should be equal distance from
edges of the ski. (Value Y).
4. Temporarily tighten Saddle mounting nuts:
a. Lightly tighten the front (4) Saddle mounting nuts (a).
b. Make sure the strapping assembly is properly
aligned on Rear Cross Plate. Lightly tighten the
(2) rear Saddle mounting bolts (b).

10
5. Tighten Front Cross Plate mounting nuts:
a. Adjust the front cross plate to be in the center of the
saddle brackets. (Value X)
b. Slide the (4) cross plate bolts to the outside of the slots
in the cross plate.
c. Tighten the cross plate nuts (B) to 120 in. lbs.
6. Tighten Saddle mounting nuts.
a. Tighten the saddle mounting nuts (A) to 80 in. lbs.
7. Cam Lever Collars:
a. Slide the cam lever collars (A) towards the inside of the cam.
b. Leave a 1/8” gap between the collars and the saddle.
c. Apply Loctite to the set screws on collars.
d. Tighten the set screw on the collars.

11

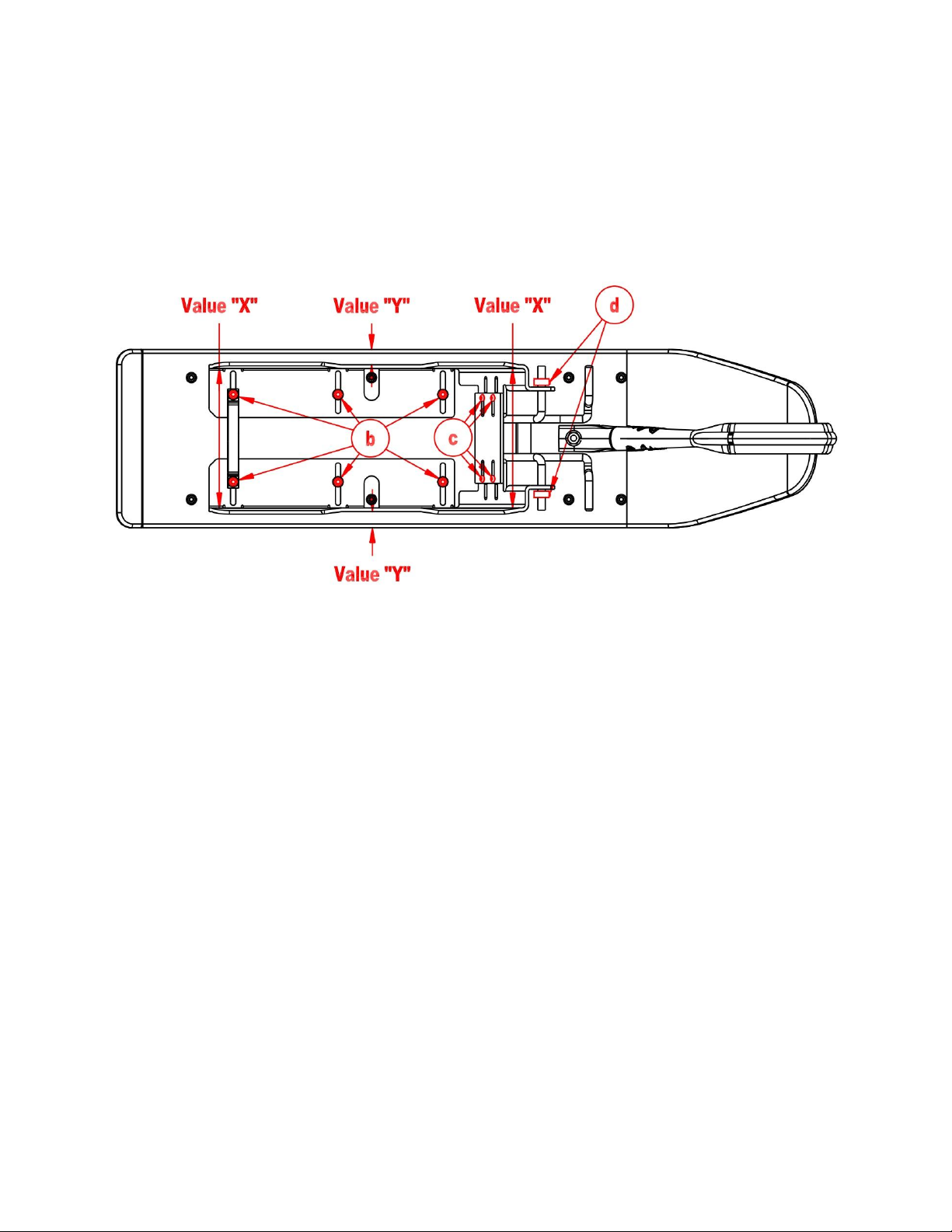

8. Verify that:
a. Saddles are proper width (Value X) and centered
on the ski (Value Y).
b. Saddle mounting nuts are torqued to 80 in. lbs. (B)
c. Cross plate nuts are torqued to 120 in. lbs. (C)
d. Set screw on cam lever collars are tightened. (D)

12
Section B
Tire Strap Adjustment Instructions
The SnoCobra Ski System is a universal strapping fit system that can be adjusted to fit tire sizes ranging
from 20” – 28” in diameter. Other strap sizes are available upon request. Because of the adjustability,
great care must be taken when adjusting the system to fit your machine.
1) The Strapping System can only be adjusted after:
a. The Saddles are properly adjusted (See Table A)
b. The vehicle’s front tires have been driven into the saddles (See Installation
Table)
2) With the vehicle in park, put the strapping system around your tires. The strapping
system should be centered over the tire.
3) Lift the cam lever up and place the Cam Pin in the top Cam Pin seat. Adjust the strap
(Adjustment Buckle towards cam pin for larger tire, away for smaller) so that the cam
lever is parallel with the ground when the Cam Pin is in the top Cam Pin Seat. (See
Diagram B)
4) Depress cam lever and insert locking pin.
WARNING: The strapping system is the biggest safety component on the ski. Incorrect installation of
the strapping system and failure to re-adjust it before every use can result in the skis coming off of the
vehicle while the vehicle is moving. One must properly install the strapping system to prevent serious
injury or damage to the SnoCobra ski system and the vehicle. It is essential that EVERY user read,
understand and follow the instructions for the SnoCobra ski system before use.

13
It is important to note that the strapping adjustment varies between uses (tire pressure, temperature,
tire tread wear, strap system falling out of adjustment) and therefore must be re-adjusted before every
use
Installation Instructions
Read ALL Instructions before use.
a. Verify SnoCobra Ski system has been properly assembled as shown in Section A.
b. Verify SnoCobra Ski system settings are adjusted to proper tire size section B.
c. For components identification, see section A.
1. Place ONE ski in front of passenger’s side tire, with strapping system lying to the outside
position of the ski and vehicle.
2. Drive vehicle’s front passenger tire into the saddle until the tire pushed up against the front
cross plate. DO NOT put vehicle in 4WD during operation.
3. With the vehicle in park, put the strapping system around your tire. The strapping system
should be centered over the tire.

14
4. Lift the cam lever up and place the Cam Pin in the top Cam Pin seat. Adjust the strap
(Adjustment Buckle towards cam pin for larger tire, away for smaller) so that the cam lever
is parallel with the ground when the Cam Pin is in the top Cam Pin Seat.
5. With the cam pin inserted in the cam lever, push the cam lever down with your foot on the
cam lever arm. CAUTION: Do not place fingers on or around the cam lever or around the
pinch point by the cam lever. Fingers can be pinched.
6. Verify that:
a. Saddle plates are the correct width and sides of tire are snug against the saddles.
b. Tire is all the way forward and pushing against the front cross plate.
c. Strapping system is centered on the tire and is not twisted.
d. Cam lever is locked down and free from any obstruction.
7. Install the locking pin through the handle. Make sure to connect the spring to the pin.

15
The first ski has been installed. Please refer to instructions 9 –12 for the second ski installation.
8. Place the second ski in front of driver’s side front tire, with the proper adjustments made as
shown in section B. Place strapping system to the outside of the ski and vehicle.
9. Drive vehicle front tire into saddle of ski until tire pushes against front cross plate. Do Not
put vehicle in 4WD.
10. Once vehicle is put in Park, repeat steps 3 –8.
11. Skis are ready for use.
Warning: Never put a vehicle in 4WD when the SnoCobra ski system has been installed.
Removal
Instructions for removing the SnoCobra ski system.
1. Make sure vehicle is stopped and in the Park position, on snow or ice, and is on level ground.
2. Both skis should be taken off at the same time. This prevents one ski from going in reverse that
might cause damage to the ski.
3. Remove the locking pin from the handle on both skis.
4. Grab onto the cam lever arm and pull it up and towards the front tire. (Both skis)
5. When the cam lever releases pressure take out the cam pin with the strap from the hook on the
cam lever. (Both skis)
6. Lay the straps aside and away from behind the skis and away from the vehicle.
7. Put the vehicle in reverse and back out of the skis.
8. Removal complete.
Warning: Do not put the vehicle into 4WD after the SnoCobra Ski System has been removed. The
front wheels turn at a different speed than the rear tracks. This may cause damage to the vehicle and
personal injury.

16
Operation
WARNING: READ AND UNDERSTAND YOUR VEHICLES OWNERS MANUAL.
Do Not exceed your vehicle manufacturer’s operational recommendations. Read your vehicle operators
manual before operating your vehicle with SnoCobra ski system. Do not use 4WD mode with ski system
installed, or when only rear track system is installed.
It is important to understand that you need to learn how to operate your vehicle with the ski system
installed on it. Practice riding with your ski system before you ride in unfamiliar terrain for the first time.
SnoCobra skis do not operate the same as tires or tracks. A vehicle equipped with SnoCobra skis is a
unique and different vehicle.
Your vehicle will respond differently with skis attached while turning, climbing and descending hills, and
while traveling over snow and ice. In addition, a vehicle equipped with the SnoCobra skis is easier to
steer under acceleration. Use caution when operating a vehicle that has the SnoCobra ski system
installed.
Before Riding
1. Reinstall the strapping system everyday as tire deflation and changes
in weather can cause the strap to loosen.
2. Check to make sure all hardware on skis are tightened and secure.
3. Check to make sure strap tension and alignment are correct.
4. Check to make sure cam lever is locked with safety pin in place.
5. Check to see that skis are clear of debris.
6. Follow you vehicle Owner’s Manual check list for pre-riding instructions.
Protective Apparel
Safety Riding Gear is always recommended. Wear clothing suitable for operating conditions. A helmet,
eye protection, gloves, boots and protective clothing (long pants and long sleeved shirts) are all
important in providing protection and reducing chances of injury.
Trail Obstacles
Danger:Never drive into or hit trail obstacles at a high rate of speed. This could result in serious injury
or damage to the SnoCobra ski system or vehicle. Keep alert, look ahead and read the trail as you ride.
Watch out for bumps, ruts, rocks, logs and other obstacles on the trail. Watch out for those objects and
other obstacles that may be hidden under the snow or ice. Slow down and be prepared to stop when
approaching obstacles.
Danger: Do not attempt to drive over any rocks, logs or any other obstacles with the SnoCobra ski
system as damage to the skis or vehicle and personal injury may occur. Use caution when entering or
exiting steep ditches or ravines. Watch for over hangs or natural obstructions that would contact the
SnoCobra Ski System. Always use care when traveling in unfamiliar terrain or during deep snow
conditions.
Warning: Never ride beyond your limit of visibility.
