1. Overview
The Eye3WitnessView BodyCam System is an innovative video surveillance
solution providing complete personal surveillance. The Eye3WitnessView
BodyCam system is a high-definition video recording device worn on a person’s
body. The small, secure, lightweight, and versatile design makes the
Eye3WitnessView a truly portable video recording system. It features many of
same benefits of an in-vehicle video recording system but with complete mobility.
Due to its unique versatile design, the Eye3WitnessView BodyCam System is the
perfect surveillance solution not only for law enforcement and military
but also for personal, commercial, insurance, and many other industries.
Users can utilize the camera system to collect evidence, standardize behavioral
conduct, and play back video to assure accuracy and fairness.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
5
2. Specifications
○
1
Laser Sight
○
2LED Fill light
○
3IR LED Light
○
4Metal Clip
○
5Return/Instant
Playback
○
6Display off/Fill-in
Light
○
7Confirm/Playback
○
8Reset
○
9Menu
○
10 AV In/Audio
○
11 HDMI
○
12 Mini USB
○
13 Power on/off
○
14 PTT
○
15 Video record
○
16 Photograph
○
17 Audio recording
○
18 IR/Up/Zoom in
○
19 Laser/Down/Zoom
out
○
20 Power Indicator
○
21 Activity Indicator
○
22 30-Pin port(GPS,
PTT, 3G)
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
6
RECORDING
Sensor
5MP CMOS
Video Resolution
Multiple Recording Resolution 1920x1080P(30 FPS)/ 1280x720(30 FPS)/
848x480(30 FPS)
Video Format
H.264 .AVI/MPEG4
Fast forward
2X, 4X, 8X, 16X, 32X, 64X
REW
2X, 4X, 8X, 16X, 32X, 64X
Audio
High Quality Built-in Microphone.
Audio Format
AAC2./MP3
Water Mark
User ID, Time and date Stamp Imbedded into Video.
Camera
16 Megapixel Camera with optional burst shot(3 or 5 photos)
Camera Format
4608*3456 JPEG
Snap Shot
Capture Photos During Video Recording
Recording Time
Continuous Rec. time: 480 minutes (battery fully charged, IR disabled,
resolution ratio 848*480)
Storage Capacity
16G/32G/64G
Record LED
Red
One Button Recording
Supports One Button Recording
Activation prompt
Audible, Visual, and Tactile Confirmation for Activation/deactivation of
Record Function
IR Light
2 IR LED's
Other Auxiliary Light
One white LED light and one red laser pointer
VIDEO/IMAGE REVIEW
LCD Screen
2 inch TFT-LCD High-Resolution Color Display
Audio Playback
Yes
Video Output
HDMI 1.3 Port
Video Transfer
USB 2.0
CAMERA
Recording Angle
Wide Angle 140 degrees
Night Vision
Up to 10 Meters with Visible Face Detection
Waterproof
IP67
Clip
High Quality Metal Clip with 360 degrees Rotation
PTT
Can Connect to Different Types of 2-ways Radios
BATTERY
Type
Built-in 2500mAH Lithium
Charging Time
180 minutes
Battery Life
10 Hours
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
7
OTHERS
Password protection
Requires admin password to allow video deletion
Pre-record function
5 seconds pre-record.
Post-record function
5 seconds last-record
Burst
1/3/5 Shot burst picture taking
Dimensions
94 mm *61 mm *31mm (2.91” * 1.83” *0.93”)
Weight
175g (6.17oz)
Working Temperature
-40～60 degrees Celsius
Storage temperature
-20～55 degrees Celsius
ACCESSORIES
Standard Accessories
USB cable, Charger, Driver CD, Universal metal clip
Optional
GPS, External Camera, 2-ways Radios cable
3. Getting Started
1) Press and hold the “Power” button (located on the bottom of the right side of the device)
for about 3 seconds, the user will hear a “click” sound and feel the unit vibrate. A green
indicator light on top of the unit will turn on and remain green while the unit is powered on.
The camera and LCD monitor will turn on and enter into a standby mode. The video
preview mode is displayed on the LCD monitor.
2) The video preview mode displays: recording time, camera resolution, battery indicator,
device id, storage capacity, and camera view.
3) Press and hold the “Power” button for about 3 seconds, the camera will turn off. The user
will hear a “click” sound and feel the unit vibrate before it powers off. The green
indicator light will also turn off.
4) If there is no user interaction within 3 minutes of being turned on, the camera will
automatically turn off and enter into a power saving mode. The green indicator light will
remain on.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
8
4.Recording
1) Video Recording:
a. To record a video, press the “Record” button on the left side of the device (second
button with a video recorder symbol on it) the unit will give two short vibrations.
The video camera record symbol on the LCD monitor display will turn red and
begin to blink, indicating the camera is currently recording.
b. Press the “Record” button again to stop recording. The unit will vibrate twice and
the video camera recorder symbol will stop blinking and turn white. The unit will
stop recording and save the video.
c. When the unit is powered off, if the user presses and holds the “Record” button for
about 3 seconds, the device will turn on and automatically start video recording.
d. If recording during the night or in the dark, press the “IR” button (second to the last
button on the left hand side of the device). The IR lights will turn on and the DVR
will enter into Night Mode. The video recorded in the dark will be in black and
white.
2) Photograph Feature:
a. To take photos, press the “Camera” button (located under the Record button on
the left side of the device with a symbol of camera on it). The unit will start taking
pictures similar to a digital camera.
b. To take photos while video recording, press the “Camera” button and the unit will
capture a photo of the picture recorded at that time without interrupting the video
recording.
c. To take photos at night or in the dark, press the “IR” button to go into Night Mode
and turn on the IR lights. Photos taken in Night Mode will be black and white.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
9
3) Sound Recording:
a. To record audio only, press the “Microphone” button (located below the Camera
button with a microphone symbol on it). The unit will vibrate twice briefly and a
recording timer will appear on the LCD screen display.
b. To stop recording, press the “Microphone” button again. The unit will vibrate
twice briefly and return to the video preview. The audio recording will end and
will be saved as an audio file.
5.Playback
There are two ways ausercan playback recorded files on this device; the “Confirm/Playback”
button and/or the “Return/Instant Playback” button (thebuttons arelocatedbelow the LCDmonitor
display,also seethe picturediagram).
The “Return/InstantPlayback” button when selected will automatically play the last
recordedfile.
The “Confirm/Playback” button when selected will take the user to the Playback Menu
screen. The user canthen select which recorded file to playback.
1) Photo Display:

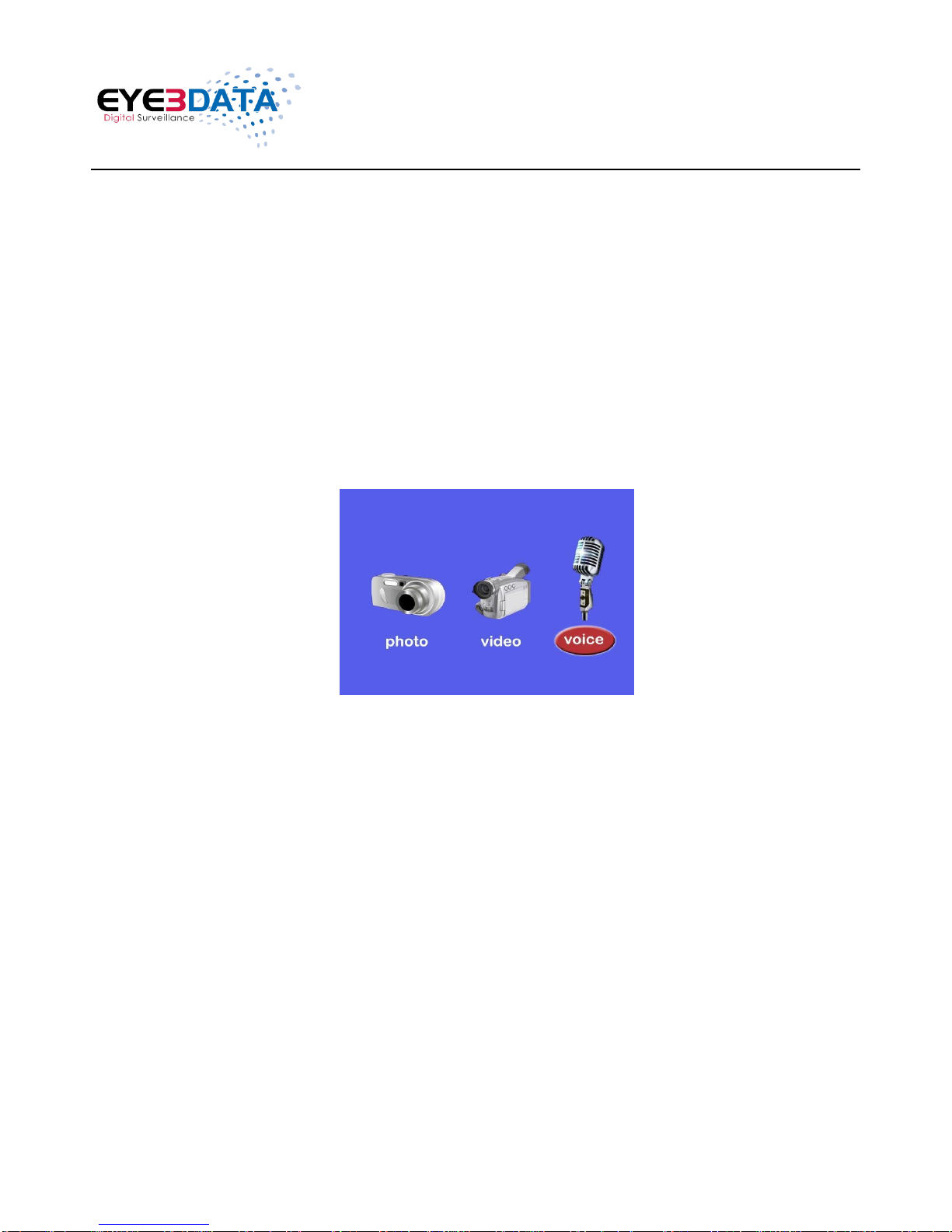

a. Press the “Confirm/Playback” button on the device. The Playback Menu should
appear on the LCD screen display.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
10
b. Use the “IR/Up/Zoom In” or the Laser/Down/Zoom Out” button to select the
Camera/Photo Icon, and then press the “Confirm/Playback” button to display all
saved photos.
c. Select the photo to view by using the “Up/Down” buttons. After selecting the photo,
press the “Confirm/Playback” button to see the picture in full screen.
d. Users can alternate between photos using the “Up/Down” buttons (in both slide
mode and full screen mode).
e. To return from full screen mode to slide mode, press the “Return/Instant Playback”
button.
f. To return to the Playback Menu, press the “Return/Instant Playback” button.
g. To return to the Video Preview screen display, continue to press the “Return/Instant
Playback” button.
2) Video Playback:
Users are able to view previously recorded video files using the following process:
a. Press the “Confirm/Playback” button to go to the Playback Menu.
b. Use the “IR/Up/Zoom In” or the Laser/Down/Zoom Out” button to select the Video
Icon, and then press the “Confirm/Playback” button to display all saved recorded
video files.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
11
c. Select the video file to view by using the “Up/Down” buttons. After selecting the
video file, press the “Confirm/Playback” button to see the recorded video in full
screen.
d. To return to the Playback Menu, press the “Return/Instant Playback” button.
e. To return to the Video Preview screen display, continue to press the “Return/Instant
Playback” button.
3) Audio Playback:
Users are able to listen to recorded audio files by following these steps:
a. Press the “Confirm/Playback” button to go to the Playback Menu.
b. Use the “IR/Up/Zoom In” or the Laser/Down/Zoom Out” button to select the
Microphone/Audio Icon, and then press the “Confirm/Playback” button to display all
saved recorded audio files.
c. Select the audio file by using the “Up/Down” buttons. After selecting the audio file,
press the “Confirm/Playback” button to listen to the recorded audio file.
d. To return to the Playback Menu, press the “Return/Instant Playback” button.
e. To return to the Video Preview screen display, continue to press the “Return/Instant
Playback” button.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
12
6.Settings
To go to the SET UP Screen, press the “Menu” button ( locatedbelow theLCDmonitor display).
1) Resolution
1. In the SET UP Menu select “Resolution” and press the “Confirm/Playback” button.
2. There are four resolution options to select from:
a. 1920*1080P/30fps
b. 1280*720/30fps
c. 848*480P/60fps
d. 848*480P/30fps
3. Select the resolution you prefer and press the “Confirm/Playback” button
4. Press the “Instant/Playback” button to return to the previous menu.

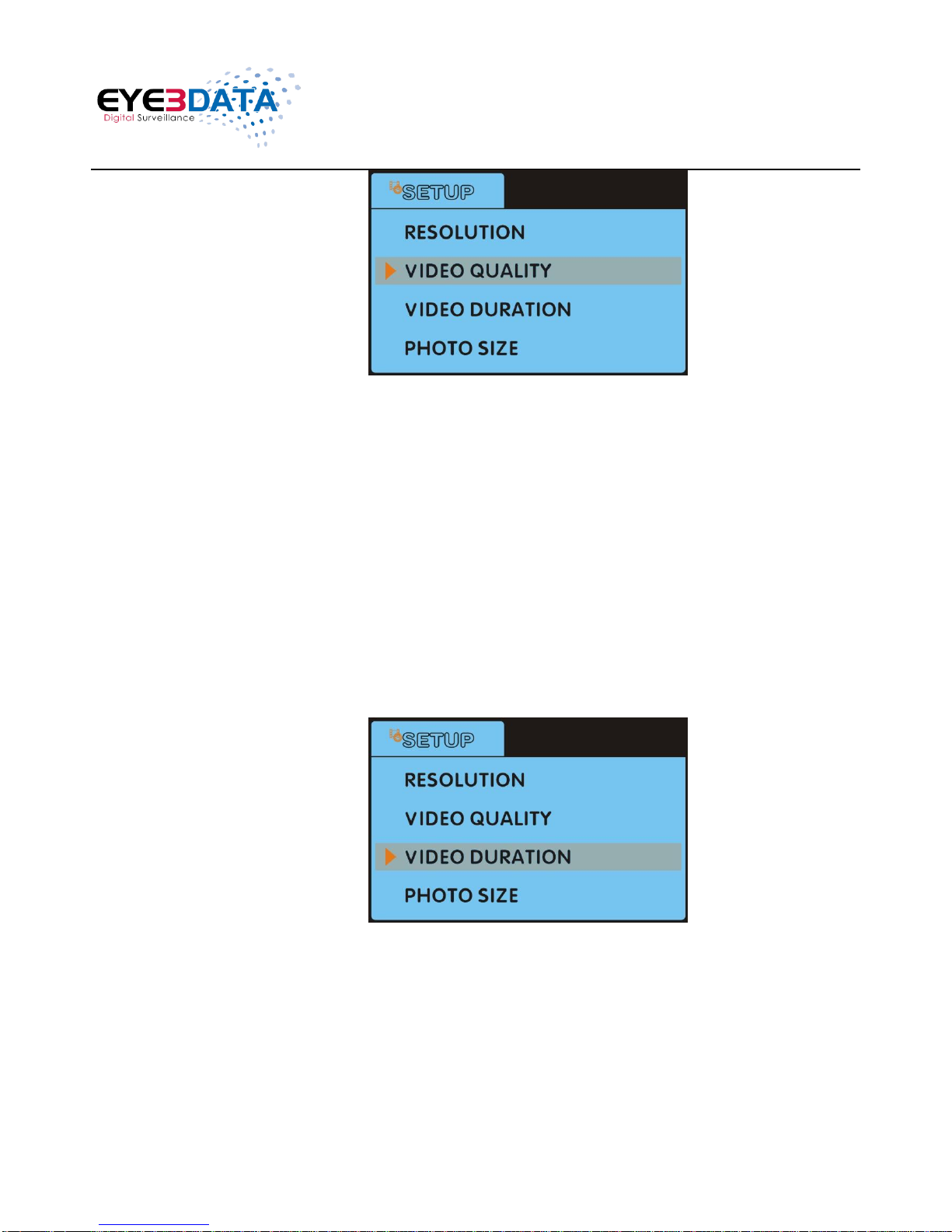

2) Video Quality
1) In the SET UP Menu select “Video Quality” and press the “Confirm/Playback” button.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
13
2) There are three options to select from:
a. Fine
b. Normal
c. Super Fine
3) Select the video quality you prefer and press the “Confirm/Playback” button.
4) Press the “Instant/Playback” button to return to the previous menu.
3) Video Duration
1) In the SET UP Menu select “Video Duration” and press the Confirm/Playback”
button.
2) There are four time intervals to select from:
a. 5 minutes
b. 10 minutes
c. 15 minutes
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
14
d. 30 minutes
3) Select the time interval you prefer and press the “Confirm/Playback” button.
4) Press the “Instant/Playback” button to return to the previous menu.
4) Photo Size
1) In the SET UP Menu select “Photo Size” and press the Confirm/Playback” button.
2) There are four photo resolutions to select from:
a. 5 Megapixels
b. 8 Megapixels
c. 12 Megapixels
d. 16 Megapixels
3) Select the photo resolution you prefer and press the “Confirm/Playback” button.
4) Press the “Instant/Playback” button to return to the previous menu.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
15

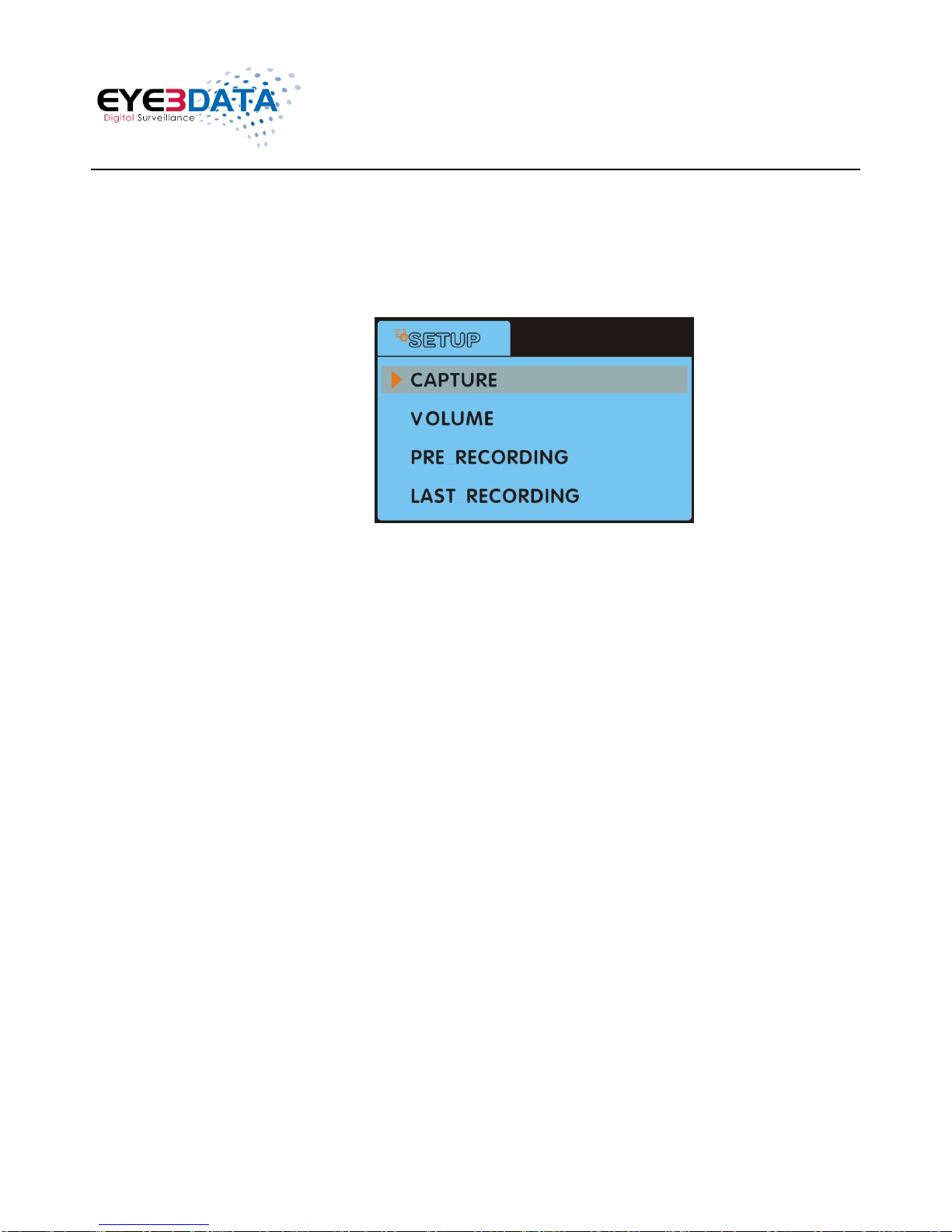

5) Capture
Capture means continuous photo shooting in a sequence.
1) In the SET UP Menu select “Capture” and press the Confirm/Playback” button.
2) There are three options to select from:
a. Off-no continuous photo shooting
b. 3fps (frames per seconds)
c. 5fps (frames per seconds)
3) Select the photo resolution you prefer and press the “Confirm/Playback” button.
4) Press the “Instant/Playback” button to return to the previous menu.
6) Volume
1. In the SET UP Menu select “Volume” and press the “Confirm/Playback” button.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
16
2. Select the volume setting you prefer and press the “Confirm/Playback” button.
3. Press the “Instant/Playback” button to return to the previous menu.
7) Pre-Recording
1. In the SET UP Menu select “Pre-Recording” and press the “Confirm/Playback”
button.
2. There are two options to select from:
a. On- camera will pre-record 5 seconds prior to pressing the “Record”
button.
b. Off- no pre-recording.
3. Select the Pre-Recording option you prefer and press the “Confirm/Playback” button.
4. Press the “Instant/Playback” button to return to the previous menu.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
17

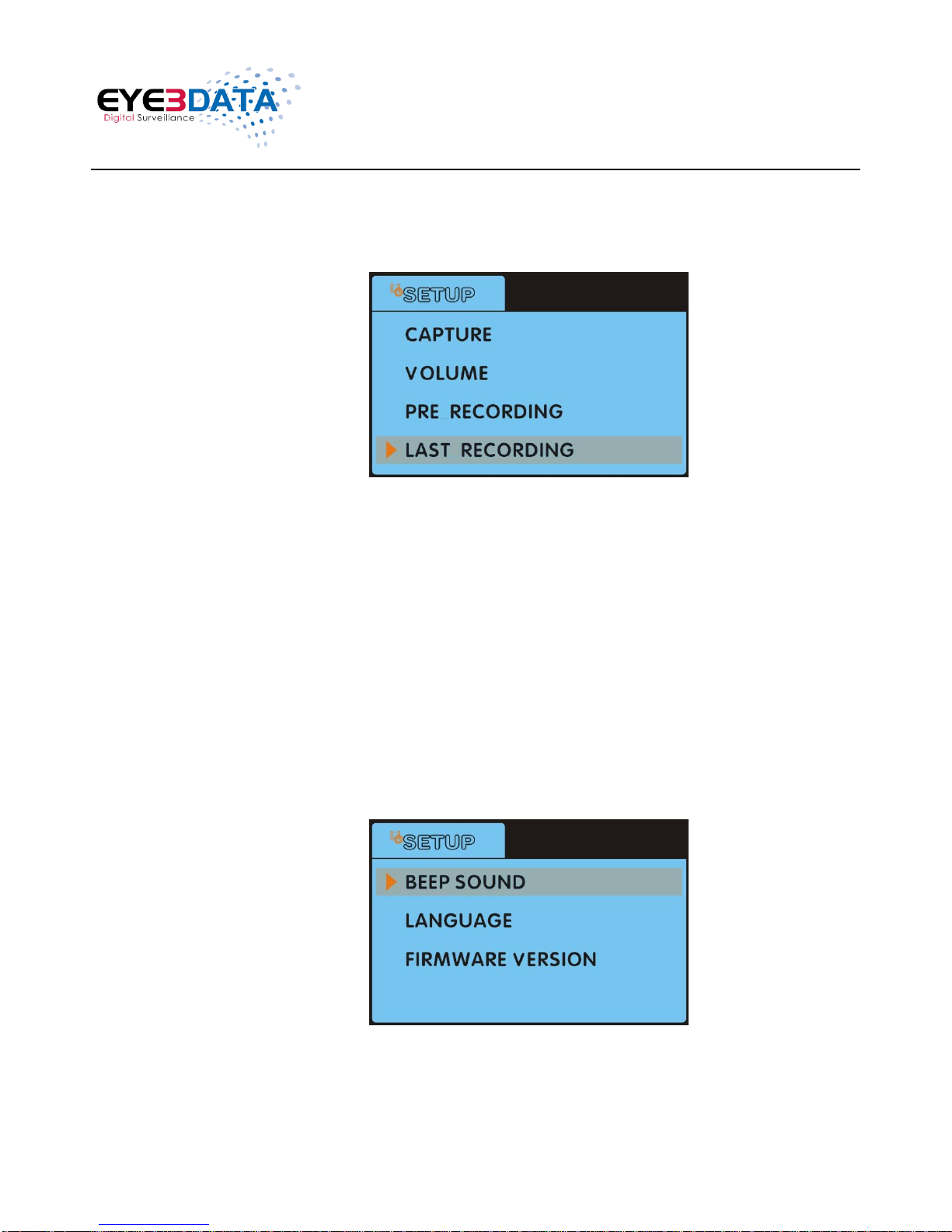

8) Post-Recording
1. In the SET UP Menu select “Post-Recording” and press the “Confirm/Playback”
button.
2. There are two options to select from:
a. On- camera will record 5 seconds after the end of recording.
b. Off- no post-recording.
3. Select the Pre-Recording option you prefer and press the “Confirm/Playback” button.
4. Press the “Instant/Playback” button to return to the previous menu.
9) Beep Sound
1. In the SET UP Menu select “Post-Recording” and press the “Confirm/Playback”
button.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
18
2. Two options to select from:
a. On- enables the prompt sound.
b. Off- disables the prompt sound.
3. Select the Pre-Recording option you prefer and press the “Confirm/Playback” button.
4. Press the “Instant/Playback” button to return to the previous menu.

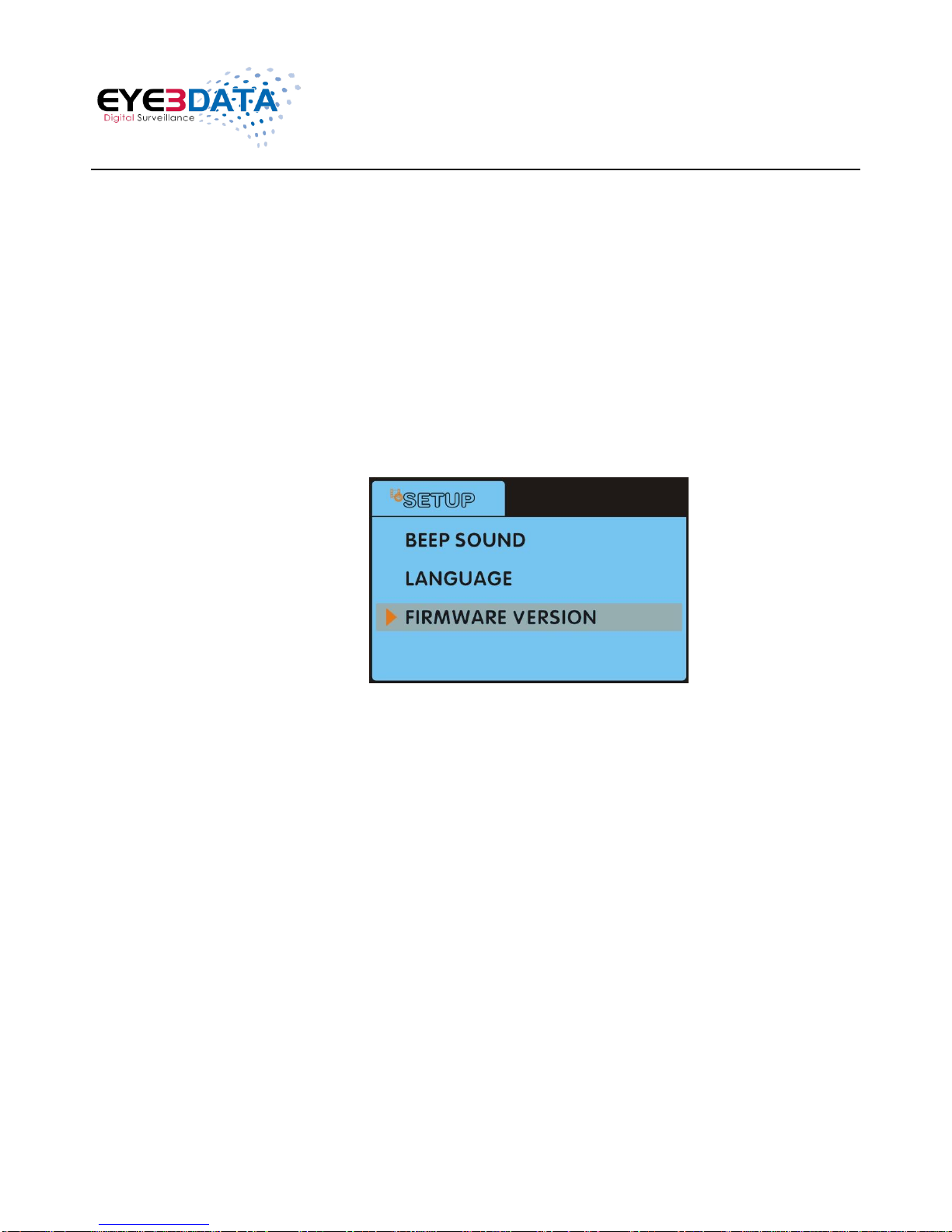

10)Firmware Version
1. In the SET UP Menu select “Firmware Version” and press the “Confirm/Playback”
button.
2. The current Firmware Version will display on the screen.
3. A Press the “Instant/Playback” button to return to the previous menu.
Eye3WitnessView BodyCam User Manual
This document contains proprietary and copyrighted information subject to change without notice. The information in this document
shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without
the written consent of Eye3Data is strictly prohibited.
19
CORPORATE HEADQUARTERS
9624 Cincinnati Columbus Road
Cincinnati, Ohio 45241
Main: 513.779.0604
Toll Free: 888.777.9059
Fax: 513.898.0206
www.eye3mobile.com
Table of contents
