Faber FBIMWO 25LCGS User manual

INSTRUCTION MANUAL
Microwave oven
F
Imported and Marketed by
Franke Faber India Ltd.︱37/1 Kondhwa Pisoli Road, Pisoli, Pune, Maharashtra. India
Phone [phone]︱Toll Free Number:1800 209 3484︱[email protected]︱www.faberspa.com
Model: FBIMWO 25LCGS
Built-in

Product :
Model Name :
Quantity (No. of Units) :
Power :
Voltage :
Frequency :
Net Weight :
Gross Weight :
Product Dimensions in mm :
(LxWxH)
Packaging Dimensions in mm :
(LxWxH)
Microwave Oven
FBIMWO 25LCGS
1
230 V
50 H
gs
gs
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil
or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be
degraded and affect the life-span of the apparatus and lead to a dangerous situation.
SPECIFICATIONS
2
~
z
900 W
20.9 k
24.68 k
595x470x388
655x536x533

WARNING
7. Read and follow the specific:
' P R E C A U T I O N S TO AV O I D
To reduce the risk of fire, electric shock,
P O S S I B L E E X P O S U R E T O
injury
to persons or exposure to
EXCESSIVE MICROWAVE ENERGY'.
excessive microwave oven energy when using
your appliance, follow basic
8. When heating food in plastic or
precautions, including the following:
paper containers, keep an eye on
the oven due to the possibility of
1. Warning: Liquids and other foods
ignition.
must not be heated in sealed
containers since they are liable to
9. If smoke is observed, switch off or
explode.
unplug the appliance and keep
the door closed in order to stifle
2. Warning: It is hazardous for
any flames.
anyone other than a competent
person to carry out any service or
10. Do not overcook food.
repair operation that involves the
11. Do not use the oven cavity for
removal of a cover which gives
storage purposes. Do not store
protection against exposure to
items, such as bread, cookies, etc.
microwave energy.
inside the oven.
3. Warning: Only allow children to
12. Remove wire twist-ties and metal
use the oven without supervision
handles from paper or plastic
when adequate instructions have
containers/bags before placing
been given so that the child is
them in the oven.
able to use the oven in a safe way
13. Install or locate this oven only in
and understand the hazards of
accordance with the installation
improper use.
instructions provided.
4. Warning: When the appliance is
14. Eggs in the shell and whole hard-
operated in the combination mode,
boiled eggs should not be heated
children should only use the oven
in microwave ovens since they
under adult supervision due to the
m a y e x p l o d e , e v e n a f t e r
temperatures generated. (only for
microwave heating has ended.
grill series)
15. Use this appliance only for its
5. Only use utensils suitable for use
intended uses as described in
in microwave ovens.
manual. Do not use corrosive
6. The oven should be cleaned
chemicals or vapors in this
regularly and any food deposits
appliance. This oven is especially
should be removed.
designed to heat. It is not
IMPORTANT SAFETY INSTRUCTIONS
3
de si gned fo r indus tr ia l o r
laboratory use.

24. The appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
16. If the supply cord is damaged, it
mental capabilities, or lack of
m u s t b e r e p l a c e d b y t h e
experience and knowledge, unless
manufacturer, its service agent or
they have been given supervision
similarly qualified persons in order
or instruction concerning use of the
to avoid a hazard.
appliance by a person responsible
17. Do not store or use this appliance
for their safety.
outdoors.
25. Children should be supervised to
18. Do not use this oven near water, in
ensure that they do not play with
a wet basement or near a
the appliance
swimming pool.
26. The appliances are not intended to
19. The temperature of accessible
surfaces may be high when the
appliance is operating. The
surfaces are liable to get hot
during use. Keep cord away from
heated surface, and do not cover
any vents on the oven.
20. Do not let cord hang over edge of
table or counter.
21. Failure to maintain the oven in a
The rear surface of appliance shall
clean condition could lead to
be placed against a wall.
deterioration of the surface that
could adversely affect the life of
the appliance and possibly result
in a hazardous situation.
22. The contents of feeding bottles
and baby food jars shall be stirred
or shaken and the temperature
checked before consumption, in
order to avoid burns.
23. Microwave heating of beverages
can result in delayed eruptive
boiling, therefore care must be
taken when handling the container.
4
33.
timer of separate remote-control
system.
be operated by means of an external
27. WARNING : Ensure that the appliance
is switched off before replacing the
lamp to avoid the possibility of electric
shock.
28. Accessible parts may become hot
during use. Young children should be
kept away.
29. Steam cleaner is not to be used.
30. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can scratch
the surface, which may result in
shattering of the glass.
31. During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.
32. Only use the temperature probe
recommended for this oven.(for
ovens provided with afacility to use
a temperature-sensing probe.)

DANGER
Electric Shock Hazard: Touching This appliance must be grounded. In the event
s o m e o f t h e i n t e r n a l of an electrical short circuit, grounding reduces
components can cause serious the risk of electric shock by providing an
personal injury or death. Do not escape wire for the electric current. This
disassemble this appliance. appliance is equipped with a cord having a
grounding wire with a grounding plug. The
plug must be plugged into an outlet that is
properly installed and grounded.
WARNING
Electric Shock Hazard: Improper Consult a qualified electrician or serviceman if
use of the grounding can result the grounding instructions are not completely
in electric shock. Do not plug understood or if doubt exists as to whether the
into an outlet until appliance is appliance is properly grounded. If it is necessary
p r o p e r l y i n s t a l l e d a n d to use an extension cord, use only a 3-wire
grounded. extension cord.
CLEANING
Be sure to unplug the appliance 1. A short power-supply cord is provided to
from the power supply. reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
1. Clean the inside of the
oven after using with a 2. If a long cord set or extension cord is
slightly damp cloth. used:
2. Clean the accessories in 1) The marked electrical rating of the
the usual way in soapy cord set or extension cord should be at
water. least as great as the electrical rating of the
appliance.
3. The door frame and seal
and neighboring parts 2) The extension cord must be a
must be cleaned carefully grounding type 3-wire cord.
with a damp cloth when 3) The long cord should be arranged so
they are dirty. that it will not drape over the counter top
or tabletop where it can be pulled on by
children or tripped over unintentionally.
5
Two-round-pin plug

CAUTION UTENSILS
Personal Injury Hazard: It is See the instructions on 'Materials you can use
hazardous for anyone other in microwave oven or to be avoided in
than a competent person to microwave oven.' There may be certain non-
carry out any service or repair metalic utensils that are not safe to use for
operation that involves the microwaving. If in doubt, you can test the
removal of a cover which gives utensil in question following the procedure
protection against exposure to below.
microwave energy. Utensil Test:
1. Fill a microwave-safe container with 1 cup of
cold water (250ml) along with the utensil in
question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil
is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover
thin parts of meat or poultry to prevent overcooking.
Arcing can occur if foil is too close to oven walls. The foil
should be at least 2.5cm away from oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of
browning dish must be at least 5mm above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions.
Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no
metalic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal
tie. Make slits to allow steam to escape.
Paper plates and cups Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
6

Paper towels Use to cover food for reheating and absorbing fat. Use
with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for
steaming.
Plastic Microwave-safe only. Follow the manufacturer’s
instructions. Should be labeled 'Microwave Safe. Some
plastic containers soften, as the food inside gets hot.
'Boiling bags' and tightly closed plastic bags should be slit,
pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with May cause arcing. Transfer food into microwave-safe dish.
metal handle
Metal or metal Metal shields the food from microwave energy. Metal trim
trimmed utensils may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and
Utensils Remarks
7
may split or crack.
Materials to be avoided in microwave oven

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Turntable Installation
a. Never place the glass tray upside
down. The glass tray should never be
restricted.
b. Both glass tray and turntable ring
assembly must always be used during
cooking.
c. All food and containers of food are
always placed on the glass tray for
cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorized service center.
Grill Rack( Only for Grill series )
8

9
The accessible surface
may be hot during
operation.
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only.It is not intended for counter-top use or for
use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm
deep and 85cm off the floor).
5.The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must only be replaced by a
qualified electrician.If the plug is no longer to accessible following installation,an
all-pole disconnecting device must be present on the installation side with a contact
gap of at lease 3mm.
8.Adapters,multi-way strips and extension leads must not be used. Overloading can
result in a risk of fire.

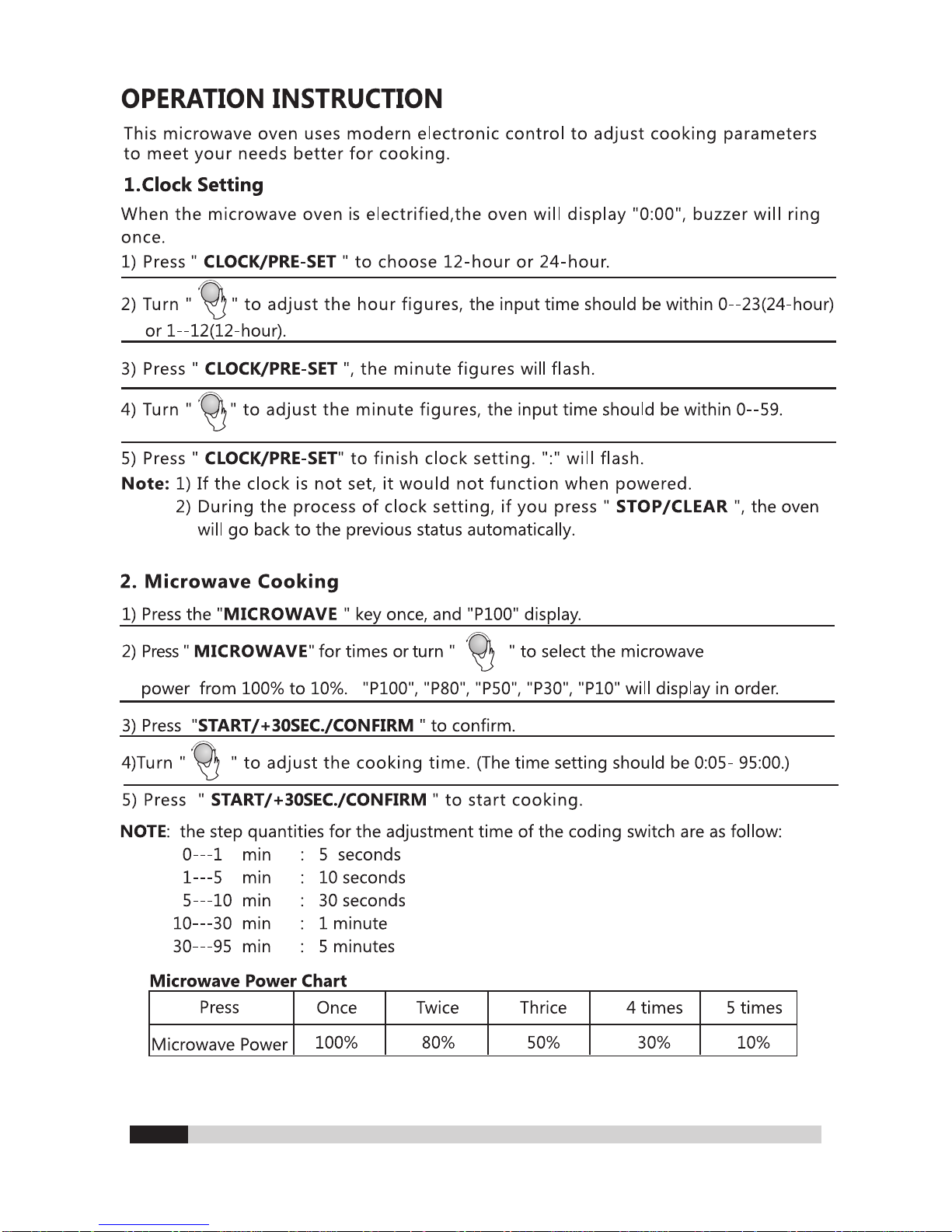

10

11

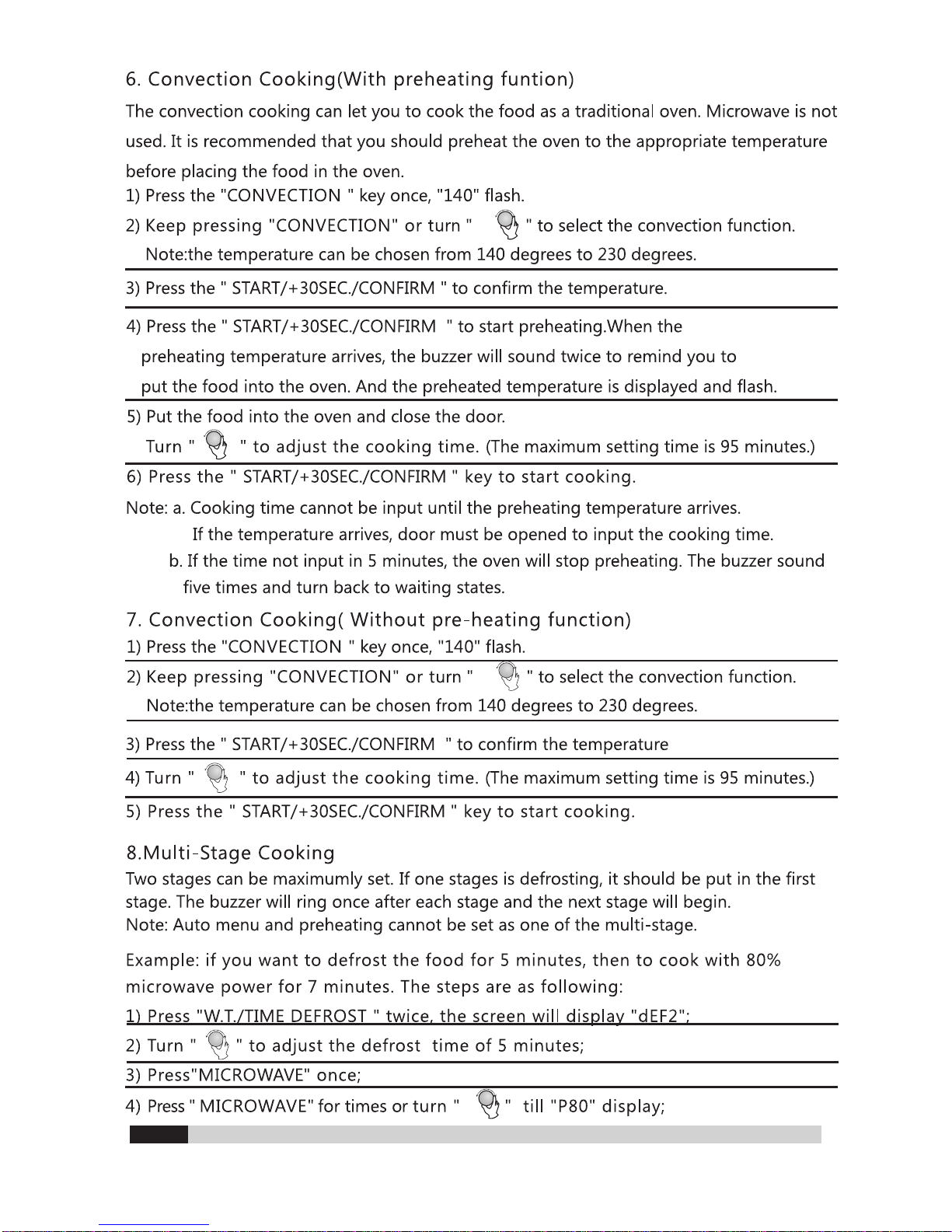

12

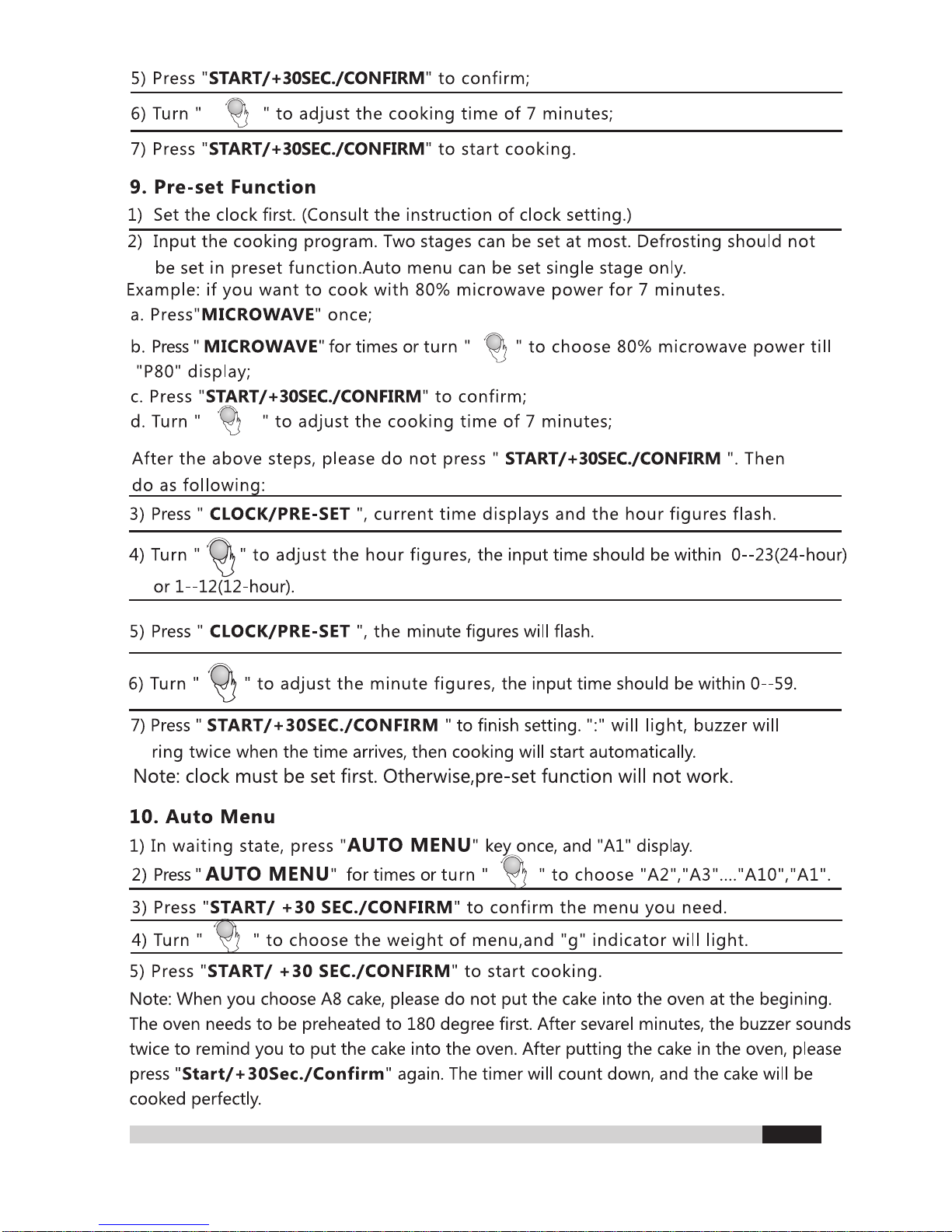

13

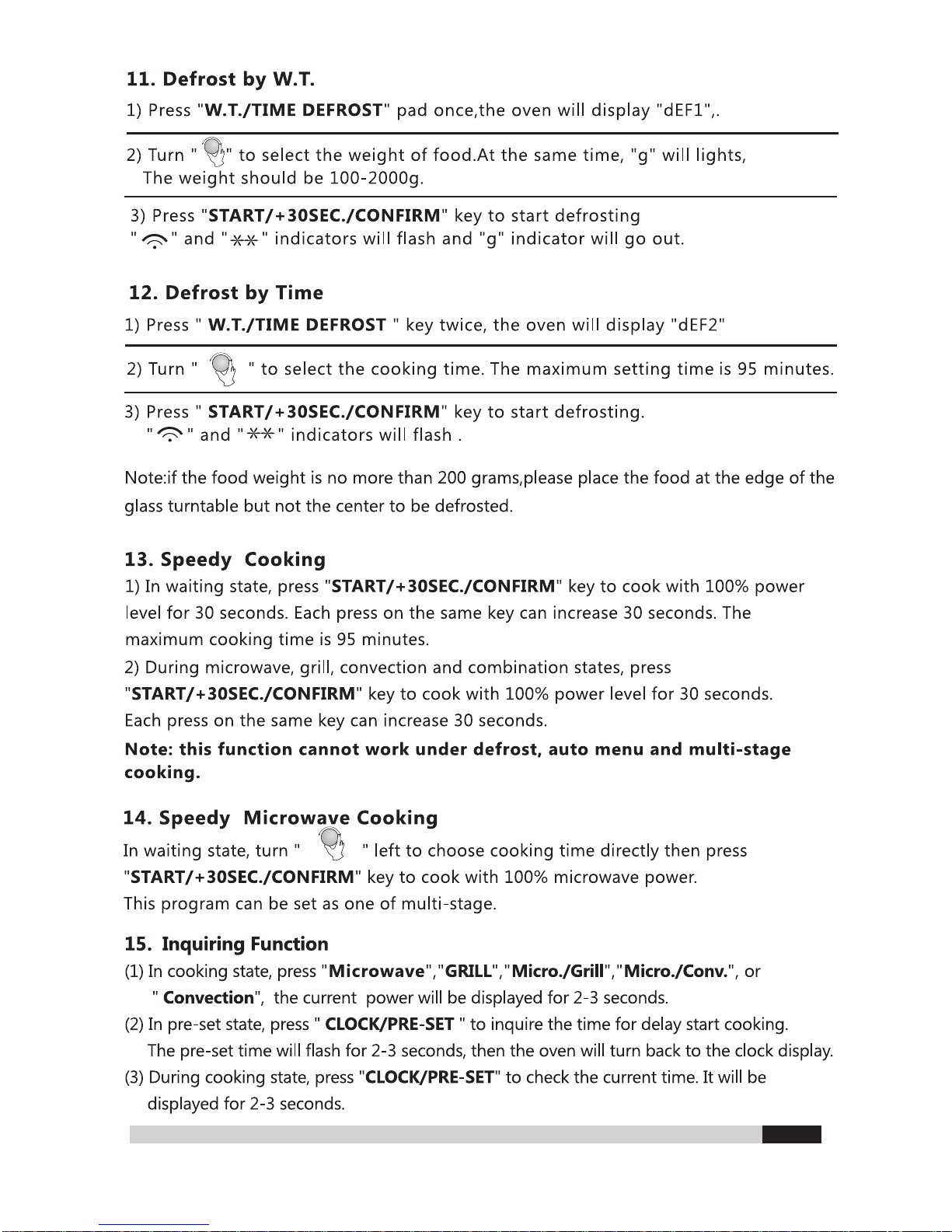

14
Auto menu Chart
Menu Weight(g) Power
A6
Pasta
A1
Reheat
A2
Potato
A3
Meat
A4
Vegetable
A5
Fish
A7
Soup
150
250
350
450
600
1 (about 230g)
2 (about 460g)
3 (about 690g)
150
300
450
600
150
350
500
150
250
350
450
650
100(with water 800ml)
150(with water 1200ml)
200
400
600
475
200
300
400
500
750
1000
1200
A8 Cake
A9
Pizza
A10
Chicken
150
250
350
450
600
1
2
3
150
300
450
600
150
350
500
150
250
350
450
650
50
100
150
200
400
600
475
200
300
400
500
750
1000
1200
Display
100%
100%
Preheat at 180 degrees
80%
C-4
100%
80%
100%
C-4
100%
50(with water 450ml)

15

16

17
Trouble shooting
Microwave oven interfering Radio and TV reception may be interfered when
TV reception microwave oven operating. It is similar to the
interference of small electrical appliances, like
mixer, vacuum cleaner, and electric fan.
It is normal.
Dim oven light In low power microwave cooking, oven light may
become dim. It is normal.
Steam accumulating on In cooking, steam may come out of food.
door, hot air out of vents Most will get out from vents. But some may
accumulate on cool place like oven door.
It is normal.
Oven started accidentally It is forbidden to run the unit without any food
with no food in. inside. It is very dangerous.
Normal
Trouble Possible Cause Remedy
Oven can not (1) Power cord not Unplug. Then plug again
be started. plugged in tightly. after 10 seconds.
(2) Fuse blowing or Replace fuse or reset circuit
circuit breaker works. breaker (repaired by
professional personnel
of our company)
(3) Trouble with outlet. Test outlet with other
electrical appliances.
Oven does not heat. (4) Door not closed well. Close door well.
Glass turntable (5) Dirty roller rest and Refer to 'Maintenance of
makes noise when oven bottom. Microwave' to clean dirty
microwave oven parts.
operates
According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE
should be separately collected and treated. If at any time in future you need to
dispose of this product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points where available.

Installation Instructions
Please Read the Manual Carefully Before Installation
Please Note
Electrical connection
The oven is fitted with a plug and must be only connected to a properly installed earthed
socket. In accordance with the appropriate regulations, the socket must only be installed and
the connecting cable must only be replaced by a qualified electrician.
If the plug is no longer accessible following installation and all-pole isolating switch must
be present on the installation side with a contact gap of at least 3mm.
TRIM-KIT PLASTIC
COVER
SCREW

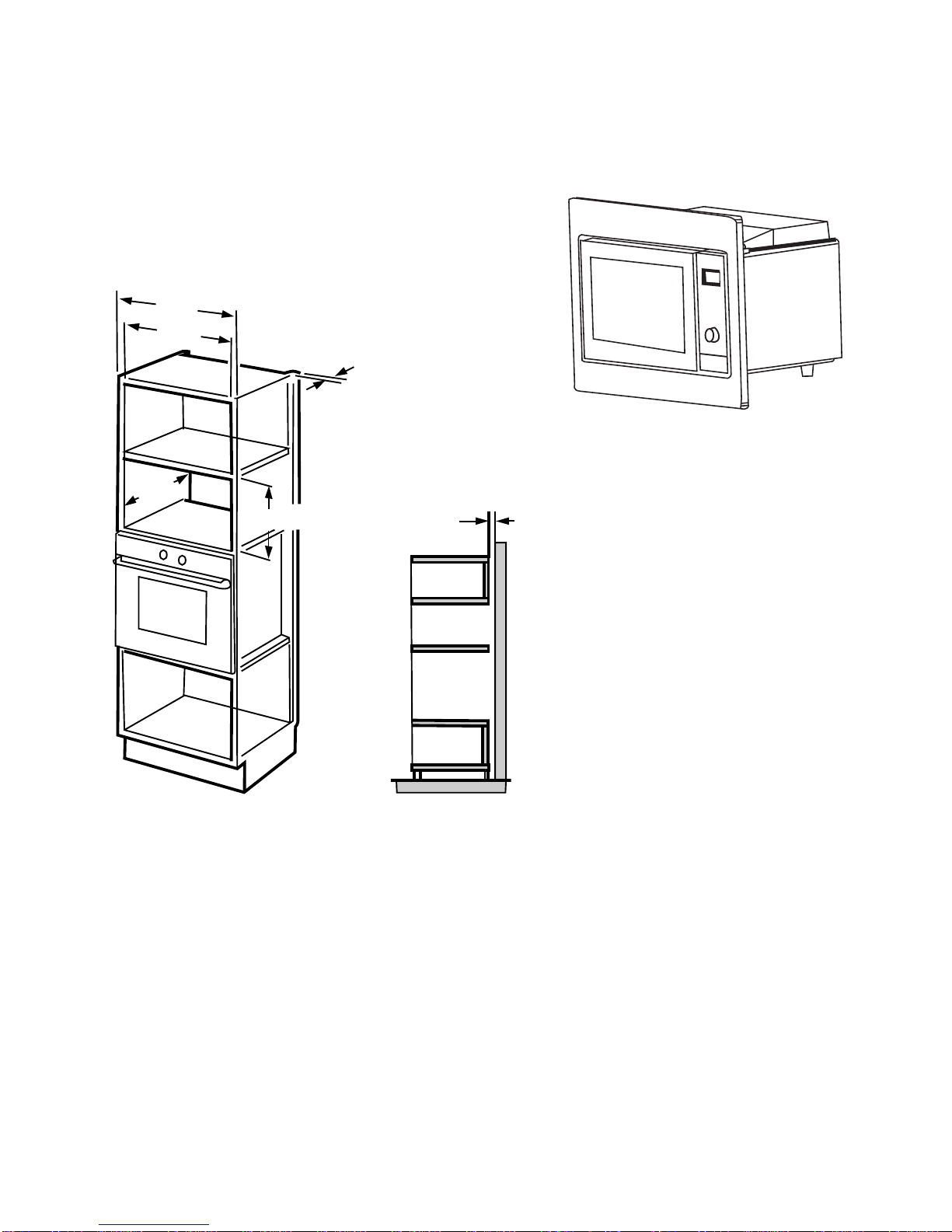

A. Built-in furniture
The built-in cabinet shall not have a rear wall behind the appliance.
Minimum installation height is 85cm.
Do not cover ventilation slots and air intake points.
600
560+8
(45)
(45)
min
380 +2
550

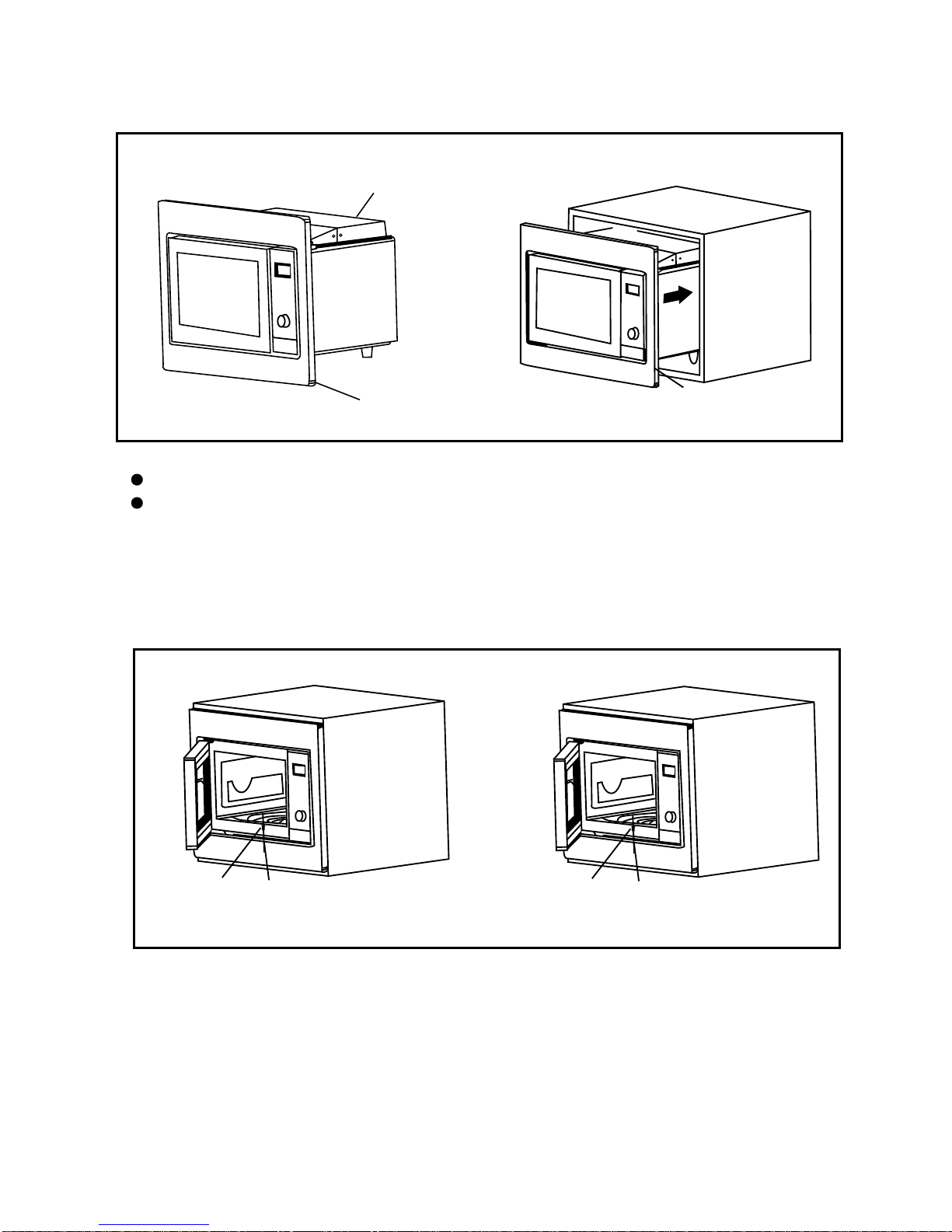

B. Install the Oven
1. Do not trap or kink the power cord.
Make sure that the oven is installed in the center of the cabinet.
2. Open the door; fix the oven to the cabinet with SCREW
at the
INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER
tothe INSTALLATION HOLE.
TRIM-KIT
UPPER AIR TUNNEL
TRIM KIT
INSTALLATION HOLE
TRIM-KIT PLASTIC COVER INSTALLATION HOLE
SCREW
