Fast Bazooka BT6014 User manual

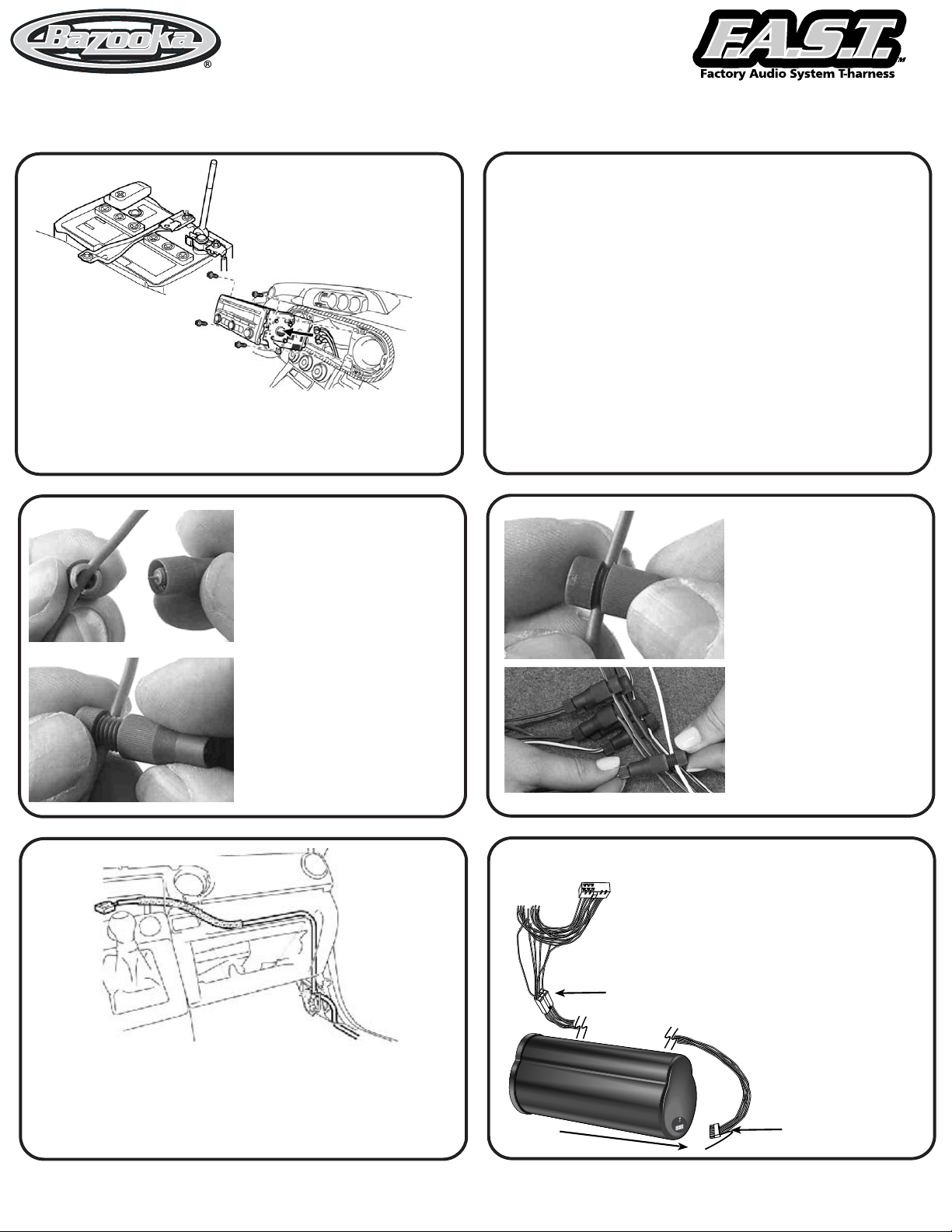

How to install the FAST-9999 with the FAST-BTAH
The FAST-9999 universal harness uses the patented Posi-Tap connector from Posi-Products for making
FAST secure connections to your OEM wire harness.
Posi-Tap TM Patent # 5,228,875 5,695369 5,868,589 6,692,313 Jap 2881414, Aus 708700, Tia 103534, Can 2204826
Mex 200626 Korea 477279, China Z197105562.9 & others pending
Disconnect negative battery clamp from battery.
For easiest installation remove the radio and disconnect
the harness from the back of the radio.
Connect the Posi-Tap connectors to the corresponding
wires of your radio harness. Consult your car or radio
manufacturer’s manual to get the correct color codes
for your vehicle.
Red (+) 12V Power. Turns on when ignition/accessory is on.
Blue/White Turns on remote accessories (amplifiers, etc.).
If there is no Remote Amplifier wire, you can often use the
power antenna wire.
White (+) Left Front Speaker
White/Black (-) Left Front Speaker
Gray (+) Right Front Speaker
Gray/Black (-) Right Front Speaker
Remove the top cap. Place the wire
that is going to be tapped. In the
grove of the cap as far down as it
will go.
Make sure not to cross thread the
cap when screwing it back in place.
Make sure the end with the 6 pin Molex connectors is
toward the radio. Run the BTAH harness behind radio,
dash and along the edge of the vehicle until you get
to the place you have decided to mount the tube.
Continue to thread until the cap
is tight and the wire is pierced.
Make sure to attach all 6 of the
FAST-9999 harness wires to
your OEM harness.
Plug the FAST-9999 harness into
the FAST-BTAH. Mount grounding
ring and plug the 14 pin connector
into the BASS TUBE. For more information
on placement and mounting, consult
your amplified tube instruction manual.
FAST-9999
14 pin connector
to the BAZOOKA
Ground to
chassis of
vehicle
FAST-BTAH

2
Dear Friend,
Thank you for selecting Bazooka® subwoofer speaker systems for your
stereo system Today, the Bazooka represents Bazooka Mobile Audios
continued commitment to efficiency and design An innovative
manufacturing process developed by SAS® for the Bazooka provides
consumers with state-of-the-art speaker system design
At SAS, we take pride in manufacturing the most revolutionary bass speaker
systems ever created, featuring our patented Bass Tubes® enclosure design,
and we hope you will take pride in owning them
Several years ago, we realized that efficiency was the wave of the future
in Autosound, so we made a commitment to design, manufacture, and
deliver the most efficient speaker systems possible
Today we market our patented speaker systems worldwide and the high
quality of the Bazooka brand is well respected by consumers and dealers
of all nationalities
When properly installed, Bazooka subwoofer speaker systems will give
you years of clean uninterrupted sound reproduction Therefore, I urge
you to take a few minutes of your time to review this instruction booklet
It was designed to give you a better understanding of our products and
to explain how to apply them properly
Thank you again for choosing Bazookas Our early commitment to quality
has made them the product of choice, and I am sure you will agree that
you have made the right one! Enjoy!
Sincerely,
JON C JORDAN
President
SAS/BAZOOKA
ENGLISH

3
HELPFUL HINTS BEFORE YOU BEGIN PG 4
VEHICLE PLACEMENT RECOMMENDATIONS PG 5-6
MOUNTING THE BAZOOKA PG 7-9
WIRING DIAGRAMS PG 10-11
SPECIFICATIONS PG 12&15
FEATURES PG 13-14
WIRING PG 16-20
TROUBLESHOOTING PG 21-22
WARRANTY PG 24-25
CONTENTS
ENGLISH

HELPFUL HINTSBEFORE YOU BEGIN
Please take time to read through this manual and plan out your
installation before you begin!
Locate an area in the rear of the vehicle where you would like to place
the Bazooka speaker systems The location you have selected must
meet the following requirements in order for the Bazooka to be properly
installed in the vehicle:
1) The woofer (grill end) should be facing into a corner (See
vehicle placement recommendations on pg 5-6)
2) Ideally, there should be 2 to 4 inches between the woofer and
the corner it is pointing into
3) The mounting area should be carefully checked to be sure
that the mounting screws will not damage the gas tank,
electrical wiring, fuel lines, or the spare tire during the mounting
of the strap bases
4) The strap mounting bases should be screwed securely to a
rigid surface that is part of, or anchored to, the structure of
the vehicle
4
ENGLISH

5

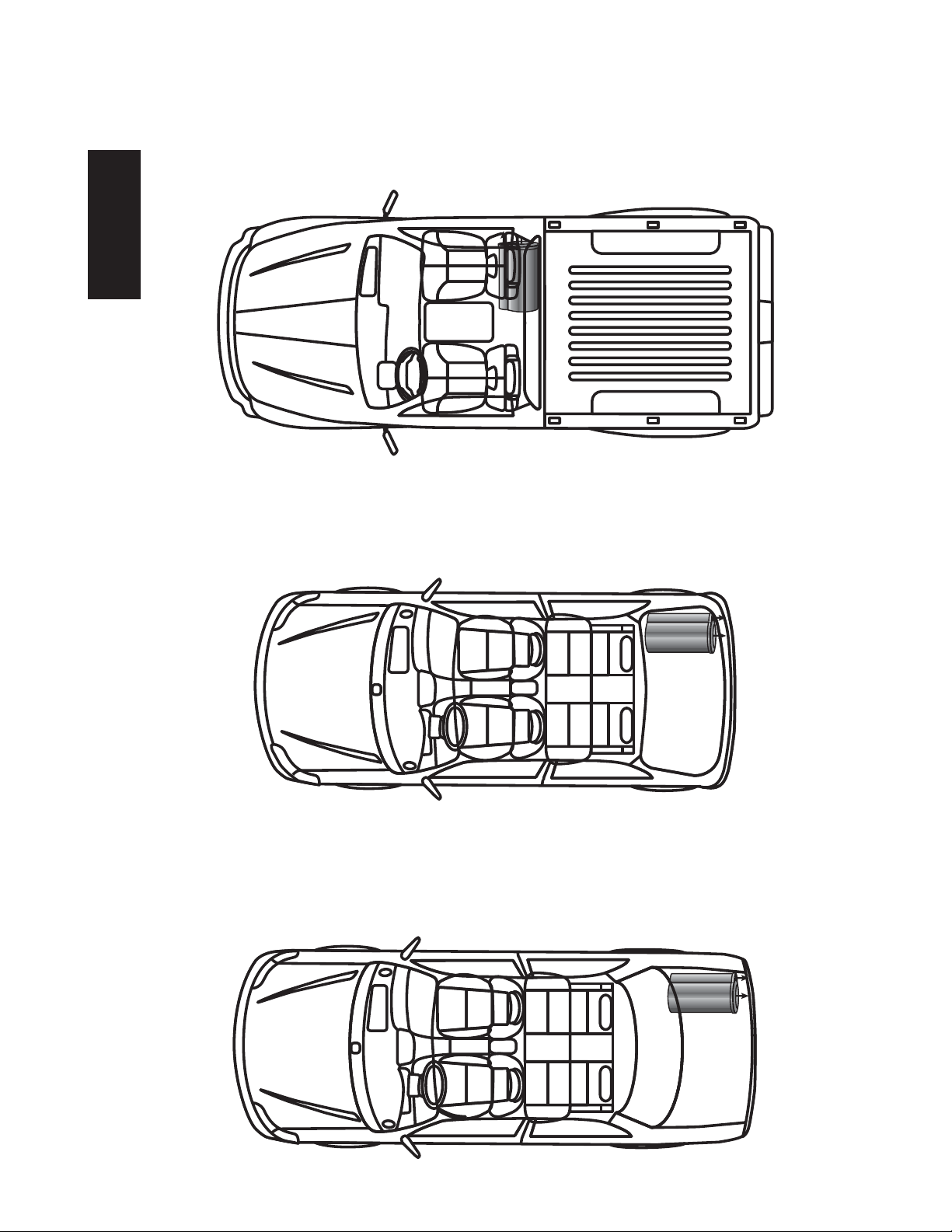

HATCHBACK INSTALLATION
tube size is exaggerated for emphasis
TRUCK INSTALLATION
tube size is exaggerated for emphasis
SEDAN INSTALLATION
tube size is exaggerated for emphasis
VEHICLE PLACEMENT RECOMMENDATIONS
ENGLISH

BOW RIDER/SKI BOAT
tube size is exaggerated for emphasis
 Under passenger console
 Under seat storage compartment
SPORT YACHT
tube size is exaggerated for emphasis
 Under bed storage compartment
 Under seat storage compartment
BOAT PLACEMENT RECOMMENDATIONS
6
ENGLISH

7

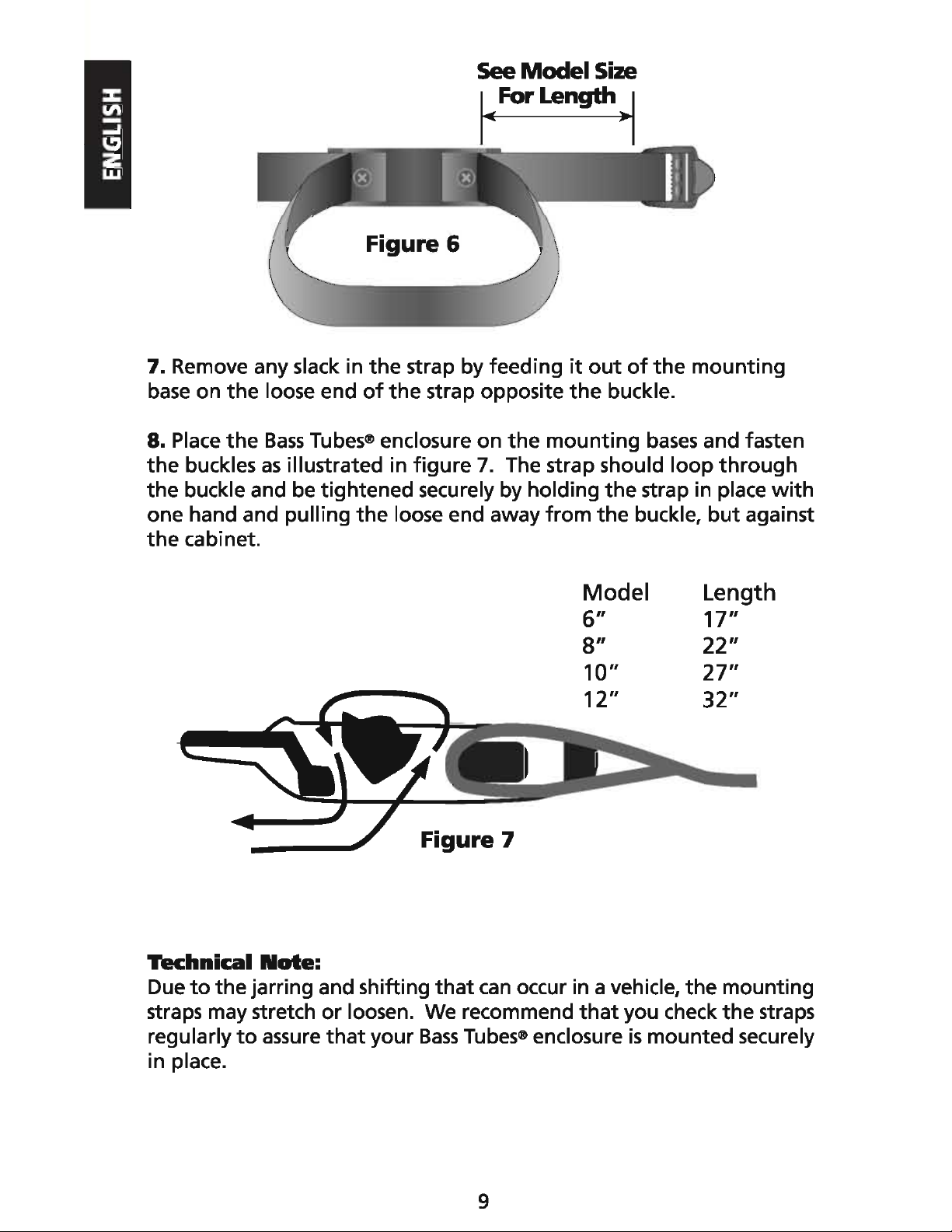

1. With the topside of the buckle facing up (see figure 1), lace the strap
through the mounting base as illustrated in figure 2
MOUNTING THE BAZOOKA
2. After the strap is completely laced through the mounting base, make
a loop with the strap, where it runs across the middle of the base as
illustrated in figure 3 This loop is necessary to access the two mounting
holes in the base
Figure 1
Figure 2
Figure 3
To p
Logo
should
face up
ENGLISH

8

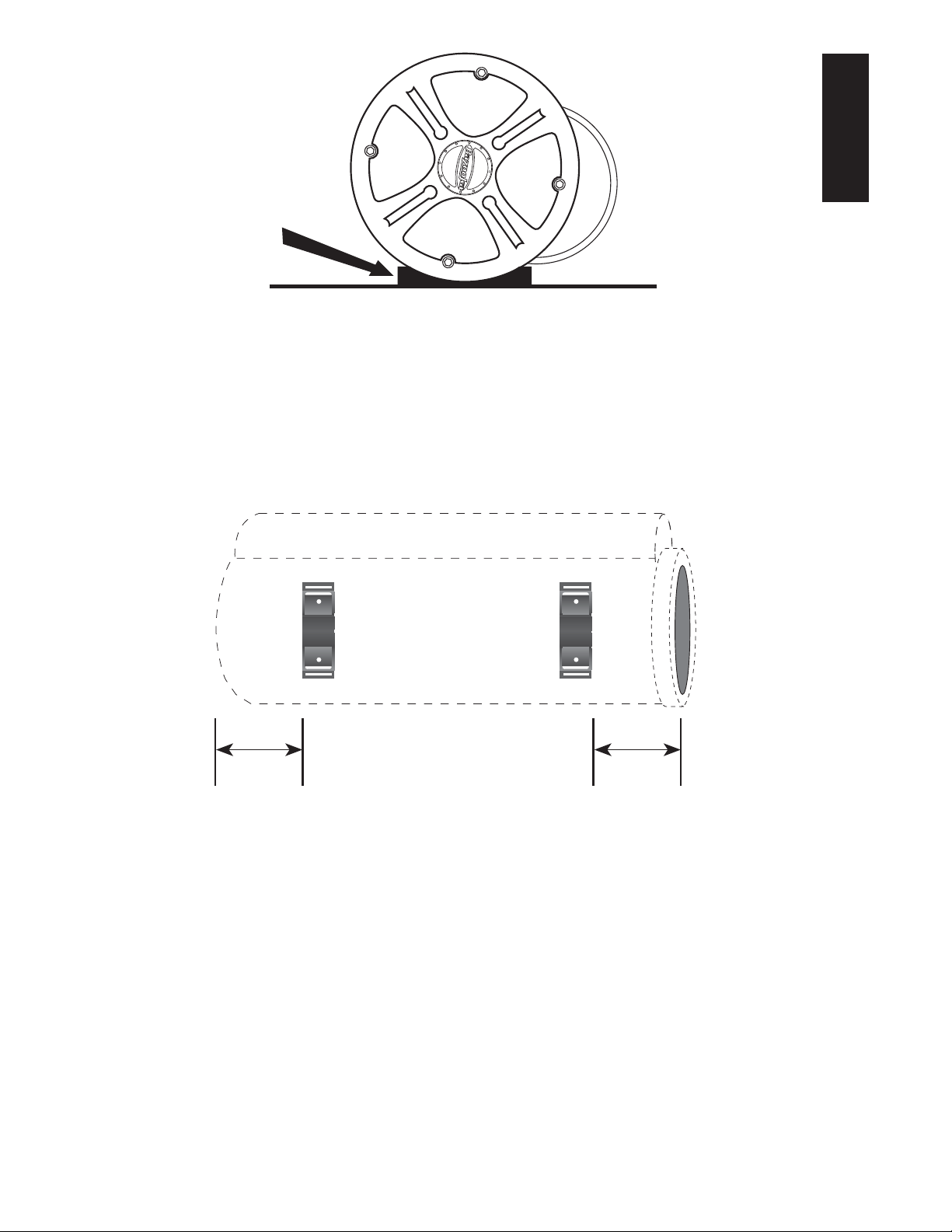

Figure 5 3
,,
3
,,
Figure
. Move the bases so that they are spaced approximately 3 from each
end of the enclosure as illustrated in figure 5
5. Remove the Bass Tubes® enclosure without moving the mounting
bases and set it aside
6. Screw each mounting base securely in place with screws provided
as illustrated in figure 3
3. Place each mounting base under the Bass Tubes® enclosure so that
the apex at the bottom of the tube sits inside the mounting base as
in figure 4
ENGLISH

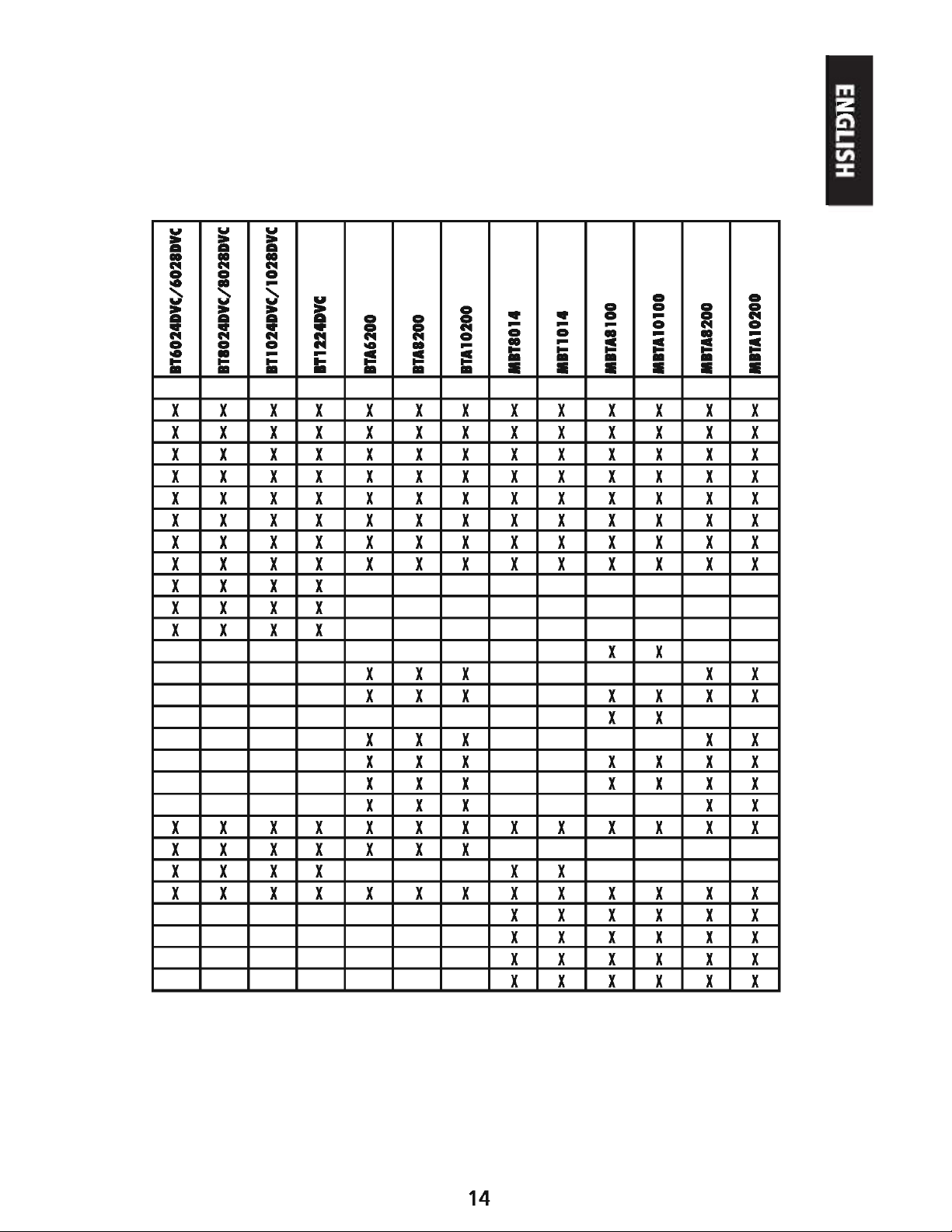

15
MARINE TUBE SPECIFICATIONS
MBT8014 MBT1014 MBTA8100 MBTA10100 MBTA8200 MBTA10200
Woofer Size 8 10 8 10 8 10 Voice Coil Size 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power /high temp 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power. /high temp. Magnet Size 28 oz. 28 oz. 15 oz. 28 oz. 28 oz. 28 oz. requency response* 39-1500 hz. 39-1000 hz. 39-85 hz. 39-85 hz. 39-250 hz. 39-250 hz. Efficiency** 102 dB* 104 dB* 105 dB* 107 dB* 102 dB* 104 dB* Power Handling 6-150 watts/channel 6-200 watts/channel 100 watts 100 watts 200 watts 200 watts Dimensions 18 x 8.5 x 10 20.75 x 10.3 x 12.2 18.125x8.5x10 20.875x10.3x12.2 18.325" x 8.5" x 10" 21.1" x 10.3" x 12.2"
Weight 15.5 lbs. 23 lbs. 14 lbs. 24 lbs. 20 lbs. 25 lbs. Impedance 4 ohms 4 ohms 2 ohms DVC 2 ohms DVC 4 ohms 4 ohms
* The built in crossover limits the frequency response of the Amplified Bazooka ** The efficiency levels of all Bazooka subwoofer speaker systems are measured in the typical environment: In the low bass region with one watt of power
ENGLISH

16
AMPLIFIED MODELS:
(BTA6100, BTA8100, BTA10100, BTA6200, BTA8200, BTA10100,
MBTA8100, MBTA10100, MBTA8200, MBTA10200)
DO NOT substitute the fuse included with the Amplified Bazooka
subwoofer with anything other than the SAME fast blow current
rated fuse Substitution or deletion will void the product's warranty
and may cause damage to your car or the amplifier
SHOULD I USE HIGH OR LOW LEVEL INPUTS?
If the source unit has only speaker outputs, use the high-level inputs
of the Amplified Bazooka subwoofer If the source unit has both high
and low level outputs, we recommend using the high level inputs
over the low level inputs, due to the configuration of the Amplified
Bazooka subwoofer's balanced input circuit Not all head units, even
those that promise high output voltage in their marketing materials,
indeed have high-voltage RCA outputs Because of this, Bazooka
Mobile Audio recommends using the speaker level inputs when in
doubtthey will always provide sufficient drive level to the amplifier
PLEASE NOTE THAT THE WIRING IN A FACTORY STEREO MAY NOT BE
ELECTRICALLY IN PHASE EVEN WHEN YOU HAVE MADE THE PROPER
CONNECTIONS
Take the time after you make your wire connections to run through
the quick phase check procedure in the AM I IN PHASE? section at
the end of this manual, and NEVER USE BOTH high and low-level
inputs at the same time!
INPUT SIGNAL CONNECTIONS
High-Level Inputs:
If the source unit has both front and rear speaker outputs, use
only one set of speaker outputs for the high-level input of the
Amplified Bazooka Connect the GREEN wire from the 14-pin
Molex plug of the Amplified Bazooka subwoofer to the source
units left (+) positive speaker output Connect the GREEN W/BLACK
stripe wire of the plug to the source units left (-) negative speaker
output Connect the GRAY wire of the plug to the source units
right (+) positive speaker output Connect the GRAY W/BLACK
stripe wire of the plug to the source units right (-) negative speaker
output When using high-level inputs, take the time after you
make all wiring connections to run through the AM I IN PHASE
ENGLISH

procedure at the end of this manual to confirm that your inputs
are in correct electrical phase and the proper bass response is
being produced
Low-Level Inputs:
If your source unit only has low-level RCA phono jack output, use only
the low-level inputs of the Amplified Bazooka Connect the low-level
RCA phono jack inputs of the Amplified Bazooka subwoofer to the
source with a shielded RCA patch cord To avoid possible noise problems,
be sure to run the patch cord away from all power wires and factory
wire harnesses When using the low-level inputs DO NOT make any
connections to the Green and Gray high-level input wires of the
Amplified Bazooka subwoofer and make sure these wires are insulated
to avoid the possibility of a short circuit
POWER WIRE (All M dels)
The power wire must be fused and connected directly to the positive
terminal of the battery to provide a power source with a low voltage
drop and low noise Do not make the power connection at the fuse
block or any point other than the battery Improper power sources
can reduce output and cause distortion
The fuse holder should be connected to the battery's positive terminal
The fuse is designed to prevent fire or damage to your car, should the
battery wire short to ground Wait to insert the fuse into its holder
until all wire connections have been made
If it is necessary to lengthen the battery wire, add the required length
between the amplifier and the fuse holder, not the fuse holder and
the battery If you need to extend t he battery wire, use 16 gauge or
larger for all A100, and 12 gauge or larger for all A200 models It is
best to use as short a wire as possible Be sure you DO NOT run the
power wire next to the input cables of the amplifier this will induce
noise Avoid running the power wire near the radio's antenna or
power leads, or near sensitive equipment or harnesses The power
wire carries substantial currents and could induce noise
GROUND WIRE (All M dels)
The ground wire must be connected directly to the vehicle chassis near
the amplifier We do not recommend extending the ground wire in
any installation, as this can cause unwanted ground loops
The ground point in the car should be a piece of chassis metal that is
part of or welded to the main body of the vehicle Painted surfaces
should be scraped or sanded clean to expose the bare metal before
the ground lug is bolted down (Cover the bare metal area with paint
17
ENGLISH

or grease after you finish mounting the ground wire to prevent rust )
REMOTE TURN ON OPTIONS
OPTION ONE:
When you are using this option with all amplified Bass Tubes®
models: For the most versatility the Orange Remote Turn On Wire
should be connected to the source unit's "Accessory", "Auto-Antenna"
or "Remote" lead -- any of which will supply 12 Volts positive when
the source is turned on
OPTION TWO:
When you are using this option with all BTA100 AND MBTA100:
If the source does not have an Auto-Antenna lead (or if the Auto-
Antenna goes down during tape operation), you can connect the
Amplified Bazookas' Remote Turn On Wire to an accessory or ignition
point at the vehicle fuse block In this configuration, the Amplified
Bazooka subwoofer will be on whenever the ignition is on This
method may allow noise or turn-on-and-off transients to become
amplified when the source unit is not in use, and therefore is a less
desirable than option one Locate the Auto/Off Jumper Loop located
on the wiring harness; SAS ships the Amplified Bazooka subwoofer
with this Jumper in the ON Position The Quick Disconnect YELLOW
On/Off Jumper Loop must be plugged into the harness
18
ENGLISH

ADJUSTING THE CROSSOVER A200 ONLY
The built-in crossover on the Amplified Bazooka subwoofer is an 18 dB per
octave electronic low pass filter, it has a 60 Hz to 250 Hz variable crossover
point Select the crossover point that you feel best fits your system design Set
the potentiometer labeled XOVER to the point you selected, 60 Hz being all
the way to the left (counterclockwise) and 250 Hz being all the way to the
right (clockwise) When you have set the crossover, proceed to the next step
PHASE SWITCH (All A100 MODELS ONLY)
When one of the High-level Input channels is out of phase electrically with the
other High-level Input channel, your Amplified Bazooka subwoofer will sound
as if it has little or no output and any output that is produced may sound
distorted If you suspect that your Amplified Bazooka subwoofer is out of
phase, use the AM I IN PHASE procedure to diagnose and correct the Amplified
Bazooka subwoofer output, and proper bass response will be produced
To correct this situation, simply flip the phase switch on the Amplified Bazooka
When the input signal is in correct electrical phase, the level of bass output will
be greatest when the balance control of the radio is set to the center position
SETTING THE LEVEL (ALL A200 MODELS ONLY)
Locate the potentiometer labeled LEVEL This is the level control Start with
the level control turned all the way to the left (counterclockwise) The bass
should be off or very low at this point Turn up your head unit until the sound
from the existing speakers starts to clip or distort This is the point in your
system where you will get maximum volume with the least amount of
distortion With the head unit at this point, turn the level gain control up
slowly until the bass volume blends well with the existing high frequency
speakers This should be the proper setting for the level gain control Now
that the level is set, you may want to go back to the x-over control and adjust
the x-over point by ear to meet the desired sonic quality of your system design
LED POWER INDICATOR
If power, ground and remote are connected properly, the LED light will
illuminate
WHITE = OFF
GREEN = NORMAL OPERATION
RED = PROTECTION MODE (A200 MODELS ONLY)
OPTIONS (All A100 MODELS)
Remote Bass Control (RBCM-EL):
If you find you like to change the level of bass depending on what you are
listening to and want an easy way to make this possible, you can purchase
an optional Remote Level Control
19
ENGLISH
