User Manual
ELECTRIC SCARIFIER
Original User Manual

2
21 4 3
5
6
7
9
10
11
8
12
13
14
15
16
17

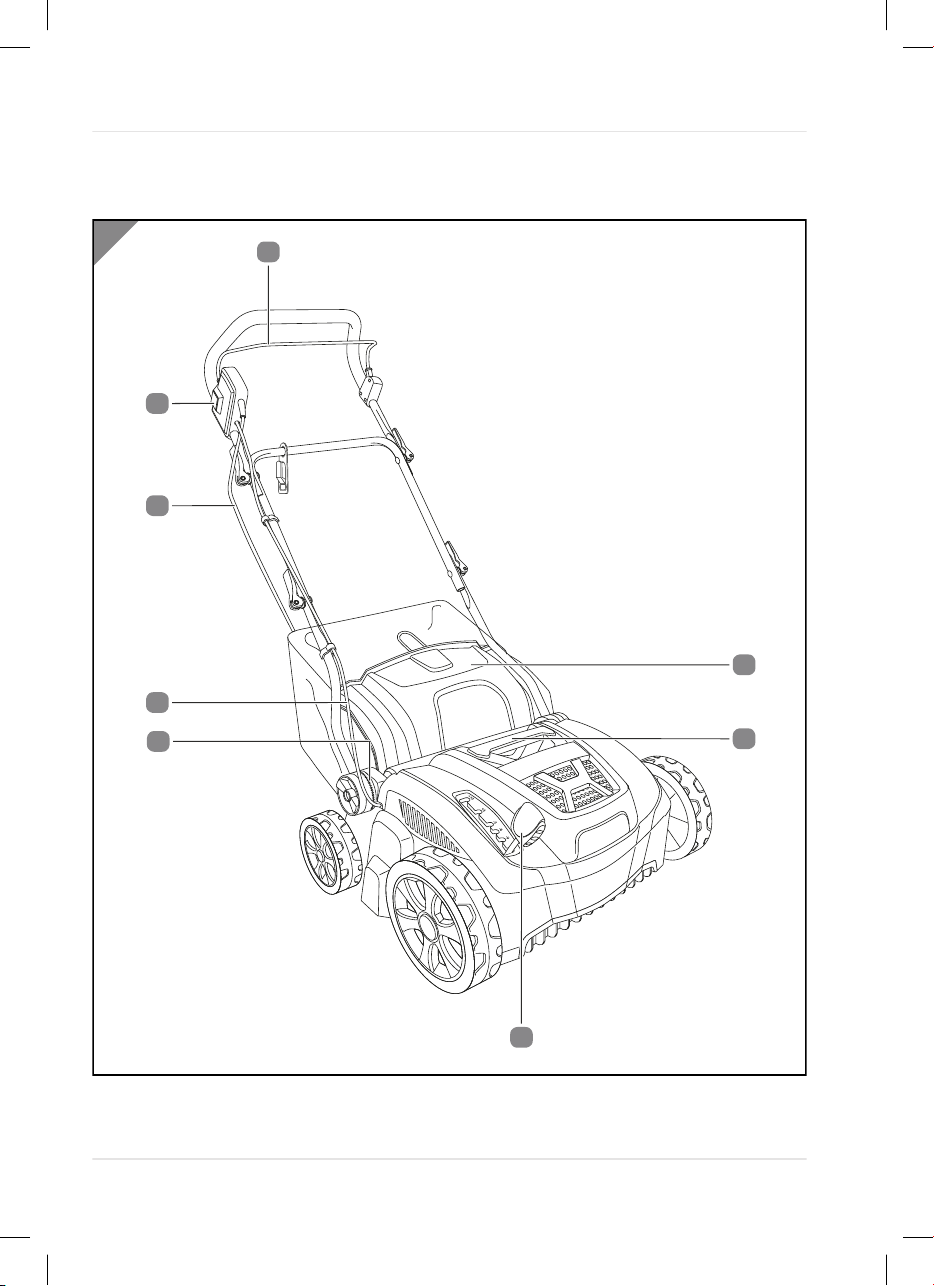

Package contents
1
Device
2
Handlebar
3
Screw (x4)
4
Washer (x4)
5
Quick release (x4)
6
Connecting tube
7
Rod (x2)
8
Cable clamp (x2)
9
Aerator roller
10
Scarifier roller (installed in device)
11
Collecting bag
12
Strain relief
13
Mounting bracket
14
Screw anchor (x3)
15
Screw for mounting bracket (x3)
16
Toothed washer "R" + "L"
17
Adjusting screw (x2)
User manual and warranty card (not
shown)
Package contents
3

Table of content
Overview..................................................................................................................2
Package contents.................................................................................................... 3
General information................................................................................................5
Reading and storing the operating manual..................................................................5
Proper use...........................................................................................................................5
Explanation of symbols...........................................................................................6
Safety....................................................................................................................... 7
Safety notes........................................................................................................................ 8
Safe handling instructions............................................................................................... 9
Notes on the power cable.................................................................................................9
Before first use....................................................................................................... 13
Check the device and scope of delivery........................................................................ 13
Attaching the handlebar.................................................................................................14
Operation............................................................................................................... 16
Controls..............................................................................................................................16
Notes on scarifying........................................................................................................... 17
Selecting/exchanging a roller........................................................................................ 18
Adjusting the working depth......................................................................................... 18
Adjusting the handlebar height.................................................................................... 19
Attaching the collecting bag..........................................................................................20
Preparing for operation..................................................................................................20
Switching the motor on and off......................................................................................21
Emptying the collecting bag...........................................................................................21
Cleaning................................................................................................................. 22
Cleaning and inspection after each use....................................................................... 22
Maintenance.......................................................................................................... 23
Spare parts.............................................................................................................23
Storage...................................................................................................................24
Troubleshooting.................................................................................................... 25
Technical data........................................................................................................ 27
Declaration of conformity..................................................................................... 28
Disposal..................................................................................................................29
Table of content
4

General information
Reading and storing the operating manual
This user manual is part of the electric scarifier (hereinafter also called
"device"). It contains important information on how to set up and use the
device.
Before using the device, read the operating manual carefully, in particular
the safety instructions. Failure to follow this operating manual may lead to severe
injuries or product damage.
This user manual is based on the standards and regulations that are valid within the
European Union. Outside the EU, please also note the country-specific directives and
laws.
Keep this operating manual for future reference. If you pass this device on to a third
party, you must also supply this operating manual.
Proper use
The device is exclusively designed to scarify and aerate lawns.
This device is intended for private use only and is not suitable for
commercial use. Use the device only as described in this operating
manual. Any other use is improper and may lead to product
damage or even personal injury. This device is not a toy.
The manufacturer or retailer assume no liability for damage
caused by improper or incorrect use.
General information
5

Explanation of symbols
The following symbols and signal words are used in this user manual, on the device
or on the packaging.
This symbol provides you with useful additional information on
handling and use.
Declaration of conformity (see chapter “Declaration of conformity”):
Products marked with this symbol meet all the applicable Community
regulations of the European Economic Area.
This symbol indicates that the device complies with the protection
class II.
Read the instruction manual
Wear goggles.
Wear hearing protection.
Keep your distance
Caution - sharp prongs! Keep fingers and feet away.
Pull mains plug before carrying out maintenance, adjusting and
cleaning work or in the case of damage to or twisting of the power
supply cable.
Explanation of symbols
6

Keep the connecting cable away from the blades.
The working width of the roller is approx. 360 mm.
95
The symbol shows the maximum sound power level LWA.
+3 mm
-3 -6 -9 -12
-3+3 -6 -9 -12
Tines of the fan roller should not touch the ground, but end about 3
mm above the ground. Use the +3 or -3 height adjustment as needed.
The blades of the blade roller should cut about 3 mm into the ground.
Adjust the height setting to the wear of the blades.
Never use without the catcher box with the deflector flap open!
Close the impact flap when using without the catcher bag.
IPX4
The device is protected from all sides against water splashes.
Safety
The following signal words are used in this operating manual.
WARNING! This signal symbol/word denotes a
hazard with an average risk level that
could lead to death or severe injury if
it is not avoided.
CAUTION! This signal symbol/word denotes a
hazard with a low risk level that could
lead to mild or moderate injury if it is
not avoided.
Explanation of symbols
7

NOTE! This signal word provides a warning
about potential material damage.
Safety notes
WARNING!
Risk of electric shock!
Improper handling of the device, faulty electric installation or
excessively high mains voltage may result in an electric shock.
- Only connect the device to a properly installed socket. The
mains voltage must match the value indicated on the rating
plate.
- In the case of a fault, immediately disconnect the device from
the power cable and/or mains.
-Do not connect the device if the device, power cable or a
mains plug shows visible signs of damage.
- Damaged power cords and devices must only be repaired by
the manufacturer, their customer service or a qualified
professional.
- Do not open the housing under any circumstances and never
insert any object in the housing.
-Always disconnect the device from the mains before cleaning
or servicing it.
- Never touch the mains plug with damp hands.
- Do not immerse the device, power cable or mains plug in
water or other liquids.
- Do not bend the power cable and do not pass it over sharp
edges.
-Never move the device over the power cable.
- The device must be supplied via a residual current protection
device (RCD) with a rated residual current of no more than 30
mA.
Safety
8

WARNING!
Risk of explosion!
The roller of the scarifier or ejected objects can cause sparks
when hitting metal. These sparks can ignite flammable liquids,
gases or dust.
- Do not use the scarifier in environments with a risk of
explosion through flammable liquids, gasses or dust.
Safe handling instructions
Switch the motor off and pull the plug out of the socket. Make
sure that all moving parts have stopped completely.
- whenever you step away from the device;
- before remedying blockages or removing clogging in the
discharge chute;
- before inspecting, cleaning or working on the device;
- after hitting a foreign object. Look for damage on the device
and carry out the necessary repairs before starting again and
working with the device.
If the device starts vibrating heavily, you must inspect it
immediately.
-Check for damage.
- Repair any damaged parts.
- Make sure that all nuts, bolts and screws are tight.
Notes on the power cable
- Use only authorised power cables of type H05VV-F or H05RN-
F.
- They must be approved for outdoor use.
- The length shall not exceed 50 m.
- The power cable wire cross section must be at least 1.5 mm².
- Always completely unroll cable drums before use.
-Check the cable for damage.
Safety
9

WARNING!
Risk of injury for persons with impaired mobility or lack of
experience and expertise!
Improper handling of the device can lead to severe injuries or
damage to the device.
- Do not leave the device unattended when in use.
- Do not allow others to handle the device until you have read
and understood this operating manual or until you have been
instructed about its intended use and the associated risks.
- Never leave persons with physical, sensory or mental
impairments (such as children or drunk people) or persons
lacking experience and expertise (such as children)
unattended in proximity of the device.
CAUTION!
Risk of injury!
Improper use of the device can lead to injuries.
- The roller is sharp. Wear protective gloves and be especially
careful when working near the roller.
- Do not reach underneath the device or into the discharge
opening.
- Only work in good lighting conditions or provide appropriate
artificial lighting.
- Do not operate the device when other persons or animals are
around.
-Do not operate the device if you are impaired
(e.g. under the influence of drugs, alcohol, medication, or if
you are tired).
- Wear sturdy shoes, long trousers and hearing protection.
- Watch out for the power supply cable as you might trip over it
and lose control of the device.
Safety
10

- Avoid working on wet grass. You might slip and lose control of
the device.
- Do not use the device during rain or a thunderstorm.
- Do not work on areas with an inclination of more than 20% as
you might slip and lose control of the device.
- Always keep the discharge flap closed and keep away from
the discharge opening when operating the device without a
collecting bag.
- Wait until the roller has stopped turning before removing any
blockage or clogging and carrying out any other work on the
device.
- Wear gloves when exchanging the roller to avoid injuries.
Rules of operation
The following rules must be observed at all times when working
on and with the device:
- Only adjust the device or rectify faults when the device stands
still. Make sure that the device cannot start up.
- Only lift the device on the handle and the strut. Never reach
underneath the device to lift it.
- Let the roller coast to a stop before touching the device.
- Never reach beneath the discharge flap or into the discharge
opening.
- Stop the motor immediately if you notice unusual scarifying
sounds or vibrations. Check and rectify cause of the fault
before you continue scarifying.
- Never put a damaged device into operation. Any damage to
the roller and the device must be repaired by the
manufacturer's customer service or qualified personnel.
- Only scarify diagonally to inclinations.
Safety
11

- Never operate the device with faulty safety devices/covers or
without safety devices.
Safety
12

Before first use
Check the device and scope of delivery
NOTE!
Risk of damage!
If opening the packaging with a sharp knife or other pointed
objects, careless handling can damage the device.
- Therefore, be very careful when opening.
1. With both hands, lift the device out of the packaging.
2. Check that the delivery is complete (see chapter “Package contents”).
3. Inspect the device and individual parts for damage. Do not operate a damaged
device; instead, contact the manufacturer via the service center listed on the
warranty card.
Before first use
13

Attaching the handlebar
1
2
22
345
12
6
23
8
7
17
16
Before first use
14

1. Place the toothed washers
16
on the fixtures
22
.
Use the toothed washer
16
with the letter "R" for the right side and the one
with the letter "L" for the left side.
Make sure that the triangular markings of the toothed washers are positioned in
line with the three line markings on the fixtures.
2. Place one rod
7
on each toothed washer.
Make sure that the plastic cogs of the toothed washer reach into the holes in the
rods.
Make sure that the bends of the rods point inwards.
3. Guide the adjusting screws
17
through the boreholes of the rods and toothed
washers into the fixtures and tighten them clockwise.
Both rods are attached.
4. Push the strain relief
12
onto the connecting tube
6
.
5. Align the connecting tube with the rods so that the bore holes are on top of each
other.
6. Push two screws
3
through the bore holes so that the heads point inwards
and the threads outwards.
7. Place a washer
4
on each screw.
8. Twist one quick release
5
clockwise onto each screw.
9. Twist the quick releases onto the thread until they are at a distance of approx. 5
mm from the rod.
10.Fold up the quick releases so that they fit flush on the connecting tube.
11. Align the handlebar
2
with the connecting tube so that the bore holes are on
top of each other.
12.Connect the handlebar with the connecting tube by also installing two screws,
nuts and quick releases here.
13.Fix the power cable
23
with the two cable clamps
8
to the handlebar.
The handlebar is attached.
Before first use
15

Operation
Controls
A18
22
19
23
21
20
24
25
Operation
16

18
Safety bar
19
Discharge flap
20
Carry handle
21
Height adjustment
22
Fixture (x2)
23
Power cable
24
Mains connection
25
Start button
Notes on scarifying
The following instructions help you use the device effectively and safely. Improper
handling of the device can cause damage to it.
- Check the ground on which you want to use the device.
Remove stones, twigs, wires, bones, and other foreign objects
that could be caught up and flung out.
- Always work in a direction facing away from the power supply
cable.
- Always push the device forward; pulling the device might
damage the power supply cable. Always work in a direction
facing away from the power supply cable.
- Observe the local regulations for the working times with
garden appliances.
Lawns develop a thatch layer consisting of blades of grass, shoots or
moss over time. Also, the sod compacts over time, which impairs the
water absorption capacity of the soil. This is why you should scarify your
lawn twice a year. We recommend doing so in spring as soon as the
ground is no longer frozen. A second scarification in late summer leaves
enough regeneration time before winter. Heavily thatched grass should
be scarified lengthwise and diagonally.
You can also aerate the lawn if desired. Mow the lawn beforehand. After
reach run with the scarifier, ensure sufficient watering so that the
exposed sod does not dry out.
Operation
17

Selecting/exchanging a roller
9
Aerator roller: Use this roller if you want to remove moss or thatch and collect it
in the collecting bag
11
.
10
Scarifier roller: Use this roller for regenerating lawn care.
2
26
27
1. Place the device on a level and dry surface.
2. Make sure that the device is disconnected from the power supply.
3. Turn the device bottom up.
4. Pull out the lever
27
.
5. Turn the lever to the position "Lock open".
6. Push the roller out.
7. Remove the roller.
8. Now insert the desired roller into the device so that it fits into the mount
26
and
push it to the left.
9. Turn the lever by 90° in any direction to fix the roller in place.
The roller is exchanged.
Adjusting the working depth
NOTE!
Risk of damage!
If the working depth has been wrongly set, the roller or the soil
can become damaged.
It is useful to adjust the height adjustment when you want to transport the scarifier.
The height adjustment also lets you set the working depth for your lawn. At the time
of delivery, the scarifier is set to a working depth of 3 mm ("+ 3").
Operation
18

- Set the height adjustment
21
to
position "+ 10" (parked position/
transport position) to transport or
park the device.
- Set the working depth to the desired
position to carry out the following
work with the device:
•Scarifying (scarifier roller)
When scarifying, the roller
should cut 3 to 5 mm into the
soil. Deeper penetration
harms the sod.
■Position "- 3" with new roller
■Position "- 6" with slightly used roller
■Position "- 9" / "- 12" for readjusting with increasing wear, indicated by
visible notches on the roller blade.
•Aerating (aerator roller)
■Position "- 3" in case of slight to average thatching
■Position "- 6" in case of heavy thatching
The aerator roller must never be operated in the positions "- 9"/"- 12". This
can lead to substantial damage to the sod, the aerator roller and the
device.
Adjusting the handlebar height
1. Turn the adjusting screws
17
3-4 turns counter-clockwise.
2. Move the handlebar
2
to the desired height (top, centre or lowest setting).
Make sure that the handlebar is set to the same setting on both sides.
3. Tighten the adjusting screws clockwise.
The handlebar height is set.
321
Operation
19

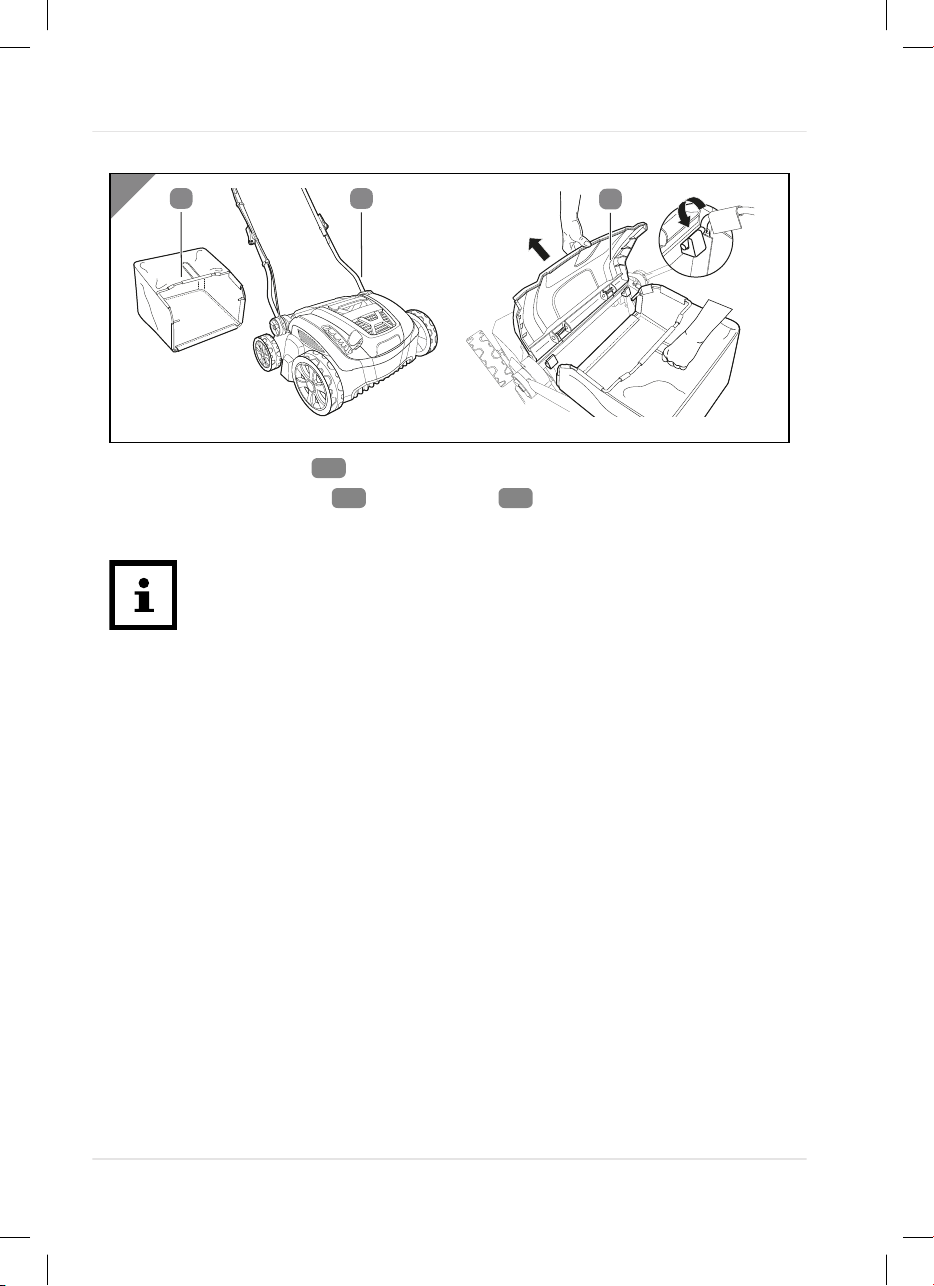

Attaching the collecting bag
4119
11
1. Lift the discharge flap
19
.
2. Hang the collecting bag
11
into the device
1
.
The device is completely mounted.
Alternatively, you can also use the device without the collecting bag. In
this case, the plant scraps removed from the roller remain on the ground
and can be removed or spread on the lawn as mulch, depending on
their composition.
Preparing for operation
Use one power supply cable that is long enough to allow you to mow the entire
lawn. Avoid using several extension cables.
1. Check the device, the collecting bag and the blade before connecting the power
supply.
2. Set the desired working height before connecting the power supply.
3. Check the handle position (height) and correct it if necessary to work
comfortably.
4. Lay out the power supply cable all along the perimeter of your lawn.
Operation
20
