FERREX FAR 20-I User manual

User Manual
20 V LI-ION CORDLESS
GRASS TRIMMER
FAR 20-I
ID: #05007
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
M
A
N
U
A
L
D
E
V
E
L
O
P
E
D
I
N
G
E
R
M
A
N
Y
User-friendly
Manual
Original instructions

Dok./Rev.-Nr. 196947_20190212
Overview/Use ......................................................................... 3
Package contents/device parts............................................. 5
General information...............................................................6
Reading and storing the user manual .....................................6
Explanation of symbols ..............................................................6
Safety ...................................................................................... 7
Proper use..................................................................................... 7
Residual risks................................................................................8
General power tool safety instructions....................................9
Special safety instructions for cordless tools ..........................9
Special safety instructions for the grass trimmer................. 10
Supplementary safety instructions.........................................12
Before first use ..................................................................... 15
Checking the grass trimmer and package contents.............15
Assembling the protective cover, plant guard / cutting
width indicator and nylon blade..............................................15
Assembling the additional handle ..........................................16
Using the battery ........................................................................17
Use..........................................................................................17
Adjusting the height of the guide bar.................................... 18
Adjusting the additional handle ............................................. 18
Setting the inclination angle ................................................... 18
Using the grass trimmer ............................................................19
Using the grass trimmer as an edger .....................................20
After use ......................................................................................20
Cleaning and maintenance...................................................21
Cleaning the grass trimmer ..................................................... 22
Replacing the nylon blade....................................................... 22
Inspecting the grass trimmer .................................................. 23
Storage ................................................................................. 23
Transport ............................................................................. 23
Troubleshooting................................................................... 23
Spare parts list ..................................................................... 24
Technical data ...................................................................... 24
Important specifications for the grass trimmer.................... 24
Important specifications for the battery and charger.........24
Noise/vibration information ............................................... 25
Disposal................................................................................. 26
Disposing of the packaging .....................................................26
Disposing of the grass trimmer ............................................... 27
Declaration of Conformity....................................................28
Contents

187
5
D
3
B
16
5
7
15
14
16
1317
11
C
4
E
A1
2
3
4
6
7
8
9
10
11
12
13
15 1416
5

H
11
12
4
9
M
1514
20
19
NL
KI
F
810
G
5
7

Package contents/device parts
5
Package contents/device parts
1Handle
2Switch lock
3On/Off switch
4Battery compartment
5Additional handle
6Blade holder
7Tensioning screw (additional handle)
8Telescopic guide bar
9Locking mechanism (motor swivel 90/180°)
10 Locking mechanism (telescope)
11 Motor housing
12 Locking mechanism (cutting angle, four positions)
13 Protective cover
14 Nylon blade mount
15 Nylon blade, 22×
16 Plant guard / cutting width indicator
17 Screw, 2×
18 Bracket (additional handle)
19 Locating bolt (nylon blade), 2×
20 Fixing screw (nylon blade mount)

General information
6
General information
Reading and storing the user manual
This user manual comes with the 20VLi-Ion cordless grass trimmerFAR 20-I
(hereinafter referred to simply as “grass trimmer”). It contains important
information on safety, usage and care.
Read this user manual carefully before operating the grass trimmer.
Pay particular attention to the safety notes and warnings. Failure to comply with the
instructions in this user manual may result in serious injury or damage to the grass
trimmer.
Observe all applicable local or national regulations regarding the use of this grass
trimmer. Keep this user manual in a safe place for future reference. If you pass the
grass trimmer on to third parties, this user manual must be included.
This user manual can be downloaded in PDF format from our website
www.conmetallmeister.de.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the grass
trimmer or on the packaging.
WARNING!
Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
NOTICE! Warns against potential damages to property.
This symbol provides you with useful supplementary information on
assembly or operation.
Declaration of Conformity (see “Declaration of Conformity” chapter):
Products marked with this symbol meet all applicable Community
regulations for the European Economic Area.
Read the user manual.

Safety
7
Attention!
This grass trimmer complies with protection class III.
Wear protective goggles and hearing protection.
Protect the grass trimmer against moisture. Do not use the grass
trimmer in the rain or for wet grass.
Warning: maintain a safe distance from the garden tool when it is in
operation.
Maintain adequate distance from other persons, particularly children
and animals. Pay attention to flying parts.
Attention! The grass trimmer continues to run.
ø260mm
The cutting diameter amounts to 260mm.
Guaranteed sound power level in dB.
Safety
Proper use
The grass trimmer is only designed for cutting lawns and small grassy areas. It is
intended exclusively for private use, such as by hobby gardeners or DIY enthusiasts,
and is not suitable for commercial use, including garden maintenance work at public
facilities, parks, sports centres, on roads or in agricultural and forested areas.
This grass trimmer does not include a rechargeable battery or charger, which must be
purchased separately. The grass trimmer can be operated with the 20 V battery or with
the 20/40V battery available from Activ Energy®. Use only the rechargeable batteries
listed in the chapter “Technical data” for this grass trimmer, and do not operate the grass
trimmer using rechargeable batteries supplied by other manufacturers.

Safety
8
Use the grass trimmer only as described in this user manual. Any other applications
are expressly prohibited and are deemed improper use.
Neither the manufacturer nor the retailer can accept any responsibility for injury,
loss or damage caused by misuse of this product of any kind. Examples of misuse are
given in the following non-exhaustive list:
• Using the grass trimmer for other than the intended purposes;
• failure to observe the safety notes and warnings as well as the assembly,
operating, maintenance and cleaning instructions contained in this user manual;
• failure to comply with any regulations relating to accident prevention,
occupational medicine or safety, which specifically and/or generally apply to the
use of the grass trimmer;
• use of accessories and spare parts not intended for the grass trimmer;
• modifications to the grass trimmer;
• repairs of the grass trimmer performed by parties other than the manufacturer or
a qualified professional;
• use of the grass trimmer for commercial or industrial applications as well as in
connection with the trade professions;
• operation or maintenance of the grass trimmer by persons not familiar with how
to handle the grass trimmer and/or who are not aware of the related risks.
Residual risks
Despite proper use, inconspicuous residual risks cannot be completely
ruled out. The following risks may arise due to the nature of the grass
trimmer:
• Injury and damage to property caused by projected parts.
• Lung injury if a suitable dust mask is not worn.
• Hearing damage if the grass trimmer is used for prolonged periods
without suitable ear protection.
• Impaired health attributed to hand-arm vibration emissions if the grass
trimmer is used over a prolonged period or is not guided and maintained
properly.
• Cutting injuries can also occur if suitable protective clothing is not worn.
Warning!This power tool generates an electromagnetic field during
operation. Under certain circumstances, this field may affect active or
passive medical implants. To reduce the risk of serious or fatal injury,
we recommend persons with medical implants to consult their physician and the
manufacturer of the medical implant before using the machine!

Safety
9
General power tool safety instructions
WARNING Read all safety notices and instructions.
Failure to follow the safety instructions and guidance may result
in an electric shock, fire and/or severe injury.
The term “grass trimmer” as it appears in these safety instructions
refers to the mains-powered grass trimmer (with mains cord) and
to the battery-powered grass trimmer (without mains cord).
a) Protect the electric parts against moisture.
While cleaning and operating, never dip them in water
or other liquids to avoid an electric shock. Never hold the
grass trimmer under running water.
b) Switch off the grass trimmer, remove the battery and allow
the grass trimmer to cool down before carrying out any
assembly, conversion, cleaning or maintenance work, or
before storing or transporting the grass trimmer.
c) Switch off the grass trimmer and remove the battery
before replacing any accessories, before cleaning it, or
when it is not in use.
Special safety instructions for cordless tools
a) Charge the rechargeable batteries only in chargers
recommended by the manufacturer. Chargers that are
only suitable for certain rechargeable battery types pose a
risk of fire if used with other rechargeable batteries. Only
use the rechargeable batteries designated for use in
power tools. Using other rechargeable batteries may
result in injury and a risk of fire.
b) Keep the unused rechargeable battery away from
paper clips, coins, keys, nails, screws or other small
metallic objects that could bridge the contacts. A short
circuit between the contacts of the rechargeable battery
could result in burns or fire.

Safety
10
Special safety instructions for the grass trimmer
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR YOUR RECORDS
Training
a) Read through the instructions carefully. Be sure to familiarise
yourself with the grass trimmer’s controls and its proper
use.
b) Never allow children or adults unfamiliar with these
instructions to use the grass trimmer. Applicable local
regulations may restrict the age of the user.
c) It must be noted that the user will be held responsible for
accidents or risks to other persons or their property.
Preparation
a) Before being used the grass trimmer should be inspected
visually for any damage, missing or improperly installed
protectors or guards.
b) Never operate the grass trimmer where there are persons,
especially children, or pets in the vicinity.
c) Carefully check the terrain where you are using the grass
trimmer and remove any objects that may get caught in
the grass trimmer and become projectiles.
d) Before switching on the grass trimmer, always check that
all screws, nuts, bolts and other fixings are both tight and
secure.
Operation
a) Eye protection and sturdy footwear must be worn at all
times when using the grass trimmer.
b) Using the grass trimmer in bad weather, and especially
when there is a risk of lightning, should be avoided.
c) Use the grass trimmer only during daylight or under
sufficient artificial lighting.
d) Always assume a stable stance with proper posture,
especially when working on slopes.

Safety
11
e) Walk, do not run.
f) Never use the grass trimmer if its covers or protective
equipment are either damaged or missing.
g) Switch the motor on only if your hands and feet are out of
the reach of the cutting unit.
h) Make sure that the vents are kept free of debris.
i) Be cautious to prevent injuries to the hands and feet
caused by the cutting unit.
j) Use the grass trimmer only in the recommended way and
only on a firm and flat surface.
k) Do not operate the grass trimmer on paved or gravelled
areas where projectile debris could cause injury.
l) Always disconnect the grass trimmer from the power
supply by taking out the removable battery in the following
situations:
• If you leave the grass trimmer unattended.
• Before removing a blockage.
• Before checking, cleaning and conducting any
maintenance work on the grass trimmer.
• After contact with debris.
• If the grass trimmer begins to vibrate abnormally.
Maintenance and storage
a) Before any servicing or cleaning always disconnect the
grass trimmer from the power supply by taking out the
removable battery.
b) Only the spare parts and accessories recommended by the
manufacturer are to be used.
c) The grass trimmer must be checked and serviced at
regular intervals. Have the grass trimmer repaired by an
authorised technician only.
d) If the grass trimmer is not in use, keep it out of reach of
children.

Safety
12
Supplementary safety instructions
WARNING!
Risk of injury and electric shock!
Any improper handling of the grass trimmer may lead to electric
shock and serious injury.
− Do not operate the grass trimmer if it shows visible signs of
damage.
− Keep the area you intend to trim free of cables and hard
objects.
− Familiarise yourself with the control equipment and proper
use of the grass trimmer.
− Do not use the grass trimmer in the rain or in a damp, wet
environment.
− Do not submerge the grass trimmer, its battery or charger in
water or other liquids.
− Make sure that children do not insert any objects into the grass
trimmer.
− If you are not using the grass trimmer, if you are cleaning it or if
a malfunction occurs, always switch off the grass trimmer and
remove the battery.
WARNING!
Risk of injury!
Any improper handling of the battery and charger or the use of any
inappropriate devices may result in injury.
− Ensure that the grass trimmer is operated solely with one of
the batteries listed in the chapter “Technical data”.
− Before using the grass trimmer, read the user manual and the
information on how to use the battery and charger.
− Do not store the grass trimmer with the battery inserted in
locations where the ambient temperature can reach 40°C,
especially in a parked car in direct sunlight.

Safety
13
WARNING!
Risk of injury!
Improper use of the grass trimmer may result in injury.
− Make sure that no stones or other hard objects touch the
cutting unit when you switch the grass trimmer on.
− Only switch the grass trimmer on if you hold it perpendicular
to the ground and in the correct working position. Keep it
away from your body.
− Do not switch the grass trimmer on if it has been flipped over
and is not in the working position.
− Do not operate the grass trimmer near people, particularly
children or pets.
Maintain a distance of at least 5m.
− Do not cut any hard objects. The edge of the protective cover
serves to keep the grass trimmer away from walls, hard
surfaces and fragile objects.
− Never use the grass trimmer without the protective cover.
Using the grass trimmer without the protective cover voids
your warranty claim.
− Keep your hands and feet away from the cutting unit when
you switch the motor on.
− Never stop the cutting unit with your hands. Wait until it stops
by itself.
− Cut only grass growing on soil. Do not cut grass growing on
walls, rocks or similar.
− Always wear secure footwear, long trousers, work gloves,
protective goggles and a hard hat when using the grass trimmer.
− Hold the grass trimmer firmly, but not tensely by the
designated handles.
− Make sure that you have a stable stance and straight posture.
Be careful when walking backwards.
− If the grass trimmer vibrates abnormally, turn it off immediately
and remove the battery. Make sure that all parts are in sound
condition and secure. Stop using the grass trimmer if it is

Safety
14
damaged and have qualified personnel perform repairs.
− Always switch the grass trimmer off when you stop work in
order to get to a new work area and when crossing gravel
paths or roads.
The cutting unit will continue to rotate for a few seconds.
Always wait until the cutting tool has come to a standstill
before you transport the grass trimmer.
WARNING!
Danger for children and persons with impaired physical,
sensory or mental capacities (e.g. partially disabled persons,
older persons with reduced physical and mental capacities) or
persons with a lack of experience and knowledge (e.g. older
children).
− This grass trimmer must not be used by children.
− This grass trimmer must not be used by individuals with a
reduced physical, sensory or mental capacity, or who lack the
appropriate experience and knowledge.
− Children must not be allowed to play with the grass trimmer.
Cleaning and user maintenance must not be performed by
children.
− Keep children away from the grass trimmer and its charger.
− Do not leave the grass trimmer unattended while it is in
operation.
− Do not let children play with the packaging. Children may get
caught in it when playing and suffocate.
NOTICE!
Risk of damage!
Any incorrect handling of the grass trimmer can cause damage to
property and damage to the grass trimmer itself. The operator is
responsible for accidents involving other persons or their property.
− Perform a visual check before and after each use. Do not use
the grass trimmer if its safety devices are damaged.

Before first use
15
− Check the material to be cut before you start work. Remove
any debris that is present. Look out for debris while working.
Should foreign objects enter the grass trimmer during cutting,
turn the grass trimmer off, take out its battery and remove the
foreign object.
− Keep the vents free of dirt.
− Use original spare parts only.
− Remove the battery from the battery compartment when it
is fully discharged, or when not using the grass trimmer for
a prolonged time. This helps to avoid damage that may be
caused by battery acid leaking out.
− Protect the grass trimmer against moisture and rain.
− Keep the grass trimmer away from naked flames and hot
surfaces.
Before first use
Checking the grass trimmer and package contents
1. Lift the grass trimmer out of the packaging with both hands.
2. Place the grass trimmer on a level, stable base, e.g. on a workbench.

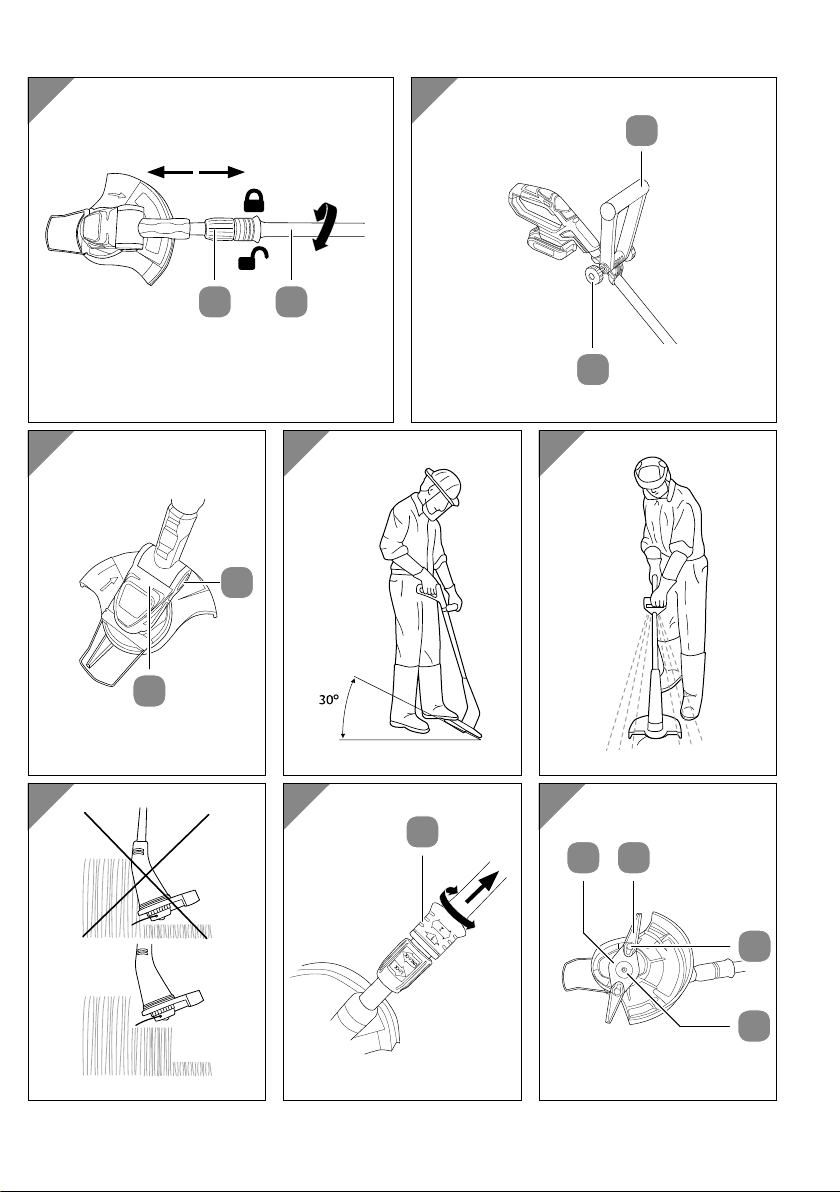

3. Check that all parts are included in the delivery (see Fig.A and B).
4. Check whether the grass trimmer or the individual parts exhibit damage. If this
is the case, do not use the grass trimmer. Contact the manufacturer at the service
address specified on the warranty card.
5. Whenever possible, retain the original packaging for the grass trimmer for storage
purposes and for future reference.
Assembling the protective cover, plant guard / cutting
width indicator and nylon blade
1. Unscrew, anticlockwise, the fixing screw 20 of the nylon blade mount 14 on the
underside of the motor housing 11 (see Fig. N).
2. Remove the nylon blade mount, the fastening screw and the associated snap ring
from the grass trimmer.
3. Loosen the two screws 17 on the underside of the motor housing by unscrewing
them, anti-clockwise (see Fig. C).
4. Attach the protective cover to the motor housing from below.

Before first use
16
5. Secure the protective cover by passing the two previously removed screws
through the corresponding holes in the protective cover, and screwing them back
in, in a clockwise direction.
6. Check that the protective cover is securely fastened.
7. Attach the nylon blade mount to the motor housing using the fixing screw that
was previously removed.
8. Insert a nylon blade 15 with the larger opening over the head of a locating
bolt 19 (see Fig. N).
9. Twist the nylon blade onto the locating bolt until the nose on the blunt end of the
nylon blade engages with the corresponding groove on the nylon blade mount.
10. Carefully pull on the nylon blade so that the locating bolt snaps into the small
opening of the nylon blade.
11. Turn the nylon blade on the locating bolt in both directions, to check its correct fit:
The nose of the nylon blade must run through the designated guide groove of the
nylon blade mount.
12. To attach the second nylon blade, repeat steps 8-11.
13. Insert the plant guard / cutting width indicator 16 into the designated holes on
the motor housing (see Fig. C).
Cutting width indicator / plant guard
The guard16 located on the front of the grass trimmer serves both as a plant guard
and as a cutting width indicator. The cutting blade only moves within the length of
the folded-down guard. Users have the option, however, of using the grass trimmer
with the guard folded up.
Assembling the additional handle
1. Insert the additional handle 5into the bracket 18 .
The toothing of the bracket and the additional handle must interlock with one
another (see Fig. D).
2. Insert the tensioning screw 7through the hole in the bracket and the additional
handle and tighten it.
3. Tighten the tensioning screw.
4. Check that the additional handle is tightened properly.

Use
17
Using the battery
This grass trimmer does not come with a battery.
− Use only the rechargeable batteries listed in the chapter “Technical
data” for this grass trimmer, and do not operate the grass trimmer
using rechargeable batteries supplied by other manufacturers.
− In addition to this user manual, observe the accompanying user
manuals for the battery pack and charger.
Inserting and removing the battery
− To insert the battery, press the battery-release button on the battery and slide the
battery into the battery compartment 4on the handle 1(see Fig. E).
The battery audibly locks into place.
− To remove the battery, press the battery-release button and pull the battery out
of the battery compartment.
Charging the rechargeable battery
− Charge the battery in good time, to increase its service life.
− Charge the battery no later than when you notice that the grass
trimmer's performance is diminishing.
− When charging the battery, follow the operating instructions in the user manual
for the battery pack and the charger.
Use
WARNING!
Risk of injury!
Improper handling of the grass trimmer may result in injury.
− Check the grass trimmer for damage before you use it.
− Never use the grass trimmer if the protective cover is missing
or damaged.
− When you switch the grass trimmer off, the cutting unit will
continue to rotate for a few seconds. Wait until the cutting unit
has come to a complete stop before you transport, maintain or
store the grass trimmer.

Use
18
NOTICE!
Risk of damage!
Improper handling of the grass trimmer can damage it.
− To avoid unnecessary wear and tear, use the plant guard /
cutting width indicator and protective cover.
− Do not cut wet grass.
− Keep the grass trimmer away from hard objects. To prevent
unnecessary wear and tear, avoid cutting hard objects.
Adjusting the height of the guide bar
To ensure an optimal working position, adjust the height of the telescopic
guide bar 8as necessary.
1. Place the grass trimmer on the ground.
2. Open the locking mechanism 10 for the telescopic guide bar (see Fig. F).
3. Pull the guide bar to the desired height.
4. Close the locking mechanism.
Adjusting the additional handle
To ensure an optimal working position, adjust the additional handle 5on the grass
trimmer as necessary. Always ensure that the teeth on the additional handle and the
bracket 18 are properly engaged, and that the additional handle is firmly fixed in
place.
1. Place the grass trimmer on the ground.
2. Loosen the tensioning screw 7of the additional handle (see Fig. G).
3. Set the desired position for the additional handle.
4. Re-tighten the tensioning screw for the additional handle.
Setting the inclination angle
WARNING!
Risk of injury!
If the taper angle of the motor housing is set incorrectly, injury or
damage to the grass trimmer may result.
− Use the grass trimmer only if the motor housing and the

Use
19
button have locked into one of the four positions for the
inclination angle and the motor housing is securely in place.
− Do not use the grass trimmer if the motor housing is not
correctly set to one of the designated positions.
You can adjust the taper angle to four different positions.
Set the taper angle as follows:
1. Press the locking mechanism 12 on the motor housing 11 and keep it pressed
down (see Fig. H).
2. Set the desired inclination angle.
3. Release the locking mechanism, allowing the motor housing to snap back into
place.
4. Turn the motor housing a little further to check that the locking mechanism has
clicked into place.
Using the grass trimmer
WARNING!
Risk of injury and damage!
If grass, stones, hard objects or similar items are blocking the cutting
apparatus, injury or damage to the grass trimmer may result.
− If grass, stones, hard objects or similar items must be removed
from the cutting apparatus, immediately switch off the grass
trimmer and remove the battery.
− Wait until the cutting unit has come to a complete stop, then
carefully remove the debris.
− Wear protective gloves for this.
Approach the grass with the grass trimmer only once the grass trimmer
has been switched on.
1. Insert the battery into the grass trimmer as described in the chapter “Inserting and
removing the battery”.
2. Switch on the grass trimmer by depressing the switch lock 2into the handle
while at the same time pressing the On/Off switch 3(see Fig. A).
Hold down the On/Off switch.
3. Approach the grass with the grass trimmer.

Use
20
4. Go forwards and swing the grass trimmer to the side.
Hold the grass trimmer at an inclined angle of approximately 30° (see Fig. I and K).
5. Release the On/Off switch to switch off the grass trimmer.
6. Remove the battery from the battery compartment.
Using it with long grass
− Cut the grass gradually from the top (see Fig. L).
Using the grass trimmer as an edger
WARNING!
Risk of injury!
Improper use of the grass trimmer may result in injury.
− Always ensure that the motor housing and handle are firmly
locked in one of the two available positions and that the
locking mechanism is secure.
− Never use the grass trimmer if the motor housing or the handle
are in an “intermediate position” and not locked into place.
You can use the grass trimmer to cut the edges of grass and beds. To do so, proceed as
follows:
1. Ensure that the grass trimmer is switched off and remove the battery (see chapter
“Inserting and removing the battery”).
2. Pull the locking mechanism 9for the motor housing 11 upwards (see Fig. M).
3. Turn the handle 1or motor housing respectively as far as it will go to 90°
(indicated by the arrows on the locking mechanism).
4. Allow the locking mechanism to re-engage and check that it sits firmly.
5. If necessary, set the inclination angle (see chapter “Setting the inclination angle”).
You have converted the grass trimmer into an edge trimmer and can now perform
lawn edge cutting.
After use
1. Release the On/Off switch 3to switch off the grass trimmer.
2. Press the battery release button on the battery and remove the battery from the
battery compartment 4.
3. Wait until the cutting unit has come to a stop and let the grass trimmer cool off
completely.
