Fervi 418 User manual

OPERATION AND
MAINTENANCE MANUAL
Reversible air drill
Art. 0418
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
fervi.com

HARDWARE
Page
2
of
13
PREFACE
Please ensure you have read this manual before any
operation
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
It is compulsory to rea
d this instruction manual before starting operation. The guarantee that
the machine will function and perform properly is strictly dependent upon the application of all
the instructions contained in this manual.
Operator Qualifications
The workers i
n charge of using this machine must possess all the necessary information
and instruction and should be given adequate training in relation to safety regarding:
a)
Conditions of use for the equipment;
b)
Foreseeable abnormal situations, pursuant to Article 73 of
Legislative Decree
81/08.
We guarantee the Machine's conformity to specifications and technical instructions
described in the Manual on the date of issue, listed on this page; however, the
machine may be subject to potentially major technical changes i
n the future, without
the Manual being updated.
Therefore, contact FERVI for information about modifications that may have been
implemented.
REV. 2
October 2013
fervi.com

HARDWARE
Page
3
of
13
CONTENTS
1
GENERAL SAFETY INST
RUCTIONS
................................
.............................
4
1.1
Risks Associated with the Work Area
................................
................................
............
4
1.2
Risks Associated with the Presence of Rotating and/or Moving Parts
...........................
4
1.3
Personal Protective Equipment
................................
................................
.....................
5
1.4
Technical Assistance
................................
................................
................................
.....
5
2
D
ESCRIPTION OF THE DR
ILL AND INTENDED USE
................................
....
6
2.1
Technical specifications
................................
................................
................................
6
2.2
Pictograms
................................
................................
................................
....................
7
2.3
Identification plate
................................
................................
................................
.......
7
3
IMPROPER USES AND PR
ECAUTIONS
................................
........................
8
4
COMMISSIONING
................................
................................
......................
9
5
HOW TO USE
................................
................................
...........................
10
5.1
Mounting the drill bits
................................
................................
................................
.
10
5.2
Power On / Off
................................
................................
................................
............
10
6
MAINTENANCE AND CLEA
NING
................................
...............................
12
7
BILL OF MATERIALS AN
D SPARE PARTS
................................
..................
13
fervi.com

HARDWARE
Page
4
of
13
1
GENERAL SAFETY INSTR
UCTIONS
1.
During use, ma
intain control of the tool. The operators represent the most important
aspect of safety. Working cautiously and carefully is the best protection against the risk of
injury.
2.
The pneumatic tool should not be used and repaired by someone under the influence o
f
drugs or alcohol.
3.
When a fault / defect is detected, immediately disconnect the power supply cord from the
tool.
4.
Only transport the pneumatic tool by holding the handle and without pressing the start
lever. Always disconnect the compressed air supply hos
e before transport.
1.1
Risks Associated with the Work Area
1.
Keep unqualified people, children, etc. away from the work environment and the pneumatic
tool.
2.
Only use to tool with proper lighting and visibility.
3.
Pay attention in unknown environments and work are
as. The pneumatic tool is not isolated
from the power supply.
4.
Be especially careful to avoid contact with dust, air jets or other pollutants. If necessary,
wear a dust mask.
5.
It is important to maintain a stable and secure position while working. Beware of
air hoses,
which can cause you to trip and fall.
1.2
Risks Associated with the Presence of Rotating and/or Moving
Parts
Grab the pneumatic tool correctly, using the appropriate "gun" handle.
Never touch the rotating parts of the tool, particularly the tool ch
uck spindle.
Vibrations, repetitive movements and uncomfortable positions may be harmful to your arms
and hands. Discontinue use of the drill if you experience symptoms of physical discomfort,
tingling and pain.
While working, do not wear loose clothing or
jewellery that could get caught in the moving
parts of the tool. Similarly, put hair back in a net or a cap.
fervi.com

HARDWARE
Page
5
of
13
1.3
Personal Protective Equipment
When using the pneumatic tool, always wear the following:
Safety shoes;
Work gloves;
Hearing protection
(cap, earplugs, etc.);
Protective goggles.
1.4
Technical Assistance
For any problems and/or concerns, please contact, without hesitation, the Customer Service
Department of the dealer, who has specialised staff, specific equipment and spare parts.
fervi.com

HARDWARE
Page
6
of
13
2
DESCRIPTI
ON OF THE DRILL AND
INTENDED USE
The
Air drill
is a portable pneumatic tool, to be used for drilling holes in various kinds of
material such as wood, metal, plastic, etc.
The drill is made up of the following parts (see Figure 1):
1
"Gun" shaped body, wh
ich contains the vane rotor and the other moving parts
connected to the spindle shaft;
2
Spindle for mounting the drill bits;
3
Selector to set the spindle's direction of rotation.
4
"Trigger" button for starting the drill;
5
Compressed air inlet nozzl
e.
Figure
1
-
Main parts of the drill.
2.1
Technical specifications
Operating pressure (kPa / bar)
600 / 6
Air consumption (l/min)
570
Rotation speed (rpm)
1800
Empty weight (kg)
0.85
Sound pressure l
evel emitted into the environment (dB (A))
93
Vibration transmitted to the hand
-
arm system (m/s
2
)
<2.5
2
1
3
4
5
fervi.com

HARDWARE
Page
7
of
13
2.2
Pictograms
Attached to each machine there is an obligation
pictogram:
CAREFULLY READ THE OPERATION AND
MAINTENANCE MANUAL BEFORE USING THE
TOOL!
Figure
2
–
Close
-
up of the pictograms
2.3
Identification plate

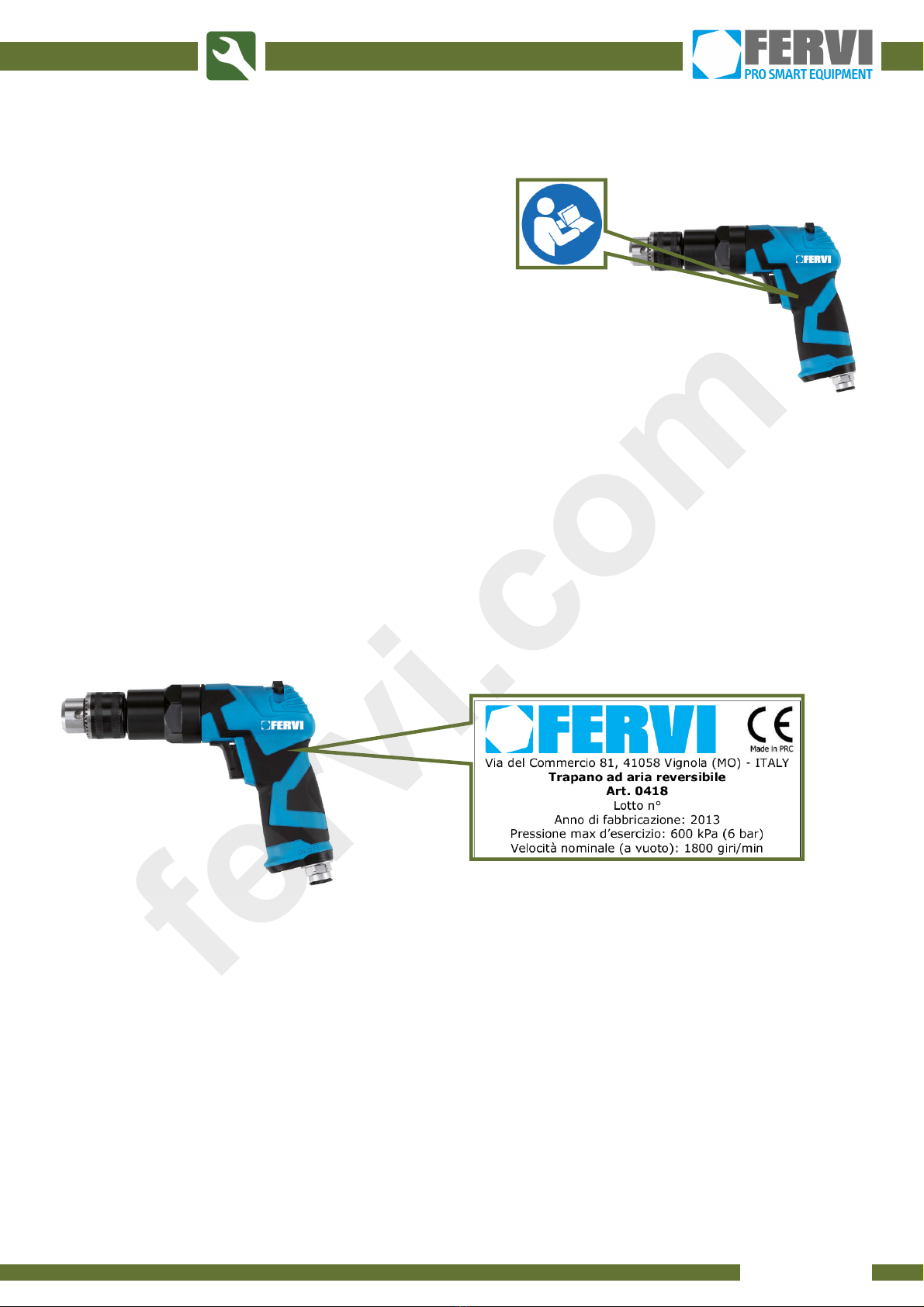

There is an identification plate on each machine, which shows the following data:

The name and address of the manufacturer;

Model/serial number;

Year of construction;

Maximum working pressure;

nominal rotation speed.
Figure
3
–
Close
-
up of the identification plate
fervi.com

HARDWARE
Page
8
of
13
3
IMPROPER USES AND PR
ECAUTIONS
IT IS STRICTLY FORBIDDEN !!

To allow the to
ol to be used by untrained personnel and those who have not read the
instruction manual;

To use the tool for different purposes and uses other than those for which it was
designed, i.e. drilling holes;

To use the tool in humid conditions, explosive atmosph
eres or near flammable surfaces
or gases;

To use the tool without wearing appropriate PPE, such as footwear, gloves, hearing
protectors and goggles;

To touch rotating parts during operation;

To use the tool in the presence of children;

To leave the compres
sed air supply hose inserted after work or while changing the drill
bit;

To point the drill and in particular the drill bit in the direction of people or animals;

To block or insert objects into the air outlet grille;

To modify and/or tamper with the tool;

To use pneumatic power supplies other than as prescribed;

To place the tool in contact with electrically active objects;

To use the tool when disassembled;
fervi.com

HARDWARE
Page
9
of
13
4
COMMISSIONING
1.
Remove the air inlet cap, then screw the supplied nozzle into the hole:
1/4" NPT
Male
Quick
-
Release Coupling
2.
Put a few drops of lubricating oil (without resin acid) in the air inlet nozzle.
3.
Check the flexible air supply hose.
If it is damaged, broken, torn or deformed it must not be connected to the tool.
4.
Check the state of the quick c
ouplings (both on the tool and on the hose). If signs of
damage are detected, it is broken or excessively corroded, the tool or the flexible hose
cannot be used.
5.
The tool must be connected to the air supply source by means of an FRL air conditioning
group,
consisting of a filter, pressure regulator and lubricator, as shown in

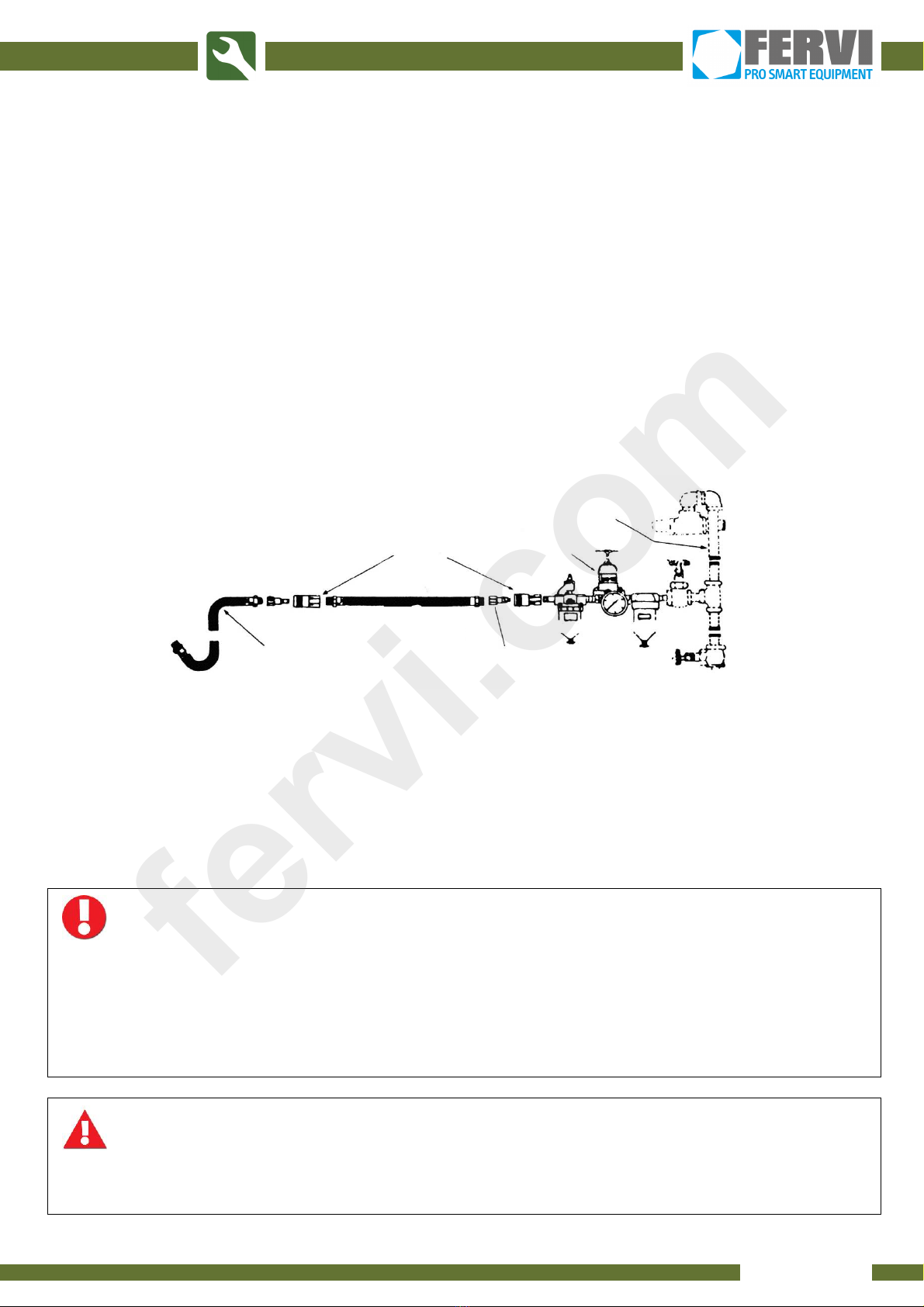

Figure
4
.
The compressed air used must be clean and with the right mix of oil.
Adjust the lubricator
in such a way that it applies 3 to 6 drop
s of oil per minute. Furthermore, the maximum
length of the hose between the lubricator and the tool must be a maximum of 6/8 meters.
Figure
4
–
Connecting the air supply
6.
Insert the quick coupling of
the supply hose into the air inlet nozzle at the bottom of the
grinder handle.
Air Pressure
To ensure proper operation and compliance with safety regulations, the operating pressure of
the compressed air must not exceed 600 kPa (6 bars).
Higher pressur
es may cause damage and excessive wear of the tool.
Information for the working pressure is displayed on the tool's CE plate and in the
instructions.
Crushing and Cutting
When connecting the air supply hose to the tool, while attaching the quick coupl
ing, do not
hold down the drill's start lever.
Anti
-
wear
hose
Tool
Tube
Quick release
connector
Nozzle
Pressure
regulator
Filter
Oiler
Centralized
circui
t
fervi.com

HARDWARE
Page
10
of
13
5
HOW TO USE
5.1
Mounting the drill bits
Crushing and Cutting
Before mounting and/or removing the cutting bits, always disconnect the air supply hose.
Protective gloves
Before mounting and/or removing th
e cutting bits, wear suitable protective gloves.
1.
Insert a cutting tip (with a diameter between 1.5 mm and 10 mm) inside the spindle.
2.
Close the jaws of the spindle by manually rotating the outer ring in a clockwise direction,
so that the bit is held secur
e by the jaws themselves.
3.
Insert the key into one of the circular holes on the spindle, then rotate clockwise to tighten
the jaws of the spindle.
When finished, remove the key!
Centring the bit
Always check the centring and linearity of the bit, before
using the tool.
5.2
Power On / Off
(Personal Protective Equipment) PPE
Before using the grinder, wear suitable work clothing, gloves, shoes and protective goggles.
Also wear a mask if you work with materials that produce dust or fumes.
Also wear protecti
ve devices for the ears (hearing protectors), such as earmuffs, earplugs,
etc.
Workspace
Be familiar with the work area.
Always check the work area before using the grinder.
Keep the work area clean, uncluttered and well lit.
Machining metals, such as
magnesium, can lead to the formation of potentially explosive or
combustible dust or fumes; therefore, avoid the presence of flames or hot surfaces in the
work area.
fervi.com

HARDWARE
Page
11
of
13
Precautions for use
When drilling on small or irregularly shaped objects, secure the
work piece in a vice with soft
jaws.
After mounting the cutting bit and connecting the flexible compressed air supply hose, hold
the drill by its "gun" handle.
Turn the selector lever to choose the direction of rotation (Ref. 3 in Figure 1), the position
s
available are:

Right: Clockwise rotation

Left: Anti
-
clockwise rotation
To turn it on and begin the rotation of the spindle, press the trigger (Ref. 4 in Figure 1).
The spindle's start button is a continuous hold command, in
the sense that the controlled
function (i.e. the rotation of the
spindle) is active as long as the button itself is held down.
Therefore, release the button when drilling has finished or in
an emergency.
F
igure
5
–
Selector lever for
rotation direction.
Emergency
In case of an emergency, immediately release the grinder's power lever.
Disconnect the air hose and turn off the tool in the event of the following:

to change or replace the cutting tool;

to clean, rebuild or perform maintenance on the drill
;

if the drill has not been used for some time.
fervi.com

HARDWARE
Page
12
of
13
6
MAINTENANCE AND CLEA
NING
The purpose of this section is to provide all the information on maintenance procedures and
frequency that the drill requires.
INTERVENTION
Frequency
Daily
Weekly
1.
General visu
al inspection
X
2.
General cleaning
X
3.
Clean the air outlet nozzle
X
4.
Lubricate moving parts
X
1.
General visual inspection:
check the general condition of the pneumatic tool and in
particular if there are any damaged or missing parts. Also check the pr
esence and
legibility of the plates.
2.
General cleaning:
cleaning is necessary to rid the body of oil deposits, dust or dirt
accumulation.
Risks associated with cleaning
Disconnect the air supply hose and clean the body of the tool. Do not use organic so
lvents to
avoid corrosion or discolouration.
3.
Clean the air outlet nozzle:
cleaning is necessary to free the air outlet nozzle and filter
of accumulated dirt. Do not use paint thinner, gasoline, or similar substances to clean the
nozzle.
4.
Lubricate moving
parts:
lubricate all the gears and moving
mechanical parts on the grinder by inserting lubricating oil
within the compressed air inlet nozzle at least once a day. To
do this, disconnect the air hose, turn over the grinder and put
a few drops of oil into th
e nozzle using an suitable oiler
(

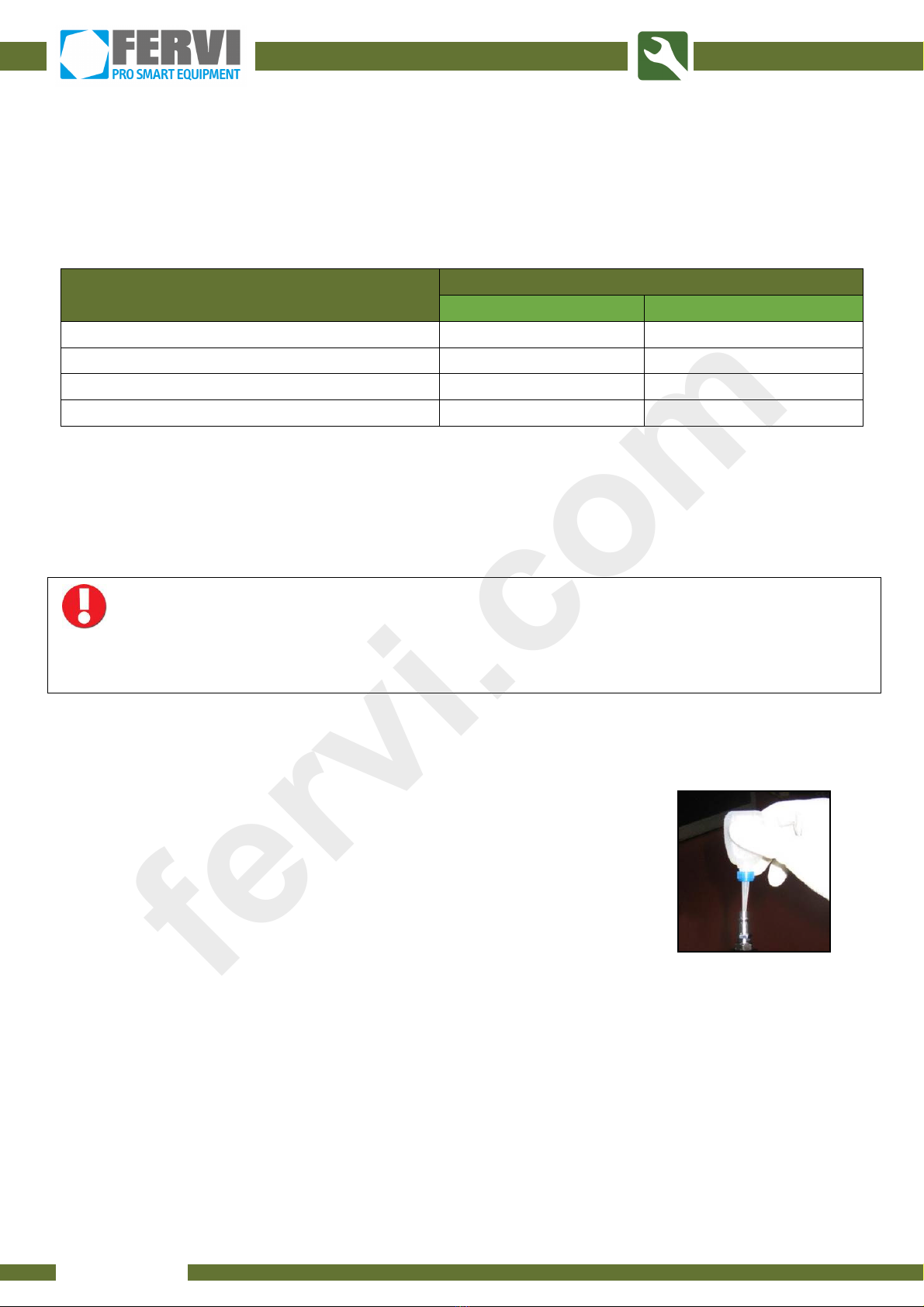

Figure
6
).
Figure
6
–
Lubricating
the nozzle.
fervi.com

HARDWARE
Page
13
of
13
7
BILL OF MATERIALS AN
D SPARE PARTS
Ref.
Description
Ref.
Description
0418/01
Body of the Machine
041
8/19
Rear cylinder head
0418/02
Rotation direction lever.
0418/20
Pin
0418/03
Screw
0418/21
Blade
0418/04
O
-
Ring
0418/22
Rotor
0418/05
Pin
0418/23
Cylinder
0418/06
Trigger
0418/24
Pin
0418/07
Gasket
0418/25
Front cylinder head
0418/08
Valve rod
0418
/26
Bearing
0418/09
Valve
0418/27
Crown gear
0418/10
Valve spring
0418/28
Planetary gear
0418/11
Exhaust cover
0418/29
Shaft component
0418/12
Air intake coupling
0418/30
Bearing
0418/13
O
-
Ring
0418/31
Locking ring
0418/14
O
-
Ring
0418/32
Washer
0418
/15
Reversing valve
0418/33
Spindle 3/8”
0418/16
Spring
0418/34
Screw
0418/17
Small steel ball
0418/35
Spindle key 3/8”
0418/18
Bearing
fervi.com
