Fhiaba S5990FZ3IU User manual

Columns Freezer
User manual
Congélateur
Mode d’emploi
Congelador
Manual del usuario

3
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
EN
INDEX
1
1.1
1.2
1.3
1.4
IMPORTANT SAFETY AND ENVIRONMENTAL HANDLING DIRECTIONS
For your safety.................................................................................................................................................................
Important information when using the appliance.................................................................................................
Caring for the environment..........................................................................................................................................
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)...........................
6
6
6
7
7
2
2.1
2.2
2.3
INSTALLATION
Installation.........................................................................................................................................................................
Connection to the water system.................................................................................................................................
Connection to the electrical power supply...............................................................................................................
8
8
8
8
3
3.1
3.2
3.3
3.4
3.5
BEFORE STARTING
Know your appliance......................................................................................................................................................
Product plate....................................................................................................................................................................
Main components............................................................................................................................................................
Electric Control.................................................................................................................................................................
Main control panel..........................................................................................................................................................
9
9
10
11
11
11
4
4.1
4.2
4.3
BASIC OPERATIONAL OF THE APPLIANCE
Turning the appliance on and o................................................................................................................................
How to adjust the temperature for dierent requirements................................................................................
Information signals of warning messages on the display..................................................................................
14
14
15
16
5
5.1
5.2
CUSTOMIZE FUNCTIONS AND SETTINGS
Functions...........................................................................................................................................................................
Settings..............................................................................................................................................................................
17
17
22
6
6.1 INTERNAL LAYOUT Internal layout (positioning, adjustment, removal)............................................................................................... 28 28
7
7.1
7.2
ACTIVATION AND USE OF THE ICE MAKER
Activation and use of the Ice Maker...........................................................................................................................
Water filter for freezer column Ice Maker................................................................................................................
29
29
29
8
8.1 LIGHTING Lighting............................................................................................................................................................................... 31 31
9
9.1
9.2
FOOD STORAGE
General directions...........................................................................................................................................................
How to best preserve food quality..............................................................................................................................
31
31
32
10
10.1
10.2
10.3
CARE AND CLEANING
Care and Cleaning...........................................................................................................................................................
Internal Cleaning.............................................................................................................................................................
Cleaning of the toe kick cover and condenser........................................................................................................
32
32
32
33
11
11.1
11.2
TROUBLESHOOTING GUIDE
Troubleshooting Guide...................................................................................................................................................
Error messages appearing on the display..............................................................................................................
34
34
36

4
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
WARNING
IMPORTANT SAFETY INSTRUCTIONS
This manual contains operational instructions for the users of the appliance.
Keep this manual in an easily accessible place for future reference.
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury, or death.
Read the installation, operating, and maintenance instructions thoroughly
before installing or servicing this equipment.
To reduce risk of fire, electric shock, or injury to persons when using your applian-
ce, follow basic precautions, including the following:
> Children should be supervised to ensure that they do not play with the appliance.
> This appliance is not intended for use by persons (including children) with reduced
physical, sensory or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety.
> This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
> This appliance is intended to be used in household and similar applications such as: sta
kitchen areas in shops, oces, and other working environments; farm houses and by
clients in hotels, motels, and other residential-type environments; bed and breakfast-
type environments; and catering and similar non-retail applications.
> Do NOT use an extension cord or adapter.
> Plug into a grounded 3 prong outlet.
> Do not remove ground prong.
> If available, ice make kit can be added to some models. See serial tag inside the food
compartment of appliance for ice maker kit model information.
> A qualified service technician must connect ice maker (if available) and the appliance to
the water supply system (if the appliance has water load included).
> If present, clean the ice bucket or drawer regularly but using only drinking water.
> The appliance should be supplied only with drinkable water (if is --- a water connection).
WARNING
In the event of a power failure, do not attempt to operate this
appliance.
WARNING
Keep the appliance area free and clear from combustibles or
flammable materials and vapors.
WARNING
Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction. Do not obstruct the air
intake or exhaust openings of the appliance.
WARNING
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
WARNING
Do not use electrical appliances inside the food storage com-
partments of the appliance, unless they are of the type recom-
mended by the manufacturer.
WARNING
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or
hurt you and others. All safety messages will follow the safety alert symbol and either the
word “DANGER” or “WARNING.” These words mean:
WARNING
You can be killed or seriously injured if you don’t follow instructions.
DANGER
You can be killed or seriously injured if you don't immediately follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
SAVE THESE INSTRUCTIONS!

5
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
EN
IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE
AND CARE
DANGER
Risk of fire or explosion due to puncture of refrigerant tubing; fol-
low handling instructions carefully. Flammable refrigerant used.
WARNING
To b e repaired only by trained service personnel.
Use only manufacturer-authorized service parts, Do not use replacement parts that
have not been recommended by the manufacturer (e.g, parts made at home using a
3D printer). If power supply cord is damaged, it must be replaced by the manufac-
turer, its service agent, or a similarly qualified person in order to avoid a hazard.
Any repair equipment used must be designed for flammable refrigerants. Follow all
manufacturer repair instructions. Use nonflammable cleaner.
WARNING
Do not puncture refrigerant tubing, do not damage the refrige-
rant circuit.
WARNING
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
TIP OVER HAZARD
WARNING
Refrigerator is top heavy and tips easily when not completely
installed; to avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions (see instruction manual provided).
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do can result in death or serius injury.
IMPORTANTSAFETYINSTRUCTIONSFORPROPERDISPOSAL
OF YOUR OLD REFRIGERATOR
WARNING
Suocation Hazard
Remove doors or lid from your old appliance.
Failure to do so can result in death or brain damage.
WARNING
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
> Take o the doors.
> Leave the shelves in place so that children may not easily climb inside.
> IMPORTANT: Child entrapment and suocation are not problems of the past. Junked or
abandoned refrigerators are still dangerous, even if they will sit for "just a few days."
If you are getting rid of your old refrigerator, please follow these instructions to help
prevent accidents.
Important information to know about disposal of refrigerants:
Dispose of refrigerator in accordance with federal and local regulations. Refrigerants
must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with
established procedures.

6
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
1.1 For your safety
> If this appliance is replacing an existing appliance
which must be removed or disposed of, make
sure that it does not become a dangerous trap
for children by cutting its power supply cable and
rendering it impossible to close the door. Use the
same caution at the end of the lifespan of the new
appliance.
>Thisapplianceis designedtorefrigerate beverages
and foods and is intended for domestic use.
> The appliance must be installed by following the
instructions in the Installation Guide, particular
care should be taken not to obstruct the vent
openings of the appliance and of the built-in units.
> The appliance features a concentrated lighting
system with LED lamps. Do not stare into these
lamps when they are on to avoid possible eyesight
damage.
This warning is also contained on the label attached
to the inside of the freezer door.
> When the freezer is functioning do not touch
the inner surfaces in stainless steel with wet or
damp hands, since skin may stick to the very cold
surfaces.
> Do not use any type of electrical equipment inside
of the food conservation compartments.
> When positioning the shelves, do not place fingers
in the shelf slide guides.
> Do not position containers of flammable liquids
near the appliance.
> Completely switch o the appliance and unplug
the power supply cable during cleaning operations.
If the plug is not easily reached, it is a good idea to
turn o the breaker or remove the fuse that controls
the socket that the appliance is connected to.
> The packaging material can be dangerous for
children: do not allow children to play with the
plastic bags, plastic film or Styrofoam.
> Any repairs must be performed by a qualified
Fhiaba Service technician.
> This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or lack of experience and knowledge unless
they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
> Do not damage the appliance refrigerant circuit
pipes.
> Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
> If the power cord of this appliance is damaged,
it must be replaced by the manufacturer, service
company or a similarly qualified person. Improper
installations and repairs may put the user at
considerable risk.
> Repairs may be performed by the manufacturer,
service company or a similarly qualified person
only.
> Plug into a grounded 3 prong outlet.
> Do not remove ground prong.
> Do not use an adapter.
> Do not use an extension cord.
> Disconnect power to all units before servicing.
> If the SUPPLY CORD is damaged, it must be
replaced by the manufacturer, its service agent or
similar qualified person in order to avoid a hazard.
> Children should be supervised to ensure that they
do not play with the appliance.
1.2 Important information when using
the appliance
> Never use electrical appliances inside the
appliance (e.g. heater, electric ice maker, etc.).
Explosion hazard!
> Never defrost or clean the appliance with a
steam cleaner! The steam may penetrate electrical
parts and cause a short-circuit. Risk of electric
shock!
> Do not use pointed and sharp-edged implements
to remove frost or layers of ice. You could damage
the refrigerant tubes. Leaking refrigerant may
cause eye injuries or ignite.
> Do not store products which contain flammable
propellants (e.g. spray cans) or explosive
substances in the appliance.
Explosion hazard!
> Do not stand on or lean heavily against base of
appliance, drawers or doors, etc.
> Before cleaning the appliance, pull out the power
cord plug or switch o the fuse. Do not pull out the
power cord plug by tugging on the power cord.
> Store high-percentage alcohol tightly closed and
standing up.
> Keep plastic parts and the door seal free of oil
and grease. Otherwise, parts and door seal will
become porous.
> Never cover or block the ventilation openings for
the appliance.
1. IMPORTANT SAFETY AND ENVIRONMENTAL HANDLING DIRECTIONS

7
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
EN
Symbols used in the Guide:
Note
Recommendations for correct use of the
appliance
Important
Directions for avoiding appliance damage
Warning
Indications for avoiding injury to people
1.3 Caring for the environment
> Pay special attention to correct disposal procedure
for all the packaging materials.
> The appliance must not be disposed of with urban
waste. Contact local waste disposal centers for on
how to dispose of recyclable waste.
> Prior to disposal, cut the power supply cord and
make it impossible to close the door.
> During disposal, avoid damage to the refrigeration
circuit.
> The appliance does not contain hazardous
substances for the atmospheric ozone layer, neither
in the refrigeration circuit nor in the insulation.
1.4 Cleaning, sanitization and
maintenance of the ice and/or water
dispenser (if present)
Failure to follow the instructions regarding
sanitizing can compromise the hygienic safety of
the water dispensed.
> When using the appliance for the first time and
every time the filter is changed, it is recommended
to let the water flow in the circuit using the “Manual
Cleaning” and discard the ice produced in the first
24 hours.
> If the water dispenser has not been used for more
than 4/5 days, it is advisable to clean the circuit and
run o the first litre of water.
> Reposition the removable water dispenser (if
present), ensuring your hands are hygienically
clean.
> Clean the ice bucket or drawer regularly but using
only drinking water.
> The filter must be changed when indicated on the
control panel or when the ice/water dispenser has
not been used for more than 30 days.
> With each filter replacement, sanitise the ice and/
or water distribution system using a food grade
disinfectant (with sodium hypochlorite), which does
not alter the characteristics of the materials. Rinse
with at least 1/2 gallon of water before use.
> Only original spare parts supplied by the
manufacturer should be used when replacing
components in the ice and water dispenser.
> Any work on the appliance must be carried out
by a qualified technician or the After-sales Service.
To avoid contamination of food, please
respect the following instructions:
>Openingthedoorforlongperiodscancause
a significant increase of the temperature
in the compartments of the appliance.
> Clean regularly surfaces that
can come in contact with food
and accessible drainage systems.
> Clean water tanks if they have not
been used for 48 h; flush the water
system connected to a water supply if
water has not been drawn for 5 days.
> Store raw meat and fish in suitable
containers in the appliance, so that it is
not in contact with or drip onto other food.
> The two-star compartments for frozen
foods are indicated for the preservation of
pre-frozen foods, for the conservation and
manufacture of ice cream andof ice cubes.
> Compartments one, two and three stars
are not indicated for the freezing fresh food.
> If the refrigerating appliance is left empty
for long periods, switch o, defrost, clean,
dry, and leave the door open to prevent
mould developing within the appliance.
EN

8
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
2.1 Installation
Make sure that installation is performed correctly,
adhering to all directions in the specific installation
manual provided with the appliance.
Always connect the water before the
power.
2.2 Connection to the water system
The models provided with Ice Maker require a
connection to the domestic water supply system.
This can be executed through the 1/4” water line
(copper or polyethylene)to the house water supply.
The system pressure must be between from 8 psi
to 75 psi (between 0.5 bar and 5 bar).
Dierent pressures can cause malfunctions or
leaks in the water system.
The appliance should be supplied only with
drinkable water.
The appliance should be supplied only
with drinkable water.
Make sure that installation is performed
correctly, according to all of the
directions in the specific installation
manual provided with the appliance.
Do not attempt to use a locally sourced
garden hose threaded adapter or braided
supply line. It will strip the threads on
the appliance water connection solenoid.
2. INSTALLATION
2.3 Connection to the electrical power
supply
The appliance operates at 115 V AC, 60 Hz and is
equipped with a power supply cord with a 3-prong
grounded plug, which must be connected to a
corresponding 3-prong (15 Amp) grounding-type
wall receptacle.
Do not use extension cords and/or
multiple adapters for the power supply
connection.

9
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
EN
3. BEFORE STARTING
3.1 Know your appliance
Congratulations for having purchased your new
appliance: from now on you can use our innovative
conservation system, which will allow you to keep
any kind of beverage in the best way possible.
This manual will answer most of your questions
about the product’s features. Should you require
further information, please check our website further
information, please:
> call us: 1-855-4-FHIABA (1-855-434-4222)
> write us an e-mail at car[email protected]
> check our website www.fhiaba.com
Before calling, write down the model type
and serial number which are available on
the warranty certificate and on the rating
plate, and any messages which may have
appeared on the display. Built In freezers
come with 2 years parts & labor warranty,
and 5 year parts & labor for sealed system
only.
The rating plate is located into the appliance, on side
cabinet, close to the shelves.
Before calling, please make sure to have the following
information ready:
- Date of Purchase;
- Name of dealer where product was purchased.

10
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
3. BEFORE STARTING
Position of the serial number
inside the compartment.
3.2 Product plate
The product plate shows the technical data, the
serial number and the model. The product plate
must never be removed.
The product plate is positioned on
the side opposite door opening.

11
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
S5990FZ3IU
FI24FZC-LO1
F20220101000006
oz MODEL
CODE
SER.NO./N° SERIE
3186660
ETL LISTED
CONFORMS TO
ANSI/UL STD 250
CERTIFIED TO CAN/CSA
STD C22.2 NO.63
6.34 oz
3 A
115 V
60 Hz
R134a
Fridge Gas Fill Charge
Quantité de Gaz Réfrigerateur
Freezer Gas Fill Charge
Quantité de Gaz Congélateur
Total Absorbed Current
Courant Absorbée Totale
Voltage
Tension
Frequency
Frequence
Refrigerant Gas Type
Type de Gaz Rèfrigerant
Defrost Heater
Chauffage de Dégivrage
Made in Italy
344 W
EN
Model .
Code .
Features .
Serial Number .
Conservation Tips
>SN (Subnormal) from +50°F to +90°F (+10°C to +32°C)
>N (Normal) from +61°F to +90°F (+16°C to +32°C)
>ST (Subtropical) from +64°F to +100°F (+18°C to +38°C)
>T (Tropical) from +64°F to +109°F (+18°C to +43°C)

12
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
Freezer
1) Stainless steel body.
2) Interactive control panel.
3) Adjustable height shelf.
4) Ice maker container.
5) Door bins.
6) LED illuminations.
7) Stainless drawers.
8) Removable toe kick.
3.3 Main components
3. BEFORE STARTING
Freezer
+9°F / -11°F
(-13°C/-23°C)
8
1
2
5
3
6
7
4

13
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00 °C+
Impostazioni
Funzioni
00 °C+
00 °C-
Colore SMEG
colore C71
EN

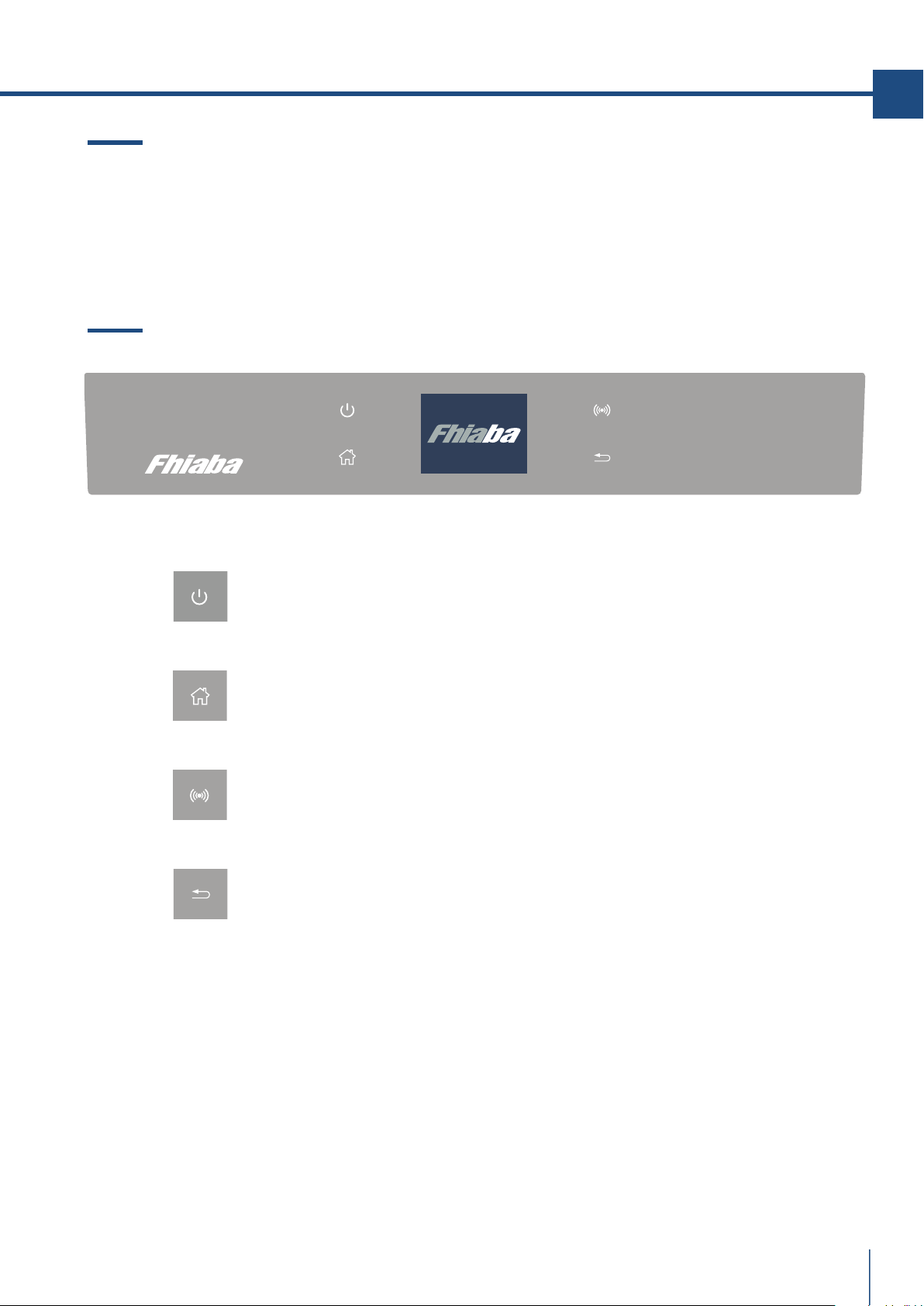

3.5 Main control panel
3.4 Eletronic Control
The innovative electronic control system designed by Fhiaba maintains constant temperature in the en-
tire compartment and visualizes it on the control panel display. It also allows user interaction making it
possible to personalize settings of the various functions and to receive sound and/or visual messages
should any malfunction occur in the appliance.
On / Off:
Touch the icon to turn the unit on or off.
Home
Touch the Home icon for going back to the main display screen.
Alarm
Touch the icon to view the alarm tone functions and to deactivate them.
Back
Touch the arrow icon for going back to the previous display screen.

14
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
FUNCTIONS
SETTINGS
0F
+
FUNCTIONS
SETTINGS
INITIAL TEST...
ARE YOU SURE YOU WANT TO
POWER OFF THIS UNIT?
YES NO
ARE YOU SURE?
YES NO
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71

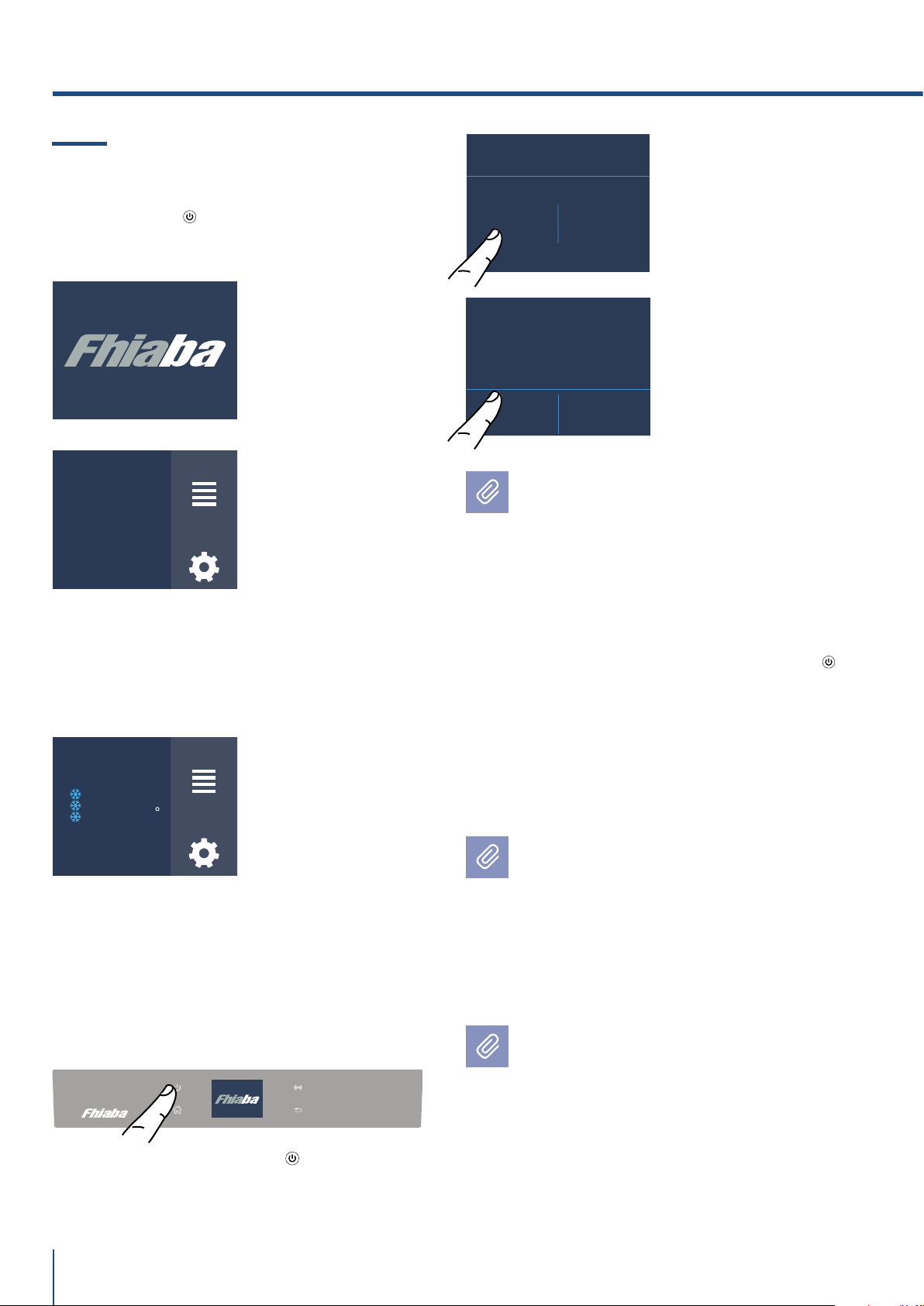

4.1 Turning the appliance on and o
First time starting the unit
Touch the button . The display shows the
following launch screens:
4. BASIC OPERATIONAL OF THE APPLIANCE
When the appliance is first switched on it is
reccomended to wait at least 12 hours without
opening the doors and before placing any food
inside the unit.During such period deactivate any
error message by pressing the Alarm button.
4) Home screen.
- Freezer
compartment
+0°F (-18°C)
When the freezer is o there are no warning
signs that prove that the freezer is plugged
to a socket.
2) Touch the icon
Yes to switch off.
3) Confirm
shutdown by
touching the
Yes icon.
1) Fhiaba Logo.
2) Initial test
(lasts 3 minuts).
3) The display shows the main screen with the
envirorment temperature measured from the
fridge inside the compartments. Automatically
the unit starts to cool down until reaching the set
temperatures.
Shutdown.
1) touch the bottom off.
Switching off for longer periods
During long absence periods it is recommended to
switch off the freezer by pressing the Unit button
for three seconds and disconnecting the electrical
plug or the breaker controlling the socket.
Completely empty the freezer, clean and dry it
and leave the doors and drawers partially open
to prevent unpleasant odors.
If at the first startup the Standby message
does not appear, but another message ap-
pears, it means that the appliance has al-
ready started the cooling process.
During the first startup, it will not be possi-
ble to use the Menu to modify the factory set-
tings until the preset temperature has been
reached.
Each time the appliance is switched on it goes
through a self-diagnosis procedure lasting
three minutes before completely starting up.

15
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
FUNCTIONS
SETTINGS
0F
+
+7 °F
+5
+6
+9
+8
OK
OFF
+7 °F
+5
+6
+9
+8
OK
OFF
FUNCTIONS
SETTINGS
0F
+
+7 °F
+5
+6
+9
+8
OK
OFF
EN
4.2 How to adjust the temperature for
dierent requirements.
Each model has been carefully tested before leaving
the factory and is adjusted in such a way to ensure
high performance and low power consumption.
Usually, it is not necessary to modify the settings.
How it looks to the home screen:
Freezer
compartment
Preset
temperature
3) Touch the Ok icon
to confirm the desi-
der temperature.
Modify the temperatures compartment
How to modify the freezer compartment
temperature.
1) Home screen. Touch
the icon of freezer
compartement.
2) Scoll up/down to
select the desided
temperature
freezer from
+9°F to -11°F
(-13°C to -23°C )
The temperature shown can vary slightly in
respect to the set temperature following
frequent openings of the doors or insertion
of room temperature foods or large
quantities of foods.
6 to 12 hours are necessary to reach the
selected temperature.
Padlock icon.
The padlock icon shows up when the
temperatures are set up.
The padlock open/close shows that the
compartment's temperatures can or can not be
modified by the user.
Usually a grey padlock will show open, in
that case you can scroll up or down with
a finger on the display, select the desired
temperature and press OK to confirm.
Whereas a white closed padlock will be
seen if the user has activated a function
that modifies the settings of the refrigerator
and prevents the user from changing the
temperature of the compartment.

16
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
+7 °F
+5
+6
+9
+8
OK
OFF
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
4. BASIC OPERATIONAL OF THE APPLIANCE
If the icon function is touched and a specific
function is set (for example holiday, ect...), the
white padlock will be seen closed and it won't
be possible to change the temperature of the
compartments as long as the function won't be
completed or if it is manually deactivated as long
as the function is active.
4.3 Information signals of warning
messages on the display.
An integrated control system will give information
through messages you will see on the display.
There is an alarm tone that occurs with some
error messages which can be turned off by
touching the alarm button on the main
control panel.
You can find the list of the error messages at the
end of this manual.

17
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
SHOPPING FREEZER
MODE?
ON OFF
FUNCTIONS
SETTINGS
0F
+
SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE
9 HOUR
11
10
7
8
OK
ICE MAKER
WATER FILTER
SYSTEM CLEANING
ICE MAKER
WATER FILTER
SYSTEM CLEANING
SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE
ICE MAKER WATER FILTER
SYSTEM CLEANING
EN
It is possible to program this function 1 to 24
hours in advance.
5. CUSTOMIZE FUNCTIONS AND SETTINGS
5.1 Functions.
INFORMATION FOR THE USE OF THE DISPLAY.
It is possible to personalize the operation of your
Fhiaba unit in order to adapt it to the different
ways you might want to use it.
After touching the icon Function
MAINTENANCE
SERVICE
INFO SYSTEM
on the home
screen , the icons for the following functions will
be shown.
1) Shopping Mode Freezer.
2) Vacation Mode.
3) Rapid Bottle Cooler.
4) Ice Maker.
5) Water filter.
6) System cleaning.
C) Touch the On
icon to activate the
function.
B) Touch the icon
Shopping Mode
Freezer.
D) Scroll up /
down to setting
the desired time
and then press Ok.
A) Home screen.
Touch the Fun-
ctions icon.
1) Shopping Mode Freezer
The function works at the maximum power level,
without any break, from a minimum of 1 to a
maximum of 12 hours, depending on time set,
permitting more rapid freezing of food that has
just been placed in the freezer. Once the time set
is expired, the function deactivates automatically,
returning to the previously set temperature. It
is possible to program a timed activation of the
function.
After a prolonged interruption of power supply, it is
necessary to reactivate the function.

18
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
9DAY
11
10
7
8
OK
FUNCTIONS
SETTINGS
0F
+
VACATION MODE
ON OFF
37 MIN
39
38
35
36
OK
FUNCTIONS
SETTINGS
0F
+
BOTTLE COOLER
MODE
ON OFF
SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE SHOPPING FREEZER
RAPID BOTTLE
COOLER
VACATION MODE
3) Rapid Bottle Cooler
This function can be activated when it is necessary
to cool o beverages quickly, by placing them inside
the freezer compartment.
It is possible to select a duration of 1 to 45 minutes.
A sound signal will indicated when the optimal
temperature has been reached.
After removing the beverages, deactivate the sound
signal by pressing the Alarm button .
2) Vacation Mode
This function (recommended in case
of prolonged absences since it allows
considerable energy savings) brings the freezer
compartment temperature to -0°F (-18°C).
It is possible to program the duration, or it can
be manually deactivated upon return after a
period of absence. This function remains active
even if during the period of absence there is
a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
C) Touch the button
On to activate the
function.
B) Touch the Vaca-
tion Mode icon.
D) Scroll up /
down to set the
desired time (in
days) and then
press Ok.
It is possible to pro-
gram a period from
1 to 90 days.
A) Home screen.
Touch the Fun-
ctions icon.
C) Touch the button
On to activate the
function.
B) Touch the Rapid
Bottle Cooler icon.
D) Scroll up / down
to set the desired
time (in minutes)
and then press Ok.
A) Home screen.
Touch the
Functions icon.
5. CUSTOMIZE FUNCTIONS AND SETTINGS

19
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
FUNCTIONS
SETTINGS
0F
+
ICE MAKER
ON OFF
ICE MAKER WATER FILTER
SYSTEM CLEANING
FUNCTIONS
SETTINGS
0F
+
SUPERICE
SET CUBE SIZE
ICE MAKER
SUPERICE
SET CUBE SIZE
ICE MAKER
SET CUBE SIZE
MEDIUM LARGE
SUPERICE MODE
(24 HRS)
ON OFF
ICE MAKER WATER FILTER
SYSTEM CLEANING
EN
4) Ice Maker activation
A pre-rinse of the water circuit should be performed
before activating the Ice Maker for the first time.
After a few minutes the Ice Maker can be activated.
Do not activate the Ice Maker unless the
appliance is connected to the water line.
B) Scroll twice right
and then touch the
Ice Maker icon.
C) Touch the button
On to activate the
ice maker.
A) Home screen.
Touch the
Functions icon.
4a) Set Ice cube Size - SuperIce
The IceMaker function permits selecting the size
of the ice cubes, by choosing between Large (base
setting) or Medium, and activation of the SuperIce
function, which increases the quantity of produced
ice.
The SuperIce function deactivates automatically
after 24 hours.
B) Scroll twice
right and then
touch the icon
ice maker.
D) Touch the
Medium/Large
icon to choose
the desired
Set Cube Size.
C) Touch the Set
Cube Size icon.
The default cube
size is "medium".
E) If you would like
to increase the
production of ice,
touch the Superice
icon, this will enable
the freezer to
produce more ice,
up to 1,5kg a day.
A) Home screen.
Touch the
Functions icon.
F) Activate Superice?

20
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
FUNCTIONS
SETTINGS
0F
+
ENABLE
REMINDER?
YES NO
WATER FILTER
ICE MAKER WATER FILTER
SYSTEM CLEANING
ICE MAKER WATER FILTER
SYSTEM CLEANING
DISABLE REMINDER?
YES NO
WATER FILTER
FUNCTIONS
SETTINGS
0F
+
NEXT REMINDER
LEFT DAYS...
365
OFF RESET
WATER FILTER
ARE YOU SURE?
YES NO
WATER FILTER
NEXT REMINDER
LEFT DAYS...
365
WATER FILTER
C) Confirm the
function by
touching the
Yes button.
5) Water Filter Activation
The water filter is essential for the purification
of the water used for making ice, for cleaning
the circuit or for supplying water for the freezer
compartment. The display permits visualizing the
time left before the filter needs to be replaced. The
water filter Remider has to be activated by the user.
B) Scroll once
right and then
touch the Water
filter icon.
A) Home screen.
Touch the
Functions icon.
E) Indicates
the remaining
days before the
replacement due
date of the filter.
Touch the home
button .
D) Confirm the
function by
touching the
Yes button.
D) Confirm the
function by
touching the
Yes button.
C) Push Off to
activate Water
Filter Reminder.
B) Scroll once
right and then
touch the Water
filter icon.
A) Home screen.
Touch the
Functions icon.
5a) Water Filter Deactivation
To deactivate an active filter reminder follow
these steps:
5. CUSTOMIZE FUNCTIONS AND SETTINGS
