INSTRUCTION BOOKLET UK
DISHWASHER
FIDW 42

Safety instructions 3
Disposal 3
Economical and ecological dishwashing 3
Description of the appliance 4
The control panel 4
Prior to using for the first time 6
The water softener 6
Filling with dishwasher salt 7
Rinse aid 7
In daily use 8
Loading cutlery and dishes 8
The lower basket 8
The cutlery basket 8
The upper basket 9
Adjusting the height of the upper basket 9
Use of detergent 9
Different kinds of detergent 10
Washing programmes 11
Starting a washing programme 12
Maintenance and cleaning 13
Cleaning the filters 13
Prolonged periods of non-operation 13
Frost precautions 13
Moving the machine 13
Something not working 14
Service and Spare Parts 16
Customer Care Department 16
Guarantee Conditions 16
Installation instructions 17
Building-in 17
Levelling 17
Fixing to the adjacent units 17
Water supply connections 17
Water outlet hose connection 17
Electrical connection 18
Hints for test centres 19
Contents
2
Dimensions Width 59.6 cm
Height 81.8 - 87.8 cm
Max depth 55.5 cm
Max depth with open door 114 cm
Electrical connection: Information on the electrical connection is given on the rating plate on the
Voltage inner edge of the dishwasher’s door.
Overall power
Fuse
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications
This appliance complies with the following E.E.C. Directives:
- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that
the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the
relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the
appliance.
If you are unsure about any aspect of the information in this book, please contact our customer care department on 08705
950 950
Installation
●Check your dishwasher for any transport damage. Never
connect a damaged machine. If your dishwasher is
damaged, you should contact your supplier.
●For safety reasons it is dangerous to alter the specifications
or attempt to modify this product in any way.
●Any electrical and plumbing work required to install this
appliance should be carried out by a qualified and
competent person.
●Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
●The sides of the dishwasher must never be drilled to
prevent damage to hydraulic components.
Child safety
●This appliance is designed to be operated by adults.
●Children should not be allowed to tamper with the controls
or play with the product.
●Packaging parts may be dangerous for children, who could
even be suffocated! You should therefore keep all
packaging well away from children.
●The water in your dishwasher is not for drinking. Detergent
residues may still be present in your machine. Keep
children well away from your dishwasher when the door is
open.
●Keep all detergents in a safe place out of children's reach.
Your dishwasher in day-to-day use
●Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
●Under no circumstances should you open the door whilst
the appliance is in operation, especially during the washing
phase, hot water may escape. However, if the door is
opened, a safety device ensures that the machine stops.
●Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
●Long bladed knives stored in an upright position are a
potential hazard.
●Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
●Ensure that the door of the dishwasher is always closed
when it is not being loaded or unloaded. In this way you will
avoid anybody tripping over the open door and hurting
themselves.
●When finishing loading or unloading close the door, as an
open door can be a hazard.
●Do not sit or stand on the open door.
●Isolate the appliance from the power supply and turn off the
water supply after use.
●This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local Service Force Centre. Always insist on
genuine spare parts.
Disposal
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with standard international
abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material.
>PS< for polystyrene, e.g. padding material (always CFC-
free).
>POM< for polyoxymethylene, e.g. plastic clips.
Cardboard packaging is manufactured from recycled paper
and should be deposited in the waste paper collection for
recycling.
As and when you cease to use your dishwasher and withdraw
it from service, your should render it unserviceable before
having it disposed of.
Warning! Children at play could lock themselves in your
dishwasher or otherwise endanger their lives. Therefore cut off
the power supply cable and make the door closing device
unusable to prevent children from being trapped inside.
For the disposing of the appliance please take it to a recycling
centre or to your dealer who may, for a small contribution to
the costs, dispose it for you.
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product,
please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
Economical and
ecological dishwashing
●Ensure that the water softener is correctly adjusted.
●Do not pre-wash under running water.
●Select the wash programme to suit the nature and degree of
the soiling on the dishes.
●Do not use more detergent, dishwasher salt and rinse aid
than is recommended in these operating instructions and by
the manufacturer of the respective product.
Safety instructions
3

The control panel

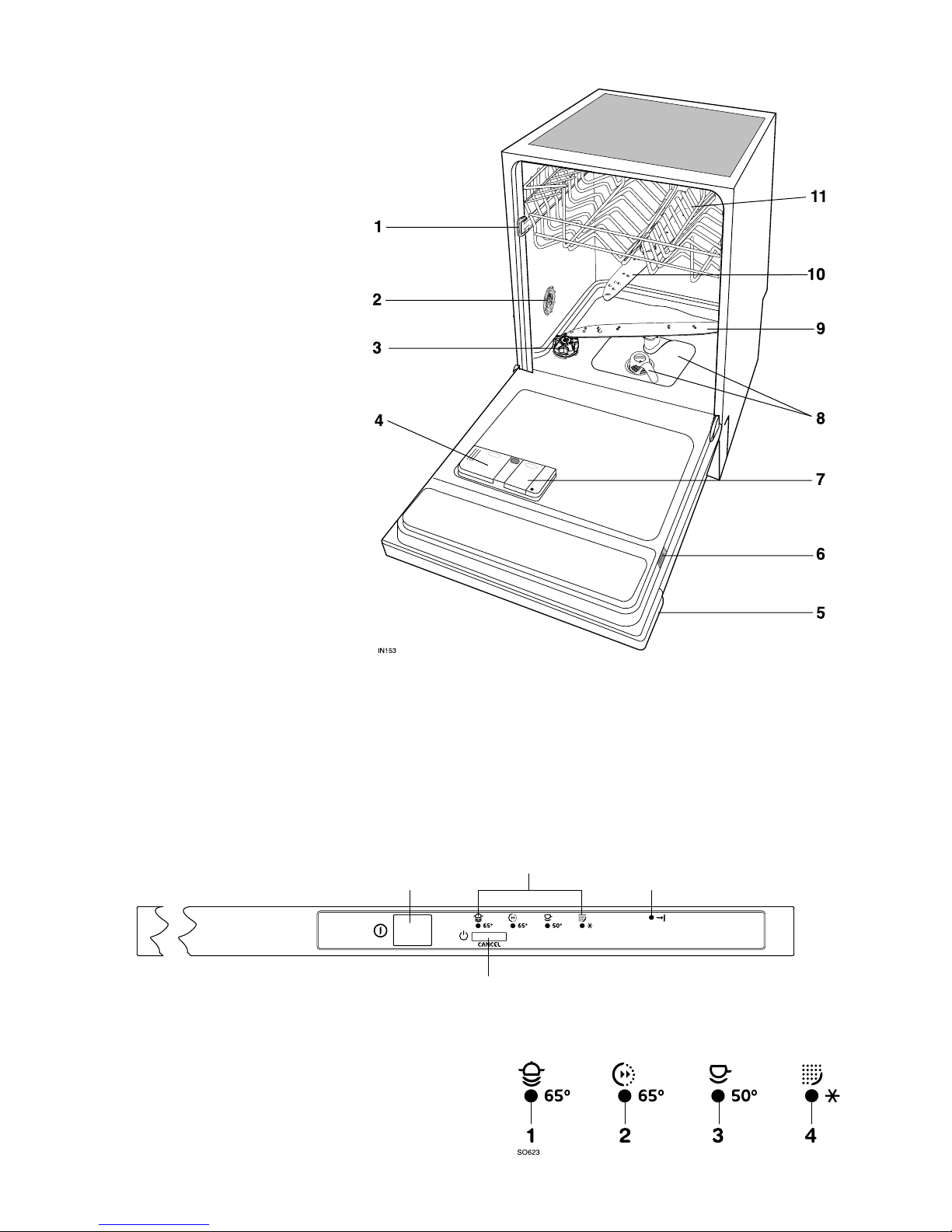

Description of the appliance
4
1. Upper basket stop
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Control panel
6. Rating plate
7. Rinse aid dispenser
8. Filters
9. Lower spray arm
10. Upper spray arm
11. Upper basket
End of programme indicator light
Washing programmes
On/Off button
Programme selection/cancel button
Programme indicator lights

Programme selection/cancel button (CANCEL):
the selection of a washing programme occurs by the means of
this button, press it until the indicator light corresponding to the
desired washing programme illuminates (see "Washing
programmes" chart). The end of programme indicator light
flashes.
Once the washing programme has been set, close the
dishwasher’s door, the programme will start automatically.
With this button it is also possible to:
- cancel a washing programme in progress,
- set the level of the water softener (see specific paragraph),
- deactivate/activate the audible signals.
End of programme indicator light:
Audible signals
Audible signals have been introduced to help indicate which
operations the dishwasher is performing.
- end of washing programme,
- malfunction of the machine.
Deactivation/activation of the audible signals
Factory setting: audible signals activated.
1. With the dishwasher switched off, press the On/Off button.
The end of programme indicator light flashes (setting
mode).
In case salt and/or rinse aid refilling is necessary the
corresponding indicator lights illuminate.
If one of the washing programme indicator lights is on, this
means that a washing programme has been set.
The setting must be cancelled: press for about 3 seconds
the programme selection/cancel button; the indicator
light of the set programme turns off and the end of
programme indicator light flashes, indicating that the set
programme has been cancelled and that the machine is
now in setting mode.
2. Press and keep pressed the programme selection/cancel
button until programme indicator light 1flashes and
programme indicator light 2 illuminates with a fixed light.
Press the programme selection/cancel button again,
programme indicator light 1illuminates with a fixed light and
programme indicator light 2starts flashing.
Wait until programme indicator light 1turns off, programme
indicator light 2goes on flashing and the end of
programme indicator light illuminates with a fixed light.
This indicates that you have activated the function for the
deactivation/activation of the audible signals.
The constant illumination of the end of programme
indicator light means that the audible signals are activated.
3. To deactivate the audible signals, press the programme
selection/cancel button again, the end of programme
indicator light turns off indicating that the audible signals are
deactivated.
4. To memorise the operation, switch off the machine by
pressing the On/Off button or wait for about 60 seconds,
after which the machine will automatically return to setting
mode.
To activate again the audible signals simply follow the above
operations until the end of programme indicator light
illuminates.
5
illuminates when the washing programme has
ended.
It also has added functions of visual signalling as:
- the setting of the water softener,
- deactivation/activation of the audible signals,
- intervention of an alarm due to the malfunction
of the machine.

Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with dishwasher salt
5. Fill the rinse aid dispenser
NOTE:
If you want to use the "3 in 1" combi detergents, read
carefully the informations given in "Different kinds of
detergents".
The water softener
The dishwasher is equipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these minerals and salts, the harder
your water is.
Water hardness is measured in equivalent scales, Clarke
degrees, French degrees (°TH) and mmol/l (millimol per litre -
international unit for the hardness of water).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The water softener must be set in both ways: manually, using
the water hardness dial and electronically, by the means of the
programme selection/cancel button.
a) Setting manually
1. Open the dishwasher door.
2. Remove the lower basket from the dishwasher.
3. Turn the water hardness
dial to position 1 or 2 (see
table).
4. Replace the lower
basket.
The dishwasher is factory set
at position 2.
b) Setting electronically
The dishwasher is factory set at level 5.
1. With the dishwasher switched off, press the On/Off button.
The end of programme indicator light flashes (setting
mode).
In case salt and/or rinse aid refilling is necessary the
corresponding indicator lights illuminate.
If one of the washing programme indicator lights is on, this
means that a washing programme has been set.
The setting must be cancelled: press for about 3 seconds
the programme selection/cancel button; the indicator
light of the set programme turns off and the end of
programme indicator light flashes, indicating that the set
programme has been cancelled and that the machine is
now in setting mode.
2. Press and keep pressed the programme selection/cancel
button until programme indicator light 1flashes and
programme indicator light 2 illuminates with a fixed light.
Wait until programme indicator light 2turns off, programme
indicator light 1goes on flashing and simultaneously the
end of programme indicator light starts flashing.
This indicates that you have activated the electronic setting
function of the water softener.
The current level is indicated by a sequence of flashes of
the end of programme indicator light, a sequence of
intermittent audible signals and a pause of a few seconds
(see chart).
Example: 5 flashes/5 audible signals + pause +
5 flashes/5 audible signals etc...= level 5
3. To change the level, press the programme
selection/cancel button.
Each time the button is pressed the level changes. (For the
selection of the new level, see chart).
Examples:
if the current level is 5, by pressing the programme
selection/cancel button once, level 6 is selected.
if the current level is 10, by pressing the programme
selection/cancel button once, level 1 is selected.
The end of programme indicator light remains off for a few
seconds and then starts flashing indicating the new
selection is set.
4. To memorise the operation, switch off the machine by
pressing the On/Off button or wait for about 60 seconds,
after which the machine will automatically return to setting
mode.
Prior to using for the first time
6
Clarke °TH mmol/l manually electronically
64 - 88
53 - 63
46 - 52
36 - 45
28 - 35
23 - 27
18 - 22
13 - 17
5 - 12
< 5
9,0 - 12,5
7,6- 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
3,3 - 3,9
2,6 - 3,2
1,9 - 2,5
0,7 - 1,8
< 0,7
Range
IV
IV
IV
IV
IV
III
III
II
I/II
I
91 - 125
76 - 90
65 - 75
51 - 64
40 - 50
33 - 39
26 - 32
19 - 25
7 - 18
< 7
2
2
2
2
2
2
1
1
1
1
level 10
level 9
level 8
level 7
level 6
level 5
level 4
level 3
level 2
level 1
yes
yes
yes
yes
yes
yes
yes
yes
yes
no
10
9
8
7
6
5
4
3
2
1
Water hardness Adjusting the
water hardness
setting
Number of flashes of
the
"end of programme"
indicator light
Use of
salt

Filling with dishwasher salt
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the complete
washing programmes.
This will prevent any grains of salt or salty water, which
may have been spilt, remaining on the bottom of the
machine for any period of time, which may cause
corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the
cap of the salt container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary
only before filling with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
4. Replace the cap making
sure that there is no trace
of salt on the screw
thread or on the gasket.
5. Replace on the cap tightly
turning it clockwise until it
stops with a click.
The salt container will require topping up periodically.
The salt cap has a refill
indicator window in the centre.
Agreen float is clearly visible
when there is salt inside the
container and almost
disappears when the salt has
finished reminding you to add
salt.
Do not worry if water over flows from the unit when filling with
salt, this is quite normal.
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, and spot and streak free drying.
The dispenser, which is positioned inside the door, holds about
110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing
programmes, depending upon the dosage setting.
Filling with rinse aid
1. Open the container by pressing the release button (A).
2. Add the rinse aid until the container is completely full. The
maximum level for filling is indicated by "max".
Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during filling with an
absorbent cloth to avoid excess foaming during the next
wash.
Only use branded rinse aid for dishwashers. Never fill the
rinse aid dispenser with any other substances (e.g.
dishwasher cleaning agent, liquid detergent). This would
damage the appliance.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (position
1 minimum dosage, position 6 maximum dosage).
The dose is factory set in
position 4.
Increase the dose if there are
drops of water or lime spots
on the dishes after washing.
Reduce it if there are sticky
whitish streaks on the dishes
or a bluish film on glassware
or knife blades.
Top up the rinse aid when the
indicator (B) becomes clear.
7
SR22
BR10 BR16
BR12
BR11

Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the
edge of the basket, ensuring that the spray arms can turn
freely.
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
Forks and spoons should be placed in the removable cutlery
basket with the handles facing downwards and the knives with
their handles facing upwards.
If the handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with the
handles facing upwards.
Mix spoons with other cutlery
to prevent them from sticking
together.
For best results we
recommend you to use the
cutlery grid provided (if the
size and dimensions of the
cutlery allow it).
●Check if it’s necessary to refill with dishwasher salt or rinse
aid
●Load cutlery and dishes into the dishwasher.
●Fill with dishwasher detergent .
●Select a wash programme suitable for the cutlery and
dishes.
●Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can
absorb water may not be washed in the dishwasher.
●Before loading the dishes, you should:
- Remove large left-overs.
- Soften remnants of burnt food in pans
●When loading the dishes and cutlery, please note:
- Dishes and cutlery must not impede the rotation of the
spray arms .
- Load hollow items such as cups, glasses, pans, etc. with
the opening downwards so that water cannot collect in the
container or a deep base.
- Dishes and items of cutlery must not lie inside one
another, or cover each other.
- To avoid damage to glasses, they must not touch.
- Lay small objects in the cutlery basket.
●Plastic items and pans with teflon have a tendency to
retain water drops; these items will not dry as well as
porcelain and steel items.
In daily use
8
For washing in the dishwasher the following cutlery/dishes
are of limited suitability:
- Only wash stoneware in the dishwasher if it is specifically
marked as being dishwasher-safe by the manufacturer.
- Glazed patterns may fade if machine washed frequently
- Silver and aluminium parts have a tendency to discolour
during washing. Residues, e.g. egg white, egg yolk and
mustard often cause discolouring and staining on silver.
Therefore always clean left-overs from silver immediately, if
it is not to be washed straight after use.
- Some types of glass can become dull after a large number
of washes
are not suitable:
- Cutlery with wooden, horn, china or
mother-of-pearl handles
- Plastic items that are not heat resistant
- Older cutlery with glued parts that is not
temperature resistant
- Bonded cutlery items or dishes
- Pewter or copper items
- Lead crystal glass
- Steel items subject to rusting
- Wooden platters
- Items made from synthetic fibres
UI71

The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 24 cm in diameter), salad
bowls, cups and glasses.
Arrange items on and underneath the cup racks so that water
can reach all surfaces.
Glasses with long stems can
be placed upside down in the
cup racks.
Light items (plastic bowls
etc.) must be loaded in the
upper basket and arranged
so they do not move.
In case that plates are loaded in the upper
basket:
load them starting from the
rear positions of the
basket; tilting them slightly
forwards and avoiding the
front positions near the
door.
Before closing the door, ensure that the spray arms can
rotate freely.
Adjusting the height of the upper basket
If washing very large plates you can load them in the lower
basket after moving the upper basket to the higher position.
To move to the higher position proceed as
follows:
1. Move the front runner stops (A) of the upper basket
outwards and slide the basket out.
2. Refit the basket in the higher position and replace the stops
(A) in their original position.
When the basket is in the
higher position you will not
be able to use the cup
rack(s).
After loading your machine always close the door, as an
open door can be a hazard.
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
Using no more than the correct amount of detergent
contributes to reducing pollution.
Please observe the manufacturer’s dosing and storage
recommendations as stated on the detergent packaging.
Fill with detergent
1. If the lid is closed: press release button (1). The lid springs
open.
2. Fill the detergent dispenser (2) with detergent.
The marking indicates the dosing levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent
3. All programmes with prewash need an additional detergent
dose (5/10 g) that must be placed in the prewash detergent
chamber (3). This detergent will take effect during the
prewash phase.
4. Close the lid and press until it locks in place.
9
US64
With upper basket raised 20 cm 31 cm
With upper basket lowered 24 cm 27 cm
Maximum height of the dishes in
upper basket lower basket
RC01

Detergent tablets
Detergent tablets from different manufactures dissolve at
different rates. For this reason, some detergent tablets do not
attain their full cleaning power during short washing
programmes. Therefore please use long washing programmes
when using detergent tablets, to ensure the complete removal
of detergent residuals.
Concentrated detergent
Today’s detergents for dishwashers are almost exclusively low-
alkaline concentrated detergents with natural enzymes in tablet
form.
Using 50°C washing programmes in conjunction with these
concentrated detergents reduces pollution and is good for your
dishes, as these washing programmes are specially matched
to the dirt-dissolving properties of the enzymes in concentrated
detergents. It is for this reason that using 50°C washing
programmes in conjunction with concentrated detergents can
achieve the same cleaning results that can otherwise only be
achieved using 65°C washing programmes.
Use of "3 in 1" combi detergents
These products are detergents with a combined cleaning,
rinsing and salt function.
1. Check whether these detergents are suitable for your water
hardness. Follow the manufacturers instructions.
NOTE: the refilling of the salt container and the rinse aid
dispenser are no longer necessary.
In this case the salt and the rinse aid indicator lights will always
remain illuminated when the machine is switched on (not all
dishwasher models are foreseen with salt and rinse aid
indicator lights).
2. Select the lowest setting for water hardness.
3. Before the start of the washing programme put the "3 in 1"
detergent in the detergent dispenser.
NOTE: If the drying results are not satisfactory we recommend
to:
1. Fill up the rinse aid dispenser with rinse aid.
2. Set the rinse aid dosage to position 2.
If you decide to turn back to the use of the standard
detergent system we advise that you:
●Fill up the dispensers for salt and rinse aid again.
●Adjust the water hardness setting to the highest setting
perform up to 3 normal washing programmes without
loading any dishes.
●Adjust the water hardness setting according to the
hardness of the water in your area.
●Adjust the rinse aid dosage.
NOTE: When using 4 in 1 detergents that integrate also anti-
glass corrosion agent into "3 in 1" formula, please follow the
same indication as given for "3 in 1" detergents.
Different kinds of detergent
10

Washing programmes
11
(1) Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil).
This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and
dinner crockery and cutlery.
(2) Testing programme for EN 50242 (see "Hints for Test Centres"). This programme, developed for the use of detergents with
enzymes, allows you to achieve, with reduced consumption of energy the same cleaning results that would otherwise be
obtained only with the 65°C programmes and conventional detergents. To compensate the lower temperature, the duration of
washing and drying have been extended.
(3) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by
the variations of the power supply.
Degree of soil
and
type of load
Normal soil.
Crockery, cutlery, pots
and pans
Programme
Normal 65°
Cycle description (3) Consumption values
Cold prewash
Main wash up to 65°C
2 warm rinses
1 hot rinse
Drying
Programme
duration
(in minutes)
Energy
consumption
(in kWh)
Water
consumption
(in litres)
108 - 118 1,7 - 1,8 24 - 26
Any.
Partial load (to be
completed later in the
day).
Rinse and Hold 1 cold rinse (to avoid food
scraps from sticking together).
This programme does not
require the use of detergent.
12 < 0,1 4
Normal soil.
Crockery and cutlery
(2)
Economy 50° Cold prewash
Main wash up to 50°C
1 cold rinse
1 hot rinse
Drying
160 1,05 18
Fresh soil.
Crockery and cutlery
(1)
Quick Wash 65° Main wash up to 65°C
1 hot rinse 25 - 35 0,7 - 0,8 8

In this fully integrated appliance the controls are located on the
top of the door. When selecting a washing programme, the
door needs to be slightly open.
1. Check that the baskets have been
loaded correctly and that the spray
arms can rotate freely
2. Turn on the water tap
3. Setting and starting the washing
programme
Press the On/Off button.
The end of programme indicator light flashes.
Press the programme selection/cancel button and select
the desired washing programme. To choose the right
washing programme see "Washing programmes" chart).
Close the dishwasher’s door, the programme will start
automatically.
NOTE: the start of the washing programme will occur only
after the closure of the door. Until this moment it is
possible to modify the selection made.
4. To interrupt or cancel a washing
programme in progress
Interrupt or cancel a washing programme in progress
ONLY if it’s absolutely necessary.
Attention! Hot steam may escape when the door is
opened. Open the door carefully.
Interrupt a washing programme in progress
Open the dishwasher’s door; the programme will stop.
Close the door; the programme will start from the
point at which it was interrupted.
Cancel a washing programme in progress
Open the dishwasher’s door. Press the programme
selection/cancel button for about 3 seconds, until the
indicator light of the running programme turns off and the
end of programme indicator light flashes, indicating that
the running programme has been cancelled and that the
machine has returned to setting mode.
It is now possible to select another washing programme.
If a new washing programme is to be selected, check that
there is detergent in the detergent dispenser.
NOTE: only during the drying phase, if the dishwasher’s
door will be opened and remains open for more then 30
seconds, the running programme will be automatically
cancelled and the machine will return to setting mode.
This will happen, always only during the drying phase,
also when the machine is switched off by pressing the
On/Off button and remains switched off for more then 30
seconds.
5. End of the washing programme
The dishwasher will automatically stop. An audible signal
informs you of the end of the washing programme.
Open the dishwasher’s door, leave it ajar and wait a few
minutes before removing the dishes; in this way they will
be cooler and the drying will be improved.
The end of programme indicator light is on.
The indicator light of the programme just ended is on.
Switch off the dishwasher by pressing the On/Off button.
6. Unloading the dishwasher
Hot dishes are sensitive to knocks. The dishes should
therefore be allowed to cool down before removing from
the appliance.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
Water may appear on the sides and the door of the
dishwasher as the stainless steel will eventually become
cooler than the dishes.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and the
water tap turned off.
Starting a washing programme
12

Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.
Cleaning the filters
The filters must be checked and cleaned from time to time.
Dirty filters will degrade the washing result.
1. Open the door, remove the lower basket.
2. The dishwasher filter system comprises a coarse filter (A),
a microfilter (B) and a flat filter (C).
Unlock the filter system using the handle on the microfilter,
and remove.
3. Turn the handle about 1/4a turn anticlockwise and remove.
4. Take hold of the coarse filter (A) by the handle with
the hole and remove from the microfilter (B).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter (C) from the base of the washing
compartment and clean both faces thoroughly.
7. Put the flat filter (C) back in the base of the washing
compartment.
8. Place the coarse filter (A) in the microfilter (B) and press
together.
9. Put the filter combination in place and lock by turning the
handle clockwise to the stop. During this process ensure
that the flat filter does not protrude above the base of the
washing compartment.
Attention!
Under no circumstances may the dishwasher be used without
filters.
Incorrect repositioning and fitting of the filters will produce
poor washing results.
NEVER try to remove the
upper spray arm.
If residues of soil have
clogged the holes in the
upper spray arm, remove
them with a cocktail stick.
Prolonged periods of non-operation
If you are not using the machine for any period of time you are
advised to:
1. Unplug the appliance and then turn off the water.
2. Leave the door ajar to prevent the formation of any
unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Maintenance and cleaning
13

Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions
given here, without calling out an engineer.
Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will
be made, even if the appliance is in guarantee.
Something not working
14
...a fault code appears
The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard.
Open the dishwasher’s door.
The intervention of an alarm is indicated by:
- continuous flashing of the indicator light of the running programme,
- a combination of flashes and pauses of the end of programme indicator light and by intermittent audible signals (as described in
the chart).
Carry out the following suggested corrective actions.
Once the checks have been carried out, press the programme selection/cancel button and close the dishwasher’s door. The
programme will continue from the point at which it was interrupted. If the fault code reappears contact your local Service Force
Centre.
For other combinations of fault codes not described in the above chart, please contact your local Service Force Centre.
- continuous flashing of the
indicator light of the running
programme
- 1 intermittent audible signal
- 1 flash of the "end of
programme" indicator light
The machine does not fill with
water.
- continuous flashing of the
indicator light of the running
programme
- 2 intermittent audible signals
- 2 flashes of the "end of
programme" indicator light
The dishwasher will not drain.
Fault code / malfunction Possible cause Solution
The water tap is blocked or furred with
limescale.
The water tap is turned off.
The filter (where present) in the threaded hose
fitting at the water inlet valve is blocked.
The water inlet hose has not been correctly laid
or it is bent or squashed.
Clean the water tap.
Turn the water tap on.
Clean the filter in the threaded hose
fitting.
Check the water inlet hose connection.
The sink spigot is blocked. Clean out the sink spigot.
The water drain hose has not been correctly laid
or it is bent or squashed. Check the water drain hose connection.
...there are problems when operating the dishwasher
The programme does not start
There is a whistling noise during
washing
Malfunction Possible cause Solution
The dishwasher door has not been properly
closed.
The main plug is not plugged in.
The fuse has blown in the household fuse box.
Close the door.
Insert the mains plug.
Replace the fuse.
Use a different brand of detergent.The whistling is not a cause for concern.

...the wash results are not satisfactory
The dishes are not clean
●The wrong washing programme has been selected.
●The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.
●The spray arms do not rotate freely due to wrong arrangement of the load.
●The filters in the base of the washing compartment are dirty or incorrectly positioned.
●Too little or no detergent has been used.
●Where there are limescale deposits on the dishes; the salt container is empty or the wrong level of the water softener has been
selected.
●The drain hose connection is not correct.
●The salt container cap is not properly closed.
The dishes are wet and dull
●Rinse aid was not used.
●The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating on glasses and dishes
●Decrease rinse aid dosing.
Water drops have dried onto glasses and dishes
●Increase rinse aid dosing.
●The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
If after all these checks, the problem persists, contact your
local Service Force Centre, quoting the model (Mod.), product
number (PNC) and serial number (S.N.).
This information can be found on the rating plate located on
the side of the dishwasher door (see picture).
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod. : . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . .
This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
machine yourself.
Repairs carried out by inexperienced persons may cause injury
or serious malfunctioning. Contact your local Service Force
Centre.
Always insist on genuine spare parts.
15

In the event of your appliance requiring service, or if you wish
to purchase spare parts please contact your local Service
Force Centre by telephoning:
08705 929929
Your telephone call will be automatically routed to the Service
Force Centre covering your post code area.
For the address of your local Service Force Centre and further
information about Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you read the
details under the heading "Something not working".
When you contact the Service Force Centre you will need to
give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the
rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee
documentation is required for in-guarantee service calls.
Customer Care
Department
For general enquiries concerning your appliance, please
contact our Customer Care Department by letter or telephone
at the address below:
Customer Care Department
EHP
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] (*)
*calls to this number may be recorded for training purposes
Guarantee Conditions
Standard Guarantee Conditions
We, EHP, undertake that if within 12 months of the date of
purchase this Firenzi appliance or any part thereof is proved to
be defective by reason only of faulty workmanship or materials,
we will, at our option repair or replace the same FREE OF
CHARGE for labour, materials or carriage on condition that:
●The appliance has been correctly installed and used only on
the electricity supply stated on the rating plate.
●The appliance has been used for normal domestic purposes
only, and in accordance with the manufacturer’s instructions.
●The appliance has not been serviced, maintained repaired,
taken apart or tampered with by any person not authorised
by us.
●All service work under this guarantee must be undertaken by
a Service Force Centre.
●Any appliance or defective part replaced shall become the
Company’s property.
●This guarantee is in addition to your statutory and other legal
rights.
Home visits are made between 8.30am and 5.30pm Monday
to Friday. Visits may be available outside these hours in which
case a premium will be charged.
Exclusions
This guarantee does not cover:
●Damage or calls resulting from transportation, improper use
or neglect, the replacement of any light bulbs or removable
parts of glass or plastic.
●Costs incurred for calls to put right an appliance which is
improperly installed or calls to appliances outside the United
Kingdom.
●Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
European Guarantee
If you should move to another country within Europe then your
guarantee moves with you to your new home subject to the
following qualifications:
●The guarantee starts from the date you first purchased your
product.
●The guarantee is for the same period and to the same extent
for labour and parts as exists in the new country of use for
this brand or range of products.
●This guarantee relates to you and cannot be transferred to
another user.
●Your new home is within the European Community (EC) or
European Free Trade Area.
●The product is installed and used in accordance with our
instructions and is only used domestically, i.e. a normal
household.
●The product is installed taking into account regulations in
your new country.
Before you move please contact your nearest Customer Care
centre, listed below, to give them details of your new home.
They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your
appliance.
France Senlis [phone]
Germany Nurenberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
16
Service and Spare Parts

Any electrical and/or plumbing work required to install
this appliance should be carried out by a qualified
electrician and/or plumber or competent person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.
Building-in
This dishwasher is designed to be fitted under a kitchen
counter or worksurface.
Attention!
Carefully follow the instructions on the enclosed template for
building in the dishwasher and fitting the furniture panel.
No further openings for the venting of the dishwasher are
required, but only to let the water fill and drain hose and power
supply cable pass through.
The dishwasher incorporates adjustable feet to allow the
adjustment of the height.
During all operations that involve accessibility to internal
components the dishwasher has to be unplugged.
When inserting the machine, ensure that the water inlet hose,
the drain hose and the supply cable are not kinked or
squashed.
Levelling
Good levelling is essential for correct closure and sealing of
the door.
When the appliance is correctly levelled, the door will not catch
on either side of the cabinet.
If the door does not close correctly, loosen or tighten the
adjustable feet until the machine is perfectly level.
Fixing to the adjacent units
The dishwasher must be secured against tilting.
Therefore make sure that the counter it is fixed under, is
suitably secured to a fixed structure (adjacent kitchen units
cabinets, wall).
Water supply connections
This dishwasher must be plumbed into a cold water supply.
For making the connection itself, the coupling nut fitted to the
machine’s supply hose is designed to screw onto a 3/4" inch
gas thread spout.
The water pressure must be within the limits given in the
"Technical specifications". Your local Water Authority will
advise you on the average mains pressure in your area.
The water inlet hose must not be kinked, crushed, or entangled
when it is being connected.
The inlet hose must hang down vertically from the supply tap.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation by
means of the locknut. The locknut must be correctly fitted
to avoid water leaks. (Attention! NOT all models of
dishwashers have fill and drain hoses provided with locknut. In
this case, this kind of facility is not possible).
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose.
Do not use, for connection, old hoses which have been
used with another appliance.
The dishwasher is fitted with safety devices that prevent the
wash water returning into the drinking water system and
comply with the applicable plumbing regulations.
Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet spigot, securing it to the underside of the
work surface. This will prevent waste water from the sink
running into the machine.
2. Hooked over the edge of the sink using the special curved
plastic guide (if provided with the machine).
3. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could prevent
or slow down the discharge of water.
The sink plug must not be in place when the machine is
draining as this could cause the water to syphon back into the
machine.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
Attention!
Our appliances are supplied with a security device to protect
against the return of dirty water back into the machine.
If the spigot of your sink has a "no return valve" incorporated
this can prevent the correct draining of your dishwasher.
We advise you therefore to remove it.
Installation instructions
17

Electrical connection
This appliance must be earthed.
The manufacturer declines any responsibility should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for the
socket, it must be cut off and the appropriate plug fitted.
Important
The wires on the mains lead are coloured in accordance with
the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the mains
lead of your appliance may not correspond with the markings
identifying the terminals in your plug.
Proceed as follows:
1. Connect the Green and Yellow (earth) wire to the terminal
in the plug which is marked with the letter "E" or the earth
symbol or coloured green and yellow.
2. Connect the Blue (neutral) wire to the terminal in the plug
which is marked with the letter "N" or coloured black.
3. Connect the Brown (live) wire to the terminal in the plug
which is marked with the letter "L" or coloured red.
The plug moulded onto the lead incorporates a 13amp BSI362
fuse. Only ASTA or BSI fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The
cover/carrier is indicated by the coloured insert at the base of
the plug.
A replacement cover/carrier must be obtained from your local
Service Force Centre.
To isolate the dishwasher from mains, remove the mains plug.
Important!
The plug must still be accessible after the appliance
has been installed.
The appliance should not be connected to the
electrical supply by means of an extension cable.
In case that the electrical cable has to be replaced,
please contact your local Service Force Centre.
Warning!
A cut off plug inserted into a 13 amp socket is a
serious safety (shock) hazard. Ensure that it is
disposed of safely.
18
13A
CE04
E
NL

Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing
programmes" chart).
Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and
rinse aid respectively and using the test programme (see "Washing programmes" chart).
Hints for test centres
19
Load: 12 standard place settings
Rinse aid setting: position 4 (Type III)
Detergent dosage : 5 g + 25 g (Type B)
Arrangement lower basket
Arrangement upper basket
Arrangement cutlery basket

Subject to change without notice 04/05
152954 55/0
