Installation
●This appliance is heavy. Care should be taken when
moving it.
●It is dangerous to alter the specifications or attempt
to modify this product in any way.
●All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
●Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
●Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
●Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
●If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
●This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
●Pets and children have been known to climb into
washer-dryers. Please check your drum before use.
●The glass door becomes very hot during the washing
and drying cycle. Keep children away from the
vicinity of the appliance whilst it is in operation.
●Keep all packaging well away from children.
●Keep all detergents in a safe place out of children’s
reach.
Use
●Always unplug the appliance and turn off the water
supply after use.
●Do not overload the appliance. See relevant section
in the instruction book.
●Only wash and dry fabrics which are designed to be
machine washed and dried. If in doubt, consult the
care label on the clothes.
●Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.
●Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
●Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
●Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items to slip down between the tub
and the inner drum.
●Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer’s recommendations of
quantities.
●As some duvets and eiderdowns should be
washed/dried in large commercial machines because
of their bulk, please check with the manufacturer of
the item before washing in a domestic machine.
●The users should always check that they have not
left their gas lighters (disposable or otherwise) in
their clothing.
●Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.
Only tumble dry items which have been washed in
water or require airing.
●Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is
not designed to withstand the heat. If you wish to
wash-through-to-dry you should use the
conventional detergent dispenser drawer.
●Leave the porthole door slightly ajar between washes
to preserve the door seal.
●Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre.
Always insist on genuine spare parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance and the relevant
warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
132991970.qxd 04/11/2003 10:17 Pagina 2 (Nero/Process Black pellicola)

3
Contents
For the User
Important Safety Information 2
Your New Washer-Dryer 4
Description of the Appliance 5
Detergent dispenser drawer 5
The Control Panel 6
Operating sequence 7-11
Washing 4.5 kg of white cotton at 95°C 7
Load the laundry 7
Measure out the detergent 7
Measure out the fabric softener 7
Select the required options 7
Select the required programme 7
Start the machine 8
At the end of the programme 8
Washing 2 kg of mixed fabrics at 50°C 9
Load the laundry 9
Measure out the detergent 9
Measure out the fabric softener 9
Select the required options 9
Select the required programme 9
Start the machine 9
At the end of the programme 9
Drying 2.25 kg of cotton 10
Load the laundry 10
Select the programme 10
Select the required time 10
Start the machine 10
At the end of the programme 10
Autodrying 1.5 kg of mixed fabrics 11
Load the laundry 11
Measure out the detergent and fabric softener 11
Select the required programme 11
Select the required option 11
Select the required time 11
Start the machine 11
At the end of the programme 11
Washing and Drying Hints 12
Which detergent to use?.... 13
And in which form? 13
Washing and Drying Programmes 14-16
Wash Care Symbols 17
Maintenance and Cleaning 18-19
Descaling 18
After each wash 18
Maintenance wash 18
External cleaning 18
Cleaning the dispenser drawer 18
Cleaning the drawer recess 18
Cleaning the filter 18-19
The dangers of freezing 19
Emergency emptying out 19
Something Not Working 20-21
Service and Spare Parts 21
Guarantee Conditions 22
For the Installer
Installation Instructions 23
Technical Specifications 23
Unpacking 24
Positioning 24
Installation on a suspended floor 24
Water inlet 25
Water drainage 25-26
Levelling 26
Special conditions 26
In the interest of the environment 26
Electrical connection 27
Building-in 28-29
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
132991970.qxd 04/11/2003 10:17 Pagina 3 (Nero/Process Black pellicola)

4
Your New Washer-Dryer
Your new machine meets all modern requirements for effective treatment of laundry with low
water, energy and detergent consumption.
It is gentle with your laundry, simple to use and easy to care for.
●The special wool programme with its new delicate
wash system treats your woollens with extreme care.
●The anti-unbalance device ensures that the
machine remains stable when spinning.
●Automatic cooling of the wash water to 60°C
before draining, with the 95°C programme. This
reduces thermal shock to fabrics, helping to prevent
creasing.
●The two drying programmes will give your wash
that soft, relaxed feel whatever the weather.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
●Adjust the quantity of detergent according to the
hardness of your water supply, the amount of
laundry and the degree of soiling.
●Select a “Quick” programme for lightly soiled
laundry.
●A programme without prewash is sufficient for
normally soiled laundry.
●Try to load the maximum drying capacity of the
machine as small loads are uneconomical.
●Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and the
shorter the drying times.
In the interest
of the environment
●Materials marked with the symbol are
recyclable.
●Check with your local Council or Environmental
Health Office to see if there are facilities in your area
for re-cycling this appliance.
●When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
●Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the environment?
We use recycled paper!
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly
distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the
wash load manually and select a spin programme. For more detailed information see the section headed "Something
Not Working".
132991970.qxd 04/11/2003 10:17 Pagina 4 (Nero/Process Black pellicola)

5

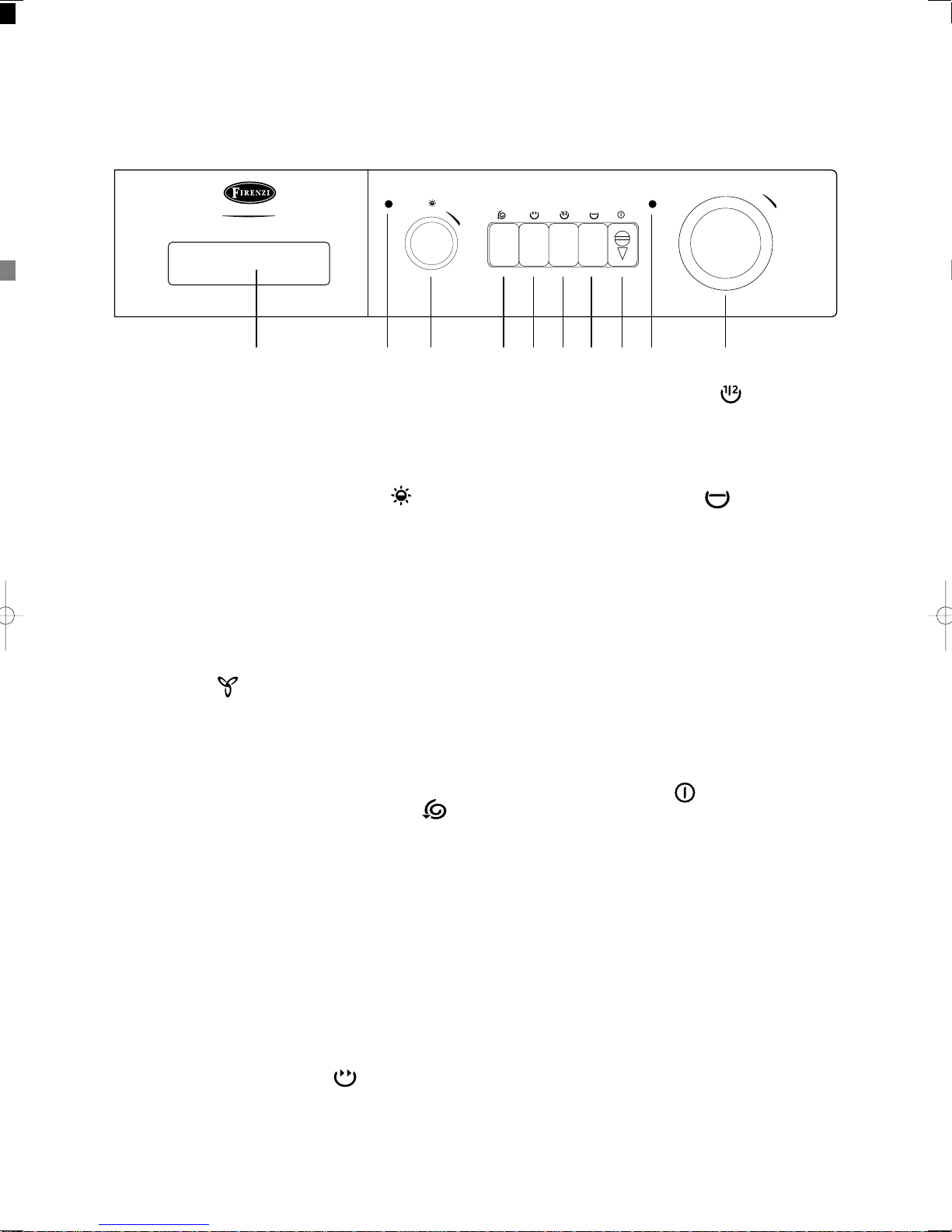

Description of the Appliance
1 Detergent dispenser drawer
2 Programme guide
3 Drying indicator light
4 Drying time selector dial
5 “Option” buttons
6 “ON/OFF” button
7 “Mains-on” light
8 Programme selector dial
9 Door opening handle
10 Filter
11 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
Programme chart
P0239S
13456
2
9
10
11
7 8
QUICK
WASH
RINSE
HOLD
HALF
LOAD
SPIN
REDUCTION ON/OFF
PROGRAMMES
LPR 720
1200
AUTOWASH
132991970.qxd 04/11/2003 10:17 Pagina 5 (Nero/Process Black pellicola)

6
The Control Panel
6 HALF LOAD button
Select this button to reduce water consumption on the
rinse cycle when washing a smaller load of cottons or
linens (maximum load size = 2.25 kg).
7 Rinse Hold button
Press this button to make the machine stop with water in
the drum after the cotton, synthetic or delicate wash
cycles.
This prevents any creasing which may occur if the
clothes are left damp in the drum. When it is convenient
for you to empty the machine, simply press this button
again so that the machine can proceed to drain and spin,
or select the drain programme “R”.
If this button is not activated, the washing programmes
will end with a spin.
The RINSE HOLD option must not be depressed
when using NON-STOP operation (automatic
washing & drying).
8 ON/OFF button
By depressing this button the machine starts operating.
When depressing it again, the machine stops.
The push button is provided with a child-proof safety
lock. Move the small slider placed in the middle of the
button downwards to lock the button in the «off» position.
9 Mains-on light
This light will illuminate when the machine starts
working and goes out when the ON/OFF button is
depressed again to switch the machine off.
10 Programme selector dial
With the programme selector dial you choose the
desired washing and drying programme. Turn it
clockwise. Depress the dial to pop it out.
Before setting the dial to any position the machine must
be switched off by depressing the ON/OFF button.
1 Detergent dispenser drawer
2 Drying indicator light
This light illuminates when the machine is drying.
3 Drying time selector dial
Graduated up to 120 mins for cottons and synthetics, this
dial allows you to select the desired drying time
according to the type and quantity of laundry and the
required degree of dryness:
- Red sector for cottons
-Black sector for synthetics
Turn the dial clockwise only.
Depress the dial to pop it out.
Cooling phase
To allow the laundry to cool down, a cooling phase starts
automatically 10 minutes before the end of drying and
this phase must in no circumstances be reduced or
interrupted.
4 Spin speed reduction button
By depressing this button the spin speed is reduced as
follows:
- cotton & linen: (prog. A, B, C, D and F) from 1200
rpm to 650 rpm;
- synthetics and wool : (prog. H, J, Kand M) from
850 rpm to 650 rpm.
- delicates: (prog. N, Pand Q) from 650 rpm to 450
rpm.
Important!
In order to save energy and to avoid too long drying
times we suggest not to reduce the spin speed when you
wash and dry automatically.
5 Quick wash button
By depressing this button on programmes A, B, C, D
and Hthe wash time is reduced.
This is suitable only for garments which are lightly soiled.
12345678910
1200
QUICK
WASH
RINSE
HOLD
HALF
LOAD
SPIN
REDUCTION
PROGRAMMES
FWD 1200
ON/OFF
AUTOWASH
132991970.qxd 04/11/2003 10:17 Pagina 6 (Nero/Process Black pellicola)

7
3. Measure out the fabric
softener
If required, pour fabric softener into the compartment
marked (the amount used must not exceed the
“MAX” mark in the drawer).
Close the drawer gently.
4. Select the required option(s)
Depress SPIN REDUCTION and/or QUICK WASH
and/or RINSE HOLD button, if required.
5. Select the required programme
Turn the programme selector dial clockwise to the
programme B or A (if you wish to perform a prewash).
P0429S
B
QUICK
WASH
RINSE
HOLD
HALF
LOAD
SPIN
REDUCTION
P0005
Operating Sequence
Before the first wash, we recommend that you run a
cotton cycle at 60°C, without any laundry in the
machine, to remove any manufacturing residue from the
drum and tub.
Pour 1/2 a measure of detergent into the dispenser
drawer and start the machine.
WASHING 4.5 KG OF WHITE COTTON AT 95°C
Suppose you have 4.5 kg of normally soiled laundry to
wash. It is white cotton and is suitable for high
temperature washing.

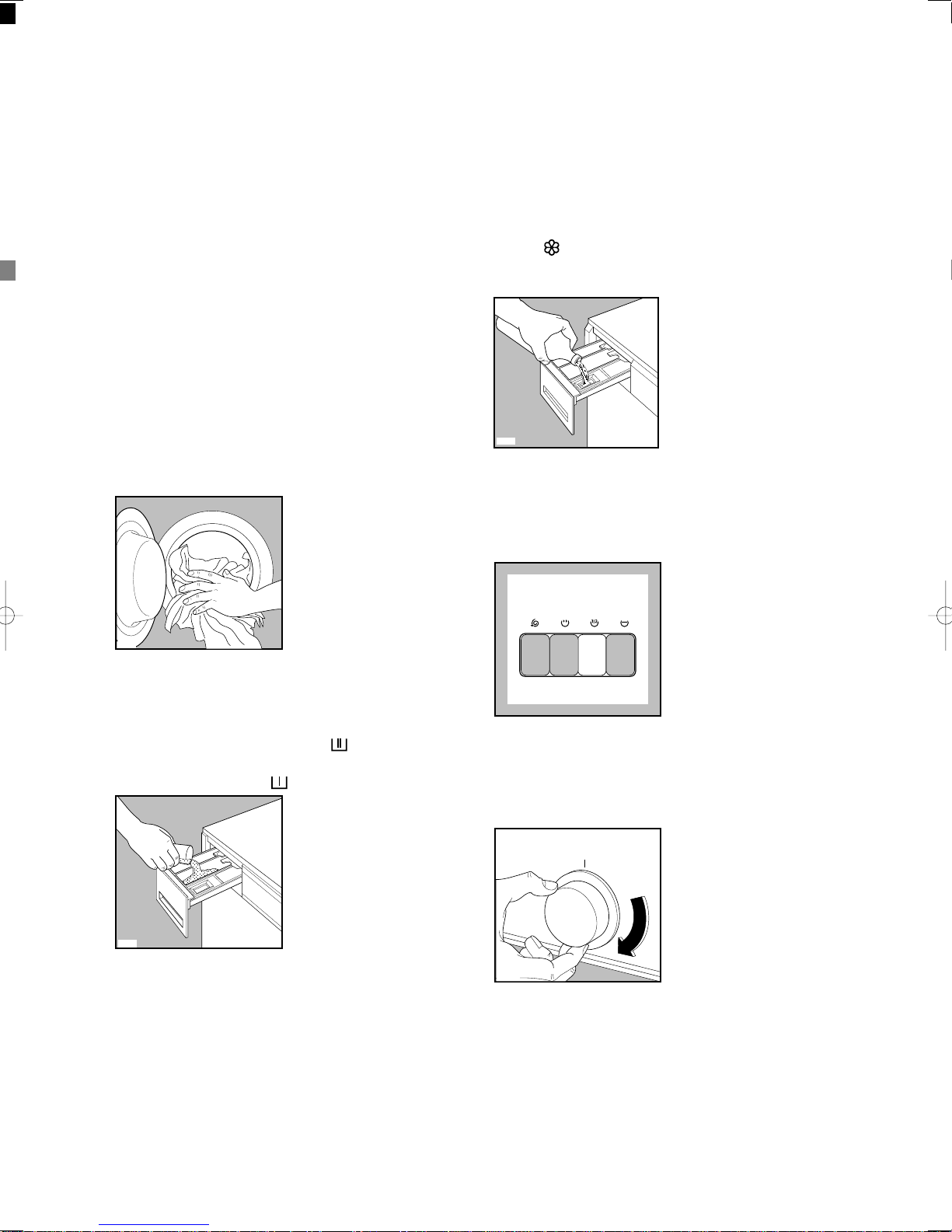

1. Load the laundry
Open the door by pulling the catch outward.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible. Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment .
If you wish to carry out the prewash, pour detergent into
the compartment marked .
P0006
P0004
132991970.qxd 04/11/2003 10:17 Pagina 7 (Nero/Process Black pellicola)

8

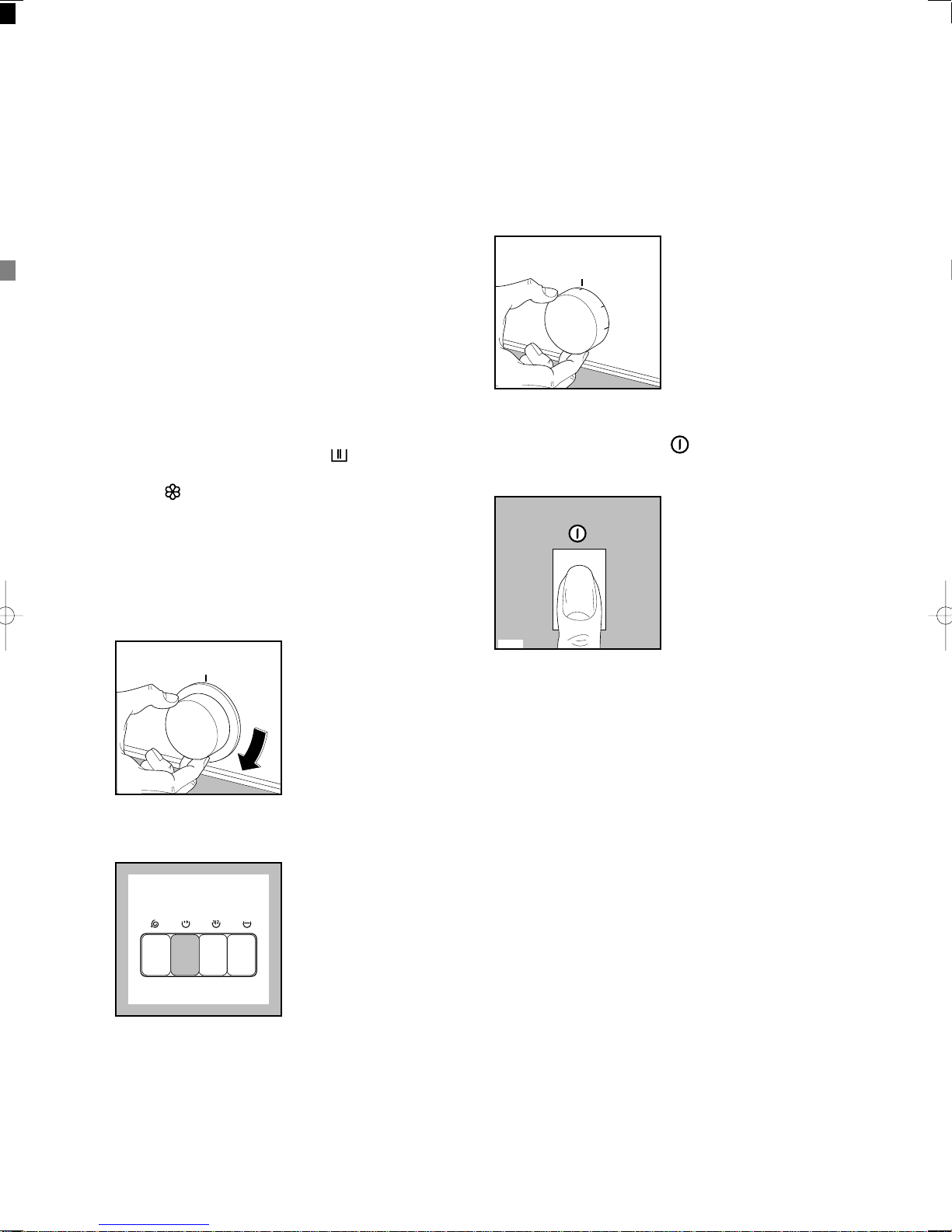

6. Start the machine
Before starting up the machine check that:
●the appliance is plugged in
●the water supply tap is turned on
●the drain hose is correctly and securely positioned
●the door and the detergent dispenser drawer are
closed.

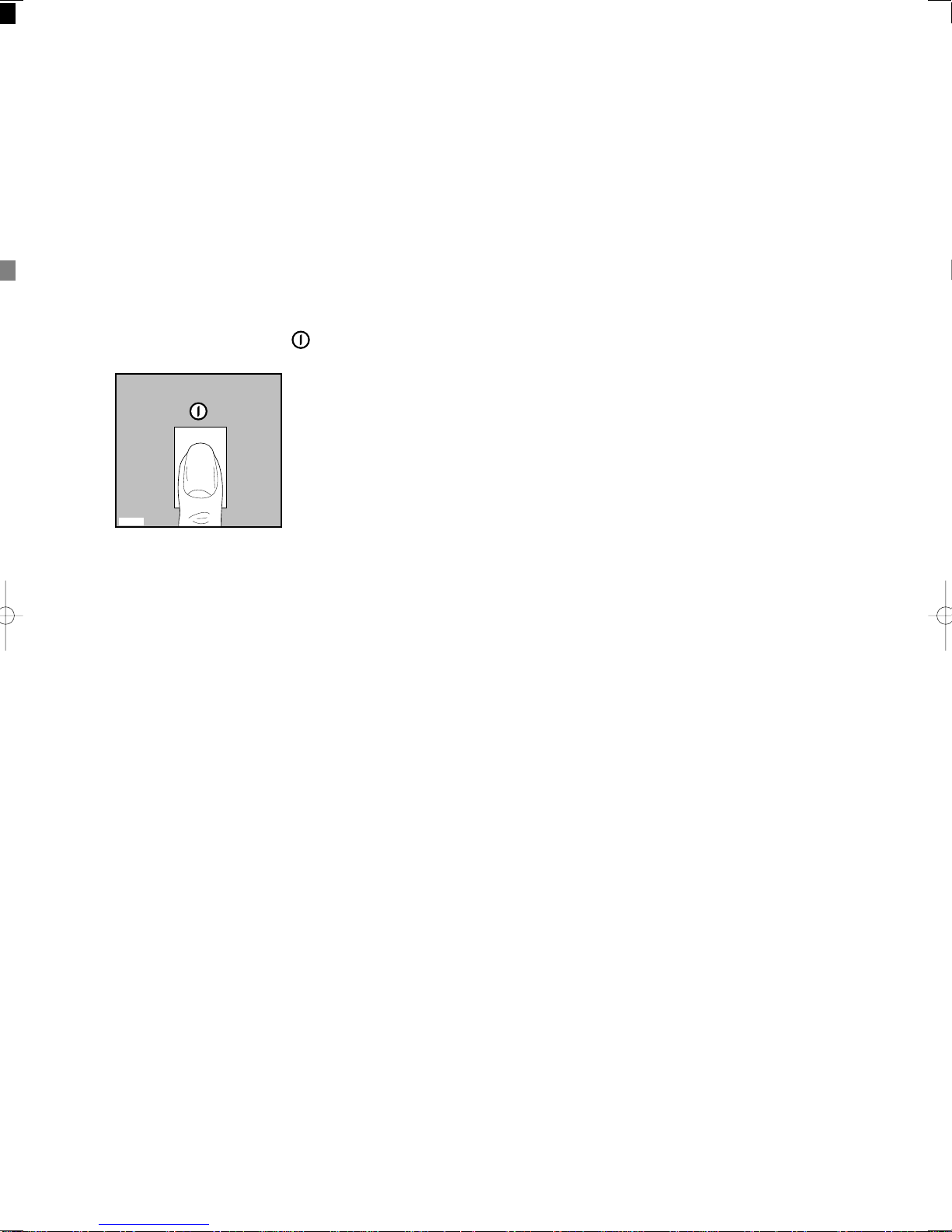

Depress the ON/OFF button : the mains-on light will
illuminate and the machine starts operating.
7. At the end of the programme
The machine stops automatically.
If you have depressed the RINSE HOLD button, the
machine will stop with the water of the last rinse left in
the tub, to prevent the fabric from creasing.
To drain the water and spin, release the same button
again . To drain only, select programme “R”.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again. The mains-on light goes out.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
P0471S
ON/OFF
132991970.qxd 04/11/2003 10:17 Pagina 8 (Nero/Process Black pellicola)

9
WASHING 2 KG OF MIXED FABRICS AT 50°C
Suppose you have 2 kg of mixed fabrics to wash. They
are rather delicate fabrics and should not be washed at a
high temperature.
1. Load the laundry
Open the door by pulling the catch outward.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible. Close the door.
2. Measure out the detergent
and the fabric softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment .
If required, pour fabric softener into the compartment
marked (the amount used must not exceed the
“MAX” mark in the drawer).
Close the drawer gently.
3. Select the required option(s)
Depress SPIN REDUCTION, QUICK WASH or
RINSE HOLD button, if required.
QUICK
WASH
RINSE
HOLD
HALF
LOAD
SPIN
REDUCTION
P0005
P0006
P0004
4. Select the required programme
Turn the programme selector dial clockwise to the
programme H.
5. Start the machine
Before starting up the machine check that:
●the appliance is plugged in
●the water supply tap is turned on
●the drain hose is correctly and securely positioned
●the door and the detergent dispenser drawer are
closed.
Depress the ON/OFF button : the mains-on light will
illuminate and the machine starts operating.
6. At the end of the programme
The machine stops automatically.
If you have depressed the RINSE HOLD button, the
machine will stop with the water of the last rinse left in
the tub, to prevent the fabric from creasing. To drain the
water and spin, release the same button again. To drain
only, select programme “R”.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again. The mains-on light goes out.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
P0471S
ON/OFF
H
P0673S
132991970.qxd 04/11/2003 10:17 Pagina 9 (Nero/Process Black pellicola)

10
DRYING 2.25 KG OF COTTON
You have for example just machine-washed and spun at
1200 rpm 4.5 kg (10 lb) of laundry.
They are cotton fabrics of medium weight which you
want to iron as soon as they are dry.
Switch off the machine.
Then remove the laundry from the appliance and divide
the items to obtain two loads of approx. 2.25 kg (5 lb)
each.
1. Load the laundry
Open the door by pulling the catch outward.
Load the items one at a time and close the door.
2. Select the programme
Turn the programme selector dial clockwise to
programme G.
3. Select the required time
Following indications given in the programme chart on
page 16, turn the drying time selector dial clockwise to
the 60 mins setting in the red sector.
M0031a
60
90
G
P0673M
P0004
4. Start the machine
Depress the ON/OFF button , the mains-on light and
drying light will illuminate and the machine starts
operating.
5. At the end of the programme
The machine stops automatically and the drying light
goes out.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the appliance carries out a cooling and
anticrease phase.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
P0471S
ON/OFF
132991970.qxd 04/11/2003 10:17 Pagina 10 (Nero/Process Black pellicola)

11
AUTODRYING 1.5 KG OF MIXED FABRICS
You intend to wash and dry automatically 1.5 kg (3.3 lb)
of mixed fabrics which have to be ironed.
Proceed as follows:
1. Load the laundry
Open the door by pulling the catch outward.
Load the items one at a time and close the door.
2. Measure out the detergent
and fabric softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment .
If required, pour fabric softener into the compartment
marked (the amount used must not exceed the “MAX”
mark in the drawer).
Close the drawer gently.
3. Select the required programme
Turn the programme selector dial clockwise to
programme H.
4. Select the required option
Depress QUICK WASH button, if required.
QUICK
WASH
RINSE
HOLD
HALF
LOAD
SPIN
REDUCTION
H
P0673S
5. Select the required time
Following indications given in the programme chart on
page 16, turn the time selector dial clockwise to the 90
mins setting in the black sector.
6. Start the machine
Depress the ON/OFF button : the mains-on light
comes on and the machine
starts operating.
7. At the end of the programme
The machine stops automatically and the drying
light goes out.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the appliance carries out a cooling and
anticrease phase.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
P0471S
ON/OFF
M0031b
90
120
132991970.qxd 04/11/2003 10:17 Pagina 11 (Nero/Process Black pellicola)

Washing and Drying Hints
Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.
The average weights of the most common items are
listed below as a guide:
1000g = 1 kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
●Load the laundry loosely alternating large items with
small ones.
●Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
●Avoid washing unhemmed or torn items as they may
unravel.
●Before washing, empty all pockets of small objects
which may have been left inside (coins, keys, screws
etc). as these could damage the drain pump.
●When washing curtains, remove the hooks.
●Close poppers and zips and fasten loose buttons.
●It is essential to wash new coloured items separately
when washing for the first time.
●When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
●White items should not be washed with coloured
items.
●Very small items (handkerchiefs, ribbons, socks etc)
should be washed in a washing bag or a pillow case.
●Use a good quality detergent suitable for automatic
washing machines.
●Use the correct quantities of detergent.
●For wool, use gentle detergent only in small
quantities.
●Bleach is very corrosive; it should be used with care
and kept out of reach of children.
●Some stains such as fruit, wine, grass, rust etc. are
difficult to remove and should be treated before
washing with specific products, which can be found
in most household shops. In some cases it may help
to soak the stain before washing with a special pre-
soak product or biological detergent.
●Only wool marked “Pure New Wool - washable,
preshrunk” can be washed in the machine using the
wool programme; other types of wool should be
washed by hand or dry cleaned.
●If you have used the machine to wash, rinse or spin
only non-colour fast garments, there may be dye left
in the sump. To ensure any subsequent wash is not
contaminated with the dye, select and carry out a
rinse and spin programme, without any garments, to
ensure that any dye is removed from the sump.
●Do not leave the damp laundry load in a heap too
long before drying.
●Avoid drying dark clothes with light coloured fluffy
items such as towels as these can attract the fluff.
●If you overdry the laundry, besides wasting energy,
any subsequent ironing may become more difficult
because the fabric could be heavily crumpled.
●Remove the laundry when the appliance has finished
drying.
●To avoid a static charge when drying is completed,
use either a fabric softener when you are washing the
laundry or a fabric conditioner specifically for
tumble dryers.
●Particularly delicate items such as synthetic curtains,
woollen and silk, garments with metal inserts, nylon
stockings, bulky garments such as anoraks,
bedcovers, quilts, sleeping bags and duvets must not
be machine dried.
●Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
●Also, fabrics containing residues of setting lotions or
hair sprays, nail solvents or similar solutions must
not be machine dried in order to avoid the formation
of harmful vapours.
●For drying, follow the indications given on the
manufacturer’s labels.
May be tumble dried
Drying at high temperature
Drying at reduced temperature
Do not tumble dry
Important:
As a dryer, the machine works on the condensation
principle.
Therefore, the water taps must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
12
132991970.qxd 04/11/2003 10:17 Pagina 12 (Nero/Process Black pellicola)

13
And in which form?
Not only are there different types of detergent, but they
are also available in different forms. Whether you chose
a powder or liquid in traditional or compact form is
your own personal choice.
TRADITIONAL POWDERS
Pour the powder directly into the dispenser drawer. Do
not sprinkle powder onto clothes in the machine drum.
TRADITIONAL LIQUIDS
Liquid can be placed in the main wash compartment of
the detergent drawer marked with the symbol , start
the machine immediately upon placing the detergent in
the dispenser drawer.
Alternatively the detergent is measured into the
specially designed dosing device* which should be
placed on top of the laundry, and at the back of the
machine drum.
COMPACT POWDERS AND LIQUIDS
Compact detergents (or concentrates as they are also
known) are available in liquid or powder form, and
generally require a smaller dosage. Follow the
manufacturer’s instructions to ensure the most
economical usage. Pour the detergent directly into the
dispenser drawer, or alternatively measure the detergent
into the specially designed dosing device* which
should be placed on top of the laundry, and at the back
of the machine drum.
* If you use a dosing device in a washer dryer,
please ensure the dosing device/ball is removed
before carrying out a drying programme.
FABRIC CONDITIONERS
These are ideal for improving ‘softness’, and also
reduce static cling on synthetics and make ironing
easier. They are available in two types:
For example Lenor liquid fabric
softener, for use in the washing
machine/washer dryer. The
liquid fabric softener should be
poured into the compartment
marked with the symbol .
Follow the manufacturer’s dosage
instructions and never exceed the
MAX level.
Bounce conditioning sheets for use
in a tumble dryer. We recommend
the conditioning sheets are pinned
(using a safety pin) to an article
of laundry and placed in the
tumble dryer.
Which detergent?....
To ensure you obtain the best wash results from your
appliance, it is important to use the right detergent in
your everyday wash, and only detergents recommended
for use in automatic machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer you
should use different types of detergent for different
washes, whether for whites, colours or delicates.
WHITES
We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.
NON BIOLOGICAL
If you prefer to use a non
biological detergent, which does
not contain enzymes we
recommend Fairy. Fairy provides
good cleaning and stain removal.
COLOUREDS
For coloured items you should use a
detergent which is designed to clean
while maintaining the original colour.
Ariel Color does not contain bleach
and therefore helps to preserve
colours.
DELICATE ITEMS
When washing delicates such as
woollens, you should use a product
which is specially designed to care for
fine fabrics.
Dreft Automatic is suitable for
woollens and other delicates.
LAUNDRY BLEACH
For additional stain removal you may
wish to use a product such as Ace
Gentle Bleach which is used in addition
to your chosen detergent. Ace is
suitable for all washable fabrics
including silks, woollens and coloureds.
132991970.qxd 04/11/2003 10:17 Pagina 13 (Nero/Process Black pellicola)

14
Washing Programmes
Programmes for cotton and linen
Degree of soil
and type of laundry Description
Wash programme Programme
dial position Possible options Max.
load
FAST
COLOUREDS
WHITES
WHITES
WITH
PREWASH
For heavy soiled cotton
items (whites and
coloureds).
Fast coloured cotton or
linen fabrics, shirts,
underwear, towels.
White cotton, for
example normally soiled
work garments, sheets,
household linen,
underwear, towels.
A
C(*)
B
Wash at 95 °C
3 rinses
Long spin at
1200 rpm
Wash at 60 °C
3 rinses
Long spin at
1200 rpm
Prewash
at 40 °C
Wash at 95
°C
Long spin at
1200 rpm
4.5 kg
4.5 kg
Progr.
time
mins.
140
150
125
4.5 kg
NON- FAST
COLOUREDS
Non fast coloured
cotton or linen fabrics,
shirts, blouses,
underwear. D
Wash at 40 °C
3 rinses
Long spin at
1200 rpm
115
12
4.5 kg
SPIN 1200 Separate spin for
cotton and linen items F
Long spin at
1200 rpm
4.5 kg
(*) This programme at 60°C with cold water filling is the reference programme for the Energy label according to
EEC Directive 92/75.
Important!
• Some programmes, when selected, may start with a short drain. This is quite normal and not a fault of the machine.
When a programme is selected, the selector dial will advance to the water filling position. E.g. Programme Bis
selected, there is a short drain. The appliance takes in water and the selector will appear to move to the C position.
The appliance will have memorised the programme selected, in this case B, and will run the correct programme
even though the selector dial appears to be at position C.
• We recommend you not to switch the appliance off and on during its operation. This would modify the memorised
programme in progress with unsatisfactory washing results.
132991970.qxd 04/11/2003 10:17 Pagina 14 (Nero/Process Black pellicola)

15
Washing Programmes
Degree of soil
and type of laundry DescriptionWash programme Programme
dial position
SYNTHETICS
Possible
options
SHORT SPIN
WOOL WASH
DELICATE
WASH
Synthetic or mixed
fabrics, underwear,
coloured garments,
non-shrink shirts,
blouses.
Specially tested
programme for wool
garments bearing the
“Pure new wool, non-
shrink, machine
washable” label.
Delicate fabrics, for
example curtains
H
M
NWash at 40 °C
3 rinses
Short spin at
650 rpm
Wash at 40 °C
3 rinses
Short spin at
850 rpm
Wash at 50 °C
3 rinses
Short spin at
850 rpm
DRAIN
Separate spin for hand
washed synthetics,
delicates and wool
For emptying out the
last rinse water in
programmes with the
Rinse Hold option. R
KDraining of
water and short
spin at 850 rpm
Draining of
water
Max.
load
Progr.
time
mins.
2 kg
2 kg
1 kg
2 kg
-
RINSES
Separate rinse cycle for
hand washed synthetics
and delicate fabrics. P3 rinses
Short spin at
650 rpm 2 kg
60
50
50
JWash at 30°C
3 rinses
Short spin at
850 rpm
30° WORN ONCE Lightly soiled synthetics or
mixed fabrics 2 kg 30
Q1 rinse
Short spin at
650 rpm
SOFTENERS This programme can be
used for softening hand
washed garments 2 kg 9
6
1
18
Important!
• Programmes Hand M, when selected, may start with a short drain. This is quite normal and not a fault of the
machine.
• We recommend you not to switch the appliance off and on during its operation. This would modify the memorised
programme in progress with unsatisfactory washing results.
132991970.qxd 04/11/2003 10:17 Pagina 15 (Nero/Process Black pellicola)

16
Drying Programmes
(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in
compliance with standard EEC 92/75.
Degree of drying Drying time
mins
Spin speedMax. load
Programme/
Type of fabric
Store dry (*)
Suitable for items to
put away without
ironing
G
Cotton and linen (towels,
T-shirts, bathrobes)
L
Synthetics and mixed
fabrics (jumpers,
blouses, underwear,
household linen)
2.25 kg 1200 85-95
Red sector
1.5 kg 1200 55-65
Red sector
1.5 kg 850 110-120
Black sector
1 kg 850 65-75
Black sector
Iron dry
Suitable for ironing
G
Cotton and linen (sheets,
tablecloths, shirts, etc.)
L
Synthetics and mixed
fabrics (shirts, blouses,
household linen)
2.25 kg 1200 60-70
Red sector
1.5 kg 1200 40-50
Red sector
1.5 kg 850 80-90
Black sector
1 kg 850 40-50
Black sector
132991970.qxd 04/11/2003 10:17 Pagina 16 (Nero/Process Black pellicola)

17
Wash Care Symbols
Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling
code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct
programme on your washing machine.
WASHING SYMBOL
BLEACHING
IRONING
DRY CLEANING
TUMBLE DRYING
WASH ACTION FABRIC
Hot iron
Warm iron
Cool iron
Cotton, Linen, Viscose
Polyester mixtures, Wool
Acrylic, Nylon, Polyester
Important Notes
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing it
in gently. This is particularly important if you are using
fabric conditioner to avoid the conditioner entering the
machine prematurely.
When using liquid detergent and a prewash programme,
place the detergent into the correct compartment in the
dispenser drawer, after the prewash has finished.
95
60
50
40
40
40
Chlorine bleach may be used
May be tumble dried
with high heat setting
with low heat setting
A cross through any symbol means «DO NOT»
May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.
Normal (Maximum)
Normal (Maximum)
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum)
Hand wash only
Nylon, Polyester/Cotton, Viscose
with Special Finishes,
Cotton/Acrylic Mix.
Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.
Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.
Wool, wool mixtures, Silks
Do not machine wash
X
132991970.qxd 04/11/2003 10:17 Pagina 17 (Nero/Process Black pellicola)

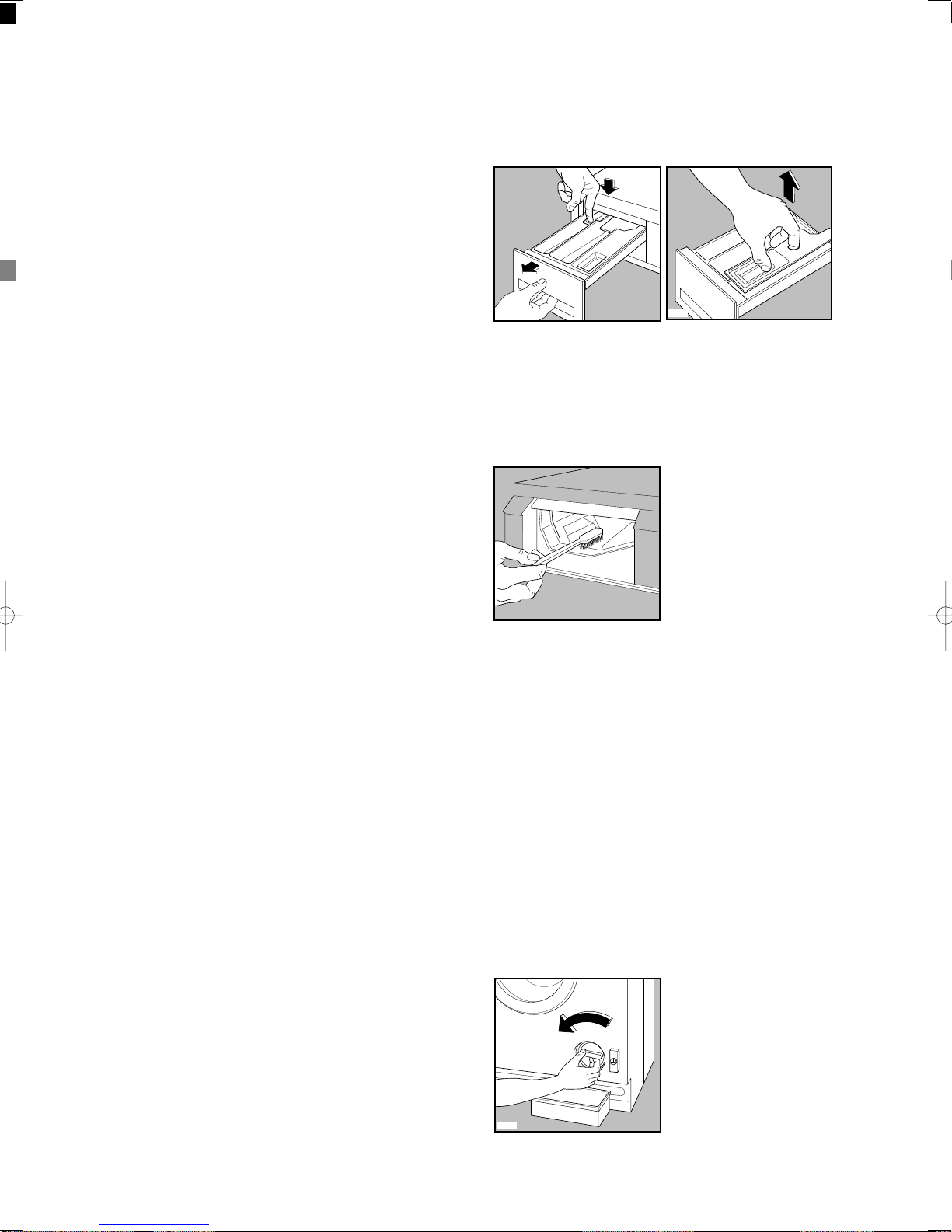

Cleaning the drawer recess
Having removed the drawer, use a small brush to clean
the recess, ensuring that all washing powder residue is
removed from the upper and lower part of the recess.
Replace the drawer and run the rinse programme for a
few minutes without any clothes in the drum.
Cleaning the filter
The water drain filter
A clean filter is important for the correct operating of
the machine, and should therefore be cleaned after every
washing programme.
Place a container under the filter to catch any spillage. If
the filter is blocked and the machine is unable to drain
you will need to drain the water manually from the
machine at this stage. To do this, unhook the drain hose
from the standpipe or sink and hold the end of the hose
over a bowl on the floor. The water should drain by
gravity into the bowl. When the bowl is full, hook the
hose back up and empty the bowl. Repeat the procedure
until water stops flowing out.
Unscrew and remove the filter.
P0037
P0038
P0009
P0010
Maintenance and Cleaning
Before any maintenance or cleaning is carried out you
must DISCONNECT the appliance from the electricity
supply.
Descaling
The water we use normally contains lime. It is a good
idea to periodically use a water softening powder in the
machine. Do this separately from any laundry washing,
and according to the softening powder manufacturer's
instructions. This will help to prevent the formation of
lime deposits.
After each wash
Leave the door open for a while. This helps to prevent
mould and stagnant smells forming inside the appliance.
Keeping the door open after a wash will also help to
preserve the door seal.
Maintenance Wash
With the use of low temperature washes it is possible to
get a build up of residues inside the drum.
We recommend that a maintenance wash be performed
on a regular basis.
To run a maintenance wash:
●The drum should be empty of laundry.
●Select the hottest cotton wash programme.
●Use a normal measure of detergent, must be a
powder (such as Ariel Futur).
External cleaning
Clean the exterior cabinet of the appliance with soap
and water only, and then dry thoroughly.
Cleaning the dispenser drawer
The washing powder and additive dispenser drawer
should be cleaned regularly.
Remove the drawer by pressing the catch downwards
and by pulling it out. Flush it out under a tap, to remove
any traces of accumulated powder.
To aid cleaning, the top part of the additive
compartment should be removed.
18
132991970.qxd 04/11/2003 10:17 Pagina 18 (Nero/Process Black pellicola)

19
The dangers of freezing
If the machine is exposed to temperatures below 0°C,
certain precautions should be taken.
●Turn off the water tap.
●Unscrew the inlet hose.
●Unhook the drain hose from the rear support and
position the end of this hose and that of the inlet
hose in a bowl. Run the draining programme.
●Disconnect the appliance.
●Screw the inlet hose and reposition the drain hose.
●When you intend to start the machine up again,
make sure that the room temperature is above 0°C.
Emergency emptying out
If the water is not discharged (outlet pump is
blocked, filter or drain hose are clogged), proceed as
follows to empty out the machine:
●pull out the plug from the power socket;
●close the water tap;
●if necessary, wait until the water has cooled down;
●place a bowl on the floor under the filter;
●slightly loosen the filter to let the water come out
slowly;
●at the end screw the filter again.
Clean carefully under a fast running tap.
Warning
When the appliance is in use and depending on the
programme selected there can be hot water in the filter.
Never remove the filter during a wash cycle, always
wait until the appliance has finished the cycle, and is
empty. When replacing the filter, ensure it is securely
retightened so as to stop leaks and young children being
able to remove it.

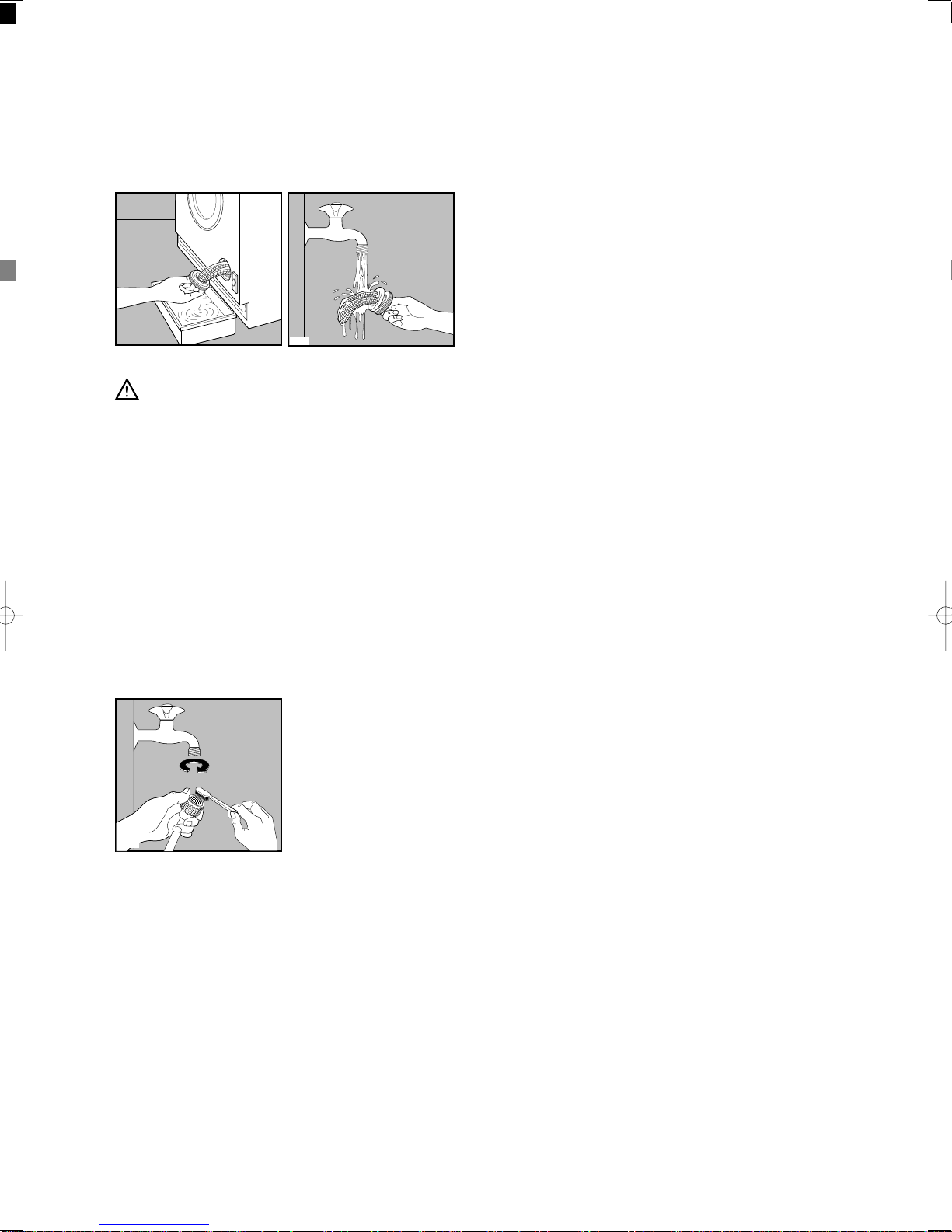

The water inlet filter
If your water is very hard or contains traces of lime
deposit, the water inlet filter may become clogged.
It is therefore a good idea to clean it from time to time.
Turn off the water tap. Unscrew the water inlet hose.
Remove and clean the filter using a hard bristle brush.
Replace the filter and tighten up the inlet hose.
P1090
P0040
P0039
132991970.qxd 04/11/2003 10:17 Pagina 19 (Nero/Process Black pellicola)

20
Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out
an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Symptom
The machine does not start
Possible causes
●The door has not been closed.
●The plug is not properly inserted in the power socket.
●There is no supply at the socket.
●The main fuse or the fuse in the plug has blown.
●The selector dial is not correctly positioned.
●The ON/OFF button has not been depressed.
The machine does not fill ●Ensure the water tap is open.
●The filter in the inlet hose is blocked.
●The inlet hose may be squashed or kinked.
●The door has not been closed.
The machine fills then empties
immediately ●The end of the drain hose is too low.
●The end of the drain hose is submerged in water.
●There is no vent in the end of the drain hose.
The machine does not empty and/or
does not spin ●The drain hose may be squashed or kinked.
●The RINSE HOLD option has been selected.
●The drain filter may be blocked, follow the instructions for emergency
emptying.
●The drain hose extension, if fitted, is not correct. Follow the
instructions for connecting to the waste.
●The drainage system pipes are blocked.
●The washload is unbalanced: redistribute the clothes inside the drum to
allow the machine to spin.
There is water on the floor ●Too much detergent or unsuitable detergent has been used (creates too
much foam).
●Check whether there are any leaks from one of the inlet hose fittings. It
is not always easy to see this as the water runs down the hose; check to
see if it is damp.
●The drain hose may be damaged or not securely positioned.
●The detergent dispenser drawer or recess is clogged.
●The drainage system pipes are blocked.
Unsatisfactory washing results ●Too little detergent or unsuitable detergent has been used. An
insufficient amount of detergent leaves the laundry looking grey and
causes lime scale to form.
●Stubborn stains have not been treated prior to washing
●The correct wash programme has not been selected.
●Too much laundry has been placed in the drum.
The machine vibrates when spinning ●The internal packing has not been removed.
●The machine is in contact with the wall or furniture.
●The machine is not stable and level (check diagonally).
●The washing load is badly distributed in the drum.
●Maybe there is very little laundry in the drum.
132991970.qxd 04/11/2003 10:17 Pagina 20 (Nero/Process Black pellicola)
