First Choice Southbend 436A-CE User manual

SPARE PARTS DIAGRAM FOR
Restaurant Oven Ranges
436A-CE, 436D-CE, 460AA-CE, 460AD-CE,
and 460DD-CE
First Choice Group
Blakeney Way, Kingswood Lakeside
Cannock, Staffs, WS11 8LD
TEL: [phone] FAX: [phone]
Email: [email protected]
Web: www.firstchoice-cs.co.uk

IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain
this manual for the life of the equipment:
Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________
Owner’s Manual
Model 400-CE
Restaurant Ranges
Models 436A-CE, 436D-CE, 460AA-CE, 460AD-CE, and 460DD-CE
Model 436A-CE Model 460AA-CE
WARNING
This appliance shall be installed in conformity with the current regulations and used only in a well ventilated
location. Consult the instructions before installing and using the appliance.
Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.
Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.southbendnc.com
OWNER’S MANUAL 1182499
$18.00
MODEL 400-CE RESTAURANT RANGES
MANUAL SECTION RR

SAFETY PRECAUTIONS MODEL 400-CE RESTAURANT RANGES
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
DANGER This symbol warns of immediate hazards that will result in severe injury or death.
WARNING This symbol refers to a potential hazard or unsafe practice that could result in injury or
death.
CAUTION This symbol refers to a potential hazard or unsafe practice that could result in injury,
product damage, or property damage.
NOTICE This symbol refers to information that needs special attention or must be fully understood,
even though not dangerous.
WARNING
FIRE HAZARD
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of cooking appliances.
Keep area around cooking appliances free and clear of combustibles.
Purchaser of equipment must post in a prominent location detailed instructions to be followed in the event the
operator smells gas. Obtain the instructions from the local gas supplier.
WARNING
BURN HAZARD
Contact with hot surfaces will cause severe burns. Always use caution when operating cooking appliances.
WARNING
EXPLOSION AND ASPHYXIATION HAZARD
In the event a gas odor is detected, shut down equipment at the main gas shut-off valve and immediately call
the emergency phone number of your gas supplier.
Improper ventilation can result in headaches, drowsiness, nausea, and could result in death. Do not obstruct the
flow of combustion and ventilation air to and from cooking appliances.
WARNING
ELECTRIC SHOCK HAZARD
For appliances that use electric power, disconnect the power to the appliance before cleaning. Do not remove
panels that require tools to remove.
NOTICE
This appliance is intended for commercial use, and is only for professional use. It shall be used by trained,
qualified people.
Warranty will be void if service work is performed by other than a qualified technician, or if other than genuine
Southbend replacement parts are installed.
Give this Owner’s Manual and important papers to the proper authority to retain for future reference.
Copyright © 2004 by Southbend. All rights reserved. Published in the United States of America.
PAGE 2OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES INTRODUCTION
INTRODUCTION
Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking equipment on the
market.
You will find that your new equipment, like all Southbend equipment, has been designed and manufactured to meet
the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered and designs are
verified through laboratory tests and field installations. With proper care and field maintenance, you will experience
years of reliable, trouble-free operation. For best results, read this manual carefully.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
This manual is for Southbend Restaurant Ranges models 436A-CE, 436D-CE, 460AA-CE, 460AD-CE, and 460DD-
CE. This manual is divided into six sections:
Introduction ............................................3
Specifications.........................................4
Operation ...............................................8
Cleaning & Maintenance........................11
Installation..............................................13
Service...................................................19
The serial plate is located on the right side of the range (see Figure 1 below).
Read these instructions carefully before attempting installation. Installation and initial startup should be performed by
a qualified installer. Unless the installation instructions for this product are followed by a qualified service technician (a
person experienced in and knowledgeable with the installation of commercial gas and/or electric cooking equipment)
then the terms and conditions on the Manufacturer’s Limited Warranty will be rendered void and no warranty of any
kind shall apply.
In the event you have questions concerning the installation, use, care, or service of the product, write to:
Southbend
1100 Old Honeycutt Road
Fuquay-Varina, North Carolina 27526 USA

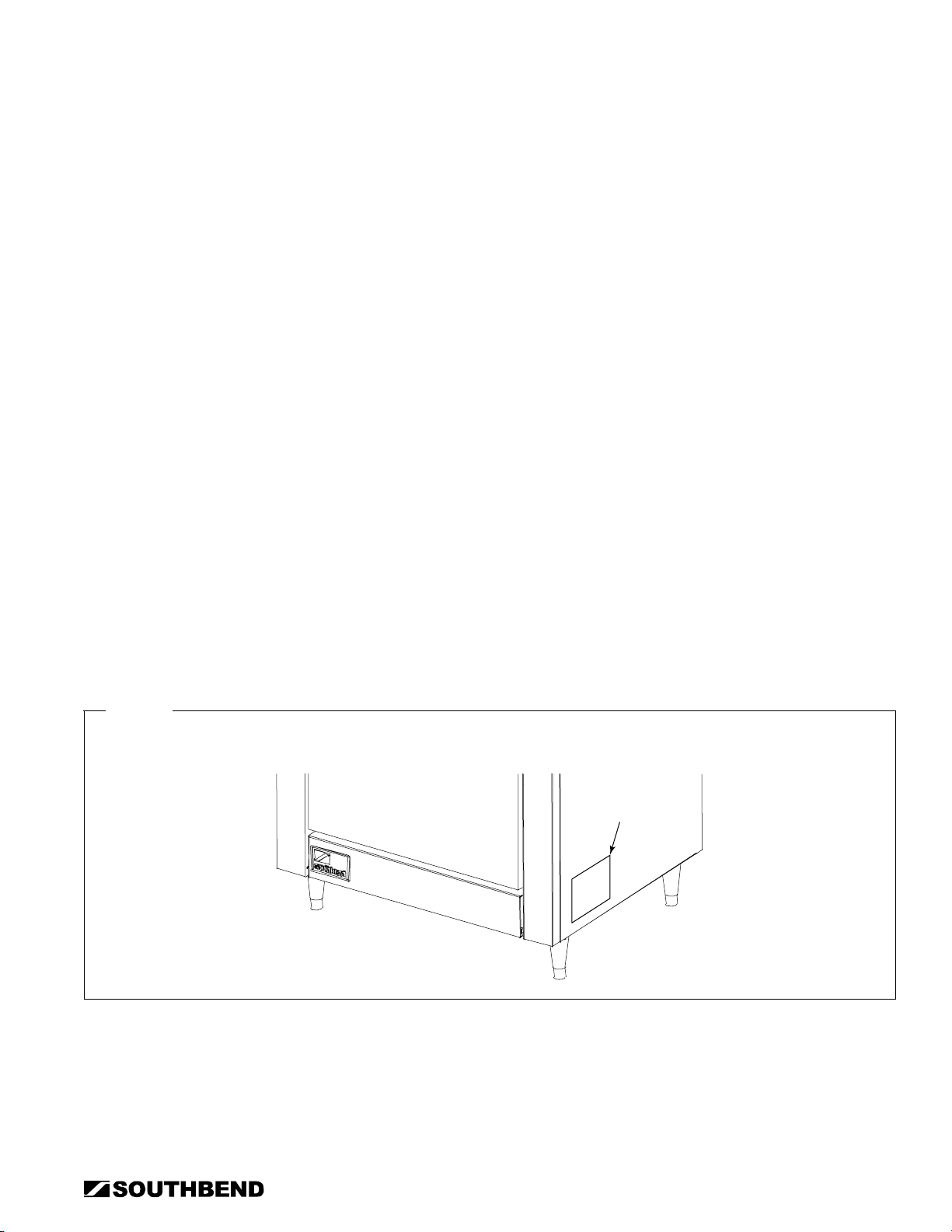

Figure 1
Location of Serial Plate
Serial Plate
OWNER’S MANUAL 1182499 PAGE 3OF 40

SPECIFICATIONS MODEL 400-CE RESTAURANT RANGES
SPECIFICATIONS
NOTICE
ENFORCEMENT: THE REQULATIONS WILL BE ENFORCED:
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE WITHIN
THE COUNTRY OF DESTINATION. THIS APPLIANCE IS FOR PROFESSIONAL USE AND MUST ONLY BE
USED BY TRAINED PERSONNEL.
THE INSTALLATION MUST CONFORM WITH THE NATIONAL BRITISH STANDARDS, THE GAS APPLIANCES
(SAFETY) REGULATIONS 1992 (S. I. 1992/1629, AND THE GAS APPLIANCES DIRECTIVE (DIRECTIVE
90/396/EEC).
1. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 3.5 kPa.
2. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 3.5 kPa.
Southbend reserves the right to change specifications and product design without notice. Such revisions do not
entitle the buyer to corresponding changes, additions, or replacements for previously purchased equipment.
This appliance is intended for commercial use, and is only for professional use. It shall be used by trained,
qualified people.
CLEARANCES
WARNING
MINIMUM CLEARANCES FROM COMBUSTIBLE CONSTRUCTION
There must be adequate clearance between ranges and combustible construction. Clearance must also be
provided for servicing and for operation.
Minimum Clearances:
Standard Oven Convection Oven Double Oven Base
Sides 254 mm 254 mm 254 mm
Back 254 mm 254 mm 254 mm
Floor 0 mm 0 mm 0 mm
Ranges are suitable for installation on combustible floors.
Adequate clearance must be provided in the aisle and at the side and rear to allow the door to open sufficiently to
permit the removal of the racks and for serviceability.
On ranges with a convection-type oven, a minimum of 51 mm clearance must be allowed behind the motor and the
rear non-combustible enclosure. Care must be taken to provide adequate air circulation to prevent the motor from
overheating. No additional clearance from the sides and back is required for service as the ranges are serviceable
from the front.
DIMENSIONS
The exterior dimensions of the restaurant range are shown in Figure 2 on the next page.
The interior dimensions of a standard oven are 660 mm wide, 673 mm deep, and 355 mm high.
The interior dimensions of a convection oven are 662 mm wide, 609 mm deep, and 362 mm high.
PAGE 4OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES SPECIFICATIONS
Figure 2
Dimensions
927 1543
1067
864
203
756 756
787
787
305305 70 70
1511 1511
572 572
787 787
152 152
940
940
394 394
318
318
768
64
152
64
152 152
610
Electrical Connections
Electrical Connection Gas Connection
Gas Connection
Side View of Ranges with Convection Oven Side View of Ranges without Convection Oven
Dimensions in
millimeters
Electrical
Connection
Gas Connection
OWNER’S MANUAL 1182499 PAGE 5OF 40

SPECIFICATIONS MODEL 400-CE RESTAURANT RANGES
VENTILATION
WARNING
Improper ventilation can result in personal injury or death. Ventilation which fails to properly remove flue products
can cause headaches, drowsiness, nausea, or could result in death.
All ranges must be installed in such a manner that the flow of combustion and ventilation air are not obstructed.
Provisions for adequate air supply must be provided. Do not obstruct the front of the range at the top by the control
panel, or the bottom just below the oven compartment, as combustion air enters through these areas.
NOTICE
Proper ventilation is the owner’s responsibility. Any problem due to improper ventilation will not be covered by the
warranty.
All ranges must be installed in such a manner that the flow of combustion and ventilation air are not obstructed.
Provisions for an adequate air supply must be provided. Do not obstruct the front or rear of the range, as
combustion air enters through this area. Be sure to inspect and clean the ventilation system according to the
ventilation equipment manufacturer’s instructions.
Canopies are set over ranges, ovens, etc., for ventilation purposes. It is recommended that a canopy extend 152 mm
past the appliance and the bottom edge be located 200 cm from the floor. Filters should be installed at an angle of 45°
or more from the horizontal. This position prevents dripping grease and facilitates collecting the run-off grease in a
drip pan, unusually installed with a filter. A strong exhaust fan tends to create a vacuum in the room and may interfere
with burner performance or may extinguish pilot flames. Fresh air openings approximately equal to the fan area will
relieve such a vacuum.
The exhaust fan should be installed at least 51 mm above the vent opening at the top of the range.
If the range is connected directly to an outside flue, a CE design-certified down draft diverter must be installed at the
flue outlet of the oven and connected to the flue.
In case of unsatisfactory performance on any appliance, check the appliance with the exhaust fan in the OFF position.
Do this only long enough to check equipment performance. Then turn hood back on and let it run to remove any
exhaust that may have accumulated during the test.
GAS SUPPLY
A 3/4" female NPT gas connection is located on the rear of the range (see Figure 2).
The serial plate is located on the right side of the range (See Figure 1). The serial plate indicates the type of gas the
range is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate.
Number of Burners and Gas Requirement per Burner
Model Number Open Top Burners Oven Burner(s) Total Gas Requirement*
436A-CE 6 @ 32,000 BTU/hour (9.4 kilowatts) 1 @ 45,000 BTU/hour (13.2 kilowatts) 237,000 BTU/hour (69.5 kilowatts)
436D-CE 6 @ 32,000 BTU/hour (9.4 kilowatts) 1 @ 32,000 BTU/hour (9.4 kilowatts) 224,000 BTU/hour (65.7 kilowatts)
460AA-CE 10 @ 32,000 BTU/hour (9.4 kilowatts) 2 @ 45,000 BTU/hour (13.2 kilowatts) 410,000 BTU/hour (120.1 kilowatts)
460AD-CE 10 @ 32,000 BTU/hour (9.4 kilowatts) 1 @ 45,000 BTU/hour (13.2 kilowatts)
and 1 @ 32,000 BTU/hour (9.4 kilowatts) 397,000 BTU/hour (116.3 kilowatts)
460DD-CE 10 @ 32,000 BTU/hour (9.4 kilowatts) 2 @ 32,000 BTU/hour (9.4 kilowatts) 384,000 BTU/hour (112.5 kilowatts)
* Rated gas-requirement values are for natural gas.
These models are design-certified for operation on natural or propane gases. For natural gas, the regulator is set to
0.99 kPa (4" W.C.). For propane gas, it is set to 2.48 kPa (10" W.C.).
If applicable, the vent line from the gas appliance pressure regulator shall be installed to the outdoors in accordance
with local codes, or in the absence of local codes, with the applicable national codes.
This appliance should be connected ONLY to the type of gas for which it is equipped.
An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of gas required for
satisfactory performance. Fluctuations of more than 25% on natural gas or 10% on propane gas will create problems
PAGE 6OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES SPECIFICATIONS
and affect burner operating characteristics. A 1/8" pressure tap is located on the manifold to measure the manifold
pressure.
An adequate gas supply line to the range should be no smaller than the inside diameter of the pipe from the range to
which it is connected.
Purge the supply line to clean out dust, dirt, or other foreign matter before connecting the line to the range.
All pipe joints and connections must be tested thoroughly for gas leaks. Use only soapy water for testing on all gases.
NEVER use an open flame to check for gas leaks. All connections must be checked for leaks after the range has
been put into operation. Test pressure should not exceed 3.47 kPa (14" W.C.).
ELECTRICAL REQUIREMENTS
Ranges with a convection oven require connection to a supply of electricity. The appliance, when installed, must be
electrically grounded in accordance with local codes, or in the absence of local codes, with the applicable national
codes. An electrical diagram is located on the rear of the range, near the motor.
Convection-oven models are rated for 208/230 volts, 50/60Hz, 1-phase power, and have one or two junction boxes
(one for each oven) on the rear of the range (each with a terminal block). The maximum power requirement per oven
is 2.1 amperes at 208 volts or 2.5 amperes at 230 volts.
OWNER’S MANUAL 1182499 PAGE 7OF 40

OPERATION MODEL 400-CE RESTAURANT RANGES
OPERATION
DANGER
EXPLOSION AND ASPHYXIATION HAZARD
In the event a gas odor is detected, shut down equipment at the main gas shut-off valve and immediately call
the emergency phone number of your gas supplier.
Improper ventilation can result in headaches, drowsiness, nausea, and could result in death. Do not obstruct the
flow of combustion and ventilation air to and from cooking appliances.
CAUTION
To eliminate gas build up which could result in an explosion, in the event of main burner ignition failure a five
minute purge period must be observed prior to re-establishing ignition source.
The controls for the burners and oven(s) are located on the control panel on the front of the range.
To operate a top burner, turn the corresponding control knob to the desired flame level.
To operate an oven, turn the oven thermostat to the desired temperature. On convection ovens, the blower is
controlled by an ON-OFF switch.
If the pilots need to be lit, follow the steps listed below.
LIGHTING AFTER GAS HAS BEEN SHUT OFF
When turning the main gas supply on after the gas supply has been shut off, do the following:
1. Make sure all of the control valves are in the OFF position.
2. Turn on the gas supply.
3. Light the pilots as described below.
4. Light the oven first and then wait six minutes before lighting top burners to purge all air from the range.
LIGHTING THE BURNER PILOTS
Each open-top burner is controlled by a knob on the front control panel and has its own pilot.
To light the burner pilots, do the following:
1. Turn all the burner control knobs to the OFF position.
2. Check to make sure the pilots are in the correct position.
3. Turn one of the burner control knobs to the pilot position, push the knob inward, and hold it in place.
4. While continuing to hold the knob in, light the corresponding pilot and allow the pilot to burn for 30 to 45
seconds. Release the knob. The pilot should remain lit.
5. Repeat steps 3 and 4 for the other pilots.
LIGHTING THE OVEN PILOT
Each oven is controlled by a knob on the front control panel.
To light the pilot of an oven, do the following:
1. Turn oven thermostat to OFF position.
2. For convection ovens, turn the fan switch to the OFF position.
3. Open door, remove oven bottom and fire plate to expose pilot and burner.
4. Open kick panel and depress red button on oven safety valve.
5. Light constant pilot (the pilot without a capillary tube holder).
6. Replace fire plate and oven bottom.
PAGE 8OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES OPERATION
SHUTDOWN OF ENTIRE RANGE
To completely shut down the range for an extended period (or prior to disconnecting the gas supply), do the following:
1. Turn all burner control knobs to OFF.
2. Turn the oven thermostat knob(s) to the lowest temperature.
3. Turn-off the gas supply to the oven.
TROUBLESHOOTING BY OPERATOR
The following table lists the possible causes and solutions of problems that may occur during operation.
Problem Possible Causes and Solutions
A top burner will not light. – Check and light the burner’s pilot.
– Check gas supply to range.
Oven will not heat up. – Check and light the oven pilot.
– Check gas supply to range.
Blower of convection oven is not running. – Check that the oven’s blower control switch is in ON position.
– Check electricity supply to range.
Pilot(s) will not remain lit. – Check gas supply to range.
If other appliances connected to the same source of gas or electricity are not operating correctly, the problem is likely
not within the range.
If the problem only occurs for the range, and if the above solutions to do not solve the problem, call for repair service.
TROUBLESHOOTING CONVECTION-OVEN COOKING PROBLEMS
If… then…
Cakes are dark on the sides and not done in the center… lower oven temperature.
Cake edges are too brown… reduce number of pans or lower oven temperature.
Cakes have light outer color… raise temperature.
Cake settles slightly in the center… bake longer or raise oven temperature slightly. Do not
open doors too often for long periods.
Pies have uneven color… reduce number of pies per rack.
Meats are browned and not done in center… lower oven temperature and roast longer.
Meats are well done and not browned… raise temperature. Limit amount of moisture.
Cakes ripple… overloading pans or batter is too thin.
There is excessive meat shrinkage… lower oven temperature.
Cakes are too coarse… lower oven temperature.
WARNING
THE USE OF ALUMINUM FOIL CAN CAUSE HEAT DISTRIBUTION PROBLEMS IN OVENS. EXTREME
CARE MUST BE USED WHEN PLACING ALUMINUM FOIL IN THE OVEN TO ENSURE THAT IT DOES NOT
BLOCK OR CHANGE THE AIR FLOW. THE USE OF ALUMINUM FOIL MAY VOID THE PRODUCT
WARRANTY IF ITS USE IS ASCERTAINED TO BE A PROBLEM.
OWNER’S MANUAL 1182499 PAGE 9OF 40

OPERATION MODEL 400-CE RESTAURANT RANGES
COOKING TIPS FOR CONVECTION OVENS
As a guide, set oven temperatures 15°C to 30°C lower than called for in recipes using conventional ovens.
Time and temperatures will vary depending upon load, mix, size, or portion; and other factors. Use the following chart
to develop your own cooking techniques:
Product
Timing
(minutes)
Temperature
Setting
Number of
Racks Used
Count per
Pan/Rack
Hamburger buns, 0.1 kg. - 102 mm 18 190 °C 3 24
Yeast rolls - 0.03 kg. 10 205 °C 3 48
Fruit pies, 1.3 kg. frozen 50 190 °C 3 4
Egg custard pies, 1.3 kg. frozen 60 160 °C 3 4
Dutch apple pies, 1.3 kg. frozen 50 175 °C 3 4
Baked potatoes, 0.25 kg. 60 205 °C 3 30 (wrapped)
Pre-blanched potatoes, frozen 16 205 °C 3 2.3 kg.
Fish portions, pre-cooked, breaded, 0.1 kg. 16 205 °C 3 32
Macaroni & cheese, 3 kg. - 5°C temp. 45 205 °C 3 1-3 kg.
Lasagna w/meat sauce, 3 kg. - 5°C temp. 60 175 °C 3 1-3 kg.
Lasagna w/meat sauce, 3 kg. - frozen 75 175 °C 3 1-3 kg.
Salisbury steak w/gravy, 3 kg. - 5°C temp. 45 205 °C 3 1-3 kg.
Top round of beef No. 168, 6-7 kg.
rare (60°C internal) 31 min./kg. 120 °C 1 1 - 2
medium (65°C internal) 35 min./kg. 120 °C 1 1 - 2
well-done (70°C internal) 39 min./kg. 120 °C 1 1 - 2
FROZEN ENTREE PRODUCTS: Punch holes in lid before heating. Tent lid if product has a tendency to stick (like
lasagna or macaroni-and-cheese). Use food manufacturer’s convection oven directions for time and temperature or
reduce conventional oven temperature 30°C for a 6-1/2 size pan load. Some products may cook in 10 to 15 minutes
less time than recommended for convection ovens if prepared from frozen in a 6 pan load.
FRUIT PIES: Use temperature and time from food manufacturer’s directions for convection ovens for a 12 pie load
placed on 3 bun pans.
ROLLS – YEAST: Use temperature and time recommended by food manufacturer for convection ovens for a 3 pan
load.
POTATOES – PRE-BLANCHED, FROZEN: Spread on ungreased bun pans, 3 pans per load. Bake at 205°C, stirring
once, for 15 to 18 minutes.
FISH PORTIONS – BREADED, PRE-COOKED: Use food manufacturer’s recommended temperature and time for
convection oven for a 3 pan load.
POTATOES – BAKING, 0.25 kg. SIZE: Wash and wrap in potato foil. Place 30 potatoes on bun pan — 3 pans per
load. Bake in 205°C oven for 1 hour.
PAGE 10 OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
WARNING
Shut off the range and allow time for it to cool before cleaning or performing maintenance.
Southbend appliances are sturdily constructed of the best materials and are designed to provide durable service when
treated with ordinary care. To expect the best performance, your equipment must be maintained in good condition and
cleaned daily. Naturally, the periods for this care and cleaning depend on the amount and degree of usage.
Following daily and periodic maintenance procedures will enhance long life for your equipment. Climatic conditions
(such as salt air) may require more thorough and frequent cleaning or the life of the equipment could be adversely
affected.
Keep exposed, cleanable areas clean at all times.
DAILY CLEANING
1. Turn all controls to OFF and allow time for the range to cool.
2. Remove, empty, and clean drip trays.
3. Wipe clean all cooking surfaces.
CLEANING OVEN INTERIOR
WARNING
FOR YOUR SAFETY, BEFORE CLEANING A CONVECTION OVEN DISCONNECT THE POWER SUPPLY.
WHEN CLEANING THE BLOWER WHEEL, BE SURE THAT THE POWER SWITCH IN THE “OFF” POSITION.
Allow oven to cool. Remove porcelain enameled oven bottom. Clean by rubbing with strong detergent and Brillo pad
or similar scrubber. “Spill-overs” should be cleaned from the bottom as soon as possible to prevent carbonizing and a
“burnt-on” condition. For stubborn accumulations, commercial oven cleaners are recommended.
The porcelain oven door lining can be cleaned in a similar manner.
The side, rear and top lining should be wiped only with a cloth dampened with a mild detergent and water. Avoid using
excessive amounts of water, as this may drip into burner compartment and deteriorate the metal in that area. Do not
use strong commercial cleaners or abrasive pads on the side, rear or top linings, as they may damage the finish or
leave gray residue.
PERIODIC CLEANING AND MAINTENANCE
At least monthly, clean around burner air mixers and orifices if lint has accumulated and visually check proper pilot
operation.
At least twice a year, examine and clean the range hood and venting system.
If range-top spillage should occur, it may be necessary to clean around pilot areas, air mixer, and under burners. Use
a wire brush if necessary.
If any burners become clogged, remove and clean them. Allow interior to drain. Dry thoroughly before replacing.
BLACK BAKED-ENAMEL SURFACES
Wash exterior black baked-enamel surfaces with a hot, mild detergent or soap solution to clean off all grease
deposits. Dry thoroughly with a dry cloth.
OWNER’S MANUAL 1182499 PAGE 11 OF 40

CLEANING & MAINTENANCE MODEL 400-CE RESTAURANT RANGES
STAINLESS-STEEL SURFACES
To remove normal dirt, grease and product residue from stainless steel surfaces that operate at LOW temperature,
use ordinary soap and water (with or without detergent) applied with a sponge or cloth. Dry thoroughly with a clean
cloth.
To remove BAKED-ON grease and food splatter, or condensed vapors; apply cleanser to a damp cloth or sponge and
rub cleanser on the metal in the direction of the polishing lines on the metal. Rubbing cleanser, as gently as possible,
in the direction of the polished lines will not mar the finish of the stainless steel. NEVER RUB WITH A CIRCULAR
MOTION. Soil and burnt deposits which do not respond to the above procedure can usually be removed by rubbing
the surface with SCOTCH-BRITE scouring pads or STAINLESS scouring pads. DO NOT USE ORDINARY STEEL
WOOL as any particles left on the surface will rust and further spoil the appearance of the finish. NEVER USE A
WIRE BRUSH, STEEL SCOURING PADS (EXCEPT STAINLESS), SCRAPER, FILE OR OTHER STEEL TOOLS.
Surfaces which are marred collect dirt more rapidly and become more difficult to clean. Marring also increases the
possibility of corrosive attack. Refinishing may then be required.
“Heat tint” is darkened areas that sometimes appear on stainless steel surfaces where the area has been subjected to
excessive heat. These darkened areas are caused by thickening of the protective surface of the stainless steel and
are not harmful. Heat tint can normally be removed by the foregoing, but tint which does not respond to this procedure
calls for a vigorous scouring in the direction of the polish lines using SCOTCH-BRITE scouring pads or a STAINLESS
scouring pad in combination with a powered cleanser. Heat tint may be lessened by reducing heat to equipment
during slack periods.
PAGE 12 OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES INSTALLATION
INSTALLATION
NOTICE
These installation procedures must be followed by qualified personnel or warranty will be void.
ENFORCEMENT: THE REQULATIONS WILL BE ENFORCED:
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE WITHIN
THE COUNTRY OF DESTINATION. THIS APPLIANCE IS FOR PROFESSIONAL USE AND MUST ONLY BE
USED BY TRAINED PERSONNEL.
THE INSTALLATION MUST CONFORM WITH THE NATIONAL BRITISH STANDARDS, THE GAS APPLIANCES
(SAFETY) REGULATIONS 1992 (S. I. 1992/1629, AND THE GAS APPLIANCES DIRECTIVE (DIRECTIVE
90/396/EEC).
1. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 3.5 kPa.
2. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 3.5 kPa.
Southbend reserves the right to change specifications and product design without notice. Such revisions do not
entitle the buyer to corresponding changes, additions, or replacements for previously purchased equipment.
This appliance is intended for commercial use, and is only for professional use. It shall be used by trained,
qualified people.
NOTICE
EXHAUST FANS AND CANOPIES: It is recommended that the range be installed under a ventilation hood.
Consult local codes for proper installation of hoods. Proper ventilation is the owner’s responsibility. Any problem
due to improper ventilation will not be covered by warranty.
STEP 1: UNPACKING
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
All containers should be examined for damage before and during unloading. The freight carrier has assumed
responsibility for its safe transit and delivery. If damaged equipment is received, either apparent or concealed, a
claim must be made with the delivering carrier.
Apparent damage or loss must be noted on the freight bill at the time of delivery. The freight bill must then be
signed by the carrier representative (Driver). If the bill is not signed, the carrier may refuse the claim. The carrier
can supply the necessary forms.
A request for inspection must be made to the carrier within 15 days if there is concealed damage or loss that is not
apparent until after the equipment is uncrated. The carrier should arrange an inspection. Be certain to hold all
contents plus all packing material.
Do the following:
1. Cut the banding straps and remove the corrugated cardboard surrounding the range. If legs were shipped in
the same container, set them aside for installation in later steps of this procedure. Do not remove any tags or
labels attached to the range until the range is installed and working properly.

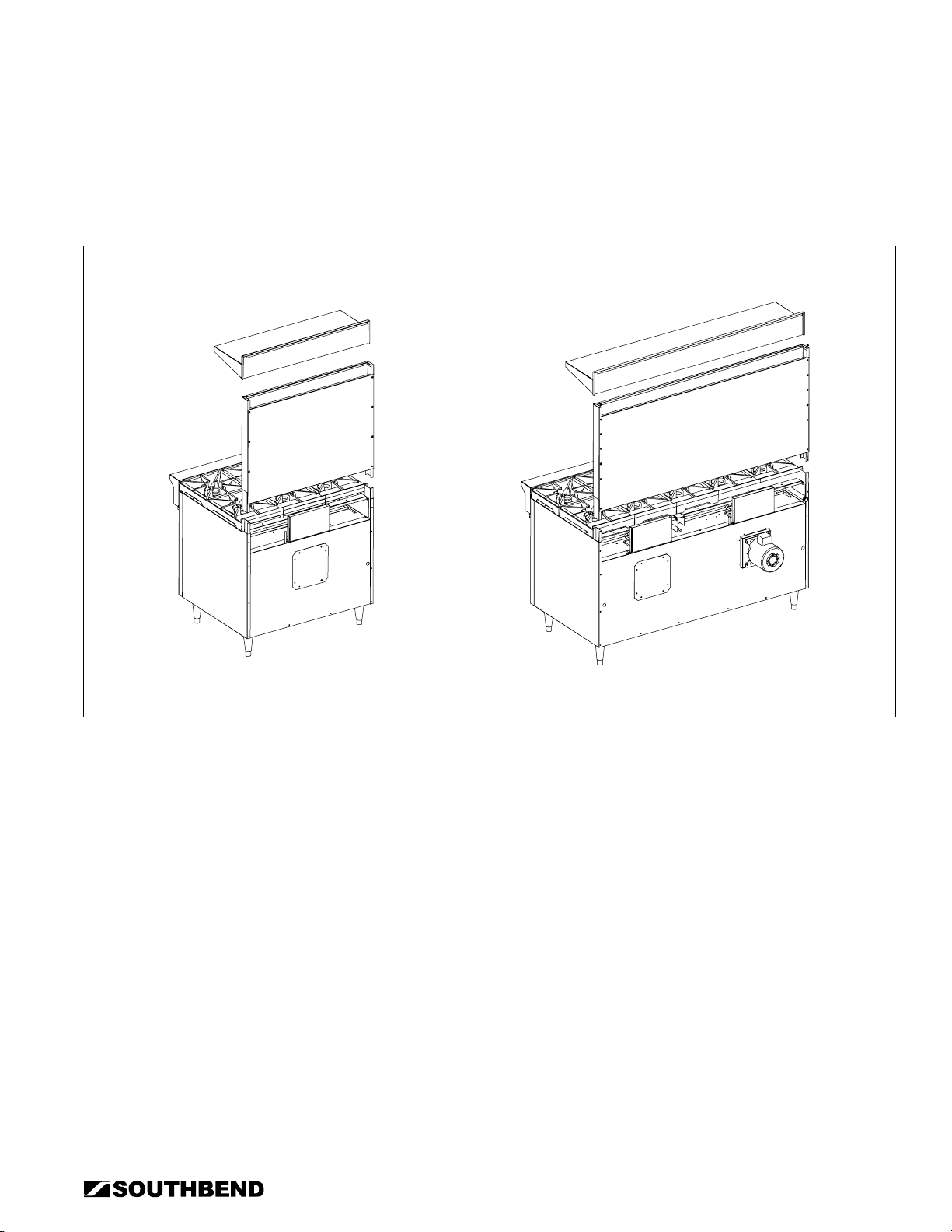

2. Lift the flue riser off the front of the skid (see Figure 3) and set it aside for installation later in this procedure.
3. Pull the shelf assembly out from under the base and set it aside for installation later in this procedure.
4. Unbolt the shipping hold-down brackets from the skid, then remove the brackets from the range.
5. If the range is to be installed on legs, go to Step 2a.
If the range is to be installed on casters, go to Step 2b.
OWNER’S MANUAL 1182499 PAGE 13 OF 40

INSTALLATION MODEL 400-CE RESTAURANT RANGES
Figure 3
Unpacking
Flue Riser
Skid
Base
Shelf
STEP 2A: ATTACH LEGS
A set of four legs is packed with ranges ordered with legs. (For ranges ordered with casters, go to Step 2b.)
A threaded leg pad is fastened to the base frame at each corner. Each leg has a corresponding mating thread. The
legs can be adjusted to overcome a slightly uneven floor.
1. Raise range sufficiently to allow leg pads and legs to be attached. For safety, “shore up” and support the range
with an adequate blocking arrangement strong enough to support the load.
2. Attach the four leg pads to the bottom of the range using the lock washers and machine screws. The
mounting holes are pre-drilled and threaded.
3. Screw the legs into the holes in the centers of the leg pads.
4. Lower range gently onto a level surface. Never drop or allow the range to fall.
5. Use a level to make sure that the range surface is level. The legs can be screwed in or out to lower or raise
each corner of the range.
6. Go on to Installation Step 3.
Figure 4
Installation of Legs
PAGE 14 OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES INSTALLATION
STEP 2B: ATTACH CASTERS AND RESTRAINT
NOTICE
For an appliance equipped with casters, (1) the installation shall be made with a connector and a quick-
disconnect device that complies with the applicable local or national codes, (2) adequate means must be
provided to limit the movement of the appliance without depending on the connector and the quick-disconnect
device or its associated piping to limit the appliance movement, and (3) the restraining means should be
attached to a frame member on the back of the range.
A set of four casters is packed with ranges ordered with casters (instead of legs).
A threaded leg pad is fastened to the base frame at each corner. Each caster has a corresponding mating thread. The
casters can be adjusted to overcome a slightly uneven floor. Casters are provided with a Zerk fitting for proper
lubrication when required.
1. Raise range sufficiently to allow leg pads and casters to be attached. For safety, “shore up” and support the
range with an adequate blocking arrangement strong enough to support the load.
2. Attach the four leg pads to the bottom of the range using the lock washers and machine screws. The
mounting holes are pre-drilled and threaded.
3. Screw the casters into the holes in the centers of the leg pads. Install the casters that have a locking brake
under the front of the range.
4. Lower range gently onto a level surface. Never drop or allow the range to fall.
5. Use a level to make sure that the range surface is level. The casters can be screwed in or out to lower or raise
each corner of the range. After the range has been leveled, tighten the lock nuts.
Figure 5
Installation of Casters

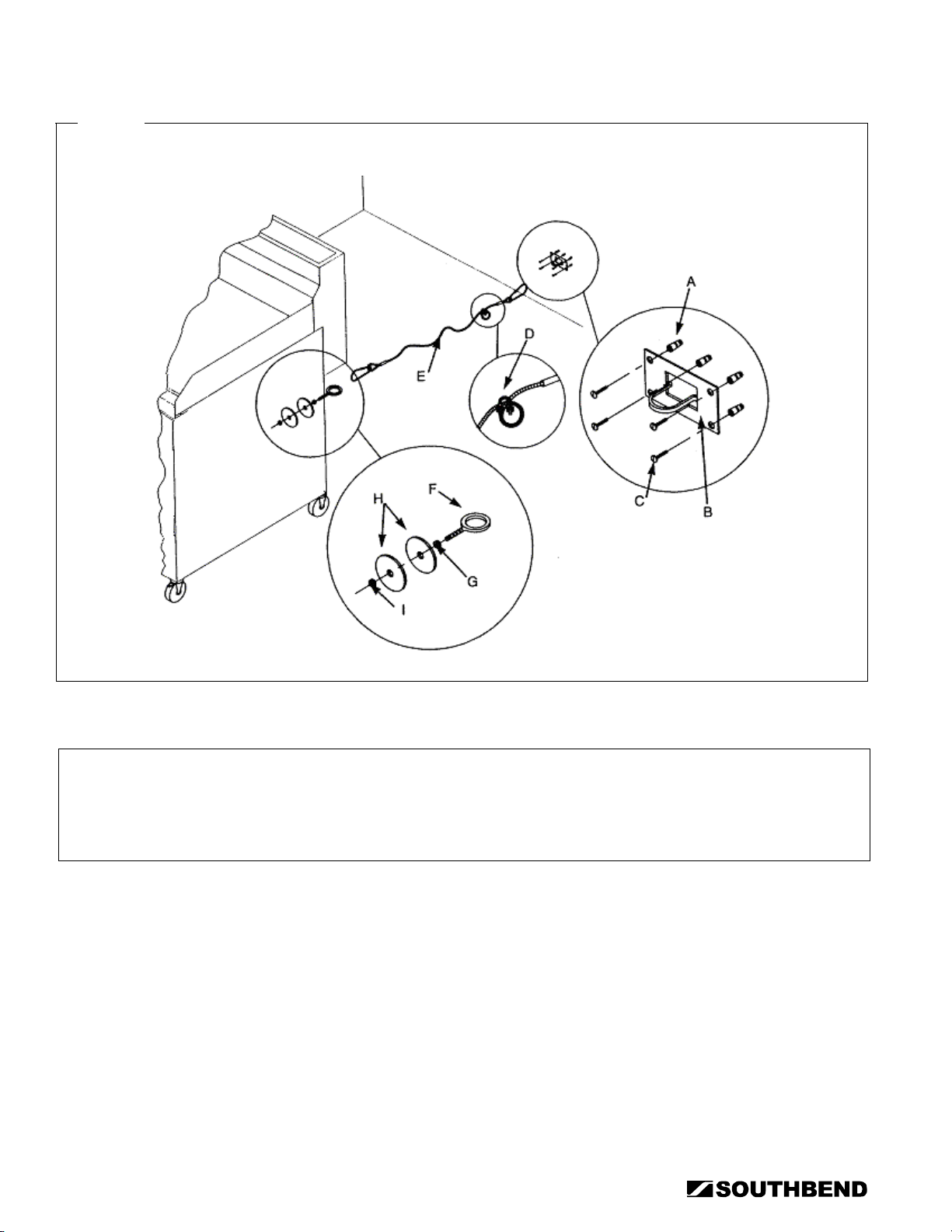

6. Secure the restraining-device bracket (item “B” in the following illustration) to a wall stud located as close as
possible to the appliance connector inlet and outlet connections. Use four #12 screws (items “C”) and plastic
anchors (items “A”) if necessary.
7. Install eye-bolt (item “F”) to a frame member on the rear of the equipment. After checking carefully behind the
frame member for adequate clearance, drill a 7 mm hole through the frame member.
8. Thread hex nut (item “G”) and slide the washer (item “H”) onto the eye-bolt. Insert the eye-bolt through the 7
mm drilled hole and secure with a washer (item “H”) and nylon lock nut (item “I”).
9. Using the spring-loaded snap hooks, attach the restraining device to the bracket and the eye-bolt.
OWNER’S MANUAL 1182499 PAGE 15 OF 40

INSTALLATION MODEL 400-CE RESTAURANT RANGES
10. Using the cable clamp (item “D”), adjust the restraining device extended length to prevent over-bending or
kinking of the appliance connector.
Figure 6
Installation of Restraint
Be sure all controls are turned off prior to disconnecting. After reconnecting, be sure all controls are turned off and all
pilots are lit.
NOTICE
Adequate means must be provided to limit the movement of the appliance without depending on the connector
and the quick-disconnect device or its associated piping to limit the appliance movement.
The restraining means should be attached to a frame member on the back of the range.
PAGE 16 OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES INSTALLATION
STEP 3: ATTACH FLUE RISER AND SHELF ASSEMBLY
Place the flue riser assembly on the range as shown on the appropriate diagram below.
1. Slide the flue riser assembly over the bayonets until it bottoms out, as shown below.
2. Secure ends of flue riser assembly with two (2) 1/4-20 x 3/4 hex head bolts, flat washers and lockwashers
3. Attach the shelf assembly to the flue riser assembly.
Figure 7
Installation of Flue Riser and Shelf Assembly
Single-Oven Models Dual-Oven Models
STEP 4: ELECTRICAL CONNECTION (FOR CONVECTION-OVEN MODELS ONLY)
Wiring diagrams are located on the rear of the range. Be sure that the input voltage and phase match the
requirements shown on the serial plate (see Figure 1 on page 3).
Ranges are factory-equipped either with a power cord or with one or two two-pole terminal blocks (one for each oven),
located behind cover plate(s) located on the rear of the range. To connect the supply wires, remove the appropriate
cover plate. Route the supply wires and the grounding wire through the strain relief fitting to the terminal block. Insert
the supply wires, one each, into the two poles of the terminal block and tighten the screws. Insert the ground wire into
the grounding lug and tighten the screw. Re-attach the cover plate.
Three phase ranges are wired as above, using only two supply wires. The third wire is not used and must be properly
terminated.
All ranges are shipped wired as specified by factory order. Conversion between single-phase and three-phase can be
accomplished by referring to phase loading and line amperes chart on wiring diagram for wire size and ampere
requirements.
STEP 5: GAS CONNECTION
If this equipment is being installed at over 2,000 feet altitude and that information was not specified when ordered,
contact the appropriate authorized Southbend Service Representative or the Southbend Service Department. Failure
to install with proper orifice sizing will result in poor performance and may void the warranty.
The serial plate is located on the interior side of the kick panel below the oven. It indicates the type of gas the range is
equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate.
OWNER’S MANUAL 1182499 PAGE 17 OF 40

INSTALLATION MODEL 400-CE RESTAURANT RANGES
These models are design-certified for operation on natural or propane gases. For natural gas, the regulator is set to
deliver gas at 0.99 kPa (4" W.C.) pressure to the manifold. For propane gas, it is set to 2.48 kPa (10" W.C.).
This appliance should be connected ONLY to the type of gas for which it is equipped.
An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of gas required for
satisfactory performance. Fluctuations of more than 25% on natural gas or 10% on propane gas will create problems
and affect burner operating characteristics. A 1/8" pressure tap is located on the manifold to measure the manifold
pressure.
The gas supply line to the range should be no smaller than the inside diameter of the pipes to which it is connected.
Purge the supply line to clean out dust, dirt, or other foreign matter before connecting the line to the range.
CAUTION
ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS. USE ONLY
SOAPY WATER FOR TESTING ON ALL GASES. NEVER USE AN OPEN FLAME TO CHECK FOR GAS
LEAKS. ALL CONNECTIONS MUST BE CHECKED FOR LEAKS AFTER THE RANGE HAS BEEN PUT INTO
OPERATION. TEST PRESSURE SHOULD NOT EXCEED 3.47 kPa (14" W.C.).
STEP 6: CHECK THE INSTALLATION
Check the installation of the range, as follows:
1. Check that all screws and bolts are tightened.
2. Check that the electrical and gas connections have been made correctly.
3. With the range in the position that it will be operated, check that the range is level. If not, adjust the legs or
casters.
4. Check that the appropriate minimum clearances are satisfied (see page 4).
5. Check that the oven door(s) open and close properly.
6. Check that there is sufficient clearance in front of the range to open the oven door.
7. Wipe clean all surfaces.
STEP 7: CHECK OPERATION
Check the operation of the range, as follows:
1. Turn on the gas supply and, for convection-oven models, the electric power supply.
2. Light the burner pilots and oven pilot(s), starting with the top burner farthest from the gas input in order to
purge the system of air. Check for proper pilot-flame height and adjust pilots, if necessary.
3. Turn on the oven and all burners at the same time. Check for correct burner operation and adjust the air
shutters, if necessary.
4. On convection-oven models, turn on the blower(s) and check for proper operation.
5. Turn off the burners and oven.
STEP 8: SHUT-DOWN AND WIPE-CLEAN RANGE
Complete the installation by leaving the range ready for customer use:
1. Allow the range to cool.
2. Wipe clean all surfaces.
3. Unless the range is to be placed in service immediately, turn off the gas supply and (for convection-oven
models, the electricity supply.
4. Make sure that a copy of this manual will be available to the people who will operate and maintain the range.
PAGE 18 OF 40 OWNER’S MANUAL 1182499

MODEL 400-CE RESTAURANT RANGES SERVICE
SERVICE
WARNING
ADJUSTMENTS AND SERVICE WORK MAY BE PERFORMED ONLY BY A QUALIFIED TECHNICIAN WHO IS
EXPERIENCED IN, AND KNOWLEDGEABLE WITH, THE OPERATION OF COMMERCIAL COOKING
EQUIPMENT. TO ASSURE YOUR CONFIDENCE, CONTACT YOUR AUTHORIZED SERVICE AGENCY FOR
RELIABLE SERVICE, DEPENDABLE ADVICE OR OTHER ASSISTANCE, AND FOR GENUINE FACTORY
PARTS.
NOTICE
INSTALLATION OF OTHER THAN GENUINE SOUTHBEND PARTS WILL VOID THE WARRANTY ON THIS
EQUIPMENT.
The serial plate are located on the interior side of the kick panel below the oven door (see Figure 1 on page 3).
Replacement parts (including parts not listed in this manual) may be ordered either through a Southbend Authorized
Parts Distributor or a Southbend Authorized Service Agency.
When ordering parts, please supply the Model Number, Serial Number, Part Number, and Part Description.
In case of problems in operation at initial installation, check type of gas and manifold pressure and compare with
information listed on the serial plate.
This section contains troubleshooting flowcharts, procedures, and electric schematics to assist a qualified service
technician in the servicing of a Southbend Model 400-CE Restaurant Range.
TROUBLESHOOTING FLOWCHARTS, PROCEDURES, AND WIRING DIAGRAMS
Find the symptom below that corresponds to the malfunction, then turn to the corresponding page. Follow the
flowchart on that page until the problem is solved.
Troubleshooting Flowchart, Procedure, or Wiring Diagram Page
Troubleshooting Open-Top Burners 20
Troubleshooting Base Oven 21
Troubleshooting Convection-Oven Blower 22
Adjustment of Gas Pressure Regulator 24
Adjustment of Open-Top Pilots 25
Adjustment of Open-Top Burners 25
Adjustment of Oven Standing Pilot 25
Adjustment of Oven Burner 25
Adjustment of Oven Bypass Flame Level 25
Calibration of Oven Thermostat 26
Conversion from One Type of Gas to Another 26
Wiring Diagram for 208-230 Volt Models 28
OWNER’S MANUAL 1182499 PAGE 19 OF 40
