Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
2
ACTIVE FULL RANGE LOUDSPEAKERS
WARNING
In order to protect your own and others’ safety and to avoid
invalidation of the warranty of this product, please read this
section carefully before operating this product.
This product has been designed and manufactured for being operated as active
speaker system in the applications tipical of a sound reinforcement system or of a
sound recording system. Operation for purposes and applications other than these
has not been covered by the manufacturer in the design of the product, and is
thereforetobeundertaken at end user’s and/or installer’s sole risk andresponsability.
This unit conforms to Class I insulation, and for safe use it is required that the
protective earth contact is connected to a grounded (earthed) outlet.
TO AVOID THE RISK OF FIRE AND/OR ELECTRIC SHOCK:
• Never expose this product to rain or moisture, never use it in proximity of water
or on a wet surface. Avoid dripping water or water sprays, moreover never place
objects full of liquid, such as vases, on top of it. Never let any liquid, as well as any
object, enter the product. In case, immediately disconnect it from the mains supply
and refer to servicing before operating it again. Never place burning candles or
other sources of open flame on top of the device.
• Before connecting this product to the mains supply, always make sure that the
voltage on the mains outlet corresponds to that stated on the product.
•This product must be connected only to a grounded mains outlet complying to
the safety regulations in force via the supplied power cable. In case the power cable
needs to be substituted, use exclusively a cable of the same type and characteristics.
• This device is connected to the power line even when the mains switch is in
the O (off) position and the power indicator is off. As long as it is plugged in
there are potentially dangerous electrical potentials inside the device, so, before
undertaking any sort of maintenance work etc., always make sure it has been
unplugged from the mains socket.
• Never place any object on the power cable. Never lay the power cable on a
walkway where one could trip over it. Never press or pinch it.
• Never install the product without providing adequate airow to cool it.
Never obstruct the air intake openings on it. Leave enough room to get to the
mains power socket and the mains connector on the back panel.
• In case the external fuse needs replacement, substitute it only with one of the
same type and rating, as stated on the product.
• Always make sure the Power switch is in its ’0’ (= off) position before doing any
operation on the connections of the product.
•Before attempting to move the product after it has been installed, remove all
the connections.
• To disconnect the power cable of this product from the mains supply never pull
the cable directly. Hold the body of the plug firmly and pull it gently from the
mains supply outlet.
CAUTION
This product does not contain user serviceable parts.
In order to prevent fire and/or electrical shock, never
disassemble it. For maintenance and servicing always
refer to the official FiveO by Montarbo®Distributor
in your Country or to qualified personnel specifically
authorised by the Distributor.
• Before placing the product on a surface of any kind, make sure that
its shape and load rating safely match the product size and weight.
When installing the speaker system on a stand, use a stable stand that
will t in the adapter and may carry the loudspeaker weight. When
two loudspeakers are laid one upon the other, make sure that stability
is guaranteed by matching the upper loudspeaker feet to the lower
loudspeaker cavities
.
• To avoid shocks, kicks, or whatever action, always reserve a protected area
with no access to unqualied personnel as installation site of the product.
In case the product is used near children and animals closest supervision
is necessary.
• This product can generate very high acoustic pressures which are danger-
ous to the hearing system. Always avoid operation at loud levels if anyone
is excessively near to the product.
[!] Never expose children to high sound sources.
WEEE | Waste from Electrical and Electronic Equipment
ATTENTION!
The crossed out wheeled bin symbol that can be found on this
product means that the product is covered by the Waste from
Electrical and Electronic Equipment Directive.
The symbol is intended to indicate that waste from
electrical and electronic equipment must be subject to a selective collection.
For more details on available collection facilities please contact your local
government ofce or the retailer where you purchased this product. The solid
bar underneath indicates that the product has been put on the market after
13
th
August 2005.
INFORMATION ON PROPER DISPOSAL
Information on Disposal for Users (private households)
In the European Union | Attention: If you want to dispose of this
equipment, please do not use the ordinary dust bin! Used electrical and
electronic equipment should not be disposed of via the normal household
waste stream but must be treated separately and in accordance with legi-
slation that requires proper treatment, recovery and recycling of used elec-
trical and electronic equipment. Following the implementation by mem-
ber states, private households within the EU states may return their used
electrical and electronic equipment to designated collection facilities free of
charge*. In some countries* your local retailer may also take back your old
product free of charge if you purchase a similar new one. *Please contact
your local authority for further details.
In other Countries outside the EU | If you wish to dispose of this pro-
duct, please contact your local authorities and ask for the correct method
of disposal.
In Switzerland | Used electrical or electronic equipment can be returned
free of charge to the dealer, even if you don’t purchase a new product.
Further collection facilities are listed on the homepage of www.swico.ch
or www.sens.ch.
Information on Disposal for Professional Users
In the European Union | If the product is used for business purposes
and you want to discard it: please contact your FiveO by Montarbo
®
dealer
who will inform you about the take-back of the product. You might be
charged for the costs arising from take-back and recycling. Small products
(and small amounts) might be taken back by your local collection facilities.
In Spain | Please contact the established collection system or your local
authority for takeback of your used products.
In other Countries outside the EU | Please contact your local authorities
and ask for the correct method of disposal.
The lighting ash with arrowhead symbol within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
’dangerous voltage’ within the product’s enclosure, that may be of
sufficientmagnitude toconstitutea risk of electric shock tohumans.
The exclamation point within an equilateral triangle, is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions.
IMPORTANT PRECAUTIONS

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
3
ENGLISH
PACKAGE CONTENTS
•Active full range loudspeaker
•Power cable (3m)
•2x Floor monitor brackets
•Owner’s manual
•Warranty certificate
CONTENTS
Important precautions 3
Components and Feautures 6
DUETTO LIGHT 8A 8
DUETTO LIGHT 10A 10
DUETTO LIGHT 12A 12
DUETTO LIGHT 15A 14
Tipical Speaker Setup 16
Looping Speakers 17
Rigging and Monitoring Options 17
Technical specifications 18

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
4
ACTIVE FULL RANGE LOUDSPEAKERS
115
(115/230V- 50/60Hz)
230V
115V
115
(115/230V- 50/60Hz)
1
2
3
4
6
5
6
7
8
3

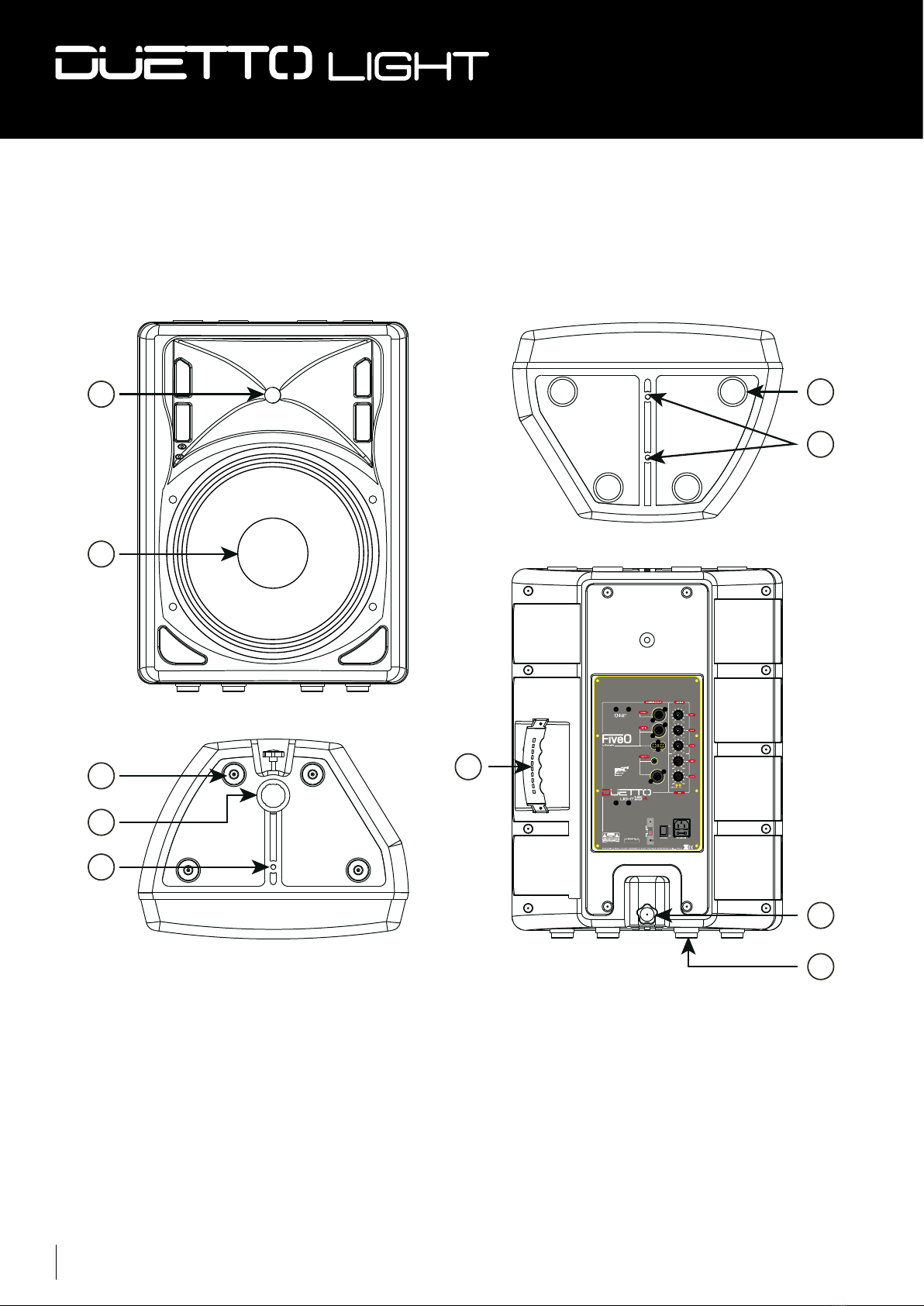

DUETTO LIGHT SERIES - Components and Features

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
5
ENGLISH
COMPONENTS AND FEATURES
1) HIGH FREQUENCY TRANSDUCER
This unit is used to reproduce the high frequency response.
2) WOOFER
The custom powered woofer is used to reproduce the low frequencies.
3) RUBBER FOOT
The speaker includes heavy duty rubber feet on the bottom of the unit.
We use forcer screw to strengthen rubber foot .
4) POLE MOUNT SOCKET
This socket is designed to fit a standard speaker stand.
5) STACKING NOTCHES
These holes can be used for stacking another speaker box and avoid speaker
box moving.
6) RIGGING POINTS
The each include three rigging points.These points are to be used to “fly” or
suspend the speaker in the air by some means.Be sure to follow the “ying”.
7) TRANSPORT HANDLE
The speaker come with built in heavy-duty transportation handle.
Use this handle for secure and easy transportation.
8) POLE MOUNT LOCKING PIN
This pin is used to secure the speaker in place when mounting the speaker in
a pole mount conguration. Always be sure to tighten down on the locking
pin to prevent the speaker from shifting during use.
DUETTO LIGHT SERIES - Components and Features

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
6
ACTIVE FULL RANGE LOUDSPEAKERS
1) MIC XLR INPUT
Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power)
2) BALANCED XLR LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this will
reduce excessive signal loss.
3) BALANCED RCA LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device with a
balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this will reduce exces-
sive signal loss. Be sure to connect only line level input devices such as mixers and tape machines to this jack.
DUETTO LIGHT 8A - Components and Features
23 0 V
115
(115/ 230 V - 50/60Hz)
115V
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
- Rear of DUETTO LIGHT 8A -

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
7
ENGLISH
DUETTO LIGHT 8A - Components and Features
4) XLR LINE OUTPUT
Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 8A to another DUETTO LIGHT 8A or
other powered speaker.
5) AC VOLTAGE SELECTOR
This switch is used to change the operating voltage. Operating voltage can be toggled between 115V or
230V/50~60Hz. Be sure the selector is set to the proper voltage for your area before attempting to operate the
unit. Always be sure main power is shut off before change the position of the Voltage Selector Switch!
6) MAIN POWER INLET
This connector is used to supply main power to the unit via the included detachable power cord. The power
connection uses an I.E.C. type connector, use only a power cord that matches this type of connection. Be
sure to only connect this unit to a power outlet that matches the printed power label on the unit. Never use a
power when the ground prong has been removed or broken off. The ground prong is used to reduce the risk
of electrical shock in case of an electrical short. This cord is designed to fit in one direc-tion only. Do not at-
tempt to force a cord if it does not fit, be sure the cord is being inserted properly.
7) FUSE HOLDER
115V voltage use 3.15A protective fuse and 230V voltage use 5A protective fuse. Always replace with the ex-
act same type fuse, unless otherwise instructed, by an authorized service technician. Replacing with any other
type of fuse than that of the recommended fuse will void your unit warranty.
8) MICROPHONE INPUT VOLUME
This knob is used to increase or decrease the volume ouput on your DUETTO LIGHT 8A.
9) LINE LEVEL INPUT VOLUME
This knob is used to regulate the output signal of the line level source connected to the Line Level
Inputs (2 & 3).
10) MAIN VOLUME
This knob is used to regulate all the output signals being sent to another DUETTO LIGHT 8A or other
powered speaker.
11) HIGH CONTROL
This knob is used to regulate the amount treble applied to the output signal. The maximum amount of treble
gain is +12dB and the maximum amount of treble decrease is -12dB. Turning the knob in a counter-clockwise
direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direc-
tion will increase the amount of treble applied to a channel signal.
12) LOW CONTROL
This knob is used to regulate the amount bass applied to the output signal. The maximum amount of bass gain
is +12dB and the maximum amount of bass decrease is -12dB. Turning the knob in a counter - clockwise direc-
tion will decrease the amount of bass applied to a channel signal, turning the knob in a clockwise direction will
increase the amount of bass applied to a channel signal.
13) POWER INDICATOR LED
LED lights up to indicate the speaker is on.
14) CLIP LED
If this LED is lit it means your signal is clipping. To stop the signal from clipping lower the volume to the point
where the LED is blinking along with the bass beat.
15) MAIN POWER SWITCH
This is the main power ON / OFF button. A green LED directly above the power switch will glow indicating
power is ON. Before main power is applied, be sure you have made all connections to the speaker. Remem-
ber to avoid damaging pops to the speakers, the mixer is turned on rst and turned off last. Always turn
down the INPUT VOLUME (10) before switching off the speaker. Never turn off the speaker when there is a
running signal!

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
8
ACTIVE FULL RANGE LOUDSPEAKERS
115
(115/230V - 50/60Hz)
230V
1
15V
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
16
1) MIC XLR INPUT
Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power)
2) BALANCED XLR LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this will
reduce excessive signal loss.
3) BALANCED RCA LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this
will reduce excessive signal loss. Be sure to connect only line level input devices such as mixers and tape
machines to this jack.
DUETTO LIGHT 10A - Components and Features
- Rear of DUETTO LIGHT 10A -

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
9
ENGLISH
4) 1/4” LINE OUTPUT
This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO
LIGHT 10A or other powered speaker.
5) XLR LINE OUTPUT
Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 10A to another DUETTO LIGHT 10A or
other powered speaker.
6) MICROPHONE INPUT VOLUME
This knob is used to increase or decrease the volume ouput on your DUETTO LIGHT 10A.
7) LINE LEVEL INPUT VOLUME
This knob is used to regulate the output signal of the line level source connected to the Line Level Inputs (2 & 3).
8) MAIN VOLUME
This knob is used to regulate all the output signals being sent to another DUETTO LIGHT 10A or other
powered speaker.
9) HIGH CONTROL
This knob is used to regulate the amount treble applied to the output signal. The maximum amount of treble
gain is +12dB and the maximum amount of treble decrease is -12dB. Turning the knob in a counter-clockwise
direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direc-
tion will increase the amount of treble applied to a channel signal.
10) LOW CONTROL
This knob is used to regulate the amount bass applied to the output signal. The maximum amount of bass gain
is +12dB and the maximum amount of bass decrease is -12dB. Turning the knob in a counter - clockwise direc-
tion will decrease the amount of bass applied to a channel signal, turning the knob in a clockwise direction will
increase the amount of bass applied to a channel signal.
11) POWER INDICATOR LED
LED lights up to indicate the speaker is on.
12) CLIP LED
If this LED is lit it means your signal is clipping. To stop the signal from clipping lower the volume to the point
where the LED is blinking along with the bass beat.
13) MAIN POWER INLET
This connector is used to supply main power to the unit via the included detachable power cord. The power
connection uses an I.E.C. type connector, use only a power cord that matches this type of connection. Be
sure to only connect this unit to a power outlet that matches the printed power label on the unit. Never use a
power when the ground prong has been removed or broken off. The ground prong is used to reduce the risk
of electrical shock in case of an electrical short. This cord is designed to fit in one direction only. Do not at-
tempt to force a cord if it does not fit, be sure the cord is being inserted properly.
14) FUSE HOLDER
115V voltage use 3.15A protective fuse and 230V voltage use 5A protective fuse. Always replace with the ex-
act same type fuse, unless otherwise instructed, by an authorized service technician. Replacing with any other
type of fuse than that of the recommended fuse will void your unit warranty.
15) MAIN POWER SWITCH
This is the main power ON / OFF button. A green LED directly above the power switch will glow indicating
power is ON. Before main power is applied, be sure you have made all connections to the speaker. Remember
to avoid damaging pops to the speakers, the mixer is turned on rst and turned off last. Always turn down the
INPUT VOLUME (8) before switching off the speaker. Never turn off the speaker when there is a running signal!
16) AC VOLTAGE SELECTOR
This switch is used to change the operating voltage. Operat- ing voltage can be toggled between 115V or
230V/50~60Hz. Be sure the selector is set to the proper voltage for your area before attempting to operate the
unit. Always be sure main power is shut off before change the position of the Voltage Selector Switch!
DUETTO LIGHT 10A - Components and Features

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
10
ACTIVE FULL RANGE LOUDSPEAKERS
115
(115/230V - 50/60Hz)
23 0V
1
15V
16
1
2
3
4
5
8
9
10
11
12
13
14
15
6
7
1) MIC XLR INPUT
Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power)
2) BALANCED XLR LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this will
reduce excessive signal loss.
3) BALANCED RCA LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this
will reduce excessive signal loss. Be sure to connect only line level input devices such as mixers and tape
machines to this jack.
DUETTO LIGHT 12A - Components and Features
- Rear of DUETTO LIGHT 12A -

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
11
ENGLISH
4) 1/4” LINE OUTPUT
This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO
LIGHT 12A or other powered speaker.
5) XLR LINE OUTPUT
Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 12A to another DUETTO LIGHT 12A or
other powered speaker.
6) MICROPHONE INPUT VOLUME
This knob is used to increase or decrease the volume ouput on your DUETTO LIGHT 12A.
7) LINE LEVEL INPUT VOLUME
This knob is used to regulate the output signal of the line level source connected to the Line Level Inputs (2 & 3).
8) MAIN VOLUME
This knob is used to regulate all the output signals being sent to another DUETTO LIGHT 12A or other
powered speaker.
9) HIGH CONTROL
This knob is used to regulate the amount treble applied to the output signal. The maximum amount of treble
gain is +12dB and the maximum amount of treble decrease is -12dB. Turning the knob in a counter-clockwise
direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direc-
tion will increase the amount of treble applied to a channel signal.
10) LOW CONTROL
This knob is used to regulate the amount bass applied to the output signal. The maximum amount of bass gain
is +12dB and the maximum amount of bass decrease is -12dB. Turning the knob in a counter - clockwise direc-
tion will decrease the amount of bass applied to a channel signal, turning the knob in a clockwise direction will
increase the amount of bass applied to a channel signal.
11) POWER INDICATOR LED
LED lights up to indicate the speaker is on.
12) CLIP LED
If this LED is lit it means your signal is clipping. To stop the signal from clipping lower the volume to the point
where the LED is blinking along with the bass beat.
13) MAIN POWER INLET
This connector is used to supply main power to the unit via the in-cluded detachable power cord. The power
connection uses an I.E.C. type connector, use only a power cord that matches this type of connection. Be
sure to only connect this unit to a power outlet that matches the printed power label on the unit. Never use a
power when the ground prong has been removed or broken off. The ground prong is used to reduce the risk
of electrical shock in case of an electrical short. This cord is designed to fit in one direc-tion only. Do not at-
tempt to force a cord if it does not fit, be sure the cord is being inserted properly.
14) FUSE HOLDER
115V voltage use 3.15A protective fuse and 230V voltage use 5A protective fuse. Always replace with the ex-
act same type fuse, unless otherwise instructed, by an authorized service technician. Replacing with any other
type of fuse than that of the recommended fuse will void your unit warranty.
15) MAIN POWER SWITCH
This is the main power ON / OFF button. A green LED directly above the power switch will glow indicating
power is ON. Before main power is applied, be sure you have made all connections to the speaker. Remember
to avoid damaging pops to the speakers, the mixer is turned on rst and turned off last. Always turn down the
INPUT VOLUME (8) before switching off the speaker. Never turn off the speaker when there is a running signal!
16) AC VOLTAGE SELECTOR
This switch is used to change the operating voltage. Operat- ing voltage can be toggled between 115V or
230V/50~60Hz. Be sure the selector is set to the proper voltage for your area before attempting to operate the
unit. Always be sure main power is shut off before change the position of the Voltage Selector Switch!
DUETTO LIGHT 12A - Components and Features

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
12
ACTIVE FULL RANGE LOUDSPEAKERS
115
(115 /2 30 V - 50/60Hz )
230 V
1
15V
16
1
2
3
4
5
8
9
10
11
12
13
14
15
6
7
1) MIC XLR INPUT
Plug a mic directly into this port for public address usage and let your voice be heard. (No phantom power)
2) BALANCED XLR LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this will
reduce excessive signal loss.
3) BALANCED RCA LINE INPUT
This connection is designed to accept a balanced line input signal from a mixer or other line level device
with a balanced output jack. Use a balanced cable when the signal cable length exceeds 5 meters, this
will reduce excessive signal loss. Be sure to connect only line level input devices such as mixers and tape
machines to this jack.
DUETTO LIGHT 15A - Components and Features
- Rear of DUETTO LIGHT 15A -

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
13
ENGLISH
4) 1/4” LINE OUTPUT
This is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another DUETTO
LIGHT 15A or other powered speaker.
5) XLR LINE OUTPUT
Using a XLR cable, use this port to daisy chain from your DUETTO LIGHT 15A to another DUETTO LIGHT 15A or
other powered speaker.
6) MICROPHONE INPUT VOLUME
This knob is used to increase or decrease the volume ouput on your DUETTO LIGHT 15A.
7) LINE LEVEL INPUT VOLUME
This knob is used to regulate the output signal of the line level source connected to the Line Level Inputs (2 & 3).
8) MAIN VOLUME
This knob is used to regulate all the output signals being sent to another DUETTO LIGHT 15A or other
powered speaker.
9) HIGH CONTROL
This knob is used to regulate the amount treble applied to the output signal. The maximum amount of treble
gain is +12dB and the maximum amount of treble decrease is -12dB. Turning the knob in a counter-clockwise
direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direc-
tion will increase the amount of treble applied to a channel signal.
10) LOW CONTROL
This knob is used to regulate the amount bass applied to the output signal. The maximum amount of bass gain
is +12dB and the maximum amount of bass decrease is -12dB. Turning the knob in a counter - clockwise direc-
tion will decrease the amount of bass applied to a channel signal, turning the knob in a clockwise direction will
increase the amount of bass applied to a channel signal.
11) POWER INDICATOR LED
LED lights up to indicate the speaker is on.
12) CLIP LED
If this LED is lit it means your signal is clipping. To stop the signal from clipping lower the volume to the point
where the LED is blinking along with the bass beat.
13) MAIN POWER INLET
This connector is used to supply main power to the unit via the included detachable power cord. The power
connection uses an I.E.C. type connector, use only a power cord that matches this type of connection. Be
sure to only connect this unit to a power outlet that matches the printed power label on the unit. Never use a
power when the ground prong has been removed or broken off. The ground prong is used to reduce the risk
of electrical shock in case of an electrical short. This cord is designed to fit in one direc-tion only. Do not at-
tempt to force a cord if it does not fit, be sure the cord is being inserted properly.
14) FUSE HOLDER
115V voltage use 3.15A protective fuse and 230V voltage use 5A protective fuse. Always replace with the ex-
act same type fuse, unless otherwise instructed, by an authorized service technician. Replacing with any other
type of fuse than that of the recommended fuse will void your unit warranty.
15) MAIN POWER SWITCH
This is the main power ON / OFF button. A green LED directly above the power switch will glow indicating
power is ON. Before main power is applied, be sure you have made all connections to the speaker. Remember
to avoid damaging pops to the speakers, the mixer is turned on rst and turned off last. Always turn down the
INPUT VOLUME (8) before switching off the speaker. Never turn off the speaker when there is a running signal!
16) AC VOLTAGE SELECTOR
This switch is used to change the operating voltage. Operat- ing voltage can be toggled between 115V or
230V/50~60Hz. Be sure the selector is set to the proper voltage for your area before attempting to operate the
unit. Always be sure main power is shut off before change the position of the Voltage Selector Switch!
DUETTO LIGHT 15A - Components and Features

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
14
ACTIVE FULL RANGE LOUDSPEAKERS

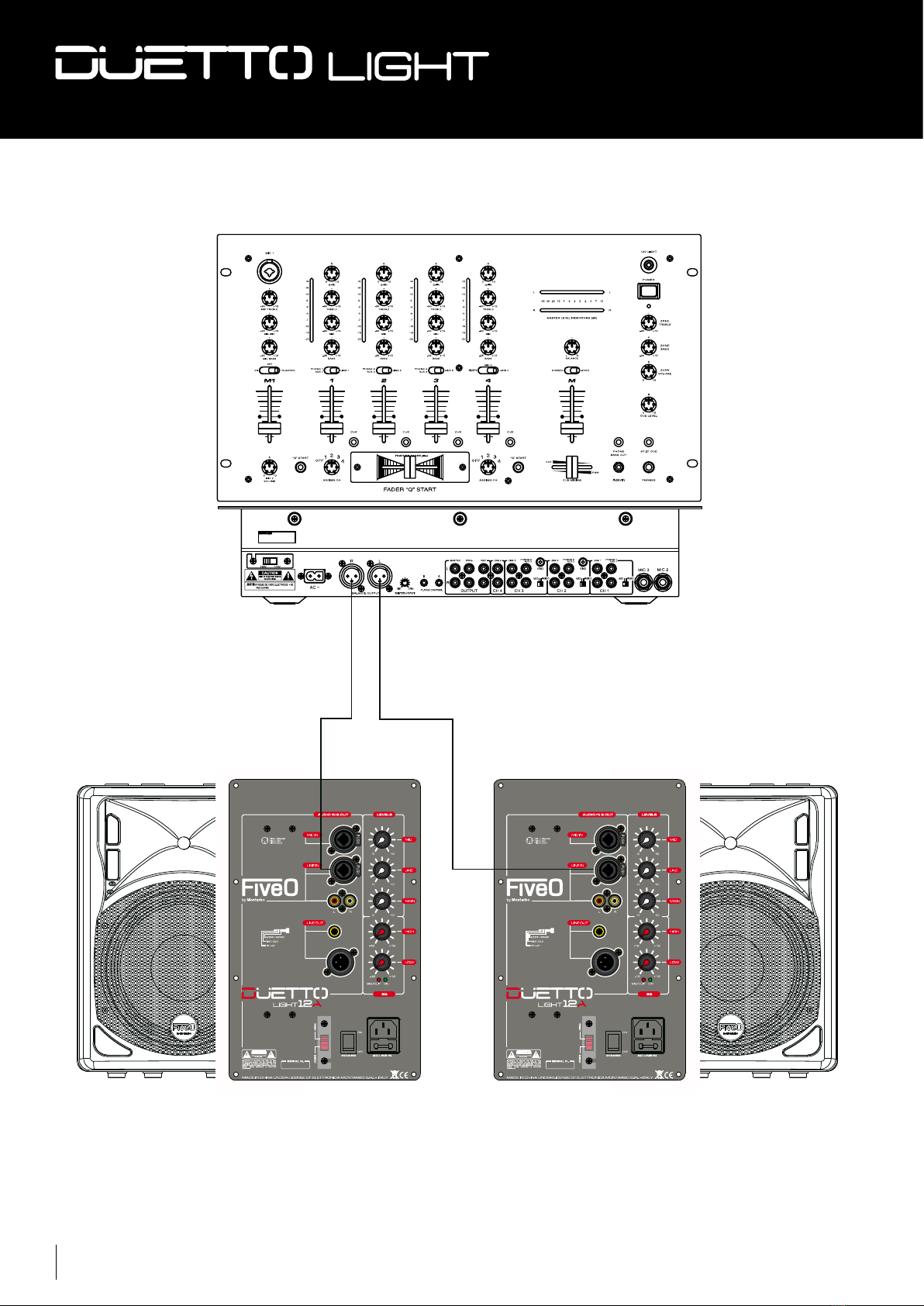

DUETTO LIGHT SERIES - Typical Speaker Setup
115
(115/230V- 50/60Hz)
230V
1
15V
115
(115/230V- 50/60Hz)
230V
1
15V
DUETTO LIGHT 12A DUETTO LIGHT 12A
XLR-XLR Balanced Cables
MIXER

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
15
ENGLISH
DUETTO LIGHT SERIES - Looping Speakers
DUETTO LIGHT SERIES - Rigging and Mounting Options
115
(115/230V- 50/60Hz)
230V
115V
115
(115/230V- 50/60Hz)
230V
115V
Line Output
To Next DUETTO LIGHT Speaker (If Applicable)
FROM MIXER
FLOOR MONITOR BRACKETS
These brackets are helpful for DJ’s and bands to help moniter their
sound during a performance. This is also an alternative to standing
the speaker straight up or mounting it on a stand. These brackets slide
into each end of the speaker. Each speaker has its own special sized
floor bracket.
360°
360° - turnable logo faceplate

Owner’s manual | DUETTO LIGHT SERIES Active Full Range Loudspeakers
16
ACTIVE FULL RANGE LOUDSPEAKERS
DUETTO LIGHT 8A
Active Fullrange Loudspeakers
Dimensions: 11.6”(L) x 8.9”(W) x 16.1(H) / 295mm x 225mm x 409mm
Weight: 18.1 Lbs. / 8.2 kg
Environmental conditions: Operational temperature: 5° to 35° C (41° to 95° F)
Operational humidity: 25 to 85% RH (non-condensation)
Storage temperature: -20° to 60° C (4° to 140° F)
Nominal Dispersion: 90° x 50° (H x V)
Continuous Power (LF - HF): 130 + 20W
Maximum Power (LF - HF): 130 + 70W
Frequency Response: 80Hz ÷ 20kHz
SPL (1W/1mt): 94.5dB SPL
Max SPL: 116dB SPL
Crossover type: active 24dB/Oct
Crossover Frequency: 1900Hz
Power supply: AC 115V/230V , 50Hz/60Hz
Accessories: I.E.C. Power Cord
Line: 500mV/1000mV
Microphone: -65dB (5mV)
Output Sensitvity: 94 2dB/mW
Protections: Limiter and thermal
DUETTO LIGHT 10A
Active Fullrange Loudspeakers
Dimensions: 14”(L) x 11”(W) x 19(H) / 355mm x 280mm x 480mm
Weight: 26.5 Lbs. / 12 kg
Environmental conditions: Operational temperature: 5 to 35 C (41 to 95 F)
Operational humidity: 25 to 85% RH (non-condensation)
Storage temperature: -20° to 60° C (4 to 140 F)
Nominal Dispersion: 90° x 50° (H x V)
Continuous Power (LF - HF): 250 + 30W
Maximum Power (LF - HF): 250 + 100W
Frequency Response: 68Hz ÷ 20kHz
SPL (1W/1mt): 92dB SPL
Max SPL: 116dB SPL
Crossover type: active 24dB/Oct
Crossover Frequency: 1800Hz
Power supply: AC 115V/230V , 50Hz/60Hz
Accessories: I.E.C. Power Cord
Line: 500mV/1000mV
Microphone: -65dB (5mV)
Output Sensitvity: 95 2dB/mW
Protections: Limiter and thermal
DUETTO LIGHT SERIES - Technical Specifications

DUETTO LIGHT SERIES Active Full Range Loudspeakers | Owner’s manual
17
ENGLISH
DUETTO LIGHT 12A
Active Fullrange Loudspeakers
Dimensions: 16”(L) x 12”(W) x 23(H) / 405mm x 305mm x 585mm
Weight: 38.8 Lbs. / 17.6 kg
Environmental conditions: Operational temperature: 5° to 35° C (41° to 95° F)
Operational humidity: 25 to 85% RH (non-condensation)
Storage temperature: -20° to 60° C (4° to 140° F)
Nominal Dispersion: 90° x 50° (H x V)
Continuous Power (LF - HF): 250 + 50W
Maximum Power (LF - HF): 300 + 100W
Frequency Response: 60Hz ÷ 20KHz
SPL (1W/1mt): 94dB SPL
Max SPL: 118dB SPL
Crossover type: active 24dB/Oct
Crossover Frequency: 1800Hz
Power supply: AC 115V/230V , 50Hz/60Hz
Accessories: I.E.C. Power Cord
Line: 500mV/1000mV
Microphone: -65dB(5 mv)
Output Sensitvity: 97 2dB/mW
Protections: Limiter and thermal
DUETTO LIGHT 15A
Active Fullrange Loudspeakers
Dimensions: 17”(L) x 15”(W) x 27(H) / 430mm x 380mm x 685mm
Weight: 46.3 Lbs. / 21 kg
Environmental conditions: Operational temperature: 5° to 35° C (41° to 95° F)
Operational humidity: 25 to 85% RH (non-condensation)
Storage temperature: -20° to 60° C (4° to 140° F)
Nominal Dispersion: 90° x 50° (H x V)
Continuous Power (LF - HF): 300 + 70W
Maximum Power (LF - HF): 400 + 100W
Frequency Response: 50Hz ÷ 20kHz
SPL (1W/1mt): 99dB SPL
Max SPL: 123dB SPL
Crossover type: active 24dB/Oct
Crossover Frequency: 1700Hz
Power supply: AC 115V/230V , 50Hz/60Hz
Accessories: I.E.C. Power Cord
Line: 500mV/1000mV
Microphone: -65dB (5 mV)
Output Sensitvity: 99 2dB/mW
Protections: Limiter and thermal
DUETTO LIGHT SERIES - Technical Specifications

DIFFUSORI FULL RANGE BIAMPLIFICATI
Manuale utente | SERIE DUETTO LIGHT Diffusori Fullrange Biamplificati
18
ATTENZIONE
Nell’interesse della propria e della altrui
sicurezza, e per non invalidare la garanzia,
si raccomanda una attenta lettura di questa
sezione prima di utilizzare il prodotto.
• Leggete tutta la documentazione prima di utilizzare
l’apparecchiatura.
• Conservate tutta la documentazione per ogni ulteriore
consultazione.
• Latensionedi retedevecorrispondereall’etichetta posteriore.
• Danni causati da errata connessione a tensione alternata
non sono coperti da garanzia.
• Utilizzate sempre l’unità con il cavo di massa di corrente
collegato alla terra dell’impianto elettrico.
• Dovete prendere precauzioni per evitare una messa a terra
difettosa, scorretta o inefficiente.
• Dopo il collegamento dell’alimentazione alcuni componenti
al suo interno sono già accesi.
• Non collegate un’uscita amplificata a qualsiasi canale di
ingresso.
• Assicuratevi che il segnale sia collegato correttamente a
ciascuna sezione di ingresso.
• Spegnete l’apparecchio prima di estrarre il cavo di
alimentazione e il cavo (o i cavi) di segnale.
• Perinviareun segnalea più diun amplificatore,vi suggeriamo
di usare un distributore di segnale.
• Non ostruite le porte di entrata e di uscita per l’aria di
raffreddamento.
Questo apparecchio non contiene parti interne
destinate all’intervento diretto da parte
dell’utilizzatore. Per evitare il rischio di incendio
e/o folgorazione,non smontarlo enon rimuovere
eventuali pannelli protettivi.
NOTA BENE
Per qualsiasi intervento di manutenzione
o riparazione, rivolgetevi alla Elettronica
Montarbo srl e/o a personale altamente
qualificato specificamente segnalato da questa.
Direttiva RAEE
ATTENZIONE!
Il prodotto è contrassegnato da questo simbolo che
segnala di non smaltire le apparecchiature elettriche ed
elettroniche tramite la normale procedura di smaltimento
dei rifiuti domestici. Per questi prodotti è previsto un sistema
di raccolta differenziato in conformità alla legislazione che richiede
il trattamento, il recupero e il riciclaggio adeguato dei suddetti
prodotti. Per maggiori informazioni si prega di contattare l’autorità
locale competente. La barra nera sotto il simbolo indica che il
prodotto è stato immesso sul mercato dopo il 13 agosto 2005.
INFORMAZIONI PER UN CORRETTO SMALTIMENTO
Per gli utenti privati
Nell’Unione europea | Attenzione: Per smaltire il presente
dispositivo, non utilizzare il normale bidone della spazzatura! Le
apparecchiature elettriche ed elettroniche usate devono essere
gestite a parte e in conformità alla legislazione che richiede il
trattamento, il recupero e il riciclaggio adeguato dei suddetti
prodotti. In seguito alle disposizioni attuate dagli Stati membri,
i privati residenti nella UE possono conferire gratuitamente
le apparecchiature elettriche ed elettroniche usate a centri di
raccolta designati*. In alcuni paesi (*), anche il rivenditore locale
può ritirare gratuitamente il vecchio prodotto se l’utente acquista
un altro nuovo di tipologia simile. *Per maggiori informazioni si
prega di contattare l’autorità locale competente.
In paesi che non fanno parte dell’UE | Contattare le autorità
locali e informarsi sul metodo di smaltimento corretto.
In Svizzera | Le apparecchiature elettriche o elettroniche usate
possono essere restituite gratuitamente al rivenditore, anche se
non si acquista un prodotto nuovo. Altri centri di raccolta sono
elencati sulle homepage di www.swico.ch o di www.sens.ch.
Per gli utenti professionali
Nell’Unione europea | Attenzione: Se il prodotto è impiegato
a scopi professionali, procedere come segue per eliminarlo:
contattare il proprio rivenditore FiveO by Montarbo®che fornirà
informazioni circa il ritiro del prodotto. Potrebbero essere
addebitate le spese di ritiro e riciclaggio. Prodotti piccoli (e
quantitativi ridotti) potranno essere ritirati anche dai centri di
raccolta locali.
In Spagna | Contattare il sistema di raccolta ufficiale o l’ente
locale preposto al ritiro dei prodotti usati.
In paesi che non fanno parte dell’UE | Contattare le autorità
locali e informarsi sul metodo di smaltimento corretto.
Il lampo con la freccia inserito in un triangolo equilatero avvisa
l’utilizzatore della presenza di tensione pericolosa, senza
isolamento, all’interno dell’apparecchio che potrebbe essere
sufficientemente alta da generare il rischio di scossa elettrica.
Il punto esclamativo inserito in un triangolo equilatero avvisa
l’utilizzatore della presenza di importanti istruzioni per l’utilizzo
e per la manutenzione.
AVVERTENZE

ITALIANO
SERIE DUETTO LIGHT Diffusori Fullrange Biamplificati | Manuale utente
19
CONTENUTI DELL’IMBALLO
•Diffusore attivo full range
•Cavo di alimentazione (3m)
•2 staffe per utilizzo come monitor da palco
•Manuale utente
•Certificato di garanzia
iNdicE
Avvertenze 2
Indice 5
Introduzione 6
Caratteristiche 6
Installazione 7
Utilizzo 7
Suggerimenti 7
DESCRIZIONE
ELEMENTI DI CONTROLLO E CONNESSIONI
Canali di Ingresso 8
Sezione Main 9
ELEMENTI DI COMANDO E COLLEGAMENTI
Sezione di alimentazione 9
CABINET
Drivers 11
Descrizione del lato superiore 11
Descrizione del lato inferiore 11
CABLAGGIO 12
COLLEGAMENTO LOOPING 13
OPZIONI DI UTILIZZO PER MONITOR DA PALCO 13
CARATTERISTICHE TECNICHE 14

DIFFUSORI FULL RANGE BIAMPLIFICATI
Manuale utente | SERIE DUETTO LIGHT Diffusori Fullrange Biamplificati
20
iNTROdUZiONE
Vi ringraziamo per aver scelto un prodotto della linea FiveO by Montarbo®. I diffusori attivi biamplificati della serie
DUETTO LIGHT sono stati progettati per rispondere alle esigenze di quanti desiderano un sistema audio fullrange dotato di
ottime prestazioni e con un buon rapporto qualità/prezzo. L’utilizzo di componenti di alta qualità unito ad una progettazione
custom garantisce una buona affidabilità per molti anni.
I diffusori DUETTO LIGHT grazie alle soluzioni di posizionamento rispondono perfettamente alle esigenze di piccoli gruppi,
sale prova e qualsiasi altra applicazione di sonorizzazione di ambienti ed eventi live. Al fine di sfruttare al meglio le loro
caratteristiche raccomandiamo una lettura attenta di queste istruzioni, anche nell’interesse della propria e dell’altrui sicurezza.
Per ulteriori informazioni consultate il nostro sito web www.fiveo.it o inviate una mail a mail@fiveo.it
cARATTERiSTicHE
I sistemi biamplificati DUETTO LIGHT utilizzano un cabinet in polipropilene ad alta densità robusto, leggero e compatto.
La versatilità del design trapezoidale unito ad accessori intelligenti consente di poter installare e collocare il vostro sistema
in tutta sicurezza. Il peso contenuto e le maniglie integrate nel cabinet permettono un comodo trasporto, mentre la griglia
frontale in metallo evita il danneggiamento accidentale del woofer.
L’elettronica incorpora un amplificatore in classe D e un preamplificatore analogico progettato su misura atto a riprodurre una
timbrica brillante e calda. Per aumentare la versatilità dei sistemi DUETTO LIGHT, abbiamo aggiunto ingressi microfonici e
di linea per sorgenti mono e stereo, come strumenti musicali o apparecchi hi-fi. Per migliorare la risposta in frequenza delle
vostre DUETTO LIGHT in qualsiasi ambiente e per qualsiasi genere musicale abbiamo inserito un EQ a due bande, che
consente di enfatizzare/attenuare frequenze basse ed alte.
- Ingresso microfonico bilanciato COMBO.
- Ingresso di linea mono COMBO ed ingresso stereo sbilanciato RCA.
- Uscita link bilanciata XLR.
- Uscita sbilanciata jack da 6,35 mm (1/4 “) per tutti i modelli, ad esclusione della DUETTO LIGHT 8A.
- Livello di ingresso separato per ingressi MIC e LINE.
- Sezione di uscita con livello MAIN ed EQ con controlli HIGH e LOW.
- LED di accensione e CLIP.
- Amplicatori in Classe D con alimentatore switching e crossover attivo.
- Congurazione bass-reex del diffusore per garantire una maggiore efcienza e una risposta più estesa delle frequenze basse.
- Tromba ad ampia dispersione per migliorare la diffusione delle frequenze medio-alte.
- Protezione tramite circuito Limiter e contro surriscaldamento.
- Molteplici possibilità di posizionamento: a terra, impilata, rigging e montaggio su treppiede.
- Maniglie incorporate per trasporto comodo e sicuro.
