Flipkart MARQ 20AMWSMQB User manual

Instruction Manual
20AMWSMQB
20L Microwave Oven
Read these instructions carefully before using your
microwave oven, and keep the manual carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
Jet
Defrost
5 Power
Levels
Kitchen
Timer
10 inch
Cooking Turntable

Title
1
2
6
8
10
12
14
Page No.
Index
Important Safety Instructions
Cleaning
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy
Setting up your Oven
Operation
Troubleshooting
Warranty Terms & Conditions

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwaves. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a trained brand service engineer.
ADDENDUM
If the appliance is not maintained in a good state of
cleanliness, its surface can get degraded and affect the
lifespan of the appliance and lead to a dangerous situation.
Specifications
Approx.10.7kg
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
230V~ 50Hz
20 L
255 mm
1050W
439.5x357.5x258.2mm
700 W
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy
20AMWSMQB
1

To reduce the risk of fire, electric shock, injury to person or exposure
to excessive microwave when using appliance, follow basic precautions,
4. If the supply cord is damaged, it must be replaced by
a brand qualified and trained service engineer in order to
avoid a hazard. ( For appliance withtype Y attachment)
1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can only be used by children aged 8 years and
above. People with reduced physical, sensory or mental
capabilities or lack of experience and knowledge need to be
given supervision & instruction concerning use of the appliance in
a safe way such that they understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8 and
are supervised. Children less than 8 years of age should be kept away
unless continuously supervised.
3. Keep the appliance and its cord out of reach of children
less than 8 years.
7. WARNING: Liquids and other foods must not be heated
in sealed containers since they are liable to explosion.
5. WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of an electric shock.
6. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair operation
that involves the removal of the cover that provides protection
against exposure to microwave energy.
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition/fire.
Important Safety Instructions
Warning
2

12. The contents of feeding bottles and baby food jars
should be stirred & shaken and the temperature checked before
consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
14. The oven should be cleaned regularly and any food
deposits should be removed.
15. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation.
11. Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken while handling
the container.
18. The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
17. Only use the temperature probe recommended for this oven.
(for ovens provided with a facility to use a
temperature-sensing probes.)
16. The appliance must not be installed behind a decorative door
in order to avoid overheating. (This is not applicable for appliances
with decorative door.)
9. Only use utensils that are suitable for use in microwave ovens.
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition.
10. If smoke is emitted, switch off & unplug the appliance
and keep the door closed in order to stifle any flames.delayed
eruptive boiling, therefore care must be taken while handling the
container.
3
Important Safety Instructions
Warning

-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
21. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar item may lead to
risk of injury, ignition or fire. Hence, this is not recommended.
-staff kitchen areas in shops, offices and other working
environments;
19. The microwave oven must be operated with the
decorative door open. (for ovens with a decorative door.)
22. Metallic containers for food and beverages are not
allowed during microwave cooking.
23. The appliance should not be cleaned with a steam cleaner.
24.The appliance is intended to be used freestanding.
20. This appliance is intended to be used in household
and similar applications such as:
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
25.The rear surface of appliances should be placed against a wall.
4
Important Safety Instructions
Warning

DANGER
Electric Shock Hazard Touching some of the internal components
can cause serious personnel injury or death. Do not disassemble
this appliance.
WARNING
To Reduce the Risk of Injury to Persons
Grounding Installation
Electric Shock Hazard: Improper use of the grounding can result in
electric shock. Do not plug into an outlet unless appliance is properly
installed and grounded.
This appliance must be grounded. In the event of an electrical short
circuit,grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a
cord having a grounding wire with a grounding plug. The plug must be
plugged into an outlet that is properlyinstalled and grounded. Consult a
brand qualified service engineer if the grounding instructionsare not
completely understood or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an extension cord, use only
a3- wire extension cord.
1. A short power-supply cord is provided to reduce the risks
resulting from the cord becoming entangled from or tripping over
a longer cord.
2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cord set or extension cord
should be the least as great as the electrical rating of the appliance.
2)The extension cord must be a grounding-type 3-wire cord.
3)The long cord should be arranged so that it will not drape
over the counter top or tabletop where it can’t be pulled on
by children or tripped over unintentionally.
5

Cleaning
UTENSILS CAUTION
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven with a slightly damp
cloth after usage.
2. Clean the accessories in the usual way with soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since that can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft & dry cloth.
Personal Injury Hazard
It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
microwave energy. It is advisable to call the brand qualified
service engineer in that case.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question by following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
6

Materials you can use in microwave oven
Materials to be avoided in microwave oven
Utensils Remarks
Utensils Remarks
Browning dish Follow vessel manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions.
Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates
and cups
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment
paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic containers soften,
as the food inside gets hot. "Boiling bags" and tightly closed plastic
bags should be slit, pierced or vented as directed on the package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed
utensils
Metal shields the food from microwave energy. Metal trim
may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and
may split or crack.
7

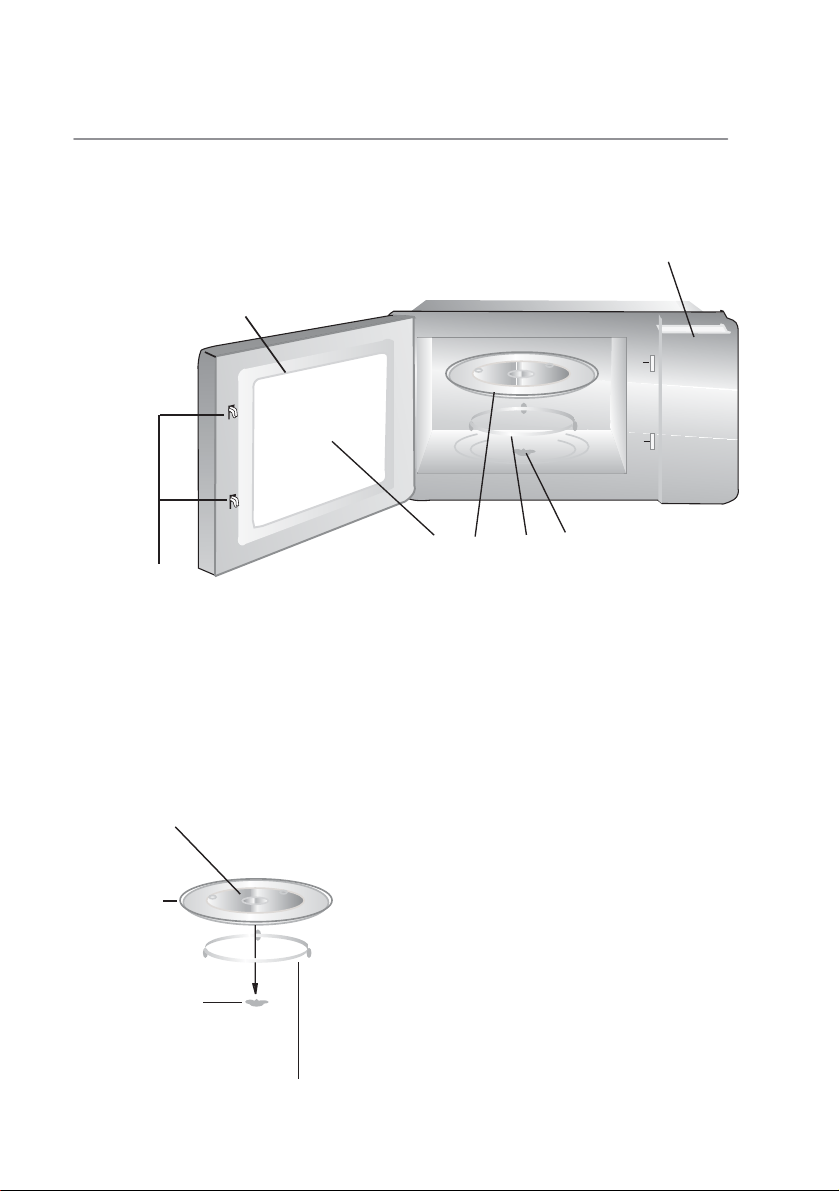

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Hub (underside)
Glass tray
Turntable ring assembly
Turntable shaft
Setting up your Oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly
Instruction Manual 1
1
F
G
A
C B
ED
Turntable Installation
a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
mustalways be used during cooking.
c. All food items and containers should always
be placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact the brand service helpdesk.
8

20cm
30cm
20cm
min85cm
0cm
Countertop Installation
Remove all packing material and accessories. Examine the oven for any
damage such as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven
cabinet surface. Do not remove the light brown Mica cover that is
attached to the oven cavity to protect the magnetron.
Installation
1.Select a levelled surface that provide enough open space for the inlet
and/or outlet vents.
(1) The minimum installation height is 85cm.
(2) The rear surface of appliance should be placed against a wall.
Leave a minimum clearance of 30cm above the oven. A minimum
clearance of 20cm is required between the oven and any
adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the inlet and/or outlet openings can damage the oven.
(5) Place the oven as far away from radio and TV as possible.
Operation of microwave oven may cause interference to your
radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage
and the frequency is the same as the voltage and the frequency on
the rating label.
WARNING: Do not install oven over a range cooktop or other
heat-producing appliance. If installed near or over a heat source, the
oven could be damaged and the warranty would be void.
The accessible surface may be
hot during operation.
9

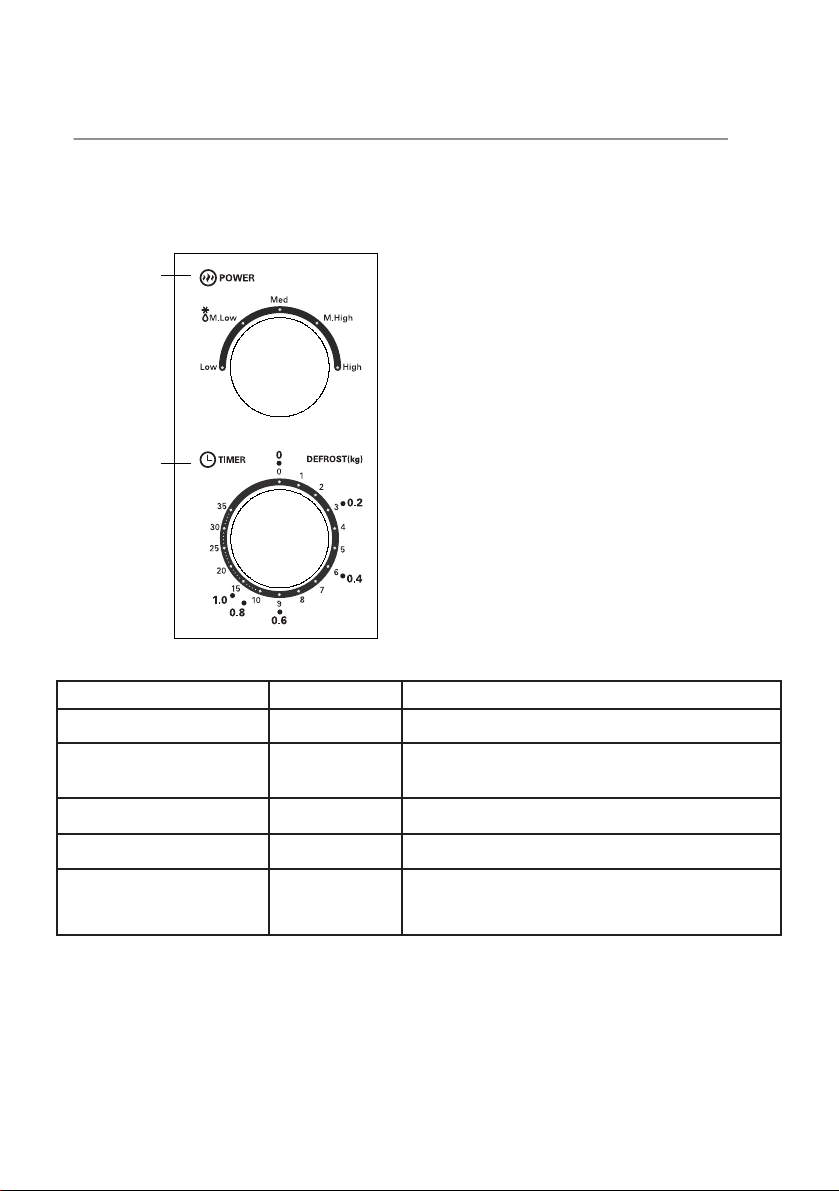

Control Panel and Features
Operation Instructions
Operation
Timer
Power 1.To set cooking power turn the
power knob to the desired level.
2.To set the time of cooking turn
the timer knob to the desired time
as per your food cooking guide.
3.The microwave oven will
automatically start cooking after
power level and time are set.
4.After the cooking time is up, the unit
will "Dong" to stop.
5.If the unit is not in use, always set
time to "0".
Function/Power Output Application
Low
M. Low
(Defrost)
Med
M. High
High
17% micro.
33% micro.
55% micro.
77% micro.
100% micro.
Soften ice cream
Soup stew, soften butter or defrost
Stew, fish
Rice, fish, chicken, ground meat
Reheat, milk, boil water, vegetables,
beverage
Notice: While removing food from the oven, please ensure that the oven
power is switched off by turning the timer switch to 0 (zero).
Failure to do so, and operating the microwave oven without food in
it, can result in overheating and damage to the magnetron.
10

Defrost by Weight:
Please rotate the knob between the range of 0.1Kg to 1 Kg basis the
amount of food you want to defrost
Defrost by Time:
Please rotate the knob between the range of 0 min to 35 min basis the
amount of time for which you want to defrost the food
Operation
11

It is forbidden to run the unit without any food inside.
It is very dangerous.
Troubleshooting
Normal
Trouble Possible Cause Remedy
In cooking, steam may come out of food. Most will
get out from vents. But some may accumulate
on cool place like oven door. It is normal.
Radio and TV reception may be interfered when
microwave oven operating. It is similar to the
interference of small electrical appliances, like
mixer, vacuum cleaner, and electric fan.
It is normal.
In low power microwave cooking, oven light may
become dim. It is normal.
Microwave oven interfering
TV reception
Dim oven light
Steam accumulating on
door, hot air outlet vents
Oven started accidentally
with no food in.
Oven can not
be started.
(1) Power cord not
plugged in tightly.
Unplug. Then plug again
after 10 seconds.
Brand trained
service engineers
Test outlet with other
electrical appliances.
Close door well.
(2) Fuse blows off
circuit works.
(3) Trouble with outlet.
(4) Door not closed well.
Oven does not heat.
12

Disposal & RoHS Declaration
This marking indicates that this product should not be
disposed with other household wastes throughout India. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.
This product is ROHS compliant
Disposal of the appliance
"It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a
suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
13

Warranty Terms & Conditions
14
1. Warranty service which includes replacement or repairs, will be carried out through the
Authorised Service Centers ("ASC/s") only.
2. Warranty will be valid only when the original purchase invoice is presented at the time of
service. Brand reserves the right to decline warranty service, if the purchase invoice is not presented.
3. Warranty will cover only functional parts and software issues having manufacturing
defects and does notcover damages resulting from un-authorised adaptations/adjustments/ tampering
of the product, improper installation, mishandling, breakage, improper use, improper operation,
improper maintenance or improper placement of the product, normal wear and tear caused due to
use of product.
4. Warranty does not cover any external accessories to the product (such as battery, cable,
carrying bag etc.).
5. All plastic, rubber, glass, or aesthetic parts and consumable replacements will be on achargeable
basis. Main door & Door Plastic is not covered under the said Unit warranty.
6. Warranty shall not apply to damages caused to the product by accident, voltage
fluctuations, lightening, ingress of water, fire or any other natural calamity, improper
ventilation, dropping or excessive shock, or any external cause beyond Brand's control.
7. Warranty shall not apply to defects caused by household pets, rat, cockroaches or any
other animal or insects.
8. Warranty shall not apply if the said unit is kept in condition, site or premises that do not
conform to the recommended operating conditions of the said unit.
9. Brand shall retain all products or spare parts which are replaced and the ownership of the
same shall vest with the Brand.
10. Brand is not liable to provide spare parts after the period of warranty expires.
11. Whilst the Brand, through its ASC, shall make every effort to carry out the service at the
earliest, it is expressly clarified that the Brand is under no obligation to do so within a
certain time period.
12. In the event of repairs of any part (s) of the said Unit, the warranty will thereafter continue
and remain in force only for the unexpired period of the warranty. Moreover, the time
taken for repair and in transit whether under the warranty or otherwise shall not be
excluded from the warranty period.
Flipkart India Private Limited (”Company”) warranties the product to be free fram manufacturing
defects for a period of 12 months, and such period shall commence from the date of purchase of
the product by the first end user. This is a non-transferable warranty, valid only in the territoary af
India and extended only to the first end user austomer ("Customer") basis the following terms
and conditions, which the Customer is deemed to have accepted upon purchase of the product:
THE TERMS AND CONDITIONS AS SET OUT BELOW SHALL FORM THE BASIS OF
THISWARRANTY:
THREE YEAR WARRANTY ON MAGNETRON AND CAVITY FROM THE DATE OF INVOICE
For twenty four (24) months following the expiration of the entire unit warranty of 1 year, the
Company shall continue to warrant the Magnetron and Cavity to be free from defects in material
and workmanship under normal use and service and under specified voltage conditions. This warranty is
subject to use of product with input voltage of 230 V +/-10%. The terms and conditions
as set out below shall form the basis of this waranty:
CONDITIONS OF WARRANTY

Warranty Terms & Conditions
15
Flipkart India Private Limited, Buildings Alyssa, Begonia &
Clove Embassy Tech Village,Outer Ring Road,Devarabeesanahalli Village
Bangalore KA 560103 IN Contact No. 080-46609211
Email: [email protected] 16170O00A71666AiPs
13. Whilst Brand would take all necessary steps to repair the product under warrarnty and
maintain sufficient stock of the spare parts of the products, in certain cases, at its sole
discretion, Brand may due to non-availability of spare parts of the product or product
being in a state which is beyond econamic repair, offer a replacement scheme to the
Customer. The terms of such replacement offer is subject to change from year to year and
shall also be applicable on the maximum retail price of the product.
14. All transportation & handling expenses incured while replacing or repairing will be
payable by the Customer.
15. For any warranty claim requested by the Customer from the region beyond municipal
limits of the jurisdiction of the ASC, a visit by an authorised service personnel may be
arranged by the Brand through its ASC, on a case to case basis, at its sole discretion and
the charges towards sudch visit will be borne by the Customer.
16. Warranty shall be voids if:
1. The type or serial no. on the producđhas been altered, removed or defaced.
2. If the said Unit has been detached, opened, or repaired by unauthorized third
party other than Company authorized service personnel
3. The product is not operated as per the instructions given in the User Guide, if any.
17. The waanty automatically expires after the period of time stated in the product invoiceeven
if the product may not be in use for any time for whatever reasons.
1.This Warranty shall not affect consumer's statutory rights under any appllicable law.
2. Customer agrees to indemnify and keep Brand harmless against all damages,
liabilities, costs, expenses, claims, suits and proceedings (incdluding reasonable
attorney's fee) that may be suffered by the Brand as a consequence of. (i) violation
of these terms and condition by the Customer, (i) violation of applicable laws by
the Customer, (iii) any action or inaction resulting in willful misconduct or
negligence on the Customer's part.
18. Customer agrees that the courts at Bangalore shall have the exclusive jurisdiction to
settle any dispute that may arise in relation to this Warranty or these terms andconditions.
19. The sole and exclusive remedy of the Purchaser under this warranty shall be productrepair or
replacement of parts at our sole discretion. Company shall not be liable for any
incidental or consequential damages.
20. Please contact your customer helpline number 080-46609211 for repair and maintenanceof
the said Unit.
21. After the period of warranty, at the sole discretion of the company, the said Unit shall be
repaired on chargeable basis and all visits by service personnel shall be subject to
payment of visiting fee. Company shall not be liable to provide the repair services (even
on chargeable basis) after the expiry of the warranty period.
22. For any further information / assistance please contact our customer Redressal cell at:
PN: 16170000a71666
