Fluke 5205A User manual

Power
Amplifier
Instruction Manual
P/N 338434
February 1976
Rev. 4/76
®1982 John Fluke Mfg. Co., inc., all rights reserved Litho in U.S.A.

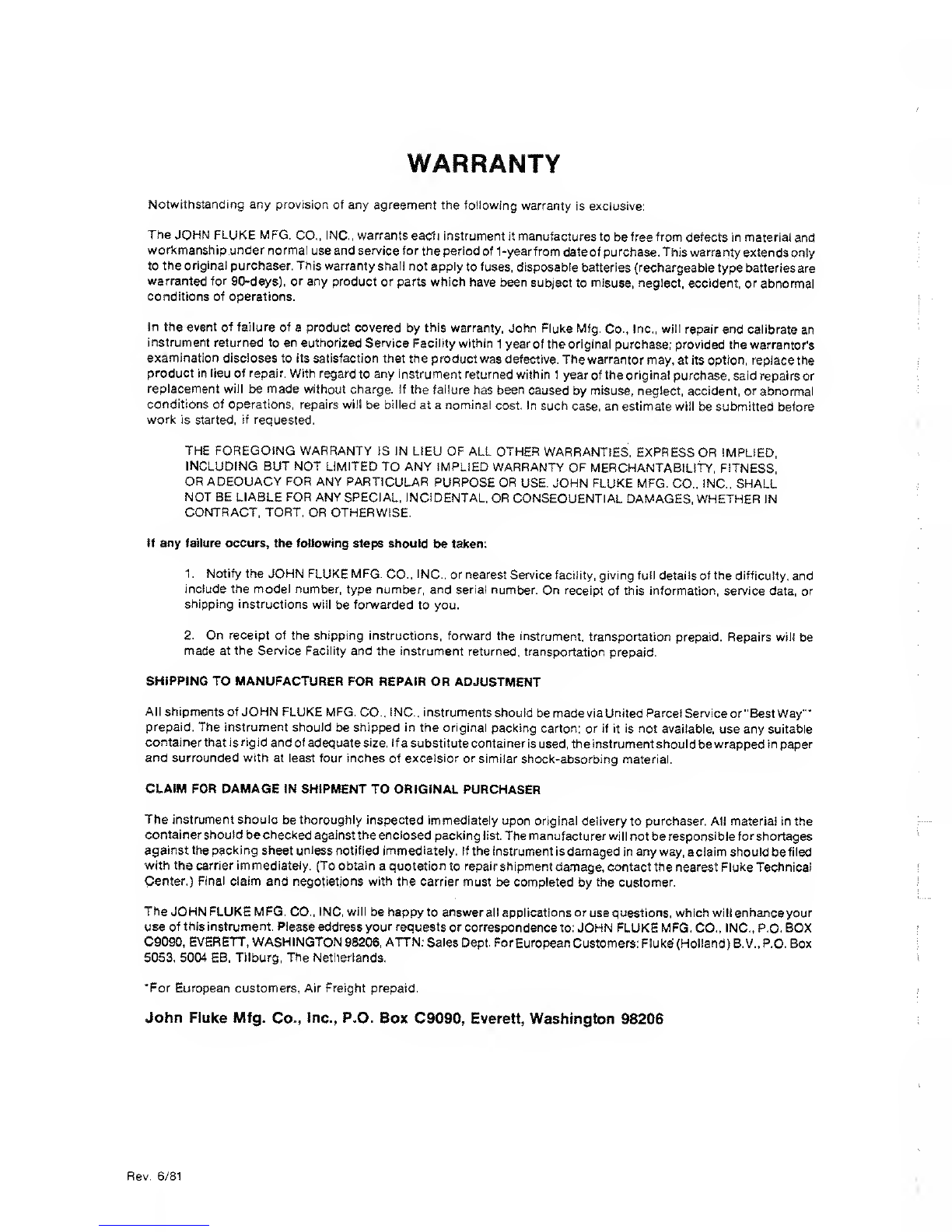

Notwithstanding any provision of any agreement the following warranty is exclusive;
The JOHN FLUKE MFG. CO., INC., warrants eact) instrument it manufactures to be free from defects in material and
workmanship under normal use and service for the period of 1-yearfrom dateof purchase, This warranty extends only
to the original purchaser. This warranty shall not apply to fuses, disposable batteries (rechargeable type batteries are
warranted for 90-days), or any product or parts which have been subject to misuse, neglect, accident, or abnormal
conditions of operations.
In the event of failure of aproduct covered by this warranty. John Fluke Mfg. Co.. Inc,, will repair and calibrate an
instrument returned to an authorized Service Facility within 1yearof the original purchase; provided the warrantor's
examination discloses to its satisfaction that the product was defective. The warrantor may. at its option, replace the
product in lieu of repair. With regard to any instrument returned within 1year of the original purchase, said repairs or
replacement will be made without charge. If the failure has been caused by misuse, neglect, accident, or abnormal
conditions of operations, repairs will be billed at anominal cost, In such case, an estimate will be submitted before
work is started, if requested.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES. EXPRESS OR IMPLIED.
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY. FITNESS,
OR ADEQUACY FOR ANY PARTICULAR PURPOSE OR USE. JOHN FLUKE MFG. CO., INC.. SHALL
NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. WHETHER IN
CONTRACT, TORT, OR OTHERWISE.
if any failure occurs, the foiiowing steps should be taken:
1. Notify the JOHN FLUKE MFG. CO.. INC., or nearest Service facility, giving full details of the difficulty, and
include the model number, type number, and serial number. On receipt of this information, service data, or
shipping instructions will be forwarded to you.
2. On receipt of the shipping instructions, forward the instrument, transportation prepaid. Repairs will be
made at the Service Facility and the instrument returned, transportation prepaid.
SHIPPING TO MANUFACTURER FOR REPAIR OR ADJUSTMENT
All shipments of JOHN FLUKE MFG. CO., INC., instruments should be made via United Parcel Service or “Best Way'”
prepaid. The instrument should be shipped in the original packing carton: or if it is not available, use any suitable
container that is rigid and of adequate size. If asubstitute container is used, the instrument should be wrapped in paper
and surrounded with at least four inches of excelsior or similar shock-absorbing material.
CLAIM FOR DAMAGE IN SHIPMENT TO ORIGINAL PURCHASER
The instrument shoulo be thoroughly inspected immediately upon original delivery to purchaser. All materia! in the
container should be checked against the enclosed packing list. The manufacturer will not be responsible for shortages
against the packing sheet unless notified immediately. If the instrument is damaged in any way, aciaim should be filed
with the carrier immediately. (To obtain aquotation to repair shipment damage, contact the nearest Fluke Technical
Center.) Final claim and negotiations with the carrier must be completed by the customer.
The JOHN FLUKE MFG. CO,, INC, will be happy to answer ail applications or use questions, which will enhance your
use of this instrument. Please address your requests or correspondence to: JOHN FLUKE MFG. CO,. INC., P.0, BOX
09090, EVERETT, WASHINGTON 98206. ATTN; Sales Dept. For European Customers: Fluke (Holland) B.V..P.O. Box
5053. 5004 EB. Tilburg, The Netherlands.
•For European customers. Air Freight prepaid.
John Fluke Mfg. Co., Inc., P.O. Box C9090, Everett, Washington 98206
Rev. 6/81

FIRST AID
FOR ELECTRIC
SHOCK
RESCUi
FREE VICTIM FROM CONTACT WITH LIVE CONDUCTOR QUICKLY.
AVOID CONTACT WITH EITHER LIVE CONDUCTOR OR VICTIM’S BODY.
Shut off high uoltoge of once and ground circuit. If high voltage cannot
be turned off quickly, ground circuit.
An ax with odry wooden handle moy be used to cot high voltage line. Use
extreme caution to avoid resulting electric flash.
If circuit connot be broken or grounded, use odry board, dry clothing,
or other nonconductor to free the victim. '
NEVER ACCEPT ORDINARY AND GENERAL TESTS FOR DEATH
Symptoms of electric shock may include unconsciousness, failure to breathe
stiffness, as well as severe burns. WHENEVER
VICTIM IS NOT BREATHING PROPERLY, GIVE ARTIFICIAL RESPIRATION
START ARTIFICAL RESPIRATION IMMEDIATELY.
Perform artificial respiration ot scene of accident, unless victim’s or operator's life
is endongered. IN THIS CASE ONLY, remove victim to safe location nearby. If
new location is more than a few feet away, give artificial respirotion while victim
is being moved.
artificiol respiration, continue without loss of rhythm for at leost
FOUR HOURS, or until victim is breothlng without help. If you hove to change
operotors while giving ortificiol respiration, do so without losing rhythm of respiration.
Be prepored to resume ortificiol respiration, os he may stop breathing agoin.
COMPLETELY CONSCIOUS, give him astimulant (NOT AN ALCOHOLIC
DRINK) such os oteaspoonful of aromatic spirits of ammonio in o small gloss of water,
hot coffee, or hot tea.
Keep victim wcrm and lying down until he has been conscious for at least fifteen minutes.

5205A
POSITION VICTIM
Place victim in face—upword position and kneel close to his eor.
CLEAR THROAT
Turn head to one side and quickly wipe out any fluid, mucus, or
foreign body from mouth and throat with fingers.
OPEN AIR PASSAGE
Tilt heod back and extend neck to open air passage.
LIFT JAW FORWARD
Place thumb in victim's mouth and grasp jaw firmly. Lift jew
forward to pui! tongue out of air passage. Do not attempt to
held or depress tongue.
PINCH NOSTRILS CLOSED
With other hand pinch nostrils closed to prevent air leak.
FORM TIGHT SEAL WITH LIPS
Rescuer’s wide-open mouth completely surrounds and seals
open mouth of victim. This is not akissing or puckered
position —mouth of rescuer must be wide-open.
BLOW
Exhale firmly into victim's mouth until chest is seen to lift,
ihis can be seen by rescuer without difficulty.
REMOVE MOUTH AND INHALE
During this time, rescuer can hear and feel escape for air from
lungs. Readjust position if air dees not flow freely in and
out of victim’s lungs.
Continue at arate of 12 to 20 times per minute.
Breothing should be normal in rate with only moderate increase
in volume, so that rescue breathing can be continued for long
periods without fatigue. Do not breothe too forcibly or too
large avolume if victim is an infont or small child.
t
viii

5205A

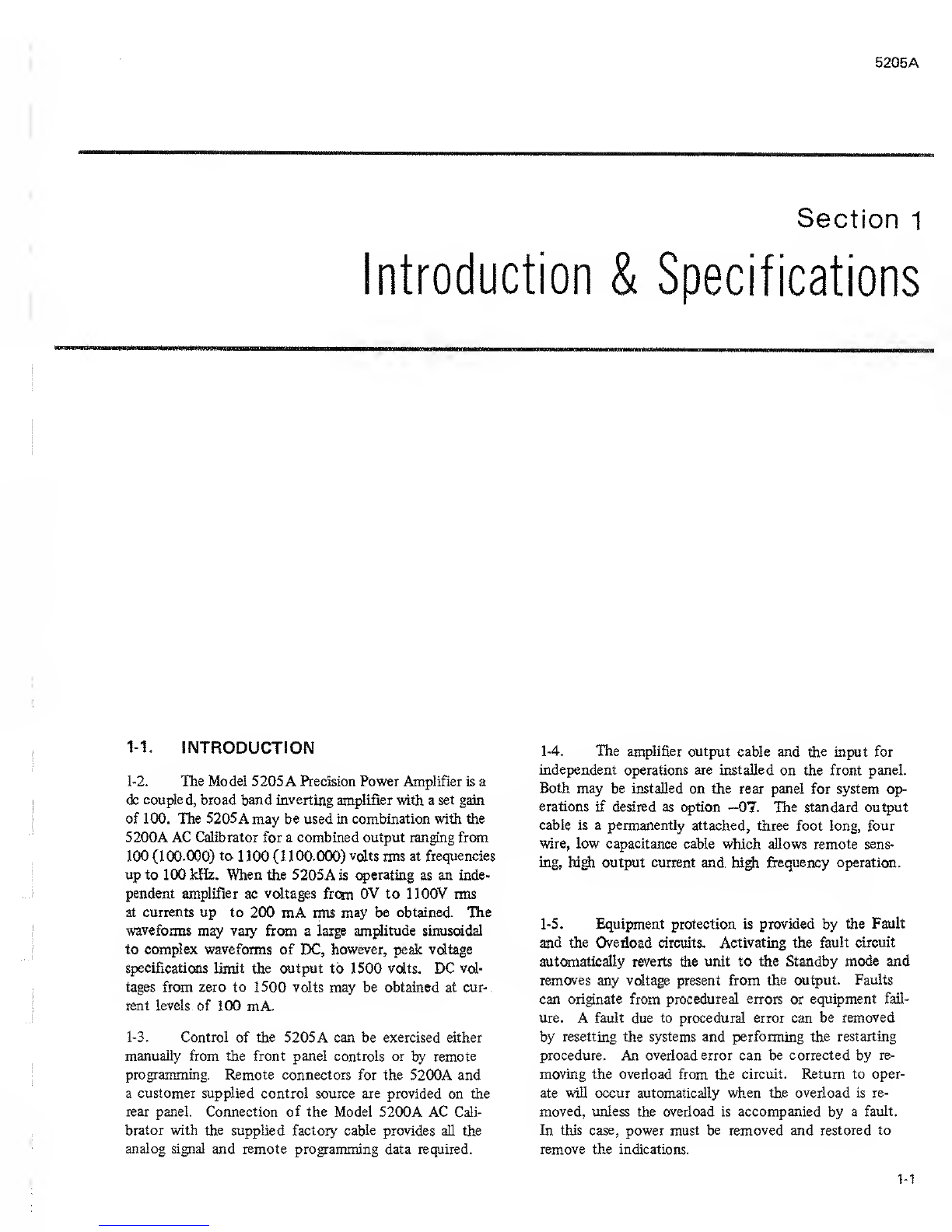

Section 1
ntroduction &Specifications
1-1. INTRODUCTION
1-2. The Model 5205A decision Power Amplifier is a
dc coupled, broad band inverting amplifier with aset gain
of 1(X). The 5205A may be used in combination with the
5200A AC Calibrator for acombined output ranging from
100 (100.000) to 1100 (1100.000) volts rms at frequencies
up to 100 kHz. When the 5205A is operating as an inde-
pendent amplifier ac voltages from OV to llOOV rms
at currents up to 200 mA rms may be obtained. The
waveforms may vaiy from alarge amplitude sinusoidal
to complex waveforms of DC, however, peak voltage
specifications limit the output to 1500 volts, DC vol-
tages from zero to 1500 volts may be obtained at cur-
rent levels of 100 mA
1-3. Control of the 5205Acan be exercised either
manually from the front panel controls or by remote
programming. Remote connectors for the 5200A and
acustomer supplied control source are provided on the
rear panel. Connection of the Model 5200A AC Cali-
brator with the supplied factory cable provides all the
analog signal and remote programming data required.
1-4. The amplifier output cable and the input for
independent operations are installed on the front panel.
Both may be installed on the rear panel for system op-
erations if desired as option —07. The standard output
cable is apermanently attached, three foot long, four
wire, low capacitance cable which allows remote sens-
ing, hi^ output current and hi^ frequency operation.
1-5. Equipment protection is provided by the Fault
and the Overload circuits. Activating the fault circuit
automatically reverts the unit to the Standby mode and
removes any voltage present from the output. Faults
can originate from procedureal errors or equipment fail-
ure. Afault due to procedural error can be removed
by resetting the systems and performing the restarting
procedure. An overload error can be corrected by re-
moving the overload from the circuit. Return to oper-
ate will occur automatically when the overload is re-
moved, unless the overload is accompanied by afault.
In this case, power must be removed and restored to
remove the indications.
1-1

5205A
1-6. SPECIFICATIONS
1-7. Calibrator Mode
These specifications apply when using the 5200A on the 1000
volt range wth the 5205A and its supplied interface caWe. Re-
fer to the 5200A data sheet for other voltage ranges, frequen-
cy accuracies and slew rates.
OUTPUT VOLTAGE RANGE
100V to 1099.999V rms
FREQUENCY RANGE
DC to 100 kHz.
{120 kHz typical}
RESOLUTION
1mV
AMPLITUDE ACCURACY
{For 90 day, 23'*C ±5®C, after 1hour warmup)
(Maximum Load -zero to full load)
1000V Range {X% of setting +Y% of Range)
10 Hz to 30 Hz
30 Hz to 20 kHz
20 kHz to 50 kHz
50 kHz to 100 kHz
(0.12 +0.005)
(0.04 +0.002)
(0.08 +0.005)
(0.10 +0.01 )
AMPLITUDE LIMITS WITH TEMPERATURE
(0®C to 18®C and 28"C to 50® C)
Add ±(0.035 XAccuracy) per °C to the stated accuracy
limits.
SHORTTERM AMPLITUDE STABILITY
The random change in rms value will be less than (0.0007%
of setting +0.0005% of range) pk-pk for the 1kHz thru
100 kHz ranges and 0.0)5% pk-pk of range for the 100 Hz
range over a10minute interval with constant line, load and
temperature i«ing an rms responding meter. (Fluke 931B
or ecpjivalent.)
LONG TERM AMPLITUDE STABILITY
(At Constant Line, Load and Temperature)
24 Hours Six Months
10 Hz to 20 kHz 0.01%j3f setting 0:02% of setting
20 kHz to 100 kHz 0.02% of setting 0.04% of setting
MAXIMUM CAPACITIVE LOAD
1500 pF (Not to exceed rated Load Current)
(170 mA allows 270 pF at 1000V/100 kHz)
OVERLOAD PROTECTION
Overload Limit protects against inpxjt noise spikes and mo-
mentary output overloads.
Overload Trip protects against input overdrive conditions,
steady state output overloads and short circuits.
1-8. Amplifier (Local/Remote) Mode
MAXIMUM OUTPUT VOLTAGE
(Under any rated line and load condition)
DC +1500V dc
AC 1100V rms
FREQUENCY RANGE
DC to 100 kHz
(120 kHz typical)
GAIN
XI 00 (Inverting)
GAIN ACCURACY
(For 90 days, 23®C ±5®C, after 1hour warmup)
Maximum Load DC to 20 kHz 20 kHz to
(Or Greater) 100 kHz
500S2//100 pF ±0.05% ±0.2%
5000^2// 100 pF ±0.05%* ±0.15%
1MO,/ /200 pF ±0.05% ±0.2%
1ma/ /500 pF ±0.06% ±0.4%
1MS2//1000pF ±0.08% ±0.8%
1MJ2// 1500pF ±0.1% ±1 .2%
*±0.04%, DC to 10 kHz
GAIN ACCURACY LIMITS WITH TEMPERATURE
(0®C to 18®C and 28®C to 50®)
DC to 20 kHz Add ±(0.03 Xaccuracy) per ®C to
the stated accuracy limits
20 kHz to 100 kHz Add ±(0.06 X accuracy) per “C to
the stated accuracy limits.
GAIN STABILITY
(23®C±5®C, after 1hour warmup)
Max. 24 Six
Capacitive Hours Months
Load
DC to 20 kHz 1500 pF 0.03% 0.06%
20 kHz to 100 kHz 100 pF 0.08% 0.2%
20 kHz to 100 kHz 1500 pF 0.4% 0.8%
MAXIMUM CAPACITIVE LOAD
1500 pF (Not to exceed rated Load Current)
(170 mA allows 270 pF at KK30V/100 kHz)
MAXIMUM SLEW RATES
(Greater than 1000V output swing)
Maximum Load Maximum Input Maximum Output
Slew Rate* Slew Rate
200 mA Resistive 8.0V/usec 800V/usec
100 pF Capacitive 8.0V/usec 800V/usec
200 pF Capacitive 5.0V/usec 500V/usec
1-2

5205A
Maximum Load Maximum Input Maximum Output
Slew Rate* Slew Rate
5CK3 pF Capacitive 3.0V/usec 300V/usec
1000 pF Capacitive 2.0V/usec 200V/usec
1500 pF Capacitive I.OV/usec lOOV/usec
*Faster rates may trigger overload protection circuitry.
MAXIMUM OUTPUT OVERSHOOT
Less than 4% of amplitude with less than maximum input slew
rate and with greater than 1000V output swing.
INPUT IMPEDANCE
10 kf2 In parallel with less than 120 pF
INPUT CONNECTOR
BNC connector located on front panel.
(Located on rear panel with option 07)
MAXIMUM INPUT VOLTAGE
50V dc or rms
INPUT BIAS CURRENT
100 nA, maximum
OVERLOAD PROTECTION
Overload Limit protects against input noise spikes and
momentary output overloads.
Overload Trip protects against inpnjt overdrive conditions,
steady state output overloads and short circuits.
1-9. General
MAXIMUM LOAD CURRENT
MAXIMUM LO«3 CURRENT
SOK Outv Cysif >ulK (& mA Mk)
200 mA /
170 mA ,//
//
//Ciweitivi
100 mA •
70 mA •
ySim W**t ImA /mil
/
&C100H? 70kHt 100kH»
Bipolar Symmetrical wave form
(See Graph above)
Unipolar Rectangular waveform
(Referenced to zero volts)
Linearly derating to:
±100 mA peak Pulse width greater than 50 msed
period less than 100 msec.
Under all circumstances, the output current capability is at
least±100 mA peak
DC OFFSET VOLTAGE
(For 90 days, 23°C±5"C, after 1hour warmup)
±10 mV at the output
DC OFFSET VOLTAGE LIMITS WITH TEMPERATURE
(0°C to 18°C and.28®C to 50® C)
+1.0 mV/®Cat the output
TOTAL HARMONIC DISTORTION
(Bandwidth 10 Hz to 1MHz)
(Resistive loads greater than 1.5Kf2 or Capacitive loads less
liian 1000 pF)
10 Hz to 20 kHz (0.05% of setting)
20 kHz to 50 kHz (0.07% of setting)
50 kHz to 100 kHz (0.1% of setting)
(Resistive loads less than 1.5X^2 or Capacitive loads greater
than 1000 pF)
lOHzto 10kHz (0.05% of setting)
10 kHz to 20 kHz (0.1% of setting)
20 kHz to 50 kHz (0.17% of setting)
50 kHz to 100 kHz (0.25% of setting)
RANDOM NOISE
(1 MHz bandwidth)
Less than 100 mV rms
LINE RELATED NOISE
Less than 50 mV rms
LINE REGULATION
±0.001 %of setting for 10% change in line voltage
INPUT POWER
100, 115, 200, 230V ac±10%, internal jumper selected,
50 to 60 Hz. Receptacle on rear panel for 5200A input
power.
INPUT LINE CURRENT
The United States National Electrical Code requires that the
two lines cords on the 5205A, under full load conditions, be
connected to a20A rated branch circuit with 15A rated re-
ceptacles. For international use, refer to local standards.
Une currents are as listed below:
±200 mA peak pulse width less than 5msec
period greater than 10 msec.
1-3

5205A

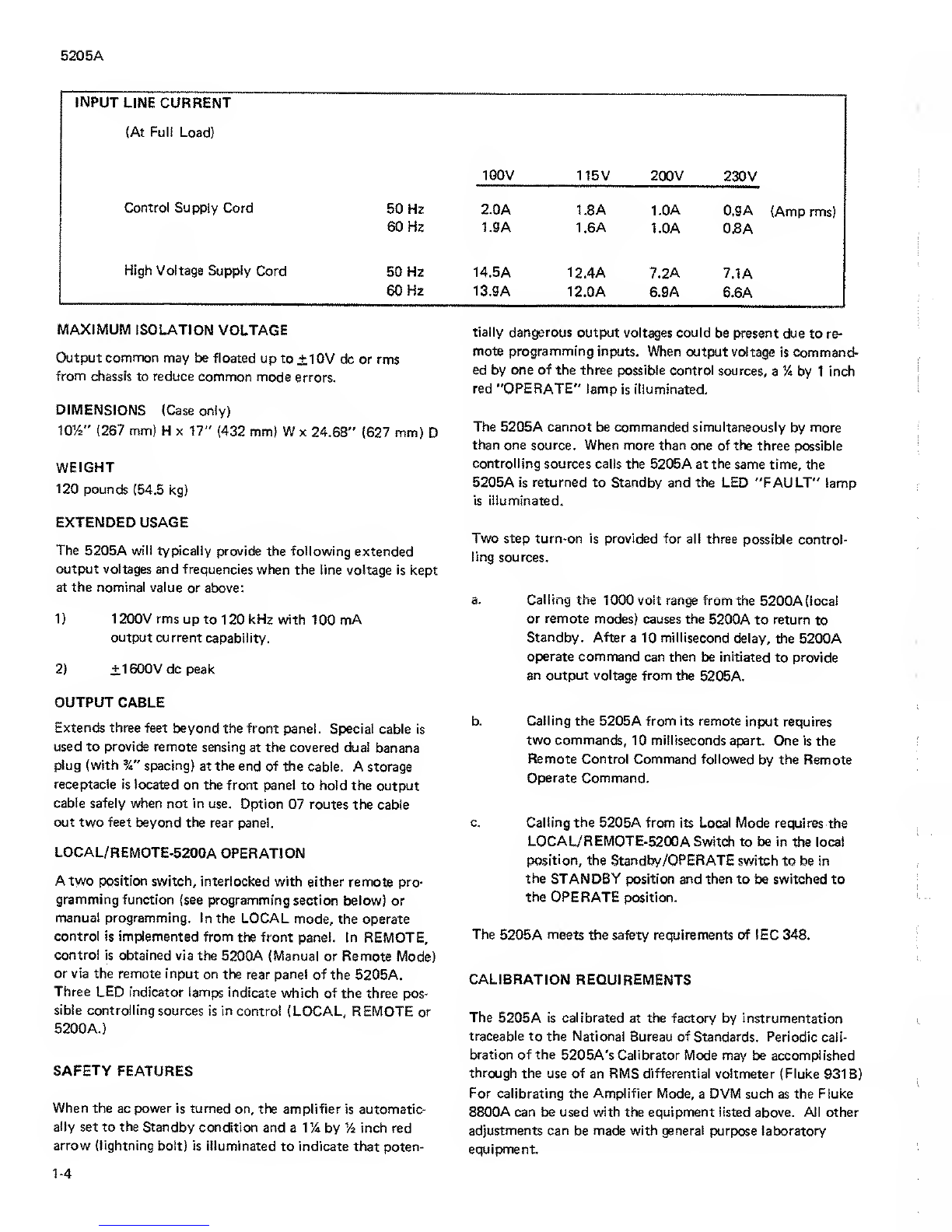

INPUT LINE CURRENT
(At Full Load)
1«)V 115V 200V 230V
Control Supply Cord 50 Hz 2.0A 1.8A1.0A 0.9A (Amp rms)
60 Hz 1.9A 1.6A 1.0A 0.8A
High Voltage Supply Cord 50 Hz 14.5A 12.4A 7.2A 7.1A
60 Hz 13.9A 12.0A 6.9A 6.6A
MAXIMUM ISOLATION VOLTAGE
Output common may be floated up to±10V dc or rms
from chassis to reduce common mode errors.
DIMENSIONS (Case onty}
1072” (267 mm) Hx17” (432 mm) Wx24.68” (627 mm) D
WEIGHT
120 pounds (54.5 kg)
EXTENDED USAGE
The 5205A will typically provide the following extended
output voltages and frequencies when the line voltage is kept
at the nominal value or above:
1) 1200V rms up to 120 kHz with 100 mA
output current capability.
2) ±1600Vdcpeak
OUTPUT CABLE
Extends three feet beyond the front panel. Special cable is
used to provicte remote sensing at the covered ckial banana
f^ug (with spacing) at the end of the cable. Astorage
receptacle is located on the front panel to hold the output
cable safely v#ien not in use. Option 07 routes the cable
out two feet beyond the rear panel.
LOCAL/REMOTE-5200A OPERATION
Atwo position switch, interlocked with either remote pro-
gramming function (see programming section below) or
manual programming. In the LOCAL mode, the operate
control is implemented from the front panel. In REMOTE,
control is obtained via the 5200A (Manual or Remote Mode)
or via the remote Input on the rear panel of the 5205A.
Three LED indicator lamps indicate which of the three pos-
sible controlling sources is in control (LOCAL, REMOTE or
5200A.)
SAFETY FEATURES
When the ac power is turned on, the amplifier is automatic-
ally set to the Standby condition and a114 by Vz inch red
arrow (lightning bolt) is illuminated to indicate that poten-
tially dangerous output voltages could be present due to re-
mote programming inputs. When output voltage is command-
ed by one of the three possible control scairces, a14 by 1inch
red "OPERATE” lamp is illuminated.
The 5205A cannot be commanded simultaneously by more
than one source. When more than one of the three possible
controlling sources calls the 5205A at the same time, the
5205A is returned to Standby and the LED "FAULT” lamp
is illuminated.
Two step turn-on is provided for ail three possible control-
ling sources.
a. Calling the 1000 volt range from the 5200A (local
or remote modes) causes the 5200A to return to
Standby. After a10 millisecond delay, the 5200A
operate command can then be initiated to provide
an output voltage from the 5205A.
b. Calling the 5205A from its remote input requires
two commands, 10 milliseconds apart. One is the
Remote Control Command followed by the Remote
0|:»rate Command.
c. Calling the 5205A from its Local Mode requires the
LOCAL/REMOTE-5200A Switch to be in tfie local
position, the Standby/OPERATE switch to be in
the STANDBY positicMi and then to be switched to
the OPERATE position.
The 5205A meets the safety requirements of lEC 348.
CALIBRATION REQUIREMENTS
The 5205A is calibrated at the factory by instrumentation
traceable to the National Bureau of Standards. Periodic cali-
bration of the 5205A's Calibrator Mode may be accomplished
through the use of an RMS differential voltmeter (Fluke 931B)
For calibrating the Amplifier Mode, aDVM such as the Fluke
8800A can be used with the equipment listed above. Ail other
adjustments can be made with general purpose laboratory
equipment.
1-4

5205A
1-10. Environmental
COOLING
Forced air cooied. Air enters through are-usable filter on
the rear panel. Air exits upward from the rear pane! and
along both sides {Main rear panel outlet may be redirected
to the right side at the rear of the instrument.)
TEMPERATURE
0®C to +50“C operating
—40®C to +75“ Cstorage
RELATIVE HUMIDITY
0to 80 percent (0®C to +40“C)
0to 70 percent {+40“C to +50*C)
SHOCK
15 g., 11 millisecond half-sine wave
pane! controls or through the 5200A's remote programming
input.
The 5205A is supplied with atwo-foot 5200A/5205A inter-
face cable which will allow die 5205A to sit on either side
of the 5200A or on top of the 5200A. it is not recommend-
ed to put the 5205A below the 5200A due to the upward
warm air discharge
AMPLIFIER MODE PROGRAMMING
There is aphoto-isolated remote control input located on
the rear panel of the 5205A. This input allows an external
remote controlling source to control the Amplifier Mode of
the 5205A. The mating connector is supplied with the
5205A. Programming Safety is covered in the Safety Fea-
tures section above. The following table shows the pin con-
nection and drive requirements or drive capability.
VIBRATION
3.1 g, 10 Hz to 55 Hz
PIN
NUMBER FUNCTION DRIVE REQUIRE- MENTS/CAPABILITY
ALTITUDE
0to 10,000 feet (3048 meters) operating (Above 7000 ft.
(21 34 meters) when using 50 Hz line power derate maxi-
mum output current by 40%)
S),000 feet (15240 meters) non-operating.
1-11. Remote Programming
The 5205A is ecjjipped so that it can be remotely controlled
from either the 5200A Calibrator or some other remote
source.
CALIBRATOR MODE PROGRAMMING
4Remote Control
Command
8Remote Operate
Command
7Remote Status Flag
1Overload Flag
6+5 Volts Input
9Logic Common
2Digital Guard
16mA drive
16 mA drive
1.6 mA sink; lOkH
pull-up
1.6 mA sink; 10 kO
puil-up
Requires 50 mA (max.)
N/A
N/A
Using the 5200A with the 5205A allows the 5200A to pro- The Remote Commands and Remote Flags are negative true
gram the 5205A either manually from the 5200A's front logic.
1-5/1 -6

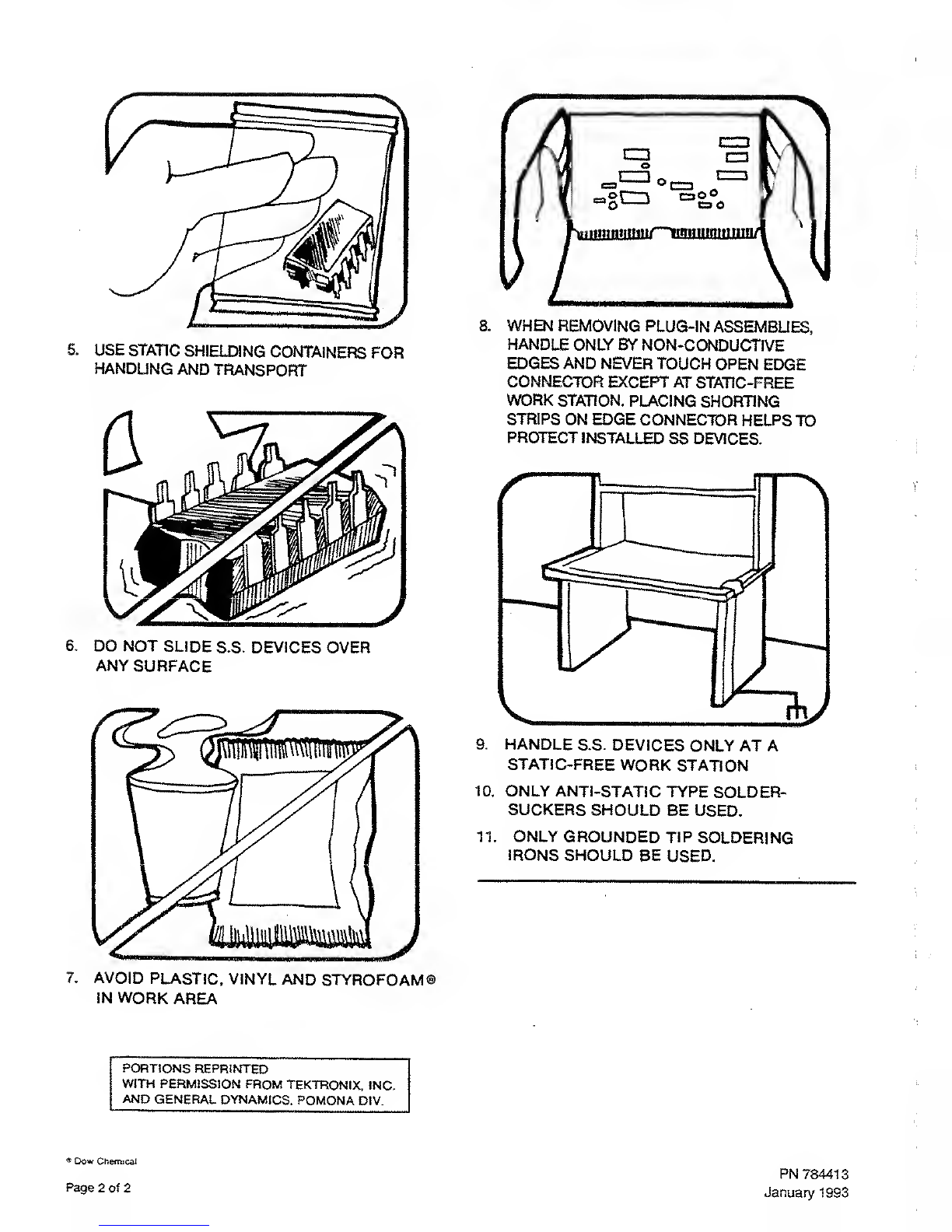

Some semiconductors and custom IC’s can be
damaged by electrostatic discharge during
handling. This notice explains how you can
minimize the chances of destroying such devices
by:
1- Knowing that there is aproblem.
2- Learning the guidelines for handling them.
3. Using the procedures, and packaging and
bench techniques that are recommended.
The Static Sensitive (S.S.) devices are identified in the Fluke technical manual parts list with the symbol
i
The following practices should be followed to minimize damage to S.S. devices.
2. KEEP PARTS IN ORIGINAL CONTAINERS
UNTIL READY FOR USE. 4. HANDLE S.S. DEVICES BY THE BODY
Page 1of 2

11.ONLY GROUNDED TIP SOLDERING
IRONS SHOULD BE USED.
AVOID PLASTIC. VINYL AND STYROFOAM®
IN WORK AREA
PORTIONS REPRINTED
WITH PERMISSION FROM TEKTRONIX, INC.
AND GENERAL DYNAMICS. POMONA DIV.
*Dow Cbefnicai
Page 2of 2PN 784413
January 1993

5205A
Section 2
Operating Instructions
2-1, INTRODUCTION
2-2. This section contains information essential for
correct operation of the Model 5205A. Should any dif-
ficulties be encountered during operation, please contact
the nearest John Fluke Sales Representative or the John
Fluke Mfg. Co., Inc. Acomplete list of Sales Represen-
tatives is located at the rear of this manual.
2-3. SHIPPING INFORMATION
2-4.The Model 5205A was packaged and shipped in
afoam packed cardboard carton. Upon receipt, athor-
ough inspection should be performed to reveal any dam-
a^ in transit. Special instructions for inspection and
claims are included in the carton.
2-5. If reshipment is necessary, the original container
should be used. If it is not available, anew container
can be obtained from the John Fluke Mfg. Co., Inc.
Hease reference the Model number when requesting anew
container.
2-6. INPUT POWER
2-7. The power amplifier can be operated from either
a100, 115, 200 or 230V ac 50 or 60 Hz power line. A
jumper system on the power supply section allows selection
of the appropriate line voltage. Select the proper jumper and
fuse combination for the local line voltage using the follow-
ing procedure:
a. Verify that neither line cord is connected to a
power source.
b. Remove the top dust cover and left inner cover
from the instrument.

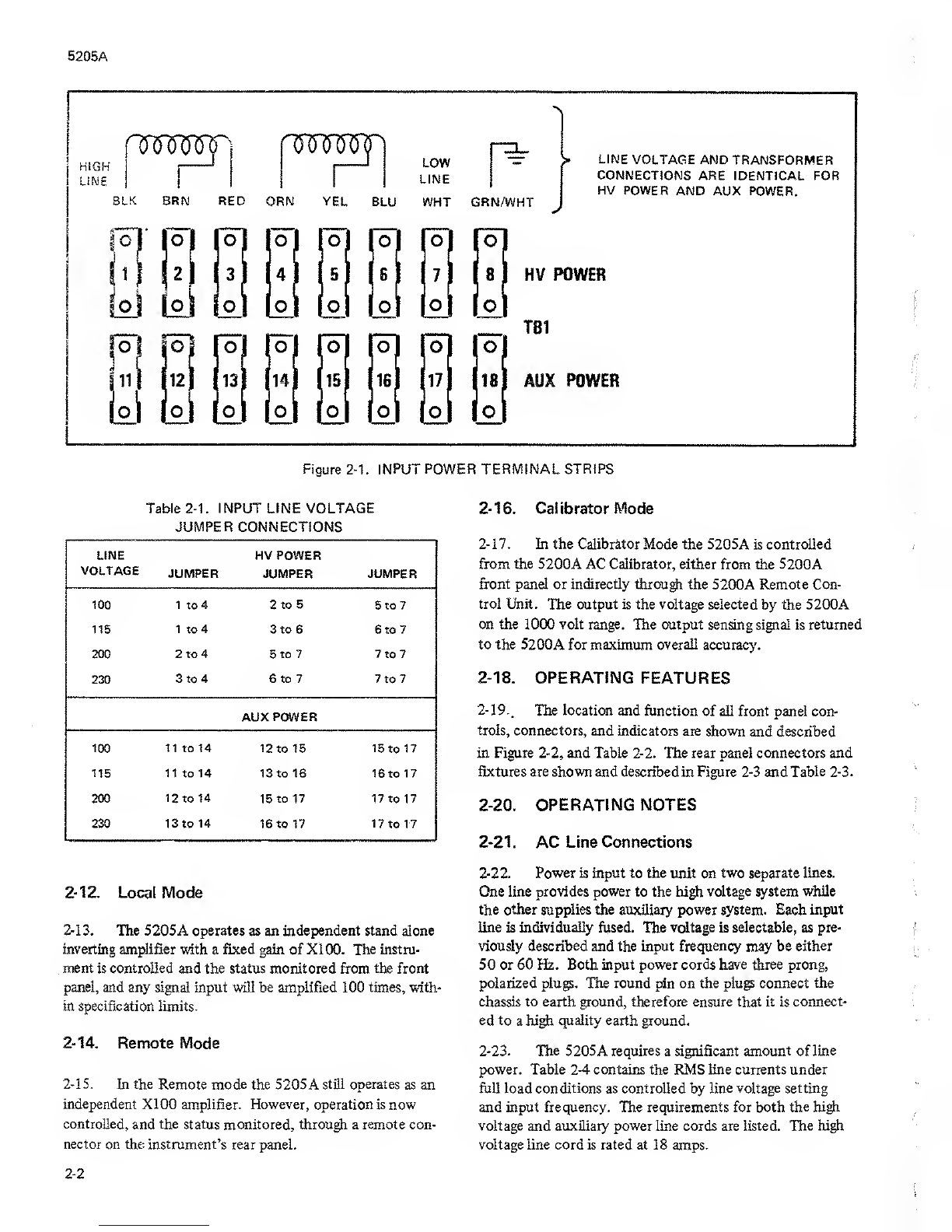

c. Locate the input power terminal strips shown in
Figure 2-1. The layout is also shown on the trans-
former cover.
d. Connect the jumpers as shown in Figure 2-1 and
Table 2-1.
e. Replace the iimer dust cover.
f. Install 15 and 5amp fiises if the 100 or 1 1
5
volt input line voltage has been selected or 8
and 2 amp fiises if the 200 or 230 volt input has
been selected.
2-8. INSTALLATION
2-9. The power amplifier is designed for bench-top use
or it can be installed in astandard 19 inch equipment rack
with mounting brackets. Rack mounting is done as follows:
a. Remove the vertical decals from the sides of the
two front handle castings.
b. Remove the screws from the front comer cast-
ings which match the hole patterns in the rack
mounting brackets.
c. Attach the rack mounting brackets to the corner
castings with No. 8-32 PHP screws.
2-10. OPERATING MODES
2-1 1.The 5205 Acan operate in any one of three modes;
local, remote or calibrator. Each of the modes are defined
in the following paragraphs.
2-1

5205A
Table 2-1. INPUT LINE VOLTAGE
JUMPER CONNECTIONS
LINE HV POWER
VOLTAGE JUMPER JUMPER JUMPER
100 1to 42to 5 5to 7
115 1to 43to 6 6 to 7
200 2to 45to 7 7 to 7
230 3to 46to 77to 7
AUX POWER
100 11 to 14 12to 15 15 to 17
115 11 to 14 13tol6 16to 17
200 12to 14 15 to 17 17 to 17
230 13to 14 16 to 17 17to 17
2-12. Local iVlode
2-13- The 5205A operates as an independent stand alone
inverting amplifier with afixed gain of XI 00. The instru-
ment is controlled and the status monitored from the front
panel, and any signal input will be amplified 100 times, with-
in specification limits.
2-14. Remote IVlode
2-15. In the Remote mode the 5205A still operates as an
independent XI00 amplifier. However, operation is now
controlled, and the status monitored, through aremote con-
nector on the instrument’s rear panel.
2-16. Calibrator Mode
2-17. In the Calibrator Mode the 5205A is controlled
from the 5200A AC Calibrator, either from the 5200A
front panel or indirectly throu^ the 5200A Remote Con-
trol Unit. The output is the voltage selected by the 5200A
on the 1000 volt range. The output sensing signal is returned
to the 5200A for maximum overall accuracy.
2-18. OPERATING FEATURES
2-19.. The location and function of ail front panel con-
trols, connectors, and indicators are shown and described
in Figure 2-2, and Table 2-2. The rear panel connectors and
fixtures are shown and describedin Figure 2-3 andTable 2-3.
2-20. OPERATING NOTES
2-21. AC Line Connections
2-22. Power is input to the unit on two separate lines.
One line provides power to the high voltage system while
the other supplies the auxiliary power system. Each input
line is individually fused. The voltage is selectable, as pre-
vioudy described and the input frequency may be either
50 or 60 Hz. Both input power cords have three prong,
polarized plugs. The round pin on the plu^ connect the
chassis to earth ground, therefore ensure that it is connect-
ed to ahigh quality earth ground.
2-23. The 5205A requires asignificant amount of line
power. Table 2-4 contains the RMS line currents under
full load conditions as controlled by line voltage setting
and input frequency. The requirements for both the hi^
voltage and auxiliary power line cords are listed. The high
voltage line cord is rated at 18 amps.
2-2

5205A
Table 2-2. FRONT PANEL COMPONENT DESCRIPTIONS
REF
NO. NAME FUNCTION
1POWER Switch Applies line voltage to the Auxiliary (AUX) power supplies. After
approximately 30 seconds power is applied to the High Voltage
(HV) supply.
2CONTROL Switch Selects between Local and Remote operation. Status Is shown
by associated indicators.
3LOCAL Indicator Illuminated when the power amplifier is operating in the local
mode, i.e., controlled from the front panel.
4REMOTE indicator Illuminated when the remote mode control line is active. The
power amplifier is controlled in this condition from acustomer
supplied control device.
;
55200 Indicator Illuminated when the 5200A is in the 1000 volt range to con-
trol operation of the instrument.
6WARM-UP Indicator
;
Illuminated for approximately 30 seconds after the POWER switch
has been turned ON. This allows the Power Amplifier time to heat
the tube filaments prior to applying high voltage to the system.
7MODE Switch Selects the mode of operation, STDBY or OPERATE. Resets the
system after afault when returned to STDBY from OPERATE.
This switch is active only in the Lcwal Mode of operation.
8STDBY-RESET
Indicator
Illuminated when the Standby or Reset fault Mode has been
selected.
9OPERATE Indicator Illuminated when the Operate mode has been selected.
10 FAULT Indicator Illuminated when afault occurs in the system. Aprocedural or
minor fault may be corrected and the indicator extinguished by
returning the unit to the Reset Fault mode. This can be accomp-
lished by setting the MODE switch to the STDBY-RESET posi-
tion and back to the OPERATE position, on the front panel in
the local mode, removing and then re-applying the operate com-
mand in the remote mode or returning the 5200A mode to stand-
by and then back to operate, either from the 5200A front panel
or the RCU, in the Calibrator Mode.
11 OVERLOAD Indicator Illuminated v\^en an overload is placed on the power amplifier.
To extinguish, power must be removed and reapplied. If accom-
panied by the fault indication, there is afault condition which
must be reset by turning power OFF and ON.
12 INSTRUMENT ON
Indicator
illuminated when the POWER switch is turned ON. Warns that
dangerous High Voltages are present in the unit and may be present
at the output terminals.
2-3

5205A
Table 2-2. FRONT PANEL COMPONENT DESCRIPTION
INPUT Terminal BNC connector for the input signal when operating in the Stand
Along mode of operation.
OUTPUT LOW
Terminal
Provides afront panel connection for OUTPUT LOW. The
maximum allowable differential between Output LOW and
chassis is 10 Vac rms, the maximum continuous current 50 ma,
peaking at 5A for 10milliseconds.
CHASSIS GROUND
Terminal
OUTPUT Terminals
Provides afront panel connection for chassis ground.
Permanently attached 4-wire output cable, 3feet in length. The
Output HI and Sense HI wires are connected at the HI Terminal
of the outfXJt connector. The Output LO and Sense LO wires
are connected at the LO terminal of the output connector. This
configuration provides the minimum capacitance required at High
frequencies.
Cable Storage This storage area is provided as asafety feature. When the output
cable is not in use, the output terminals can be inserted into the
internal connectors.
2-4

Figure 2-2. FRONT PANEL
2-5

5205A
Tab!e 2-3. REAR PANEL COMPONENT DESCRiPTION
REF
NO. 1FUNCTION
"1
: i
i
1
i
i
;Optional Output
Terminals
This filler plug is removed and the output cable exists from this
point if the -07 Option is installed. This option repositions the
inpLit/Output connectors to the rear panel for system use.
i
2
s
1
Auxiliary Power Line
and Fuse
The permanently attached. No. 16AWG wire, three-prong power
cord supplies the line voltage to the auxiliary power supplies and
5200A power through F2, a5amp Slo-B!o fuse.
!3
1
High Voltage Power
Line and Fuse
The permanently attached. No. 14 AWG wire, three-prong power
cord supplies the line voltage to the High Voltage Power Supply
through FI, a15 amp Slo-Blo fuse.
1
^
i
1
Convenience Outlet The power available at the convience outlet is taken directly from
the auxiliary power line input. It is astandard American style 3
prong connector.
1
i
^
i
1
Optional Input
Connector
This filter plug is removed and the input BNC connector is in-
stalled at this point if the —07 Option is installed. This option
repositions the input/Output connectors to the rear panel for
system use.
6Remote 9-Pin
Connector
Input for Remote Controls from acustomer supplied device during
Remote Mode operations.
75200A 25-Pin
Connector
Input for signal and controls from the 5200A when operating in
calibrator mode.
i8Air Intake and
Filter
Washable filter to clean air used to cool the unit.
9Air Outlet Shield directs flow of air exhaust. Normally, exhausted air is
directed upward, however, the shield can be removed and reposi-
tioned to direct the air flow to the right of the instrument, if this
path of flow is obstructed in some manner. It should not be
positioned to the left toward the air intake or downwards.
2-24. The operator must verify that local and/or national
standards for outlet receptable and branch circuit are met.
For example: In the United States a20A rated branch cir-
cuit is required for a115V ac 60 Bz source. The 5205A
connectors are rated at 15A and can be plugged into either
a15A or 20A rated outlet.
2-25. Input Connectors
2-26. Control of the 5205A in the Remote or Calibrator
Modes of operation is from one of two connectors on the
rear panel. When operating with a5200A in the Calibrator
mode both input signal and controls are made through a
25-pin connector. Controls when operating in the Remote
mode are input on a 9-pin connector from acustomer
supplied control device.
2-27. When operating independently in either the Local
or Remote Mode the signal for amplification is input at a
BNC connector on the front panel. As part of the —07 Op-
tion, this connector can be placed on the rear panel for
system operations.
2-28. Output Connections
2-29. The output cable is permanently attached to the
unit at the front panel. As part of the -07 Option, it can
be attached at the rear panel for system operation. The 3-
foot long, four-wire, low capacitance cable has ahooded
protective cover for operator safety. Selection ofthe —07
Option for a rear connector reduces the length of the out-
put cable to two feet. Remote sensing is accomplished by
2-6

5205A
connecting the Oitput and Sense HI lines and the output
and sense LO lines inside the sealed protective cover.
Tabie2-4. INPUT LINE CURRENTS
SUPPLY INPUT
FRSa INPUT VOLTAGE
100 115 200 230
HV 60 H2 13.9 12 6.9 6.6
AUX 60 Hz 1.9 1.6 10.8
HV 50 Hz 14.5 12.4 7.2 7.1
AUX SO Hz 21.8 10.9
2-30. Output Capabiiities
2-31. The 5205Acan deliver up to 100 mA dc and 200
mA rms ac. Attempts to draw currents in excess of these
amounts result in an overload which removes the output
and causes the amplifier to either retry its programmed out-
put or to return to standby. Before using the 5205 Aas a
source, insure that the recipient unit does not load the amp-
lifier in excess of these limits.
2-32. Ground Connection
2-33. If desired, the amplifier OUTPUT LOW can be
grounded to the chassis at the front panel by connecting
ashorting link between the two terminals. The chassis
ground is coimected to an earth ground throu^ the line
cords, provided the ac line cord is properly grounded. If
floating the amplifier output above ground is desired,
when the load cannot be disconnected from the earth
ground, remove the shorting link from between the two
front panel terminals and connect the OUTPUT LOW ter-
minal to the earth ground on the load. The maximum allow-
able differential between OUTPUT LOW and chassis ground
is lOV ac rms.
CAUTION!
The OUTPUT LOW terminal of the 5205A
should never be left floating during operation.
If the strap between OUTPUT LOW and
CHASSIS GROUND is not present, then
verify that through the output cable and
the load, aconnection with CHASSIS
GROUND is present.
2-34. Local Mode Operation
2-35. Operating in the Local Mode, the 5205APower
Amplifier will amplify and invert any signal input, (ac, dc,
or complex) with a gain of 100. Use the following proce-
dure for operation in the Local Mode.
2-8
a. Insure the CONTROL and MODE switches are
in the LOCAL and STDBY-RESET positions
respectively.
b. Connect the source to be amplified to the input
connector.
c. Insure the POWER switch is ON. The INSTRU-
MENT ON and LOCAL indicators are illuminated.
NOTE
The WARMUPIndicator is illuminated at initial
power application and stays on for approximate-
ly 30 seconds.
d. The STDBY-RESET Indicator is illuminated when
the WARMUP indicator goes off.
e. Set the MODE switch to OPERATE.
f. The OPERATE indicator is illuminated.
g. The signal input is present at the output terminals
with again of 100.
2-36. The system will not accept controls from two
sources simultaneously, therefore, if a5200A is connected
while operating independently, in the Local or Remote
Mode, and the 1000 volt range is elected, afault will result.
The fault can be removed and the indicator extinguidied
by removing the command from the 5200A and setting
the MODE switch on the 5205A to STDBY-RESET and
then OPERATE.
2-37. System or Combined Operations
2-38. While in the Calibrator Mode the 5205A can be
directly combined with a5200A for operation, or through
aRemote Control Unit (RCU) controlled by acomputer
test system. In the Remote Mode control is through a
customer supplied device which may be either manually
operated or a computer in a test system
2-39. Calibrator Mode Operation
NOTE
Duringcombinedoperations, the 5200A should
not be positioned on top of the 5205A. Over-
heating can result when the 5200Aintakes dis-
charged air ofthe 5205A. Also, transformer
coupling may result at line related frequencies.
2-40, 5200A LOCAL OPERATION
2-41. Once the 5205A is prepared for operation, i.e.,
the 5200 Control Cable connected, the POWER switch is
