Fortress Technologies FJW50A11P User manual

USER’S
Automatic

1
Fortress service department page 21.........................
1
CONTENTS
Safety precautions..................................................2
Parts identification of the washer............................5
Explanation of washer operating panel...................6
Installation of washer..............................................8
Preparation before washing...................................10
Operation of normal wash program........................11
Operation of agitating wash program.....................12
Operation of tub-cleaning program........................13
Operation of customized program..........................14
Operation of other fully automatic wash program...15
Setting washing capacity and water level..............16
washing powder, softener and bleacher
Amount ..................................................................16
Maintenance of washer..........................................17
Troubleshooting of washer.....................................18
Following phenomena are not faults of washer......19
Specifications and technical parameters
of washer................................................................19
FIRSTLY
You should know
SECONDLY
When you want to use
FURTHER
Easier for your operation
If
You are in trouble

2
SAFETY AND PRECAUTIONS
Read the following items in order to prevent personal injuries and
property :damage
Please read the following icons.
！
！
！
！
Warning
Warning
Caution
This indicates that serious injuries or loss of life may be caused.
This indicates that bodily injuries or property damage may be caused.
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the washer under
damp or raining environment to aviod
electric shock, fire,failure or accidents.
No dismantling No touching
No dampness No rinsing



!
This icon indicates [operation prohibited].Detail prohibitive actions are shown inside.
This icon indicates a [warning or reminder note].Detail warnings are shown inside.
This icon indicates executions are shown inside.[forcible executions], Necessary
Please do not
disassemble or
assemble the
washer without
authorization.
Please do not touch the spin barrel
before it is fully stopped.

3
Please do not let children climb the
machine or peer into the rotating
spin barrel to avoid accidents.
It is prohibited to wash items contaminated
with kerosene,gasoline,alcohol and other
flammable substances.
Please do not damage power cord
and plug to aviod electric shock,short
circuit or fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please unplug the plug from the socket
if the machine is not in use.
Please well connect the earth line of
socket to avoid electric shock by
accidental leakage.
Please plug the plug firmly.
！
!
!



Prohibited Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place lighted candles,
incense,cigarettes and other flammable
items such as electric
stove,heating fan or
other heat sources on
top of the washer.
Warning

4
Please use 220V power source. Please do not plug-in or unplug the plug with wet
hands to avoid electric shock.
Please ensure that the water inlet pipe
is connected and the tap is turned
on before washing
clothes.
Users are not allowed to change
the power cord without
permission.
It is strictly prohibited to place
children or lay
weights on the
washer.
Please do not pull the power cord
when unplug the
plug.
Please do not wash raincoat, fishing
coat and waterprool items in the washer.
！
!
!
!
Wet hands are
prohibited
220V
+
+

Below
50 C

The water temperature should not exceed
50 when washing℃
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution

5
Parts identification of the washer
Inlet hose 1pc
Accessories
Water inlet valve
Softener inlet
Filtering bag
Bleacher inlet
Control panel
Handle of lid
Handle
Power cord
Adjustable
foot knob
Cabinet
Impeller
(On the top rim of the barrel)
(Back of lid)
Upper drain hose 1pc
Upper drain hose

  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()



3
  

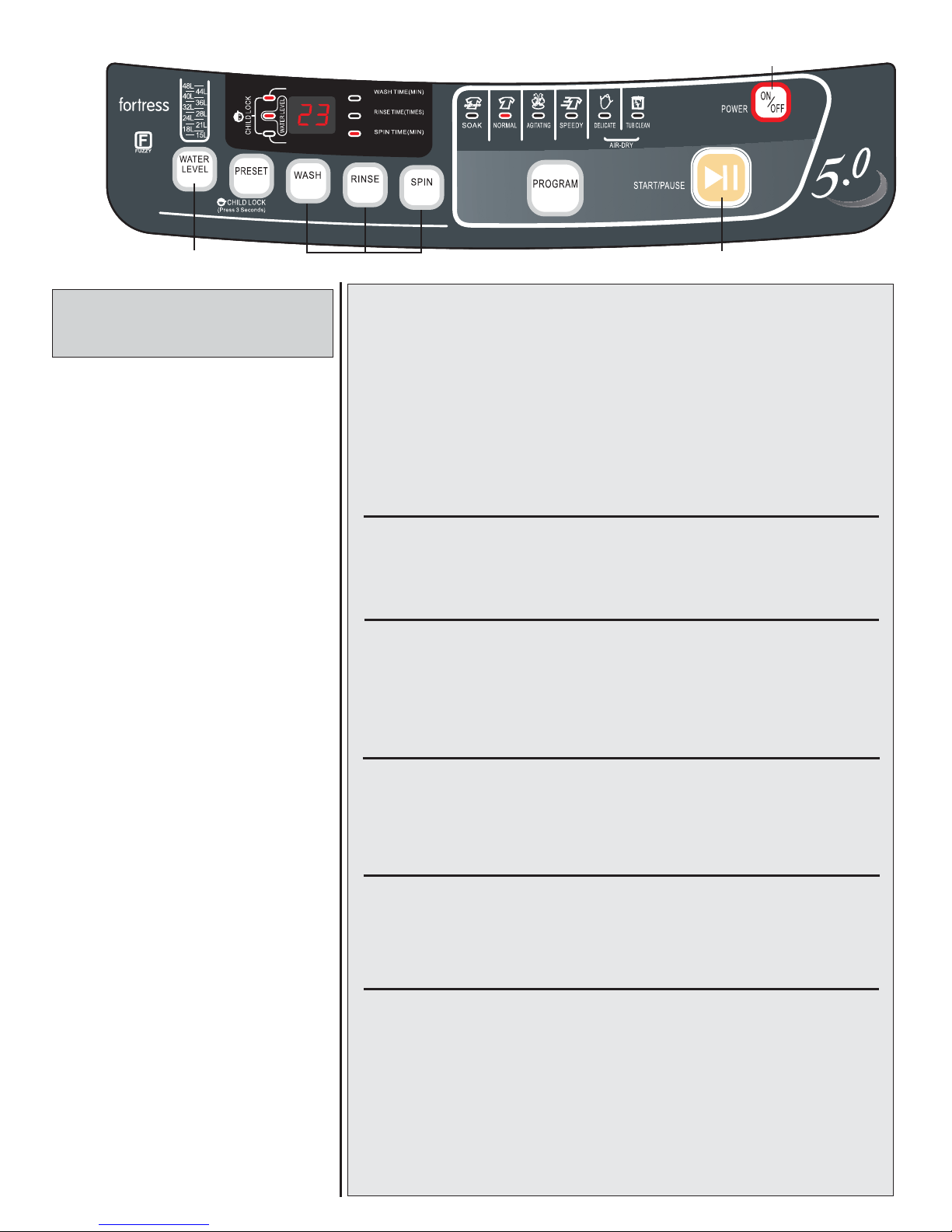

PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P

Water level selection button
is used by user to select and
change water level inside
the washer. Continuously
pressing this button, the
figures circularly display
will be varied from 15L to
48L.
User can preset the washing
duration from 1 to 24 hours.
After the time you set runs
out, this machine will start to
work with the set program.
When the indicator of
PRESET TIME is on showing,
the figures displayed on the
LED is showing the preset
time set.
PRESET
Use the child lock if
necessary.
button for 3
seconds to turn on the
child lock.
Press and hold
the PRESET
CHILD LOCK WASH/RINSE/SPIN
[WASH] [RINSE] and [SPIN],、
these three buttons represent
the process of washing. Press
WASH button, the indicator of
WASH TIME will be on and
continuously press this button
can change the wash time.
Press RINSE button can select
rinse times. And press [SPIN]
button can determine the spin
time.
Continuously press
this button, the machine
will be switched between
start and pause.
Fuzzy Control
Turn on the power. Then press
[START/PAUSE] button in the default
program, the fuzzy control system will
work automatically. It can select the
water level automatically according to
the laundry amount. If pressing any
other buttons except the [Start/Pause]
button, the Fuzzy function will exit
when the Fuzzy Control is set, there
is water inlet and the water level is
shown in the digital tube.
The remaining time will be shown
when water inlet is finished.
Before starting, continuously press this button
for switching over among [SOAK], [NORMAL],
[AGITATING], [SPEEDY], [DELICATE],
[TUB CLEAN] and [AIR-DRY] programs.
After the machine running, the indicator to
REMAIN TIME is on showing.
The remaining time will be displayed on
the LED according to the washing program
chosen.
Remain Time
Press this button to turn
on or off the power
supply.
Power

8
Installation of the washer
Remove package
!.Take out the washer and placeRemove the package
on the protective foam cover.it
!Open the lid of washer's door and take out accessories.
!A trial operation or washing on the protective foam base
strictly forbidden.is
Base foamed cushion
Installation of drain hose
!Completely seat the drain hose over the
drain connector. Install water
inlet hose.
!Fix and tighten it with a hoop. ( As shown
in the figure, and you can use a pliers to
finish it.)

9
Installation of washer
Installation of water inlet pipe
at

10
Preparation before washing
1.Adjust the adjustable foot to place the
washer stably.
(Slightly incline the washer first and
loosen the adjustable foot knob.
Adjust the adjustable foot so as to
ensure four corners of washer be
steadily contacted with the ground.
Then tighten the adjustable foot knob
and lock it. If the ground is obviously
rough and uneven , correction should be
the ground surface, otherwise themade on
washer barrel will incline and knock
the cabinet)
2. water inlet hose.Install the
3.Connect with power source.
4.Turn on the water tap.
5.Hang the upper drain hose
on the pond.
6.Put in clothes and suitable
amount of washing powder.
Before washing, please take out coins,
keys and other hard items, and zip up clothes to
prevent washing items and barrel from damage.
+
+
2
34
1
Adjustable foot
(extend when clockwise
rotating and shorten when
anticlockwise rotating)
5
>750mm
Note:
The water will overflow
when the height of the
drain hose under 750mm.

  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()

 

3
  
PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
Operation of normal wash program
Normal program 1
32
11

Instructions to the normal
wash program
Preparation before washing：
!NORMAL wash program is the
easiest, most convenient and
most common washing program.
When the user press the power
switch and then press
START/PAUSE button, the
normal washing program will
start to work.
!Close the door lid when
washer is running, otherwise,
it will automatically stop working
during spin process and send
out abnormal warning.
!The washer will not work when
the filled water does not reach
the set water level.
After pressing POWER button,
if the START/PAUSE
button is not pressed, the power
will be automatically cut off after
10 minutes.
!The standard washing time will
spend about 37-43 minutes.
Completion of washing
Press the power button.
The NORMAL program set as default is now
washing.ready for
!After completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Turn off the water tap.
!Although the power can be cut off automatically, unplug the
washer for safety measures.
Plug in the power cord - turn on the water tap
- hang the upper drain hose on the collection
tank.
- put in clothes - put in suitable amount of
detergent - close the door lid.
1
3
2
Choose the suitable water level
according to the washing amount.
Details refer to page 16 [the relationship between
water level amount and washing amount].
The washer will start to work with this setting program.
Press START/PAUSE button.
!

  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()

 

3
  
PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
Operation of agitating wash program
Agitating wash program 1
32 4
12
Instructions to the agitating wash
program
!The AGITATING program is
the featured program of this
washer.It can intensify the cleaning
result and reduce the chance of
inter-twisting.
!
To choose the AGITATING
program,press the PROGRAM
button again.
When you press the power button
the indicator of NORMAL as default
lightens.
!Close the door lid when the washer
is running.Otherwise,it will stop
working automatically during the
spinning process and send out
abnormal warning.”
Under this program,water level can
only be selected from 15L-32L.
The maximum washing amount of
this program is 3Kg.
!This program is suitable for washing
shirts,cotton and woolen clothes.
Very perfect to keep clothes from
intertwisting and wrinkling.
Preparation before washing：
Press the power button.
The NORMAL program set as default is now ready for
washing.
Completion of washing
!After completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Turn off the water tap.
!Although the power can be cut off automatically, unplug the
washer for safety measures.
Plug in the power cord - turn on the water tap
- hang the upper drain hose on the collection
tank.
- put in clothes - put in suitable amount of
detergent - close the door lid.
1
3
4
2
Choose the suitable water level
according to the washing amount.
Details refer to page 16 [the relationship between
water level amount and washing amount] .
The washer will start to work with this setting program.
Press START/PAUSE button.
Select the agitating wash program
by the user.
Please press the PROGRAM button until the indicator of the
agitating wash program lightens. Then this program is ready
for working.
!


Operation of TUB CLEAN program
Tub clean program
2
1
3
  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()

 

3
  
PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
13

!The TUB CLEAN program of
this machine is particular. It can
clean the dirt on both sides
of the barrel and the back side
of the impeller if you run this
program regularly .
Detail operating procedures are
as follows:
!
!You cannot change the water
level or any other programs during
the TUB CLEAN is working.
!The duration of this program is
23 minutes.about
When you press the button, the
indicator of NORMAL as
default lightens.
To choose the TUB CLEAN
program, press the PROGRAM
untilbutton the indicator is on.
press theThen
button.START/PAUSE
After the impeller ran, you need
put the disinfector with chlorine
about 300ml into the barrel. Do
not forget to close the door lid
when the washer is running .
Preparation before tub clean：
Completion of tub cleaning
!After completion of tub cleaning, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Turn off the water tap.
!Although the power can be cut off automatically, unplug the
washer for safety measures.
Plug in the power cord - turn on the water tap
- hang the upper drain hose on the collection
tank.
- put in clothes - put in suitable amount of
detergent - close the door lid.
Instruction to the TUB CLEAN
program
Select the tub clean program
by the user.
Press the PROGRAM button until the indicator of the tub
clean program lightens. Then this program is ready
for working.
1
2
3
Press the power button.
The NORMAL program as default is now ready for
washing.
set
The washer will start to work with this setting program.
Press START/PAUSE button.

  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()

 

3
  
PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
23
1
4
14
Operation of CUSTOMIZED program

Instructions to CUSTOMIZED
!User can freely select any com-
bination among "Wash ", "Rinse"
and "Spin" modes according to
degree of dirtiness of clothes.
Detail operating procedures are
as follows:
!Press and hold the WASH button to
select different washing durations.
You could choose from 0 minutes
to 20 minutes.
!Press and hold the RINSE button to
select number of rinse.
Such as 3 times, 2 times,
or no rinsing process.1 time
!Press and hold the SPIN button to
select different of spinning durations,
You could choose from 3 minutes to
9 minutes or no spinning process.
Preparation before washing：
Press the power button.
The NORMAL program set as default is now ready for
washing.
Select the customized program
by the user.
Completion of washing
!After completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Turn off the water tap.
!Although the power can be cut off automatically, unplug the
washer for safety measures.
Plug in the power cord - turn on the water tap
- hang the upper drain hose on the collection
tank.
1
3
4
2
Choose the suitable water level
according to the washing amount.
The washer will start to work with this setting program.
Press START/PAUSE button
program.
- put in clothes - put in suitable amount of
detergent - close the door lid.
Details refer to page 16 [the relationship between
water level amount and washing amount] .

15
  

 ()
 ()
   

 / 

 

 ( )
 ()
 ()

 

3
  
PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
Operation of other automaticfully
washing program
2
1
4
3

Preparation before washing：
Completion of washing
!After completion of washing, the buzzer will buzz continuously
for 6 times and then the power will be automatically cut off.
!Turn off the water tap.
!Although the power can be cut off automatically, unplug the
washer for safety measures.
Instructions to other fully
automatic washing program
!SOAK program is with strong water
flow similar as that NORMALin
washing program. However, there
is a motional soak process lasting
for about 29 minutes just before
the washing process. Thus it is used
for washing more amount of dirty
!DELICATE program, the selection
of water level is only from 15L to
44L. It is used for washing thinner
or cleaner clothes and the water
flow is weaker.
!SPEEDY program, the selection of
water level is only from 15L to 32L.
It is used for washing less dirted
clothes and the whole washing
process will be completed in about
21 minutes.
Press START/PAUSE button.
The washer will start to work with this setting
program.
Press the power button.
The NORMAL program set as default is now ready for
washing.
1
4
3
2
Choose the proper water level
according to the washing amount.
You should refer to page 16 [the relationship between
water level amount and washing amount] for detail.
Select any one program of
.SOAK ,DELICATE or SPEEDY
AIR-DRY
..1 Turn on the power
.2 Press PROGRAM button until
both the indicators of DELICATE
Then AIR-DRY program
.is selected
.3 You can press SPIN to select
.the spinning duration
Plug in the power cord - turn on the water tap
- hang the upper drain hose on the collection
tank.
- put in clothes - put in suitable amount of
detergent - close the door lid.
clothes.
and TUB CLEAN are lightened at
the same time.
4 Finally, press the START/PAUSE
button to start this program.
.

16
setting washing capacity
and water level
15
<0.5
5.0
1.0
5.0
1.5
4.0
2.0 2.5
3.0
3.0
3.0
4.5
18 21 24 28 32 36
Agitating
Wash
Speedy
Delicate
The relationship between water level amount and washing amount
Maximum washing amount of each program
Water Level Amount
(Liter)
Washing Amount
(kg)
Program
Max. Washing
Amount (kg)
Normal
Soak
The amount of washing powder,
softener and bleacher
Note: The using amount of washing powder will vary with its different quality.
Standard using amount of water, washing powder
and clothes softener
Using
amount of
washing
powder
15
10 - 16g 14 - 22g 20 - 28g
38 - 56g
35 - 52g
26 - 42g
20 - 32g
about 16 ml about 18 ml about 21 ml about 23 ml
24 40 48
Rated amount of water (liter)
Fast Program
Other program
Using amount of
Clothes softener
40
5.0
44 48
4.03.5
All information is for reference only.Any changes will taken
by user as the practice.

17
Maintenance of washer
Cleaning of filtering bag
Please keep the washer with neat appearance and perform correct maintenance to prolong the
service life of washer.
The special circulation water flow is designed for this washer, thus the flock powder and flock
residues will be automatically collected into the filtering bag. The user shall regularly
clean the filtering bag to remove the flock powder and flock residues.
Detail operation methods are following:
Cleaning of water inlet hose joint
Unscrew and remove the water inlet hose joint
from the washer and clean the filtering screen
of inlet valve with brush.
Jack
Press it according to the arrowhead
point . And you can discharge the
frame of filtering bag.
Put the frame of filtering bag into the
two jacks and push into emphatically
as shown in figure above.

18
No
washing
Abnormal
draining
Abnormal
spin
Troubleshooting of washer
List of faults and inspections
Faults Inspection Items
No water
flows in
!If the power is off or the fuse is burned .
!If the water supply is cut off or the water pressure is too low.
!If the inlet hose is connected improperly and the water tap is turned off.
!If the filtering screen of inlet valve is blocked by dirt.
!If the coil of inlet valve is damaged. (The slight electromagnetic
sound is a phenomenon when the inlet valve is opened)
!If the "Start / Pause" button is not pressed after the power
switch is on.
!If the door lid is not closed.
!If all clothes are piled at one side of barrel find there are too many
clothes.
!If the washer is not placed in a stable condition or is tilted.
!If the motor belt is loosened.
Note: During the spinning process, if washing are piled at one side of the spin barrel, it will cause
unbalance of the spin barrel and resulting in striking. At this moment, the built-in computer of
will detect this unbalance situation and will automatically correct it ( fill in water Washing ).the washer
However, if the unbalance situation is not removed after continuous three corrections,
The user has to manually place the clothes inside the barrel evenly.
When problems of the washer arise, please contact local service office or the sales service department
of our company and the user should not dismantle the machine without permission.
If the washer cannot function normally, or there are abnormal signals, please check and correct as
follows.
!If the water drain hose is placed too high.
!If the end of water drain hose is not connected to the collection tank.
!If the internal rubber ring of the drainage valve is blocked by dirt.
!If the power is off or the fuse is burned .
!If the power supply voltage is too low.
!If the water amount reaches the required water level.
(The washer will not work if the water amount does not reach the
required water level)
!(It will only start to workIf it is set to "PRESET" washing mode.
at the preset time)

19
220V/50Hz
420W
5.0kg
5.0kg
XX
520 530 886mm (W*D*H)
0.03MPa-0.8MPa
３３kg
Specifications and technical
parameters of washer
Rated power supply
Input power of motor
Rated washing capacity
Rated spin capacity
Overall dimensions
Application water pressure
Weight of whole machine
Washing mode New water flow
Draining mode Upper draining
Spin mode Centrifugal spin
Following phenomena are not
faults of washer
Symptom Causes
There are water leaks from
the water drain hose when
use for the fist time.
This is residue water after the performance test
in the factory.
Make up water during
washing process. During the washing process, the water will be
automatically made up when the water level declined.
During the dehydrating
process, spin suddenly
stops and water filling and
rinsing start running.
This is because the clothes are at one side. The safety
switch starts to make up water, and stir while
running. The spin process will continu when the
clothes are in balance status. In case of failure of three
corrections of the washer, the buzzer will alarm. Please
manually adjust the balance of clothes.
The clothes are not
sufficiently dry after spinning
process.
Note All information is for reference only.:
The heavier and thicker parts of the clothes
will cause uneven spin.

20
Warranty
Important Notices
1. The product has 2 years warranty from the date of purchase.
2. The warranty shall not apply:
A. to any Product subjected to accident, misuse, neglect, alteration, Acts of God,
Improper handling, improper transport, improper use, improper testing or
unauthorized repair;
B. to cosmetic problems or defects which result from normal wear and tear under
ordinary use, and do not affect the performance or use of the product.
All warranties are void if the product is opened, altered, and/or damaged;
C. to any packing, transportation, export / import tax or any related expenses.
3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR
YEAR WARRANTY SERVICES.
4. Request for service should be made to our service department.
Service Hotline : [phone]
5. THE UNIT IS FOR DOMESTIC USE ONLY.
THE UNIT IS FOR DOMESTIC USE ONLY
IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO
YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL
SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY,
LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION)
OR FROM ANY BREACH OF WARRANTY, EVEN IF OUR COMPANY OR
SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO CASE SHALL OUR COMPANY OR SUPPLIER'S LIABILITY EXCEED
THE AMOUNT YOU PAID FOR THE PRODUCT.
2S
Specifications, designs and dimensions subject to change without prior notice.
