Installation Instructions
for Slimbox 4 Fiber
Indoor/Outdoor Enclosure
8/9/2017
This document describes the Assembly Instructions for the SlimBox-V, Indoor/Outdoor
Enclosure –4 fiber.

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 1
1. Products
The equipment is used as a termination point for the feeder cable to connect with the drop cable
in a FTTx network. The fiber splicing, splitting, distribution can be done in the enclsoure and
provides a solid protection and management for the FTTx network.
Features:
Total enclosed structure.
Material: PC+ABS, water resistant, dust-proof, IP55
Clamping for feeder cable and drop cable, fiber splicing, storage, and distribution.
Cable, pigtails,patch cords individual pathways without disturbing adjacent fibers
Easy Access to feeder cable by raising the distribution panel
Suitable for both Outdoor and Indoor usge
2. Specifications
-Environmental Requirement
Working Temperature
-40˚C to + 60˚ C
Relative Humidity
≤ 85% ( +30˚C )
Atmospheric Pressure
70 Kpa ˜ 106 Kpa
-Electrical Requirement
The grounding device is isolated with the cabinet, isolation resistance is less than
(DC); IR≥
The withstand voltage between grounding device and cabinet is not less than
3000V (DC)/minute, no puncture and no flashover; U ≥ 3000V

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 2

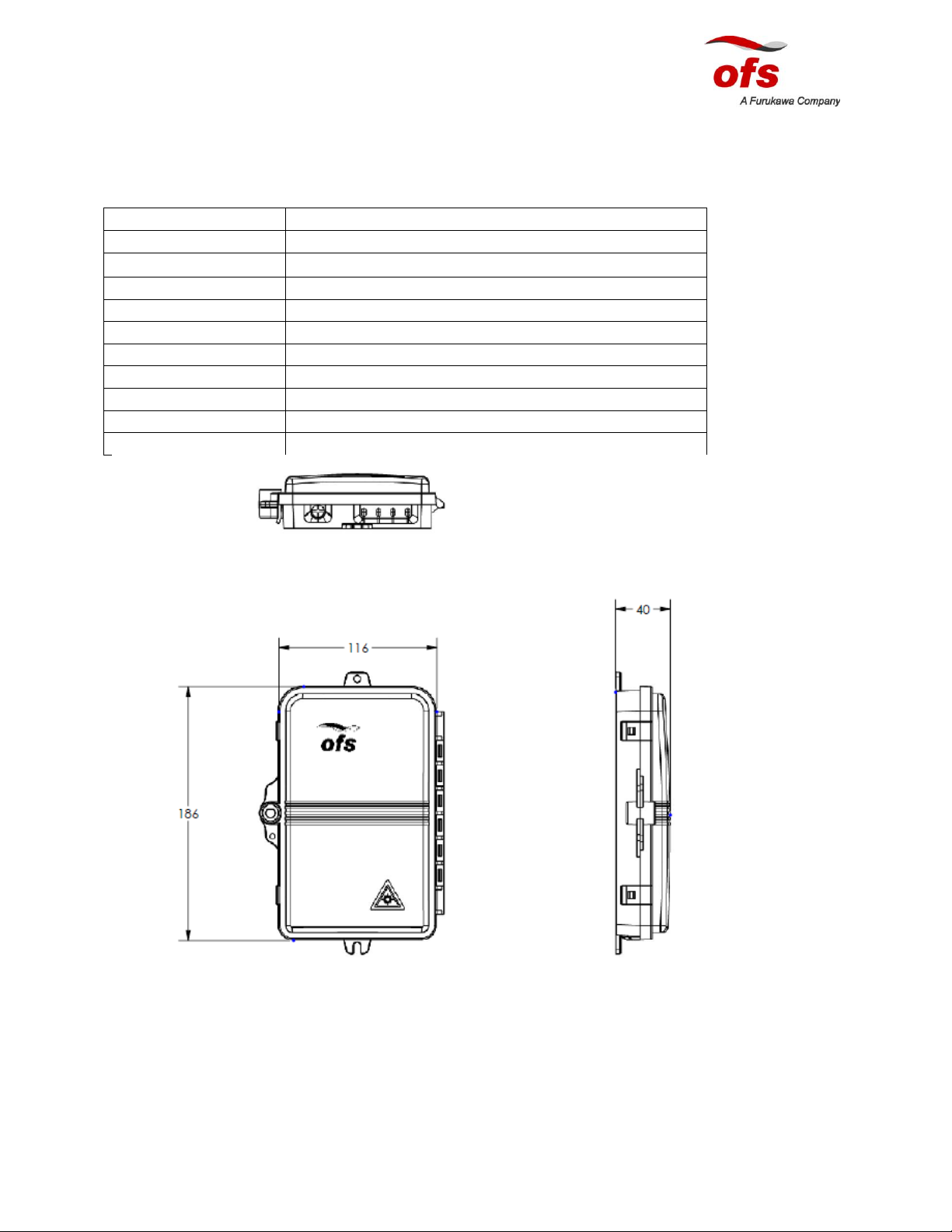

Configuration Table
Parameter
Dimension (HxWxD)
186 X 116 X 40 mm
Color
Light Gray
Material
Plastic (PC + ABS)
Adapter Type
SC or LC Duplex that fits SC footprint
No of Adapters
4 (LC Duplex that fits SC footprint)
Splitter Type
Nx 2, Nx4 and Nx8
No. of Splitters
Max. 1 (N x 2, N x 4 and N x 8)
Capacity
Max 4
IP Grade
IP 55 (Outdoor)
Mount
Wall Mount

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 3
3. Product Structure and Cable Entry
Drop Entry
Cable Entry
Lid
Adapter Ports
Accessory Package
Splice Flip Tray

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 4
4. Enclosure Installation and drop cable attachment

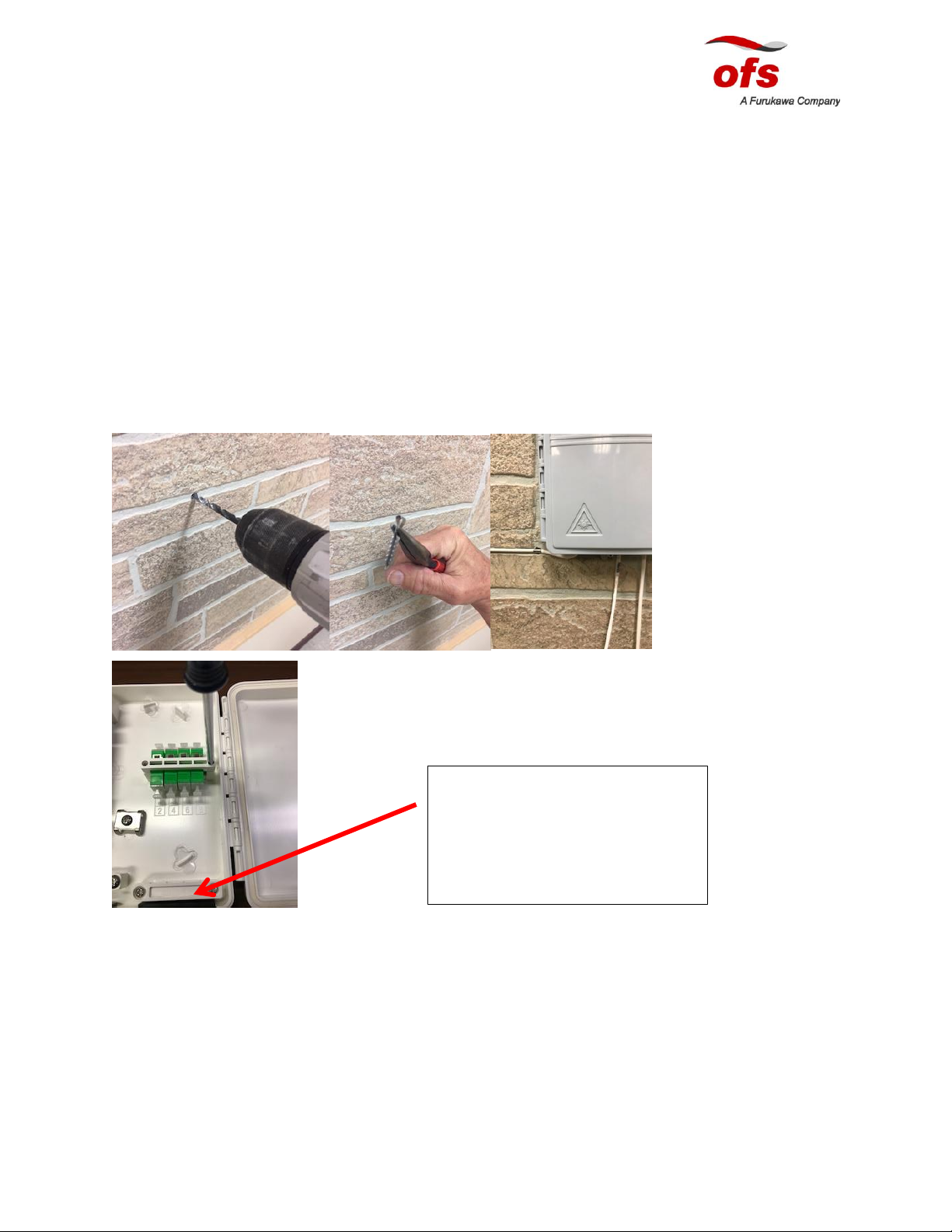

1. Start by opening the accessories package and find the mounting screws included in the
product packaging. Attach the screws at the top and the base of the enclosure.
2. Open the lid with a cam wrench and open the latches with a screw driver

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 5

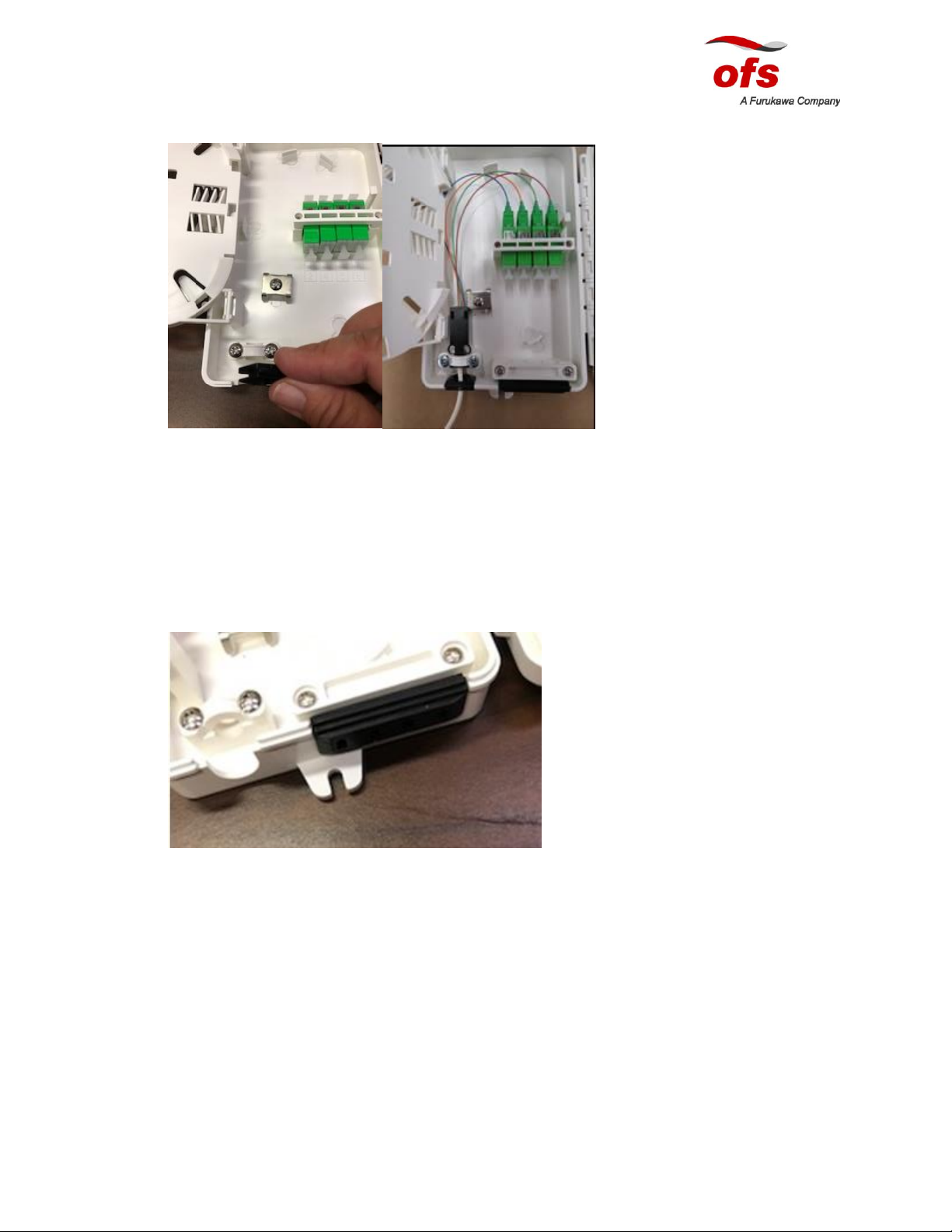

3. Remove the grommet by sliding forward and notch through the web in order for the
cable to enter. Run the cable through the notch and place the grommet back in the
enclosures. The cable grommet is notched in the center and the drop cable is cut from the
bottom. The fiber in the Indoor/Outdoor cable is 250 um and will require an up-jacket
with 900 um tubing using the D-181755 or similar kit when the installation is terminating
in the enclosure. See step 6 for mid span entry of the Indoor/Outdoor cable.
4. When using OSP cable, the cable is prepped prior to inserting the cable in the cable
clamp. The cable clamp and the strength member clamp are removed with a Phillips
head screw driver. The strength member is prepped two inches beyond the end of the
cable. The cable clamp is attached on the Outside plant cable and the prepped end is
located slightly beyond the clamp. Outside plant cable can’t be used in a mid-span
installation. The 250 um fiber will require an up-jacket with 900 um tubing using the D-
181755 or similar kit when connectorizing and the fiber is placed in a tube to transfer to
the splice tray when splicing.
Strength Member Clamp
Cable Clamp

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 6
5. When field terminating connectors utilize the vendor specific instructions for direct
termination, mechanical or splice on connectors for 900 um buffered fiber.
6. When doing a mid-span cable the cable enters on the left side is wrapped two times and
exits on the far right hand side drop port (only three drops are allowed in the mid-span
entry). The EZ Cable Clii Shark Tooth Anchors. Place the anchors close to the enclosure
to assist in strain relief. The Indoor/Outdoor cable is smaller than the bracket and can be
held in place with a cable tie included in the accessory package. When doing a mid-span
the cable exits from one of the drop ports. The exit end of the cable is clamped into the
plastic drop grip at the base of the enclosure (see the photo below).
7. When the enclosure is pre-terminated the cable will already be installed and up-jacketed
and you can move to step 8 for drop installation.
Drop Cable Clamp: Remove
the two screws with a
Phillips head screwdriver
and place the drops in the
drop holder. Replace the
top part of the clamp and
replace the screws

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 7
8. Remove the top of the drop clamp and pull out the black grommet. Cut the base of the
grommet to allow the drops to slide into the grommet before inserting it back into the
enclosure. Then route the drop cables through the grommet ports and attach the
connectorized end (SCU, SCA, LCU or LCA ) into the adapters. Match the adapter
number (molded into the base of the enclosure) with the appropriate cable number.
9. Pigtails may be ordered with the enclosure or ordered separately. When ordered with the
enclosure they will already be attached to the adapter on the base of the enclosure and the
excess fiber stored in the fiber management on the front of the splice flip tray. If ordered
separately then attach the pigtail into the adapter. The pigtail fiber ends will need to be
routed from the rear of the flip tray to the front of the splice flip tray and prepared for
splicing.

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 8
10. The Outside Plant cable is routed into the bottom left hand corner of the base and
attached inside the bracket at the base of the enclosure. The cable is prepped with 38
inches of exposed unit tube that is routed in the base of the enclosure and routed to the
rear of the flip tray. The unit tube that will be spliced is prepped 20.5 inches to expose
the fiber that will be spliced to the pigtail. Once the fusion splice is completed the splice
sleeve is installed on the top of the flip tray and the pigtail is routed counter clockwise
and the unit tube is routed clockwise on the rear of the flip tray.
Rear of Splice Tray Pigtail
entry point
Rear of Splice Tray Cable
entry point

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 9
5. Splitter Installation
1. Attach the splitter on the top of the splice flip tray.
2. If the output ends of the splitter are pre-terminated then route the connectors to the base of
the enclosure and attach the connector into the adapter. The excess fiber will be stored in
the fiber management at the top of the splice flip tray.
3. If the splitter output and inputs are to be spliced to pigtails attach the pigtail connector into
the adapter on the base of the enclosure to the connector of the drop lead. Then take the
ends from the front of the base to the rear of the splice flip tray. Take the splitter output
leads and splice the respective pigtail to the splitter output fiber.
Splice Flip Tray
Indoor/Outdoor Cable entry
or tubed fiber from an OSP
cable
Splitter Attachment
Splice Flip Tray Pigtail
entry point. Pigtail is
routed counter clockwise

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 10

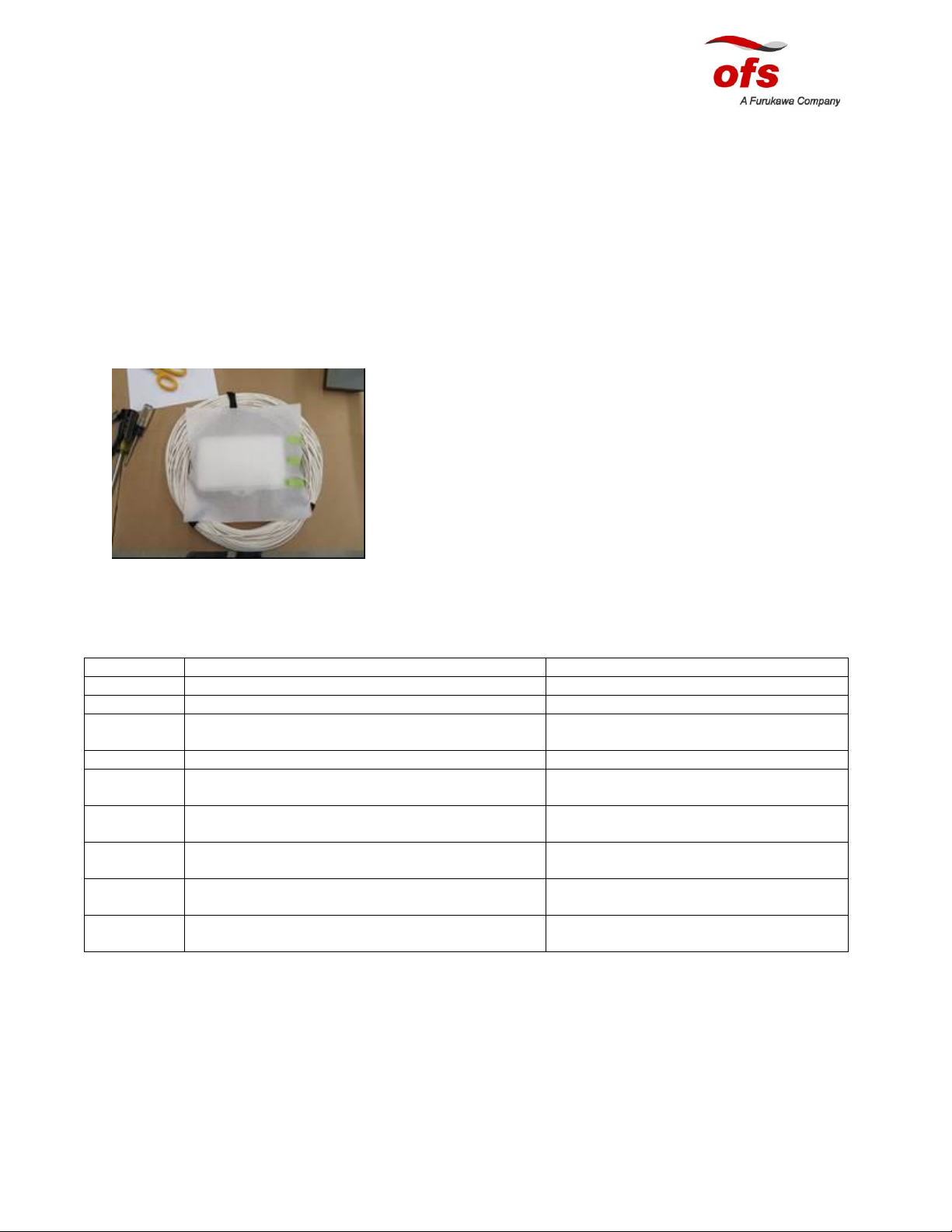

4. The input fiber from the splitter will be spliced in the splice flip tray to the specified fiber
in the incoming feeder cable.
5. Store the splice protectors and slack in the splice flip tray.
6. Record the connection information and place in the inside lid of the enclosure.
7. Close the cover and attach to the base making sure not to pinch fibers and cordage.
Ordering Information
Comcode
Product Code
Description
301139689
SLIMBOX-H,OUTDOORSVI-04FIBER-INSIDEADP
SlimBox, 4 fiber empty
301139697
WSE1S-004-SS41-GRY-SCAUNC-F
SlimBox, 4 fiber with 4 SC APC adapters
301139705
WSE1S-004-SS41-GRY-SCAUNC-F-PT
SlimBox, 4f with 4 SC APC adapters and
pigtails
301139713
WSE1S-004-SS41-GRY-SCUUNC-F
SlimBox, 4 fiber with 4 SC UPC adapters
301139721
WSE1S-004-SS41-GRY-SCUUNC-F-PT
SlimBox, 4f with 4 SC UPC adapters and
pigtails
301140356
WSE1W-004-SS41-GRY-SCAUNC-MIOP-0050F
SlimBox, 4f preterminated with 4f
Indoor/Outdoor EZ Bend cable 50 ft.
301140364
WSE1W-004-SS41-GRY-SCAUNC-MIOP-0150F
SlimBox, 4f preterminated with 4f
Indoor/Outdoor EZ Bend cable 150 ft.
301140372
WSE1W-004-SS41-GRY-SCAUNC-MIOP-0200F
SlimBox, 4f preterminated with 4f
Indoor/Outdoor EZ Bend cable 200 ft.
301140380
WSE1W-004-SS41-GRY-SCAUNC-MIOP-0300F
SlimBox, 4f preterminated with 4f
Indoor/Outdoor EZ Bend cable 300 ft.

C17AK0006 REV.1SLIMBOX-V, INDOOR/OUTDOOR ENCLOSURE-4F
ISSUE DATE 8/9/2017 pg. 11
Technical assistance
OFS ensures that the technical information, statements, drawings and illustrations contained in
this manual are reliable. However, the information may not be sufficient to install in certain
conditions OFS reserves the right to make improvements, enhancements or changes to the
products without prior notification including technical data and other information related to this
product.
For additional information, please contact your sales representative.
You can also visit our website at www.ofsoptics.com or call 1-888-fiberhelp (1-888-342-3743)
from inside the USA or 1-770-798-5555 from outside the USA
