Introduction
Designed nothing short of revolutionary, the Furious KOMBINI Flight Controller steps up the
competition with feature packed insanity that is ready to alter your FPV world.
Unlike any other system available today, the Furious KOMBINI provides an all in one solution that
brings forth the ultimate in simplified sophistication. This all-encompassing FC solution utilizes
industry leading technology that has never been seen in a system this compact and powerful - the
ultimate end game for high powered FPV flight.
Cluttered & complex wiring? Never again. With an industry 1st gold plated PDB that is integrated
within, the KOMBINI FC provides the ultimate in soldering ease with the highest grade of
connectivity, allowing direct soldering points for motors, VTx, Receiver and FPV Camera. Rated with
150A of current protection @ 5S 18.5V input power, the KOMBINI is ready to push the boundaries of
aggressive FPV flight.
Utilizing the very latest F3 chip processor with built in BetaFlight firmware, the Furious KOMBINI
utilizes industry leading components with an included LC filter for the very best in signal reception.
Add the 1A 5V BEC with a built in SBUS inverter & Spektrum Satellite port, and the KOMBINI FC stand
alone amongst all the rest with a potent blend of race ready madness.
Sized at 36mm x 36mm, the compact footprint of the KOMBINI FC is the perfect application of
race ready aggression, providing a Flight Controller experience second to none. This adhesion of
performance, capability & simplicity is the apex of FPV flight, providing the end user with a flight
experience that brings everything to the table in a zero compromise design.
For the pinnacle in simplicity, performance and cutting edge capability, the Furious KOMBINI is
the feature packed FC system that is ready and waiting to dominate. Get yours today, and change
the way you FPV.

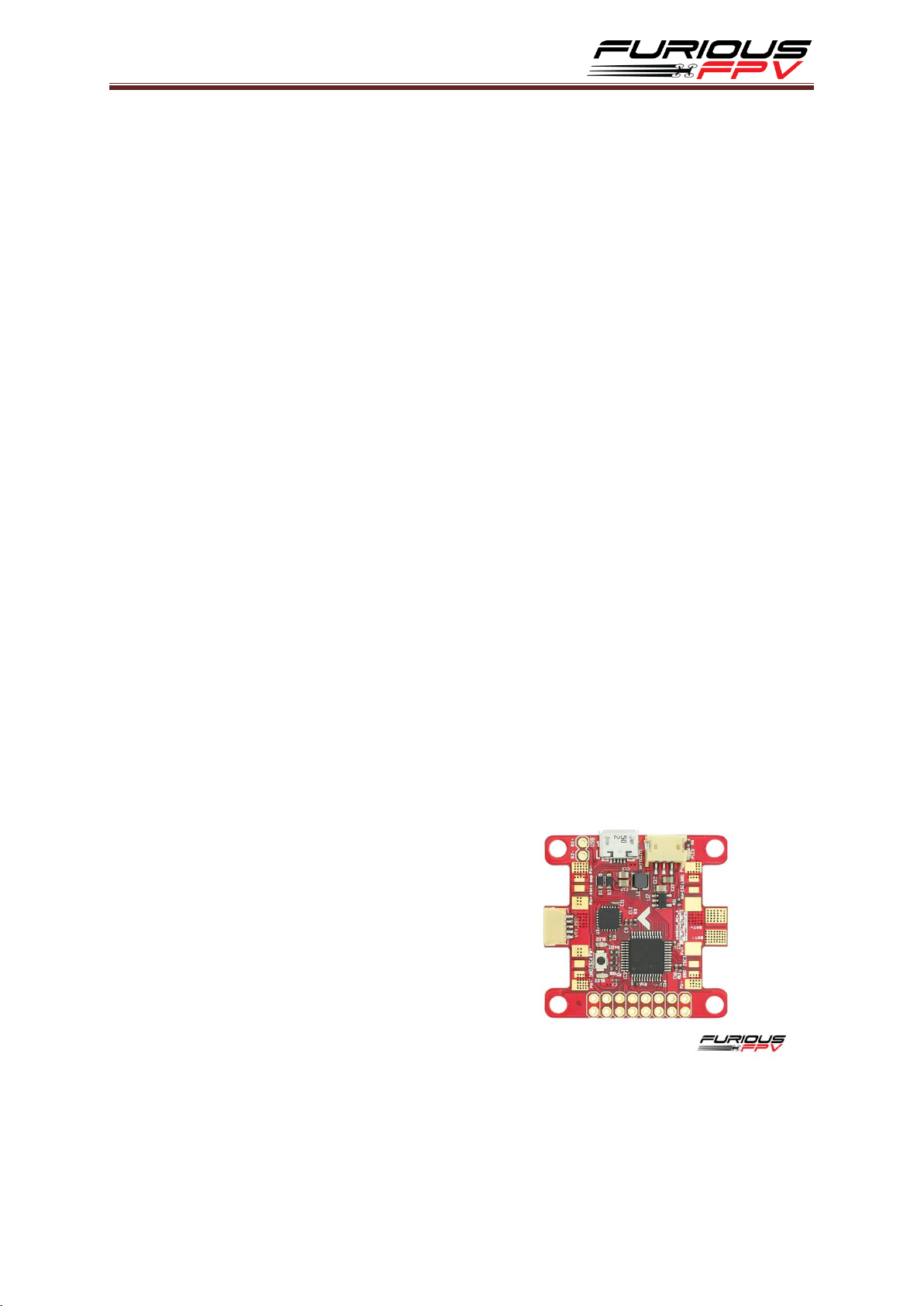

WHAT’S NEW KOMBINI DSHOT VERSION?
Remove PPM pin and add TX3 pin for the
pinnacle in simplicity, performance
Ready support Dshot protocol
New component for BEC better
New red color for PCB
Features
Latest Generation F3 Processor Chip
Simplicity Defined with Built In PDB
Massive 150A PDB Current Protection
LC Filter & 12V
800mA BEC for VTX
4
5S 18.5V Ready
Heavy Duty 1.5A BEC @ 5V and 0.8A BEC @12V Output
Ultra Compact Design for Ease of Installation
Gold Plated Pads for the Very Best Connectivity
Firmware Perfection via BetaFlight
BLHeli Pass Through Setup
Compact Sizing w/ 30.5mm x 30.5mm Mounting Holes
Included Spektrum Satellite Port
FrSky Telemetry, Ready & Waiting
Full USB Support
MPU6000 SPI Chip
Weight: 7gr
5

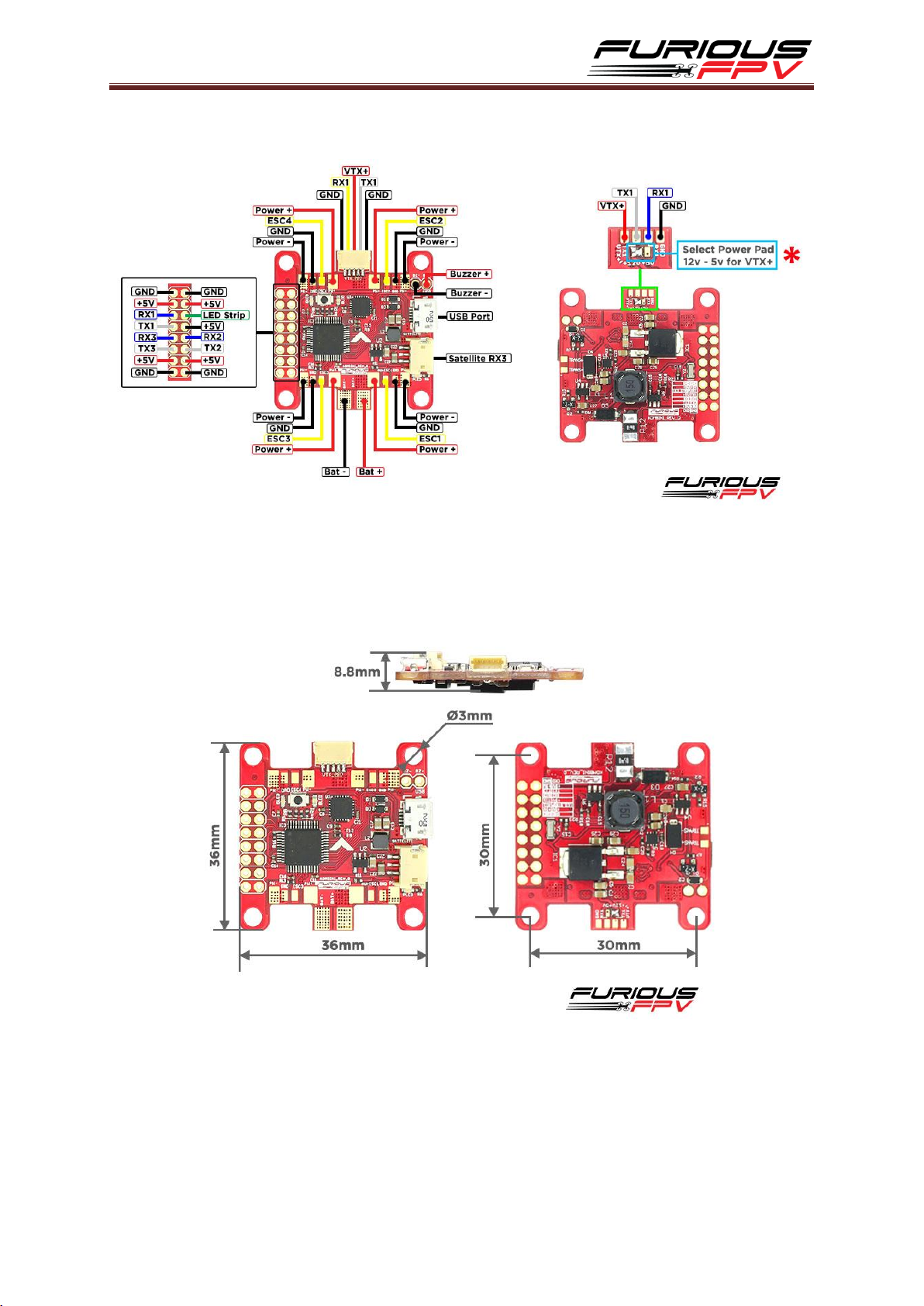

Board Layout
Dimensions
8
Using XSR FrSky Receiver:
Using Spektrum Satellite Receiver:
9
Connect with Video Transmitter:
Using Tramp HV:

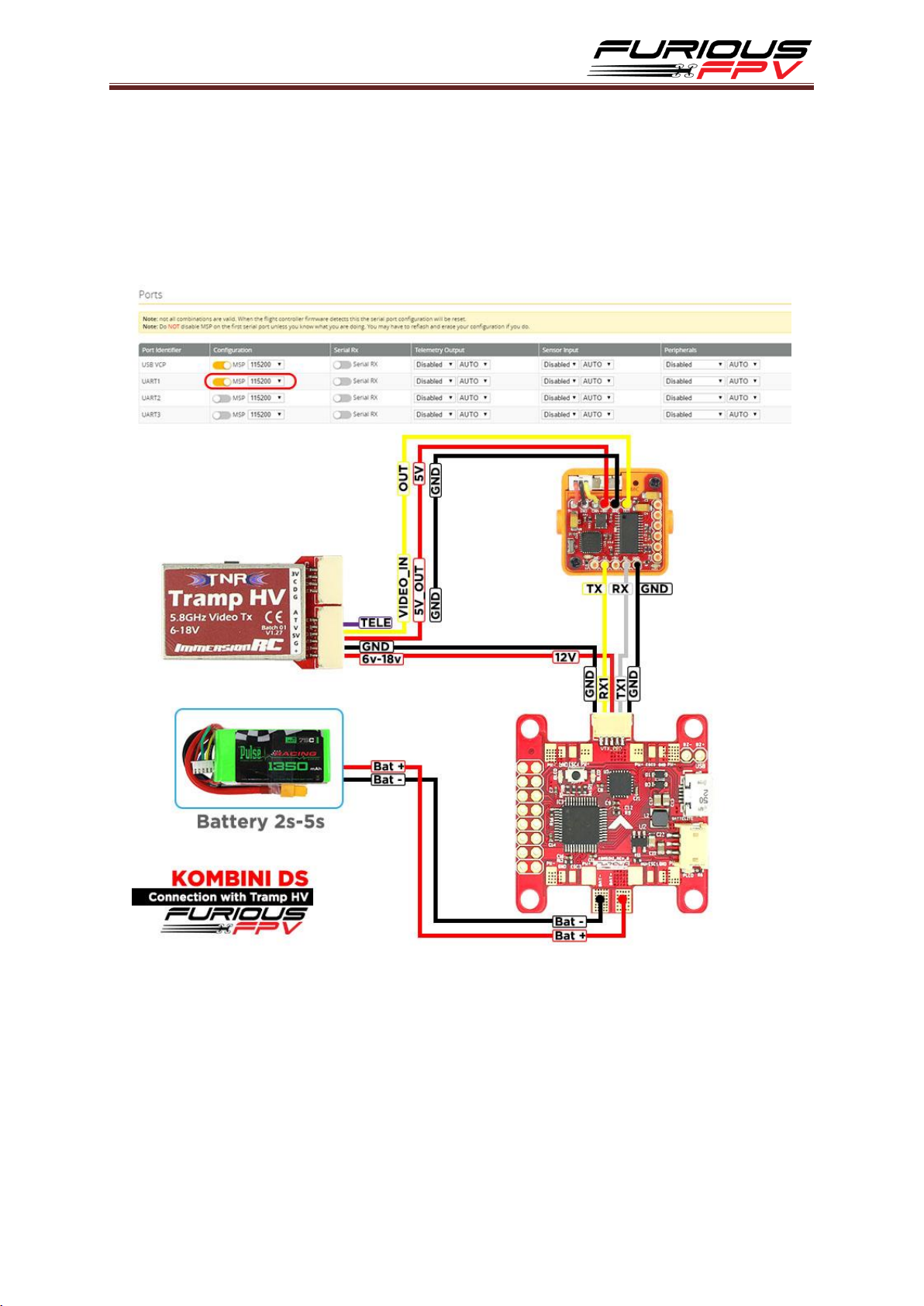

With Piggy V2 OSD
10

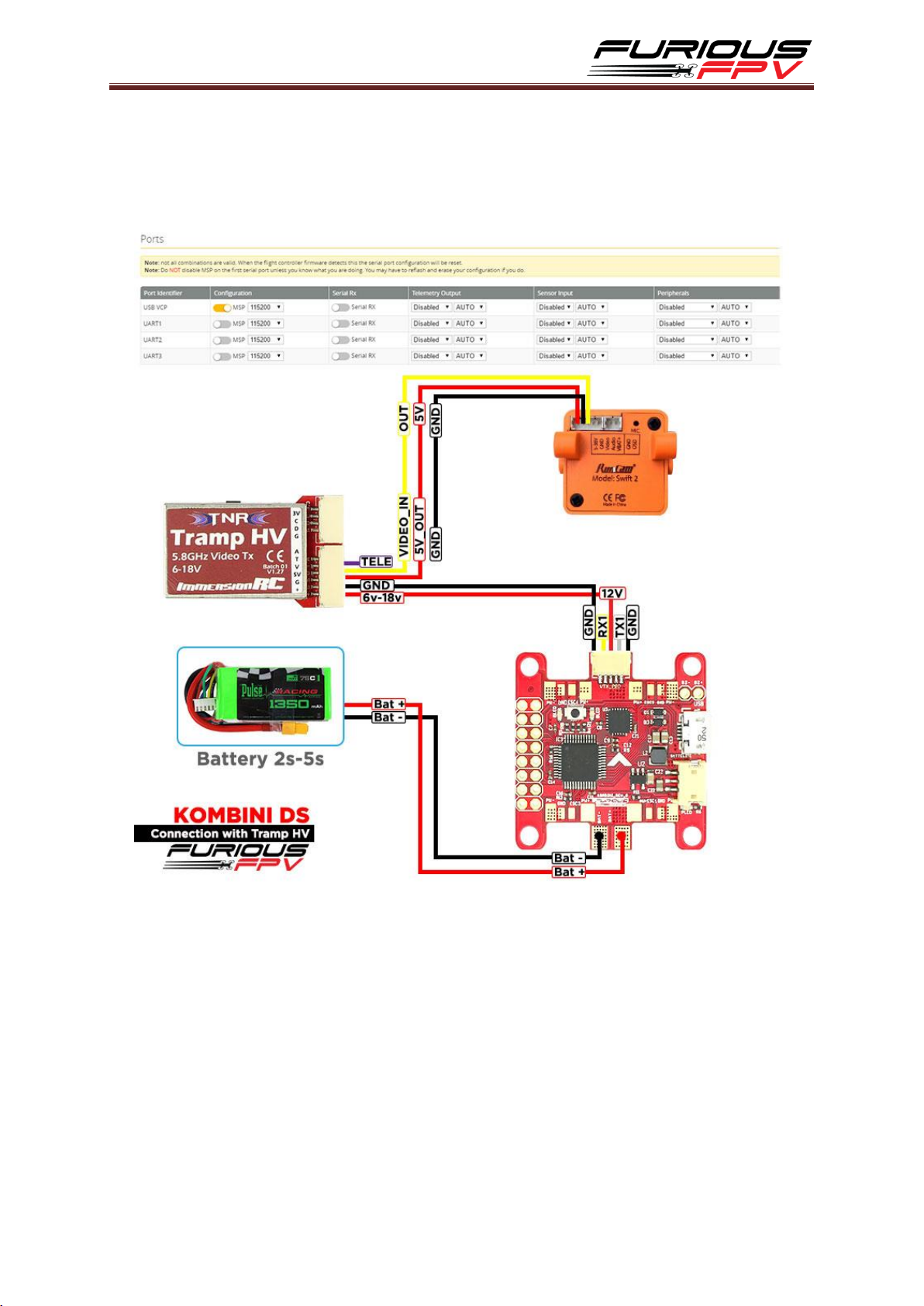

With Only Camera
11

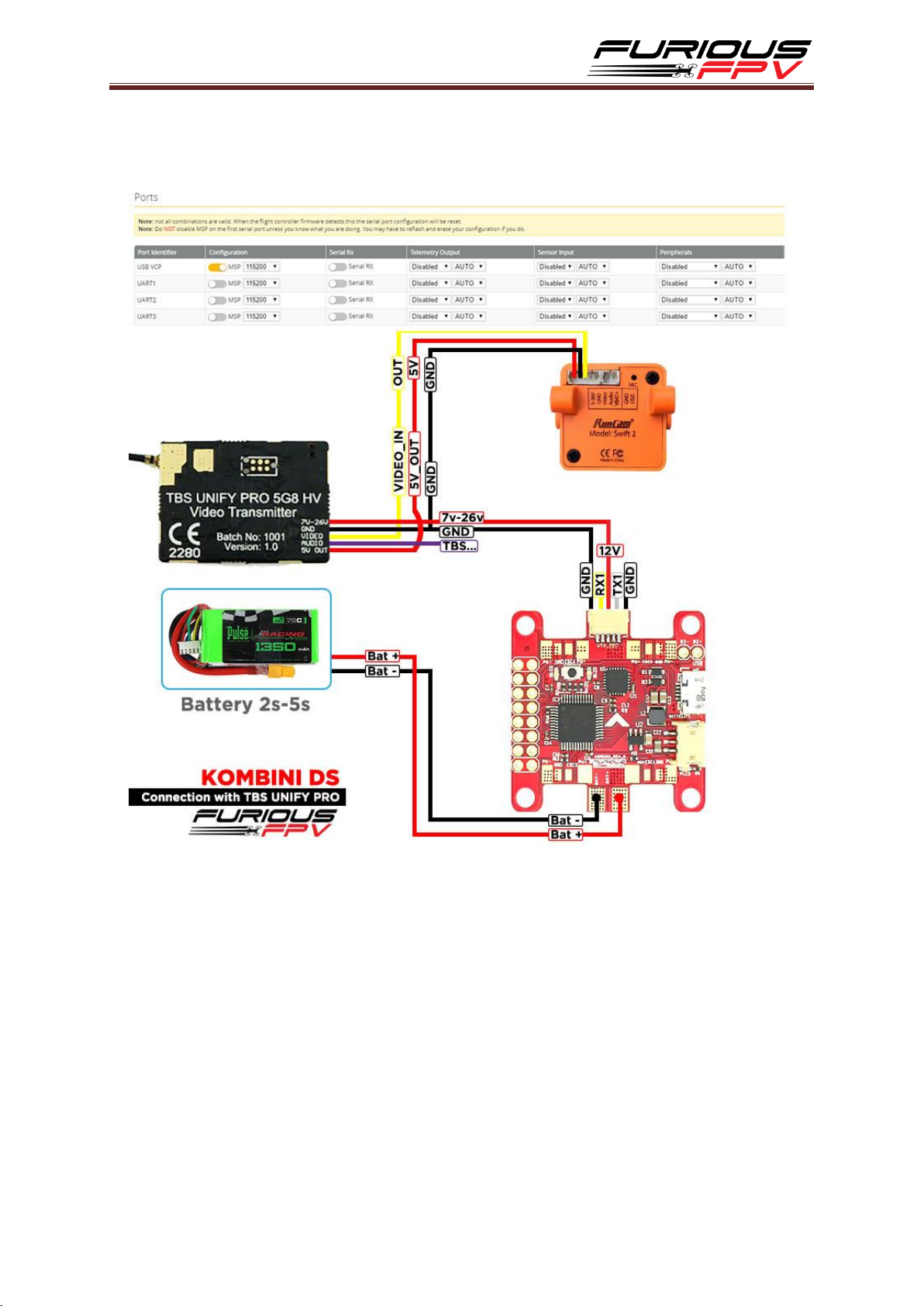

Using TBS Unify Pro:
With Piggy V2 OSD
12
With Only Camera
13

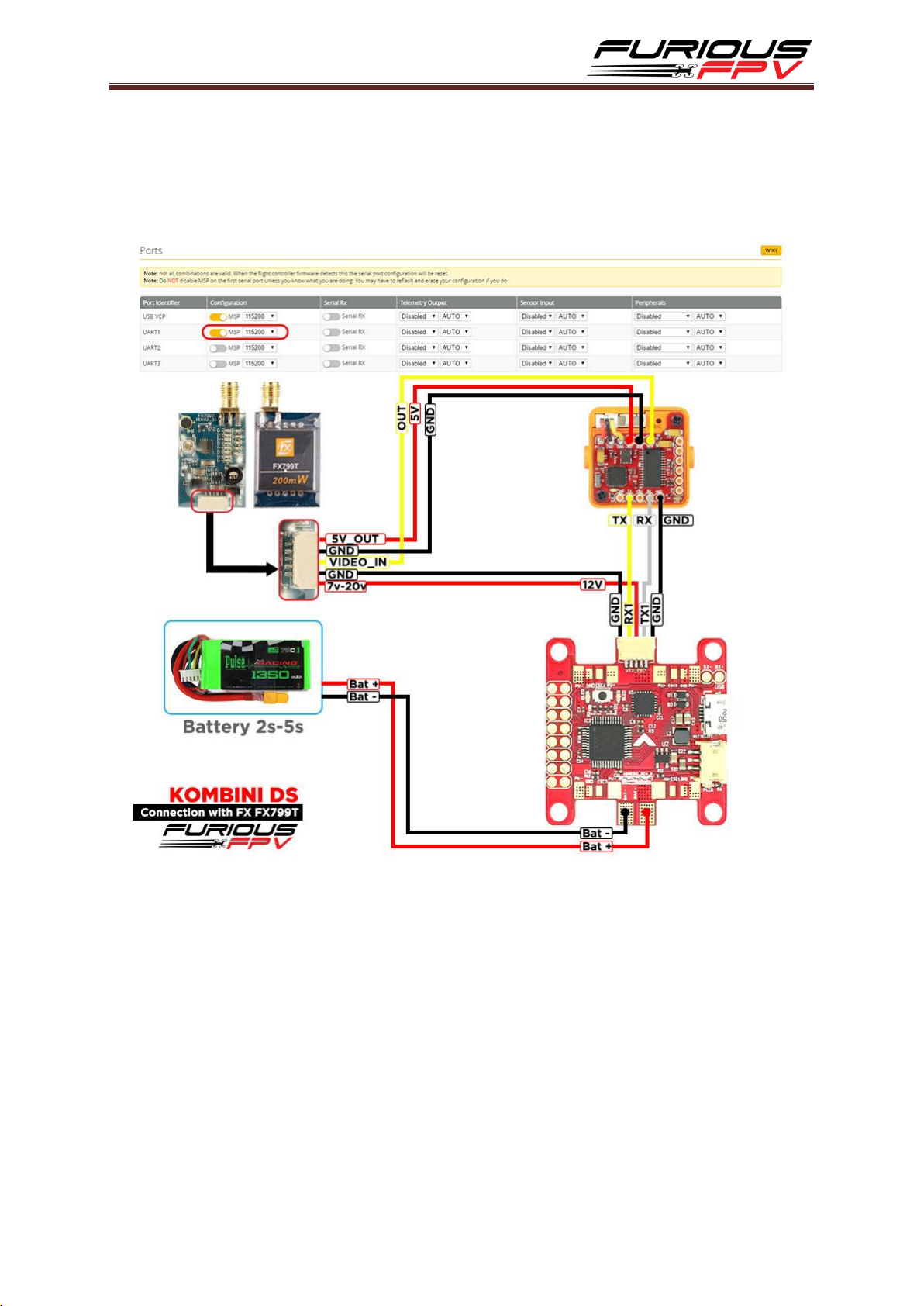

Using FX FX799T:
With Piggy V2 OSD
14

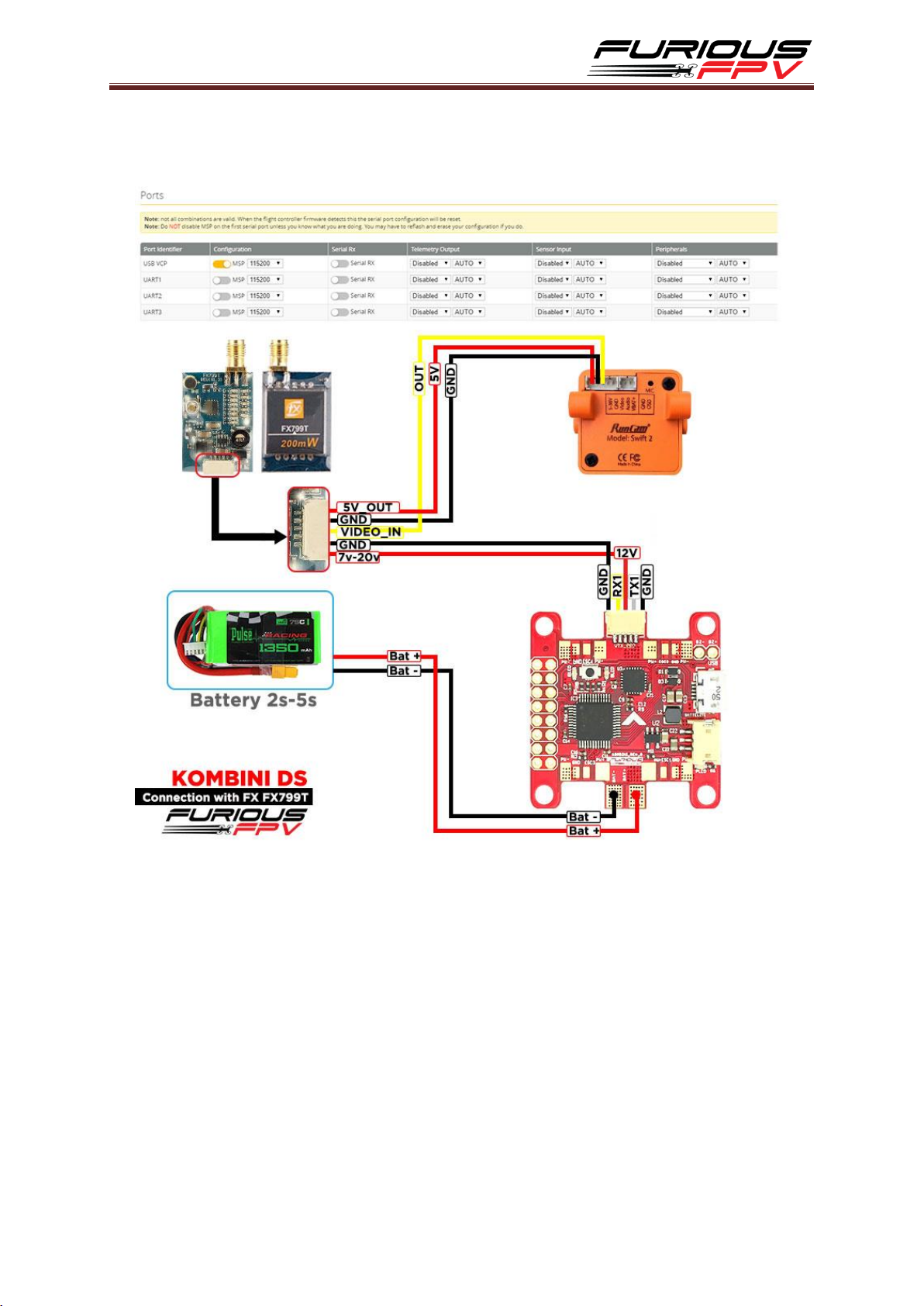

With Only Camera
