Furrion FDUB43CSA User manual

SMART 4K UHD FULL SUN, FULL SHADE &
PARTIAL SUN TV
SMART 4K UHD PLEIN SOLEIL, PLEINE
OMBRE ET SOLEIL PARTIEL
SMART TV 4K UHD PARA SOMBRA TOTAL O
PARCIAL, O LUZ SOLAR TOTAL
MODEL/MODÈLE/ MODELO: FDUB**CSA, FDUF**CSA,
FDUP**CSA, FDUF**CSACA, FDUP**CSACA
USER MANUAL/MANUEL DE L’UTILISATEUR/ MANUAL DE USUARIO
* Product picture for reference only
* Photo du produit pour référence uniquement
* El producto de la imagen es solo de referencia
** Product Size/ ** Taille du produit/ ** Tamaño del producto

Model Lippert No.
FDUB43CSA 2021132330
FDUF43CSA 2021130705
FDUP43CSA 2021130709
FDUF43CSA-CA 2021135658
FDUP43CSA-CA 2021135662
FDUF50CSA 2021130706
FDUP50CSA 2021130710
FDUF50CSA-CA 2021135659
FDUP50CSA-CA 2021135663
FDUB55CSA 2021132194
Model Lippert No.
FDUF55CSA 2021130707
FDUP55CSA 2021130711
FDUF55CSA-CA 2021135660
FDUP55CSA-CA 2021135664
FDUB65CSA 2021132196
FDUF65CSA 2021130708
FDUP65CSA 2021130712
FDUF65CSA-CA 2021135661
FDUP65CSA-CA 2021135665
Thank you and congratulations for purchasing this Furrion product. Before operating
your new product, please read these instructions carefully. This user manual contains
information for safe use, installation and maintenance of the product.
Please keep this user manual in a safe place for future reference. This will ensure safe
use and reduce the risk of injury. Be sure to pass on this manual to new owners of this
product.
The manufacturer does not accept responsibility for any damages due to not
observing these instructions.
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier
Trade Name: Furrion
Model No.: FDUB43CSA, FDUF43CSA, FDUP43CSA, FDUF50CSA, FDUP50CSA, FDUB55CSA,
FDUF55CSA, FDUP55CSA, FDUB65CSA, FDUF65CSA, FDUP65CSA
FDUF43CSA-CA, FDUP43CSA-CA, FDUF50CSA-CA, FDUP50CSA-CA, FDUF55CSA-CA,
FDUP55CSA-CA, FDUF65CSA-CA, FDUP65CSA-CA
Responsible Party – U.S. Contact Information
Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA
Toll free:1-800-789-3341; Email: [email protected]
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)this device must accept any
interference received, including interference that may cause undesired operation.
English
CCD-0005519 Rev: 03-22-22 - 1 -

CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 
CONDENSATION.......................................................................................................................................5
COMPLIANCE..............................................................................................................................................7
Safety Precautions.....................................................................................................................................9
PRODUCT OVERVIEW ...................................................................................................... 
Control Panel.................................................................................................................................................10
Rear Panel.......................................................................................................................................................11
Remote Control............................................................................................................................................12
WHAT’S IN THE BOX .......................................................................................................... 
CONNECTIONS ................................................................................................................... 
INSTALLATION..................................................................................................................... 
Choose a Proper Location for your TV...........................................................................................15
Mount on the Wall.......................................................................................................................................16
Connect Power ............................................................................................................................................17
INSTALL REMOTE CONTROL BATTERY...................................................................................17
GETTING STARTED WITH WEBOS TV....................................................................... 
Initial Setup.....................................................................................................................................................18
Watching TV Broadcasting...................................................................................................................18
Connecting to the Network...................................................................................................................19
Using the Home Feature of the webOS TV..................................................................................21
Manage webOS TV Home....................................................................................................................22
SETTINGS.............................................................................................................................. 
TROUBLESHOOTING ....................................................................................................... 
SPECIFICATIONS................................................................................................................ 
English
CCD-0005519 Rev: 03-22-22
- 2 -

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NOUSER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This ‘bolt of lightning’ indicates uninsulated material within your unit which may
cause an electric shock. For the safety of everyone in your household, please do
not remove product covering.
The ‘exclamation mark’ calls attention to features within the enclosed literature
to prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or electric shock, this apparatus should not be
exposed to rain / moisture or placed in the vicinity of objects filled with liquids (such
as vases).
CAUTION: To prevent electric shock, fully insert the plug. For regions with polarized
plugs: Please match wide blade to wide slot.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. When the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
English
CCD-0005519 Rev: 03-22-22 - 3 -

11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as if the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
or when the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Apparatus should not be exposed to dripping or splashing, and objects filled with
liquids, such as vases, should not be placed on the apparatus.
16. An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna system, extreme care
should be taken to eliminate touching power lines or circuits as contact might be
fatal.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
18. Never push objects of any kind into this product through openings as they may
touch short-out parts or dangerous voltage points that could result in a fire or
electric shock. Never spill liquid of any
kind on the product.
19. If an outside antenna is connected to
the television equipment, be sure the
antenna system is grounded so as
to provide some protection against
voltage surges and built up static
charges. Section 810 of the National
Electrical Code provides information
with respect to proper grounding of
the mast and supporting structure,
grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements for the
grounding electrodes.
20. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV
system installer’s attention to Article 820-40 of the National Electric Code
(U.S.A.). The code provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
NEC-NATIONAL
ELECTRICAL
CODE S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H))
GROUND CLAMPS
GROUND CLAMP ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
EXAMPLE OF ANTENNA GROUNDING AS PER
THE NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
GROUNDING CONDUC-
TORS (NECSECTION
810-21)
ELECTRIC SERVICE
EQUIPMENT
English
CCD-0005519 Rev: 03-22-22
- 4 -

21. When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
22. Upon completion of any service or repairs to this unit, ask the service technician
to perform safety checks to determine that the unit is in proper operating
condition.
23. When you connect the product to other equipment, turn off the power and unplug
from the wall outlet. Failure to do so may cause an electric shock and serious
personal injury. Read the owner’s manual of the other equipment carefully and
follow the instructions when making any connections.
24. Sudden high volume may cause hearing or speaker damage. When you use
headphones (if the unit is equipped with a headphone jack), keep the volume at
a moderate level. If you use headphones continuously with high volume, you may
suffer hearing damage.
25. Do not allow the product to output distorted sound for extended periods of time.
This may cause speaker overheating and fire.
26. The socket-outlet must be installed near the unit and easily accessible.
27. The mains plug is used as the disconnect and shall remain readily operable.
28. Batteries (battery pack or installed batteries) should not be exposed to excessive
heat such as direct sunlight, fire or other heat sources.
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool
surroundings into a warm room or if the temperature of the room rises suddenly.
When this happens the unit’s performance will be impaired. To prevent this, let the unit
stand in its new surroundings for about an hour before switching on, or make sure the
room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze
from an air conditioner. In such cases, change the location of the unit.
How to Handle the LCD Panel
●Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to
break and injury may occur.
●If the LCD panel is broken, make absolutely sure you do not touch the liquid in the
panel. This may cause skin inflammation.
●If the liquid gets in your mouth, immediately rinse and consult with your doctor.
Also, if the liquid gets in your eyes or touches your skin, consult your doctor after
rinsing for at least 15 minutes in clean water.
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains
English
CCD-0005519 Rev: 03-22-22 - 5 -

on the LCD panel for long periods of time, the image can become permanently
engrained and cause subtle but permanent ghost images. This type of damage is
NOT COVERED BY YOUR WARRANTY. Never leave your LCD panel on for long
periods of time while it is displaying the following formats or images:
●Fixed images, such as stock tickers, video game patterns, TV station logos and
websites.
●Special formats that do not use the entire screen. For example, viewing letterbox
style (16:9) media on a normal (4:3) display (black bars at top and bottom of
screen); or viewing normal style (4:3) media on a wide screen (16:9) display (black
bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation.
Therefore we disclaim any responsibility for these symptoms.
●LCD panels are manufactured using an extremely high level of precision
technology, however sometimes parts of the screen may be missing picture
elements or have luminous spots. This is not a sign of a malfunction.
●Do not install the LCD panel near electronic equipment that produces
electromagnetic waves. Some equipment placed too close to LCD may cause
interference.
●Effect on infrared devices – there may be interference while using infrared
devices such as infrared cordless headphones.
Power source: This LED TV is designed to operate on 100~240 volt 50/60 Hz, AC
current. Insert the power cord into a 100~240 volt 50/60 Hz outlet.
To prevent electric shock, do not use the LED TV’s (polarized) plug with an extension
cord, receptacle, or other outlet unless the blades and ground terminal can be fully
inserted to prevent blade exposure.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture.
Caution: Never remove the back cover of the LED TV as this can expose you to very
high voltages and other hazards. If the TV does not operate properly, unplug the LED
TV and call your authorized dealer or service center.
Adjust only those controls that are covered in the instructions, as improper changes
or modifications not expressly approved by Furrion could void the user’s warranty.
Internet security caution: It is strongly recommended for security purposes to
connect your TV to the Internet via a router/modem that includes router functionality.
Direct connection of your TV to the Internet may expose your TV to a security threat
such as extraction or tampering of content or personal information.
Wireless Function of the unit (For TV with wireless function only)
●Do not operate this unit near medical equipment (pacemaker, etc.), as this may
result in the malfunction of the medical equipment.
●Although this unit transmits/receives scrambled signals, be careful of
unauthorized interception. We cannot be responsible for any trouble as a result.
English
CCD-0005519 Rev: 03-22-22
- 6 -

COMPLIANCE
FCC Statement
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate this
equipment under FCC Rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radio Frequency Interference Requirements (for UNII
devices)
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to
5.85 GHz bands. These radar stations can cause interference with and/or damage
this device. This device cannot be co-located with any other transmitter.
FCC RF Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This equipment should be installed
English
CCD-0005519 Rev: 03-22-22 - 7 -

and operated with a minimum distance of 20 cm (7.8 inches) between the radiator
and your body. Users must follow the specific operating instructions for satisfying RF
exposure compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device complies with Industry Canada’s applicable licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum
distance of 20 cm (7.8 inches) between the antenna & your body.
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
(For Canada)
[For product having the wireless function using 5 GHz frequency bands]
●The device for operation in the band 5150–5250 MHz is only for indoor use
to reduce the potential for harmful interference to co-channel mobile satellite
systems;
●For devices with detachable antenna(s), the maximum antenna gain permitted for
devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the
equipment still complies with the e.i.r.p. limit;
●For devices with detachable antenna(s), the maximum antenna gain permitted
for devices in the band 5725-5850 MHz shall be such that the equipment still
complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point
operation as appropriate; and
●The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p.
elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated.
(devices operating in the band 5250-5350 MHz with a maximum e.i.r.p. greater
than 200 mW)
English
CCD-0005519 Rev: 03-22-22
- 8 -

●High-power radars are allocated as primary users (i.e. priority users) of the
bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Safety Precautions
WARNING: Never place a television set in an unstable location. A television set may
fall, causing serious personal injury or death. Many injuries, particularly to children,
can be avoided by taking simple precautions such as:
–Using cabinets or stands recommended by the manufacturer of the television set.
–Only using furniture that can safely support the television set.
–Ensuring the television set is not overhanging the edge of the supporting furniture.
–Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a
suitable support.
–Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
–Educating children about the dangers of climbing on furniture to reach the
television set or its controls.
If your existing television set is being retained and relocated, the same considerations
as above should be applied.
The unit emits heat when in operation. Do not place
any covers or blankets on the unit, this may cause
overheating. Do not block ventilation holes, or set
up near radiators. Do not place in direct sunlight.
When placing on a shelf, leave 4 inches (10 cm) free
space around the entire unit.

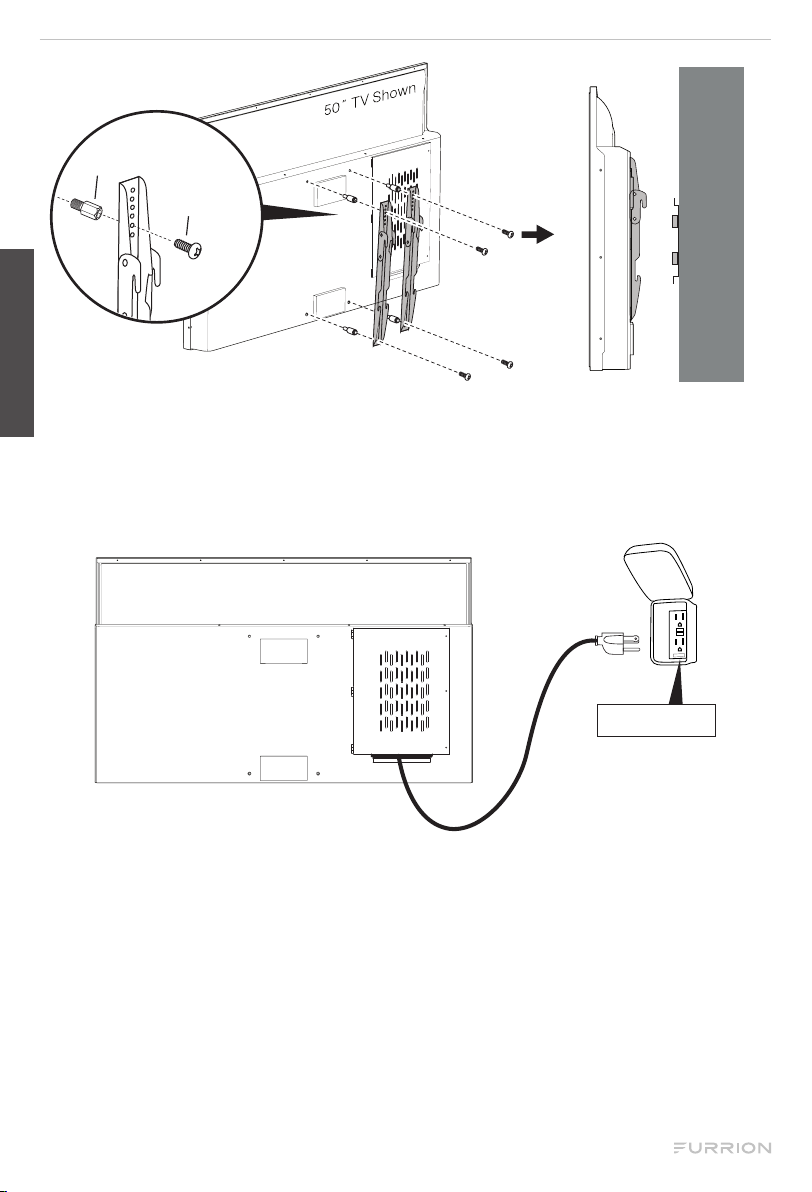

Notes when mounting the LED TV on the wall
If the unit is to be mounted on the wall, contact the retailer where you purchased the
LED TV for advice, and have the equipment professionally installed. Incomplete or
improper installation may cause injury to you and/or damage to the LED TV.
WARNING:
●Do not use this TV with wall mounts that allow the TV to tilt vertically. Vertical
tilting wall mounts may cause structural damage to the TV.
●Use ONLY fixed or horizontal swiveling wall mounts with this TV.
Notice for TV Cabinet
If the unit is to be mounted on a cabinet
smaller than the length of the unit, it could
result in an unstable location. The unit may
4 inches
YES !! NO !!
Wire
Clamp
Screw
4 inches
Wire
Wire
Screw Clamp
Wire
Wire
Wire
1.5 inches
1.5 inches
4 inches
YES !! NO !!
Wire
Clamp
Screw
4 inches
Wire
Wire
Screw Clamp
Wire
Wire
Wire
1.5 inches
1.5 inches
English
CCD-0005519 Rev: 03-22-22 - 9 -

tumble over, making a risk of personal, possibly fatal injury. This would also damage
the product seriously. Accordingly, Furrion accepts no responsibility or liability for any
injuries or property damage resulting from the improper installation.
PRODUCT OVERVIEW
Control Panel
POWER
VOL- VOL+ CH- CH+ MENU SOURCE
1
4
2
5
3
6
7
* Please note that the button layout of
the controls may vary from model to
model.
Item Button Function
1SOURCE Select the input
source
2MENU Enter the main
menu
3CH+ Skip to the next
channel
4CH- Skip to the
previous channel
5VOL+ Increase volume
6VOL- Decrease volume
7POWER Switch the TV on/
off
English
CCD-0005519 Rev: 03-22-22
- 10 -

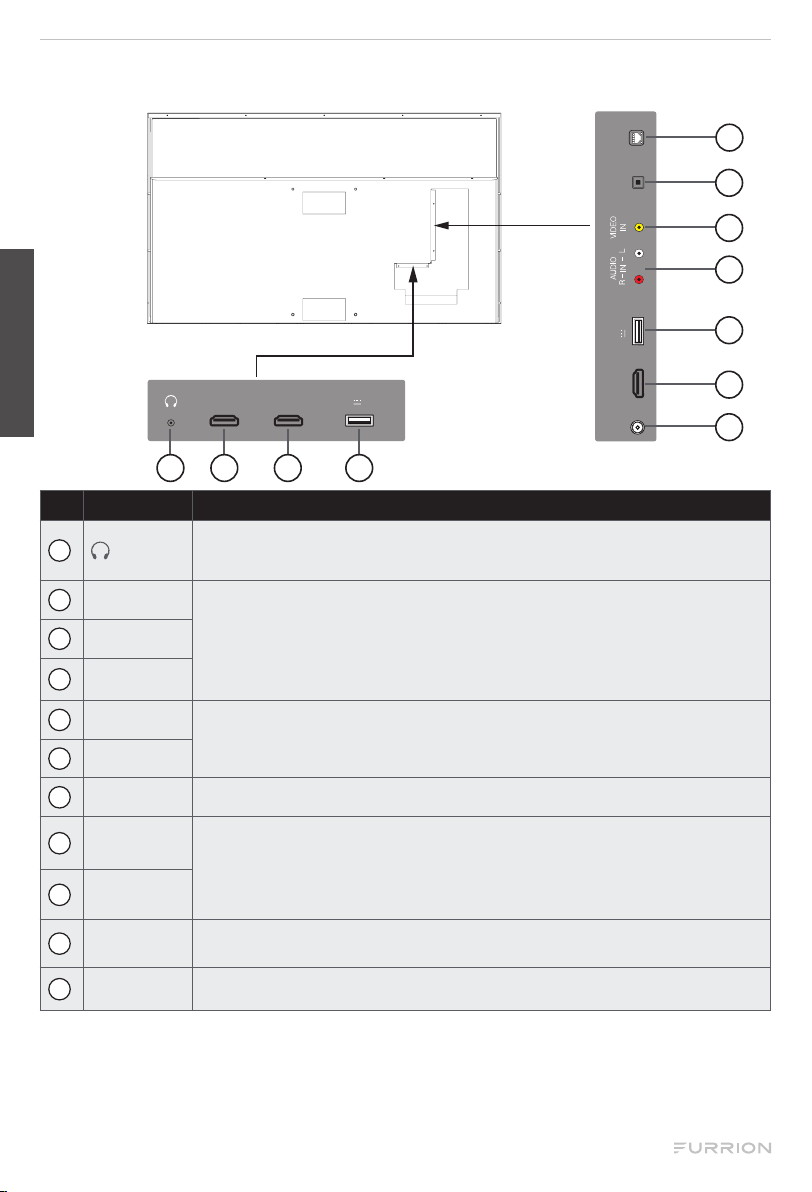

Rear Panel
LAN
OPTICAL
OUT
RF
IN
HDMI3
USB1
DC 5V 500mA
HDMI2
ARC
HDMI1
USB2
DC 5V 500mA
50˝ TV Shown
1 2 3 4
11
10
8
9
7
6
5
No. I/O port Description
1Connect a stereo headphone for private listening.
2HDMI 1 Connect to the HDMI OUT port of a DVD Player, Games Console, Cable Box or
other HDMI device.
ARC (Audio Return Channel)
When connected with a HDMI 1.4 cable to an ARC compatible audio system, the
TV links with the device to give extra audio functionality.
3HDMI 2 ARC
6HDMI 3
4USB1
Connect to portable USB device such as USB flash/hard drive.
7USB 2
5RF IN Connect to external modem or network access equipment.
8AUDIO IN
(R-L) Connect to the COMPOSITE VIDEO/AUDIO OUT ports of a DVD Player, Cable
Box or other compatible devices.
9VIDEO IN
10 OPTICAL
OUT Connect to an AV Receiver for high quality digital audio.
11 LAN Connect to external modem or network access equipment.
English
CCD-0005519 Rev: 03-22-22 - 11 -

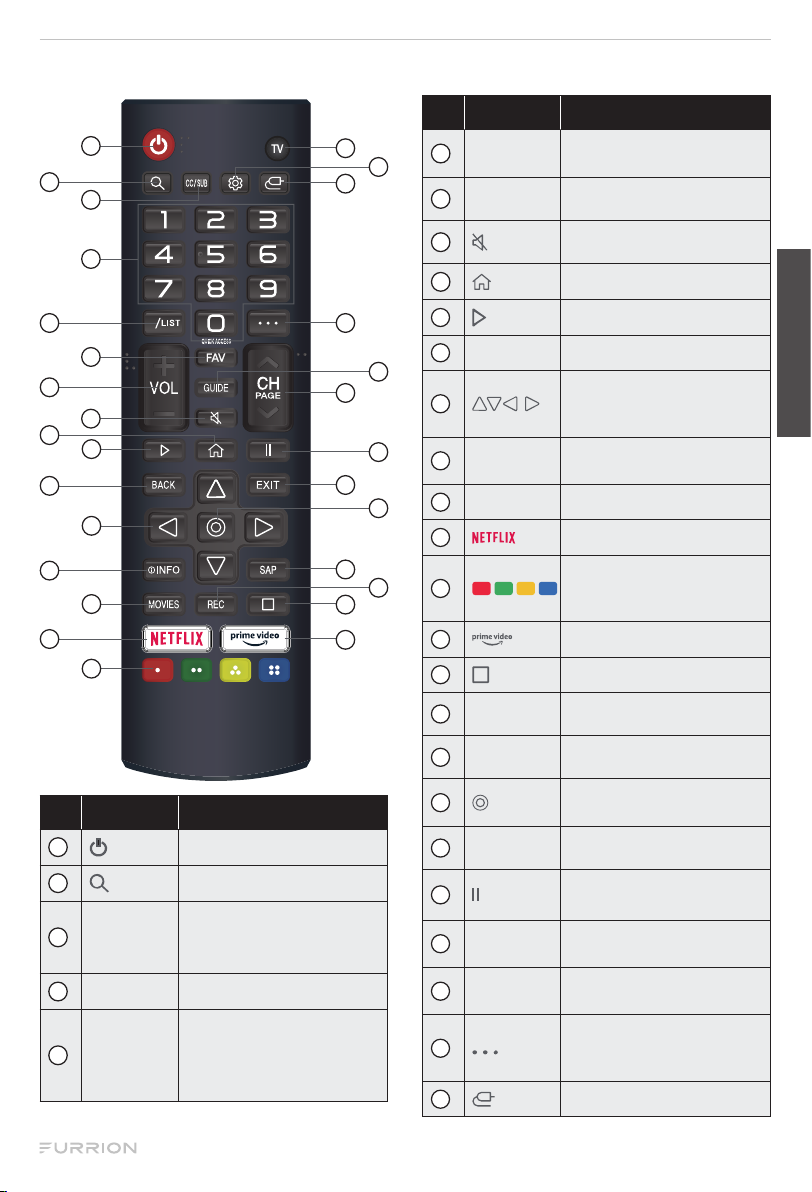

Remote Control
1
4
6
11
13
15
8
2
5
7
9
3
29
27
26
24
23
17
18
20
22
28
25
19
21
10
12
14
16
No. Button Function
1ON/OFF
2Search.
3CC/SUB
Closed Caption selection:
ON/OFF/CC On Mute.
Enable/disable subtitles.
40-9 Number selection key.
5/LIST
Enter multiple program
channel number such as 2-1.
The QUICK ACCESS edit
screen appears.
No. Button Function
6FAV Press to display a listing of
your favorite TV channels.
7VOL It adjusts the volume level.
8Mutes the sound.
9Displays the Home menu.
10 Play.
11 BACK Move to the previous step.
12
RIGHT/LEFT/UP/DOWN
buttons to navigate the on-
screen menus.
13 INFO Press to display the source
and channels display.
14 MOVIES Search Movies.
15 Go to Netflix.
16
Corresponds to various
colour functions in the menu
or teletext.
17 Go to prime video.
18 Pause.
19 REC Launch Record.
20 SAP Audio Language.
21 Select current option thats
highlighted.
22 EXIT Closes the menu.
23 Pause.
24 CH PAGE You can change the
programme.
25 GUIDE You can check the
programme.
26
It displays the additional
buttons on the remote
control.
27 Selects an input source.
English
CCD-0005519 Rev: 03-22-22
- 12 -

No. Button Function
28 Enters the Quick Settings
menu.
No. Button Function
28 TV Switch to TV.
WHAT’S IN THE BOX
Thanks for purchasing this Furrion Aurora® TV. This manual will help you set up and
begin using your TV. First, check the contents of your box with the parts checklist
below:
●TV
●Remote Control (x1)
●AAA Battery (x2)
●Wall mount screws (x4)
●Screw adaptors (x4)
●RCA cable
●Printing materials
Now you can get started!
CONNECTIONS
Your Furrion Aurora® TV offers multiple connection options. You can choose one or
more of the connections below to operate. Please consult the manual of DVD player,
Games Console or other devices to ensure proper connection and use.
WARNING: Do not connect the power source before making connections. Open the
cable access door to connect the cables.
NOTE: All external devices and cables shown in the diagram are for reference only
and not included in the package.
English
CCD-0005519 Rev: 03-22-22 - 13 -

LAN
OPTICAL
OUT
RF
IN
HDMI3
USB1
DC 5V 500mA
HDMI2
ARC
HDMI1
USB2
DC 5V 500mA
50˝ TV Shown
Connect to External Devices
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
English
CCD-0005519 Rev: 03-22-22
- 14 -

LANOPTICALTV HDMI3 CVBS L R
USB2
5V 500mA
RJ45OPTICAL
RF
IN
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV
HDMI1
HDMI2 ARC
HDMI3
CVBS L R
USB2
5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45OPTICALTV HDMI3 USB1/USB2
DC 5V 500mA
RJ45
OPTICAL
OUT
TV HDMI3 CVBS L R
USB2
5V 500mA
USB2
5V 500mA
HDMI2
ARC
HDMI1
Cable Management
50˝ TV Shown
Cables
Drip Loop
Thumb Screws x 3
Cable Access Door
–After all connections are completed, lead all connecting cables downwards
through the duct at the bottom of the cable access door.
–Leave a drip loop when cables enter the compartment. This will prevent water
from dripping down the cord and possibly entering the door area.
–Close the door and tighten the thumb screws for the best weatherproof effect.
INSTALLATION
Choose a Proper Location for your TV
Important: The TV must be installed a safe distance away from any water
source.
For best viewing we recommend you install it in a shaded environment.
●Avoid installing the TV where the screen is facing direct sunlight. The ideal
location is in one place where the TV is shaded by structures, or under a patio
cover or gazebo.
●If the sun shines directly on the screen for long periods of time, dark areas may
appear on the screen. This is a normal reaction for the LCD panel, and will not
cause damage to the screen. Either turn the screen away from the sun, or shade
the TV, and the dark areas will soon disappear.
NOTE: DO NOT use the TV if ambient air temperature exceeds the operating
temperature limits.
English
CCD-0005519 Rev: 03-22-22 - 15 -

Mount on the Wall
It is recommended you install the TV in an area shaded by trees, landscape
and/or structures, or under a patio cover or gazebo.
Full Sun
TV designed for direct bright sunlight outdoor spaces.
(Model: FDUB43CSA, FDUB55CSA, FDUB65CSA)
Full Shade (Covered gazebos, patios, porches)
TV designed for fully shade spaces.
(Model: FDUF43CSA, FDUF50CSA, FDUF55CSA, FDUF65CSA,
FDUF43CSA-CA, FDUF50CSA-CA, FDUF55CSA-CA, FDUF65CSA-CA)
Partial Sun (Pergolas, partially covered decks)
TV designed for partial sun exposure and brighter spaces.
(Model: FDUP43CSA, FDUP50CSA, FDUP55CSA, FDUP65CSA,
FDUP43CSA-CA, FDUP50CSA-CA, FDUP55CSA-CA, FDUP65CSA-CA)
NOTE: Connect all cables prior to mounting the TV on the wall or TV mount. The
cable access door on the rear panel will be obstructed once the TV is mounted.
–Follow the installation guide supplied with the Wall-Mount Bracket when installing
the TV.
–Choose an appropriate location and refer to the VESA pattern for mounting.
–It is recommended to contact a professional for installation and use at least two
people to move or install the TV.
VESA MOUNTING PATTERN
Model Width (mm) Height (mm) Screw Size Screw Quantity
43" TV 200 200
M6 * 15mm 450" TV 200 400
55" and 65" TV 400 200
English
CCD-0005519 Rev: 03-22-22
- 16 -

Mounting Surface
Adaptor
M6 Screws
Connect Power
Connect the power cord to a GFCI protected AC outlet with an “in-use” waterproof
cover.
CAUTION: Do not connect power cord during cable connecting and TV installation.
GFCI
PROTECTED
OUTLET
GFCI
PROTECTED
OUTLET
50˝ TV Shown
WARNING: TV and GFCI receptacle must be installed a safe distance away from
any water source. Be sure to check local electrical codes and comply with their local
standards.

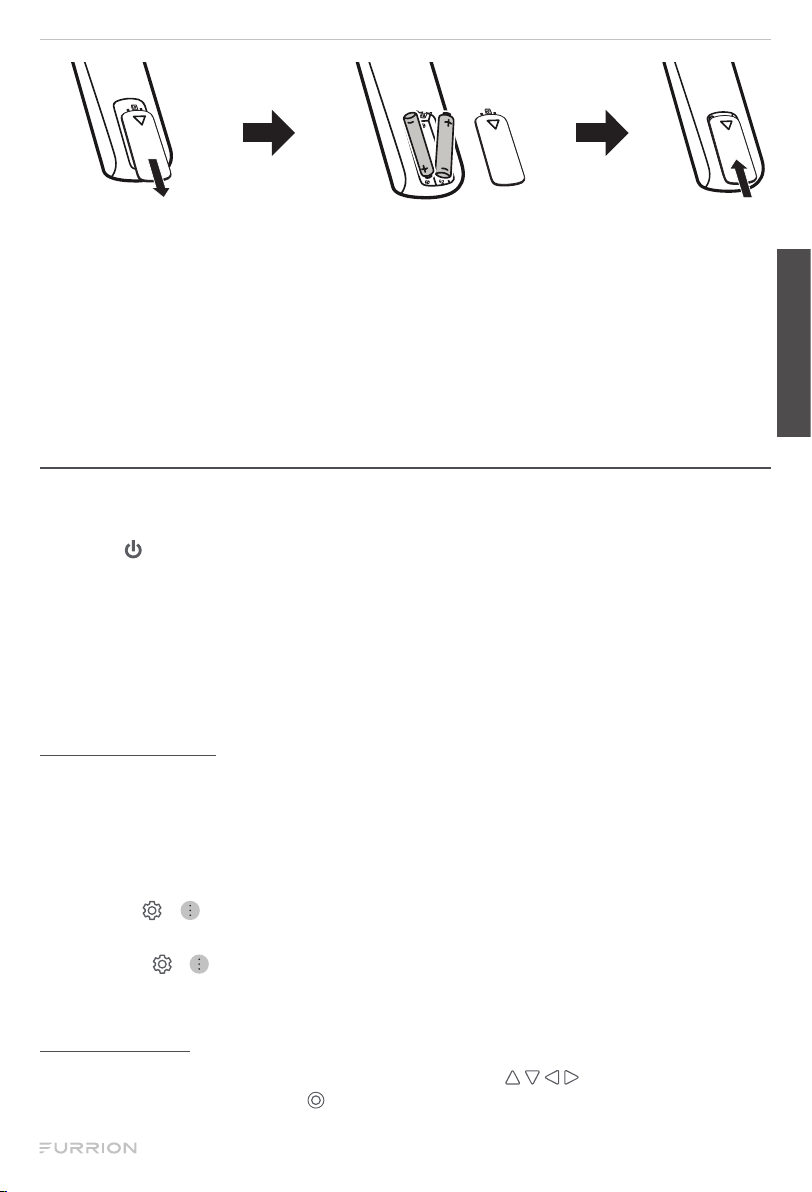

INSTALL REMOTE CONTROL BATTERY
Your remote control is powered by two (2) AAA batteries.
1. Turn the remote over and remove battery cover.
2. Place two (2) “AAA” batteries into the battery compartment with the “+” and “-“
ends facing as indicated.
3. Replace the cover.
English
CCD-0005519 Rev: 03-22-22 - 17 -

NOTE: Improper use of batteries can result in a chemical leakage or explosion.
●Use only the size and type of battery specified.
●Danger of explosion if batteries are incorrectly replaced.
●If the device is not to be used for a long period of time, remove the battery to
prevent damage or injury from possible battery leakage.
●The batteries should not be exposed to excessive heat due to sunlight, fire or
other heat sources.
GETTING STARTED WITH WEBOS TV
Initial Setup
Press the button on the control panel or on the remote control to turn on the TV,
follow the on-screen instructions to finish the initial setup.
Watching TV Broadcasting
Your TV must be connected to an antenna/cable or a set-top box that can receive
broadcasting for broadcasting.
Prepare Live TV
Follow the steps below to finish an antenna/cable connection if your TV is not
connected to a broadcast antenna.
1. Connect the broadcast antenna/cable to the TV. You may also connect a piece
of equipment that can receive broadcasting such as a set-top box instead of the
antenna/cable.
2. Launch / / Connection / Device Connection Settings / Universal
Control Settings.
3. Start the / / Channels Channel / Tuning / Auto Tuning. Finds and adds
only channels being broadcast.
Enjoy Live TV
Press the /LIST button on the remote control. Use the buttons to move to
the desired channel then press button to select the channel.
English
CCD-0005519 Rev: 03-22-22
- 18 -

1Channels: View a list of broadcast content that is currently being broadcast.
2Guide: You can view programs and the schedule of each program.
3TV Scheduler: You can set the date and time of the desired broadcasting
program, and watch the program.
NOTES:
●The channels displayed in Channel List are a configuration of channels provided
by the broadcast service provider. If the broadcast service provider has changed
its channel configuration without notice, the channels displayed in Channel List
may differ from the actual TV channels.
●You must complete the settings of the network, region, and auto-channel to
receive normal live broadcast service.
Using Set-Top Box Remote Control or Universal Remote Control
If you would like to use an universal remote control, or you have your set-top box
connected to your TV, you need to program the universal remote control or the set-
top box remote control to control the Furrion TV.
●Refer to the user manual of the set-top box remote control or that of the universal
remote control on how to change the settings to control the Furrion TV.
●Furrion branded TV is compatible with LG codes.
Connecting to the Network
If you configure settings for the network, you can use various services such as online
contents and applications.
Setting up a Wired Network
Connect the LAN port of the TV and the router using a LAN cable.
NOTE: The router should be connected to the Internet beforehand. When you
connect the TV to the network with a LAN cable, the TV is automatically connected
to the network if the router supports DHCP.
English
CCD-0005519 Rev: 03-22-22 - 19 -
