en-us Use and Care Manual, Installation Instructions
Washer
WM262700

2

3
en-us
Table of contents
en-us Use and Care Manual, Installation Instructions
Important information 5
Purchase information 5
Customer Service 5
Your washing machine is intended for 6
Safety Definitions 6
IMPORTANT SAFETY INSTRUCTIONS 7
Introduction to your new washer 10
Standard features and helpful information 10
Special features 10
Environmentally friendly use of your washer 11
Dimensions and clearances required 11
Appliance dimensions 11
Length of power cord and water supply hoses 12

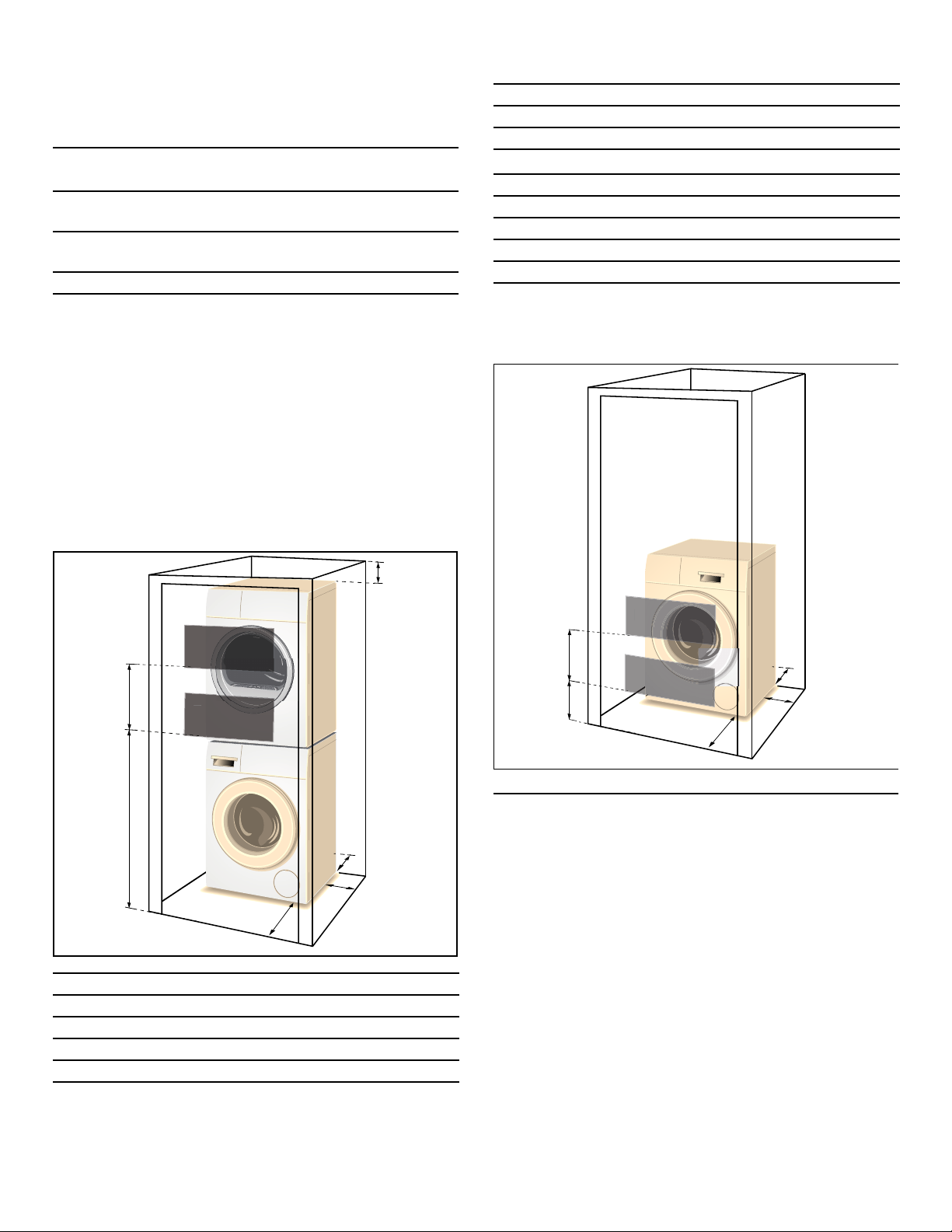

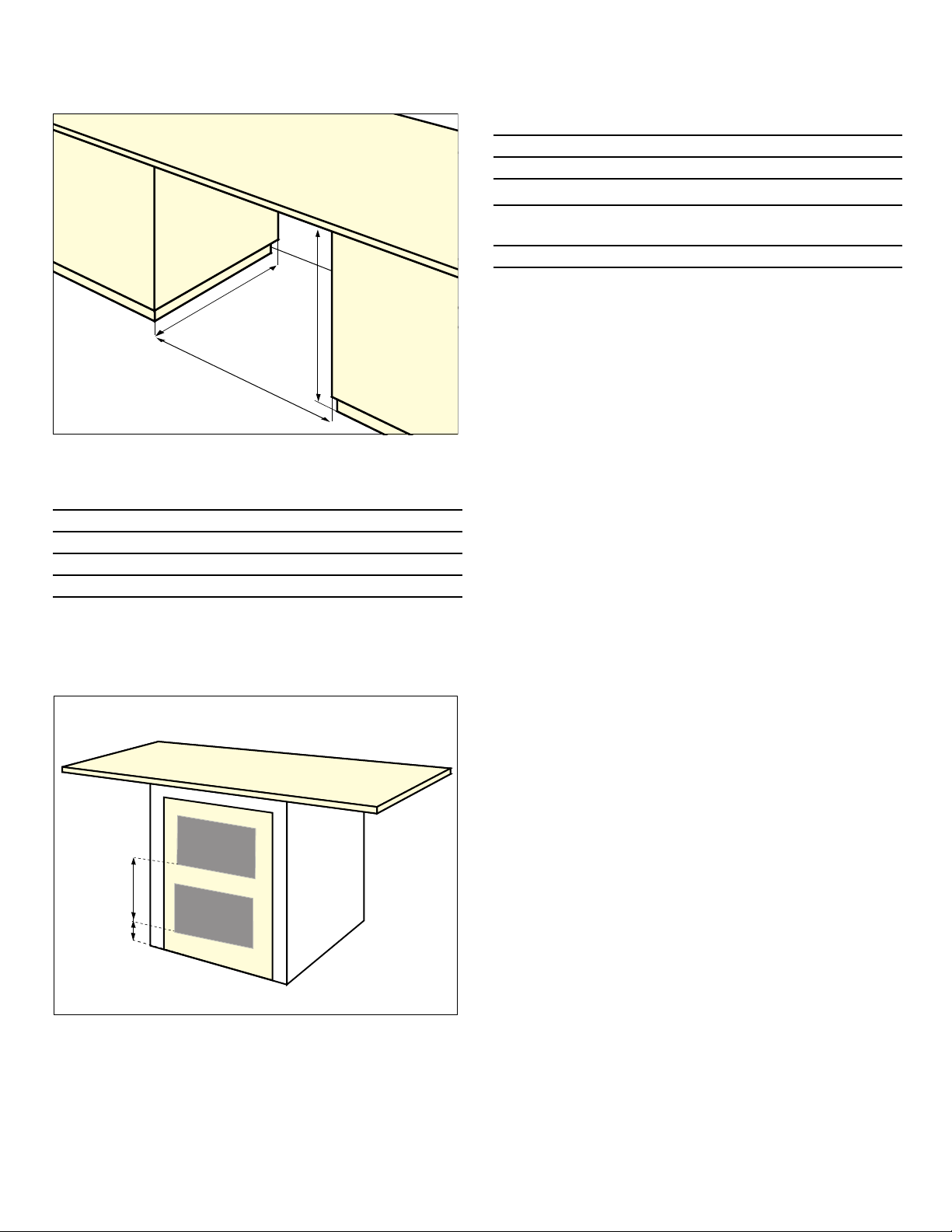

Installation types 12
INSTALLATION INSTRUCTIONS 14
Introduction 14
Tools needed 14
Waste disposal 14
Parts provided with your washer 15
Set up on a pedestal with drawer 15
Installation checklist 16
Importance of installing on a solid, level floor 17
Remove the transport bolts 17

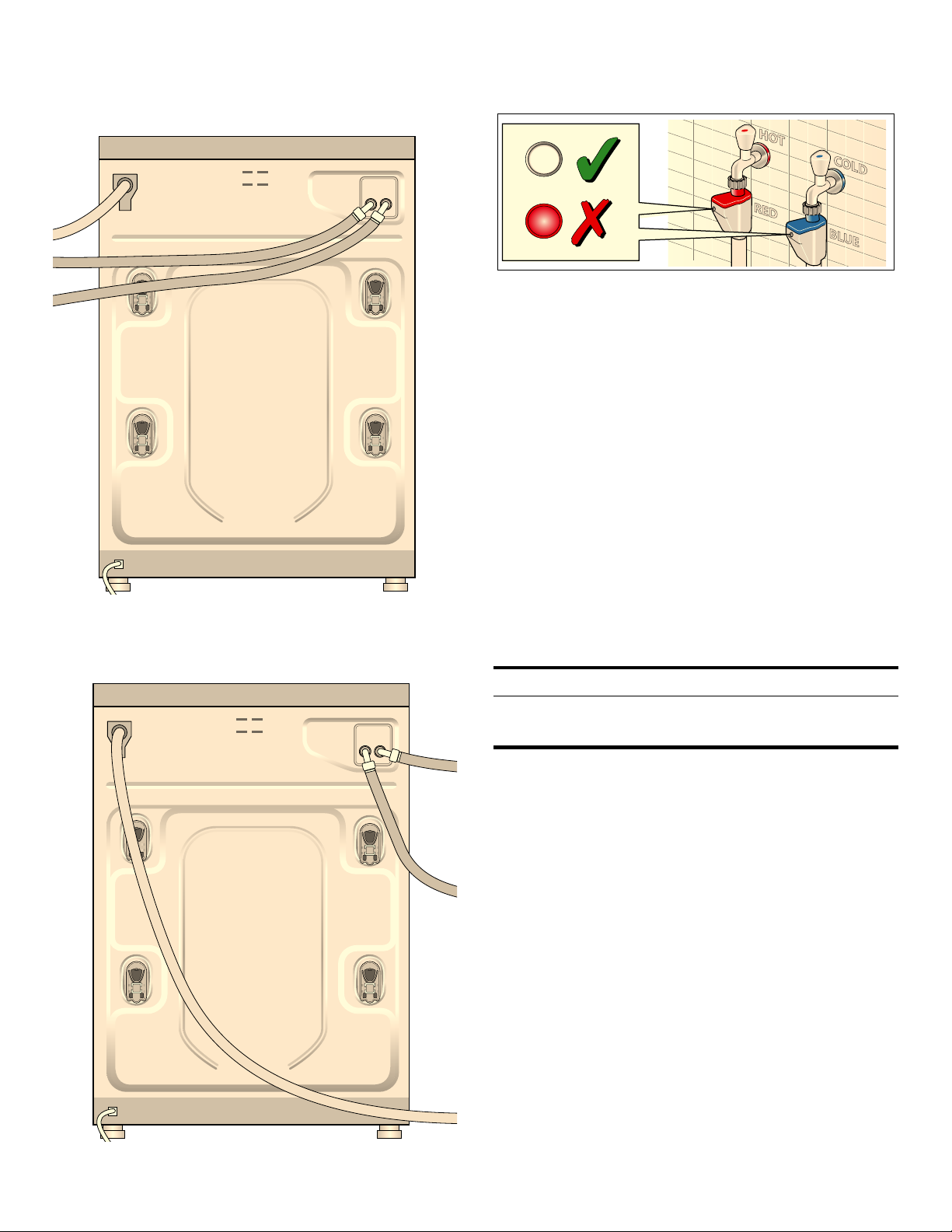

Water connections 18
Leveling the washer 21
Electrical connection 22
Transporting the washer 23
Getting to know your appliance 24
Control panel 24
Display area 25
OPERATING INSTRUCTIONS 27
Before using the washer for the first time 27
Before loading your first load of laundry 27
Using the program selector to choose a wash program27
Selecting optional program settings 27
Loading the laundry 28
Filling the detergent and additives compartments 28
Starting the program 29
Selecting a different program 30
Pausing/Adding a garment to the cycle 30
Cancel program 30
Program end 30
Removing laundry/switching the appliance off 30
Home Connect™ 31
Connecting to your home network automatically 31
Connecting to your home network manually 31
Connecting to the Home Connect app 32
Activating/deactivating Wi-Fi 33
Resetting your network settings 33
Updating the software 34
Information on data protection 34
Declaration of Conformity 34
Wi-Fi® Module FCC/IC Statements 35
Laundry 35
Preparing the laundry 35
Sorting the laundry 35
Identifying and treating stains 36
Laundry detergents and additives 37
Adding the correct amount of HE detergent 37
Program selection table 38
Starching 40
Dyeing/bleaching 40
Soaking 40
Optional program settings 41
º(EcoPerfect™) 41
!(Prewash) 41
ô(Rinse Plus) 41
ý(Remote Start) 41
6 (Finish in) 41
0(Spin Speed) 41
q (Temperature) 41
m(SpeedPerfect®) 42
x(Stains) 42
Appliance settings 43
¯3 sec. (Child lock) 43
Activating setting mode 43
Exiting setting mode 44
Cleaning and maintenance 44
Cleaning the housing and control panel 44
Cleaning the drum 44
Descaling the washer 44
Cleaning the detergent dispenser tray 44
Cleaning the water inlet strainers 45
Cleaning the drain pump 46

4
en-us
Troubleshooting 48
Emergency door lock release 48
General Troubleshooting 48
Information on the display area 52
STATEMENT OF LIMITED PRODUCT WARRANTY 53
Gaggenau® Clothes Washer 53
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com/us
0DLQ6WUHHW6XLWH
,UYLQH&$
4XHVWLRQV"
ZZZJDJJHQDXFRPXV

:HORRNIRUZDUGWRKHDULQJIURP\RX

5
Important information en-us
Important information
Important information Purchase information
Please take a moment to record the following basic
information about your new Gaggenau® washer.
This information will be helpful in the event you need to
contact Customer Service or would like to order
accessories or replacement parts.

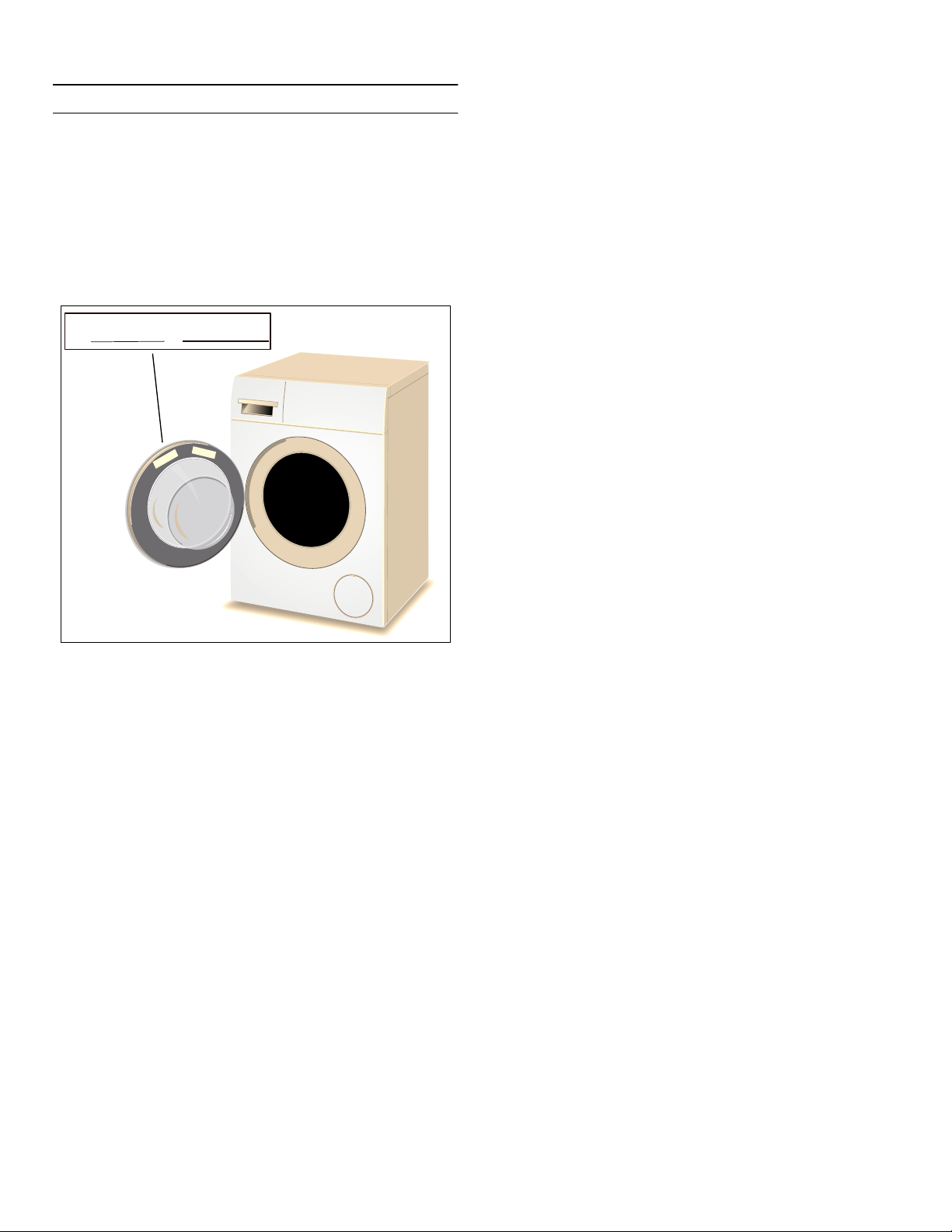

The E-Nr. (model number) and the FD (serial) number are
found on the rating plate label.
see illustration
The model number includes the slash and a two digit
number (e.g. "/27"). Please be sure to include the final 2
digit number when filling in your model number. This
helps make sure any parts you may need are correctly
matched to your specific machine.
Date of Purchase:___/___/_____
Where Purchased:___________________________
E-Nr. :_________/____ (ex: WM262700/01)
FD :_______-_______ (ex: 9807|90007)
The manufacturer reserves the right to make changes in
the product or manual without notification.
Customer Service
Your washer does not require any special care other than
the maintenance and care mentioned in this manual. If
you have a problem with your washer, please consult the
Troubleshooting section of this manual on the noted
page.
~Page 48
If a technician comes out to advise you of information that
is in the Troubleshooting table you may be charged.
If problems persist and service becomes necessary,
contact your dealer, installer or an authorized service
center. Do not attempt to repair the appliance yourself.
Any work performed by unauthorized personnel may void
the warranty.
If you are having a problem with your washing machine
and are not pleased with the service you have received,
please follow these steps:
1. Contact your installer or the Authorized Service
Provider in your area and explain to them why you are
not satisfied. This will usually correct the problem.
2. If after working with your installer or service
technician the problem still has not been resolved to
your satisfaction, please let us know either by writing
to us at:
Gaggenau®
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
or calling us at:
1-877-442-4436
When writing or calling please have the following
information available:
▯E-Nr. (model number, example: WM262700/01)
▯FD (serial number, example: 9807|90007)
▯Date of Original Purchase (receipt required)
▯Date Problem Occurred
▯Explanation of Problem
If writing, please also include a daytime telephone
number and a copy of the sales invoice.
When calling Customer Service, please be ready to
provide the model number E-Nr. and FD serial number.
This information will help provide the best support for
your washer.
Additional information is available at our website.
www.gaggenau.com/us
(1U )'

6
en-us Your washing machine is intended for
Your washing machine is intended for
Your washingmachineisintendedfor ▯Only household use and in a non-commercial
environment.
▯Use with machine washable textiles only.
▯Washing with common cold and hot (maximum
140 °F/60 °C) tap water and commercially available
detergents and cleaning products suitable for use in
washing machines.
▯We recommend HE (High Efficiency) detergents because
they are designed to deliver optimum performance from
your front-loading washer. Not using HE detergent could
cause problems such as oversudsing, extended cycle
periods, or a decrease in wash performance.
NOTICE
Do not use chlorine bleach! ~Page 27
▯When measuring all detergents/stain removers/
laundry care products be sure to follow the
manufacturer's instructions.
▯Children must not do any laundry without supervision.
▯Keep pets away from the washer.
▯Set-up conditions:
Ambient temperature: 32-104 °F/0-40 °C
Relative humidity: under 95%
▯Installation by qualified installers.
▯Installation in accordance with all regulatory
requirements; if in doubt have the appliance installed
by a specialist familiar with these requirements.
Before using the appliance, read the use and installation
instructions and all other information included with the
appliance and act accordingly.
Keep all documents for future use.
Safety Definitions
SafetyDefinitions Important safety information is contained in this manual
and on the warning labels located on your washer.
Standard symbols and headings are used to identify
areas where you should take precautions to avoid injury
or property damage. Please take a moment to become
familiar with each of these symbols and what they mean
before proceeding.
9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE
This indicates that damage to the appliance or property
may occur as a result of non-observance of this warning.
Tip: This symbol is used to draw the user's attention to
important matters.

7
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANTSAFETYINSTRUCTIONSREADANDSAVETHESEINSTRUCTIONS 9WARNING
When properly cared for, your new
appliance has been designed to be
safe and reliable. Read all
instructions carefully before use.
These precautions will reduce the
risk of burns, electric shock, fire,
and injury to persons. When using
appliances, basic safety precautions
must be followed, including those in
the following pages.
Examine the appliance after unpacking it.
In the event of transport damage, do not
plug it in.
9WARNING
To reduce the risk of fire, electric shock,
serious injury or death when using your
washing machine, follow basic precautions
including the following!
▯Gaggenau® washers are provided
with an Use and Care Manual with
Installation Instructions. Read and
understand all instructions before
using the washing machine.
▯Do not wash articles that have
been previously cleaned, washed,
soaked, or spotted with gasoline,
dry cleaning solvents, other
flammable or explosive
substances as they give off vapors
that could ignite or explode.
▯Do not add gasoline, dry cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors that could ignite or
explode.
▯Under certain conditions
hydrogen gas may be produced in
a hot water system that has not
been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not
been used for this length of time,
turn on all hot water faucets and
let the water flow out of each
faucet for several minutes before
using the washing machine. This
will release any accumulated
hydrogen gas. As the gas is
flammable, do not smoke or use
an open flame while carrying out
this procedure.
▯Before the appliance is removed
from service or discarded, remove
the door to prevent children from
playing or hiding inside. Also
remove the power cord/plug.
▯Do not allow anyone to climb, lean
or hang on any part of the washer
including any protruding
components such as the appliance
door or a pullout shelf.
▯Use caution when draining hot
water from the washer drum such
as during pump maintenance or
when using the emergency door
open procedure.
▯Do not reach into the appliance if
the wash drum is moving.
▯Do not tamper with the controls.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
8
▯Do not repair or replace any part
of the appliance or attempt any
service unless specifically
recommended in the user
maintenance instructions or
Gaggenau® published user-repair
instructions that you understand
and have the skills to carry out.
▯Always unplug the washing
machine from the power supply
before attempting any service.
Disconnect the power cord by
grasping the plug, not the cord.
▯Do not machine wash fiberglass
materials (such as curtains and
window coverings that use
fiberglass materials). Small
particles may remain in the
washing machine and stick to
fabrics in subsequent wash loads
causing skin irritation.
▯Do not install or store the washer
where it will be exposed to the
weather. Hoses and internal parts
may be damaged if exposed to
freezing temperatures.
▯Do not use the washing machine if
it has a worn power cord or loose
plug.
▯The washing machine must only
be used for its intended purpose.
▯Always follow the fabric care
instructions recommended by the
clothing manufacturer.
▯Make sure all water connections to
the washing machine have shut-off
valves that are readily accessible
during normal operation of the
washer. Turn off both valves
during periods in which the
washer is not in use and before
leaving for extended periods such
as vacations to reduce the risk of
water damage in the event of a
leak. Turn the valves back on prior
to resuming use of the washer.
▯Do not operate the washing
machine if parts are missing or
broken.
▯Do not operate the washing
machine until you are sure that:
– the washing machine has been
installed according to the
Installation Instructions.
– all water, drain, power and
grounding connections are in
compliance with all local
regulations and/or other applicable
regulations and requirements.
▯Certain internal parts are
intentionally not grounded and
may present a risk of electric
shock during servicing. Service
Personnel – DO NOT CONTACT
the following parts while the
appliance is energized: inlet
valves, drain pump, heat sink of
the motor controller, PCBs.
▯See the installation instructions in
this manual for grounding
requirements.
~Page 22

9
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANTSAFETYINSTRUCTIONSREADANDSAVETHESEINSTRUCTIONS 9WARNING
Warnings for children!
▯Do not allow children to play on or
in the appliance. Close
supervision of children is
necessary when the appliance is
used near children.
▯Make sure to utilize all child lock/
safety features of your appliance,
and be sure to turn the appliance
Off when not in use.
▯Appliances are not intended for
use by children, however when
children become old enough to
operate the appliance, it is the
responsibility of the parents or
legal guardians to ensure they are
instructed in safe practices by
qualified persons.
▯Keep all laundry aids (including
detergents, bleach, fabric
softener, etc.) out of the reach of
children.
9WARNING
Proposition 65 Warning!
This product may contain a chemical
known to the State of California,
which can cause cancer or
reproductive harm. Therefore, the
packaging of your product may bear
the following label as required by
California:
SAVE THESE INSTRUCTIONS!
Keep these instructions for future
reference and in case of change of
ownership, manual should be conveyed
with the washer.

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

10
en-us Introduction to your new washer
Introduction to your new washer
Introductiontoyour newwasher 9WARNING
Risk of fire, electric shock or injury!
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS of this manual before installing or
operating this appliance.
~Page 7
Standard features and helpful
information
Thank you for choosing Gaggenau® for your laundry
appliance needs.
Please read and follow the use and care, important safety
instructions and troubleshooting information contained in
this manual. Please retain this manual for future
reference.
Standard features
▯17.6 lb (8 kg) large drum capacity (for regular cotton
loads).
▯Low washing and spinning noise levels.
▯Large door opening featuring 180º opening angle.
Quality tested
Every Gaggenau® washer is thoroughly tested before
leaving the factory. As a result, a small amount of residual
water may remain in the washer drum. We recommend
running the DRUM CLEAN cycle to remove this water prior
to washing your first load of laundry.
~Page 27
Website
Visit our website at www.gaggenau.com/us for more
information and to view a selection of our products.
About this manual
These operating and installation instructions may apply to
more than one model of washer. Illustrations used may
show details that differ from your particular model.
Read your user manual. It contains valuable information
about safety, installation and operation of your new
appliance.
This can save you time, make it easier to correctly install
and use your washer, and improve your overall
satisfaction with your new appliance.
Special features
▯Load adjust matches the water and power
consumption to each program according to the
amount of laundry sensed in the drum and the type of
fabric.
The load adjust function runs automatically to keep
energy and water consumption as low as possible.
The water level sensor ensures the water level is
correct for the laundry and the program selected.
▯The automatic unbalanced load detection system
spins the laundry several times to ensure even
distribution.
If the laundry is not evenly distributed, the spin speed
is reduced, or the laundry may not be spun for reasons
of safety.
In the Wool program, the spin cycle is attempted only
twice in order to prevent felting.

11
Dimensions and clearances required en-us
Environmentally friendly use of your
washer
Your new Gaggenau® washing machine is designed to
use water, energy and detergent in a highly efficient way
to help reduce operating costs, conserve resources and
protect the environment.
▯Utilize the maximum amount of laundry for the
appropriate program.
▯Avoid using too much detergent.
▯Wash normally soiled laundry without a prewash.
▯Save energy and detergent when washing lightly and
normally soiled laundry.
▯Information about the energy consumption:
The display provides information about the relative
energy consumption in the selected program.
The more indicator lamps light up, the higher the
program's consumption.
This enables you to compare the consumption levels
of the different programs when choosing your
program settings and to decide on an energy- and
water-saving program setting for the selected
program.
▯Energy-saving mode: The display panel lighting goes
out after a few minutes and A(Start/Pause) flashes.
To activate the display, press any button.
Energy-saving mode is not activated if a program is
running.
If Wi-Fi is activated the appliance will not
automatically switch off (automatic switch-off function
is deactivated).
▯If the laundry will be dried in a dryer afterwards,
select spin speed according to the dryer
manufacturer’s instruction.
Dimensions and clearances required
Dimensionsandclearancesrequired Appliance dimensions
Label Dimension U.S. Metric
a width 23.6 in. 60 cm
b depth
(to front of door)
25 in. 64 cm
c height (minimum*)
height (maximum*)
33.2 in.
33.8 in.
85 cm
86 cm
d side clearance
(door open 180°)
15.8 in. 40 cm
e depth
(door open 90°)
42.5 in. 108 cm
Weight approximate gross 164 lbs. 77.2 kg
* height of appliance depends on the extension of the
height adjustable appliance feet.
D
E
F
G
H



12
en-us Dimensions and clearances required
Length of power cord and water supply
hoses
Installation types
Stacked washer and dryer
A Gaggenau® dryer of the same dimensions can be
placed on top of the washer to save space.
Use the special washer-dryer stacking kits (noted in
Gaggenau® Dryer User Manuals) which can be
purchased from Customer Service or your local dealer.
Stand alone (shown) or Side-by-Side
To left of washer* To right of washer*
U.S. Metric U.S. Metric
Electric
power cord
45 in. 113 cm 62 in. 157 cm
Water supply
hoses
43 in. 109 cm 28 in. 71 cm
Drain Hose 27 in. 69 cm 46 in. 117 cm
* All distances are measured from indicated side when
facing front of washer.
Clearance requirements (Minimum)
A Both Sides 0.6 in. 1.5 cm
B Top 6.3 in. 16 cm
C Rear* 2.5 in. 6.4 cm
D Front 2.4 in. 6.1 cm
* Rear clearance as close to wall as venting or water
connection will allow. For a stacked installation
arrangement a greater rear clearance for the dryer
venting is required.
%
&
$
'
+
*
)
(
)
Ventilation area (Minimum)
E Top 63 sq. in. 404 sq. cm
F Bottom 63 sq. in. 404 sq. cm
Vent spacing (actual not minimum dimensions)
G 37 in. 94 cm
H 26 in. 66 cm
J 3 in. 7.6 cm
K 29 in. 73 cm
(
)
)
(
.
-
&
$
'

13
Dimensions and clearances required en-us
Under counter (Preferred)
Front of the appliance fully open.
No doors or coverings.
Under counter (Less Desirable)
If front of the appliance is covered ventilation openings
must be installed.
Minimum opening dimensions
A 28 in. 71.1 cm
B 23.8 in. 60.5 cm
C 35.5 in. 90.2 cm
$&
%
(
)
*
+
E & F are minimum area sizes
E 63 sq.in. 404 sq.cm
F 63 sq.in. 404 sq.cm
G & H actual spacing dimensions for min. open area
sizes
G 3 in. 7.6 cm
H 14 in. 35.6 cm

14
en-us Installation instructions
INSTALLATION INSTRUCTIONS
Installationinstructions 9WARNING
Risk of fire, electrical shock or injury to persons!
To reduce the risk of fire, electric shock or injury to
persons, read the Important Safety Instructions at
the front of this manual before installing or
operating this appliance.
9CAUTION
Washing machine is heavy
Use additional help and care when lifting and
positioning.
Introduction
Read these installation instructions completely and
carefully before starting to install your new washing
machine. The information contained can save time and
effort and will help to ensure optimum performance of
your new washer. Be sure to observe all warnings and
cautions.
NOTICE
Frozen hoses can tear or burst. Do not install the washing
machine outdoors or in an area exposed to freezing
conditions.
Note:
▯If the washing machine is located in a room which will
be exposed to temperatures below freezing, or if it is
located in a cabin that is being shut down for the
winter, any residual water in the pump or water inlet
hose(s) must be drained.
▯Take care not to damage the washing machine. Do not
hold on to protruding parts (e.g. door) when lifting. Do
not push against the appliance door glass due to risk
of damage.
▯In addition to the safety information listed here, the
local water and electric authorities may have special
requirements that must be followed.
▯If in doubt, have the appliance installed by an
authorized technician.
▯Hidden surfaces may have sharp edges. During
service use caution when reaching inside the washer
housing.
These installation instructions are intended for use by
qualified installers. In addition to these instructions, the
installation must comply with:
- for the United States - National Electrical Code, ANSI/
NFPA70 - and latest editions of the State and municipal
and/or local regulations.
- for Canada - Canadian Electrical Code C22.1 - and the
latest editions of the Provincial, Municipal and/or local
regulations.
Tools needed
The following tools may be helpful during installation of
your washer.
▯13mm socket for removing the transport bolts.
▯17mm wrench for adjusting the appliance feet.
▯Bubble level for leveling the appliance.
Waste disposal
Disposal of Packaging Materials
After unpacking your new appliance dispose of the
protective packaging materials in an environmentally
friendly way. Ask your dealer or inquire with your local
authority regarding currently acceptable means of
disposal.
9WARNING
Warnings for children!
Do not let children play with packaging and
associated parts to avoid risk of choking or
suffocation.
Disposal of Your Old Appliance
Your old appliance can be recycled if it is no longer to be
used. Prior to disposing of your old appliance observe
the following precautions to reduce safety risks.

15
Installation instructions en-us
9WARNING
To avoid risk of injury or death, do the following!
- after unplugging the old appliance, remove the
electric power cord and dispose of properly.
- remove the door or permanently disable the door
lock to prevent children from being locked inside.
Parts provided with your washer
Back side of the washing machine
Washer drum contents
Two AquaShield™ water supply hoses are shipped in the
washer drum. Be sure to remove each of these and use
these new hoses for the installation.
NOTICE
If any parts are missing please notify your dealer
immediately.
Set up on a pedestal with drawer
Pedestal item number: WMZ20490
Mount washer on the pedestal according to the
instructions in the installation kit.
(Power cord with plug
0Literature pack; contents:
User manual
Covers
8Drain hose
@Elbow to form the hose to fit the drain pipe



#
HHot water AquaShield hose
PCold water AquaShield hose
+
3

16
en-us Installation instructions
Installation checklist
Review the following list and check off each step as it is
completed during installation.
èInstallation Step Page
If installing to a pedestal (base),
complete the base installation
before removing the transport
bolts
Refer to the
Pedestal
installation
instructions
found in the
Pedestal
accessory kit
Completely remove all four
shipping bolts keeping the bolt
and bushing assemblies intact
~"Remove
the transport
bolts"
on page 17
Connect the water supply hose
and drain hose
~"Water
connections"
on page 18
Connect the electrical power ~"Electrical
connection"
on page 22
Slide the washing machine into
its final location
Level the washing machine (as
low as possible)
~"Leveling
the washer"
on page 21
Before washing laundry, run the
DRUM CLEAN program
~"Before
loading your
first load of
laundry"
on page 27

17
Installation instructions en-us
Importance of installing on a solid, level
floor
Your new Gaggenau® washing machine utilizes high spin
speeds to achieve superior water removal from your
laundry resulting in reduced drying time. It is important to
install your washing machine on a floor that will provide
firm support. This prevents the washer from experiencing
excess vibration during spinning that could cause the
washer to move or be noisy.
The installation surface must be solid and level in both
directions. Avoid installing your washer on soft surfaces
such as floors with carpet or foam backed covering
material.
If installing the washer on a wooden floor, observe the
following:
▯install the washer in a corner for better support if
possible.
▯if necessary, reinforce the floor by screwing a water
resistant wooden board to the floor (minimum of
1.18 in./30 mm thick).
Remove the transport bolts
9CAUTION
Damage to the appliance or injury possible
▯The machine is secured for transport with
transport bolts.
Transport bolts that are not removed can
damage the drum during operation of the
machine, the washer will vibrate, and it will be
much noisier during spin cycles if the transport
bolts are not removed before use.
Be sure to remove all 4 transport bolts
completely before first use. Keep the transport
bolts.
If a pedestal was purchased with the washer, it
must be installed first, prior to removing the
transport bolts. Please consult the pedestal
installation instructions.
▯In order to prevent transport damage during
later transport, be sure to re-install the bolts
before transport.
1. Remove drain hose from all brackets.
2. Loosen and remove all 4 transport bolts.
Remove the sleeves. Take the power cable out of the
brackets.
3. Place covers over the transport bolt holes.
Four plastic covers are provided in the small parts bag
included with your washer. Separate these covers and
install one in each hole where the transport bolts were
removed.
Lock covers firmly by pressing on the snap hook.
NOTICE
Keep the assemblies together and store them for later
use such as when moving the washer.

18
en-us Installation instructions
Water connections
Water supply hose connections
NOTICE
The washing machine must only be operated with cold
and hot (max. 140 °F/60 °C) tap water. Do not connect
the appliance to the mixer tap of a pressurized hot-water
boiler.
Note:
▯To prevent water damage, the hot and cold water
valves should be accessible when the washing
machine is in place and should always be turned off
when the washing machine is not in use.
▯If installing the washing machine in a new building or
a building in which the plumbing system was recently
installed or upgraded, flush the lines before installing
the washing machine to remove any sand, dirt or
residue.
▯To prevent leakage or water damage, follow the
instructions in this chapter.
▯If in doubt, have the appliance installed by an
authorized technician.
Connect your washer to the wall faucets using the
included AquaShield™ water supply hose.
Observe each of the following:
▯Only use the new water supply hose shipped with your
washer. Never use old used hoses.
▯The water supply hoses must not be kinked, bent, or
pinched causing hose damage or restricting water
flow.
▯The water supply pressure must be between 14.5 to
145 psi (1 - 10 bar) with a minimum of 2.2 U.S. gallons
(8 liters) of flow per minute. A pressure regulator valve
must be installed if the maximum water pressure is
exceeded.
▯Make sure the water supply faucet is easily accessible
when the washer is in use. The faucet should be
turned off if the washer is going to be unused for
extended periods of time.
▯Make sure rubber washers are in place at both ends of
the water supply hose. Missing washers could cause
leaks.
▯The connection points are under full water pressure.
Turn on the water tap and check for leaks.
▯Periodically inspect the water supply hose and
replace with a new hose if cuts, kinks or leaks are
observed.
Water connection hoses
▯red - Hot water-hose
▯blue - Cold water-hose
Attach this end to water tap. Hand tighten only.
Attach this end of the hose to the back of the washing
machine as shown in the following pictures. Be sure to use
clamps and route hoses as instructed. Hand tighten only.
PD[ PD[

19
Installation instructions en-us
Position hoses as shown when routing hoses to right side
of washer (facing from front).
Position hoses as shown when routing hoses to left side
of washer (facing from front).
About the AquaShield™ Hose
The AquaShield hose prevents potential flooding in the
event the hose develops an internal leak. If the hose
leaks, the indicator turns red and water flow is blocked.
Once the internal valve in the hose activates (indicator is
red) the hose must be discarded. Contact Customer
Service to purchase a replacement.
AquaStop® Plus
The AquaStop Plus feature detects water leaks on the
internal base, shuts down operation and automatically
pumps out water so it cannot make contact with the floor.
This feature along with the internal mechanical valve of
the double-walled AquaShield hose makes AquaStop
Plus one of the most comprehensive water safety systems
available.
Water drain hose connection
NOTICE
Do not reuse an old drain hose. Only use the drain hose
and parts included with your washer.
Note: Do not kink or modify the water drain hose.
Height of drain point
Height difference between the floor and drainage point:
max. 39 in. (100 cm).

20
en-us Installation instructions
Types of drainage hookups
Standpipe
Attach the drain hose to the elbow included with your
washer.
Position the elbow on the drain hose 4" from end of hose
as shown. Insert this section of the drain hose into the
drain pipe. Secure the elbow and hose with a nylon tie
strap or the equivalent to keep the hose from coming out
of the drain pipe during use.
Sink siphon
Secure the drain hose to the sink siphon using a Ø 0.9 -
1.6 in. (20-44 mm) hose clip (available from a hardware
store).
Wash Basin
9WARNING
Scalding!
When washing at high temperatures, there is a risk
of scalding if you touch hot suds, e.g. when
pumping out hot suds into a wash basin.
Do not reach into the hot suds.
NOTICE
Appliance damage/damage to textiles
If the end of the drain hose touches the discharge water
(water drained from washer) it (the discharge water) can
be sucked back into the appliance and may damage the
appliance or textiles.
Make sure that:
– There is no stopper in the sink drain.
– The end of the hose does not touch the discharge
water.
– The sink drain is free flowing and not partially
clogged.
Attach the drain hose securely to the wash basin.
NOTICE
In any multi-story installation, the washer should be
installed on a drained floor to prevent water damage to
rooms below in the event of a leak.
LQ
FDEOHWLH
GUDLQ
SLSH
