Gallien-Krueger Neo series User manual

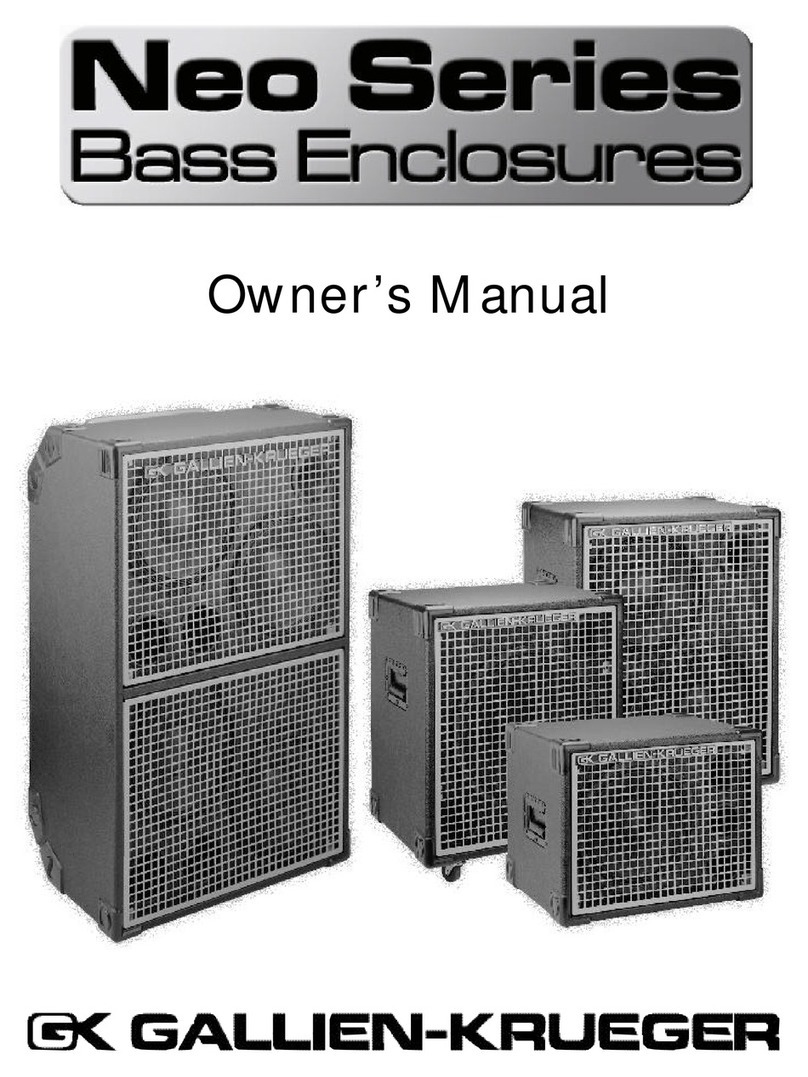

Neo Series
Bass Enclosures
Owner’s Manual

2
Neo Series Bass Enclosures
Congratulations
Your purchase of a new Gallien-Krueger product is surely
the result of much careful consideration on your part. For
our part, we at Gallien-Krueger are pleased that you chose
us, and are determined that you will be a satisfi ed customer.
In choosing GK, you now own gear with unique features
which will allow you to create your own distinct sound.
To get the most out of your new amplifi er please take a
few minutes to read through this manual.
Your amplifi er should have come with the following items,
please check the contents of the box to ensure that you
have everything.
Swivel Castors (Neo 410, 115 and 212 only) 1
Speakon Cable 1
Owner’s manual 1
Warranty card 1
If your unit did not come with all the items listed, or
if you encounter problems while setting up your new
equipment, please contact your local dealer or GK as
soon as possible.
Gallien-Krueger, Inc.
2234 Industrial Drive
Stockton, CA 95206
phone: (209) 234-7300
fax: (209) 234-8420
Internet: www.gallien-krueger.com
Email: [email protected]
Always Listening
I have never seen the point in doing things the way others have done them. I
also have not been very interested in following the latest fad. I’m a Stanford
educated engineer who worked my way through school as a musician. Like all
musicians, I have lugged amplifi ers up stairways and into car trunks, always
wondering why these things had to be so heavy, bulky, and hard to handle.
As I am the principal innovator at GK, our products refl ect my attitudes and life
experiences. I don’t model my designs after other manufacturers’ products.
Instead, I believe new and old problems are best solved with new solutions.
Having taken our own path, GK products enjoy a unique, unmatched sound,
allowing you every opportunity to make an original statement.
Having supported my products for over thirty years, I have learned from the story they tell. Gallien-Krueger is a refl ection
of that story, and has a commitment to support that legacy. Just as the products I created over thirty fi ve years ago are still
telling their story, the products we create today will be talking to us tomorrow.
We’ll be listening,
Robert Gallien
Warning!
this product is capable of producing high sound pressure levels.
Warning!
this product is capable of producing high sound pressure levels.
Warning!
Continued exposure to high SPL’s can cause damage to your hear-
ing. Always set the volume at a safe listening level or use hearing
protection if the unit is operated at higher levels.
Read, retain and follow all instructions. Heed all warnings.
Do not use this product near water or liquids. Do not place
liquid fi lled containers on this unit.
Clean only with a dry cloth.
Place only on a fi rm, level surface. A surface that vibrates or
moves is unsafe for the unit.
Do not place this product near heat sources such as radiators,
heat registers, stoves, or other units that produce heat.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket or table
specifi ed by the manufacturer or sold with the unit.
There are no user serviceable parts inside. Refer all servicing
to a qualifi ed service personnel.
This symbol warns the user of dangerous voltage
levels localized within the enclosure.
This symbol advises the user to read all accompanying
literature for safe operation of the unit.
Important Safety Instructions:

3
Neo Series Bass Enclosures
Setup & Maintenance
Packaging:
The carton and packing materials used in
shipping your new product were specifi cally designed
to cushion it from the shocks and vibration that occur
during transport. We suggest that you save the carton
and packing materials for use in shipping.
Transporting:
During transport, do not stack another
cabinet or any additional equipment on top of the
cabinet. The castors are not designed to handle the
weight of more than one cabinet. In situations where
the castors do not roll easily, remove castors and use a
handtruck instead. If traveling with the unit frequently,
we recommend a road case or cover to protect it from
scratches and road wear.
Stacking:
To insure the safe setup of the Neo series
cabinets please follow these basic procedures. Remove
castors from both cabinets before stacking. Never stack
more than two cabinets when in use. Make sure that
interlocking corners are securely seated.
Caution
DO NOT
connect more than one amplifi er to your
speaker enclosure. This will cause damage to your
equipment.
DO NOT
use shielded instrument cables to con-
nect to your speaker enclosure. Use only unshielded
speaker cables of 18 gauge or heavier for speaker
connections.
DO NOT
connect speakers with a total power
handling capacity below the power output rating of
your amplifi er. If your amplifi er is rated at 400 watts
at 4 ohms, then the combined power handling of your
speaker enclosures should be 400 watts RMS or high-
er at 4 ohms. See IMPEDANCE GUIDELINES for
additional info.
DO NOT
connect speakers with a combined total
impedance that is below the minimum rating of
your amplifi er. Doing so may cause damage to
your gear. Using speakers with a total impedance
above the minimum power rating of your amplifi er
is safe.
1
2
3
4
1) Speakon® Connector:
A high current speaker
connector. Use the provided 4-conductor Speakon®
cable for Horn Bi-Amp operation. Pins 1+ and 1- con-
nect the main amplifi er to the woofers. Pins 2+ and 2-,
connect the horn amplifi er to the tweeter. You may
use a standard 2-conductor Speakon® cable for full
range operation .
2) Mode Switch:
Switches between Horn Bi-Amp
mode and Full Range operation. When using this
cabinet with a Horn Bi-Amp compatible head such as
the 1001RB-II, this switch should be set to BI-AMP.
For operation with all other amplifi ers this switch
should be set to FULLRANGE.
3) Full Range ¼’’ Input Jack:
Using a standard ¼’’
unshielded speaker cable, this input jack provides full
range operation with any bass amplifi er head. Horn Bi-
Amp mode will not work with this jack. Neo cabinets
ship with a removable plug in the 1/4” jack. DO NOT
use tools to remove this plug. It can easily be removed
with your fi ngers.
4) High Range Attenuator:
Adjusts the volume level
of the horn when the cabinet is in Full Range mode.
When in Horn Bi-Amp mode, this control is bypassed
and the horn level is adjusted by using the Tweeter
control on the front panel of the amplifi er.
Features
1+ to Woofer +
2+ to Tweeter +
1- to Woofer -
2- to Tweeter -
Speakon Cable
Connector

Neo Series Bass Enclosures
Owner’s Manual
Part # 160-0340-B
Specifications
Neo 410 Neo 210 Neo 115 Neo 412 Neo212 Neo 112
Impedance:
8 ohms 8 ohms 8 ohms 4 ohms 8 ohms 8 ohms
Power Handling (RMS):
800W 400W 500W 1200W 600W 300W
Power Handling (Peak):
1600W 800W 1000W 2400W 1200W 600W
Sensitivity:
103 dB 98 dB 99 dB 102 dB 101 dB 98 dB
Maximum SPL:
132 dB 124 dB 127 dB 133 dB 129 dB 122 dB
Frequency Resp. (-3dB):
30 Hz to 19 kHz 47 Hz to 19 kHz 45 Hz to 19 kHz 54 Hz to 19 kHz 53 Hz to 19 kHz 51 Hz to 19 kHz
Woofers (Neodymium):
200W 32 ohm 200W 16 ohm 500W 8 ohm 300W 16 0hm 300W 16 ohm 300W 8 ohm
Horn (P-Audio):
25W 8 ohm 25W 8 ohm 25W 8 ohm 25W 8 ohm 25W 8 ohm 25W 8 ohm
Porting:
Front-Ported Front-Ported Front-Ported Front-Ported Front-Ported Front-Ported
Dimensions (WxHxD):
23.5 x 26.5 x 18.5 23.5 x 19.5 x 18.5 23.5 x 26.5 x 18.5 23.5 x 40 x 17.5 21 x 26.5 x 16.5 21 x 26.5 x 16.5
Weight:
78 lbs. 45 lbs. 63.5 lbs. 118 lbs. 60 lbs. 37 lbs.
Weight: 78 lbs. 45 lbs. 63.5 lbs. 118 lbs. 60 lbs. 37 lbs.Weight:
Tech Talk
Impedance Guidelines:
The impedance of your speaker
enclosure is referred to as the Ohm rating. Amplifi ers
connect cabinets in parallel so when combining speaker
enclosures, the impedance or Ohm rating will go down.
8 Ohms + 8 Ohms = 4 Ohms
4 Ohms + 4 Ohms = 2 Ohms
4 Ohms + 8 Ohms = 2.67 Ohms
Note: If you are combining speaker enclosures of
different impedances, the enclosure with the lower
impedance will receive a greater amount of the signal
causing it to be louder than the other cabinet.
Horn Bi-Amp System:
The Neo Series cabinets include a passive crossover for
standard operation or may be used with GK’s unique Horn
Bi-Amp System.
Horn Bi-Amp compatible amplifi ers use an electronic crossover
to split the signal between the main amplifi er and a separate
horn (tweeter) amplifier. The horn amp sends signals
above 5kHz to the horn while the main amplifi er sends a
full range signal to the woofers. Optionally you can engage
the Woofer High-Cut to to cut signals above 5kHZ from the
main amplifi er. Both signals are delivered to the cabinet via
a sin
gle
Speakon® cable
.
Note:
The 50W horn amplifi er has a fi xed frequency
output of 5kHz and up (high frequencies only). It
will not provide a useable signal to drive a seperate
speaker cabinet.
Note:
To avoid risk of damage to the equipment, do
not use a 4-conductor Speakon® cable with non GK
cabinets. Instead use a 2-conductor Speakon® or
¼” speaker cable.
CAUTION: UNDER NO CIRCUMSTANCES
SHOULD THE WOOFER/MAIN AMP AND
THE 50 WATT HORN AMP BE CONNECTED
TOGETHER!!!
