Gama Garden GLM-43E User manual

1
ELECTRIC LAWNMOWER
Instruction manual
GLM-43E

2

3
Congratulations on your purchase of a GAMA GARDEN
lawnmower
It is important that you read ,fully understand
and observe the following safety precautions
and warnings. Careless or improper use of the
machine may cause serious or fatal injury. The
user is responsible for any accidents involving
other people or other people’s property.
Never let children or other persons who are not
familiar with the operating instructions use the
lawnmower. Juveniles under 16 years may not use
the equipment. Local regulations may specify the
minimum age of the operator
Technical data

4
We reserve the right of technical changes
D measurement of noise at the operator＇s ear according to EN836.
E measurement of vibrations at the handlebar. Held by the operator according to EN1033, EN836.The typical
weighted acceleration is:
Type
LM-43E
A
128.9cm
B
95.3cm～105.3cm
C
49.9cm
D(Sound pressure level)
LPA 83.6dB(A)
E
ahw 2.34 m/s2
Sound power level:
LWA 96dB
Power
1500W
Amperage
6.6A
Condensator
25uF
Voltage
230-240VAC
Working width
43cm
Cutting height
25-75
Weight
19kg
Collector Vol.
48L
Safety instructions
Do not operate machine before having read the operating instructions, understood all the notes
and assembly the machine as described here. Keep the instructions in a safe place for future use.

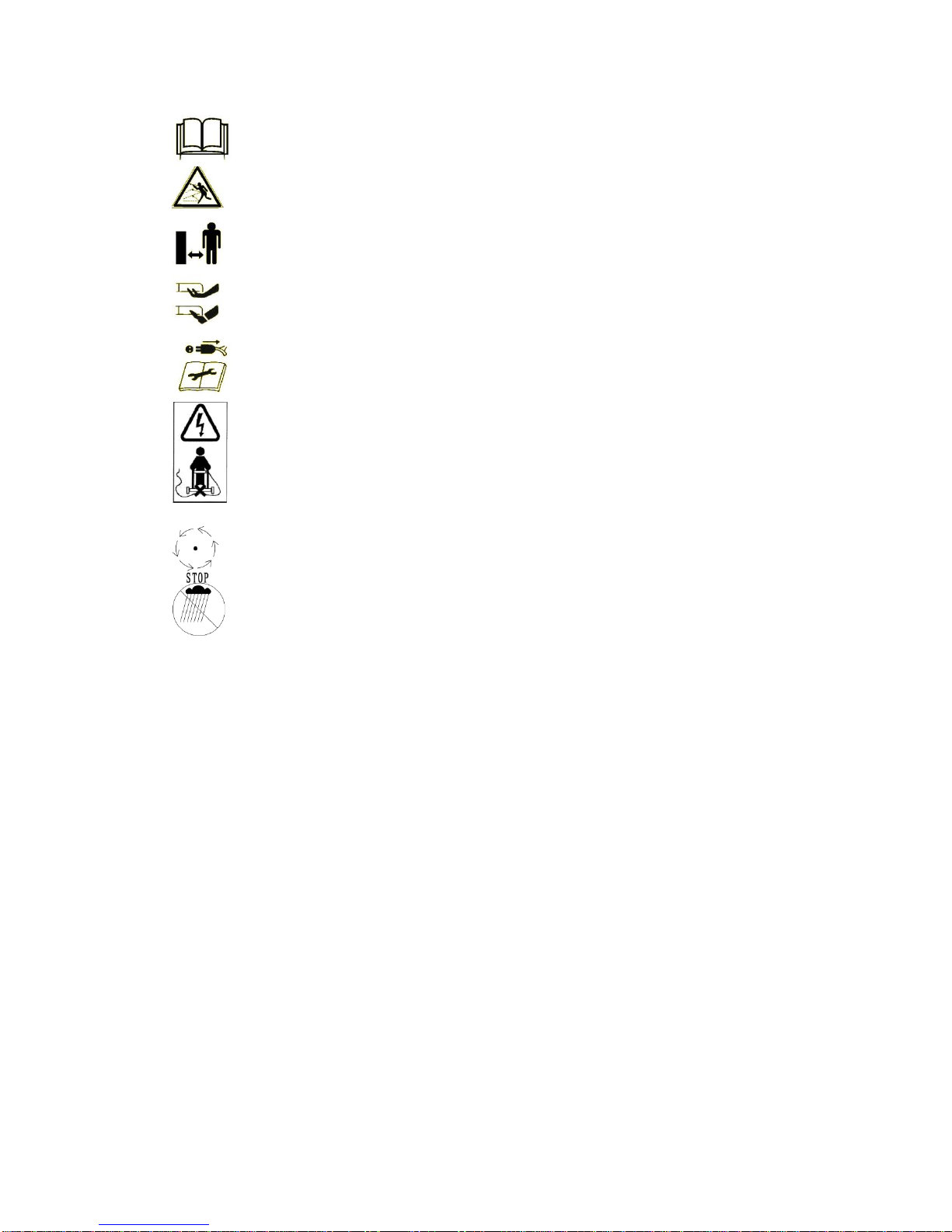

Meaning of the symbols
General hazard safety alert.

5
Read instruction manual
Beware of thrown or flying objects to bystanders.
Keep bystanders a safe distance away from the machine.
Sharp blade(s).Beware of severing toes or fingers.
Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled
and before leaving the lawnmower unattended for any period. Keep the supply flexible
cord away from the cutting blades.
Keep supply flexible cord away from cutting means
Wait until all machine components have completely stopped beforetouching them. The
blades continue to rotate after the machine is switched off, a rotating blade can cause injury.
Do not mow in the rain or leave the lawnmower outdoors whilst it is raining
1. General information
.This lawnmower is designed for domestic grass and lawn surfaces. Because of the physical risk to the user or to
others, the lawnmower must not be used for other purposes.
.Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.
.only mow the lawn during daylight or with the aid of appropriate artificial light.
.Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may
restrict the age of the operator.
.Never mow while people, especially children, or pets are nearby.
.The operator or user is responsible for accidents or hazards occurring to other people or their property.
2. Before mowing
.Always wear suitable clothing; never loose clothing; which could be caught by the cutting tool. Wear suitable
footwear! Also protect your legs (e. g. with long trousers) and your hands (gloves).
.Check the site on which the machine is to be used, and remove all items which could be caught and ejected.
.check the line and connection cable fitted to the outside of the lawnmower for damage and ageing
(brittleness).only use if in perfect condition.
.Only have the cable repaired by a qualified person.
.Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones and
other foreign objects.
.Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or
damaged.
.Replace worn or damaged blades and bolts in sets to preserve balance.
.Check the grass catchment device regularly for wear-and-tear and deformation.

6
.Check the supply cord before using the equipment,
if the rubber encloser of the supply cord has broken off or the metal conductor of it exposes to the air, replace the
supply cord immediately to avoid the risk of electrical shock.
3. Cables
.Please work with safety cables. For the connection only lines which are not lighter than rubber hose lines H07
RN-F with a minimum diameter of 3x1.5mm2 must be used. Do not exceed a maximum length of 25m.
.Plugs and couplings must be protected from splashes.
.Use a leakage-protective system(RCD)with a leakage current of no more than 30 mA
.Attach connection cable to traction relief. Make sure that in does not rub against edges. pointed or sharp objects.
Do not squeeze cable through door or window gaps
.Switching devices must not be removed or bridged (e. g. tying of switching lever to guide spar).
.Remove the plug from the socket
- whenever you leave the machine;;
-before clearing a blockage;
-before checking, cleaning or working on the machine;
-after striking a foreign object; inspect the appliance for damage and make repairs as necessary;
-if the appliance starts to vibrate abnormally (check immediately)
If the connection cable is damaged during use, it must be immediately disconnected from the main power supply
Do not touch the cable before it has been disconnected
from the mains power supply.
4. When mowing
. Only switch on motor when your feet are at a safe distance from the cutting tools.
. Do not tilt lawnmower when switching on the motor, except if the appliance has to be tilted for starting. In this
case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator. Always
ensure that both hands are in the operating position before returning the appliance to the ground.
. Avoid operating the appliance in wet grass, where feasible.
.Adhere to the safety distance given by the guidance spars.
. Always be sure of your footing on slopes.
. Walk, never run.
. For wheeled rotary mowers, mow across the face of slopes, never up and down.
. Exercise extreme caution when changing direction on slopes.
. Do not mow excessively steep slopes.
. Use extreme caution when reversing or pulling the appliance towards you.
. Stop the blade(s) if the appliance has to be tilted for transportation when crossing surfaces other than grass, and
when transporting the appliance to and from the area to be mowed.
.Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors
and/or grass catchers, in place.
Switch on the motor according to instructions and with feet well away from the blade(s).
Do not put hands or feet near or under rotating parts. For rotary mowers, keep clear of the discharge opening at all
times.
Never pick up or carry an appliance while the motor is running.
Pull the plug from the socket :
-before clearing blockages or unclogging chute;
-before checking, cleaning or working on the machine;

7
-after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating
the machine;
-if the machine starts to vibrate abnormally(check immediately);
Always mow slopes at right angles to the incline; never mow up and down
Caution: do not touch running cutters.
Never open the guard flap while the motor is still running.
Assembly
Collector part assembly (fig.A1)
1.Press the handle (1) into collector cover(2),
2.place the collector cover on the collector base(3) from above in such a way that all the eyes are positioned over
the hooks.
3.Press the collector cover on the collector base until the hooks engage securely.
4.Inspect：Check that all the hooks are engaged securely.
Assembling bottom handle part(fig.A2)
Put the bottom handle(A) into chassis holes(B), then insert securing screw ST4.7X16 (C) from inside through the
bottom handle, so that both projections catch in the recesses.
Assembling top of handle(fig.A3)
Attaching switch, strain relief and clips(fig.A4/A5)
Fold up switch bracket and position switch on the upper handle element so that the two nubs catch in the holes .
Close switch bracket . Then fasten switch with the two screws ST4X16. fasten switch cable with the clips on the
handle rod.(fig.A4)
Operation
Operating times
Please check noise abatement regulations prevailing in your country.
Inserting power cable into cable holder (fig.A6)
Insert the power cord into the strain relief as shown in the illustration.
Connecting to the mains
The mower operates from any normal household mains supply
(230 Volt AC., 50 Hz), provided with a 13 Amps. fuse.
Note: Use a residual current device (RCD) rated for a residual current not greater than 30 mA.
Collector (Fig.A8)
Fitting
Lift the deflector guard and hold up, fit the collector.
Removing/emptying
Lift the deflector guard and hold up. Remove collector.
For non grass collection the mower can be used without the collector in position, with the deflector guard in the
down position.
Setting the working depth (Fig,A9)
Stop, release switch lever and wait until the motor stops before adjusting height. The
blades continue to rotate after the machine is switched off, a rotating blade can cause
injury
For the first cutting of the season, a high cutting adjustment should be selected.
You machine has five settings that result to the following cutting heights.
Ⅰ=25mm Ⅱ=35mm Ⅲ=45mm Ⅳ=60mm Ⅴ=75mm
Important! The front and back wheels must be set to the same height.
Starting and Stopping (Fig.A7)
The blade continues to rotate for a few seconds after the machine is switched off. Allow the
motor/blade to stop rotating before switching “on”again.

8
Do not rapidly switch off and on.
starting:
1. Press and hold the safety button 1.
2.Squeeze the switch lever 2 towards the handle.
3.Release the safety button 1.
Stopping:
Release the switch lever 2.
Mowing :
Place the lawnmower on the edge of the lawn, as close to the power point as possible. Work away from
the power point
Position the cable to opposite side(already cut)at the end of each turn.
When mowing do not allow the motor to labour particularly in heavy conditions. When the
motor labours the speed of the motor drops and you will hear a change in the motor sound, when
this occurs stop mowing, release the switch lever and raise the height of cut. Failure to do so
could damage the machine.
NOTE: The motor is protected by a safety cut out which is activated when the blade becomes
jammed or if the motor is overloaded. When this occurs stop, remove the plug from the power supply.
The safety cut out will only reset when the switch lever 2 is released. Clear any obstruction and wait
for a few minutes for the safety cut out to reset before continuing to use the mower. At this time do not
operate the switch lever 2 as this will prolong the reset time of the safety cut out. If the mower cuts out
again increase the height of cut to reduce the load on the motor.
Maintenance
Cleaning
Note: Disconnect electricity by unplugging cable at the socket before proceeding. Attention:
keep hands clear of moving blade.
Clean mower thoroughly after each mowing with cloth or brush.
Do not spray with water.
Winter storage
. Clean mower thoroughly before storing away.
. Have your mower thoroughly checked once a year by an approved service center
. Do not store it in a wet or hunid place.
.Keep all nuts, bolts, and screws tight to be sure the appliance is in safe working condition.
.Check the grass catcher frequently for wear or deterioration.
.Replace worn or damaged parts for safety.
Stop, remove plug from the power
supply and remove the collector.
Turn the machine on its right side and inspect the blade L06 and fan; if blunt or damaged, replace .
Use the following procedure to remove and replace the blade. Hold the blade using gardening gloves(not provided)
use a spanner(not provided)to remove the blade bolt, fan and blade. Fit the fan, blade and blade bolt. Ensure that
the blade is the correct way up and tighten the bolt firmly.

9
Faults and how to remedy
Guarantee terms
Please carefully retain the guarantee card completed by the seller, or the proof of purchase.
The company GAMA GARDEN provides a guarantee for 12 months from the date of purchase This guarantee is
in accordance with the relevant state of technology and the utilisation purpose / area of application The
consumer‘s statutory rights are not affected by the following guarantee guidelines
Pre-conditions for the 12-month guarantee entitlement :
- Deployment of the device solely for private use.
- Proper handling and observance of all information given in the operating manual, which forms part of our
guarantee terms.
-Observance of the prescribed maintenance intervals
-No unauthorized alteration of the design.
-Installation of original GAMA GARDEN replacement parts/accessories.
-Presentation of the completed guarantee card and/or proof of purchase.
This guarantee does not extend to normal wear-and-tear on blades, blade mounting
components or friction disks, V-belt/toothed belts, running wheels/tyres air filters
spark plugs and spark plug connectors. Any guarantee claim shall be immediately
void in the event of unauthorized repairs. Faults and defects ,which can be traced to
material or manufacturing faults will be rectified exclusively by our contracted
workshops (the seller has the right to remedy a defect) in your vicinity. or by the
manufacturer if the latter is closer. Any claims going beyond the provision of a
Remedy (X) by:
problem
Possible Cause
GAMA GARDEN
service-workshop
yourself
Uneven running,
heavy vibrations in
the mower
. Blades damaged
. Blades loose in the fastening parts
. Fuse blown
. Cable damaged
X
----
-----
X
----
X
X
----
Motor will not run
.Fuse blown
.Cable damaged
Important! If you inadvertently cut through
the cable, the fuse (16 Amp.)will not always
blow.
In the interest of safety, never touch damaged or
servered cables before disconnecting the mains
plug. Repairing the cable with insulating tape is
prohibited.
----
X
X
----
Poor mowing
. Blunt blades
. Incorrect cutting height
X
----
----
X
Poor catching
. Blunt blades
. Catcher bag blocked
.Incorrect cutting height
X
----
----
---
X
X
When in doubt, always consult a GAMA GARDEN service workshop.
Important: switch off the mower and disconnect the mains plug before inspecting, cleaning or working
on the blades.

10
guarantee are ruled out. There is no entitlement to a replacement. Any transport
damage should be reported not to us but to the shipper in question since, otherwise,
any compensation claims the shipper would be voided.
